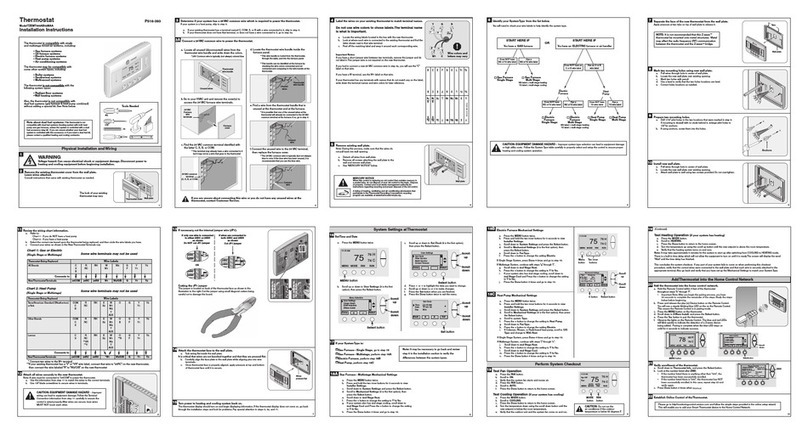

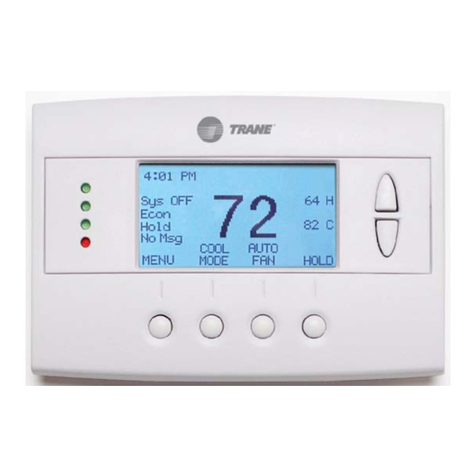

Trane Schlage LiNK TZEMT400BB32MAA Assembly instructions

Thermostat
Model TZEMT400BB32MAA
Installation, System Setup, and
Enrollment Instructions
Customer Service: [phone]
1WARNING
Voltage hazard. Can cause electrical shock or equipment damage. Disconnect power to heating and cooling
equipment before beginning installation.
2Remove the existing thermostat cover from the wall plate. Leave
wires attached.
Consult instructions that came with existing thermostat as needed.
Wall plate
Thermostat cover
The look of your existing
thermostat may vary
Physical Installation and Wiring
The Trane Thermostat is compatible with single and multistage forced air
systems, including:
• Gas furnace systems
• Oil furnace systems
• Electric furnace systems
• Heat pump systems
• Air conditioning systems
The Trane Thermostat may be compatible with some other system
types, including:
• Boiler systems
• Geothermal systems
• Multi-zoned systems
Call [phone] to verify compatibility.
The Trane Thermostat is not compatible with the following system types:
• Radiant floor systems
• Wall heating systems
Also, the Trane Thermostat is not compatible with dual fuel systems
(gas furnace & heat pump combined) without adding a special kit. See
Note below.
• Note about dual fuel systems: This thermostat is not compatible
with dual fuel systems (heating system with both heat pump
and gas furnace), unless the system is controlled with a dual
fuel accessory relay kit. If you are unsure whether your dual fuel
system is controlled with this accessory or if you need a dual
fuel kit, please contact a qualified heating and cooling contractor.
Tools Needed
1/8”
#2
Bridge requires one 9-Volt battery for
enrollment process. Battery not included.
For professional installation service, instructions, operation guide, and installation video modules, please visit link.schlage.com
Customer Service hours of operation:
•Monday-Friday9.00am-7:00pmEST
•Saturday11:00am-6:00pmEST
•Sunday11:00am-4:00pmEST
To use the remote features of this thermostat, a Schlage LiNKTM account is required. Schlage LiNK™ online setup requires
broadband internet service and router with available port.

2
3A
If you are unsure about connecting this wire or you do not have any unused wires at the thermostat, contact
Customer Service at [phone].
Connect a 24 VAC common wire to power the thermostat.
3Determine if your system has a 24 VAC common wire which is required to power the thermostat.
• If your system is a heat pump, skip to step 4.
a. IfyourexistingthermostathasaterminalnamedC,COM,X,orBwithawireconnectedtoit,skiptostep4.
b. If your thermostat does not have that terminal, or does not have a wire connected to it, go to step 3a.
a. Locate all unused (disconnected) wires from the
thermostat wire bundle and write down the colors.
• i24VCommonwireistypically(notalways)colored
blue
Unused wires
Thermostat
wire bundle
b. GotoyourHVACunitandremovethecover(s)toaccess
the24VACfurnacewireterminals.
24 VAC
Furnace
wire
terminals
Furnace
cover
c. Findthe24VACcommonterminalidentiedwiththe
letter C, X, B, or COM.
• This terminal may already have a wire connected to it
but it may not be a wire that goes to the thermostat
24 VAC common
terminal
(C, X, B, or COM)
G
W
R
C
d. Locate the thermostat wire bundle inside the furnace
panel.
• This wire bundle is routed from the thermostat,
through the walls, and into the furnace panel.
• Thisbundlecanbeidentiedatthefurnaceby
checking the wire colors connected and not connected
and comparing to the wire bundle at the thermostat.
Thermostat
wire bundle
G
W
R
C
Unused
wires
e. Find a wire from the thermostat bundle that is unused at
the thermostat and at the furnace.
• It is possible that one of the unused wires at the
thermostatwillalreadybeconnectedtothe24VAC
commonterminalatthefurnace.Ifso,gotostep4.
G
W
R
C
Unused
wire
f. Connecttheunusedwiretothe24VACterminal,then
replace the furnace cover.
• The24VACcommonwireistypically(butnotalways)
blue in color. If the blue wire has been unused, it is
recommended that you use the blue wire.
G
W
R
C
Connect
wire

3
Label the wires on your existing thermostat to match terminal names.
• Do not use wire colors to chose labels.The terminal name is what is
important.
a. Locate the wiring labels located in the box with the new thermostat.
b. Lookatwhereeachwireisconnectedtotheexistingthermostatandndthe
letter shown next to that wire terminal.
c. Peel off the matching label and wrap it around each corresponding wire.
Important Notes:
• If you have a short jumper wire between two terminals, remove the jumper
and do not label it. This jumper wire is not required on the new thermostat.
• If you had to connect a new 24 VAC common wire in step 3a, you will use
the “C” label on that wire.
• If you have a W terminal, use the W1/W label on that wire.
• If your thermostat has any terminals with names that do not match any
on the label, write down the terminal names and wire colors for later
reference.
Y
Y G
W1 C
R
G
Rc
R
C
Wire colors and
letters may vary
!
W1
4
BCEFGOLY1Y2
Rc
R
Rh
R
X2 TW1
W
W2 W3
XY
P516-001 Rev. 03/09-a
BCEFGOLY1Y2
Rc
R
Rh
R
X2TW1
W
W2W3XY
5Remove existing wall plate.
• Note: During this process, make sure that the wires do not pull back into
wall opening.
a. Detach all wires from wall plate.
b. Remove all screws attaching the wall plate to the wall and remove wall plate.
c. See “MERCURY NOTICE” below.
MERCURY NOTICE
When this control is replacing an old control that contains mercury
in a sealed tube, do not dispose of your old control in the trash.
Dispose of properly. Contact your local waste management authority
for instructions regarding recycling and proper disposal of the old
control.
A listing of heating, ventilating and air conditioning wholesalers
that participate in the Thermostat Recycling Corporation’s recycling
program are available at www.thermostat-recyle.org .
Wall plate

4
6Identify your System Type from the list below.
You will need to check your wire labels to help identify the system type.
CAUTION: EQUIPMENT DAMAGE HAZARD
Improper system type selection can lead to equipment damage or high utility costs. Follow the System Type table
carefully to properly select and setup the control to ensure proper heating and cooling system operation.
Gas Furnace
Single Stage
Gas Furnace
Multi Stage
W2 label = multi stage heating
Y2 label = multi stage cooling
Electric
Furnace Heat
Pump
Electric
Furnace
Single Stage
Electric
Furnace
Multi Stage
W2 label = multi stage heating
Y2 label = multi stage cooling
Heat Pump
Single Stage
Heat Pump
Multi Stage
Does NOT have
W2 or Y2 wire label
Has a
W2 or Y2 wire label
Does NOT have an
O or B wire label
Has an O or B
wire label
Does NOT have
Y2 wire label
Has a
Y2 wire label
START HERE IF
You have a GAS furnace
START HERE IF
You have an ELECTRIC furnace or air handler
Does NOT have
W2 or Y2 wire label
Has a
W2 or Y2 wire label
OR

5
10 Install new wall plate.
a. Pull wires through hole in center of wall plate.
b. Locate the new wall plate over existing opening.
c. Attach wall plate to wall using two screws provided. Do not overtighten.
7Separate the face of the new thermostat from the wall plate.
Apply pressure at two tabs on top of wall plate to release it.
• NOTE: It is not recommended that this Z-wave thermostat be mounted
onto metal structures. Metal may affect the radio frequency (RF)
communication between the thermostat and the Z-wave signal to the
Schlage Bridge.
8Mark two mounting holes using new wall plate.
a. Pull wires through hole in center of wall plate.
b. Locate the new wall plate over existing opening.
c. Mark two holes with pencil.
d. Use a level to verify that the two holes locations are level.
e. Correct holes locations as needed.
9Prepare two mounting holes.
a. Drill1/16”pilotholesinthetwolocationsthatweremarkedinstep9.Ifmounting
todrywallwithnostudsbehindit,enlargepilotholesto1/8”foranchors.
b. If using anchors, screw them into the holes.
Anchors
24RC
G
Y1
Y2
RS2
RS2
HC
24C
24RH
W1
W2/O
RS1
RS1
H1
Wall plate
Tabs
24RC
G
Y1
Y2
RS2
RS2
HC
24C
24RH
W1
W2/O
RS1
RS1
H1
Y2
24RC
G
Y1
Y2
RS2
RS2
HC
24C
24RH
W1
W2/O
RS1
RS1
H1
Y2

6
11 Review the wiring table information.
a. Refer to:
• Table1-IfyoudoNOThaveaheatpump
• Table 2 - If you have a heat pump
b. Select the correct row based upon the thermostat being replaced, and then circle the wire labels you have.
c. Connect your wires as shown in the New Thermostat Terminals row.
Table 1: Gas or Electric
(Single Stage or Multistage)
Themostat Being Replaced Wire Labels
All Brands C
X
B
R
RC
RH W
W1
W2 G
F
Y
Y1
Y2
Connects to
New Thermostat Terminals 24COM 24RC 24RH W1 W2/O/B G Y1 Y2
Table 2: Heat Pump
(Single Stage or Multistage)
Themostat Being Replaced Wire Labels
Trane/AmericanStandard
(Weathertron) or York
COM
C
B
R
RC
RH E
X2
W
W1
W2
Y
AUX
O G Y
Y1
Y2
Other Brands COM
C
X
R
RC
RH E
X2
W
W1
W2
Y
AUX
O
B
G
F
Y
Y1
Y2
Lennox C
X
R
RC
**VR
**V
RH E
X2
W
W1
W2
Y
AUX
O
**R
G
F
Y
Y1
Y2
Connects to
New Thermostat Terminals 24COM 24RC 24RH *W1 W2/O/B G Y1 Y2
* ConnecttwowirestotheW1terminal
**Ifyourexistingthermostathasa“V”or“VR”wirelabel,connectthatwireto“24RC”onthenewthermostat,thenconnectthe
wirelabeled“R”to“W2/O/B”onthenewthermostat
Some wire terminals may
not be used
Some wire terminals may
not be used
12 Attach all wires securely to the new thermostat.
Note:Awiremustbeconnectedto“24C”topowerthethermostat.
a. Usetheinformationfromstep11tomatchthewirestothecorrectterminals.
b. Use1/8”bladescrewdrivertosecurewiresinterminals.
CAUTION: EQUIPMENT DAMAGE HAZARD
Improper wiring can lead to equipment damage. Follow the
Terminal Connection information from step 11 carefully to ensure
the control is wired properly. After wires are secure, bare wires
MUST NOT touch each other.
24RC
G
Y1
Y2
RS2
RS2
HC
24C
24RH
W1
W2/O
RS1
RS1
H1

7
13 If necessary, cut the internal jumper wire (JP1).
24RC
24RH
W1
RC
24RC
24RH
W1
RH
OR
24RC
24RH
W1
RC
RH
Do NOT cut JP1 jumper Cut JP1 jumper
If only one wire is connected
to either 24RC or 24RH
as shown
If wires are connected to
both 24RC and 24RH
as shown
Cutting the JP1 jumper
The jumper is located on back of the thermostat face as shown in the illustration to
the right. Cut the jumper using small diagonal cutters being careful not to damage
the board.
15 Turn power to heating and cooling system back on.
The thermostat display should turn on and begin displaying information. If the thermostat display does not come on, go back
throughtheinstallationstepsandlookforproblems.Payspecialattentiontosteps3,3a,and11.
14 Attach the thermostat face to the wall plate.
a. Tuck wiring flat inside the wall plate.
• It is critical that wires are not bunched together and that they are pressed
flat.
b. Carefully align the face plate to the wall plate while aligning pins into wire
terminals.
c. Once thermostat face is properly aligned, apply pressure at top and bottom of
thermostat face until it is secure.
24RC
G
Y1
Y2
RS2
RS2
HC
24C
24RH
W1
W2/O
RS1
RS1
H1
Y1
Y2
Wires
pressed flat
JP1
24C
24RH
W1
W2/O
RS1
RS1
SHLD
HI-NO
24RC
G
Y1
Y2
RS2
RS2
SHLD
HI-C
JP1 JP1

8
17 If your System Type is:
Gas Furnace - Single Stage,gotostep19
Gas Furnace - Multistage,performstep18A
Electric Furnace,performstep18B
Heat Pump,performstep18C
• Note: It may be necessary to go back and review step 6 in the installation section to verify the differences between
the system types.
16 Set Time and Date
a. Press the MENU button twice.
MENU MODE FAN RUN
78 68 H
78 C
11:15 PM
MENU button
b. Scroll up or down to User Settings(itistherstoption),
then press the Select button.
c. Scroll up or down to Set Clock(itistherstoption),then
press the Select button.
Done Select
User Settings
Set Clock
Filter Service
Maint Service
Screen Timeout
Scroll
up
Scroll
down
Select button
d. Press3or4to highlight the data you want to change.
e. Scroll up or down (+ or -) to make changes.
f. Press the Setbuttonwhenyouarenished.
Scroll
up
Scroll
down
Set button
Back
Set Clock
Set
Time 10 :15 PM
Date 3 / 23 / 09
Day Mon
g. Press the Done button twice to exit the menu.
System Settings at Thermostat
Done Select
Menu Selection
User Settings
Usage Graph
ESM Setpoints
ZWave Install
Scroll
up
Scroll
down
Select button

9
Gas Furnace - Multistage Mechanical Settings
a. Press the MENU button twice.
b. Press and hold the two inner buttons for 3 seconds to view
Installer Settings.
c. Scroll down to System Settings and press the Select button.
d. Scroll to Mechanical Settings(itistherstoption),thenpressthe
Select button.
e. Scroll down to 2nd Stage Heat.
f. Press the +button to change the setting to Yfor Yes.
g. If your system also has 2nd stage cooling, scroll down to
2nd Stage Cool and press the +button to change the setting to Y
for Yes.
h. Press the Donebutton4timesandgotostep19.
18A
Electric Furnace Mechanical Settings
a. Press the MENU button twice.
b. Press and hold the two inner buttons for 3 seconds to view
Installer Settings.
c. Scroll down to System Settings and press the Select button.
d. Scroll to Mechanical Settings(itistherstoption),thenpressthe
Select button.
e. Scroll down to Fan Type.
f. Press the +button to change the setting Electric.
• If Single Stage System, press Done4timesandgotostep19.
• If Multistage System, continue with steps “g” through “j”.
g. Scroll down to 2nd Stage Heat.
h. Press the +button to change the setting to Y for Yes.
i. If your system also has 2nd stage cooling, scroll down to
2nd Stage Cool and press the +button to change the setting to Y
for Yes.
j. Press the Donebutton4timesandgotostep19.
18B
18C Heat Pump Mechanical Settings
a. Press the MENU button twice.
b. Press and hold the two inner buttons for 3 seconds to view
Installer Settings.
c. Scroll down to System Settings and press the Select button.
d. Scroll to Mechanical Settings(itistherstoption),thenpressthe
Select button.
e. Scroll to system Type.
f. Press the + button to change the setting to Heat Pump.
g. Scroll down to Fan Type.
h. Press the +button to change the setting Electric.
i. If Coleman, Rheem, or Rudd brand heat pump, scroll to C/O Type
and change to With Heat.
• If Single Stage System, press Done4timesandgotostep19.
• If Multistage System, continue with steps “j” through “n”.
j. Scroll down to 2nd Stage Heat.
k. Press the +button to change the setting to Yfor Yes.
l. Scroll down to 2nd Stage Cool.
m. Press the +button to change the setting to Yfor Yes.
n. Press the Donebutton4timesandgotostep19.
Menu
button
MENU MODE FAN RUN
75 76 H
74 C
11:15 PM
Two inner
buttons
Scroll
up
Scroll
down
Set buttonSet button
+ button
Done
Mechanical Settings
Select
Type Heatpump
Fan Type Elec
C/O Type w/Cool
2nd Stage Heat N

10
Test Heating Operation (if your system has heating)
a. Press the MODE button.
b. Scroll to HEATING.
c. Press the Done button to return to the home screen.
d. Turn the temperature up using the scroll up button until the new setpoint is above the room temperature.
e. Verifythattheheatingsystemturnsonandruns.
• Note: It may take approximately 5 minutes for the system to start up after switching from COOLING to
HEATING mode. There is a built in time delay which will not allow the equipment to turn on until it is ready. The
screen will display the word “Wait” until the time delay has finished.
This concludes the system checkout. If any part of your system fails to come on when performing this checkout
procedure, verify that the correct wires were connected to the wall plate and that each wire is securely attached to the
appropriate terminal. Also go back and verify that you have set up the Mechanical Settings to match your System Type.
Test Fan Operation
a. Press the FAN button.
b. Scroll to ON.
c. Verifythatthesystemfanstartsandmovesair.
d. Press the FAN button.
e. Scroll to AUTO.
f. Press the Done button to return to the home screen.
Test Cooling Operation (if your system has cooling)
a. Press the MODE button.
b. Scroll to COOLING.
c. Press the Done button to return to the home screen.
d. Turn the temperature down using the scroll down button until the
new setpoint is below the room temperature.
e. Verifythattheoutdoorunitandthesystemfancomeonandrun.
Perform System Checkout
19
CAUTION: Do not run the
air conditioner if the outdoor
temperature is below 55 degrees F.
FAN
button
MODE
button
MENU MODE FAN RUN
75 76 H
74 C
11:15 PM
AUTO AUTO
Sys Off
Run

11
20 Prepare the Schlage Bridge for enrollment.
• If you are using a controller that is not a Schlage Bridge, consult the
instructions that came with the controller to find out how to enroll a
new device.
a. Unplug Ethernet and power cables from Schlage Bridge.
b. Installaquality9voltbattery.
c. Verifythatbluelightisblinking.Ifbluelightissolid,batteryisdead.
Replacewithnew9voltbattery,ifneeded.
d. Take the Schlage Bridge to the location where the thermostat is mounted.
Enroll Thermostat into existing Schlage LiNKTM System
21 Enroll the thermostat into the Schlage Bridge.
a. HoldtheSchlageBridgewithin6feet(1.8meters)ofthethermostat
throughout steps “b” through “f”.
• Important Note: After you begin the enrollment process, you have
30 seconds to complete the remainder of the steps. Study the steps
below before beginning.
b. Press and release the plus (+) button on the Schlage Bridge.
c. Press the MENU button on the thermostat.
d. Scroll down to Z Wave Install, and press the Select button.
e. Press the Yes button to enroll the thermostat.
f. Observe the lights on the Schlage Bridge. The orange light will blink
while enrollment is taking place. Enrollment is complete when the orange
light becomes solid.
MENU MODE FAN RUN
78 68 H
78 C
11:15 PM
MENU button
22 Verify enrollment of the thermostat.
a. Scroll down to Thermostat Info, and press the Select button.
b. Look at the number listed after ZNID.
• If the number listed there is anything other than “000”, the
thermostat has been successfully enrolled.
• If the number listed there is “000”, the thermostat has NOT
beensuccessfullyenrolled.Inthiscase,repeatstep21and
verify again.
c. Press Donebutton2timeswhennished.
Blue
light
Battery
Select button
Done Select
Menu Selection
User Settings
Usage Graph
ESM Setpoints
ZWave Install
Scroll
down
ZNID
Done
Thermostat Info
TZEMT400BB32 Ver: 01.00.10
ZVER:02.00.0 ZNID: 013
ZHID: 01.07.37.a7
System Type: Standard
Fan Type: Gas
Gateway

12
23 Establish Online Control of the Thermostat.
A Schlage LiNK account is required to complete the setup.
If you have an active Schlage LiNK account, continue with the steps below.
If you need to create a new account, go to www.schlagelink.com and click on “Just Purchased A Schlage LiNK System?”
For more information about the Schlage LiNK system, visit www.link.schlage.com.
Completing the setup.
a. Remove the battery from the Schlage Bridge.
b. Plug the Ethernet and power cord back into the Schlage Bridge.
c. Log into your account at www.schlagelink.com.
d. Click the Climate tab and follow the on-screen instructions.
©2010SchlageLockCompany
TZEMT400BThermostatInstallationInstructionsRev.11/10
18-HD43D1-2
