Transcend TS-AAP12 User manual

TS-AAP12
Intel Pentium II, III Series
USER/S MANUAL
Your Supplier, Your Partner,
Your Friend.
Transcend

User/s Notice
This User/s Manual is designed to assist system manufacturers or end users
to set up and install the motherboard. All information within this document has
been carefully checked. However, Transcend Information, Inc. (hereinafter re-
ferred to as Transcend) carries no responsibility on liability to any error or
inaccuracy which might occur in this manual, including the products and soft-
ware mentioned in it. In addition, the information and specifications are subject
to change without notice in advance.
Transcend Information, Inc. provides this manual as is without warranty of
any kind, either expressed or implied, including but not limited to the implied
warranties, conditions of merchantability or fitness for a particular purpose. In
no event shall Transcend Information, Inc., its employers, employees,
distributors, or agents be liable for any indirect, special, incidental, or conse-
quential damages, including loss of profits, loss of business, loss of use or
data, interruption of business and the like, even if Transcend Information, Inc.
has been advised of the possibility of such damages arising from any defect or
error in this manual or product.
All brands, product names, and trademarks mentioned in this document are
the property of their respective owners or companies and are used only for
identification or explanation.
Product Model: TS-AAP12
Manual Version: 3.0
Release Date: April,1999

Table of Contents
CHAPTER 1 INTRODUCTION 1
1.1 Package Contents ............................................................................................................. 1
1.2 Specifications and Features ............................................................................................ 1
CHAPTER 2 HARDWARE INSTALLATION 3
2.1 Transcend TS-AAP12 Motherboard .................................................................... 3
2.2 Layout of Transcend TS-AAP12 Motherboard................................................. 4
2.3 CPU Installation ............................................................................................ 5
2.4 66/100MHz System Configuration........................................................ 8
2.5 CPU Internal Frequency Ratio Setting............................................................ 8
2.6 Memory Configuration ................................................................................... 10
2.7 Keyboard Wake Up ....................................................................................... 11
2.8 Primary / Secondary IDE Connectors ............................................................. 11
2.9 Floppy Disk Drive Connector .......................................................................... 12
2.10 Fan Power Connectors .................................................................................. 12
2.11 Wake-on-LAN Connector ............................................................................ 13
2.12 IrDA-Compliant Infrared Module Connector .................................................. 13
2.13 Panel Connectors....................................................................................... 14
2.14 Power Connector....................................................................................... 15
2.15 External Connectors....................................................................................16
2.16 Clear CMOS Jumper................................................................................... 17
2.17 SB-Link Connector.............................................................................. 17

CHAPTER 3 BIOS SETUP 18
3.1 BIOSSetup........................................................................................................................18
3.2 The Main Menu ................................................................................................................. 18
3.3 Standard CMOS Setup.................................................................................................... 20
3.4 BIOS Features Setup ...................................................................................................... 23
3.5 Chipset Features Setup................................................................................................... 26
3.6 Power Management Setup ............................................................................................. 29
3.7 PnP/PCI Configuration Setup.......................................................................................... 32
3.8 Integrated Peripherals .................................................................................................... 35
3.9 Supervisor Password...................................................................................................... 38
3.10 User Password .............................................................................................................. 39
3.11 IDE HDD Auto Detection .............................................................................................. 39
3.12 Save & Exit Setup.......................................................................................................... 40
3.13 Exit Without Saving ....................................................................................................... 40
3.14 Load BIOS Defaults....................................................................................................... 41
3.15 Load Setup Defaults ..................................................................................................... 41
CHAPTER 4 BIOS UPGRADE 42
4.1 How to Check Your BIOS File Name and Version ........................................................42
4.2 Download Correct BIOS File from Web........................................................................ 42
4.3 How to Update Your Motherboard BIOS ........................................................................ 43

INTRODUCTION
1
CHAPTER 1 INTRODUCTION
1.1 Package Contents
This motherboard package contains the following items. If you discover any damaged or missing
items, please contact your retailer.
1 - TS-AAP12 Motherboard
2 - CD-ROM
3 - One FDD cable, one IDE cable
4 - Users Manual
1.2 Specifications and Features
••
••
• CPU
- Support Intel Pentium II 233MHz~450MHz
- Support Intel Pentium III 450MHz~533MHz
••
••
• Chipset
- VIA 693/596A AGPset(100MHZ Ultra DMA 33)
- VIA 693A/596B AGPset (133MHZ Ultra DMA 66)
••
••
• DRAM Memory
- Support Synchronous DRAM
- 3pcs of 168-pin DIMM module sockets on board
- 8~768 MB memory size
- 8/16/32/64/128/256MB SDRAM DIMM
- Support ECC
••
••
• I/O BUS Slot
- 1 AGP slot
- 5 Master / Slave PCI-BUS slots (PCI 2.1 compliant)
- 2 ISA BUS slots (one PCI/ISA shared)
••
••
• I/O Functions
- Support PIO Mode 3,4 ATAPI devices and Ultra DMA/33
- Support 2 high speed UART 16550 COM Ports
- Support EPP/ECP LPT Port

INTRODUCTION 2
- Support PS/2 mouse and PS/2 keyboard
- Support IrDA port
- Support 2 Universal Serial Bus Ports
- Support Creative®SB-LInkTM
• Award BIOS
- Support Plug-and-Play, PC98
- Support ACPI, DMI, Green Feature
• Wake Up Features
- PS/2 mouse and keyboard Wake Up
- Support Wake-on-LAN function
- Remote Ring Wake Up
• PCB Dimensions
- ATX form factor, 4-layer PCB, 20.4cm x 30.5cm (8inch x 12inch)
- Support 1.44/2.88 MB floppy drive

HARDWARE INSTALLATION
3
CHAPTER 2 HARDWARE INSTALLATION

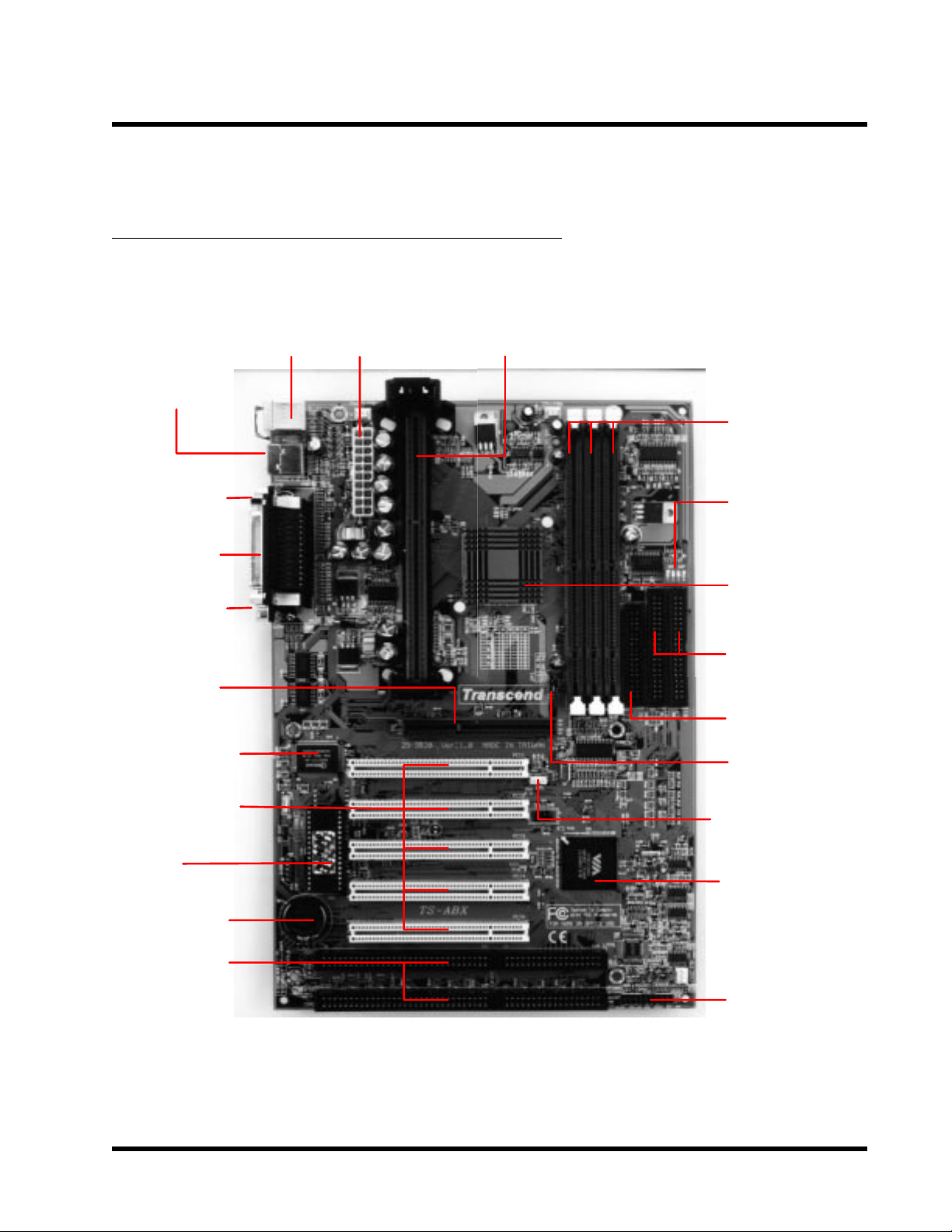

2.1 Transcend TS-AAP12 Motherboard
*T:Top
**B:Bottom
* T:PS/2 Mouse
**B:PS/2 Keyboard
* T:USB1
**B:USB2
**B:COMB
**B:COMA
*T:Parallel
Port
ATX Power
Connector
2 IDE
Connectors
3 DIMM
Sockets
VIA
693/693A
Chipset
Slot 1
CPU
Freq.-Ratio
DIP Switch
5 PCI Slots
2 ISA Slots
AGP Port
Multi I/O Chip
BIOS
Li Battery
FDD
Connector
VIA
596A/596B
Chipset
Panel
Connector
Wake-on-LAN
66/100MHz

HARDWARE INSTALLATION 4
2.2 Layout of Transcend TS-AAP12 Motherboard
AG
P
PCI Slot1 (PCI1
)
PCI Slot2 (PCI2
)
PCI Slot3 (PCI3
)
PCI Slot4 (PCI4
)
PCI Slot5 (PCI5
)
ISA Slot1 (I
S
ISA Slot2 (I
S
Li Battery
2Mbit Flash
(BIOS)
Multi-I/O
&
Keyboard
Controller
CMOS-CLR KB-AWK
IrDA JP5
JP4
DIMM1 (64/72bit 168pin SDRAM Module)
DIMM3 (64/72bit 168pin SDRAM Module)
DIMM2 (64/72bit 168pin SDRAM Module)
c
end
VIA
3
/693A
h
ipset
CPU-FAN
CPU Freq.-Ratio
DIP Switch
SW1
66/100MHz
JP1
D
C
E
2
E1
P
)
)
)
)
)
S
A1)
S
A2)
Chipset
Hardware
Monitor
WOL
Wake-on-LAN
SB_Link
Panel Connector
CASE-FAN
F
D
ID
E
ID
E
VIA
596A/596B
Trans
c
PS/2
T:Mouse
B:Keyboard
USB
T:Port 1
B:Port 2
COMB
COMA
Printer
Parallel Port
ATX Power
Connector
69
3
c
h
KB MOUSE
USB
POWER-FAN
Slot 1

2.3 CPU Installation
•UNIVERSAL RETENTION MODULE (URM) INSTALLION
1. Before installing the UNIVERASAL RETENTION
MODULE, pull the supporting EARs 90ooutward
until you hear a Click and both EARs sit upright
in the notches of the main body.
2. Insert the BOARDLOCK BODY into the MAIN
BODY. Then turn the BOARDLOCK BODY clock-
wise until it can be turned no more (there is a stop-
per device on the MAIN BODY). Then the
BOARDLOCK BODR is secured on the MAIN
BODY.
3. Push the BOARDLOCK PINs all the way down.
The PINs automatically turn to an angle and lock
inside the BOARDLOCK BODYs. Then pull the PIN
back up to the stopper in order for the
BOARDLOCK BODY to be easily inserted into the
PC BOARD. For the ease in installation,
BOARDLOCK BODYs should be inserted into the
UNIVERSAL RETENTION MODULE before it is
installed onto the PC BOARD. Then you only need
to push the BOARDLOCK PINs all the way down
and the MODULE would be set up tightly on the
PC BOARD.
4. When the UNIVERSAL RETENTION MODULE is
installed on the PC BOARD, move the SLIDER
to the LOCK position to lock in the CPU. To re-
move the CPU, push the SLIDER down to the
OPEN position to unlock it.
UNIVERASAL RETENTI
O
LOCK
OPEN
BOARDLOCK BODY
BOA
R
HARDWARE INSTALLATION
5
ON MODULE EAR
MAIN BODY
A
RDLOCK BODY
CPU
P
C
CPU
C
BOARD

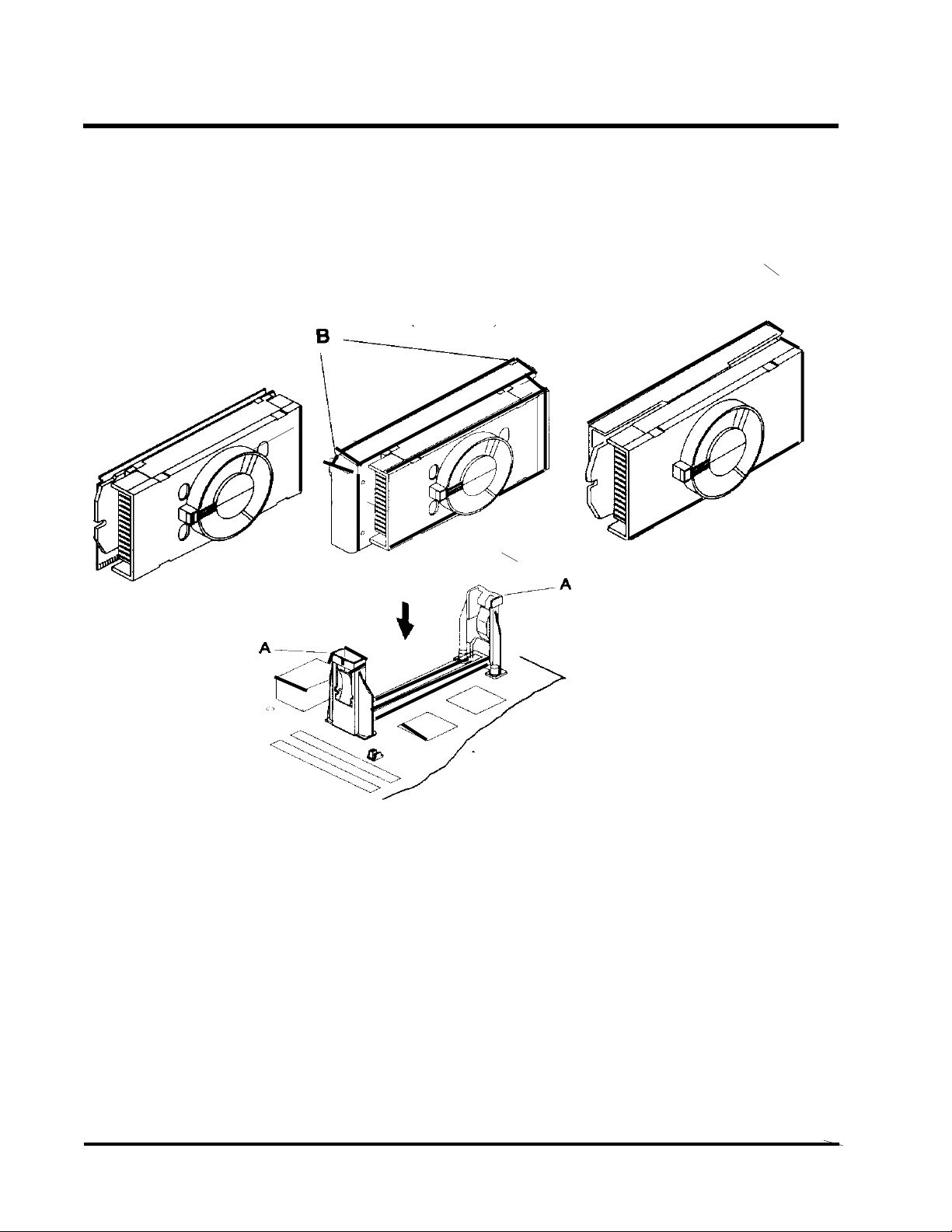

•The Intel Processor Type
A-(the retention mechanism)
B-(the Processor Latches)
Note: The retention mechanism must support your specific Processor
Some retention mechanism may not support all processor. Contact your
motherboard manufacture or refer to your motherboard documentation
if you have any question
IF the Intel Pentium II Processor is S.E.C.C package only. push the
Processor latches [B] In completely to install.
HARDWARE INSTALLATION 6
Intel CeleronIntel Celeron
Intel CeleronIntel Celeron
Intel Celeron Intel Processor II Intel Processor IIIIntel Processor II Intel Processor III
Intel Processor II Intel Processor IIIIntel Processor II Intel Processor III
Intel Processor II Intel Processor III
Processor Processor ProcessorProcessor Processor Processor
Processor Processor ProcessorProcessor Processor Processor
Processor Processor Processor
(S.E.E.P) (S.E.C.C) (S.E.C.C.2)(S.E.E.P) (S.E.C.C) (S.E.C.C.2)
(S.E.E.P) (S.E.C.C) (S.E.C.C.2)(S.E.E.P) (S.E.C.C) (S.E.C.C.2)
(S.E.E.P) (S.E.C.C) (S.E.C.C.2)

Setp1:
Slide the Processor into the URM Assembly and
insert it in Slot1,while making sure that the heat
sink assembly is facing towards the chipset, as
shown in the figure .press down firmly on the cpu
until it is fully seated in the Slot1 connector
Important : The Slot1 connector is directionally keyed
and the processor will not go in unless it is properly
oriented. Do Not apply excessive force when installing
the cpu
Step2: Lock the cpu in the URM
Lock the Processor into the URM by pushing the
top-right and left latches in the outward position
as shown in the illusration
Step3: How to Remove the Processor
(A) unlock the cpu by pushing the top-right and left latches
inward
(B) Push both slides on the URM right and left branches
downward
(C) remove the Processor by pulling it upward while holding
the two slides in the down position
•The Intel Processor Installion
A B C
HARDWARE INSTALLATION
7

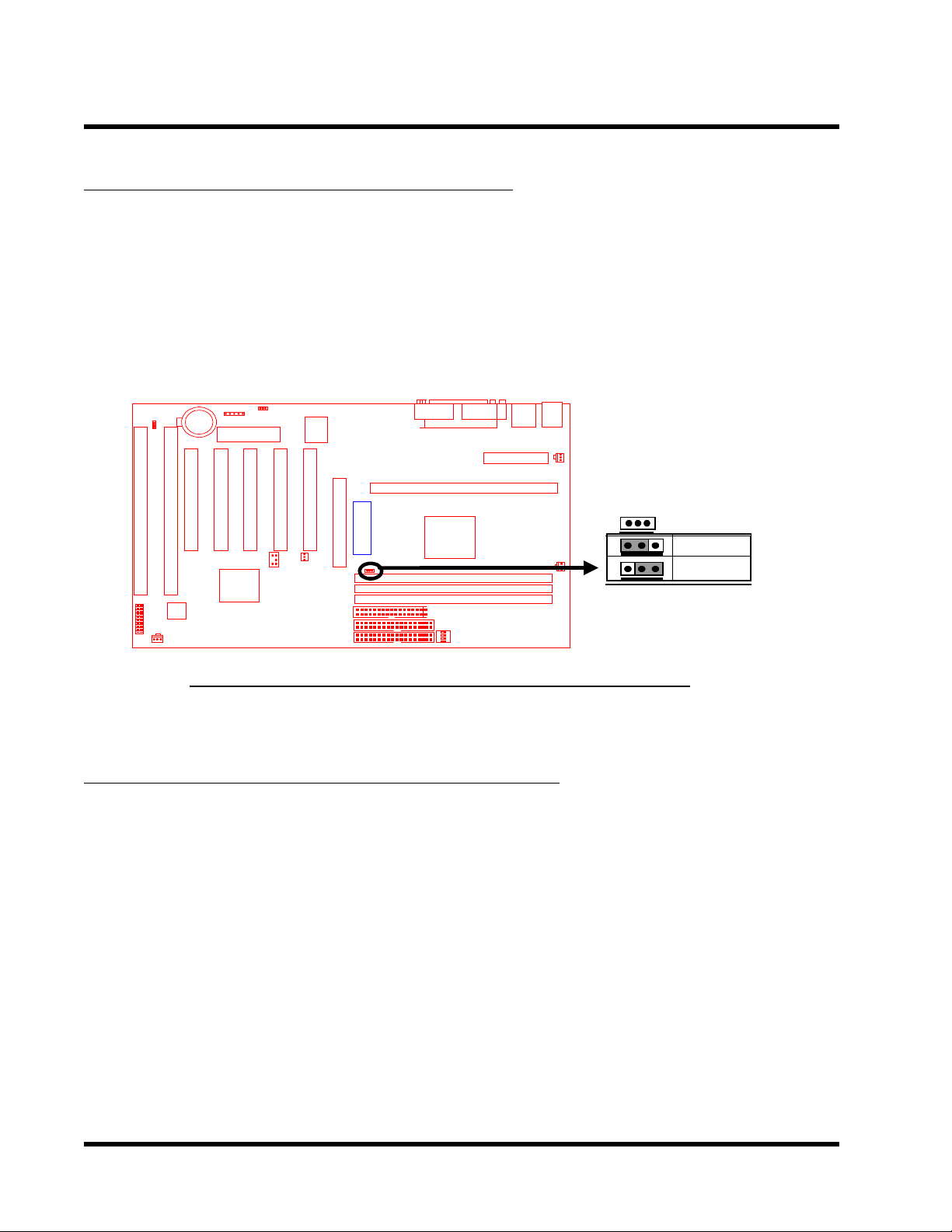

2.4 66/100MHz System Configuration
The jumper 1 (JP1) allows you to set FSB (Front Side Bus) to be 66 or 100MHz configuration.
When you set FSB to 66MHz, you can select the system bus frequency from 66MHz to 83.3MHz
through CPU Host Clock (CPU/PCI) of Chipset Features Setup in BIOS (Please refer to page
26). When you set FSB to 100MHz, you can select the system bus frequency from 100MHz to
150MHz through CPU Host/PCI Clock (CPU/PCI) of Chipset Features Setup in BIOS (Please
refer to page 26).
HARDWARE INSTALLATION 8

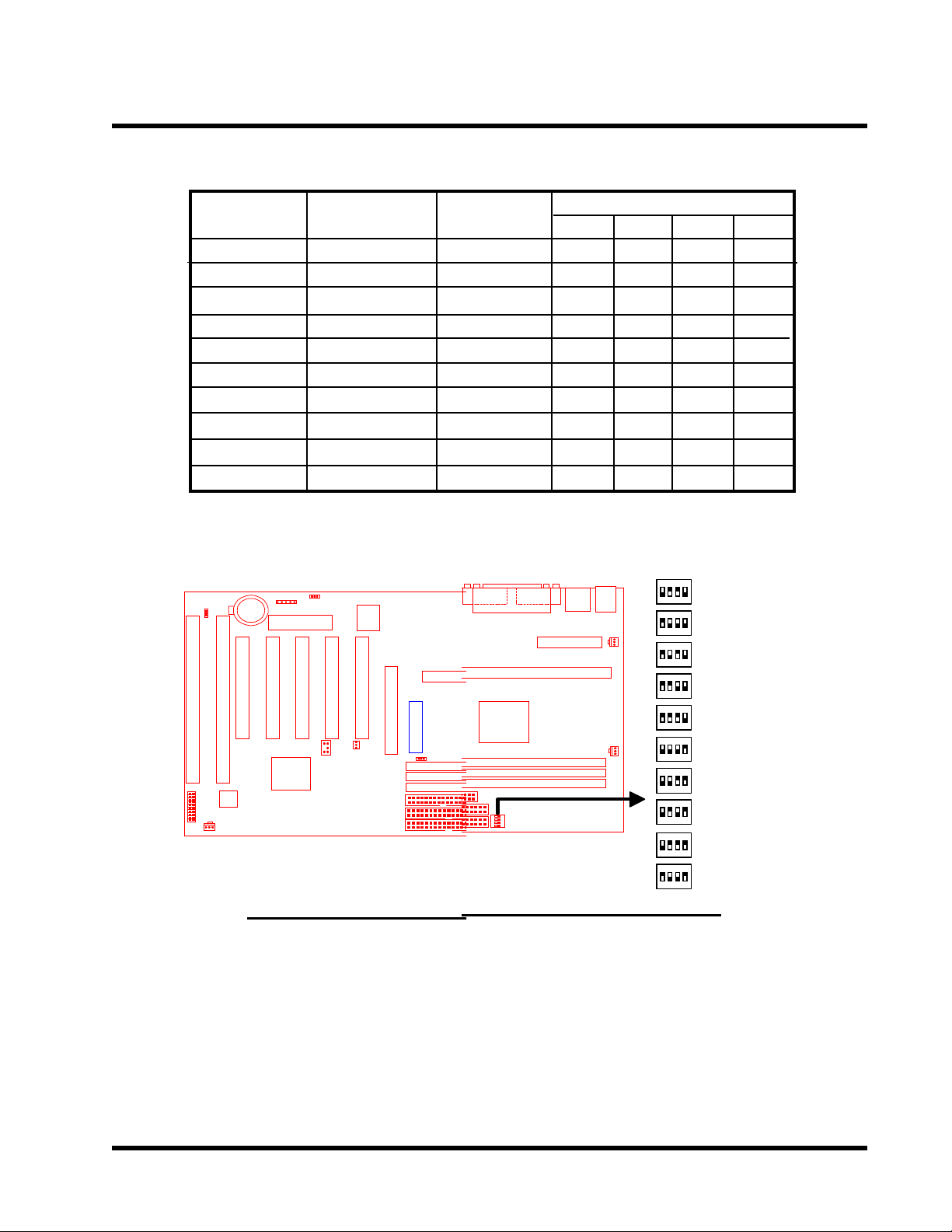

2.5 CPU Internal Frequency Ratio Setting
The switch 1 (SW1) is designated for adjusting the CPU internal frequency ratio. The frequency
ratio is defined as the table shown below. The internal frequency can be calculated by the follow-
ing formula:
CPU internal frequency = frequency ratio x system bus frequency *
* System bus frequency is set in CPU Host /PCI Clock (CPU/PCI) of Chipset Features Setup
in BIOS (Please refer to page 28).
NOTE: Because Intel has locked the frequency ratio for new CPUs, setting SW1 to ad-
just the frequency ratio is useless. Howerer, it is effective for old version CPUs.
TS-AAP12 66/100MHz
F
Transcend
1
1
66MHz
100MHz
166/100MHz
F
SB Configuration Jumper
JP1

HARDWARE INSTALLATION
9
CPU Internal
Frequency
233/350MHz
266/400MHz
300/450MHz
333/500MHz
366/550MHz
400/600MHz
433/650MHz
466/700MHz
500/750MHz
533/800MHz
JP1
66/100MHz
66/100MHz
66/100MHz
66/100MHz
66/100MHz
66/100MHz
66/100MHz
66/100MHz
66/100MHz
66/100MHz
4
O
O
O
O
O
X
X
X
X
X
Freq.-Ratio
x 3.5
x 4.0
x 4.5
x 5.0
x 5.5
x 6.0
x 6.5
x 7.0
x 7.5
x 8.0
1
O
X
X
X
X
O
O
O
O
X
2
X
O
O
X
X
O
O
X
X
O
3
X
O
X
O
X
O
X
O
X
O
SW1
O: ON
X: OFF
TS-AAP12 CPU Freq.
-
Transcend
-Ratio DIP Switch Setting
SW1
1 2 3 4
ON DIP : 333/500MHz
1 2 3 4
ON DIP : 366/550MHz
1 2 3 4
ON DIP : 400/600MHz
1 2 3 4
ON DIP : 433/650MHz
1 2 3 4
ON DIP : 466/700MHz
1 2 3 4
ON DIP : 233/350MHz
1 2 3 4
ON DIP : 266/400MHz
1 2 3 4
ON DIP : 300/450MHz
1 2 3 4
ON DIP : 500/750MHz
1 2 3 4
ON DIP : 533/800MHz

HARDWARE INSTALLATION 10

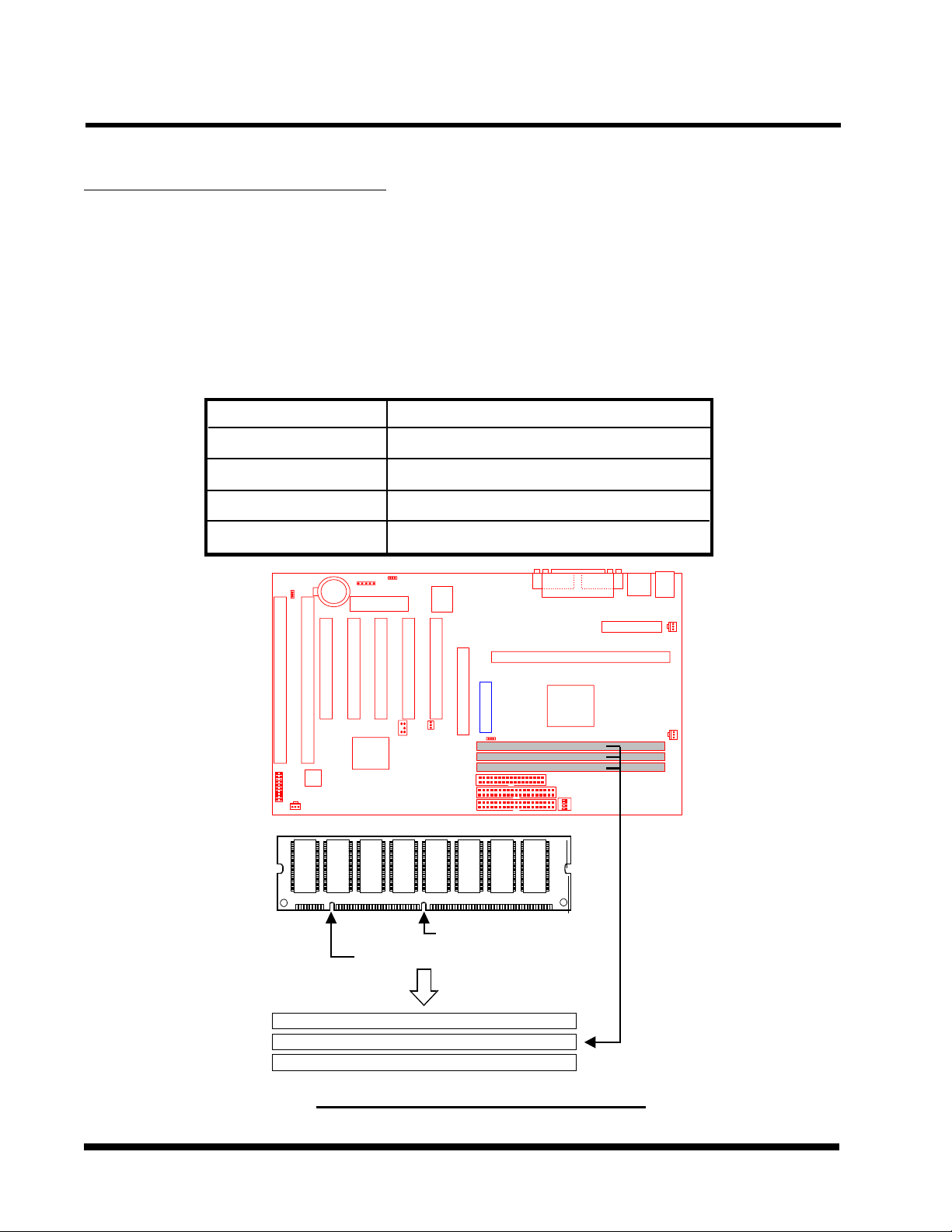

2.6 Memory Configuration
This motherboard must be installed with DIMM (Dual Inline Memory Module). The DIMMs must
be 3.3 Volt synchronous DRAM modules. It also supports ECC (Error Checking and Correcting).
IMPORTANT: Memory speed setup is required through Auto Configuration in BIOS
Chipset Features Setup.
Install memory in any combination as follows:
168-pin DIMM
SDRAM 8,16, 32, 64,128, 256MBytes
SDRAM 8,16, 32, 64,128, 256MBytes
SDRAM 8,16, 32, 64,128, 256MBytes
768MBytes (max.)
DIMM Location
DIMM1
DIMM2
DIMM3
Total Memory
TS-AAP12 168Pin DIMM Sockets
Unbuffered Position
3.3V Position
168Pin SDRAM Module (DIMM1)
168Pin SDRAM Module (DIMM2)
168Pin SDRAM Module (DIMM3)
Transcend

11 HARDWARE INSTALLATION

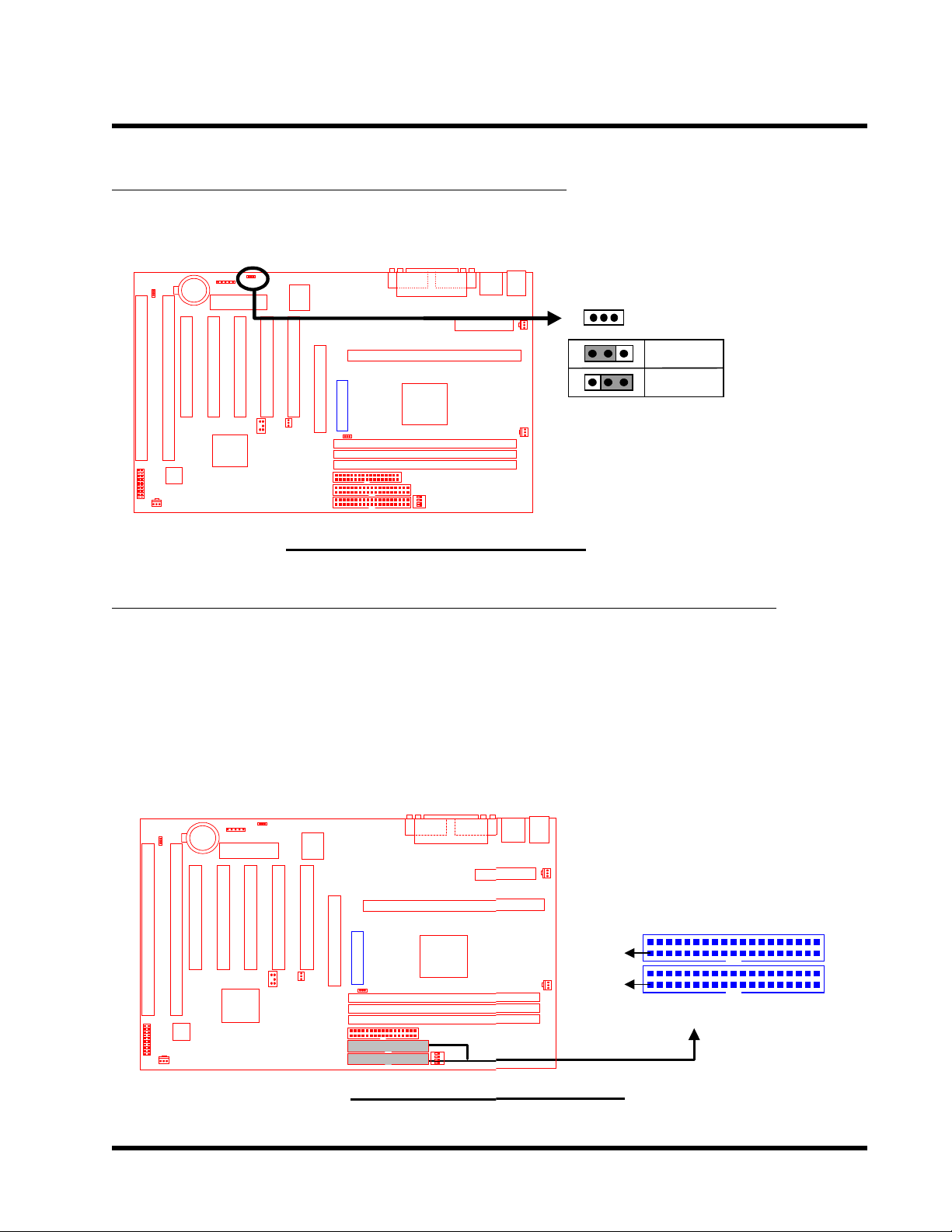

2.7 Keyboard Wake Up (3-pin KB-AWK)
This function disables or enables you to use the keyboard to power up the system. Set this
jumper to Enable if you wish to use your keyboard to power up your computer.
2.8 Primary / Secondary IDE Connectors (Two 40-pin IDE)
This mainboard supports two 40-pin IDE connectors marked as IDE1(primary IDE channel) and
IDE2 (secondary IDE channel). Each channel supports two IDE devices that make total of four
devices. In order to work together, two devices on each channel must be set differently to master
and slave mode, either one can be hard disk or CDROM. The setting as master or slave mode
depends on the jumper on your IDE devices. Please refer to their manual accordingly. Connect
your first IDE hard disk to master mode of the primary channel.
TS-AAP12 Ke
y
Transcend
TS-AAP12 ID
E
Transcend
E
Connectors
Primary IDE Connector
Secondary IDE Connector
PIN1
PIN1
IDE2
IDE2IDE2
IDE2
IDE1
IDE1IDE1
IDE1
Note: Orient the red
stripe to Pin1
y
board Wake Up
1
1
Disable
Enable
1
JP5
KB-AWK

HARDWARE INSTALLATION 12

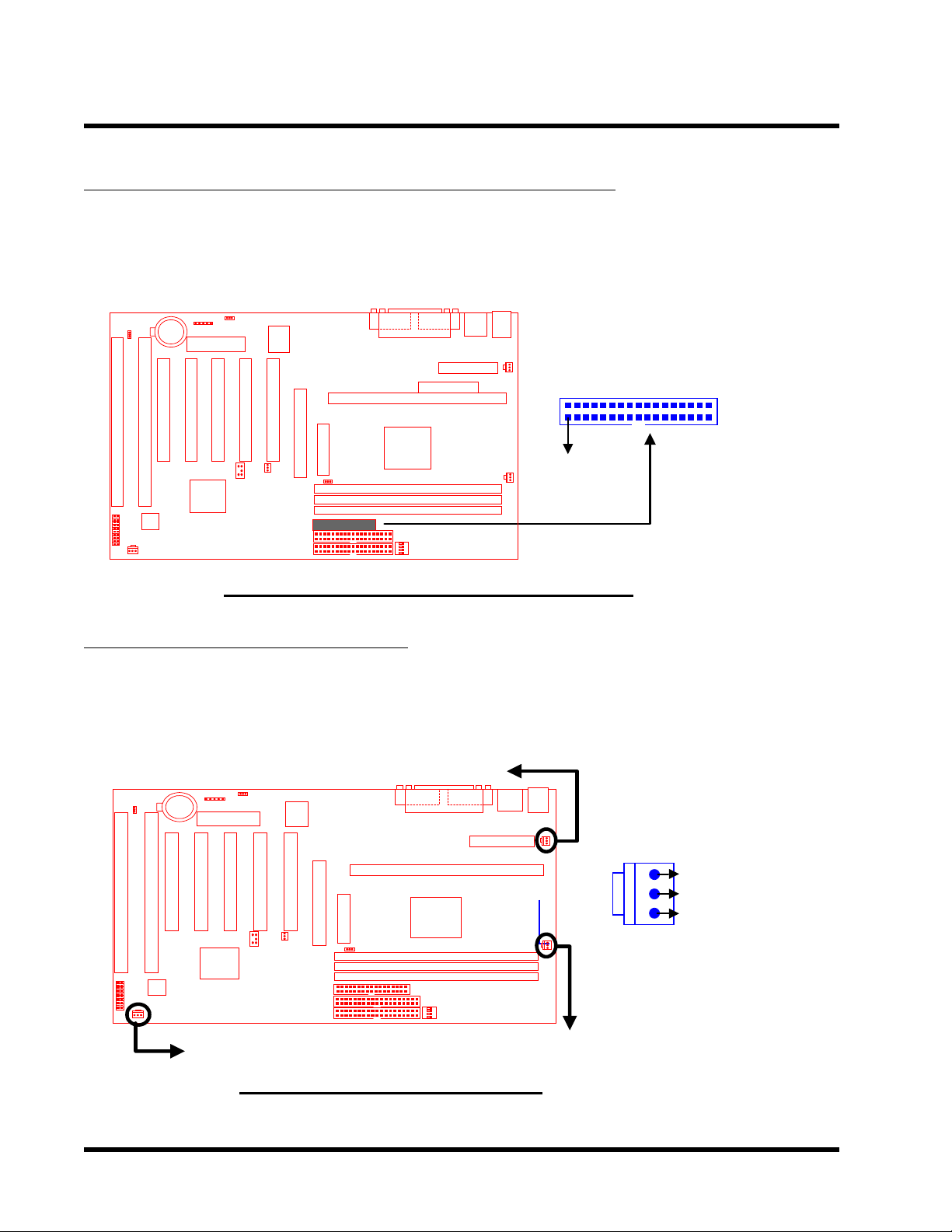

2.9 Floppy Disk Drive Connector (34-pin FDC)
This connector supports the provided floppy disk drive ribbon cable. After connecting the single
end to the board, connect the two plugs on the other end to the floppy drives.
2.10 Fan Power Connectors
There are three fan power connectors on the mainboard: CPU-FAN, POWER-FAN, and CASE-
FAN. Each connector provides +12V power. Make sure it is in the right orientation, or it may
cause damages. These connectors support cooling fans of 500 mA (6W) or less.
TS-APP12 Power C
o
POW
E
CASE-FAN
Transcend
TS-AAP12 Floppy Dis
k
Transcend
k Drive Connector
PIN1
Floppy Drive Connector
FDC
Note: Orient the red
stripe to Pin1
o
nnectors
E
R-FAN
CPU-FAN
FAN
Rotation
+12V
GND

13 HARDWARE INSTALLATION
2.11 Wake-on-LAN Connector (3-pin WOL)
This connector connects to LAN cards with a Wake-on-LAN output. The system can be powered
up when a wakeup packet or signal is received from the LAN card.
NOTE:This function requires that the Wake-on-LAN Power Up Control is set to En-
abled and that your system has an ATX power supply with at least 720mA +5V standby
power.
2.12 IrDA-Compliant Infrared Module Connector (5-pin IrDA)
The IrDA connector can be configured to support wireless infrared module. With this module and
application software such as Laplink or Win95 Direct Cable Connection, user can transfer files
to or from laptops, notebooks, PDA and printers.
TS-AAP12 Wake-o
n
Transcend
TS-AAP12 IrDA
Transcend
Connector
IrDA
15
+5V
NC
IRRX
GND
IRTX
n
-LAN Connector
+5 Volt Standby
Ground
PME
WOL

HARDWARE INSTALLATION 14
2.13 Panel Connectors
Power LED Lead (3-pin KEYLOCK)
This 3-pin connector attaches to the power LED.
Pin1 : +5V
Pin2 : NC
Pin3 : GND
Keylock Lead (2-pin KEYLOCK)
Use the keylock to enable or disable the keyboard.
Pin4 : KEYLOCK
Pin5 : GND
Speaker Lead (4-pin SPEAKER)
This 4-pin connector connects to the case-mounted speaker.
Pin7 : +5V
Pin8 : GND
Pin9 : NC
Pin10 : SPK
Suspend Mode LED Lead (2-pin S_LED)
The S_LED will light when the suspend mode works.
Pin11 : +5V
Pin12 : GND
TS-AAP12 Pan
e
Transcend
e
l Connectors
+++
S_LED
HDD_LED
SUS
RESET
SOFT_OFF
SPEAKER
++
KEY LOCK
1
1020
11
POWER LED

15 HARDWARE INSTALLATION
Software Power-Off Lead (2-pin SOFT_OFF)
Attach the SOFT_OFF Switch of the panel to this connector.
Pin19 & Pin20
2.14 Power Connector (20-pin PWR-CONN)
Make sure to plug the ATX power supply connector to the right direction. The pin definition is
shown below. Make sure that your ATX power supply can support at least 720mA on the standby
lead.
TS-AAP12 Po
w
Transcend
Harddisk LED Lead (2-pin HDD_LED)
This 2-pin connector connects to LED of harddisk. The LED lights when a HDD is active.
Pin13 : +5V
Pin14 : GND
Suspend Switch Lead (2-pin SUS)
This allows the user to manually place the system into the suspend mode or Green mode where
system activities will be instantly decreased to save electricity and expand the life of certain
components when the system is not in use.
Pin15 & Pin16
Reset Switch Lead (2-pin RESET)
This 2-pin connector connects to the case-mounted reset switch for rebooting your computer
without having to turn off your power switch.
Pin17 & Pin18
w
er Connectors
PSON# : Power Supply on
PWR-CONN
Power Good
+3.3V +3.3V
Ground
+5.0V
Ground
+5.0V
Ground
+5.0V Standby
+12.0V
+3.3V -12.0V Ground PSON# Ground Ground Ground -5.0V +5.0V +5.0V

HARDWARE INSTALLATION 16

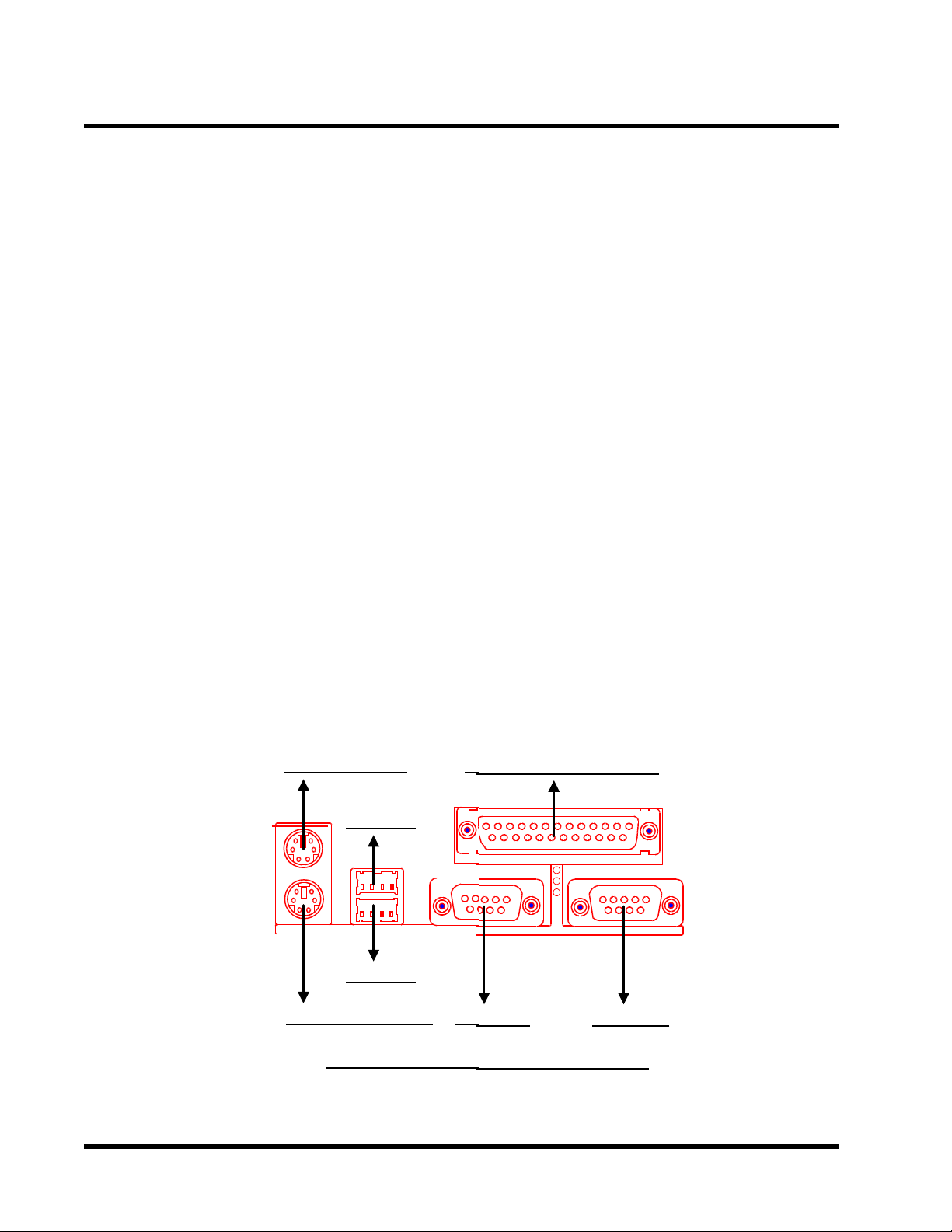

2.15 External Connectors
There are 5 kinds of external connectors on the motherboard.
1. PS/2 Mouse Connector (6-pin MOUSE)
The onboard PS/2 mouse connector is a 6-pin Mini-Din connector marked MOUSE
The view angle of drawing shown here is from back panel of the housing.
2. PS/2 Keyboard Connector (6-pin KB)
The onboard PS/2 keyboard connector is a 6-pin Mini-Din connector marked KB. The
view angle of drawing shown here is from back panel of the housing.
3. Universal Serial BUS USB Ports 1 & 2 (Two 4-pin USBs)
You can attach USB devices to the USB connector. The motherboard contains two USB
connectors, which are marked as USB.
4. Parallel Port Connector (25-pin PRN)
The onboard printer connector is a 25-pin D-type connector marked PRN. The view
angle of drawing shown here is from back panel of the housing.
5. Serial Port Connectors (Two 9-pin COMA/COMB)
The onboard serial connectors are 9-pin D-type connectors on the back panel of
motherboard. The serial port1 connector is marked asCOMA and the serial port2
connector is marked as COMB.
. Parallel Port (Printer)
C
OMB 5. COMA
e
rnal Connectors
1. PS/2 Mouse
2. PS/2 Keyboard
3. USB1
3. USB2
4.
5.
C
TS-AAP12 Ext
e
