Transcend TS-ABX31 User manual

TS-ABX31/TS-AZX31
USER/S MANUAL
Intel Socket 370 Celeron Series
Your Supplier, Your Partner,
Your Friend.
Transcend

User/s Notice
This User/s Manual is designed to assist system manufacturers or end users
to set up and install the motherboard. All information within this document has
been carefully checked. However, Transcend Information, Inc. (hereinafter re-
ferred to as Transcend) carries no responsibility on liability to any error or inac-
curacy which might occur in this manual, including the products and software
mentioned in it. In addition, the information and specifications are subject to change
without notice in advance.
Transcend Information, Inc. provides this manual as is without warranty of
any kind, either expressed or implied, including but not limited to the implied
warranties, conditions of merchantability or fitness for a particular purpose. In no
event shall Transcend Information, Inc., its employers, employees, distributors,
or agents be liable for any indirect, special, incidental, or consequential damages,
including loss of profits, loss of business, loss of use or data, interruption of busi-
ness and the like, even if Transcend Information, Inc. has been advised of the
possibility of such damages arising from any defect or error in this manual or
product.
All brands, product names, and trademarks mentioned in this document are
the property of their respective owners or companies and are used only for iden-
tification or explanation.
Product Model: TS-ABX31/TS-AZX31
Manual Version: 1.0
Release Date: April,1999

Table of Contents
CHAPTER 1 INTRODUCTION 1
1.1 Package Contents ....................................................................................... 1
1.2 Specifications and Features .......................................................................... 1
CHAPTER 2 HARDWARE INSTALLATION 3
2.1 Transcend TS-ABX31/TS-AZX31 Motherboard .................................................. 3
2.2 Layout of Transcend TS-ABX31/TS-AZX31 Motherboard................................... 4
2.3 CPU Installation........................................................................................ 5
2.4 66/100MHz System Configuration................................................... 6
2.5 CPU Internal Frequency Ratio Setting............................................................ 6
2.6 Memory Configuration ................................................................................... 8
2.7 Keyboard Wake Up ....................................................................................... 9
2.8 Primary / Secondary IDE Connectors ............................................................. 9
2.9 Floppy Disk Drive Connector .......................................................................... 10
2.10 Fan Power Connectors ............................................................................... 10
2.11 Wake-on-LAN Connector ............................................................................ 11
2.12 IrDA-Compliant Infrared Module Connector .................................................. 11
2.13 Panel Connectors....................................................................................... 12
2.14 Power Connector....................................................................................... 13
2.15 External Connectors....................................................................................14
2.16 Clear CMOS Jumper................................................................................... 15

CHAPTER 3 BIOS SETUP 16
3.1 BIOS Setup .................................................................................................. 16
3.2 The Main Menu ............................................................................................. 16
3.3 Standard CMOS Setup .................................................................................. 18
3.4 BIOS Features Setup .................................................................................... 21
3.5 Chipset Features Setup ................................................................................. 24
3.6 Power Management Setup ............................................................................ 27
3.7 PnP/PCI Configuration ................................................................................... 30
3.8 Integrated Peripherals ................................................................................... 32
3.9 Supervisor Password .................................................................................... 35
3.10 User Password ........................................................................................... 36
3.11 IDE HDD Auto Detection .............................................................................. 36
3.12 Save & Exit Setup ........................................................................................ 37
3.13 Exit Without Saving ...................................................................................... 37
3.14 Load BIOS Defaults .................................................................................... 38
3.15 Load Setup Defaults .................................................................................... 38
CHAPTER 4 BIOS UPGRADE 39
4.1 How to Check Your BIOS File Name and Version .............................................. 39
4.2 Download Correct BIOS File from Web............................................................ 39
4.3 How to Update Your Motherboard BIOS .......................................................... 40

INTRODUCTION
1
CHAPTER 1 INTRODUCTION
1.1 Package Contents
This motherboard package contains the following items. If you discover any damaged or
missing items, please contact your retailer.
1 - TS-ABX31/TS-AZX31 motherboard
2 - CD-ROM
3 - One FDD cable, one IDE cable
4 - Users Manual
1.2 Specifications and Features
••
••
• CPU
- Support Intel Socket 370 Celeron Series
••
••
• Chipset
- Intel 440BX/440ZX AGPset
••
••
• DRAM Memory
- Support Synchronous DRAM
-3pcs of 168-pin DIMM module sockets on board for TS-ABX31
2pcs of 168-pin DIMM module sockets on board for TS-AZX31
-8~768MB memory size for TS-ABX31
8~256MB memory size for TS-AZX31
-8/16/32/64/128/256MB SDRAM DIMM for TS-ABX31
8/16/32/64/128MB SDRAM DIMM for TS-AZX31
- 64 data bits or 72 data bits (ECC) structure for TS-ABX31
64 data bits structure for TS-AZX31
••
••
• I/O BUS Slot
- 1 AGP slot
- 4 Master / Slave PCI-BUS slots (PCI 2.1 compliant)
- 2 ISA BUS slots (one PCI/ISA shared)

INTRODUCTION 2
••
••
• I/O Functions
- Support PIO Mode 3,4 ATAPI devices and Ultra DMA/33
- Support 2 high speed UART 16550 COM Ports
- Support EPP/ECP LPT Port
- Support 1.44/2.88 MB floppy drive
- Support PS/2 mouse and PS/2 keyboard
- Support IrDA port
- Support 2 Universal Serial Bus Ports
• Award BIOS
- Support Plug-and-Play, PC 98
- Support ACPI, DMI, Green Feature
• Wake Up Features
- PS/2 mouse and keyboard Wake Up
- Support Wake-on-LAN function
- Remote Ring Wake Up
• PCB Dimensions
- ATX form factor, 4-layer PCB, 17.3cm x 30.5cm (6.8inch x 12inch)

HARDWARE INSTALLATION
3
CHAPTER 2 HARDWARE INSTALLATION
2.1 Transcend TS-ABX31/TS-AZX31 Motherboard
* T:Top
** B:Bottom
*** 3 DIMM Sockets for TS-ABX31, 2 DIMM Sockets for TS-AZX31
* T:PS/2 Mouse
**B:PS/2 Keyboard
* T:USB1
**B:USB2
**B:COMB
**B:COMA
*T:Parallel
(Printer)
Floppy Driver
Connector
Socket 370
CPU
4 PCI Slots
2 ISA Slots
AGP Port
Multi I/O Chip
BIOS
Walk On LAN
2 IDE
Connectors
***3 DIMM
Sockets
ATX Power
Connector
66/100MHz
Intel 443BX
/443ZX
ChipSet
Intel PIIX4
ChipSet
Panel
Connector
CPU
Freq-Ratio
DIP Switch
LI Battery

HARDWARE INSTALLATION 4
2.2 Layout of Transcend TS-ABX31/TS-AZX31 Motherboard
Socket 370
PS/2
T:Mouse
B:Keyboard
USB
T:Port 1
B:Port 2
COMB
COMA
Printer
Parallel Port
Intel
443BX(ZX
)
AGP Set
ATX Power Co
n
p
py Drive Connector
CPU-
FAN
FDC
IrDA
nfrared Port
PWR-CON
N
KB MOUSE
USB
COMB
COMA
Thermal
Sensor
KB-AWK
JP1
Pin1
Trans
c
A
G
PCI Slot1 (P
C
PCI Slot4 (P
C
PCI Slot2 (P
C
PCI Slot3 (P
C
ISA Slot
1
ISA Slot
2
Flo
p
2Mbit Flash
(BIOS)
Multi-I/O
&
Keyboard
Controller
PCI1
PCI2
PCI3
PCI4
ISA1
ISA2
I
WOL
Wake-on-LAN
A
G
Hardware
Monitor
* ECC is valid for TS-ABX31 only.
** DIMM3 is effective for TS-ABX31 on
DIMM1 (64bit or *ECC 168pin SDRAM Module)
DIMM2 (64bit or *ECC 168pin SDRAM Module)
**DIMM3 (64bit or *ECC 168pin SDRAM Module)
)
n
nector
Primary IDE Connector
Secondary IDE Connector
POWER-FAN
N
PGA 370
JP2
66/100MHz
cend
G
P Slot
C
I1)
C
I4)
C
I2)
C
I3)
1
(ISA1)
2
(ISA2)
Intel
PIIX4
ChipSet
Li
Battery
CPU Freg.-Ratio
DIP Switch
Panel Connector
IDE1IDE2
CASE-FAN
G
P
CMOS_CLR
SW1
BAT1
JP4
n
ly.

TS-ABX31/TS-
A
Transcend
DIMM1(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
COM1
AGP
PCISlot1(PCI1) PCISlot4(PCI4) PCISlot2(PCI2) PCISlot3(PCI3)
ISASlot1(ISA1) ISASlot2(ISA2)
Intel443ZXAGP Set
IntelPIIX4ChipSet
CR20323VLithiumCell
PrimaryIDEConnector
SecondIDEConnector
FloppyConnector
2MbitFlash(BIOS)
Multi-I/O&KeyboardController
FrequencyDIPSwitch
PANEL
PanelSwitch
IDE1IDE2
CASE-FAN
CPU-FAN
FDC
PCI1 PCI2 PCI3 PCI4
ISA1 ISA2
IrDA
InfraredPort
WOL
WakeOnLAN
AGP
COMA
CMOS_CLR
HardwareMonitor
2.3 CPU Installation
The motherboard provides a ZIF Socket 370. The CPU that you bought must have a fan
attached to it to prevent overheating. If there is no fan on it, please purchase a fan before you
turn on your system.
WARNING! Be sure that sufficient air circulation is available across the processors
passive heatsink. Without sufficient circulation, the processor could overheat and dam-
age both the processor and the motherboard. You may install an auxiliary fan, if
necessary.
To install a CPU, first turn off your system and remove its cover. Locate the ZIF socket and
open it by first pulling the lever sideways away from the socket then upwards to a 90-degree
right angle. Insert the CPU with the correct orientation as shown below. The picture below is
for reference only. You should have a CPU fan to cover the face of the CPU. With the added
weight of the CPU fan, no force is required to insert the CPU. Once completely inserted,
close the socket/s lever while holding down the CPU.
A
ZX31 Socket 370
PS/2
T:MouseB:Keyboard
USB
T:Port 1B:Port2
COM2
Printer
ParallelPort
ATXPowerConnector
POWER-FANPWR-CONN
KB MOUSE
USB
COMB
ThermalSensor
KB-AWK
Socket
370 CPU
(Bottom)
Notch
Socket
370 CPU
(Top)
Notch

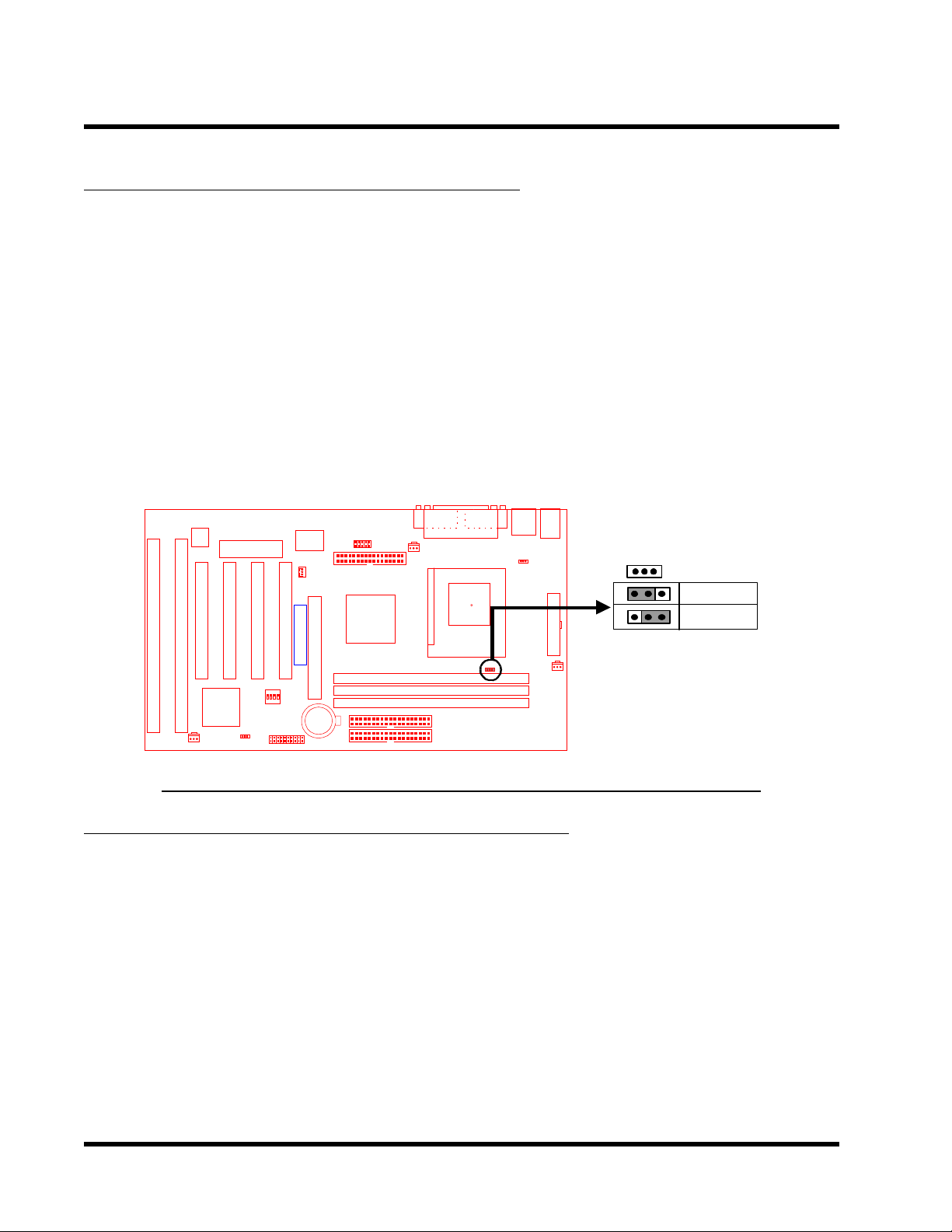

2.4 66/100MHz System Configuration
The jumper 2 (JP2) allows you to set FSB (Front Side Bus) to be 66 or 100MHz configuration.
When you set FSB to 66MHz, you can select the system bus frequency from 66MHz to 83.
3MHz through CPU Host Clock (CPU/PCI) of Chipset Features Setup in BIOS Setup (Please
refer to page 26). When you set FSB to 100MHz, you can select the system bus frequency
from 100MHz to 150MHz through CPU Host Clock (CPU/PCI) of Chipset Features Setup
in BIOS Setup (Please refer to page 26).
NOTE: Because Celeron socket 370 CPU now can support 66MHz FSB only, we strongly
recommend that you set JP2 as 66MHz. Otherwise it may cause system damaged. If
Intel releases new version Celeron CPU to support 100MHz FSB, then you can set JP2
as 100MHz to increase system performance.
HARDWARE INSTALLATION 6
2.5 CPU Internal Frequency Ratio Setting
The switch 1 (SW1) is designated for adjusting the CPU internal frequency ratio. The fre-
quency ratio is defined as the table shown below. The internal frequency can be calculated
by the following formula:
CPU internal frequency = frequency ratio x system bus frequency *
* System bus frequency is set in CPU Host Clock (CPU/PCI) of Chipset Features Setup in
BIOS Setup (Please refer to page 26).
NOTE: Because Intel has locked the Socket 370 Celeron CPUs frequency ratio, setting
SW1 to adjust the frequency ratio is useless. Howerer, it may be effective if Intel un-
locks the frequency ratio in the future.
Transcend
DIMM1(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
COM1
Printer
ParallelPort
AGP
PCISlot1(PCI1) PCISlot4(PCI4) PCISlot2(PCI2) PCISlot3(PCI3)
ISASlot1(ISA1) ISASlot2(ISA2)
Intel443ZXAGP Set
IntelPIIX4ChipSet
CR20323VLithiumCell
PrimaryIDEConnector
SecondIDEConnector
FloppyConnector
2MbitFlash(BIOS)
Multi-I/O&KeyboardController
FrequencyDIPSwitch
PANEL
PanelSwitch
IDE1IDE2
CASE-FAN
CPU-FAN
FDC
PCI1 PCI2 PCI3 PCI4
ISA1 ISA2
IrDA
InfraredPort
WOL
WakeOnLAN
AGP
COMA
Thermal
Sensor
CMOS_CLR
HardwareMonitor
TS-ABX31/TS-AZX31 66/100M
H
PS/2
T:MouseB:Keyboard
USB
T:Port 1B:Port2
COM2
ATXPowerConnector
POWER-FANPWR-CONN
KB MOUSE
USB
COMB
ThermalSensor
KB-AWK
JP2 1
1
66MHz
100MHz
166/100MHz
H
z FSB Configuration Jumper

HARDWARE INSTALLATION
7
TS-ABX31/TS-AZX31 CPU F
r
Transcend
DIMM1(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
COM1
Printer
ParallelPort
AGP
PCISlot1(PCI1) PCISlot4(PCI4) PCISlot2(PCI2) PCISlot3(PCI3)
ISASlot1(ISA1) ISASlot2(ISA2)
Intel443ZXAGP Set
IntelPIIX4ChipSet
CR20323VLithiumCell
PrimaryIDEConnector
SecondIDEConnector
FloppyConnector
2MbitFlash(BIOS)
Multi-I/O&KeyboardController
FrequencyDIPSwitch
PANEL
PanelSwitch
IDE1IDE2
CASE-FAN
CPU-FAN
FDC
PCI1 PCI2 PCI3 PCI4
ISA1 ISA2
IrDA
InfraredPort
WOL
WakeOnLAN
AGP
COMA
CMOS_CLR
HardwareMonitor
CPU Freq.-Ratio
D
CPU Internal
Frequency
333/500MHz
366/550MHz
400/600MHz
433/650MHz
466/700MHz
500/750MHz
JP2
66/100MHz
66/100MHz
66/100MHz
66/100MHz
66/100MHz
66/100MHz
1
ON
ON
OFF
OFF
OFF
OFF
Freq.-Ratio
x 5.0
x 5.5
x 6.0
x 6.5
x 7.0
x 7.5
2
OFF
OFF
ON
ON
ON
ON
3
OFF
OFF
ON
ON
OFF
OFF
4
ON
OFF
ON
OFF
ON
OFF
SW1
F
req.-Ratio DIP Switch Setting
PS/2
T:MouseB:Keyboard
USB
T:Port 1B:Port2
COM2
Printer
o
rt
ATXPowerConnector
POWER-FANPWR-CONN
KB MOUSE
USB
COMB
ThermalSensor
KB-AWK
D
IP Switch
1 2 3 4
ON DIP : 333/500MHz
1 2 3 4
ON DIP : 366/550MHz
1 2 3 4
ON DIP : 400/600MHz
1 2 3 4
ON DIP : 433/650MHz
1 2 3 4
ON DIP : 466/700MHz
SW1
1 2 3 4
ON DIP : 500/750MHz

HARDWARE INSTALLATION 8
2.6 Memory Configuration
This motherboard must be installed with DIMM (Dual Inline Memory Module). The DIMMs
must be 3.3 Volt synchronous DRAM modules. It also supports ECC (Error Checking and
Correcting),which is valid for TS-ABX31only.
IMPORTANT: Memory speed setup is required through Auto Configuration in BIOS
Chipset Features Setup.
Install memory in any combination as follows:
168-pin DIMM
SDRAM 8,16, 32, 64,128 ,256MBytes
SDRAM 8,16, 32, 64,128, 256MBytes
SDRAM 8,16, 32, 64,128, 256MBytes
768MBytes (MAX.)
DIMM Location
DIMM1
DIMM2
*DIMM3
**Total Memory
Transcend
AGP
PCISlot1(PCI1) PCISlot4(PCI4) PCISlot2(PCI2) PCISlot3(PCI3)
ISASlot1(ISA1) ISASlot2(ISA2)
IntelPIIX4ChipSet
CR20323VLithiumCell
2MbitFlash(BIOS)
Multi-I/O&KeyboardController
FrequencyDIPSwitch
IDE1IDE2
PCI1 PCI2 PCI3 PCI4
ISA1 ISA2
WOL
WakeOnLAN
AGP
CMOS_CLR
HardwareMonitor
*DIMM3 is valid for TS-ABX31 only.
**Maximum of 768MB is for TS-ABX31, while 256MB for TS-AZX31.
PS/2
T:MouseB:Keyboard
USB
T:Port 1B:Port2
COM2 COM1
Printer
ParallelPort
Intel443ZXAGP Set
ATXPowerConnector
PrimaryIDEConnector
SecondIDEConnector
FloppyConnector
POWER-FAN
CPU-FAN
FDC
IrDA
InfraredPort
PWR-CONN
KB MOUSE
USB
COMB
COMA
ThermalSensor
KB-AWK
TS-ABX31/TS-AZX31
PANEL
PanelSwitch
I
DE1
CASE-FAN
Unbuffered Positi
o
3.3V
P
168Pin SDRAM Module (
D
168Pin SDRAM Module (
D
168Pin SDRAM Module (
D
168Pin DIMM Sockets
ion
Position
DIMM1)
DIMM2)
DIMM3)

9 HARDWARE INSTALLATION
2.7 Keyboard Wake Up (3-pin KB-AWK)
This function disables or enables you to use the keyboard to power up the system. Set this
jumper to Enable if you wish to use your keyboard to power up your computer.
2.8 Primary / Secondary IDE Connectors (Two 40-pin IDE)
This motherboard supports two 40-pin IDE connectors marked as IDE1(primary channel) and
IDE2 (secondary channel). Each channel supports two IDE devices that make total of four
devices. In order to work together, two devices on each channel must be set differently to
master and slave mode, either one can be hard disk or CD-ROM. The setting as master or
slave mode depends on the jumper on your IDE devices. Please refer to their manual
accordingly. Connect your first IDE hard disk to master mode of the primary channel.
TS-ABX31/TS-AZ
X
Transcend
DIMM1(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
COM1
Printer
ParallelPort
AGP
PCISlot1(PCI1) PCISlot4(PCI4) PCISlot2(PCI2) PCISlot3(PCI3)
ISASlot1(ISA1) ISASlot2(ISA2)
Intel443ZXAGP Set
IntelPIIX4ChipSet
CR20323VLithiumCell
PrimaryIDEConnector
SecondIDEConnector
FloppyConnector
2MbitFlash(BIOS)
Multi-I/O&KeyboardController
FrequencyDIPSwitch
PANEL
PanelSwitch
IDE1IDE2
CASE-FAN
CPU-FAN
FDC
PCI1 PCI2 PCI3 PCI4
ISA1 ISA2
IrDA
InfraredPort
WOL
WakeOnLAN
AGP
COMA
ThermalSensor
CMOS_CLR
HardwareMonitor
KB-AW
K
TS-ABX31/TS-AZX3
Transcend
DIMM1(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
COM1
AGP
PCISlot1(PCI1) PCISlot4(PCI4) PCISlot2(PCI2) PCISlot3(PCI3)
ISASlot1(ISA1) ISASlot2(ISA2)
Intel443ZXAGP Set
IntelPIIX4ChipSet
CR20323VLithiumCell
PrimaryIDEConnector
SecondIDEConnector
FloppyConnector
2MbitFlash(BIOS)
Multi-I/O&KeyboardController
FrequencyDIPSwitch
PANEL
PanelSwitch
IDE1IDE2
CASE-FAN
CPU-FAN
FDC
PCI1 PCI2 PCI3 PCI4
ISA1 ISA2
IrDA
InfraredPort
WOL
WakeOnLAN
AGP
COMA
CMOS_CLR
HardwareMonitor
X
31 IDE Connectors
PS/2
T:MouseB:Keyboard
USB
T:Port 1B:Port2
COM2
ATXPowerConnector
POWER-FANPWR-CONN
KB MOUSE
USB
COMB
A
WK
Primary IDE Connector
Secondary IDE Connector
IDE1IDE2
PIN1
PIN1
IDE
1 Keyboard Wake Up
PS/2
T:MouseB:Keyboard
USB
T:Port 1B:Port2
COM2
Printer
ParallelPort
ATXPowerConnector
POWER-FANPWR-CONN
KB MOUSE
USB
COMB
ThermalSensor
KB-AWK
1
1
Disable
Enable
1JP1
KB-AWK

HARDWARE INSTALLATION 10
2.9 Floppy Disk Drive Connector (34-pin FDC)
This connector supports the provided floppy disk drive ribbon cable. After connecting the
single end to the board, connect the two plugs on the other end to the floppy drives.
2.10 Fan Power Connectors
There are three fan power connectors on the motherboard: CPU-FAN, POWER-FAN, and
CASE-FAN. Each connector provides +12V power. Make sure it is in the right orientation, or
it may cause damages. These connectors support cooling fans of 500mA (6W) or less.
TS-ABX31/TS-AZX31 Fl
o
Transcend
DIMM1(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
COM1
Printer
ParallelPort
AGP
PCISlot1(PCI1) PCISlot4(PCI4) PCISlot2(PCI2) PCISlot3(PCI3)
ISASlot1(ISA1) ISASlot2(ISA2)
Intel443ZXAGP Set
IntelPIIX4ChipSet
CR20323VLithiumCell
PrimaryIDEConnector
SecondIDEConnector
FloppyConnector
2MbitFlash(BIOS)
Multi-I/O&KeyboardController
FrequencyDIPSwitch
PANEL
PanelSwitch
IDE1IDE2
CASE-FAN
CPU-FAN
FDC
PCI1 PCI2 PCI3 PCI4
ISA1 ISA2
IrDA
InfraredPort
WOL
WakeOnLAN
AGP
COMA
CMOS_CLR
HardwareMonitor
TS-ABX31/TS-AZX3
1
Transcend
AGP
PCISlot1(PCI1) PCISlot4(PCI4) PCISlot2(PCI2) PCISlot3(PCI3)
ISASlot1(ISA1) ISASlot2(ISA2)
Intel443ZXAGPSet
IntelPIIX4ChipSet
CR20323VLithiumCell
PrimaryIDEConnector
SecondIDEConnector
FloppyConnector
2MbitFlash(BIOS)
Multi-I/O&KeyboardController
FrequencyDIPSwitch
PANEL
PanelSwitch
IDE1IDE2
CP
U
FDC
PCI1 PCI2 PCI3 PCI4
ISA1 ISA2
IrDA
InfraredPort
WOL
WakeOnLAN
AGP
COMA
CMOS_CLR
HardwareMonitor
P
O
CASE-FAN
CPU-FAN
1 Fan Power Connectors
DIMM1(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
PS/2
T:MouseB:Keyboard
USB
T:Port 1B:Port2
COM2 COM1
Printer
ParallelPort
ATXPowerConnector
POWER-FAN
CPU-FAN
PWR-CONN
KB MOUSE USB
COMB
ThermalSensor
KB-AWK
O
WER-FAN
Rotation
+12V
GND
FAN
o
ppy Disk Drive Connector
PS/2
T:MouseB:Keyboard
USB
T:Port 1B:Port2
COM2
ATXPowerConnector
POWER-FANPWR-CONN
KB MOUSE
USB
COMB
ThermalSensor
KB-AWK
PIN1
FDC
Floppy Drive Connector

11 HARDWARE INSTALLATION
2.11 Wake-on-LAN Connector (3-pin WOL)
This connector connects to LAN cards with a Wake-on-LAN output. The system can be pow-
ered up when a wakeup packet or signal is received from the LAN card.
NOTE:This function requires that the Wake-on-LAN Power Up Control is set to En-
abled and that your system has an ATX power supply with at least 720mA +5V standby
power.
2.12 IrDA-Compliant Infrared Module Connector (5-pin IrDA)
The IrDA connector can be configured to support wireless infrared module. With this module
and application software such as Laplink or Win95 Direct Cable Connection, user can trans-
fer files to or from laptops, notebooks, PDA and printers.
TS-ABX31/TS-AZX31
W
Transcend
DIMM1(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
COM1
Printer
ParallelPort
AGP
PCISlot1(PCI1) PCISlot4(PCI4) PCISlot2(PCI2) PCISlot3(PCI3)
ISASlot1(ISA1) ISASlot2(ISA2)
Intel443ZXAGP Set
IntelPIIX4ChipSet
CR20323VLithiumCell
PrimaryIDEConnector
SecondIDEConnector
FloppyConnector
2MbitFlash(BIOS)
Multi-I/O&KeyboardController
FrequencyDIPSwitch
PANEL
PanelSwitch
IDE1IDE2
CASE-FAN
CPU-FAN
FDC
PCI1 PCI2 PCI3 PCI4
ISA1 ISA2
IrDA
InfraredPort
WOL
WakeOnLAN
AGP
COMA
ThermalSensor
CMOS_CLR
HardwareMonitor
TS-ABX31/TS-AZX
3
Transcend
DIMM1(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
COM1
AGP
PCISlot1(PCI1) PCISlot4(PCI4) PCISlot2(PCI2) PCISlot3(PCI3)
ISASlot1(ISA1) ISASlot2(ISA2)
Intel443ZXAGP Set
IntelPIIX4ChipSet
CR20323VLithiumCell
PrimaryIDEConnector
SecondIDEConnector
FloppyConnector
2MbitFlash(BIOS)
Multi-I/O&KeyboardController
FrequencyDIPSwitch
PANEL
PanelSwitch
IDE1IDE2
CASE-FAN
CPU-FAN
FDC
PCI1 PCI2 PCI3 PCI4
ISA1 ISA2
IrDA
InfraredPort
WOL
WakeOnLAN
AGP
COMA
CMOS_CLR
HardwareMonitor
W
ake-on-LAN Connector
PS/2
T:MouseB:Keyboard
USB
T:Port 1B:Port2
COM2
ATXPowerConnector
POWER-FANPWR-CONN
KB MOUSE
USB
COMB
KB-AWK +5 Volt Standby
Ground
PME
WOL
3
1 IrDA Connector
Socket370
PS/2
T:MouseB:Keyboard
USB
T:Port 1B:Port2
COM2
Printer
ParallelPort
ATXPowerConnector
POWER-FANPWR-CONN
PGA 370
KB MOUSE
USB
COMB
ThermalSensor
KB-AWK
IrDA
15
+5V
NC
IRRX
GND
IRTX

HARDWARE INSTALLATION 12
2.13 Panel Connectors
Power LED Lead (3-pin KEYLOCK)
This 3-pin connector attaches to the power LED.
Pin1 : +5V
Pin2 : NC
Pin3 : GND
Keylock Lead (2-pin KEYLOCK)
Use the keylock to enable or disable the keyboard.
Pin4 : KEYLOCK
Pin5 : GND
Speaker Lead (4-pin SPEAKER)
This 4-pin connector connects to the case-mounted speaker.
Pin7 : +5V
Pin8 : GND
Pin9 : NC
Pin10 : SPK
Suspend Mode LED Lead (2-pin S_LED)
The S_LED will light when the suspend mode works.
Pin11 : +5V
Pin12 : GND
Hard disk LED Lead (2-pin HDD_LED)
This 2-pin connector connects to LED of hard disk. The LED lights when a HDD is active.
Pin13 : +5V
Pin14 : GND
Suspend Switch Lead (2-pin SUS)
This allows the user to manually place the system into the suspend mode or Green mode
where system activities will be instantly decreased to save electricity and expand the life of
certain components when the system is not in use.
Pin15 & Pin16
Reset Switch Lead (2-pin RESET)
This 2-pin connector connects to the case-mounted reset switch for rebooting your computer
without having to turn off your power switch.
Pin17 & Pin18

13 HARDWARE INSTALLATION
Software Power-Off Lead (2-pin SOFT_OFF)
Attach the SOFT_OFF Switch of the panel to this connector.
Pin19 & Pin20
TS-ABX31/TS-AZX
3
Transcend
DIMM1(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
COM1
Printer
ParallelPort
AGP
PCISlot1(PCI1) PCISlot4(PCI4) PCISlot2(PCI2) PCISlot3(PCI3)
ISASlot1(ISA1) ISASlot2(ISA2)
Intel443ZXAGP Set
IntelPIIX4ChipSet
CR20323VLithiumCell
PrimaryIDEConnector
SecondIDEConnector
FloppyConnector
2MbitFlash(BIOS)
Multi-I/O&KeyboardController
FrequencyDIPSwitch
PANEL
PanelSwitch
IDE1IDE2
CASE-FAN
CPU-FAN
FDC
PCI1 PCI2 PCI3 PCI4
ISA1 ISA2
IrDA
InfraredPort
WOL
WakeOnLAN
AGP
COMA
ThermalSensor
CMOS_CLR
HardwareMonitor
KB-AWK
2.14 Power Connector (20-pin PWR CONN)
Make sure to plug the ATX power supply connector to the right direction. The pin definition is
shown below. Make sure that your ATX power supply can support at least 10mA on the
standby lead.
TS-ABX31/TS-AZX
3
Transcend
DIMM1(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
COM1
Printer
ParallelPort
AGP
PCISlot1(PCI1) PCISlot4(PCI4) PCISlot2(PCI2) PCISlot3(PCI3)
ISASlot1(ISA1) ISASlot2(ISA2)
Intel443ZXAGP Set
IntelPIIX4ChipSet
CR20323VLithiumCell
PrimaryIDEConnector
SecondIDEConnector
FloppyConnector
2MbitFlash(BIOS)
Multi-I/O&KeyboardController
FrequencyDIPSwitch
PANEL
PanelSwitch
IDE1IDE2
CASE-FAN
CPU-FAN
FDC
PCI1 PCI2 PCI3 PCI4
ISA1 ISA2
IrDA
InfraredPort
WOL
WakeOnLAN
AGP
COMA
ThermalSensor
CMOS_CLR
HardwareMonitor
31 Panel Connector
PS/2
T:MouseB:Keyboard
USB
T:Port 1B:Port2
COM2
ATXPowerConnector
POWER-FANPWR-CONN
KB MOUSE
USB
COMB
+++
S_LED
HDD_LED
SUS
RESET
SOFT_OFF
SPEAKER
++
KEY LOCK
110
20
11
POWER LED
3
1 Power Connector
PS/2
T:MouseB:Keyboard
USB
T:Port 1B:Port2
COM2
POWER-FAN
KB MOUSE
USB
COMB
KB-AWK
PWR-CONN
PSON# : Power Supply on
Power Good
+3.3V
+3.3V
Ground
+5.0V
Ground
+5.0V
Ground
+5.0V Standby
+12.0V
+3.3V
-12.0V
Ground
PSON#
Ground
Ground
Ground
-5.0V
+5.0V
+5.0V
PWR-CONN

HARDWARE INSTALLATION 14
1. PS/2 Mouse
2. PS/2 Keyboard
3. USB1
3. USB2
4.
5.
C
TS-ABX31/TS-AZX
3
2.15 External Connectors
There are 5 kinds of external connectors on the motherboard.
1. PS/2 Mouse Connector (6-pin MOUSE)
The on-board PS/2 mouse connector is a 6-pin Mini-Din connector marked MOUSE
The view angle of drawing shown here is from back panel of the housing.
2. PS/2 Keyboard Connector (6-pin KB)
The on-board PS/2 keyboard connector is a 6-pin Mini-Din connector marked KB. The
view angle of drawing shown here is from back panel of the housing.
3.Universal Serial BUS USB Ports 1 & 2 (Two 4-pin USBs)
You can attach USB devices to the USB connector. The motherboard contains two
USB connectors, which are marked as USB.
4.Parallel Port Connector (25-pin PRN)
The on-board printer connector is a 25-pin D-type connector marked PRN. The view
angle of drawing shown here is from back panel of the housing.
5.Serial Port Connectors (Two 9-pin COMA/COMB)
The on-board serial connectors are 9-pin D-type connectors on the back panel of
motherboard. The serial port1 connector is marked as COMA and the serial port2
connector is marked as COMB.
Parallel Port (Printer)
C
OMB 5. COMA
3
1 External Connectors

15 HARDWARE INSTALLATION
2.16 Clear CMOS Jumper (3-pin JP4)
To clear the CMOS data, you should turn off your computer power and short the pin1 and
pin2 of JP4.
TS-ABX31/TS-AZX
3
Transcend
DIMM1(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
DIMM2(64/72bit168pin SDRAM Module)
COM1
Printer
ParallelPort
AGP
PCISlot1(PCI1) PCISlot4(PCI4) PCISlot2(PCI2) PCISlot3(PCI3)
ISASlot1(ISA1) ISASlot2(ISA2)
Intel443ZXAGP Set
IntelPIIX4ChipSet
CR20323VLithiumCell
PrimaryIDEConnector
SecondIDEConnector
FloppyConnector
2MbitFlash(BIOS)
Multi-I/O&KeyboardController
FrequencyDIPSwitch
PANEL
PanelSwitch
IDE1IDE2
CASE-FAN
CPU-FAN
FDC
PCI1 PCI2 PCI3 PCI4
ISA1 ISA2
IrDA
InfraredPort
WOL
WakeOnLAN
PGA 370
AGP
COMA
CMOS_CLR
HardwareMonitor
3
1 Clear CMOS Jumper
1
1
CMOS_CLR
DEFAULT
Socket370
PS/2
T:MouseB:Keyboard
USB
T:Port 1B:Port2
COM2
ATXPowerConnector
POWER-FANPWR-CONN
KB MOUSE
USB
COMB
ThermalSensor
KB-AWK
1
JP4
CMOS_CLR

CHAPTER 3 BIOS SETUP
3.1 BIOS Setup
Award BIOS has a built-in Setup program that allows users to modify the basic system configu-
ration. This information is stored in CMOS RAM. So it can retain the Setup information when
the power is turned off. When the battery of CMOS fails, it will cause the data lost. When it
happens, you should set up your configuration parameters again after replacing the battery.
3.2 The Main Menu
As you turn on or reboot the system, the BIOS is immediately activated. It will read the system
configuration information, and check the system through Power On Self Test (POST). During
the POST process, press the [Del] key, and you can enter the Award BIOS configuration
system. The following screen will appear.
In the Award BIOS system, you can use the arrows ( ) to highlight the item, and
press the [Enter] key to enter the sub-menu. The following keys help you navigate in Setup.
[ Esc ] Main Menu: Quit and not save changes into CMOS RAM
Other pages: Exit current page and return to Main Menu
[ PgUp ] Increase the numeric value or make changes
[ PgDn ] Decrease the numeric value or make changes
[ + ] Increase the numeric value or make changes
[ - ] Decrease the numeric value or make changes
BIOS SETUP 16
