Transcension DC-4P User manual

INTRODUCTION:
This model is a 4 channel dimming chaser, has 7 operating modes and 42 chasing programs, memory
backup and fade time under control.
TECHNICAL SPECIFICATIONS:
POWER INPUT ................................................................................... AC 230V~50-60Hz (CE)
AC 220V~50-60Hz (MAX.)
AUDIO INPUT ....................................................................................................... 100mV-1Vpp
CHANNEL OUTPUT ............................................................................... 2A/CH., Total 8A (CE)
6.3A/CH., Total 16A (MAX.)
CHANNEL FUSE ..................................................................................... F6.3A 250V 5x20mm
FUSE (internal) ....................................................................................... F0.5A 250V 5x20mm
DIMENSIONS ............................................................................................. 482.6x133x138mm
WEIGHT ........................................................................................................................... 4.4Kg

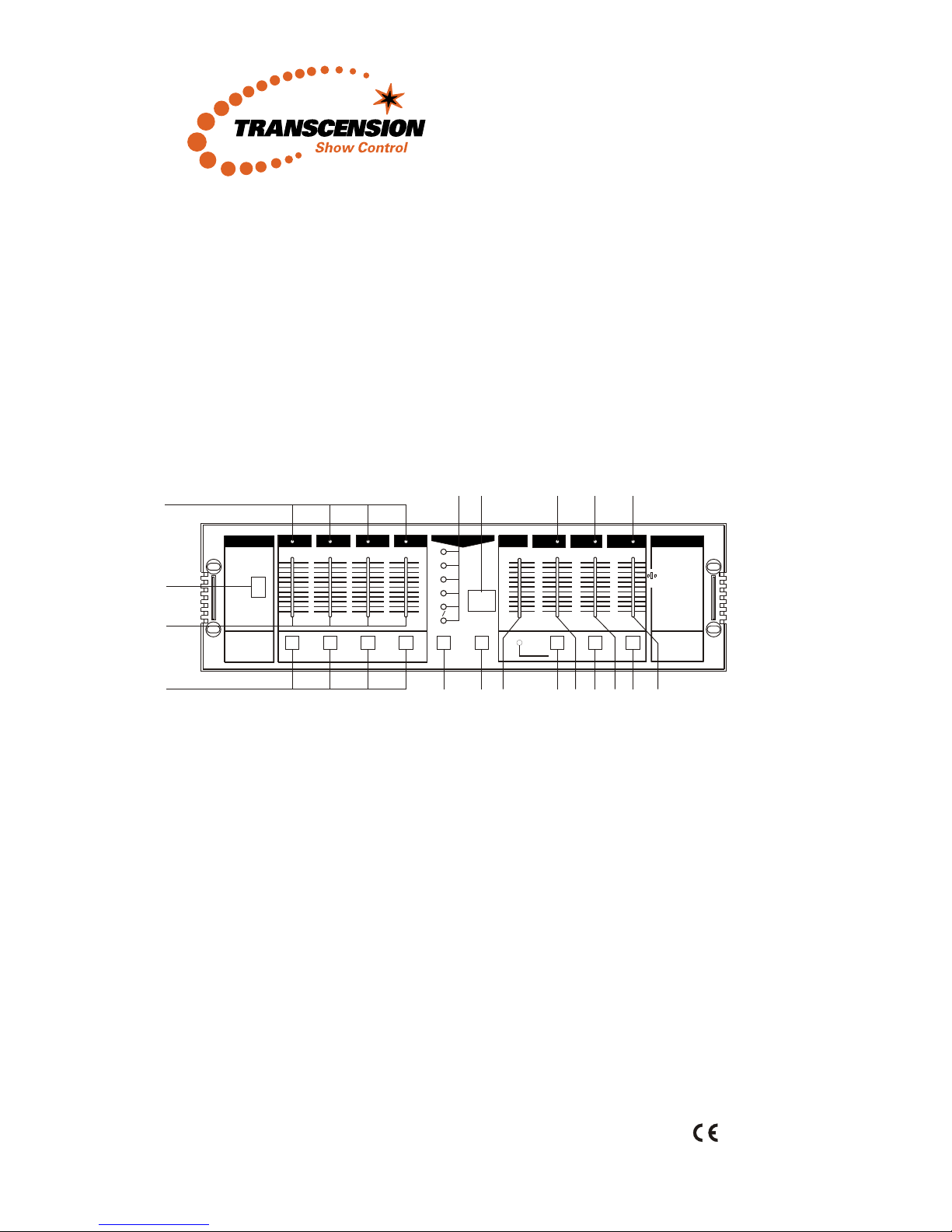

CONTROLS & FUNCTIONS
1. POWER SWITCH
2. SPEED INDICATOR
This indicator indicates the chasing speed.
3. AUDIO LEVEL INDICATOR
This indicator indicates the sensitivity of music rhythms.
4. MASTER DIMMER INDICATOR
This indicator indicates master dimming level.
5. PROGRAM DISPLAY
Shows desired pre-set digit parameter.
6. PROGRAM INDICATOR
This indicator indicate the operating mode being executed.
7. CHANNEL DIMMER INDICATOR
This indicator indicates the dimming level of corresponding channel.
8. CHANNEL DIMMER CONTROL
This control adjusts the dimming level of corresponding channel.
9. CHANNEL FLASH BUTTON
Press to activate channel full on function.
10. MODE SELECT BUTTON
Press to select desired operating mode from Hold Dimmer / Hold Sound / Prog Sound / Prog Speed/
Auto Speed / Auto Sound / Memory or music control from line input / built-in microphone.
11. PROGRAM SELECT BUTTON
Press to select desired program from 42 pre-set programs in Prog Sound / Prog Speed / Auto
Speed / Auto Sound. In Memory mode, you can press to activate sub-mode to select desired
operating mode from Program / Manual / Auto Sound / Auto Speed using STAND BY.
12. FADE CONTROL
This control adjusts the delay time. It is not effective in Hold Sound.
13. STAND-BY BUTTON & INDICATOR
Press to pause all output.
24-004-0907-00
Rev 1.2
0
2
4
6
8
10
0
2
4
6
8
10
0 0
2 2
4 4
6 6
8 8
10 10
Hold Dimmer
Prog Sound
Prog Speed
Memory
Program
Hold Sound
I:Internal MIC
E:Audio line input
FADE TIME
CH-1 CH-2 CH-3 CH-4 MODE
Flash FlashFlash
POWER
Flash Mode Select Prog Select Stand-by Full on Tap sync
0
Stop
22
44
66
88
10
10S
MIC
0
2
4
6
8
10
0
2
4
6
8
10
DIMMER AUDIO SPEED
Speed
Auto
Sound
Auto
4 Channel
Dimming
Pack
DC-4P
1
8
9
7
23456
10 11 12 13 14 15 16 17 18
OPERATION MANUAL
DC-4P
4 Channel Dimming Pack
www. prolight.co.uk
[email protected]

14. MASTER DIMMER CONTROL
This control adjusts the dimming level of whole output.
15. FULL ON BUTTON
Press to activate FULL ON function of whole output.
16. AUDIO LEVEL CONTROL
This control adjusts the sensitivity of music rhythms detected by the built-in microphone or line in.
17. TAP SYNC BUTTON
This button is effective only in Prog Speed and Auto Speed. It is used to define chasing speed. When you
press this button twice in 10 minutes, the interval between two pressing will be assigned to chasing speed.
18. SPEED CONTROL
This control adjusts the chasing speed.

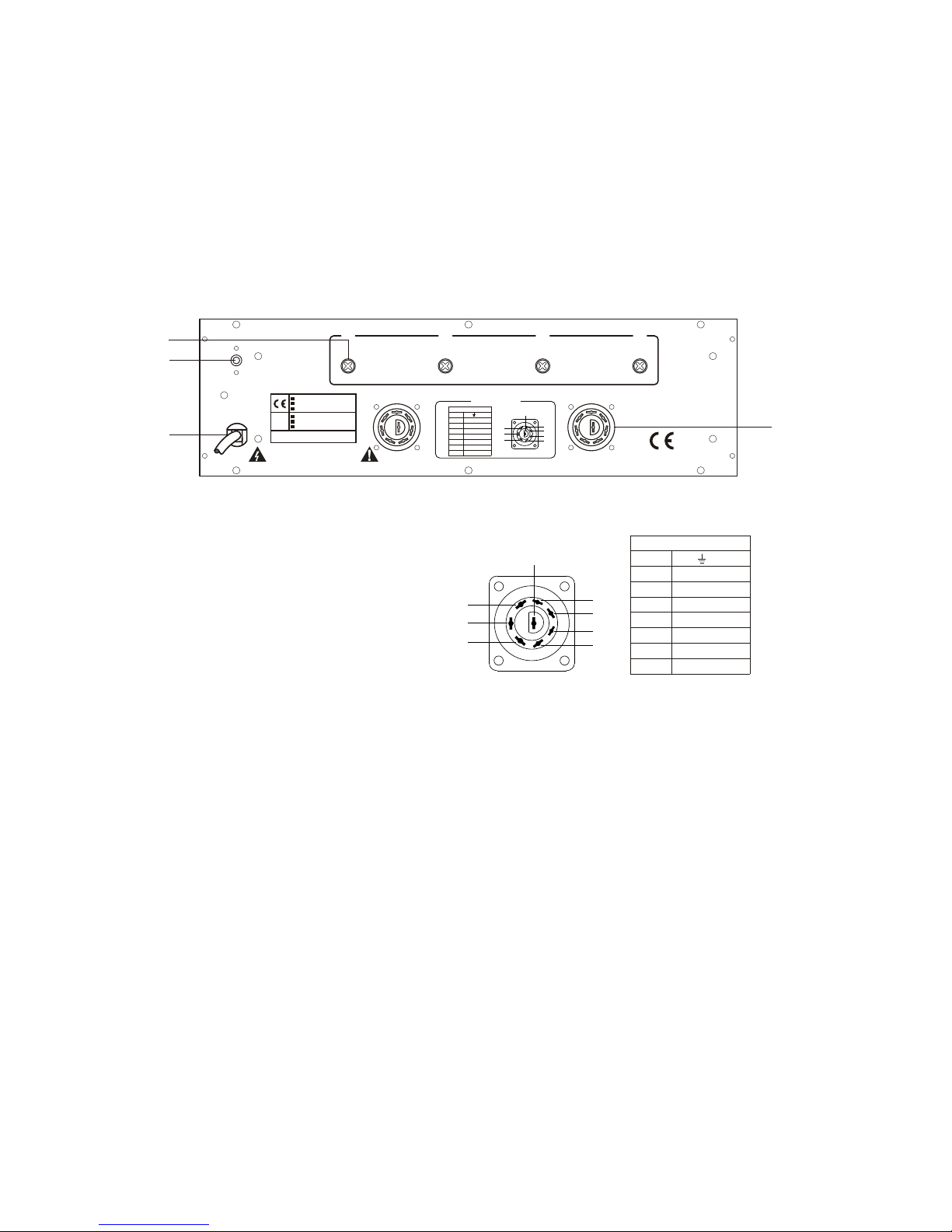

REAR PANEL
1. AC INPUT
Plug in appropriate power supply
2. AUDIO INPUT
Line in 100mV-1Vpp
3. CHANNEL FUSE
F6.3A 250V 5x20mm
4. CHANNEL OUTPUT
2A /CH., 8A /Total (CE)
6.3A /CH., 16A /Total (MAX.).
.
OPERATING INSTRUCTIONS
1. Turn the power switch on.
2. Operating mode is controlled by MODE SELECT.
3. You can select operating mode from Hold Dimmer / Hold Sound / Prog Sound / Prog Speed / Auto Speed /
Auto Sound / Memory.
Hold Dimmer Corresponding indicator lights. Channel output is controlled by Channel Dimmer
control or Master Dimmer control.
Hold Sound Corresponding indicator lights. Music sensitivity is adjusted by the Audio Level control.
Prog Sound Corresponding indicator lights. You can select desired program from 42 pre-set
programs using Prog Select button. Press Prog Select button once, program will be
increased or decreased by one. Press and hold it for 1 second, program will be
increased or decreased by 10 per second. Press Prog Select + Mode Select,
chasing direction will be reversed.
Prog Speed Corresponding indicator lights. You can operate according to the way specified by
Prog Sound and you must always remember chasing speed is not controlled by audio
signal but SPEED CONTROL or TAP SYNC.
Auto Speed Corresponding indicator flashes. You can operate according to the way specified by
Prog Speed. However, in this mode, each program will be executed eight times
continuously and then next program.
Auto Sound Corresponding indicator lights. You can operate according to the way specified by
Prog Sound. However, in this mode, each program will be executed eight times
continuously and then next program.
Memory Up to 32 steps can be memorized.
In this mode, you can select desire operating mode from Program / Manual / Auto
1
2
3
4
Line input
100mV-1Vp-p
AC INPUT
F6.3A 250V
5x20mm
F6.3A 250V
5x20mm
F6.3A 250V
5x20mm
F6.3A 250V
5x20mm
CH4CH3CH2CH1
FUSE(Internal): F0.5A 250V 5x20mm
POWER INPUT: AC 230V~50-60Hz
FUSE: F6.3A 250V 5x20mm
OUTPUT: 2A / Channel, 8A / Total.
POWER INPUT: AC 220V~50-60Hz
FUSE: F6.3A 250V 5x20mm
OUTPUT: 6.3A / Channel, 16A / Total.
MAX.
WARNING: THIS APPARATUS MUST BE EARTHED.
N'OUVREZ PAS..RISQUE DE CHOCELECTRIQUE
RISK OF ELECTRIC SHOCK, DO NOT OPEN.
CAUTION:
OUTPUT CONNECTION
PIN ARRANGEMENT
CH-4
1
2
3
4
5
6
7
8
E
N
N
CH-3
CH-2
CH-1
N
PIN ARRANGEMENT
CH-4
1
2
3
4
5
6
7
8
E
N
N
CH-3
CH-2
CH-1
N
1
2
3
4
5
6 7
8
1
2
3
4
5
6 7
8

Press and hold Prog Select, press Stand By once, PROGRAM DISPLAY will show
present operating mode, press Stand By once more, next mode will be selected.
Each pressing of Stand By corresponds to a new mode. Release Prog Select, the
selected mode will be executed.
PR mode Press Prog Select till " 01 " appears in PROGRAM DISPLAY. Adjust Master
Dimmer
control or Channel Dimmer control to meet user's requirement, press Prog Select,
PROGRAM DISPLAY will flash 4 time continuously, which means it is memorized,
and PROGRAM DISPLAY will show " 02 ". You can make program in this way till
" 32 " appears, now exit from Program and engage in other mode. If you fail lin
certain step, you should restart programing, otherwise not effective.
ST mode Press Prog Select once, program will be executed one step, and PROGRAM
DISPLAY will show the information. You can refer to the way mentioned in Prog
Sound to select desired step.
AS mode
AP mode
4. FULL ON and FLASH
Press Full On button to activate FULL ON function of whole output, press Flash button to activate FULL
ON function of channel. These two functions are effective in any mode.
5. Stand By
Press this button once to turn off whole output, press it once more to exit STAND BY, and the indicator
will change from " flash" to "off".
6. AUDIO INPUT SELECT
You can select audio signal from Internal MIC / Audio line Input. Press Prog Select and turn off the
power. Wait some seconds, turn the power on, now PROGRAM DISPLAY shows " I" or " E ". Press
Mode
Select once, audio signal input will be changed, and the indication will change accordingly. Press it once
once more, audio signal input will be changed once more.
WARNING:
1. THIS APPARATUS MUST BE EARTHED.
2. DISCONNECT POWER CABLE BEFORE OPENING.
3. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPARATUS
TO RAIN OR MOISTURE.
Program is executed according to the music rhythms and PROGRAM DISPLAY
shows the step.
Program is executed automatically and PROGRAM DISPLAY shows the step. You
can adjust the chasing speed according to the way specified in Prog Speed.
