GLP Patend Light 1200 Series User manual

1200 Basic & 575 Basic
Instruction Manual
From Version 1.0
email: [email protected]
Internet: http://www.GLP.de

GLP zGerman Light Production (V2.1) 1

GLP zGerman Light Production (V2.1) 2
Contents
1Introduction .............................................................................................................4
1.1 SAFETY RULES ...................................................................................................5
2Installation...............................................................................................................6
2.1 MOUNTING..........................................................................................................6
2.1.1 Clamps (Hooks) .....................................................................................6
2.1.2 Mountingplate.........................................................................................6
2.2 SECURE THE PATEND LIGHT 1200........................................................................6
2.3 CONNECTORS.....................................................................................................7
2.3.1 AC Connectors.......................................................................................7
2.3.2 DMX.......................................................................................................7
2.4 FUSE..................................................................................................................7
3The Menu Field........................................................................................................8
3.1 ADJUST THE DMX-ADDRESS................................................................................8
3.2 READ OUT THE RUNNING TIME OF LAMP AND UNIT .................................................9
3.2.1 Lamp Time 1..........................................................................................9
3.2.2 Lamp Time 2..........................................................................................9
3.2.3 Life Time ................................................................................................9
3.3 THE CODE LEVEL ..............................................................................................9
3.4 THE TEST LEVEL...............................................................................................10
3.4.1 Selftest Procedure................................................................................10
3.5 TEMPERATURE CONTROL 1................................................................................10
4Channel selection ( Overview table )...................................................................11
5Change the Lamp..................................................................................................14
5.1 SAFETY RULES .................................................................................................14
5.2 HOW TO CHANGE THE LAMP................................................................................15

GLP zGerman Light Production (V2.1) 3
6Change the Gobos ................................................................................................16
6.1 SAFETY RULES .................................................................................................16
6.2 HOW TO CHANGE THE GOBOS ............................................................................16
7Maintenance the PATEND-LIGHT 1200/575 BASIC.............................................17
7.1 MIRROR AND OPTICAL SYSTEM ..........................................................................17
7.1.1 Cleaning the inside Mirror and the outside Optical System..................18
7.1.2 Cleaning the outside Optical System ...................................................18
7.2 VENTILATION SYSTEM........................................................................................19
8Technical Data /Overview.....................................................................................20

GLP zGerman Light Production (V2.1) 4
1 Introduction

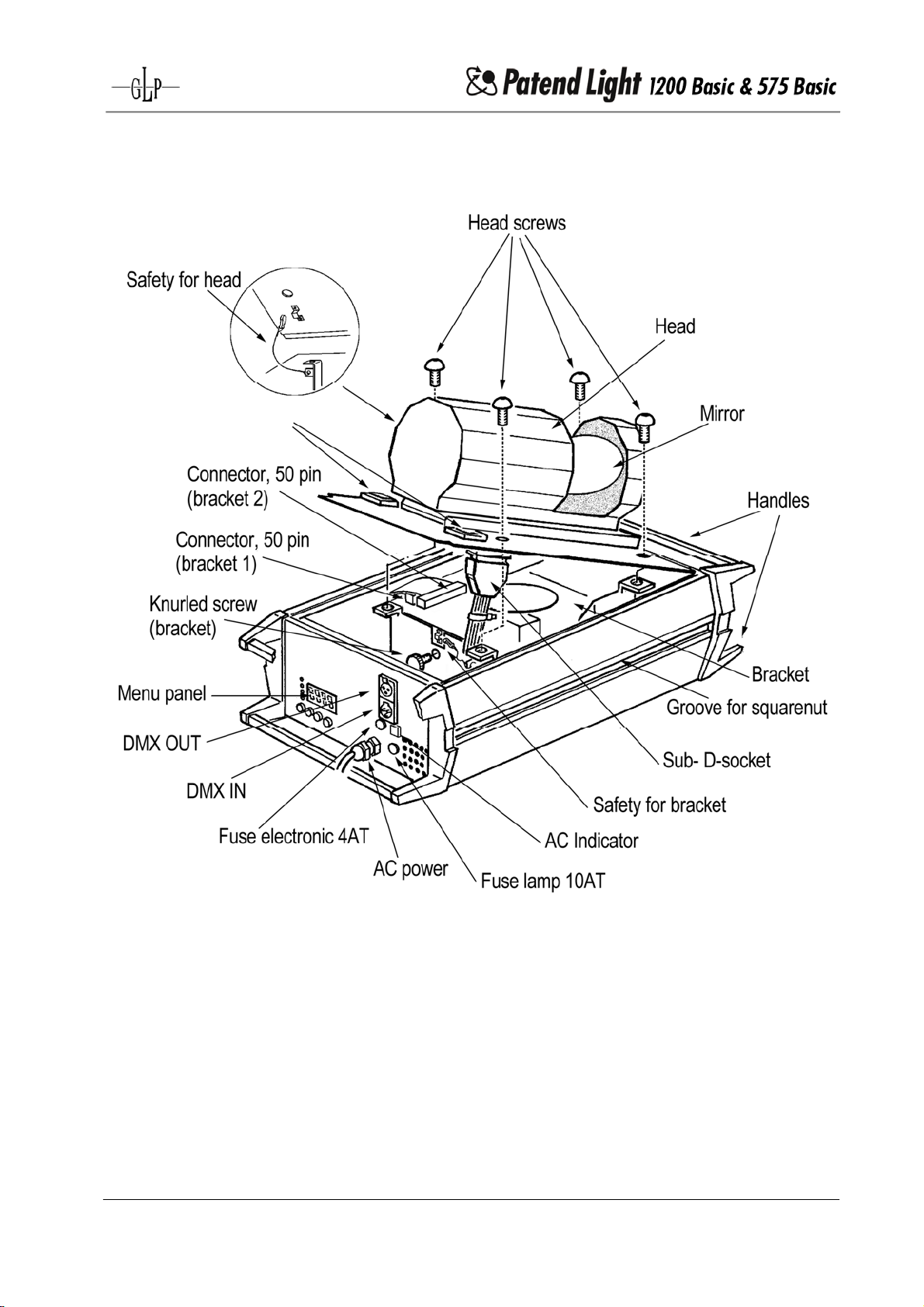

Illustration 1-1

GLP zGerman Light Production (V2.1) 5
Illustration 1-2
1.1 Safety Rules
The P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC C is a high-tech product. To guarantee a
smooth operation, it is necessary to keep following rules.
1. Make sure that head and mirror of the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC C, can
rotate without any mechanical problems and that all fan openings are clean
and not blocked by anything.
2. Touching the head while moving can cause serious injuries
3. Unplug the
P
PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC C from the AC outlet before any
service
4. It is necessary to wait at least 30 minutes after disconnecting the AC before
you open the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC C. Please do not touch the bulb
if you are not absolutely sure it is cold. - Danger of BURNING -
5. The PATEND-LIGHT 1200/575 BASIC is provided with a protective switch to
switch off the lamp when opening it. By no means do not bridge these switch.
This can cause serious injuries of your retina !!!

GLP zGerman Light Production (V2.1) 6
6. To allow a secure operation, follow also the Installation guide described in
chapter 2. Operating the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC Cwithout suited
safety aids like safety cables or clamps/hooks can increase the risk of an
accident.
7. The installation should be done by qualified staff only. You need to pay
attention to the common rules of technology that are not explicit mentioned in
this manual.
2 Installation
2.1 Mounting
To mount the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC Cuse the 8 threads M12 at the
backside of the system or use the slidenuts at the side of the body.
2.1.1 Clamps (Hooks)
Mount clamps and/or hooks directly to the base plate.
Please make sure to use right sized clamps and hooks and fit them
securely.
2.1.2 Mountingplate
For an easy mounting you can get this as an accessory. In this case a light
mountingplate is premounted. After this the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5
B
BA AS SI IC Ccan easily hang up.
The P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC Cis fully operational whether it
stands, hangs or is mounted to the wall.
Using the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC Cstanding on the ground
requires a rough but even surface. Make sure that the fan openings are
not blocked by any circumstances.
2.2 Secure the Patend Light 1200
Use always safety wires to secure the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC C, connect
them with the eye bolt in the slide nut and check the tight fit!

GLP zGerman Light Production (V2.1) 7
2.3 Connectors
2.3.1 AC Connectors
230 Volt, 50 Hz / 10AT
2.3.2 DMX
DMX 512 Standard input/output
Please see printing on the case for the right Pin usage!
[+] = Pin 3 / [-] = Pin 2 / [Ground] = Pin 3
The DMX- Address starts at the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC Cat the
DMX- Address [000].
2.4 Fuse
The P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC C electronic system is protected by a 5x20
T4A fuse 250V. The lamp is protected by a 5x20 T10A fuse 250V. Please see the
printing on the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC C, , for more details look at the
Illustration 1-1 in Chapter 1.
Disconnect AC outlet before changing a fuse !!!

GLP zGerman Light Production (V2.1) 8
3 The Menu Field
3.1 Adjust the DMX-Address
Right after turning on the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC Cyou can see the
current DMX-Address. Choose this as follows.
Select the DMX-Level and press the menu key.
This level is called on automatically after turning on the P PA AT TE EN ND D- -L LI IG GH HT T
1
12 20 00 0/ /5 57 75 5 B BA AS SI IC C.
Select the figure you want to adjust by pressing the cursor key.
The selected figure begins to flash.
Adjust the figure by pressing the Data+ or Data- key.
Confirm the DMX-Address by pressing the menu key once.
The DMX-Address is stored also while switching off the P PA AT TE EN ND D- -L LI IG GH HT T
1
12 20 00 0/ /5 57 75 5 B BA AS SI IC C !!!

GLP zGerman Light Production (V2.1) 9
3.2 Read out the Running Time of Lamp and Unit
Select the time level by pressing the menu key twice.
Select the requested time by pressing the cursor key,
3.2.1 Lamp Time 1
The current lamp time is shown alternating with LA 1.
3.2.2 Lamp Time 2
The total lamp time is shown alternating with LA 2.
3.2.3 Life Time
The life time is shown alternating with LIFE.
3.3 The CODE Level
This level is accessed by authorized dealers only.
In this level you can adjust all functions. Also the change of Pan/Tilt high-byte and
low-byte is possible.

GLP zGerman Light Production (V2.1) 10

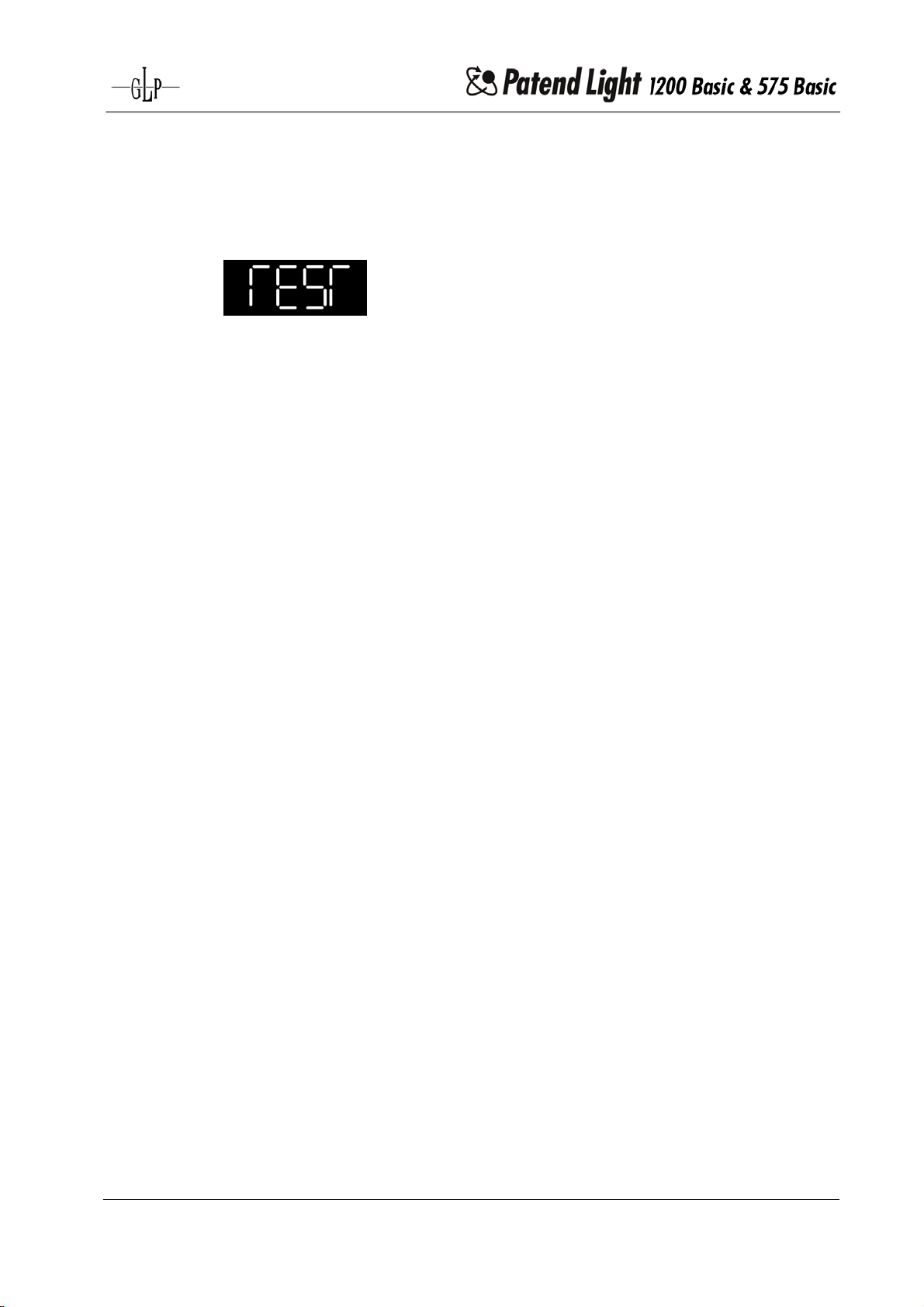

3.4 The Test Level
The Test Level makes a function test or a selftest procedure possible.
3.4.1 Selftest Procedure
Select the requested test level by pressing the Cursor key.
Start the Selftest program by pressing the Data+ key. The lamp can be
started by pressing the Data+ and Data- keys for 5 seconds at the same
time.
You have the following sections:
PR Selftest of all functions
PAN Test Head movement
TILT Test Mirror movement
PSA Test Prism
dI Test Dimmer/Shutter
CLr1 Test Colorwheel 1
CLr2 Test Colorwheel 2
GB1 Test Gobowheel 1
GB2 Test Gobowheel 2
IrIS Test Iris
Gr1 Test Gobo rotation 1
FOCS Test Focus
Forward with the Data+ key. – Backward with the Data- key.
3.5 Temperature Control 1
Deviates the temperature value to much from the system standard, the lamp will
turn off automatically.
Reconnection can only be made by authorized dealers.

GLP zGerman Light Production (V2.1) 11
4 Channel selection ( Overview table )
Channel Description DMX-Value Hex-Value Value %
1) Head Headposition, Low Byte (0o-1,41o) 0 - 255 0 - FF 0 – 100%
2) Head Headposition, High Byte (0o-360o) 0 - 255 0 - FF 0 – 100%
3) Mirror Mirrorposition, Low Byte(0o-1,41o) 0 - 255 0 - FF 0 – 100%
4) Mirror Mirrorposition, High Byte (0o-360o) 0 - 255 0 - FF 0 – 100%
5) Speed
Head Speed Head, 1/8min - 5/sec 0 - 255 0 - FF 0 – 100%
6) Speed
Mirror Speed Mirror, 1/4min - 3/sec 0 - 255 0 - FF 0 – 100%
7) Special
Function Head Mirror
Relative Movement
0 0 0%
Pos < 360oPos < 360o1 - 19 1 - 13 1 – 7%
Pos > 360oPos > 360o20 - 29 14 - 1D 8 – 11%
Pos < 360oPos > 360o30 - 39 1E -27 12 – 15%
Pos > 360oPos < 360o40 - 49 28 - 31 16 – 19%
Rotation left Pos < 360o50 - 59 31 - 3B 20 – 23%
Rotation left Pos > 360o60 - 69 3C - 45 24 – 27%
Rotation right Pos < 360o70 - 79 46 - 4F 28 – 30%
Rotation right Pos > 360o80 - 89 50 - 59 31 – 35%
Pos < 360oRotation left 90 - 99 5A - 63 36 – 38%
Pos > 360oRotation left 100 - 109 64 - 6D 39 – 42%
Pos < 360oRotation right 110 - 119 6E - 77 43 – 46%
Pos > 360oRotation right 120 - 129 78 - 81 47 – 50%
Rotation left Rotation left 130 - 139 82 - 8B 51 – 54%
Rotation right Rotation right 140 - 149 8C - 95 55 – 58%
Rotation left Rotation right 150 - 159 96 - 9F 59 – 62%
Rotation right Rotation left 160 - 254 A0 - FE 63 – 98%
Reset without Shutter 254 FE 99%
Reset for all Functions 255 FF 100%
8) Color 1 color 1 (white) 0 - 4 0 - 4 1%
bi (white – green) 5 - 9 5 - 9 2 – 3%
color 2 (green) 10 - 14 A - E 4 – 5%
bi (green – red) 15 - 19 F - 13 6 – 7%
color 3 (red) 20 -24 14 - 18 8 – 9%
bi (red – dark blue) 25 - 29 19 - 1D 10 – 11%
color 4 (dark blue) 30 - 34 1E - 22 12 – 13%
bi (dark blue – yellow) 35 - 39 23 - 27 14 – 15%
color 5 (yellow) 40 - 44 28 - 2C 16 – 17%
bi (yellow – pink) 45 - 49 2D - 31 18%
color 6 (pink) 50 - 54 32 - 36 19 – 20%
bi (pink – turquiose) 55 -59 37 - 3B 21 – 22%
color 7 (turquiose) 60 - 64 3E - 40 23 – 24%

GLP zGerman Light Production (V2.1) 12
Channel Description DMX-Value Hex-Value Value %
bi (turquiose – orange) 65 - 69 41 - 45 25 – 26%
color 8 (orange) 70 - 74 46 - 4A 27 – 28%
bi (orange – cyan) 75 - 79 4B - 4F 29 – 30%
color 9 (cyan) 80 - 84 50 - 54 31 – 32%
bi (cyan – magenta) 85 - 89 55 - 59 33 – 34%
color 10 (magenta) 90 - 94 5A - 5E 35 – 36%
bi (magenta – white) 95 - 99 5F - 63 37 – 39%
rotation cw slow – fast 128 - 191 80 - BF 50 – 74%
stop 192 C0 75%
rotation ccw slow – fast 193 - 255 C1 - FF 76 – 100%
9) Color 2 color 1 (white) 0 - 63 0 - 3F 0 – 24%
color 2 (cyna) 64 - 127 40 - 7F 25 – 49%
color 1 (white) 128-191 80 – BF 50 – 75%
color 3 (magenta) 192 -255 C0 - FF 76 – 100%
10) Schutter shutter open 0 - 9 0 – 9 0 – 3%
shutter close 1 10 – 19 A – 13 4 – 7%
shutter close 2 20 - 29 14 – 1D 8 – 11%
shutter slow – fast 30 – 99 1E – 63 12 – 38%
shutter close 1 100 – 250 64 – FA 39 – 98%
shutter open 251 - 255 FB - FF 99 – 100%
11) Dimmer close (0%) 0 – 9 0 – 9 0 – 3%
close - open (0-100%) 10 – 249 A - F9 4 – 97%
open (100%) 250 – 255 FA – FF 98 – 100%
12) Gobo 1 gobo 1 0 - 9 0 - 9 0 – 3%
gobo 2 10 - 19 A - 13 4 – 7%
gobo 3 20 - 29 14 - 1D 8 – 11%
gobo 4 30 - 39 1E - 27 12 – 15%
gobo 5 40 - 49 28 - 31 16 – 19%
gobo 6 50 - 127 32 - 7F 20 – 50%
Rotation cw fast - slow 128 - 191 80 - BF 51 – 74%
Stop 192 C0 75%
Rotation ccw slow fast 193 - 255 C1 – FF 76 – 100%
13) Gobo Stop 0 – 4 0 – 4 0 – 1%
Rotation Rotation cw slow - fast 5 – 24 5 – 18 2 – 9%
Stop 25 – 29 19 – 1D 10 – 11%
Rotation ccw slow - fast 30 – 49 1E – 31 12 – 19%
Stop 50 – 54 32 – 36 20 – 21%
gobo position 55 – 255 37 – FF 22 – 100%
14) Gobo 2 Gobo 1 0 – 9 0 - 9 0 – 3%
Gobo 2 10 – 19 A - 13 4 – 7%
Gobo 3 20 – 29 14 - 1D 8 – 11%
Gobo 4 30 – 39 1E - 27 12 – 15%

GLP zGerman Light Production (V2.1) 13
Channel Description DMX-Value Hex-Value Value %
Gobo 5 40 – 49 28 - 31 16 – 19%
Gobo 6 50 – 127 32 - 7F 20 – 50%
rotation cw slow . fast 128 – 191 80 - BF 51 – 74%
stop 192 C0 75%
rotation ccw slow – fast 193 – 255 C1 - FF 76 – 100%
15) Focus min – max 0 – 255 0 – FF 0 – 100%
16) Iris 100% - 4% 0 – 255 0 – FF 0 – 100%
17) Prism open 0 – 9 0 – 9 0 – 3%
Prism 1 10 – 120 A – 78 4 – 47%
Effect 121 – 129 79 – 81 48 – 50%
Prism 2 130 – 255 82 – FF 51 – 100%
Lamp on shutter (min 2 sec)
dimmer 240 – 245 250 – 255 F0 – F5 FA – FF 94 – 96% 98 – 100%
Lamp on
(from software-
version 2.2, this
is also shown in
the dislpay)
Shutter (min 2 sec)
dimmer
240 – 255
250 – 255
F0 – FF
FA – FF
94 – 100%
98 – 100%
Lamp off shutter (min 2sec)
dimmer
iris (max 5sec)
246 – 250
0 – 9
x– 255- 0
F6 – FA
0 – 9
x - FF - 0
97 – 98%
0 – 3%
x– 100 –0%
Lamp off
(from software-
version 2.2, this
is also shown in
the dislpay)
shutter (min 2sec)
dimmer
iris (max 5sec)
230 – 250
0 – 9
x– 255- 0
E6 – FA
0 – 9
x - FF - 0
90 – 98%
0 – 3%
x– 100 –0%
Relative Movement:
If DMX- channel Nr.7 (Special) is on DMX- [000] you can control the P PA AT TE EN ND D- -L LI IG GH HT T
1
12 20 00 0/ /5 57 75 5 B BA AS SI IC Cin Relative Movement. Therefor the speed channels No. 5/6 must be
also on DMX- [000] If you have a DMX- Value on one of these channels it is
automatically on absolute movement. While programming circles or other movements
please use the absolute movement.

GLP zGerman Light Production (V2.1) 14
5 Change the Lamp
For a hassle free change of the Light bulb, it is absolutely necessary to follow all
descriptions in this chapter step by step.
5.1 Safety Rules
•Unplug AC power connection
•Allow to cool (min. 30 minutes)
•Don’t touch lamp with bare fingers.
•Install the lamp with the filler to the right direction. (see Illustration 5-1)
•Distance between lamp and lens holder must bee min. 5mm.
Close the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC C/ /5 57 75 5 B BA AS SI IC Cbefore you connect the AC
power!

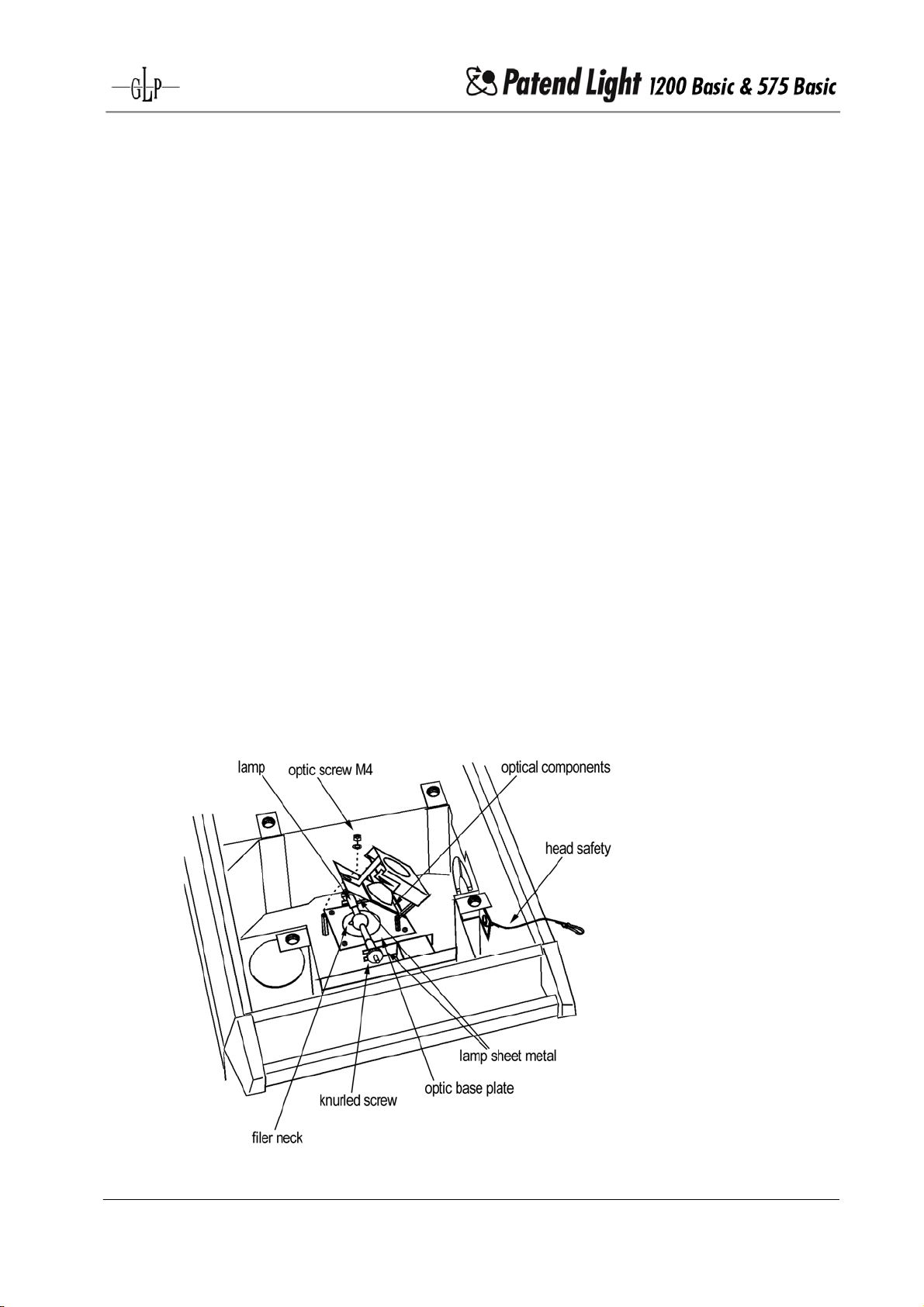

Illustration 5-1

GLP zGerman Light Production (V2.1) 15
5.2 How to change the lamp
Please look also Illustration 1-1 and 5-1/2.
1. Unscrew screws on the head with 8mm wrench.
2. Press the two safety levers at the same time and lift carefully the head plate.
3. Remove Sub-D socket by pressing the safety clips. Hang out the safety loop
and lift the head plate cautiously.
4. Remove the multiple pin strip 1 and 2.
5. Open the knurled screw of the Optical Slide.
6. Hang out the safety of the Optical Slide in.
7. Take out the Optical Slide in carefully.
8. Unscrew the M4 screw of the optical plate.
9. Open the upper part of the optical device.
10.Unscrew the HMI lamp nuts and change the lamp.
11.The lamp filler must be placed like in the illustration !!!
Close the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC C in reverse order.
Attention: Make sure that the optical slide in fits in both grooves !!!

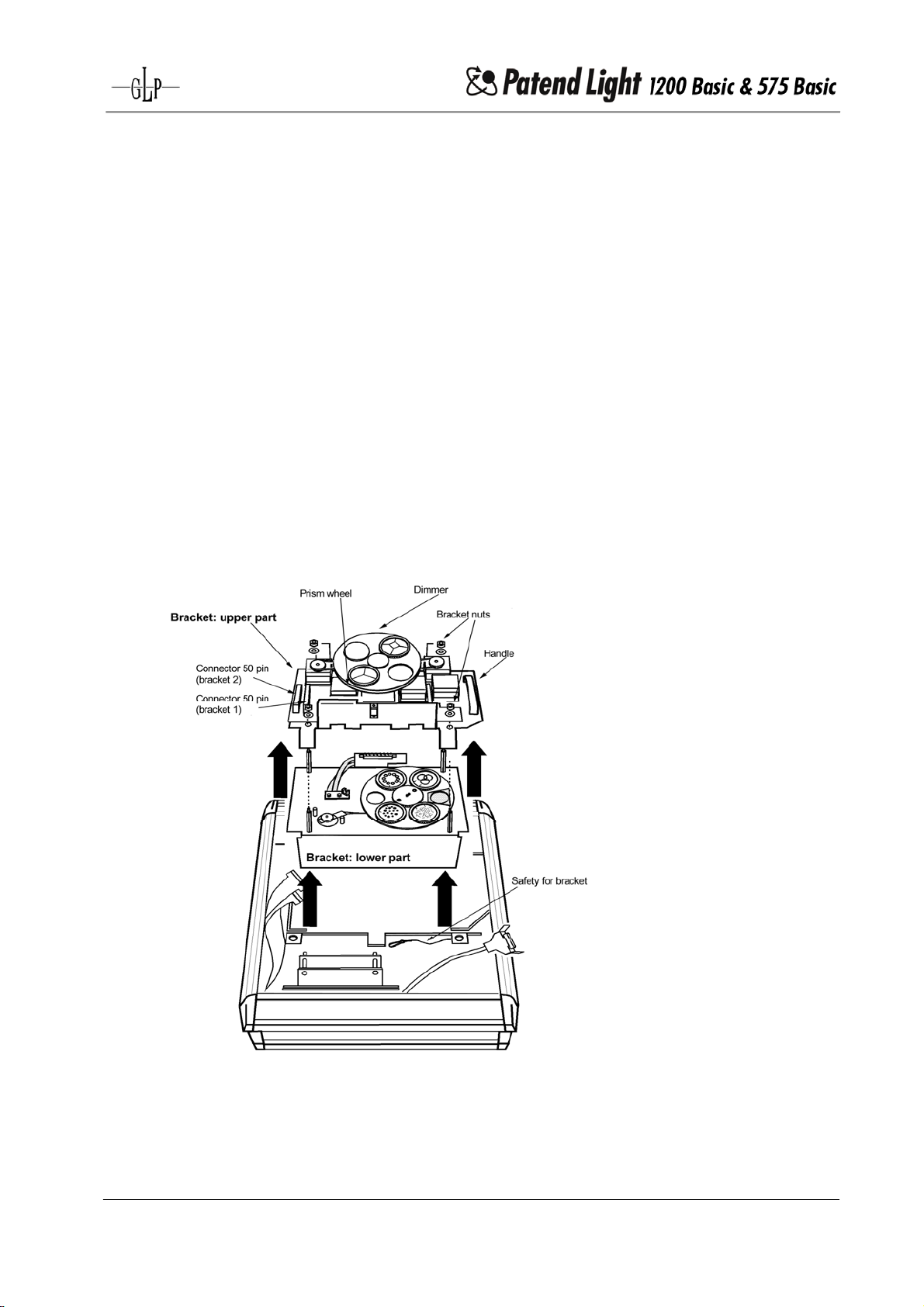

Illustration 5-2

GLP zGerman Light Production (V2.1) 16
6 Change the Gobos
The PATEND-LIGHT 1200/575 BASIC is fitted with standard Gobos (37,5 mm). To
change one of these it is necessary to open the PATEND-LIGHT 1200/575 BASIC and
to remove the optical system.
6.1 Safety Rules
•Unplug AC power connection
•Allow to cool (over 30 minutes)
•Don’t touch lamp with bare fingers.
•Close the
P
PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC Cbefore you connect the AC
power!
6.2 How to change the Gobos
Please look also Illustration 1-1 and 5-1.
1. Unscrew screws on the head with 8mm wrench.
2. Press the two safety levers at the same time and lift carefully the head plate.
3. Remove Sub-D socket by pressing the safety clips. Hang out the safety loop
and lift the head plate cautiously.
4. Remove the multiple pin strip 1 and 2.
5. Open the knurled screw of the Optical Screw.
6. Hang out the safety of the Optical Slide in.
7. Take out the Optical Slide in carefully.
8. Unscrew the M4 screw of the optical plate.
9. Open the upper part of the optical device.
10.Unscrew the HMI lamp nuts and change the lamp.
11.The lamp filler must be placed like in the illustration !!!
Close the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC C in reverse order.

GLP zGerman Light Production (V2.1) 17

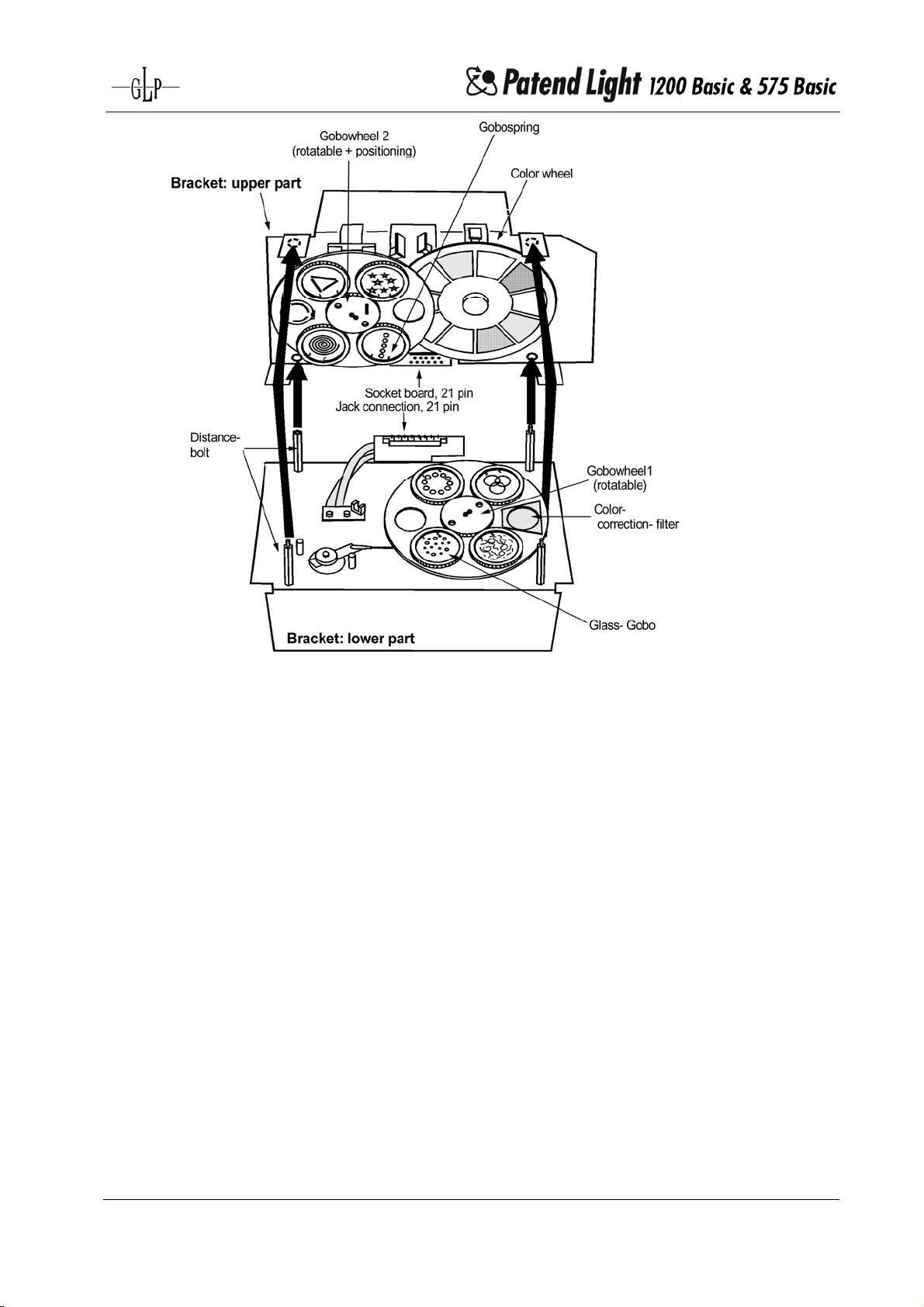

Illustration 6-1
Attention: Make sure that the optical slide in fits in both grooves !!!
If you use Glass-Gobos make sure that the mirror side looks towards the lamp side.
7 Maintenance the PATEND-LIGHT 1200/575 BASIC
The cleaning of the inner optical System, color filters, color correction filter and lenses
should be done by qualified person only! Contact your local GLP Dealer for details.
Use no strong detergents, acid etc. for cleaning the case.
7.1 Mirror and Optical System
Clean the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC C optical system with a moistened
cloth and a little cleaner.

GLP zGerman Light Production (V2.1) 18
7.1.1 Cleaning the inside Mirror and the outside Optical System

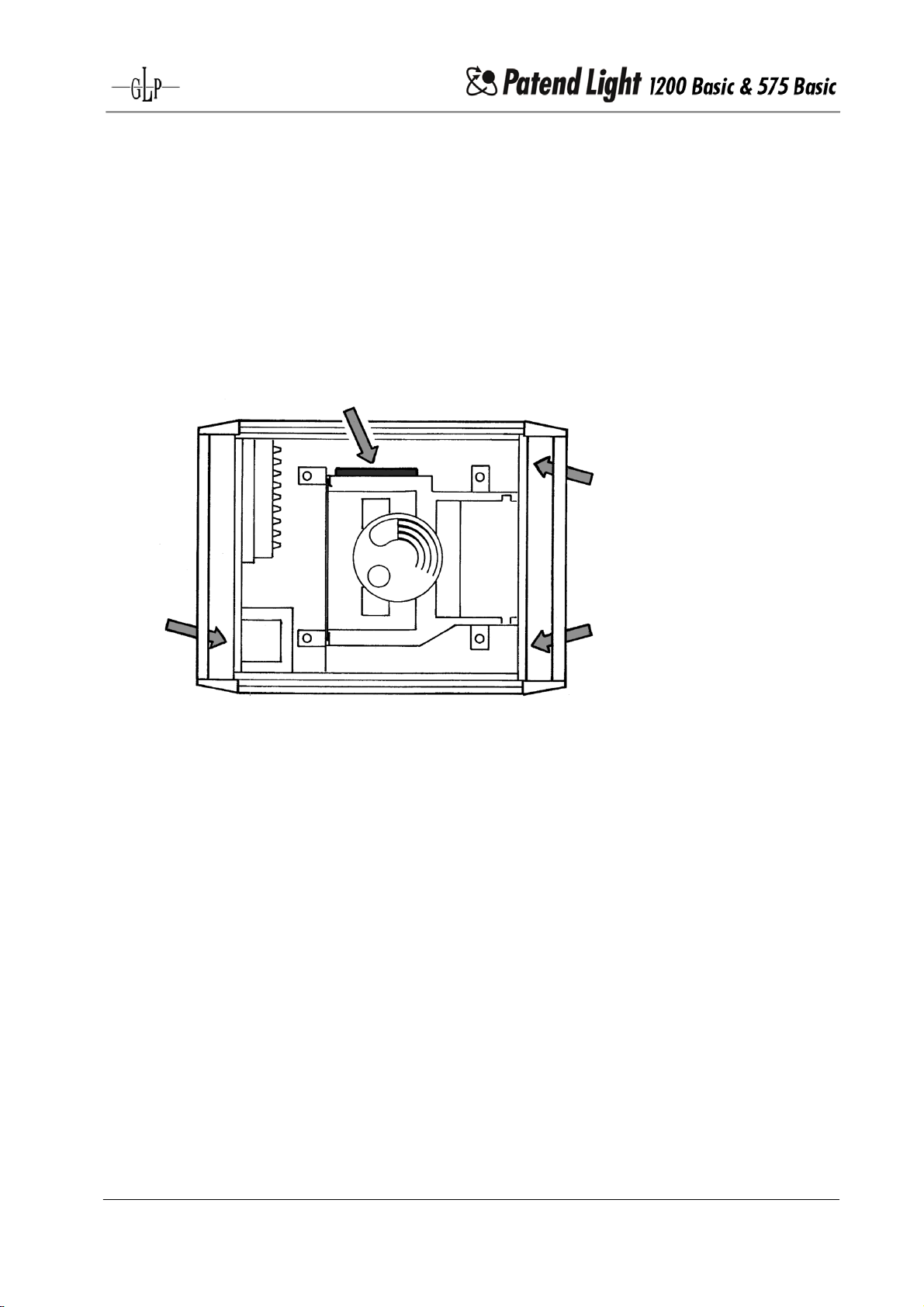

Illustration 7-1
•Open the screws
•Remove the Mirror Blind
7.1.2 Cleaning the outside Optical System
Illustration 7-2

GLP zGerman Light Production (V2.1) 19
1. Unscrew screws on the head with 8mm wrench.
2. Press the two safety levers at the same time and lift carefully the head plate.
3. Remove Sub-D socket by pressing the safety clips. Hang out the safety loop
and lift the head plate cautiously.
4. Unscrew the two screws of the aperture.
5. Clean the lenses inside
6. Close the
P
PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0/ /5 57 75 5 B BA AS SI IC C i in n r re ev ve er rs se e o or rd de er r. .
7.2 Ventilation System
Illustration 7-3
It is necessary to clean the fan openings, air channels and fan gratings on a regular
base (depending on the local environment).
