CWDM‐xxxxxCR‐B
Mux/DemuxandOpticalAdd/DropMultiplexerModules
UserGuide
Increasebandwidthonexistingfiberinfrastructure
Alleviatefiberexhaustion
Transmitmultipleprotocolsoverexistingduplexfiberlinkbycombiningfiberoutputsofmultiplemediaconverters
Providescalablebandwidthofupto10Gbpsperchanneloverexistingfiberlinks
Plug‐and‐Play,noconfigurationofCWDMcomponents
Useexistingstandardopticalportsonswitchesandrouters(utilizeOpticalLineConverterastransponder)
Contents
Introduction............................................................................................................................................................................1
OrderingInformation..............................................................................................................................................................2
OptionalAccessories(SoldSeparately)...................................................................................................................................3
FamilyPortrait.........................................................................................................................................................................3
Connections............................................................................................................................................................................4
ApplicationExamples..............................................................................................................................................................4
CWDM‐Add‐DropMuxExample.........................................................................................................................................5
CWDM‐Mux‐DemuxExample.............................................................................................................................................5
CWDMAdd/DropMuxConnections.......................................................................................................................................6
Unpacking...............................................................................................................................................................................6
Installation..............................................................................................................................................................................6
SafetyInstructionsforRackMountInstallations...............................................................................................................6
FrontPanels............................................................................................................................................................................9
Add/DropMuxFrontPanel................................................................................................................................................9
CWDMMuxFrontPanels...................................................................................................................................................9
FiberCableHandling&Installation......................................................................................................................................10
HandlingFiberCables.......................................................................................................................................................10
InstallingFiberCables.......................................................................................................................................................10
TheoryofOperation..............................................................................................................................................................11
CoarseWaveDivisionMultiplexing..................................................................................................................................11
OpticalAdd/DropMultiplexer(OADM)............................................................................................................................12
CWDMWavelength‐specificOpticalTransceivers...........................................................................................................12
TechnicalSpecifications....................................................................................................................................................13
Add/DropMuxSpecifications...........................................................................................................................................13
CWDMMuxSpecifications...............................................................................................................................................13
Troubleshooting....................................................................................................................................................................15
ProductLabelandBoxLabel.............................................................................................................................................15
RecordSystemandDeviceInformation...........................................................................................................................15
ContactUs.............................................................................................................................................................................16
RecordofRevisions...............................................................................................................................................................16
Introduction
TransitionNetworksCWDMproductsuseapassivetechnologythatallowsforanyprotocoltobetransportedover
thefiberlink,aslongasitisataspecificwavelength.TransitionNetworks’CWDMMux/DemuxandAdd/DropMux
canprovideasimpleandaffordablemethodtomaximizeexistingfibercapacitywithlittleornoincreasedcost.


TransitionNetworks,Inc.CWDM‐xxxxxCR‐BMux/DemuxUserGuide
33794Rev.Ahttps://www.transition.com/Page2of16
PassiveopticalCWDMdevicesutilizethin‐filmfiltertechnology.Theyareavailableinvariouswavelength
combinationsbasedontheentirewavelengthspectrum(1270nm–1610nmin20nmincrements)definedbythe
ITU‐TG.694.2CWDMstandard.TheseCWDMdevicesareavailableintwomainconfigurations:
Multiplexer/Demultiplexer(Mux/Demux)modulesandOpticalAdd/DropMultiplexer(OADM)modules.
Eachmoduleisapluggabledevicethatslidesintoaonerackunit(1RU)chassisthatcanhold2modulesandmount
intoa19”equipmentrack.
OrderingInformation
#ModelDescription
CWDM‐MXxxLCR‐BSeriesCoarseWavelengthDivisionMultiplexing(CWDM)Mux/Demux
1CWDM‐M551LCR‐B4Channels+OSC,1510/1530/1550/1570nm,DuplexLCMux/Demux
2CWDM‐M947LCR‐B8Channels+OSC,1470‐1610nm,DuplexLCMux/Demux
3CWDM‐M1631LCR‐B16Channels,1310‐1610nm,DuplexLCMux/Demux
CWDM‐A2A8xxLCR‐BSeriesAdd/DropMux(CWDM);1ChannelwithE/WLines
4CWDM‐A2A831LCR‐B1Channel1310nmportwithE/Wlines(wideband(+/‐50nm))
5CWDM‐A2A833LCR‐B1Channel1330nmportwithE/Wlines
6CWDM‐A2A835LCR‐B1Channel1350nmportwithE/Wlines
7CWDM‐A2A837LCR‐B1Channel1370nmportwithE/Wlines
8CWDM‐A2A839LCR‐B1Channel1390nmportwithE/Wlines
9CWDM‐A2A841LCR‐B1Channel1410nmportwithE/Wlines
10CWDM‐A2A843LCR‐B1Channel1430nmportwithE/Wlines
11CWDM‐A2A845LCR‐B1Channel1450nmportwithE/Wlines
12CWDM‐A2A847LCR‐B1Channel1470nmportwithE/Wlines
13CWDM‐A2A849LCR‐B1Channel1490nmportwithE/Wlines
14CWDM‐A2A851LCR‐B1Channel1510nmportwithE/Wlines
15CWDM‐A2A853LCR‐B1Channel1530nmportwithE/Wlines
16CWDM‐A2A855LCR‐B1Channel1550nmportwithE/Wlines
17CWDM‐A2A857LCR‐B1Channel1570nmportwithE/Wlines
18CWDM‐A2A859LCR‐B1Channel1590nmportwithE/Wlines
19CWDM‐A2A861LCR‐B1Channel1610nmportwithE/Wlines


TransitionNetworks,Inc.CWDM‐xxxxxCRMux/DemuxUserGuide
33794Rev.Ahttps://www.transition.com/Page3of16
OptionalAccessories(SoldSeparately)
ModelDescription
CWDM‐MB19R2

19”RackMountchassis,1RUHigh,holds2CWDMModules
SFPModulesTransitionNetworksoffersafulllineofsmallformfactorpluggable(SFP)modules.
SeeourSFPproductwebpageformoreinformation.

FamilyPortrait




CWDM‐A2A855LCR‐BAdd/DropMux(CWDM)

CWDM‐M1631LCR‐B(16‐Ch.Mux/Demux)


CWDM‐M551LCR‐B(4‐Ch.Mux/Demux)


CWDM‐M947LCR‐B(8‐Ch.Mux/Demux)








TransitionNetworks,Inc.CWDM‐xxxxxCR‐BMux/DemuxUserGuide
33794Rev.Ahttps://www.transition.com/Page4of16
Connections

 
CWDM‐xxxxxCR‐BMux/DemuxOpticalAdd/DropMultiplexerModules
Figure1:CWDM‐xxxxxCR‐BMux/DemuxandOpticalAdd/DropMultiplexerModules
ApplicationExamples
ThefigurebelowshowsanexistingcopperswitchataCentralOfficeorPoint‐of‐Presence(POP)convertingtheelectrical
signaltotheappropriateopticalwavelength.Thesignalsarethenmultiplexedtogetherandsentacrossthefiber
infrastructure.Attheremotesidethesignalsarede‐multiplexedandsenttothecustomerlocation.

Figure2:CWDM‐xxxxxCR‐BApplicationExample

TransitionNetworks,Inc.CWDM‐xxxxxCRMux/DemuxUserGuide
33794Rev.Ahttps://www.transition.com/Page5of16

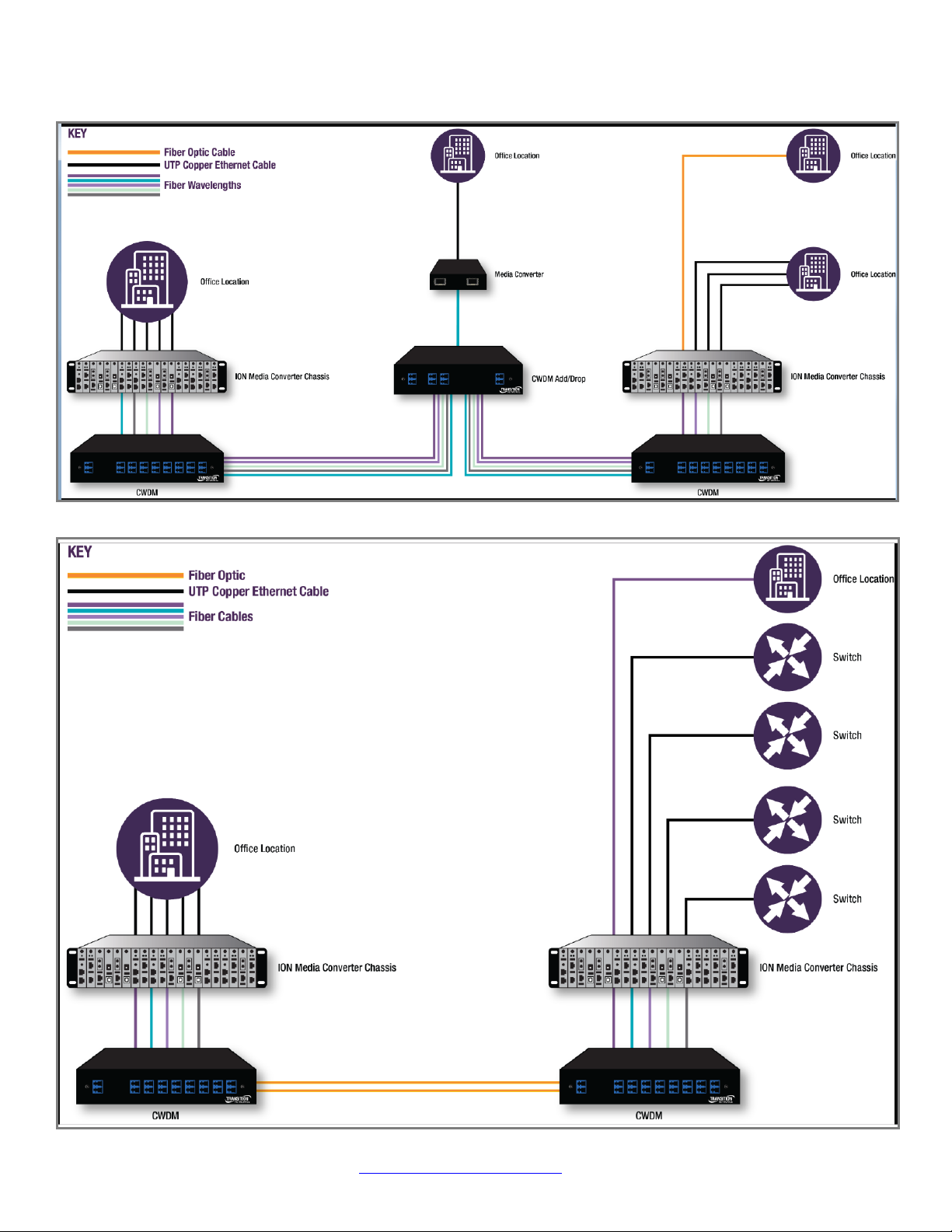

CWDM-Add-Drop Mux Example
CWDM-Mux-Demux Example

TransitionNetworks,Inc.CWDM‐xxxxxCR‐BMux/DemuxUserGuide
33794Rev.Ahttps://www.transition.com/Page6of16

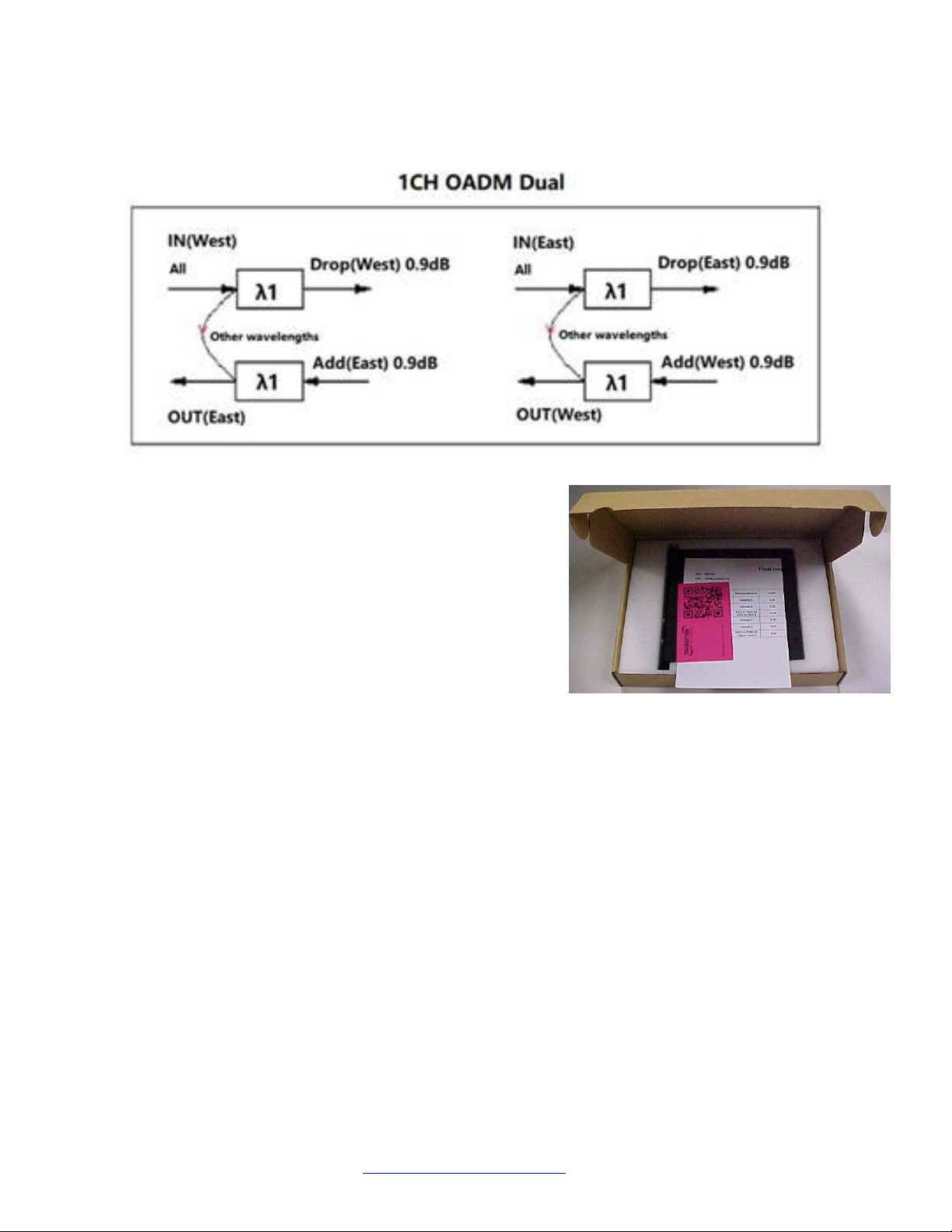

CWDMAdd/DropMuxConnections
ThefigurebelowshowsTransitionNetworksCWDMMux/Demux&Add/DropMuxmodules.Inthefigure,λ1indicates
Lambda1(foroneparticularwavelength).

Unpacking
CarefullyunpacktheCWDM‐xxxxxCR‐B.Verifythatyouhavereceived:
OneCWDM‐xxxxxCR‐B
OneDocumentationPostcard
OneprintedQuickStartGuide,33793

Pleasesavethepackagingforpossiblefutureuse.
Installation
SafetyInstructionsforRackMountInstallations
Theinstructionsbelow(orsimilar)areintendedforrackmountinstallationenvironments:
1. ElevatedOperatingAmbientTemperature:ifinstalledinaclosedormulti‐unitrackassembly,theoperatingambient
temperatureoftherackenvironmentmayexceedroomambient.Installtheequipmentinanenvironment
compatiblewiththemaximumambienttemperature(Tma)specified.
2. ReducedAirFlow:installtheequipmentinaracksothattheamountofairflowrequiredforsafeoperationisnot
compromised.
3. MechanicalLoading:Mounttheequipmentintheracksothatahazardousconditiondoesnotoccurduetouneven
mechanicalloading(weightdistribution/rackbalance).
4. CircuitOverloading:giveconsiderationtotheconnectionoftheequipmenttothesupplycircuitandtheeffectthat
overloadingofthecircuitsmighthaveonovercurrentprotectionandsupplywiring.Considerallequipment
nameplateratingswhenaddressingthisconcern.
5. ReliableEarthing:maintainreliableearthingofrack‐mountedequipment;payparticularattentiontosupply
connectionsotherthandirectconnectionstothebranchcircuit(e.g.,useofpowerstrips).




TransitionNetworks,Inc.CWDM‐xxxxxCRMux/DemuxUserGuide
33794Rev.Ahttps://www.transition.com/Page7of16
Rack Mount Install Procedure
TheCWDMmodulesinstallintotheoptionalCWDM‐MB19R2RackMountchassisforinstallationinafree‐standingrack.
ToinstallthebracketandCWDMmoduleintoarack,dothefollowing:
1.LocatetheCWDMmoduleandbracket.SeeFigure3.

Figure3:BracketandCWDMModule




2.MounttheBrackettotheequipmentrack,usingfourscrewsasshowninFigure4.

Figure4:BracketInstallation
3.PulltheCWDMmountingplungersfullyout,asshowninFigure5.
4.SlidetheCWDMmoduleintooneoftheslots,asshowninFigure5.

TransitionNetworks,Inc.CWDM‐xxxxxCR‐BMux/DemuxUserGuide
33794Rev.Ahttps://www.transition.com/Page8of16


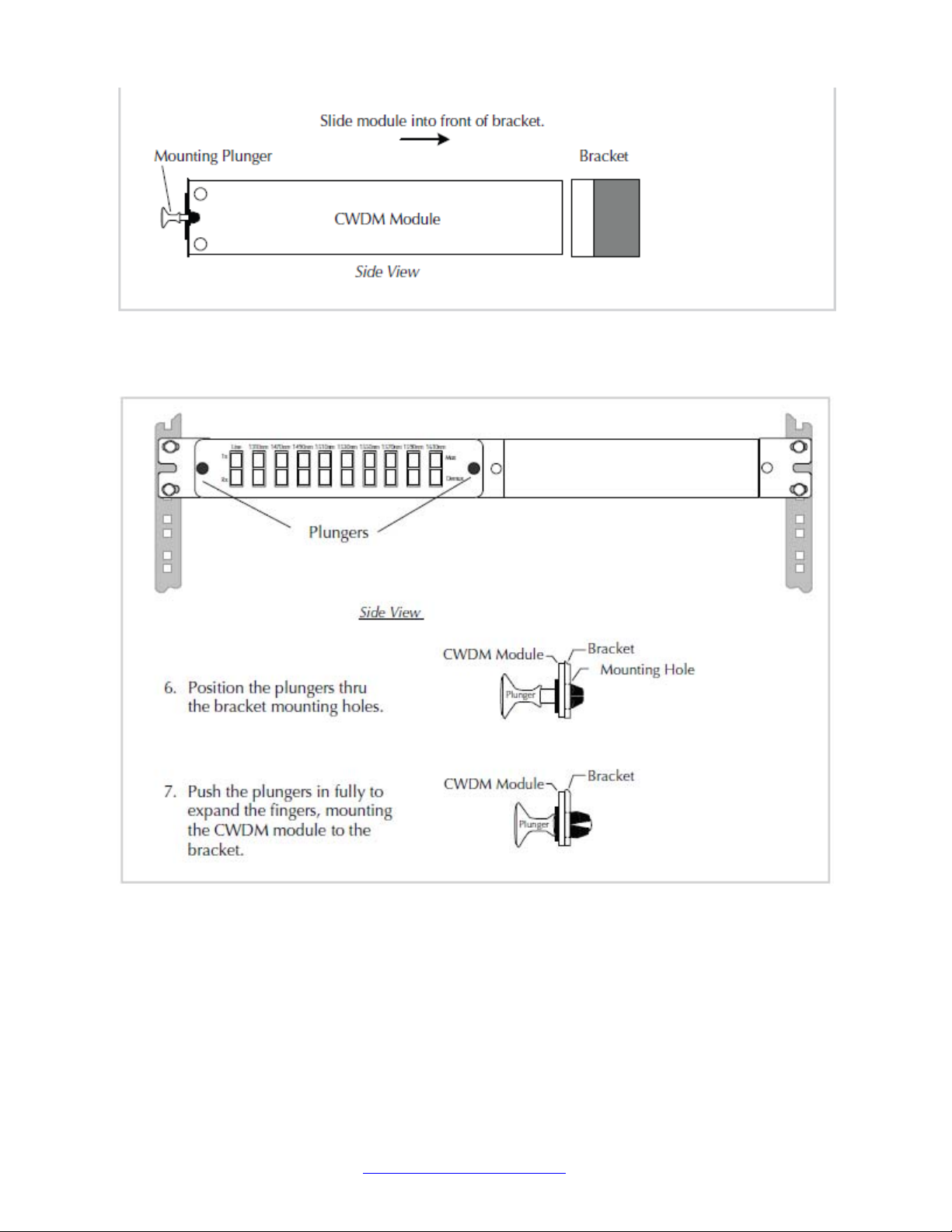

Figure5:SlideCWDMModuleintoFrontofBracket

5.SecuretheCWDMmoduletothebracket,asshowninFigure6.

Figure6:CWDMModuleInstallationintoBracket

TransitionNetworks,Inc.CWDM‐xxxxxCRMux/DemuxUserGuide
33794Rev.Ahttps://www.transition.com/Page9of16

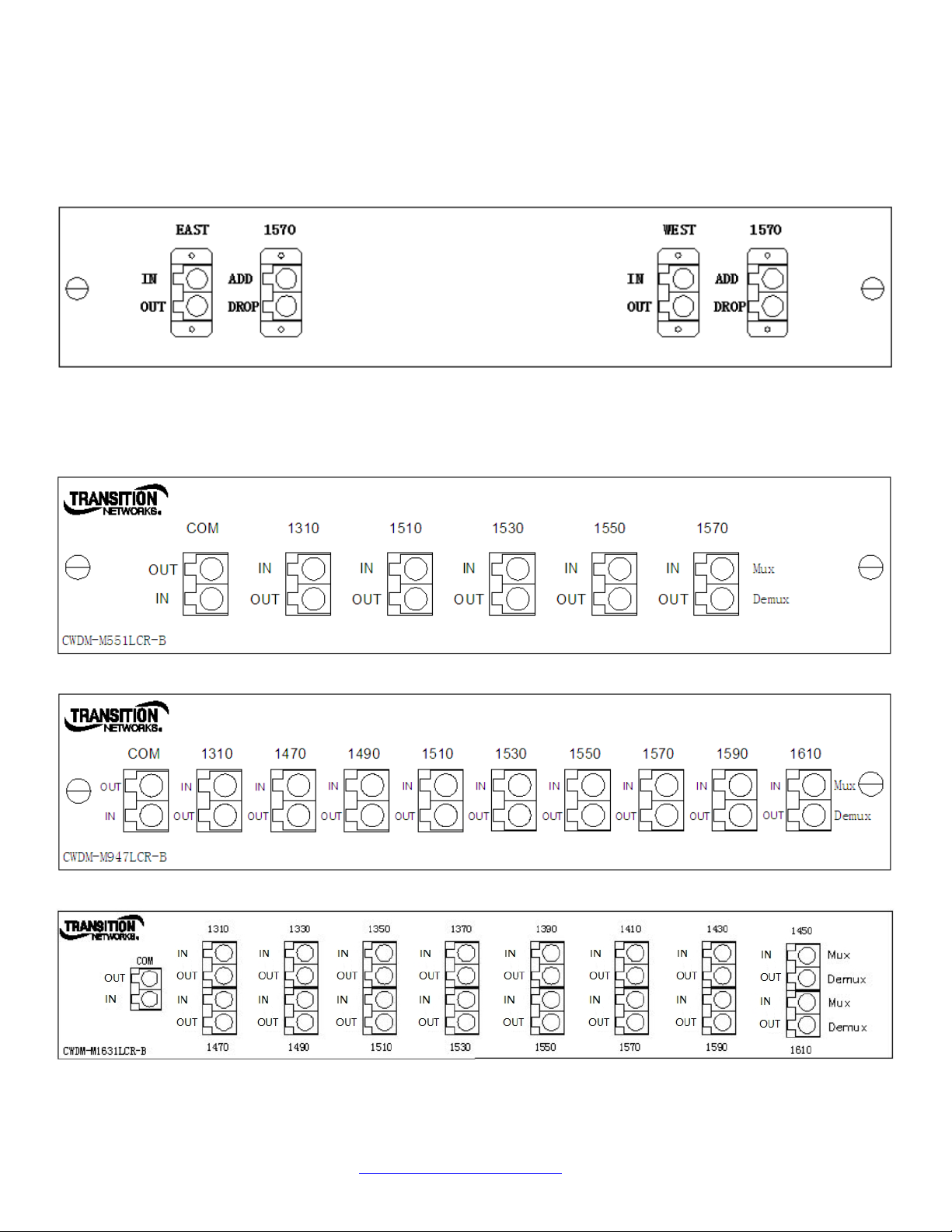

FrontPanels
Add/DropMuxFrontPanel
TheAdd/DropMuxFrontPanelisshowninFigure7.

Figure7:Add/DropMuxFrontPanel
CWDMMuxFrontPanels
TheCWDMmoduleshavenoLEDsasitdoesnotrequirepower.ThefrontpanelsareshowninFigures8a,8b,and8c.

Figure8a:4‐ChannelCWDMMuxFrontPanel(CWDM‐M551LCR‐B)

Figure8b:8‐ChannelCWDMMuxFrontPanel(CWDM‐M947LCR‐B)

Figure8c:16‐ChannelCWDMMuxFrontPanel(CWDM‐M1631LCR‐B)


TransitionNetworks,Inc.CWDM‐xxxxxCR‐BMux/DemuxUserGuide
33794Rev.Ahttps://www.transition.com/Page10of16
FiberCableHandling&Installation
HandlingFiberCables
Accurateandrepeatabledatatransmissionsrequirecleanfiber‐opticconnections;therefore,inspecttheendsofall
connectorsfordustorimperfections.Toachievethebestpossibleperformance,followtheseguidelines:
• Topreventdamage,keeptheconnectors’protectivecoveronwhennotinuse.
• Usecareinhandlingallfiber‐opticconnectors.
• Visuallyinspectfiberendsforsignsofdamage.
• Alwayscleanandinspectfiberconnectorspriortomakingaconnection.

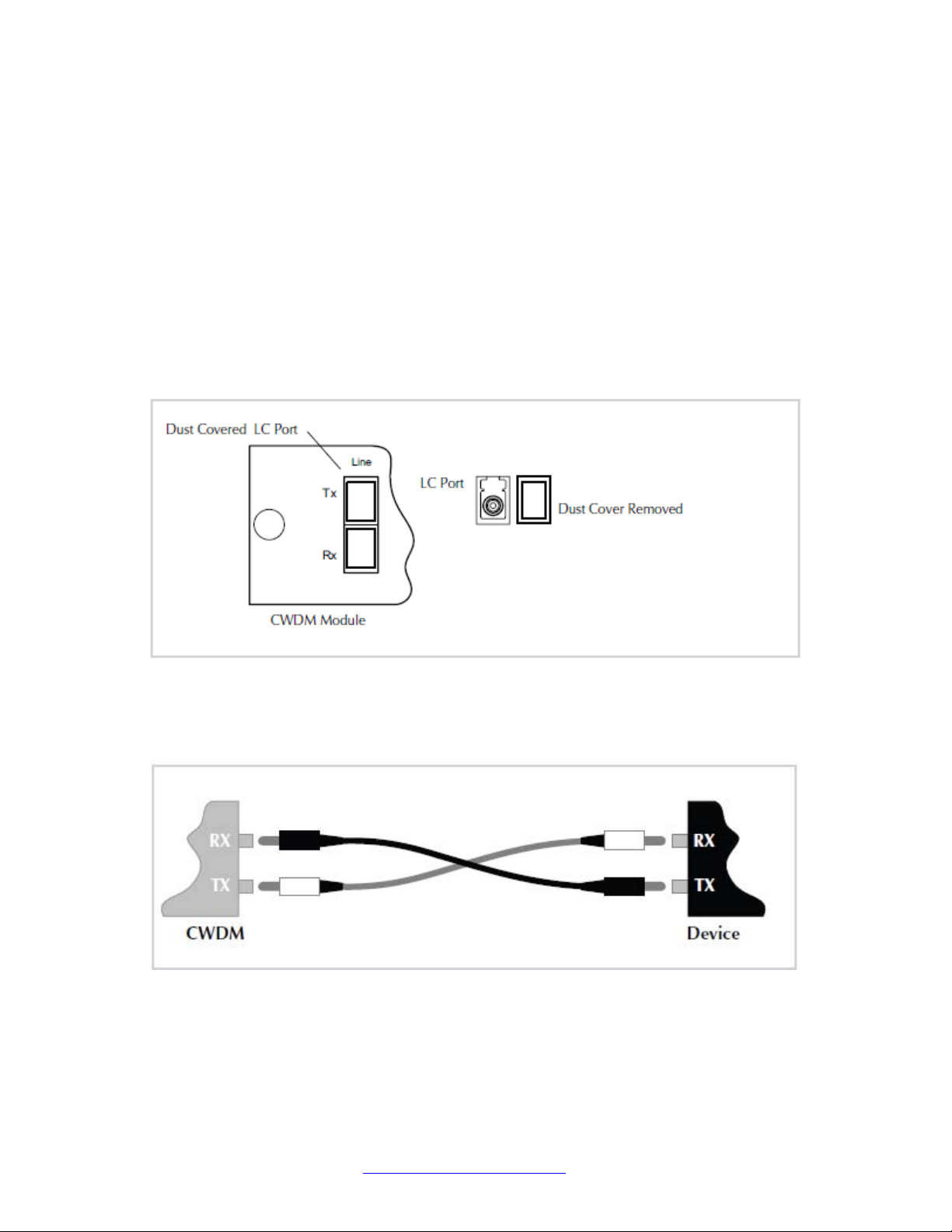

InstallingFiberCables
Toinstallthefibercables,dothefollowing:
1.Removetheprotectivecoverfromtheport.SeeFigure9.

Figure9:LCPortandDustCover

2.Locatea2‐strandfibercablewiththeappropriatemaleconnectorsinstalledonbothends.
3.CarefullyinsertthefibercableintotheCWDMandthedevice,asshowninFigure10.

Figure10:FiberCableConnections

TransitionNetworks,Inc.CWDM‐xxxxxCRMux/DemuxUserGuide
33794Rev.Ahttps://www.transition.com/Page11of16
TheoryofOperation
CoarseWaveDivisionMultiplexing
CWDMcanbebrieflydescribedasamethodoftransmittingmultiplesignalsoverafiberopticlinkthroughtheuseof
separate,distinctwavelengths,basedontheentirewavelengthspectrum(1270nm–1610nmin20nmincrements)
definedbytheITU‐TG.694.2CWDMstandard.Ingeneral,CWDMcomponentsmultiplextheopticalsignaloutputsfrom
‘4’ormoreelectronicdevices.Thesesignalsaresentoverasingleopticalfiber.Thesignalsarethendemultiplexedinto
separate,distinctsignalsforinputintoelectronicdevicesattheotherendofthefiberopticlink.SeeFigure11.

Figure11:CoarseWaveDivisionMultiplexing
TransitionNetworksCWDMdevicesutilizethin‐filmfiltertechnology.SincetheCWDMdevicesareentirelypassive,they
canbeusedinconjunctionwithlower‐cost,noncooledlasersources.TheseCWDMdevicesareavailableintwomain
configurations:Multiplexer/Demultiplexer(Mux/Demux)modules,andOpticalAdd/DropMultiplexer(OADM)modules.

TransitionNetworks,Inc.CWDM‐xxxxxCR‐BMux/DemuxUserGuide
33794Rev.Ahttps://www.transition.com/Page12of16

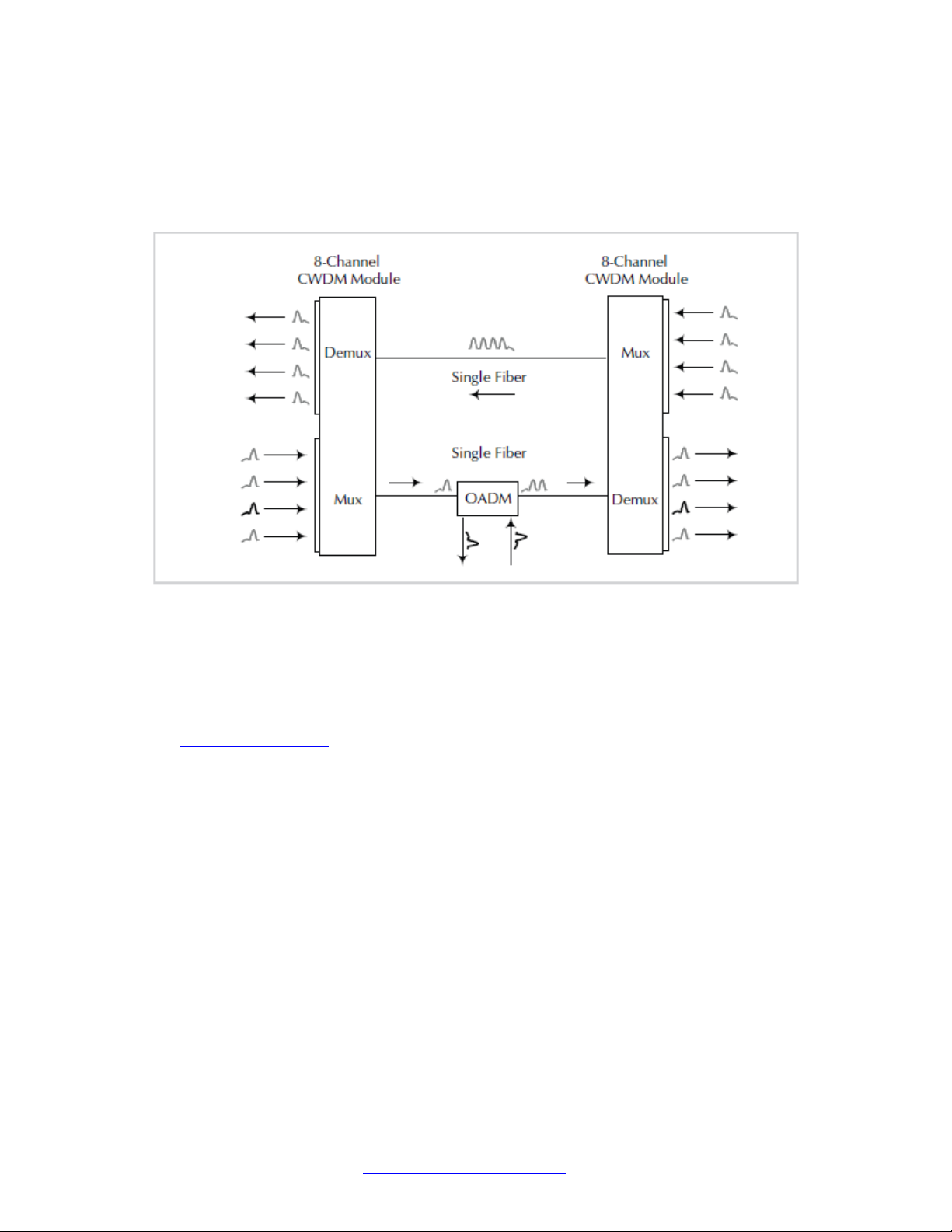

OpticalAdd/DropMultiplexer(OADM)
Theopticaladd/dropmultiplexermoduleprovidestheabilitytoaddordropasinglewavelengthormulti‐wavelengths
fromafullymultiplexedopticalsignal.Thisallowsintermediatelocationsbetweenremotesitestoaccessthecommon,
point‐to‐pointfibersegmentlinkingthem.WavelengthsthatarenotdroppedpassthroughtheOADMandcontinueon
inthedirectionoftheremotesite.SeeFigure12.
Figure12:Add/DropModule
CWDMWavelength‐specificOpticalTransceivers
TransitionNetworksfulllineofmediaconvertersandswitchescanincorporateCWDMwavelengthswiththeaddition
ofwavelength‐specificsmallform‐factorpluggable(SFP)opticaltransceiversortraditionalfixedopticalports.CWDM
SFPscomplywithITU‐TG.694.2CWDMstandardandareavailableforFastEthernet,GigabitEthernet,OC‐3/STM‐1,
OC‐12/STM‐4,andOC‐48/STM‐16datarates.FixedopticalportsareavailableinFastEthernetandGigabitEthernet,
andinthesameCWDMITUwavelengths.

TransitionNetworks,Inc.CWDM‐xxxxxCRMux/DemuxUserGuide
33794Rev.Ahttps://www.transition.com/Page13of16
TechnicalSpecifications
Add/DropMuxSpecifications
ChannelWavelength   ITU&ITU+1(1260‐1620nm)
CenterWavelengthAccuracy  +‐0.5(nm)
ChannelSpacing   20(nm)
ChannelPassbandbandwidth(nm) +‐6.5(nm)
ChannelRipple0.3dB
IsolationAdjacent   >30dB
Non‐Adjacent>40dB
InsertionLossTemperatureSensitivity <=0.005dB/°C
WavelengthTemperatureShifting <0.002nm/°C
PolarizationDependentLoss  <0.1dB
PolarizationModeDispersion  <0.1PS
Directivity>50dB
ReturnLoss>50dB
FiberTypeCorningSM28E
ConnectorLC/PC
Mounting19”RackMount
Dimensions(Unit)  Width:8.46”[215mm]xDepth:7.68”[195mm]xHeight:1.24”[31.5mm]
Dimensions(withChassis) Width:17.44”[443mm]xDepth:9.84”[250mm]xHeight:1.73”[44mm]
OperatingTemperature:  ‐20°Cto+70°C
StorageTemperature:‐40°Cto+85°C
Weight0.88lbs[0.40kg]
WarrantyLifetime
CWDMMuxSpecifications
CWDM‐M551LCR‐BSpecifications
ChannelWavelength   ITU&ITU+1(nm)
CenterWavelengthAccuracy  +‐0.5(nm)
ChannelSpacing   20(nm)
ChannelPassbandbandwidth(nm) +‐6.5(nm)
InsertionLosswithconnector  <=1.6dB
ChannelRipple0.3dB
IsolationAdjacent   >30dB
Non‐Adjacent>40dB
InsertionLossTemperatureSensitivity <=0.005dB/°C
WavelengthTemperatureShifting <0.002nm/°C
PolarizationDependentLoss  <0.1dB
PolarizationModeDispersion  <0.1PS
Directivity>50dB
ReturnLoss>50dB
Mounting19”RackMount
Dimensions(Unit)  Width:8.46”[215mm]xDepth:7.68”[195mm]xHeight:1.24”[31.5mm]
Dimensions(withChassis) Width:17.44”[443mm]xDepth:9.84”[250mm]xHeight:1.73”[44mm]
OperatingTemperature:  ‐20°Cto+70°C
StorageTemperature:‐40°Cto+85°C
Weight0.88lbs[0.40kg]
WarrantyLifetime

TransitionNetworks,Inc.CWDM‐xxxxxCR‐BMux/DemuxUserGuide
33794Rev.Ahttps://www.transition.com/Page14of16
CWDM‐M947LCR‐BSpecifications
ChannelWavelength   ITU&ITU+1(nm)
CenterWavelengthAccuracy  +‐0.5(nm)
ChannelSpacing   20(nm)
ChannelPassbandbandwidth(nm) +‐6.5(nm)
InsertionLosswithconnector  <=2.5dB
ChannelRipple0.3dB
IsolationAdjacent   >30dB
Non‐Adjacent>   40dB
InsertionLossTemperatureSensitivity <=0.005dB/°C
WavelengthTemperatureShifting <0.002nm/°C
PolarizationDependentLoss  <0.1dB
PolarizationModeDispersion  <0.1PS
Directivity>50dB
ReturnLoss>50dB
Mounting19”RackMount
Dimensions(Unit)  Width:8.46”[215mm]xDepth:7.68”[195mm]xHeight:1.24”[31.5mm]
Dimensions(withChassis) Width:17.44”[443mm]xDepth:9.84”[250mm]xHeight:1.73”[44mm]
OperatingTemperature:  ‐20°Cto+70°C
StorageTemperature:‐40°Cto+85°C
Weight0.9lbs[0.41kg]
WarrantyLifetime
CWDM‐M1631LCR‐BSpecifications
ChannelWavelength   ITU&ITU+1(nm)
CenterWavelengthAccuracy  +‐0.5(nm)
ChannelSpacing   20(nm)
ChannelPassbandbandwidth(nm) +‐6.5(nm)
InsertionLosswithconnector  <=3.2dB
ChannelRipple0.3dB
IsolationAdjacent   >30dB
Non‐Adjacent>40dB
InsertionLossTemperatureSensitivity <=0.005dB/°C
WavelengthTemperatureShifting <0.002nm/°C
PolarizationDependentLoss  <0.1dB
PolarizationModeDispersion  <0.1PS
Directivity>50dB
ReturnLoss>50dB
Mounting19”RackMount
Dimensions(Unit)  Width:8.46”[215mm]xDepth:7.68”[195mm]xHeight:1.24”[31.5mm]
Dimensions(withChassis) Width:17.44”[443mm]xDepth:9.84”[250mm]xHeight:1.73”[44mm]
OperatingTemperature:  ‐20°Cto+70°C
StorageTemperature:‐40°Cto+85°C
Weight1lb[0.46kg]
WarrantyLifetime



TransitionNetworks,Inc.CWDM‐xxxxxCRMux/DemuxUserGuide
33794Rev.Ahttps://www.transition.com/Page15of16
Troubleshooting
1. Makesurethefiberconnectorsareclean;seetheFOA.orgterminationcleaningwebpage.
2. Makesureyourmodelsupportsthefeatureorfunctionattempted;seeOrderingInformationonpage2.
3. Verifytheinstallprocess;seeInstallationonpage6.
4. Troubleshootconnectednetworkdevicestopinpointtheproblemtotheswitch.Seetherelateddocumentation.
5. Whencalculatingopticalloss,ensurethatthetotalloss,plusasafetyfactor(typically3dB)doesnotexceedthe
opticalpowerbudget(thedifferencebetweenthetransmitteropticaloutputpowerandthereceiver’soptical
sensitivity).Seetheequipmentmanufacturers’documentationforthetransmitteropticaloutputpowerandreceiver
opticalsensitivityvalues.
6. SeetheFOA.orgTesting&TroubleshootingFiberOpticSystemswebpage.
7. Recorddeviceinformation(seebelow)andContactTechSupport(seebelow).
ProductLabelandBoxLabel
YoucanfinddeviceinformationontheboxlabelandproductlabelasshowninFigure13.
  
Figure13:BoxLabelandProductLabel
RecordSystemandDeviceInformation
After performing the troubleshooting steps, and before calling or emailing Technical Support, please record as much
information as possible in order to help the Transition Networks Tech Support Specialist.
1. Record P/N: _______________________________________ S/N: __________________________________________Date: ___________________
2. Record Port Configuration and Status: ______________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
3. Provide additional information to your Tech Support Specialist. See the “Troubleshooting” section above.
Your Transition Networks service contract number: ___________________________________________________________________________
Describe the failure: ___________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
Describe any action(s) already taken to resolve the problem (e.g., changing mode, rebooting, etc.): ________________________
________________________________________________________________________________________________________________________________
________________________________________________________________________________________________________________________________
________________________________________________________________________________________________________________________________
The model and serial numbers of other Transition Networks devices in the network: ________________________________________
__________________________________________________________________________________________________________________________________
__________________________________________________________________________________________________________________________________

TransitionNetworks,Inc.CWDM‐xxxxxCR‐BMux/DemuxUserGuide
33794Rev.Ahttps://www.transition.com/Page16of16
Describe your network environment (layout, cable type, etc.): ________________________________________________________________
_________________________________________________________________________________________________________________________________
________________________________________________________________________________________________________________________________ _
Any previous Return Material Authorization (RMA) numbers: _________________________________________________________________
ContactUs
TechnicalSupport:isavailable24‐hoursaday.USandCanada:1‐800‐260‐1312.International:00‐1‐952‐941‐7600.
MainOffice:tel:+1.952.941.7600|tollfree:1.800.526.9267|fax:952.941.2322|[email protected]|
[email protected]|[e-mail]
Address:TransitionNetworks|10900RedCircleDrive|Minnetonka,MN55343,U.S.A.
Web:https://www.transition.com
RecordofRevisions
RevDateNotes
A6/26/19Initialrelease.
Trademarknotice:Alltrademarksandregisteredtrademarksarethepropertyoftheirrespectiveowners.
Copyrightrestrictions:©2019TransitionNetworks.Allrightsreserved.Nopartofthisworkmaybereproducedorused
inanyformorbyanymeans‐graphic,electronic,ormechanical‐withoutwrittenpermissionfromTransitionNetworks.
