Transition Networks CETTF10XX-200 User manual

Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .5
Cable Specifications . . . . . . . . . . .7
Technical Specifications . . . . . . . .9
Troubleshooting . . . . . . . . . . . . .10
Contact Us . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . .12
User’s Guide
CETTF10xx-200
Slide-in-Module Media Converter
• Ethernet
• Copper to Fiber
• 10Base-T to 10Base-FL
Transition Networks CETTF10xx-200 series Ethernet
10Base-T to 10Base-FL media converters (designed
to be installed in a PointSystem™ chassis) connect
10Base-T twisted-pair copper cable to multimode or
single mode 10Base-FL fiber-optic cable.
* Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network installation.
Part Number Port One - Copper
10Base-T
Port Two - Fiber-Optic
10Base-FL
CETTF1011-200 RJ-45
100 m (328 m)*
ST, 850 nm multimode
2 km (1.2 miles)*
CETTF1012-200 RJ-45
100 m (328 m)*
ST, 1310 nm single mode
20 km (12.4 miles)*
CETTF1013-200 RJ-45
100 m (328 m)*
SC, 850 nm multimode
2 km (1.2 miles)*
CETTF1014-200 RJ-45
100 m (328 m)*
SC, 1310 nm single mode
20 km (12.4 miles)*
CETTF1022-200 RJ-45
100 m (328 m)*
ST, 1310 nm single mode
40 km (24.9 miles)*
CETTF1027-200 RJ-45
100 m (328 m)*
ST, 1300 nm multimode
5 km (3.1 miles)*

CETTF10xx-200
224-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Installation
CAUTION: Wear a grounding device and observe electrostatic discharge
precautions when setting the 4-position switch and the jumper. Failure to
observe this caution could result in damage to, and subsequent failure of, the
media converter.

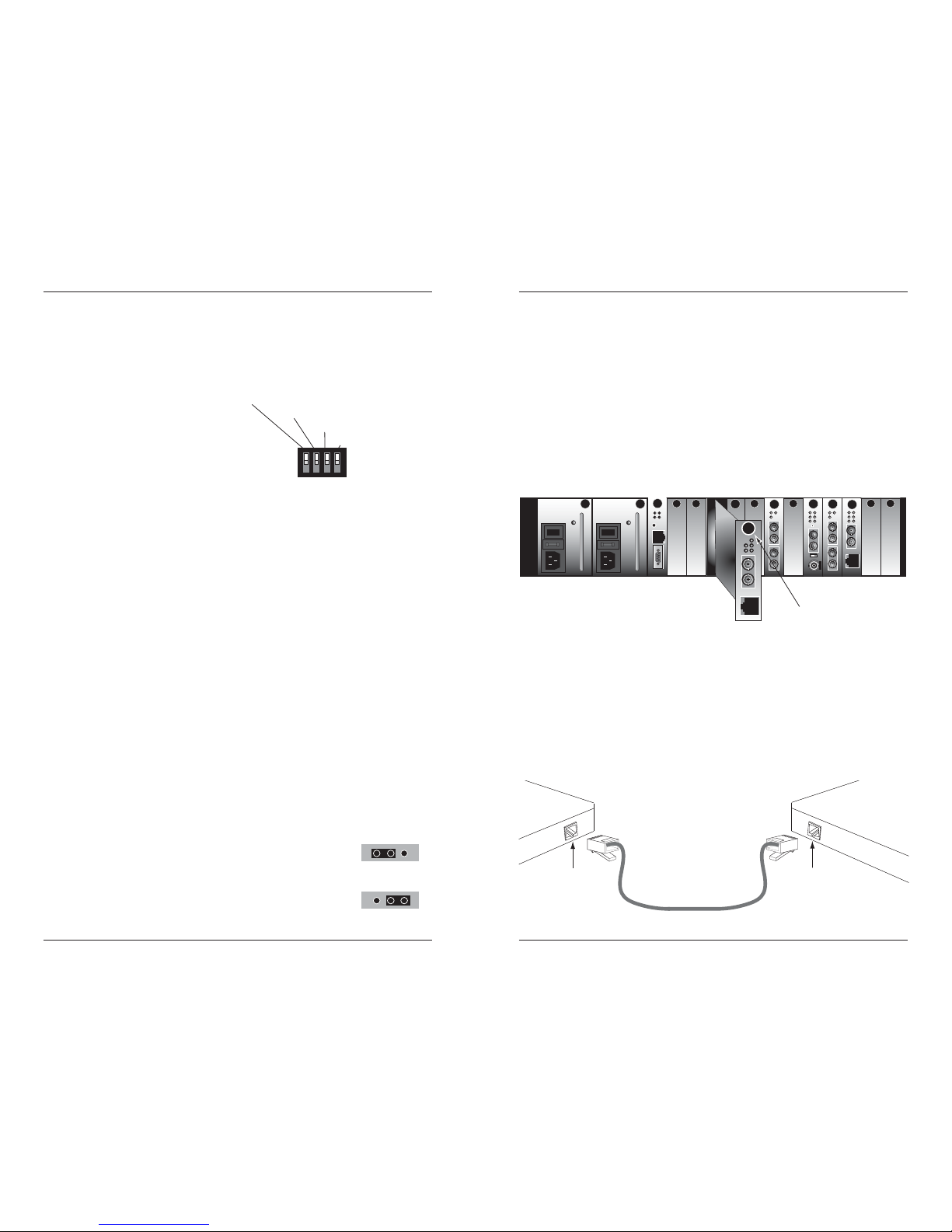

Set the 4-Position Switch
• The 4-position switch is
located on the media
converter circuit board.
• Use a small flat-blade
screwdriver to set the
switches (see the drawing).
NOTE: When the fiber port or the copper port is disabled (switches 1 and 2),
network traffic coming into the media converter is ignored and no traffic flows
out. In this mode, the media converter is disconnected from the network.
1. Fiber Port (10Base-FL)
Up Enables network traffic on the fiber port.
Down Disables network traffic on the fiber port.
2. Copper Port (10Base-T)
Up Enables network traffic on the copper port.
Down Disables network traffic on the copper port.
3. AutoCross
Up Enables AutoCross (see page 6).
Down Disables AutoCross.
(When AutoCross is disabled, the 10Base-T (copper) port is in
MDI-X (crossover) mode.)
4. Link Pass-Through
Up Enables Link Pass-Through (see page 6).
Down Disables Link Pass-Through.
(When Link Pass-Through is disabled, remote faults are not
passed along to any downstream equipment.)
Set the Jumper
The jumper is located on the media converter circuit board. Use small
needle-nosed pliers or a similar device to set the jumper.
Hardware The media converter mode is determined
by the 4-position switch settings.
Software The media converter mode is determined
by the most-recently saved, on-board
microprocessor settings. Software Mode
Hardware Mode
HS
HS
Fiber Port; Up=On
Copper Port; Up=On
Link Pass Through; Up=On
AutoCross™; Up=On
1234
3
[email protected] -- Click the “Transition Now” link for a live Web chat.
Installation -- Continued
Install the Slide-in-Module
CAUTION: Wear a grounding device and observe electrostatic discharge
precautions when installing the CETTF10xx-200 slide-in-module media
converter. Failure to observe this caution could result in damage to, and
subsequent failure of, the media converter.
To install the CETTF10xx-200 slide-in-module media converter.
1. Carefully slide the slide-in-module into the installation slot, aligning the
module with the installation guides.
2. Ensure that the module is firmly seated inside the chassis.
3. Push in and rotate the attached panel fastener screw clockwise to secure
the module to the chassis front.
Connect the Twisted-Pair Copper Cable
1. Locate or build IEEE 803.2™compliant 10Base-T cables, with straight-
through RJ-45 cable, and with straight-through RJ-45 connectors installed
at both ends.
2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on
the CETTF10xx-200 media converter.
3. Connect the RJ-45 connector at the other end of the cable to the RJ-45
port on the other device (switch, workstation, etc.).
CFMFF100 CFMFF100
CETCF100 CFETF100
CFETF110
CFMFF100
SPD PWR
FRX
CRX
FLNK
CLNK
10/100TX
RX
TX
10/100SX
100BASE-TX
RX
TX
100BASE-FX
LinkAlert
ED
050½
LA PWR
RXF
RXC COL
LKS
PWR
LKM
10BASE-2
10BASE-FL
LKS
PWR
LKM
LKS
PWR
LKM
Multimode
Singlemode
TX
RX
TX
RX
Multimode
Singlemode
TX
RX
TX
RX
Multimode
Singlemode
TX
RX
TX
RX
I
0
TERM
INIT
RX
TX
LNK
PWR
CPSMM120
SERIAL
10BASE-T
R
E
S
E
T
I
0
RX
TX
Panel Fastener Screw
PWR
RXF LKF
RXC LKC
RJ-45 port
on the other device
(switch, work station, etc.)
RJ-45 port
on the media
converter

CETTF10xx-200
424-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Installation -- Continued

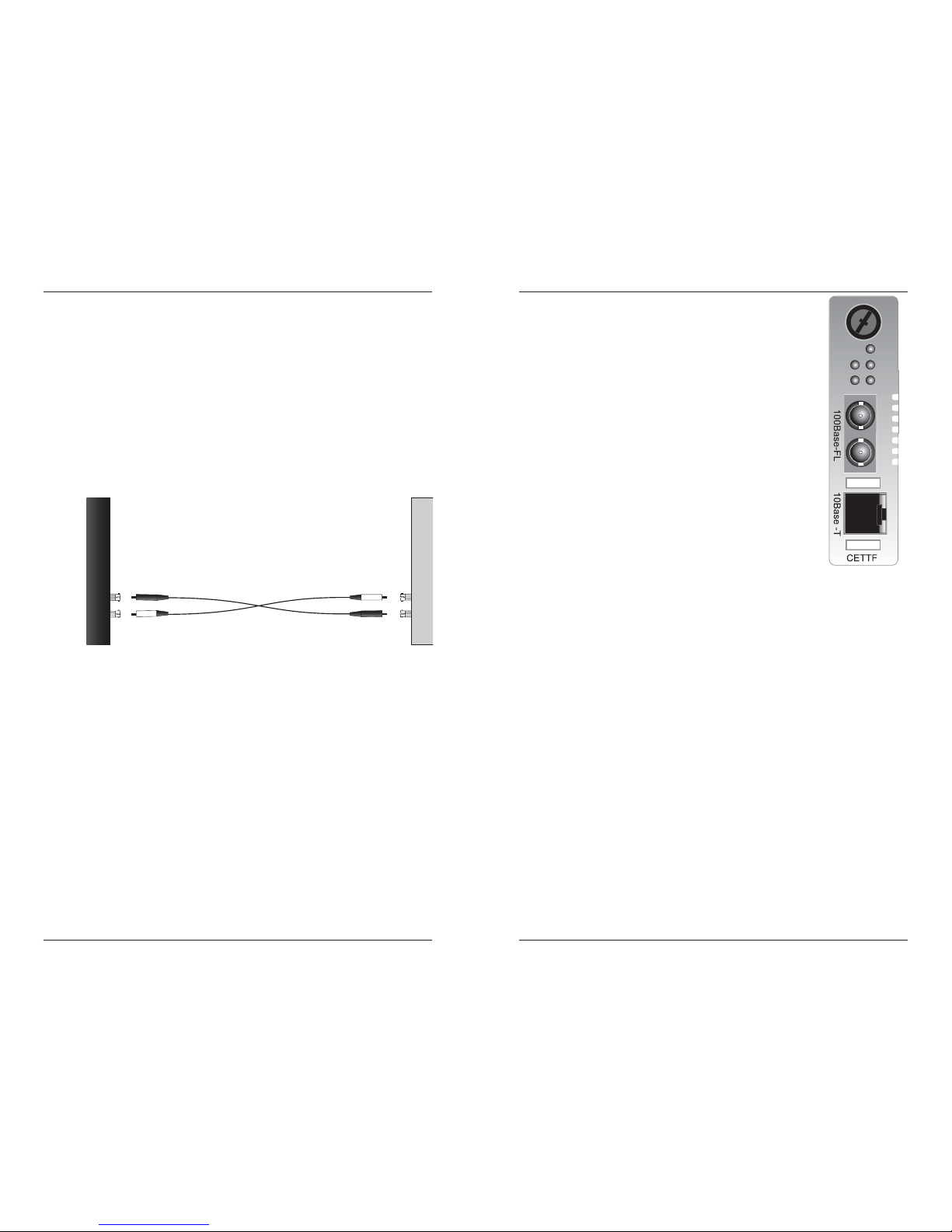

Connect the Fiber Cable
1. Locate or build IEEE 803.2™compliant 10Base-FL fiber cable with male,
two-stranded TX to RX connectors installed at both ends.
2. Connect the fiber cables to the CETTF10xx-200 media converter as
described:
• Connect the male TX cable connector to the female TX port.
• Connect the male RX cable connector to the female RX port.
3. Connect the fiber cables to the other device (another media converter,
hub, etc.) as described:
• Connect the male TX cable connector to the female RX port.
• Connect the male RX cable connector to the female TX port.
Power the Media Converter
The slide-in-module media converter is powered through the Transition
Networks PointSystem™ chassis.
Connect the fiber cable
to the media converter
as shown.
Connect the fiber cable
to the other device
(media converter,
hub, etc.) as shown
RX
TX
RX
TX
5
[email protected] -- Click the “Transition Now” link for a live Web chat.
Operation
Status LEDs
Use the status LEDs to monitor the media converter
operation in the network
PWR (Power)On = Connection to external AC power.
LKF (Link -
fiber)On = The fiber link is up.
Off = A lack of power or a broken fiber link.
RXF (Receive -
fiber)Flashing = Data reception on the
fiber link.
LKC (Link -
copper)On = The copper link is up.
Off = A lack of power or a broken copper link.
RXC (Receive -
copper)Flashing = Data reception on
the copper link.
SNMP
Use SNMP at an attached terminal or at a remote location to monitor the
media converter by monitoring:
• Media converter power.
• Copper link and fiber link status.
• Copper receive and fiber receive status.
• Hardware switch settings.
• Fault Condition.
Also, use SNMP to enter network commands that:
• Enable/disable the copper port .
• Enable/disable the fiber port.
• Enable/disable AutoCross.
• Enable/disable Link Pass-Through.
• Power down the Media Converter.
See the on-line documentation that comes with Transition Networks
FocalPoint™ software for applicable commands and usage at
www.transition.com.
RXC
LKF
PWR
LKC
RXF

CETTF10xx-200
624-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Operation -- Continued
Product Features
AutoCross™
The AutoCross feature detects and configures the twisted-pair copper port on
the CETTF10xx-200 media converter to the correct straight-through (MDI) or
crossover (MDI-X) configuration. This feature allows either MDI or MDI-X
cable to connect the media converter to devices such as hubs, transceivers, or
network interface cards (NICs).
NOTE: When AutoCross is disabled, the 10Base-T (copper) port is in MDI-X
(crossover) mode.

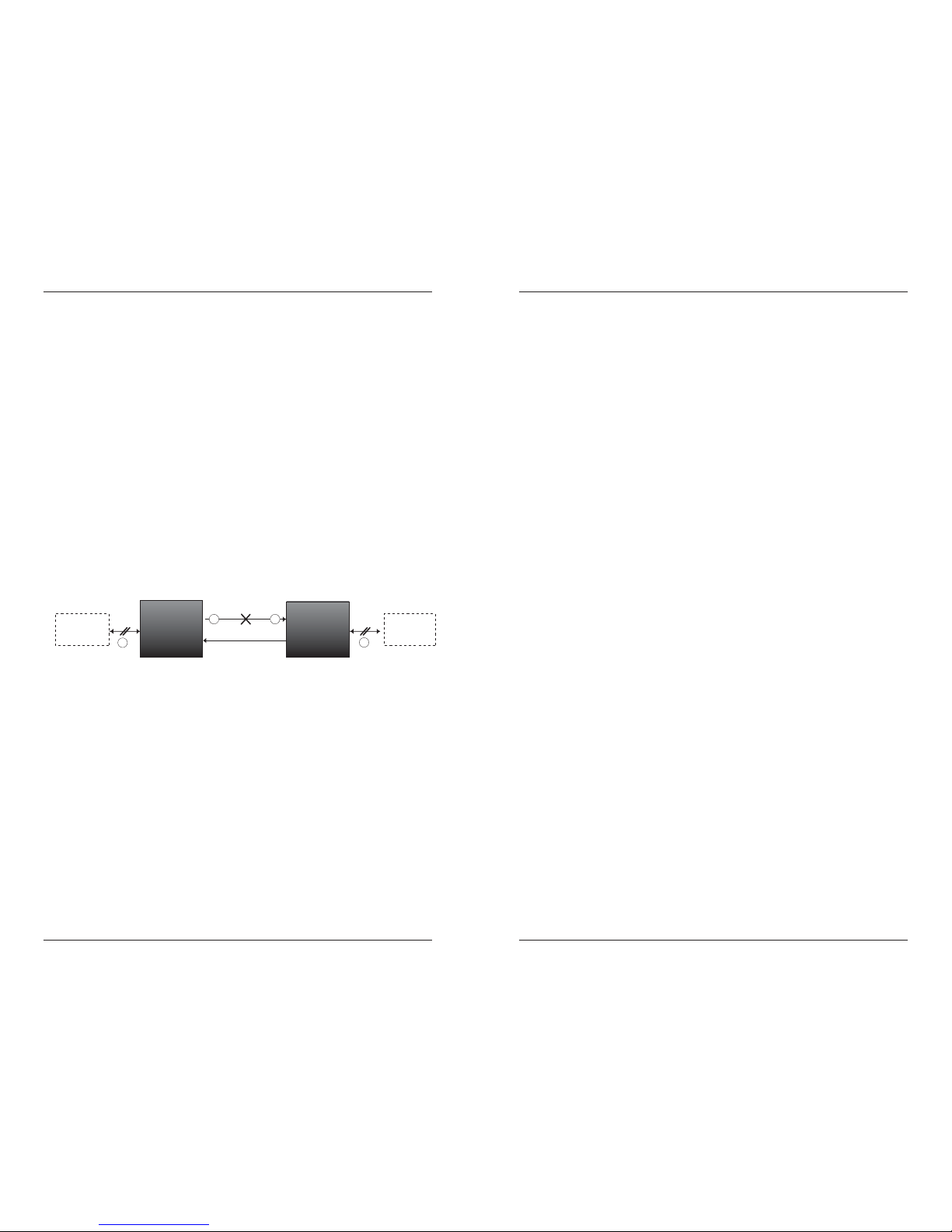

Link Pass-Through
The Link Pass-Through feature allows the media converter to monitor both the
fiber and copper RX (receive) ports for loss of signal. In the event of a loss of
an RX signal (1), the media converter will automatically disable the TX
(transmit) signal (2), thus, “passing through” the link loss (3). The far-end
device is automatically notified of the link loss (4), which prevents the loss of
valuable data unknowingly transmitted over an invalid link.
NOTE: An enable/disable switch allows the Link Pass-Through feature to be
disabled. Link Pass-Through may interfere with the Auto-Negotiation feature
of other devices in networks where there are two media converters installed in
series.
4
1
Media
Converter A
Media
Converter B
Near-End
Device
Far-End
Device
original fault
on the copper link media converter B disables the copper lin
k
media converter A
disables the fiber TX link
3
2
media converter B
loses the fiber RX link
7
[email protected] -- Click the “Transition Now” link for a live Web chat.
Cable Specifications
The physical characteristics must meet or exceed IEEE 802.3™ specifications.
Fiber Cable
Bit Error Rate: <10-9
Single mode fiber (recommended): 9 µm
Multimode fiber (recommended): 62.5/125 µm
Multimode fiber (optional): 100/140, 85/140, 50/125 µm
CETTF1011-200 850 nm multimode
Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm
Fiber Optic Receiver Sensitivity: min: -32.5 dBm max: -14.0 dBm
Link Budget: 13.5 dB
CETTF1012-200 1310 nm single mode
Fiber Optic Transmitter Power: min: -27.0 dBm max: -10.0 dBm
Fiber Optic Receiver Sensitivity: min: -34.0 dBm max: -14.0 dBm
Link Budget: 7.0 dB
CETTF1013-200 850 nm multimode
Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm
Fiber Optic Receiver Sensitivity: min: -32.5 dBm max: -14.0 dBm
Link Budget: 13.5 dB
CETTF1014-200 1310 nm single mode
Fiber Optic Transmitter Power: min: -27.0 dBm max: -10.0 dBm
Fiber Optic Receiver Sensitivity: min: -34.0 dBm max: -14.0 dBm
Link Budget: 7.0 dB
CETTF1022-200 1310 nm single mode
Fiber-optic Transmitter Power: min: -15.0 dBm max: -5.0 dBm
Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -14.0 dBm
Link Budget: 19.0 dB
CETTF1027-200 1300 nm multimode
Fiber-optic Transmitter Power: min: -19.0 dBm max: -15.0 dBm
Fiber-optic Receiver Sensitivity: min: -32.5 dBm max: -14.0 dBm
Link Budget: 13.5 dB
Product is certified by the manufacturer to comply with DHHS Rule
21/CFR, Subchapter J applicable at the date of manufacture.
The fiber optic transmitters on this device meets Class I Laser safety
requirements per IEC-825/CDRH standards and complies with 21
CFR1040.10 and 21CFR1040.11.
CAUTION: Visible and Invisible Laser Radiation When Open. Do Not
Stare Into Beam Or View Directly With Optical Instruments.
CAUTION: Use of controls, adjustments or the performance of
procedures other than those specified herein may result in hazardous
radiation exposure.

CETTF10xx-200
824-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Cable Specifications -- Continued
Copper Cable
Category 3: (minimum requirement)
Gauge 24 to 22 AWG
Attenuation 11.5 dB/100m @ 5-10 MHz
Maximum Cable Distance 100 meters
Category 5: (recommended)
Gauge 24 to 22 AWG
Attenuation 22.0 dB /100m @ 100 MHz
Maximum Cable Distance 100 meters
• Straight-through OR twisted-pair cable may be used.
• Shielded twisted-pair OR unshielded twisted-pair may be used.
• Pins 1&2 and 3&6 are the two active pairs in an Ethernet network.
• Use only dedicated wire pairs for the active pins:
(e.g., blue/white & white/blue, orange/white & white/orange, etc.)
• Do not use flat or silver satin wire.
Crossover Cable
1
2
3
6
Straight-Through Cable
Twisted Pair #1
Twisted Pair #1
Twisted Pair #2
Twisted Pair #2
1
2
3
6
1
2
3
6
1
2
3
6
9
[email protected] -- Click the “Transition Now” link for a live Web chat.
Technical Specifications
For use with Transition Networks Model CETTF10xx-200 or equivalent.
Standards IEEE 802.3™
Data Rate 10 Mb/s
Dimensions 3.4" x 0.86" x 5.0" (86 x 22 x 127 mm)
Weight 3 oz (91 g) (approximate)
Power Consumption 2.3 watts
MTBF 408,231 hours (MIL217F2 V5.0) (MIL-HDBK-217F)
1,412,845 hours (Bellcore7 V5.0)
Environment Tmra*: 0 to 60°C (32 to 140°F )
Storage Temp: -20 to 85°C (-4 to 185°F)
Humidity: 10 to 90%, non condensing
Altitude: 0 to 10,000 feet
Warranty Lifetime
*Manufacturer’s rated ambient temperature: Tmra range for this media converter
depends on the physical characteristics and the installation configuration of the
Transition Networks PointSystem™ chassis in which this media converter will be
installed.
The information contained in this user’s guide is subject to change. For the most
up-to-date version, see the user’s guide on line at: www.transition.com.

CETTF10xx-200
10 24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Troubleshooting
If the media converter fails, isolate and correct the failure by determining the
answers to the following questions and then taking the indicated action:
1. Is the PWR LED illuminated?
NO
• Is the media converter slide-in-module installed properly in the
chassis?
• Is the power cord properly installed in the chassis and at the external
power source?
• Does the external power source provide power?
• Contact Tech Support: [phone], Int’l: 00-1-952-941-7600.
YES
• Proceed to step 2.
2. Is the LKC LED illuminated?
NO
• Check twisted-pair cables for proper connection.
• Contact Tech Support: [phone], Int’l: 00-1-952-941-7600.
YES
• Proceed to step 3.
3. Is the LKF LED illuminated?
NO
• Check fiber cables for proper connection.
• Verify that TX and RX cables on media converter are connected to
RX and TX ports, respectively, on other device.
• Contact Tech Support: [phone], Int’l: 00-1-952-941-7600.
YES
• Proceed to step 4.
4. Is the RXC LED flashing?
NO
• If there is no activity on the 10Base-T port, proceed to step 5.
• If there is activity on the 10Base-T port, disconnect and reconnect the
10Base-T cable to restart the initialization process.
• Restart the workstation to restart the initialization process.
• Contact Tech Support: [phone], Int’l: 00-1-952-941-7600.
YES
• Proceed to step 5.
5. Is the RXF LED flashing?
NO
• If there is no activity on the 10Base-FL port, continue below
• If there is activity on the 10Base-FL port, disconnect and reconnect
the 10Base-FL cable to restart the initialization process.
• Verify that TX and RX cables on media converter are connected to
RX and TX ports, respectively, on other device.
• Restart the workstation to restart the initialization process.
• Contact Tech Support: [phone], Int’l: 00-1-952-941-7600.
YES
• Contact Tech Support: [phone], Int’l: 00-1-952-941-7600.
11
[email protected] -- Click the “Transition Now” link for a live Web chat.
Declaration of Conformity
Name of Mfg: Transition Networks
6475 City West Parkway, Minneapolis MN 55344 USA
Model: CETTF10xx-200 Series Media Converters
Part Number(s): CETTF1011-200, CETTF1012-200, CETTF1013-200, CETTF1014-200,
CETTF1022-200, CETTF1027-200
Regulation: EMC Directive 89/336/EEC
Purpose: To declare that the
CETTF10xx-200 to which this declaration refers is
in conformity with the following standards.
CISPR 22 :1993; EN 55022:1994+A1:1995+A2:1997; EN 55024:1998 Class A & B;
FCC Part 15 Subpart B; EN 61000-3-2:1995; EN61000-3-3:1995
I, the undersigned, hereby declare that the equipment specified above conforms to the above
Directive(s) and Standard(s).
October 7, 2001_____
Stephen Anderson, Vice-President of Engineering Date
Contact Us
Technical Support
Technical support is available 24 hours a day.
US and Canada: 1-800-260-1312
International: 00-1-952-941-7600
Transition Now
Chat live via the Web with Transition Networks Technical Support.
Log onto www.transition.com and click the Transition Now link.
Web-Based Seminars
Transition Networks provides seminars via live web-based training.
Log onto www.transition.com and click the Learning Center link.
E-Mail
Ask a question anytime by sending an e-mail to our technical support staff.
[email protected]
Address
Transition Networks
6475 City West Parkway
Minneapolis, MN 55344, USA
telephone: [phone]
toll free: 800-526-9267
fax: [phone]

Trademark Notice
All trademarks and registered trademarks are the property of their respective owners.
Copyright Restrictions
© 2000, 2001, 2004, 2005 Transition Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any
means - graphic, electronic, or mechanical - without written permission from Transition
Networks.
Printed in the U.S.A. 33169.E
Compliance Information
CISPR22/EN55022 Class A & B + EN55204
CE Mark
FCC Regulations
This equipment has been tested and found to comply with the limits for a Class A & B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be required to correct the
interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A & B limits for radio noise for digital
apparatus set out on the radio interference regulations of the Canadian Department of
Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la Class A & B prescrites dans le Règlement sur le
brouillage radioélectrique édicté par le ministère des Communications du Canada.
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-
Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der
Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über
Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer
Konformität.
