Transition Networks PCVT-48VDC-53VDC User manual

33568 Rev. A www.transition.com/ Page 1 of 18

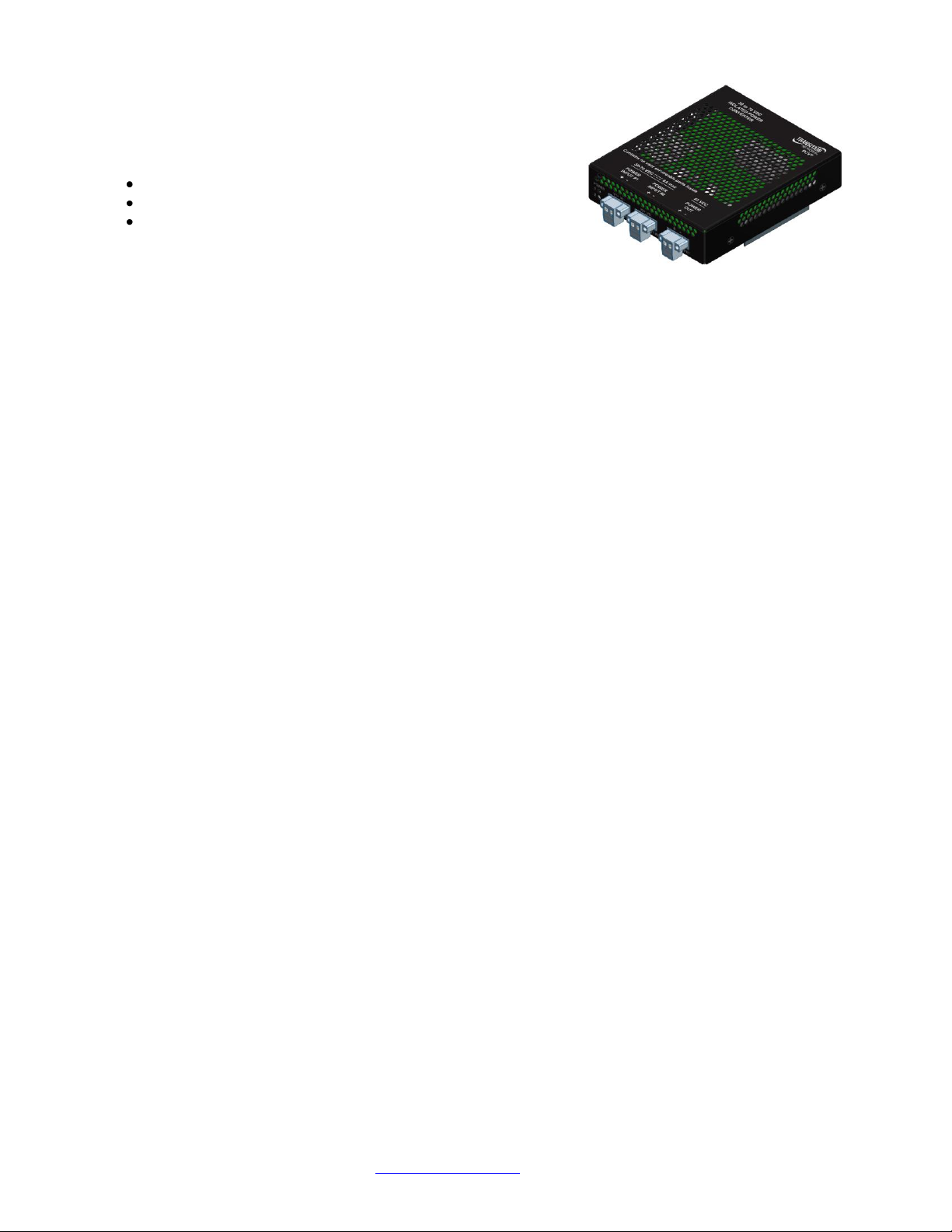

PCVT-48VDC-53VDC Power Converter
Install Guide
Provides VDC power conditioning and isolation.
Accepts 38-70 VDC Inputs.
Provides 53 VDC output.
Contents
Introduction and Description .........................................................................................................................2
Model Numbers.............................................................................................................................................2
Safety............................................................................................................................................................3
Cautions and Warnings ............................................................................................................................3
Restricted Access Note ............................................................................................................................4
Compliance Information................................................................................................................................5
Declaration of Conformity.........................................................................................................................5
UL Component Recognition......................................................................................................................5
CE Mark....................................................................................................................................................5
FCC Regulations ......................................................................................................................................5
Canadian Regulations ..............................................................................................................................5
European Regulations ..............................................................................................................................5
Electrical Safety Warnings........................................................................................................................7
Unpacking .....................................................................................................................................................8
Ship Kit Contents......................................................................................................................................8
Mounting........................................................................................................................................................9
Installation...................................................................................................................................................10
Front Panel .............................................................................................................................................10
Connect POWER INPUT #1...................................................................................................................10
Connect POWER INPUT #2...................................................................................................................10
Connect the POWER OUTPUT..............................................................................................................10
Optional Terminal Block (Euro Block) Connection .................................................................................11
Terminal Block Power Source............................................................................................................11
Grounding the PCVT-48VDC-53VDC.....................................................................................................12
Grounding Procedure.........................................................................................................................13
Operation.....................................................................................................................................................14
Power In Status LEDs.............................................................................................................................14
Technical Specifications and Standards.....................................................................................................15
Dimensions.............................................................................................................................................16
Troubleshooting ..........................................................................................................................................17
Maintainance...............................................................................................................................................18
Observe ESD Precautions......................................................................................................................18
Contact Us...................................................................................................................................................18
Record of Revisions....................................................................................................................................18

Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide
33568 Rev. A www.transition.com/ Page 2 of 18
Introduction and Description
Transition Networks’PCVT-48VDC-53VDC is a 53 VDC Out Isolated Power Converter that provides:
Isolation for the connected device from the power source.
Redundant power inputs.
Single power output.
Single mounting option: enclosed in a DIN Rail mountable enclosure.
Screw terminal power connections.
Operating temperature -40oC to +70oC.
UL60950, CE Mark, IEC60068-2-31, IEC60068-2-27, IEC60068-2-6, FCC, and TAA compliance.
Fixed configuration: no DIP switches or jumpers.
Laying a PCVT unit upright on a floor or desktop blocks the bottom vents (convection cooling
issue). DIN rail mount only.
Model Numbers
Model
Description
PCVT-48VDC-53VDC
Power Converter
WMBD
DIN Rail Mount Bracket Kit (allows stand-alone power converters to be mounted
to a Din Rail, common in industrial environments, in a vertical mount in which the
converter mounts on its edge).
Figure 1: Top View

Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide
33568 Rev. A www.transition.com/ Page 3 of 18
Safety
Before installing the PCVT, read this section and ensure that the requirements noted are met.
Cautions and Warnings
Definitions
Cautions indicate that there is the possibility of poor equipment performance or potential damage to the
equipment. Warnings indicate that there is the possibility of injury to a person.
Cautions and Warnings appear here and may appear throughout this manual where appropriate. Failure to
read and understand the information identified by this symbol could result in poor equipment
performance, damage to the equipment, or injury to persons.
Cautions
Do not ship or store devices near strong electrostatic, electromagnetic, magnetic, or radioactive fields.
Caution: When handling chassis Network Devices observe electrostatic discharge precautions. This requires proper
grounding (i.e., wear a wrist strap).
Caution: Copper based media ports, e.g., Twisted Pair (TP) Ethernet, USB, RS232, RS422, RS485, DS1, DS3,
Video Coax, etc., are intended to be connected to intra-building (inside plant) link segments that are not subject to
lightening transients or power faults. They are not to be connected to inter-building (outside plant) link segments
that are subject to lightening.
Caution: Do not install the devices in areas where strong electromagnetic fields (EMF) exist. Failure to observe this
caution could result in poor device performance.
Caution: Read the installation instructions before connecting the chassis to a power source. Failure to observe this
caution could result in poor performance or damage to the equipment.
Caution: Only trained and qualified personnel should install or perform maintenance on the PCVT-48VDC-
53VDC. Failure to observe this caution could result in poor performance or damage to the equipment.
CAUTION –“Risk of Electric Shock – More than one disconnect switch may be required to de-energize
the equipment.

Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide
33568 Rev. A www.transition.com/ Page 4 of 18
Warnings
Warning: DO NOT connect the power supply module to external power before installing it onto the DIN
Rail. Failure to observe this warning could result in an electrical shock or death.
Warning: Do not work on the PCVT-48VDC-53VDC, connect, or disconnect cables during a storm with lightning.
Failure to observe this warning could result in an electrical shock or death.
Warning: Disconnect Device –Since the products are evaluated as Permanently Connected Equipment,
disconnect devices shall be provided in accordance with sub clause 1.7.2.2. A readily accessible disconnect device
shall be incorporated outside the equipment. These devices can be isolating switch, circuit breaker, or equivalent as
specified in sub clause 3.4.2 in GB 4943.1-2011 (Safety of Information Technology Equipment). For Permanently
Connected Equipment, a readily accessible disconnect device shall be incorporated external to the equipment.
See "Electrical Safety Warnings" on page 7 for Electrical Safety Warnings translated into multiple
languages.
Restricted Access Note
WARNING
Disconnect power before installing and wiring the PCVT-48VDC-53VDC for power.
Failure to observe this warning could result in an electrical shock.
Wiring
considerations
The following wiring considerations are recommended:
Use separate paths to route wiring for power and device data cables. If power wiring
and device data cables must cross, make sure that the wires are perpendicular at
the intersection points.
DO NOT run signal or communications wiring and power wiring in the same conduit.
To avoid interference, wires with different signal characteristics should be routed
separately.
Keep input and output wires separated.
Label the wiring to all devices in the system for clarity.
Grounding
CAUTION
Connect the PCVT-48VDC-53VDC to a well-grounded surface. Failure to observe
this caution could result in electromagnetic interference (EMI) problems.
The PCVT-48VDC-53VDC can eliminate the effects of noise due to EMI via proper
grounding. Always run the ground connection from the ground screw to the grounded
surface before connecting power.

Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide
33568 Rev. A www.transition.com/ Page 5 of 18
Compliance Information
Declaration of Conformity
<To be supplied. >
UL Component Recognition
The unit must be INSTALLED IN A RESTRICTED ACCESS location, in a UL
APPROVED FIREPROOF ENCLOSURE. Components covered under this program
are considered incomplete and are intended to be installed into another device,
system or end-product. Components covered under UL's Recognition Service are
only intended for factory installation, not field installation.
CE Mark
FCC Regulations
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference, in which case the user will be required to
correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables
aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage radioélectrique
édicté par le ministère des Communications du Canada.32B
European Regulations
WARNING:
This is a Class A product. In a domestic environment, this product could cause radio interference in which
case the user may be required to take adequate measures.
Achtung !
Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses
Gerätes Rundfunkstörungen auftreten. In diesem Fäll ist der Benutzer für Gegenmaßnahmen
verantwortlich.
Attention !
Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des
interférences radioélectriques, il appartiendra alors à l’utilsateur de prende les measures spécifiques
appropriées.
In accordance with European Union Directive 2002/96/EC of the European Parliament and of
the Council of 27 January 2003, Transition Networks will accept post usage returns of this

Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide
33568 Rev. A www.transition.com/ Page 6 of 18
product for proper disposal. The contact information for this activity can be found in the ‘Contact Us’
portion of this document.
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE PUBLIC TELEPHONE
NETWORK. Failure to observe this caution could result in damage to the public telephone
network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
GB 4943.1-2011 (Safety of Information Technology Equipment)
IEC 60950-1 is the International Standard for Safety of Information Technology Equipment. It
encompasses under its scope information technology equipment, communications equipment, office
appliances and multi-media equipment for use in the home, office, business, school, computer room and
similar locations.
IEC 60950-1 is developed/maintained by IEC Technical Committee (TC) 108, Maintenance Team No. 2
(MT2): Safety and Energy Efficiency of Information Technology Equipment. In China, the ITE Standard,
formally designated GB 4943.1-2011, is based on the Second Edition of IEC 60950-1, and like its
predecessors includes China Deviations to address National requirements not in the base IEC document.
Used only at altitudes not more than 2000m above sea level.
“仅适用于海拔2000m 以下地区安全使
用”或类似的警告语句
Used only in non-tropical conditions.
“仅适用于非热带气候条件下安全使用”
或类似的警告语句
Disconnect Device –Since the products are evaluated as Permanently Connected Equipment, disconnect
devices shall be provided in accordance with sub clause 1.7.2.2. A readily accessible disconnect device
shall be incorporated outside the equipment. These devices can be isolating switch, circuit breaker, or
equivalent as specified in sub clause 3.4.2. For Permanently Connected Equipment, a readily accessible
disconnect device shall be incorporated external to the equipment.

Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide
33568 Rev. A www.transition.com/ Page 7 of 18
Electrical Safety Warnings
Electrical Safety
IMPORTANT: This equipment must be installed in accordance with safety precautions.
Elektrische Sicherheit
WICHTIG: Für die Installation dieses Gerätes ist die Einhaltung von Sicherheitsvorkehrungen
erforderlich.
Elektrisk sikkerhed
VIGTIGT: Dette udstyr skal nstallers I overensstemmelse med sikkerhedsadvarslerne.
Elektrische veiligheid
BELANGRIJK: Dit apparaat moet in overeenstemming met de veiligheidsvoorschriften worden
geïnstalleerd.
Sécurité électrique
IMPORTANT : Cet équipement doit être utilisé conformément aux instructions de sécurité.
Sähköturvallisuus
TÄRKEÄÄ : Tämä laite on asennettava turvaohjeiden mukaisesti.
Sicurezza elettrica
IMPORTANTE: questa apparecchiatura deve essere installata rispettando le norme di sicurezza.
Elektrisk sikkerhet
VIKTIG: Dette utstyret skal nstallers I samsvar med sikkerhetsregler.
Segurança eléctrica
IMPORTANTE: Este equipamento tem que ser instalado segundo as medidas de precaução de
segurança.
Seguridad eléctrica
IMPORTANTE: La instalación de este equipo deberá llevarse a cabo cumpliendo con las precauciones
de seguridad.
Elsäkerhet
OBS! Alla nödvändiga försiktighetsåtgärder måste vidtas när denna utrustning används

Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide
33568 Rev. A www.transition.com/ Page 8 of 18
Unpacking
1. Carefully unpack all PCVT contents.
2. Verify receipt of all PCVT components; see “Ship Kit Contents” below.
3. Place the PCVT and related materials in the desired install location.
Figure 2: PCVT-48VDC-53VDC Unpacking
4. Save the PCVT 10x9x4 Box and Insert for future use.
Ship Kit Contents
The PCVT-48VDC-53VDC is shipped with several standard items. Make sure you have received the
following:
One PCVT-48VDC-53VDC Power Converter
One DIN Rail Mount Bracket Kit
One printed Product Documentation postcard

Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide
33568 Rev. A www.transition.com/ Page 9 of 18
Mounting
The PCVT must be mounted vertically using a DIN Rail mounting bracket. Typically the Terminal Blocks
will be facing upward, as shown in the views below.
Figure 3: DIN Rail Mounting

Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide
33568 Rev. A www.transition.com/ Page 10 of 18
Installation
Front Panel
The figure below shows the front panel of the PCVT-48VDC-53VDC power converter.
Figure 4: Front Panel
The PCVT front panel provides two power input connectors and one power output connector. Make the
power connections as described below.
Connect POWER INPUT #1
1. Connect the wires to the V1+ and V1-connections of the POWER INPUT #1 terminal block
connector (see figure below). See “Power In Status LEDs” on page 14.
2. Connect the other end of the wires to the first power source, ensuring correct polarity.
Connect POWER INPUT #2
1. Connect the wires to the V2+ and V2-connections of the POWER INPUT #2 terminal block
connector (see figure below). See “Power In Status LEDs” on page 14.
2. Connect the other end of the wires to the second power source, ensuring correct polarity.
Connect the POWER OUTPUT
1. Connect the wires to the +and -connections of the POWER OUTPUT terminal block connector.
2. Connect the other end of the wires to the powered device, ensuring correct polarity (see figure
below).
3. Observe the POWER 1 and POWER 2 LEDs.

Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide
33568 Rev. A www.transition.com/ Page 11 of 18
Optional Terminal Block (Euro Block) Connection
Terminal Block Power Source
Note: It is a good practice to turn OFF input and load power, and unplug the power terminal block
before making wire connections. Otherwise, your screwdriver blade can inadvertently short the
terminal connections to the grounded enclosure.
Suitable terminal block wire size is 12, 14, 16, 18, 20, 22, 24, 26 AWG (0.13 - 3.31 mm²).
16 AWG wire typical (or “recommended”); see the vendor web page for more details.
The power source must be safety certified.
Connecting power wires to the terminal block:
1. Strip the wires to the proper length.
2. Insert the positive and negative power wires into V1+ and V1- contacts respectively of the
terminal block (note polarity on the chassis). Make sure the wires are secure. See Figure 4 on the
previous page.
3. Insert the positive and negative power wires into V2+ and V2- contacts respectively into the
power source—make sure the wires are secure. See Figure 4 on the previous page.
4. Insert the positive and negative power wires into +and -contacts respectively into the power
source and make sure the wires are secure. See Figure 4 on the previous page.
Reinstalling the terminal block and verifying power wire connections:
1. Reinstall the terminal block into the primary location on the chassis.
2. Tighten the two screws to secure the terminal block to the chassis.
3. Verify that the wiring to the ‘primary’ (+ -) of the PCVT-48VDC-53VDC is connected correctly, as
shown in Figure 5 below.

Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide
33568 Rev. A www.transition.com/ Page 12 of 18
Figure 5: Terminal Block (Euro Block) Connection
Grounding the PCVT-48VDC-53VDC
The PCVT-48VDC-53VDC comes equipped with grounding lugs located on the back panel. They require
a grounding conductor wire terminated with a two-hole, compression-type, grounding connector.
The grounding wire -- which must be a copper conductor -- is not included with the PCVT-48VDC-53VDC
and must be provided by the customer/installer.
The electrical conducting path from the PCVT-48VDC-53VDC must:
Flow via the grounding lugs to the common bonding network (CBN) for telecom installations, or to an
alternative approved grounding system (if required) for non-telecom installations.
Be of sufficiently low impedance to conduct fault currents likely to be imposed on the PCVT-48VDC-
53VDC, and
Enable proper operation of any over-current protection devices.
The conductor may be fastened to the grounding lugs with the enclosed antirotation star-washers and
lug-nut fasteners. The applied torque required to the connector lug-nut fasteners is specified by the
connector’s manufacturer (4-5 inch-pounds typical or “recommended”). See the vendor web page for
more details.
Figure 6: Grounding

Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide
33568 Rev. A www.transition.com/ Page 13 of 18
Grounding Procedure
To properly ground the PCVT-48VDC-53VDC:
1. Obtain one (1) grounding conductor (12 AWG copper wire gauge or larger) with a two-hole,
compression-type, grounding connector.
2. Attach the grounding conductor to the PCVT-48VDC-53VDC by placing the two-hole connector onto
the grounding lugs and fasten with the enclosed lock-washers / lug-nuts at the proper torque (per the
manufacturer’s specification at the vendor web page) (4-5 inch-pounds typical or “recommended”).
3. Attach the opposite end of the grounding conductor to the common bonding network (CBN) for
telecom, or to earth ground (if required) for non-telecom installations.
Figure 7: Grounding Conductor

Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide
33568 Rev. A www.transition.com/ Page 14 of 18
Operation
Power In Status LEDs
Use the LEDs to monitor PCVT Power Input status.
POWER 1 LED Lit = Connected to POWER INPUT # 1
POWER 2 LED Lit = Connected to POWER INPUT # 2
Figure 8: Front Panel

Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide
33568 Rev. A www.transition.com/ Page 15 of 18
Technical Specifications and Standards
The Transition Networks PCVT48-53VDC is designed to these specifications and standards.
EMC Emission FCC Class A; EN55022
EMC Immunity EN55024
Safety CE Mark, UL 60950, TUV EN60950-1
Vibration: IEC60068-2-6
Free Fall: IEC60068-2-31
Shock: IEC60068-2-27
Dimensions: 5.54 x 4.38 x 1.58”(140.71 x 111.25 x 40.13 mm) (see Figure 9 below)
Weight: 1.25 lbs. (0.57 kg) approx.
Power consumption: Up to 260 Watts
Power sources: 38-70 VDC
MTBF*: MTBF: Greater than 400,000 hours ((MIL-HDBK-217F) at 25°C
Greater than 1,103,000 hours (Bellcore7 V5.0) at 25°C
Environment: Tmra**: -40°C to 70°C (-40°F to 158°F)
Operating Temp -40°C to +70°C @ 200 Watts
-40°C to +60°C @ 260 Watts
Storage Temp: -40°C to +85°C
Operrating Humidity: 10 % to 90 %, non-condensing
Altitude: -500 to 10,000 H
Output:
Output Voltage: 53 VDC
Current Rating: 4.9A
Power Rating: 260 Watts
Ripple & Noise Max.: 200mV Maximum
Voltage Tolerance: ± 0.6%
Line Regulation: ± 0.6%
Load Regulation: ± 0.6%
Setup, Rise Time: 100 mSec
Hold Up Time: 100 µSec
Input:
Voltage Range: 38-70 VDC
Efficiency: 80+%
MAX Current (Typical): 7.5A @ 48 VDC
Inrush Current (Cold): 10A @ 48 VDC
Protection against: Short Circuit, Overload (105-150%), OverVoltage (75%), and
OverTemp (70°C)
Warranty: Lifetime
* MTBF (Mean Time Between Failure) is estimated using the predictability method. The computation is
based on the MIL-HDBK-217 F and Bellcore standards.
**Manufacturer’s rated ambient temperature.
WARNING: Use of controls, adjustments, or the performance of procedures other than those specified
herein could result in hazardous radiation exposure. The information in this user’s guide is subject to
change. For the most current information, view the online user guide at Hwww.transition.comHand the click
on Product/Product Finder.

Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide
33568 Rev. A www.transition.com/ Page 16 of 18
Dimensions
Figure 9: Dimensions

Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide
33568 Rev. A www.transition.com/ Page 17 of 18
Troubleshooting
If the PCVT fails, isolate and correct the failure by determining the answers to the following questions,
and then taking the indicated action:
1. Is the PCVT POWER 1 LED lit?
NO
Is there a power connector plugged into the POWER 1 terminal block?
Is the VDC power source operating correctly?
Is there voltage in the range of 38-70 VDC present at the terminal block connector on the
PCVT?
Check the fuse. Contact Technical Support: US/Canada: 1-800-260-1312, International:
00-1-952-941-7600. See the “Maintainance” section on page 18.
YES
Proceed to step 2 below.
2. Is the PCVT POWER 2 LED lit?
NO
Is there a power connector plugged into the POWER 2 terminal block?
Is the VDC power source operating correctly?
Is there voltage in the range of 38-70 VDC present at the terminal block connector on the
PCVT?
YES
Check if the fuse is OK.
NO
The fuse is not field replaceable. Contact Technical Support: US/Canada: 1-800-260-
1312, International: 00-1-952-941-7600. See the “Maintainance” section on page 18.
YES
Proceed to step 3 below.
3. Is there 53 VDC present at the terminal block connector?
NO
Check the power wiring for proper connection.
Contact Technical Support: US/Canada: 1-800-260-1312, International: 00-1-952-941-
7600.
YES
Continue operation.

Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide
33568 Rev. A www.transition.com/ Page 18 of 18
Maintainance
Observe ESD Precautions
The PCVT has no user accessible electronics. The fuse (12 Amp 5.3 x 32 mm 125 V or greater) is not
field replaceable.
Contact Us
Technical support
Technical support is available 24-hours a day
US and Canada: 1-800-260-1312
International: 00-1-952-941-7600
Transition now
Chat live via the Web with Transition Networks Technical Support.
Log onto Hwww.transition.comHand click the Transition Now link.
Web-based seminars Transition Networks provides seminars via live web-based training.
Log onto Hwww.transition.comHand click the Learning Center link.
E-Mail Ask a question anytime by sending an e-mail to our technical support staff.
[e-mail]
Address
Transition Networks
10900 Red Circle Drive
Minnetonka, MN 55343, U.S.A.
telephone: [phone]
toll free: 800-526-9267
fax: [phone]
Record of Revisions
Rev
Date
Notes
A
02/05/14
Initial release.
Trademark Notice
All trademarks and registered trademarks are the property of their respective owners.
Copyright restrictions
© 2013, 2014 Transition Networks, Inc.
All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic
or mechanical - without written permission from Transition Networks.
Note that this manual contains links to third party web sites for which Transition Networks is not responsible.
