TransLite TL-9508B User manual

P a g e | 1
DISCLAIMER
No part of this document may be reproduced in any form without the written permission of the copyright
owner.
The contents of this document are subject to revision without notice due to continued progress in
methodology, design and manufacturing. TRANSLITE GLOBAL LLC shall have no liability for any error or
damage of any kind resulting from the use of this document.
COPY WARNING
This document includes some confidential information. Its usage is limited to the owners of the
product that it is relevant to. It cannot be copied, modified, or translated in another language
without prior written authorization from TRANSLITE GLOBAL LLC
PRODUCT MODEL NUMBER: TL-9508B TUNER TO IP
GATEWAY
ABOUT THIS MANUAL

P a g e | 2
INDEX
TABLE OF CONTENTS
CHAPTER 1 INTRODUCTION ...................................................................................................................3
1.1 PRODUCT OVERVIEW........................................................................................................................3
1.2 KEY FEATURES...................................................................................................................................3
1.3 SPECIFICATIONS................................................................................................................................4
1.4 PRINCIPLE CHART.............................................................................................................................6
1.5 APPEARANCE AND DESCRIPTION......................................................................................................7
CHAPTER 2 INSTALLATION GUIDE...........................................................................................................8
2.1 ACQUISITION CHECK.........................................................................................................................8
2.2 INSTALLATION PREPARATION ............................................................................................................8
2.3 DEVICE’S INSTALLATION FLOW CHART ILLUSTRATED AS FOLLOWING..................................................9
2.4 ENVIRONMENT REQUIREMENT.........................................................................................................9
2.5 GROUNDING REQUIREMENT........................................................................................................... 10
2.5.1 FRAME GROUNDING.................................................................................................................... 10
2.5.2 DEVICE GROUNDING.................................................................................................................... 10
2.6 WIRE’S CONNECTION...................................................................................................................... 11
CHAPTER 3 WEB NMS OPERATION....................................................................................................... 11
3.1 LOGIN ............................................................................................................................................12
CHAPTER 4 TROUBLESHOOTING........................................................................................................... 24
CHAPTER 5 PACKING LIST..................................................................................................................... 25
CHAPTER 6 APPLICATIONS ................................................................................................................... 25

P a g e | 3
CHAPTER 1
INTRODUCTION
1.1 PRODUCT OVERVIEW
TL-9508B Tuner to IP Gateway is a head-end interface conversion device which supports
MPTS and SPTS output switchable. It supports 16 MPTS or 512 SPTS output over UDP and
RTP/RTSP protocol. It is integrated with tuner demodulation (or ASI input) and gateway
function, which can demodulate the signal from 16 tuners into IP package, or directly convert
the TS from ASI input and tuner into IP package, then output the IP package through different
IP address and ports. BISS function is also embedded for tuner input to descramble your tuner
input programs.
1.2 KEY FEATURES
➢Supports 16 FTA DVB- S/S2/S2X (DVB-C/T/T2 /ISDB-T/ATSC optional) input, 2 ASI
input
➢Supports BISS descrambling
➢Supports DisEqc function
➢16 MPTS or 512 SPTS output (MPTS and SPTS output switchable)
➢2 GE mirrored output (IP address and port number of GE1 and GE2 are different),
up to 850Mbps →SPTS
➢2 independent GE output port, GE1 + GE2 →MPTS
➢Supports PID filtering, re-mapping (Only for SPTS output)
➢Supports “Null PKT Filter” function (Only for MPTS output)
➢Supports Web operation

P a g e | 4
1.3 SPECIFICATIONS
Input
Optional 1:16 tuners input +2 ASI input---SPTS output
Optional 2:14 tuners input +2 ASI input --- MPTS output
Optional 3:16 tuners input --- MPTS output
Tuner Section
DVB-C
Standard
J.83A(DVB-C), J.83B, J.83C
Frequency In
30 MHz~1000 MHz
Constellation
16/32/64/128/256 QAM
DVB-T/T2
Frequency In
30MHz ~ 999.999 MHz
Bandwidth
6/7/8 M bandwidth
DVB-S/S2
Input Frequency
950-2150MHz
Symbol rate
DVB-S: QPSK 2~45Mbauds;
DVB-S2:QPSK 1~45Mbauds, 8PSK 2~30Mbauds
Code rate
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Constellation
QPSK, 8PSK
DVB-S (Version 2)
Frequency In
950-2150MHz
Symbol rate
0.5~45Msps
Signal Strength
- 65- -25dBm
FEC
1/2, 2/3, 3/4, 5/6, 7/8
Constellation
QPSK
Max input bitrate
≤125 Mbps

P a g e | 5
DVB-S2 (Version
2)
Frequency In
950-2150MHz
Symbol rate
QPSK/8PSK /16APSK :0.5~45 Msps
32APSK: 0.5~34Msps;
FEC
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
Constellation
QPSK, 8PSK, 16APSK, 32APSK
DVB-S2X
(Version 2)
Frequency In
950-2150MHz
Symbol rate
QPSK/8PSK /16APSK :0.5~45 Msps
8APSK: 0.5~40Msps
32APSK: 0.5~34Msps
FEC
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45,
9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L,
5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36,
13/18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45,
11/15, 7/9
Constellation
QPSK, 8PSK, 8APSK, 16APSK, 32APSK
Max input bitrate
≤125 Mbps
ISDB-T
Input Frequency
30-1000MHz
ATSC
Input Frequency
54MHz ~ 858MHz
Bandwidth
6M bandwidth
Output
512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2 port,
Unicast and Multicast
16 MPTS IP output (for Tuner/ASI pass-through) over UDP and RTP/RTSP protocol through GE1
and GE2 port (IP address and port number of GE1 and GE2 are different), Unicast and
Multicast

P a g e | 6
BISS Descrambling
Mode 1, Mode E (Up to 850Mbps) (descramble individual program)
Miscellaneous
Dimension
482mm×410mm×44mm (W×L×H)
Approx. weight
3.6kg
Environment
0~45℃(work)；-20~80℃（Storage）
Power requirements
100~240VAC, 50/60Hz
Power consumption
20W
1.4 PRINCIPLE CHART

P a g e | 7
1.5 APPEARANCE AND DESCRIPTION
Front Panel Illustration
4
1 2 3 5 6
1
Power indicator
2
Reset: Reset webmaster IP address, recover it to default IP address
3
USB port for upgrade
4
NMS port: Network management interface
5
Data port（GE1&GE2）: IP out port
6
ASI input port
Rear Panel Illustration
1 2 3

P a g e | 8
1
16 channels RF IN Interface
2
Integrated power switch and socket
3
Grounding Wire
CHAPTER 2
INSTALLATION GUIDE
This section is to explain the cautions the users must know in some case that possibly injure
may bring to users when it’s used or installed. For this reason, please read all details here and
make in mind before installing or using the product.
2.1 ACQUISITION CHECK
When users open the package of the device, it is necessary to check items according to
packing list. Normally it should include the following items:
➢TL-9508B Tuner to IP Gateway
➢User’s Manual
➢Grounding Cable
➢RF In and Loop Out Cable
➢Power Cord
If any item is missing or mismatching with the list above, please contact local dealer.
2.2 INSTALLATION PREPARATION
➢When you connect the power source, make sure if it may cause overload.
➢Avoid operating on a wet floor in the open. Make sure the extension cable is in
good condition
➢Make sure the power switch is off before you start to install the device

P a g e | 9
2.3 DEVICE’S INSTALLATION FLOW CHART
ILLUSTRATED AS FOLLOWING
Connecting
Grouding
Wire and
Power
Cord
Acquisition
Check Installing Device Setting Parameter Running Device
Connecting
Signal
cable
2.4 ENVIRONMENT REQUIREMENT
Item
Requirement
Machine Hall
Space
When user installs machine frame array in one machine hall, the distance
between 2 rows of machine frames should be 1.2~1.5m and the distance
against wall should be no less than 0.8m.
Machine Hall
Floor
Electric Isolation, Dust Free
Volume resistivity of ground anti-static material: 1X107~1X1010，
Grounding current limiting resistance: 1M(Floor bearing should be
greater than 450Kg/㎡)
Environment
Temperature
5~40℃(sustainable)，0~45℃(short time)
installing air-conditioning is recommended
Relative
Humidity
20%~80% sustainable 10%~90% short time
Pressure
86~105KPa
Door &
Window
Installing rubber strip for sealing door-gaps and dual level glasses for
window
Wall
It can be covered with wallpaper, or brightness less paint.
Fire
Protection
Fire alarm system and extinguisher
Power
Requiring device power, air-conditioning power and lighting power are
independent toeach other. Devicepower requiresAC 110V±10%, 50/60Hz
or AC 220V±10%, 50/60Hz. Please carefully check before running.

P a g e | 10
2.5 GROUNDING REQUIREMENT
➢All function modules’ good grounding is the basis of reliability and stability of devices. Also,
they are the most important guarantee of lightning arresting and interference rejection.
Therefore, the system must follow this rule.
➢Coaxial cable’s outer conductor and isolation layer should keep proper electric conducting
with the metal housing of device.
➢Grounding conductor must adopt copper conductor in order to reduce high frequency
impedance, and the grounding wire must be as thick and short as possible.
➢Users shouldmake sure the 2 ends of grounding wire well electric conducted and be antirust.
➢It is prohibited to use any other device as part of grounding electric circuit
➢The area of the conduction between grounding wire and device’s frame should be no less
than 25mm2.
2.5.1 FRAME GROUNDING
All the machine frames should be connected with protective copper
strip. The grounding wire should be as short as possible and avoid
circling. The area of the conduction between grounding wire and
grounding strip should be no less than 25mm2.
2.5.2 DEVICE GROUNDING
Connecting the device’s grounding rod to frame’s grounding pole with
copper wire.

P a g e | 11
2.6 WIRE’S CONNECTION
The grounding wire conductive screw is located at the right end of rear panel, and the power
switch, fuse, power supply socket is just besides, whose order goes like this, power switch is
on the left, power supply socket is on the right and the fuse is just between them.
Connecting Power Cord
User can insert one end into power supply socket, while insert the other end to AC power.
Connecting Grounding Wire
When the device solely connected to protective ground, it should adopt independent way, say,
share the same ground with other devices. When the device adopts united way, the grounding
resistance should be smaller than 1Ω.
Caution:
Before connecting power cord to TL-9508B Tuner to IP Gateway, user should set the power
switch to “OFF”.
CHAPTER 3
WEB NMS OPERATION
User can only control and set the configuration in computer by connecting the device to web
NMS Port. User should ensure that the computer’s IP address is different from the TL-9508B’s
IP address; otherwise, it would cause IP conflict.

P a g e | 12
3.1 LOGIN
➢The default IP of this device is 192.168.0.136.
➢Connect the PC and the device with net cable and use ping command to confirm
they are on the same network segment.
➢I.G. the PC IP address is 192.168.99.252, we then change the device IP to
192.168.99.xxx (xxx can be 0 to 255 except 252 to avoid IP conflict).
➢Use web browser to connect the device with PC by inputting this device’s IP
address in the browser’s address bar and press Enter.

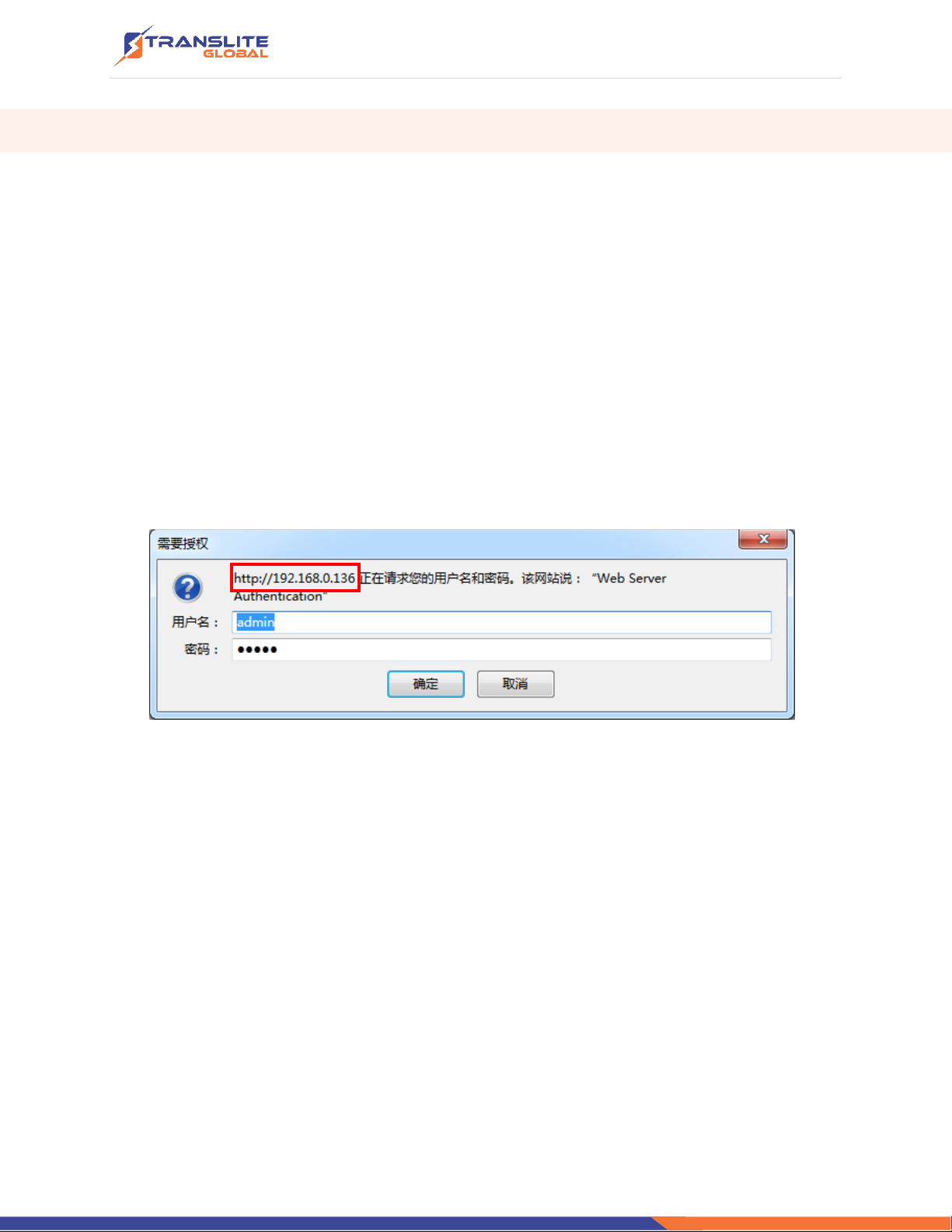

➢It displays the Login interface as Figure-1. Input the Username and Password (Both
the default Username and Password are “admin”.) and then click “Login” to start the
device setting.
Figure-1
Summary →Status

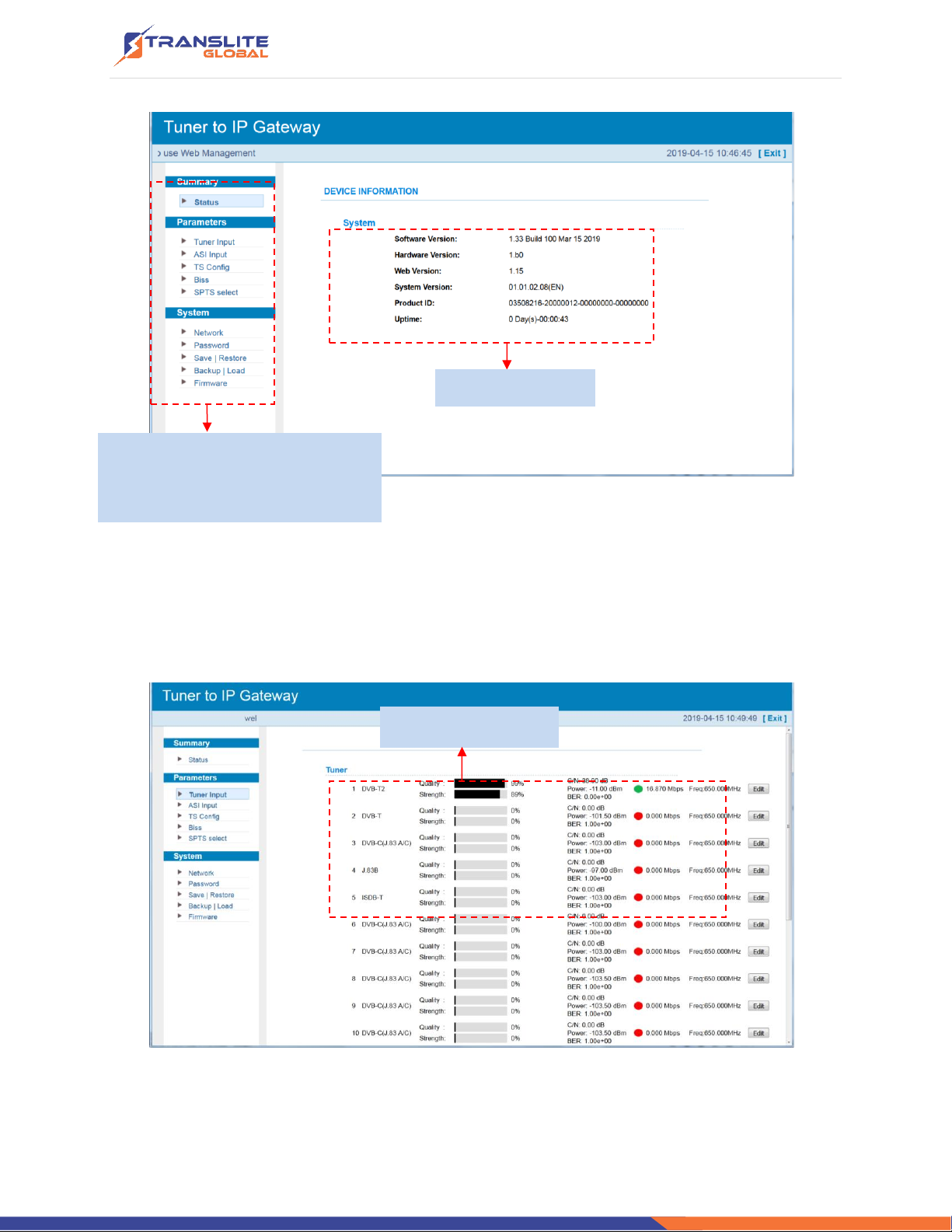

When we confirm the login, it displays the status interface as Figure-2.

P a g e | 13
Figure-2
Parameter→Tuner input (DVB-C/T/T2/ISDBT)
From the menu on top side of the webpage, click “Tuner Input”, it displays the interface where
users can check the 16 Tuners input status. TL-9508B supports multi tuners switch manually.
(Figure-3)
Figure-3
User can click any item here to enter
the corresponding interface to check
information or set the parameters.
System
information
Multi tuners input

P a g e | 14
Clicking “Edit”to set parameters for tuner:
DVB-T2
DVB-T
DVB-C (J.83A/C)

P a g e | 15
DVB-C (J.83B)
ISDB-T
Parameter→ASI input
From the menu on top side of the webpage, click “ASI Input”, it displays the interface where
users can check the 2 channels of ASI input status. (Figure-4)
Figure-4

P a g e | 16
Parameter→TS Config
Clicking “TS Config”, it displays the interface where users can set the output TS and configure
TS ID and ON ID (Figure-5).
Figure-5
Parameter→BISS
From the menu on left side of the webpage, clicking “BISS”, it displays the interface where
users can configure BISS and descramble the input channels (Figure-6).
Figure-6

P a g e | 17
Parameter →SPTS Select:
From the menu on left side of the webpage, clicking “SPTS Select”, it displays the interface
where users can choose 16 Tuner input and 2 ASI Input programs to output from IP (max 512
SPTS). (Figure-7)
Figure-7
Configure ‘Input Area’ and ‘Output Area’ with buttons in ‘Operation Area’. Instructions are as
below:
: To filter/not filter the source CA information
: To enable/disable the PID remapping
To refresh the input program information
To refresh the output program information
Select one input program first and click this button to transfer the selected program
to the right box to output.
Similarly, user can cancel the multiplexed programs from the right box.
Input Area
Output Area
Operation Area

P a g e | 18
To select all the input programs
To select all the output programs
To parse programs time limitation of parsing input programs
Program Modification:
The multiplexed program information can be modified by clicking the program in the ‘output’
area. For example, when clicking program in output area, it triggers a dialog box (Figure 8)
where users can input new information.
Figure-8
Note: TL-9508B support 16 Tuner input and 2 ASI input with 512 SPTS output, the parameter
interface is different from MPTS. When users switch SPTS to MPTS, new mode will work after
reboot the device.
Parameter→BISS:
From the menu on left side of the webpage, clicking “BISS”, it displays the interface where
users can configure BISS and descramble the input channels (Figure-9).

P a g e | 19
Figure-9
Parameter→Program Parse
From the menu on left side of the webpage, clicking “Program Parse”, it displays the interface
where users can parse the program from the input channels.
When users disable the ASI input, TL-9508B can support 16 Tuner input with 16 MPTS IP
output (Figure-10).
Figure-10
Select the output carrier
Enable and Disable the
ASI input

P a g e | 20
When users enable the ASI input, TL-9508B can support 14 Tuner input and 2 ASI input with
16 MPTS IP output (Figure-11).
Figure-11
Parameter→IP Stream
TL-9508B supports TS to output in IP (16*MPTS) format through the GE1 or GE2 port. Clicking
“IP Stream”, it displays the interface where to set IP out parameters (Figure-12).
Figure-12
