TransLite TL-9596S User manual

P a g e | 1
DISCLAIMER
No part of this document may be reproduced in any form without the written permission of the copyright
owner.
The contents of this document are subject to revision without notice due to continued progress in
methodology, design and manufacturing. TRANSLITE GLOBAL LLC shall have no liability for any error or
damage of any kind resulting from the use of this document.
COPY WARNING
This document includes some confidential information. Its usage is limited to the owners of the
product that it is relevant to. It cannot be copied, modified, or translated in another language
without prior written authorization from TRANSLITE GLOBAL LLC

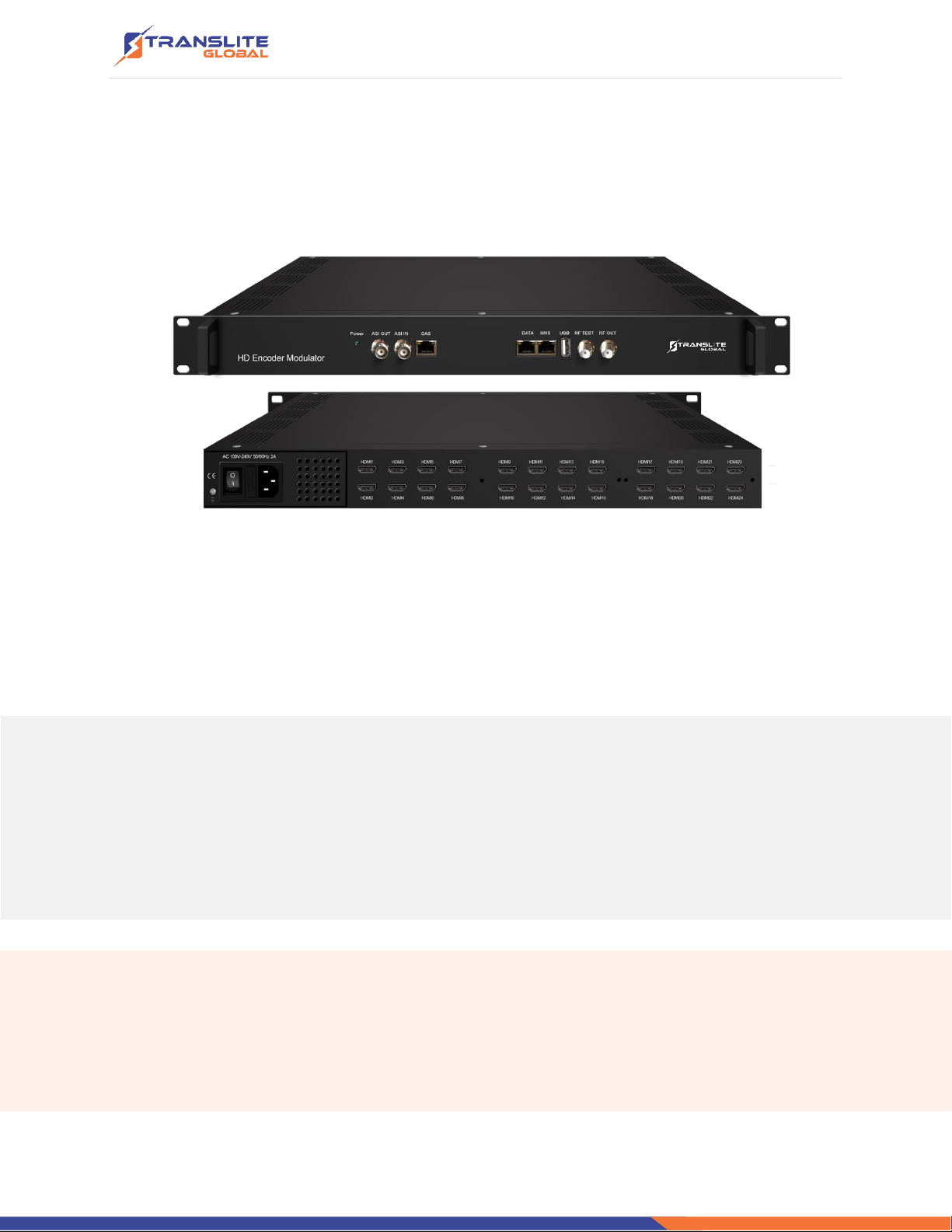

PRODUCT MODEL NUMBER: TL-9596S DVB-C
Encoder Modulator
ABOUT THIS MANUAL

P a g e | 2
INDEX
TABLE OF CONTENTS
CHAPTER 1 INTRODUCTION ...................................................................................................................3
1.1 PRODUCT OVERVIEW........................................................................................................................3
1.2 KEY FEATURES...................................................................................................................................3
1.3 SPECIFICATIONS................................................................................................................................4
1.4 PRINCIPLE CHART.............................................................................................................................7
1.5 APPEARANCE AND DESCRIPTION......................................................................................................8
CHAPTER 2 INSTALLATION GUIDE...........................................................................................................9
2.1 GENERAL PRECAUTIONS ...................................................................................................................9
2.2 POWER PRECAUTIONS......................................................................................................................9
2.3 DEVICE’S INSTALLATION FLOW CHART ILLUSTRATED AS FOLLOWING..................................................9
2.4 ENVIRONMENT REQUIREMENT....................................................................................................... 10
2.5 GROUNDING REQUIREMENT...........................................................................................................10
CHAPTER 3 WEB NMS OPERATION....................................................................................................... 11
3.1 LOGIN ............................................................................................................................................11
3.2 OPERATION .................................................................................................................................... 12
CHAPTER 4 TROUBLESHOOTING........................................................................................................... 35
CHAPTER 5 PACKING LIST..................................................................................................................... 36
CHAPTER 6 APPLICATIONS ................................................................................................................... 36

P a g e | 3
CHAPTER 1
INTRODUCTION
1.1 PRODUCT OVERVIEW
TL-9596S is a professional high integration device which includes encoding, multiplexing, and
modulation. It supports 8/16/24 HDMI inputs, 1 ASI input, 1 USB payer input and 128 IP inputs
via the GE port. It also supports DVB-C RF out with 12 non-adjacent carriers, and supports 12
MPTS as mirror of 12 carriers through the GE port and 1 ASI out (optional) as mirror of one of
the carriers. This full function device makes it ideal for small CATV head end system, and it’s a
smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment, etc.
1.2 KEY FEATURES
➢8/16/24 HDMI inputs, MPEG-4 AVC/H.264 Video encoding
➢1 ASI input for re-mux
➢1 USB Player (Insert the USB Flash drive with “xxx.ts”videos in TL-9596S and
play back the content in an easy way; file system FAT 32. )
➢128 IP input over UDP and RTP via GE port
➢Each carrier out channel processes maximum 32 IP inputs from the GE
port(UDP&RTP protocol)
➢MPEG1 Layer II, LC-AAC and HE-AAC Audio encoding, AC3 Pass Through and
audio gain adjustment
➢Support 12 groups multiplexing/DVB-C modulating
➢Support 1 ASI out as mirror of one of RF output carriers---Optional
➢Support 12 MPTS IP output over UDP, RTP/RTSP
➢Support LOGO, Caption and QR code insertion(Language Supported: 中文,
English, ةيبرعلا, русский, ودرا, for more languages please consult us…)

P a g e | 4
➢Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
➢Control via web management, and easy updates via web
1.3 SPECIFICATIONS
Input
8/16/24 HDMI inputs for option
1 ASI in for re-mux
1 USB Player input for re-mux
128 IP input over UDP and RTP, GE port, RJ45—DVB-C RF out
128 IP input over UDP and RTP, GE port, RJ45—DVB-T/ATSC RF out
128 IP input over UDP and RTP, GE port, RJ45—ISDBT RF out
Video
Input Resolution
1920×1080_60P, 1920×1080_60i,
1920×1080_50P, 1920×1080_50i,
1280×720_60P, 1280×720_50P,
720×576_50i,720×480_60i,
Output Resolution
1920×1080_30P, 1920×1080_25P,
1280×720_30P, 1280×720_25P,
720×576_25P,720×480_30P,
Encoding
MPEG-4 AVC/H.264
Bit-rate
1Mbps~13Mbps each channel
Rate Control
CBR/VBR
GOP Structure
IP…P (P Frame adjustment, without B Frame)
Audio
Encoding
MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
Sampling rate
48KHz
Resolution
24-bit

P a g e | 5
Audio Gain
0-255 Adjustable
MPEG-1 Layer 2 Bit-
rate
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
LC-AAC Bit-rate
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
HE-AAC Bit-rate
48/56/64/80/96/112/128 kbps
Multiplexing
Maximum PID
Remapping
255 input per channel
Function
PID remapping (automatically or manually)
Accurate PCR adjusting
Generate PSI/ SI table automatically
DVBC Modulator Section
QAM Channel
12 non-adjacent carriers output (maximum bandwidth 192MHz)
Standard
EN300 429/ITU-T J.83A/B
MER
≥40db
RF frequency
50~960MHz, 1KHz step
RF output level
-20~+3dbm, 0.1db step
Symbol Rate
5.0Msps~7.0Msps, 1ksps stepping
J.83A
J.83B
Constellation
Bandwidth
16/32/64/128/256QAM
64/256 QAM
8M
6M
DVB-T Modulator Section
Standard
EN300744
FFT mode
2K,4K, 8K
Bandwidth
6M, 7M, 8M
Constellation
QPSK, 16QAM, 64QAM
Guard Interval
1/4, 1/8, 1/16, 1/32
FEC
1/2, 2/3, 3/4, 5/6, 7/8

P a g e | 6
MER
≥42 dB
RF frequency
50~960MHz, 1KHz step
RF out
8 non-adjacent carriers’ output (maximum bandwidth 192MHz)
RF output level
-20~ +3dBm, 0.1db step
ATSC Modulator Section
Standard
ATSC A/53
Bandwidth
6M
Constellation
8VSB
FEC
RS(208 188)+Trellis
MER
≥40dB
ACL
-55 dBc
RF frequency
50~960MHz, 1KHz step
RF out
8 non-adjacent carriers’ output (maximum bandwidth 192MHz)
RF output level
-20~+3dbm (for all carriers), 0.5db stepping
ISDB-T Modulator Section
Standard
ARIB STD-B31
Bandwidth
6M
Constellation
QPSK, 16QAM, 64QAM
Guard Interval
1/32, 1/16, 1/8, 1/4
Transmission Mode
2K, 4K, 8K
Code rate
1/2, 2/3, 3/4, 5/6, 7/8
MER
≥40dB
RF frequency
50~960MHz, 1KHz step
RF out
6 (or 16) non-adjacent carriers’ output (maximum bandwidth
192MHz)
RF output level
-20dBm~+3dBm, 0.1dB stepping

P a g e | 7
Stream Output
1 ASI output as mirror of one of RF output carriers (Optional)
12 MPTS output over UDP and RTP/RTSP as mirror of 12 DVB-C carriers,
8 MPTS output over UDP and RTP/RTSP as mirror of 8 DVB-T/ATSC carriers (Optional)
6 MPTS output over UDP and RTP/RTSP as mirror of 6 ISDB-T carriers (Optional)
16 MPTS output over UDP and RTP/RTSP as mirror of 16 ISDB-T carriers (Optional)
1*1000M Base-T Ethernet interface, GE port
System Function
Network management (WEB)
Chinese and English language
Ethernet software upgrade
General Information
Dimension (W×L×H)
482mm×328mm×44mm
Environment
0~45℃(work)；-20~80℃（Storage）
Power
requirements
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
1.4 PRINCIPLE CHART

P a g e | 8
1.5 APPEARANCE AND DESCRIPTION
Front and Rear Panel Illustration
1 2 3 4 5 6 7
8 9
1
Power Indicator
2
ASI out (Optional)
3
ASI in
4
DATA: IP input and output port (GE)
5
NMS (Network management port)
6
USB Port (TS playing)
7
RF test and RF out port
8
Power supply and Grounding Pole
9
HDMI inputs

P a g e | 9
CHAPTER 2
INSTALLATION GUIDE
This section is to explain the cautions the users must know in some case that possibly injure
may bring to users when it’s used or installed. For this reason, please read all details here and
make in mind before installing or using the product.
2.1 GENERAL PRECAUTIONS
➢Must be operated and maintained free of dust or dirty.
➢The cover should be securely fastened, do not open the cover of the products
when the power is on.
➢After use, securely stow away all loose cables, external antenna, and others.
2.2 POWER PRECAUTIONS
➢When you connect the power source, make sure if it may cause overload.
➢Avoid operating on a wet floor in the open. Make sure the extension cable is in
good condition
➢Make sure the power switch is off before you start to install the device
2.3 DEVICE’S INSTALLATION FLOW CHART
ILLUSTRATED AS FOLLOWING
Connecting
Grouding
Wire and
Power
Cord
Acquisition
Check Installing Device Setting Parameter Running Device
Connecting
Signal
cable

P a g e | 10
2.4 ENVIRONMENT REQUIREMENT
Item
Requirement
Machine Hall
Space
When user installs machine frame array in one machine hall, the distance
between 2 rows of machine frames should be 1.2~1.5m and the distance
against wall should be no less than 0.8m.
Machine Hall
Floor
Electric Isolation, Dust Free
Volume resistivity of ground anti-static material: 1X107~1X1010，
Grounding current limiting resistance: 1M(Floor bearing should be
greater than 450Kg/㎡)
Environment
Temperature
5~40℃(sustainable)，0~45℃(short time)
installing air-conditioning is recommended
Relative
Humidity
20%~80% sustainable 10%~90% short time
Pressure
86~105KPa
Door &
Window
Installing rubber strip for sealing door-gaps and dual level glasses for
window
Wall
It can be covered with wallpaper, or brightness less paint.
Fire
Protection
Fire alarm system and extinguisher
Power
Requiring device power, air-conditioning power and lighting power are
independent toeach other. Devicepower requiresAC 110V±10%, 50/60Hz
or AC 220V±10%, 50/60Hz. Please carefully check before running.
2.5 GROUNDING REQUIREMENT
➢All function modules’ good grounding is the basis of reliability and stability of devices. Also,
they are the most important guarantee of lightning arresting and interference rejection.
Therefore, the system must follow this rule.
➢Grounding conductor must adopt copper conductor in order to reduce high frequency
impedance, and the grounding wire must be as thick and short as possible.
➢Users shouldmake sure the 2 ends of grounding wire well electric conducted and be antirust.

P a g e | 11
➢It is prohibited to use any other device as part of grounding electric circuit
➢The area of the conduction between grounding wire and device’s frame should be no less
than 25mm2.
CHAPTER 3
WEB NMS OPERATION
Users can only control and set the configuration in computer by connecting the device to web
NMS Port. User should ensure that the computer’s IP address is different from this device’s IP
address; otherwise, it would cause IP conflict.
3.1 LOGIN
The default IP address of this device is 192.168.0.136.
Connect the PC (Personal Computer) and the device with net cable, and use ping command to
confirm they are on the same network segment.
I.G. the PC IP address is 192.168.99.252, we then change the device IP to 192.168.99.xxx (xxx
can be 1 to 254 except 252 to avoid IP conflict).
Use web browser to connect the device with PC by inputting the Encoder & Modulator’s IP
address in the browser’s address bar and press Enter.
It displays the Login interface as Figure-1. Input the Username and Password (Both the default
Username and Password are “admin”.) and then click “LOGIN” to start the device setting.

P a g e | 12
Figure-1
3.2 OPERATION
1) Summary →Status
When we login into encoder modulator, it displays the status interface as Figure-2.
Figure-2
Parameters →Encoder (01-08)
From the menu on left side of the webpage, clicking “Encoder(01-08)”, it displays the
information of each encoding channel from the encoder as Figure-3.
User can click any item here to enter the
corresponding interface to check
information or set the parameters.
Current software version
information

P a g e | 13
Figure-3
Encoder(01-08) →OSD:
Clicking “OSD”, it displays the interface as Figure-4/5/6 where to set Logo/ Caption/ QRCode
parameters.
General settings for
the Encoding program:
User can edit any item
listed as needed.
Users can check the input
lock status, bit rate Status,
encoder version and
resolution information.

P a g e | 14
Figure-4
Figure-5
Select to configure logo, caption or QRcode
Select program1-8 to apply the logo insertion, or
you can select “all”to apply all programs
Click here to confirm the LOGO you selected
Browse and select
the Logo which has
been created
Put your logo everywhere
Enter your
text here
Put your caption anywhere
Select the text color and
background color
Set when to show caption. So do
Logo and QRCode.

P a g e | 15
Figure-6
Parameters →Encoder (09-16)
From the menu on left side of the webpage, clicking “Encoder(09-16)”, it displays the
information of each encoding channel from the encoder as Figure-7.
Put the QRcode everywhere
Browse and select the
QR code which has been
created
Input the QRcode URL here

P a g e | 16
Figure-7
Encoder (09-16) →OSD
OSD setting is same as the one in the encoder(01-08).
Figure-8
Encoder (09-16) →System
Under System page, users can check the software version information of the encoder module,
save, restore or load factory set the module configuration.

P a g e | 17
Figure-9
Encoder (09-16) →Firmware
Under the Firmware page, users can update the software for the encoder module.
Figure-10

P a g e | 18
Parameters →Encoder(17-24)
Encoder (17-24) shares the same configuration steps with encoder (09-16).
Figure-11
Parameters →TS Config:
From the menu on left side of the webpage, clicking “TS Config”, it displays the interface where
users can configure the TS output parameters.
➢TS Config→Output TS X:
Clicking “Output TS X”, it displays the interface where users can select the TS output carrier
(Figure-12)

P a g e | 19
Figure-12
➢TS Config→Stream select:
Clicking “Stream select”, it displays the interface where users can select program(s) to multiplex
out and modify program info. (Figure-13)
Input Area
Output Area
Operation Area
Clicking output TS 1-12 to set
program information etc for each
output channel.

P a g e | 20
Figure-13

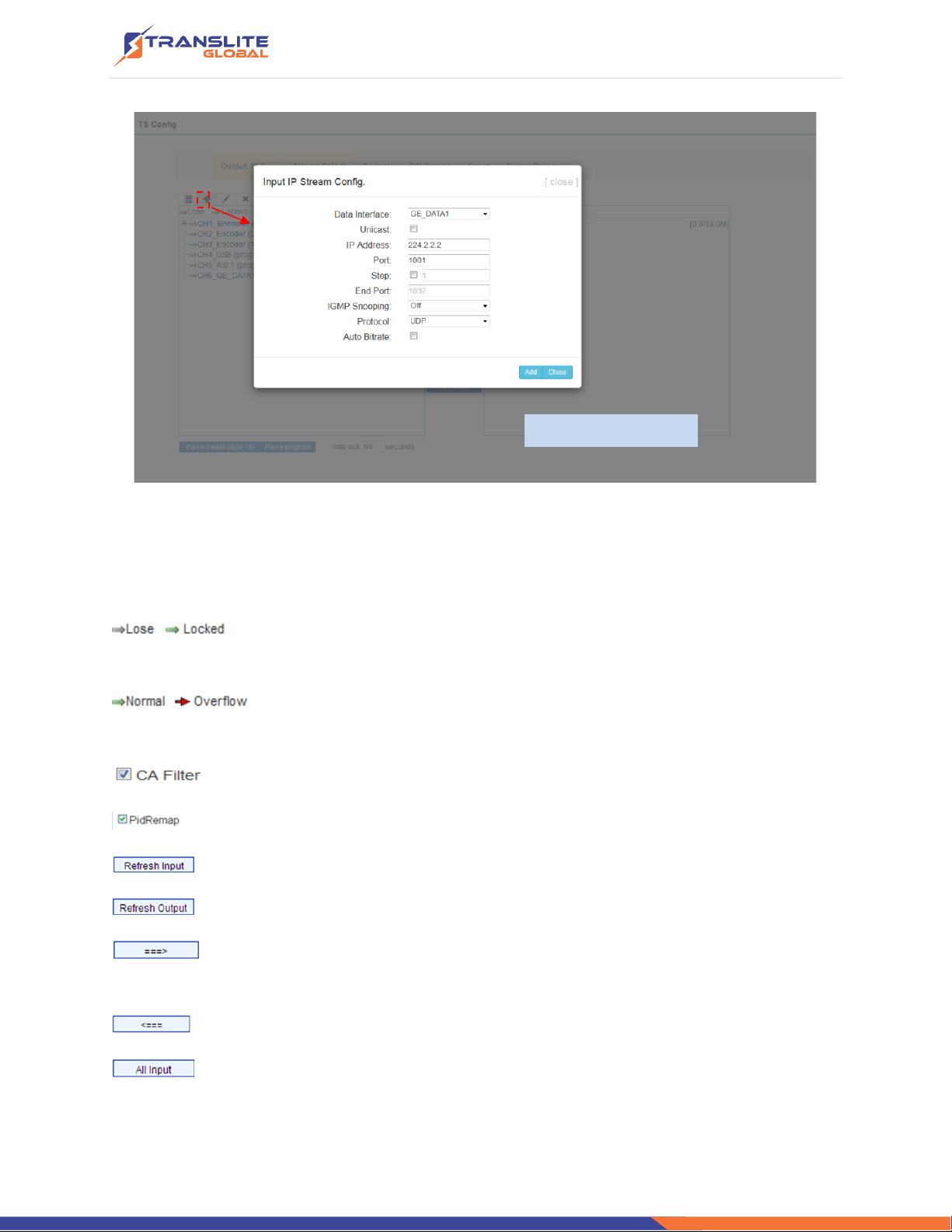

Configure ‘Input Area’and ‘Output Area’with buttons in ‘Operation Area’. Instructions are as
below:
: To check source streams locked or not, green means current source streams
locked
: To check current TS overflowing or not, red color means current TS
overflowing, need reduce program
: To filter/not filter the source CA information
: To enable/disable the PID remapping
To refresh the input program information
To refresh the output program information
Select one input program first and click this button to transfer the selected program
to the right box to output.
Similarly, user can cancel the multiplexed programs from the right box.
To select all the input programs
Add the IP input streams
