TRASSIR TR-D2183ZIR6 User manual

Outdoor IP camera with IR illumination
TR-D2183ZIR6
Technical Specifications
H.265
HEVC
8Mp
-40°
Service center addresses
Moscow,
17b3 Perevedenovskiy lane
[phone]
Nizhny Novgorod,
31a Premudrova st.
[phone]
St. Petersburg
5 Bobruiskaya st.
[phone]
Novosibirsk,
3/1 3rd Krasheninnikov Lane
[phone]
Vladivostok,
7g Semyonovskaya st.,
[phone]
Yaroslavl,
16bld.81 Polushkina Roscha st.
[phone]
Samara,
150/1 Aurora st.
[phone]
Kiev,
44E Glybochytskaia st.
[phone]
Krasnodar,
25 Molodezhnaya st.
[phone]
Kazan,
36 Yamashev ave.
[phone]
Ekaterinburg,
35a Furmanov st.
[phone]
Rostov-on-Don,
3 Budennovskiy ave.
[phone]
Volgograd,
19 7-Gvardeyskaya st.
[phone]
Voronezh,
53 Moskovsky ave.
[phone]
Ufa,
6 Luganskaya st.
[phone]
Almaty,
270/4 Kablukova st.
[phone]
You can find addresses of other service centers at:
www.trassir.com/service/
Note:
Please read this user manual before connecting
the camera!
Do not attempt to disassemble the camera, if the camera does
not work, contact your place of purchase or a service center.
Date: LS
TR-D2183ZIR6
1/2.7" CMOS 8Mp
8МР(3840х2160)
8MP@15fps
1/3 - 1/1 000 s
Mechanical ICR
0.003 lux (F1.3)
Up to 60 m
2.7- 13.5
101° - 32°±3° / 53° -18°±3°
Real WDR (120dB)
3D DNR
Н.265+ / Н.265 / Н.264+ / Н.264
up to 10Mbps
MicroSD up to 128Gb
Built-in microphone
1 in / 1 out
1/1
Yes
Human detection
Line crossing
Intrusion detection
face detector
detector of left possessions
line crossing statistics
РоЕ (802.3af) / 12V DC
0
DC: 8.5W
РоЕ: 13W
Metal
074.5x215.8
726/861
IP67
TVS 2000V
-40°С ... +60°С
Model
Image sensor
Resolution
Frame rate
Electronic shutter speed
"Day/Night" mode
Sensitivity
IR range
Lens (mm)
Field of view (horiz./vert.)
WDR
Digital noise reduction
Video compression
Bitrate
Local storage
Audio
Alarm inputs/outputs
Corridor mode
IVS
Power supply
РоЕ Class
Power consumption
Case material
Dimensions (mm)
NET/GROSS weight (g)
Ingress protection
Lightning protection
Working temperature

866-26.4.21
Setting the IP address of the camera:
In order to connect to the IP camera, the PC must be on the same local
network as the camera. With that, the IP address of the camera, the PC
and any other device on the network must not be the same.
The default network settings of the IP camera:
- Camera IP address: 192.168.1.188;
- Subnet mask: 255.255.0.0;
- Gateway: 192.168.1.1;
- НТТР-port: 80;
- user name: admin;
- password: admin.
Example of network settings of a PC:
- IP address: 192.168.1.10;
- Subnet mask: 255.255.0.0.
There are three options to configure the camera:
The service life of this product is 5 years.
For detailed instructions on configuring the camera, see the user
manual which can be downloaded from www.trassir.com in the
Technical documentation section.
Connect the camera to the TRASSIR Cloud service
and watch videos on your cell phone totally free of charge.
Introduction
Key features
*Memory card not included
** The device must be grounded
Accessories included in the kit
1. IP camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
2. User manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
3. Mounting kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
Warning!
Connection

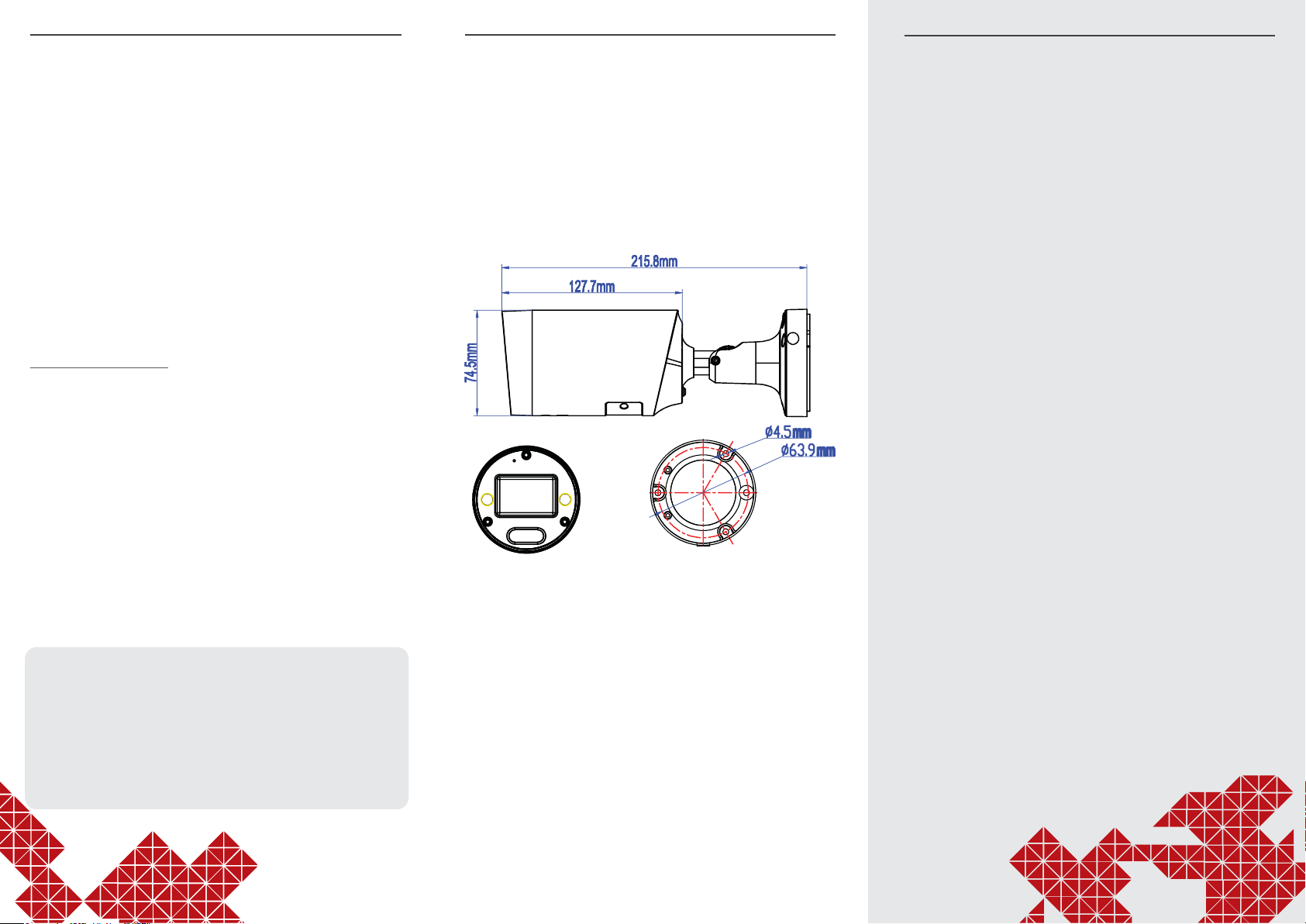

Dimensions
1. Change the IP address of the camera manually.
In order to do this, start Internet Explorer, connect to the IP camera
and enter the user name. Go to the appropriate menu item and change
the network settings of the IP camera.
2. Configure the IP address of the camera using the quick configuration
utility which can be downloaded from www.trassir.com in the Software
section.
3. Change the IP camera settings using the TRASSIR professional
software.
In order to start using the IP camera, you need a PC connected to a local
network with a Windows operating system and Internet Explorer 8 or
higher.
1. Connect the camera to the network.
2. When connecting the camera through a switch that does not support
PoE, connect a power adapter to the power connector.
Congratulations on your purchase of the TR-D2183ZIR6 IP camera.
Please read the user manual for the camera before using it.
• Supports H.265+ codec
• Wide dynamic range (Real WDR 120dB)
• IR illumination up to 60 meters
• Built-in video archive (Edge Storage) - local recording on MicroSD card
up to 128GB*
• Two-way audio channel (built-in microphone and line input/output)
• Alarm inputs/outputs: 1/1
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP,
RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, IPv6
• Power 12V DC or PoE
• Lightning protection: TVS 2000V**
The power supply unit must meet the following requirements: output voltage,
current, polarity, and operating temperature. When using the camera in
thunderstorm conditions, make sure there is a lightning protection device or unplug
the power connector.
Avoid using the device in temperatures that are too high or too low. Do not install
the camera near radiators or heaters. Do not point the camera lens at the sun or at
bright objects. Doing so can damage the sensor.
