USER MANUAL
Introduction
Congratulations on the purchase of your Travel Vision R6 ® system.
This user manual provides all necessary information on the installation, operation and maintenance of your
system.
The Travel Vision R6 ® provides maximum freedom. For example, you can park your trailer or RV in the shadow
of a tree, position the system anywhere you like and fully enjoy your favorite television programs. The Travel
Vision R6 ® is set up in a snap, is very easy to operate and is connected to the system with a single cable. With
just a push of a button, the Travel Vision R6 ® automatically finds the satellite of your choosing. After the dish has
been aligned, you can easily remove the control module from the system for safe storage and continue watching
television without interruption.
Where possible, high quality materials such as stainless steel and durable plastics are used to ensure a long
service life. There are no parts in the device that require servicing by the user.
WARNINGS AND REMARKS
The contents of this manual are up to date at the time of print. In no way can TravelVision BV be held liable for
any errors that may occurred while writing this manual.
TravelVision BV reserves the right to implement any modifications it deems necessary during the development of
the products, and to modify or change this installation and user manual and the herein described products without
prior notice.
Travel Vision R6 ® is a registered trade mark of TravelVision BV.
Please first read this user manual before putting your Travel Vision R6 ® into operation. Follow all instructions
and carefully observe the directions presented in this manual.
Before taking the device into operation, first ensure that all cables have been connected correctly. Please note
that when you switch on the power supply and activate the satellite receiver, the satellite dish will begin rotating
within a few seconds. This is also indicated on the display of the control module.
Switch off and disconnect the power supply before you carry out any actions on the system. The control module is
splash-proof however it may not be cleaned with water.
Even without the control module, it is not recommended to clean the antenna with a high-pressure washer. Use a
soft and moist cloth with soap instead.
For additional information we kindly ask you to contact the specialist dealer where you purchased your system.
User manuals and software updates can be found on our website:
www.travel-vision.com
© Copyright 2015 TravelVision BV

page 3
Table of contents
1.1 Safety instructions and warnings ...................................................................................................... 4
1.2 Tips before going on vacation................................................................................................................... 4
1.3 Travel Vision R6 ® packaging................................................................................................................... 4
1.4 Shipment check list Travel Vision R6 ®..................................................................................................... 4
1.5 Components of the Travel Vision R6 ®..................................................................................................... 5
2.1 Control module.......................................................................................................................................... 5
3.1 Choosing a setup location......................................................................................................................... 6
3.2 Positioning the tripod................................................................................................................................. 6
3.3 Placing the antenna dish........................................................................................................................... 7
3.4 Electric connection of the Travel Vision R6 ® ........................................................................................... 7
3.5 Searching satellite..................................................................................................................................... 8
3.6 Special remarks on searching for satellite............................................................................................... 12
3.7 Removing the control module.................................................................................................................. 12
3.8 Connection of 2
nd
receiver ...................................................................................................................... 13
4.1 Menu....................................................................................................................................................... 13
5.1 Park position ........................................................................................................................................... 14
6.1 Stop button.............................................................................................................................................. 15
7.0 Error messages....................................................................................................................................... 15
7.1 No satellite found, check manual ............................................................................................................ 15
7.2 Satellite found, but no picture.................................................................................................................. 15
7.3 Satellite found, but not all channels......................................................................................................... 15
7.4 Error No 24V connected:......................................................................................................................... 15
7.5 Error Low Voltage:................................................................................................................................... 15
7.6 Error during software update:.................................................................................................................. 16
7.7 Error during software update:.................................................................................................................. 16
7.8 Error messages: calibration failed, error azimuth adjustment, error elevation adjustment ...................... 16
7.9 No LNB signal:........................................................................................................................................ 16
8.0 Error OXBAFF:........................................................................................................................................ 16
8.1 Troubleshooting and frequently asked questions.....……………………………....................................…. 17
9.1 Specifications.......................................................................................................................................... 19
10.1 Warranty conditions................................................................................................................................. 19

Page
4
1.1 Safety instructions and warnings
Carefully read this user manual before using the device.
Scope of use
Your Travel Vision R6 ® has been developed to automatically search and find a satellite signal. This device is
only intended for use by consumers and outdoors
For safe use, please observe the following:
Tripod
When extending or folding up the tripod, be careful not to pinch your hands between the legs of the tripod.
Handling the dish unit
Use the hand grip on the back of the dish unit when picking up the system for positioning or storage.
During alignment
Make sure not come into physical contact with the dish unit while it is aligning and rotating. Only use the control
module and make sure nothing and nobody enters the turning circle of the system during its alignment.
Connecting the system
Always first fully connect the system before switching on the power supply. Otherwise you risk receiving a slight
electric shock.
Coaxial cable
Ensure that when unrolling the system’s coaxial cable, it is laid down as flat as possible and that it is covered so it
does not pose a tripping hazard.
1.2 Tips before going on vacation
Check whether your subscription or smartcard is still valid.
Check the correct function of the system.
Check the website www.travel-vision.com or ask your dealer for any software updates.
1.3 Travel Vision R6 ® packaging
The Travel Vision R6 ® is packed in a cardboard box .
Before opening the package we kindly request that you check the following:
•The cardboard box may not be deformed and may not have serious and obvious signs of damage such
as cracks in the cardboard or dents resulting from impact.
•The sealing tape on the package must be intact.
1.4 Shipment check list Travel Vision R6 ®
The following parts should be included in the shipment:
•Antenna dish (complete antenna unit with LNB)
•Control module (display, holder with electronics and motors)
•Tripod
•15 meters of coaxial cable with waterproof connectors
•230V power adapter
•Power inserter
•20 cm coaxial cable (for the connection on the power inserter to the receiver)
•User manual

1.5
Components of the Travel
15m coaxial cable
Power inserter
2.1 Control module
Control module
Components of the Travel
Vision R6 ®
20cm coaxial cable
230V power adapter
Antenna dish and LNB
Tripod
page 5
Antenna dish and LNB

The control module has 4 functions:
•Actuate The build-
in motors and electronics drive the
•Control Sends
commands to the antenna dish, e.g. satellite choice, parking, etc…
•Display indicates
the system’s status on the display
•Update
Replaces or updates
3.1
Choosing a setup location
Several factors must
be considered when deciding
•The
surface on which the ante
•
The ideal location is a place where there is
•When the view
is obstructed, choose a location with
satellite. This means that there shoul
3.2 Positioning the tripod
After choosing a
En
sure that the legs are
and rigid
Place the tripod on a surface
to be perf
will
locate
in motors and electronics drive the
system
commands to the antenna dish, e.g. satellite choice, parking, etc…
the system’s status on the display
Replaces or updates
the software
Control panel buttons:
1. Start (system starts
search
2.
Park (system places itself in
3. Enter (select)
4. Arrow up
5. Arrow down
6. Escape (one step back)
7. Menu
8. Stop
9. USB port
A USB port is located at the back of the control
module to carry out software updates
(see section 4.2 on
how to update the software)
Choosing a setup location
be considered when deciding
on
the location of where to set up the system:
surface on which the ante
nna will be positioned should be reasonably flat.
The ideal location is a place where there is
an unobstructed view in all directions.
is obstructed, choose a location with
an unobstructed view
in the direction of the desired
satellite. This means that there shoul
d be no
obstructions such as trees, trailers or RV’s
After choosing a
suitable setup lo
cation, you can unfold and position the tripod.
sure that the legs are
fully extended so that the
system will stand
and rigid
position. The legs must be secured by means of
the supplied pegs.
Place the tripod on a surface
that is
as flat as possible. The surface does not have
to be perf
ectly horizontal, but the more
the unit is leveled, the quicker the syste
locate
the satellite.
Page
6
commands to the antenna dish, e.g. satellite choice, parking, etc…
search
ing for satellite)
Park (system places itself in
the parked position)
A USB port is located at the back of the control
module to carry out software updates
how to update the software)
the location of where to set up the system:
in the direction of the desired
obstructions such as trees, trailers or RV’s
, buildings, etc…
cation, you can unfold and position the tripod.
system will stand
in a stable
the supplied pegs.
as flat as possible. The surface does not have
the unit is leveled, the quicker the syste
m

3.3 Placing the antenna dish
How to mount the antenna dish on the tripod:
3.4
Electric connection of the
The system is connected with
2 coax
located outside and the
power inserter
of the short coax
ial cable (receiver is not included
The Tra
vel Vision R6 ® operates on 24 volt. The required 24 v
adapter.
By default,
The Travel Vision R6 ® is suited for 1 receiver with unlimited channel reception from the chosen
satellite.
Connection procedure:
R6 Coax
Power Inserter
How to mount the antenna dish on the tripod:
Guide the rotation axle
of the antenna dish in
socket of the tripod
Then slowly rotate the dish in either direction until
has been fixed in the tripod.
Electric connection of the
Travel Vision R6 ®
2 coax
ial cables. The long coaxial cable is mo
unted between the
power inserter
located inside. The power inserter is
connected to your receiver
ial cable (receiver is not included
).
vel Vision R6 ® operates on 24 volt. The required 24 v
olt is supplied by the power inserter with
The Travel Vision R6 ® is suited for 1 receiver with unlimited channel reception from the chosen
Firmly press the F-connector of the 15 mtr
coax
connector located on the bottom of the dish unit,
indented, and hand-tighten it.
Power Inserter
Coax Receiver Cable
page 7
of the antenna dish in
to the plastic
Then slowly rotate the dish in either direction until
the axle
unted between the
antenna unit
connected to your receiver
by means
olt is supplied by the power inserter with
12V power
The Travel Vision R6 ® is suited for 1 receiver with unlimited channel reception from the chosen
coax
ial cable over the
connector located on the bottom of the dish unit,
so that the rubber is
Television

Switch on your satellite
receiver to provide the
The system is now ready for use.
3.5 Searching satellite
After connecting
the wiring as described in section 3.4, switch on your satellite receiver and television. Then
connect the control module
to the antenna system by pressing it
On the display of the control module the following will be
This last message will disappear
within a few seconds, after which the system will present
this level, you can select the satellite of your choosing.
During its first usage,
the system will preselect
previously selected sat
ellite(s) and will show it
Press the F-
connector on the other end of the
over the connector of the power inserter
(indicated with “Antenna
R6”), so that the rubber is indented, and hand
Connect the short coaxial
cable between the connector of
inserter (indicated with
“Receiver”) and the “Antenna In” connector
of
your receiver, and hand -tighten both items.
Insert the power adapted jack plug (round plug) in the 24V port of
the power inserter (indicated with “Power-
in 24V”) and insert the
power plug of the power adapter in a
230V wall outlet.
receiver to provide the
LNB with power.
the wiring as described in section 3.4, switch on your satellite receiver and television. Then
to the antenna system by pressing it
firmly into its socket.
On the display of the control module the following will be
then shown:
within a few seconds, after which the system will present
this level, you can select the satellite of your choosing.
the system will preselect
the Astra1 satellite.
The system will store and remember
ellite(s) and will show it
on the display after startup.
TRAVEL VISION
RRECREATION
FIRMWARE V****
BOOTING
ASTRA1 19.2°
∞
TURN LNB 0,0
Page
8
connector on the other end of the
15 mtr coaxial cable
(indicated with “Antenna
R6”), so that the rubber is indented, and hand
-tighten it.
cable between the connector of
the power
“Receiver”) and the “Antenna In” connector
Insert the power adapted jack plug (round plug) in the 24V port of
in 24V”) and insert the
230V wall outlet.
the wiring as described in section 3.4, switch on your satellite receiver and television. Then
within a few seconds, after which the system will present
the satellite menu. At
The system will store and remember

page 9
List of preprogrammed satellites from which you can choose:
Satellite Position Satellite Position
Astra 1 19,2 E Eutelsat 7 7 E
Astra 3 23,5 E SES 5 5 E
Astra 2 28,2 E Thor 1 W
Hotbird 13 E Eutelsat 5 5 W
Hellassat 2 39 E Eutelsat 12 12,5 W
Turksat 42 E Telstar 12 15 W
Eutelsat 9 9 E Hispasat 30 W
It is recommended to wait for the GPS location
You will see a blinking ∞ symbol on the right-hand side of the display that indicates the status of the GPS
location. As long as it is blinking, the system is searching for the GPS location. When the symbol is continuously
displayed, the system has determined its GPS location.
We recommend that you wait with the selection of the desired satellite until the system has determined the GPS
location. The time needed for the determination of the GPS location is approximately 1 minute (see also next
remark).
After determination of the correct GPS location, the system will be able to find the satellite more quickly. It also
provides for the opportunity to set the correct Dish/LNB settings to ensure position optimal reception.
The correct position of the LNB is shown on the display for each satellite, which may differ per selected satellite.
When the GPS location has not been found (yet), by default this position will be 0.
Remark:
In the case of a weak GPS signal, it might not be possible to determine the location, in which case the system can
be used as normal. However, finding the satellite will take longer and the optimal position of the Dish/LNB will not
be provided. If the GPS signal improves during satellite search, then the system will adjust automatically.
You can browse through the preprogrammed satellites step by step.
By means of the arrow buttons located on the control module (buttons
4 and 5), For each satellite, the correct Dish/LNB position is shown on
the display.

Select the desired satellite, read off the corresponding LNB position from the display, and bring the
this position by turning the
Dish/LNB
(Note: The
mentioned LNB position is only an example and first start.)
Additionally the correct position of LNB

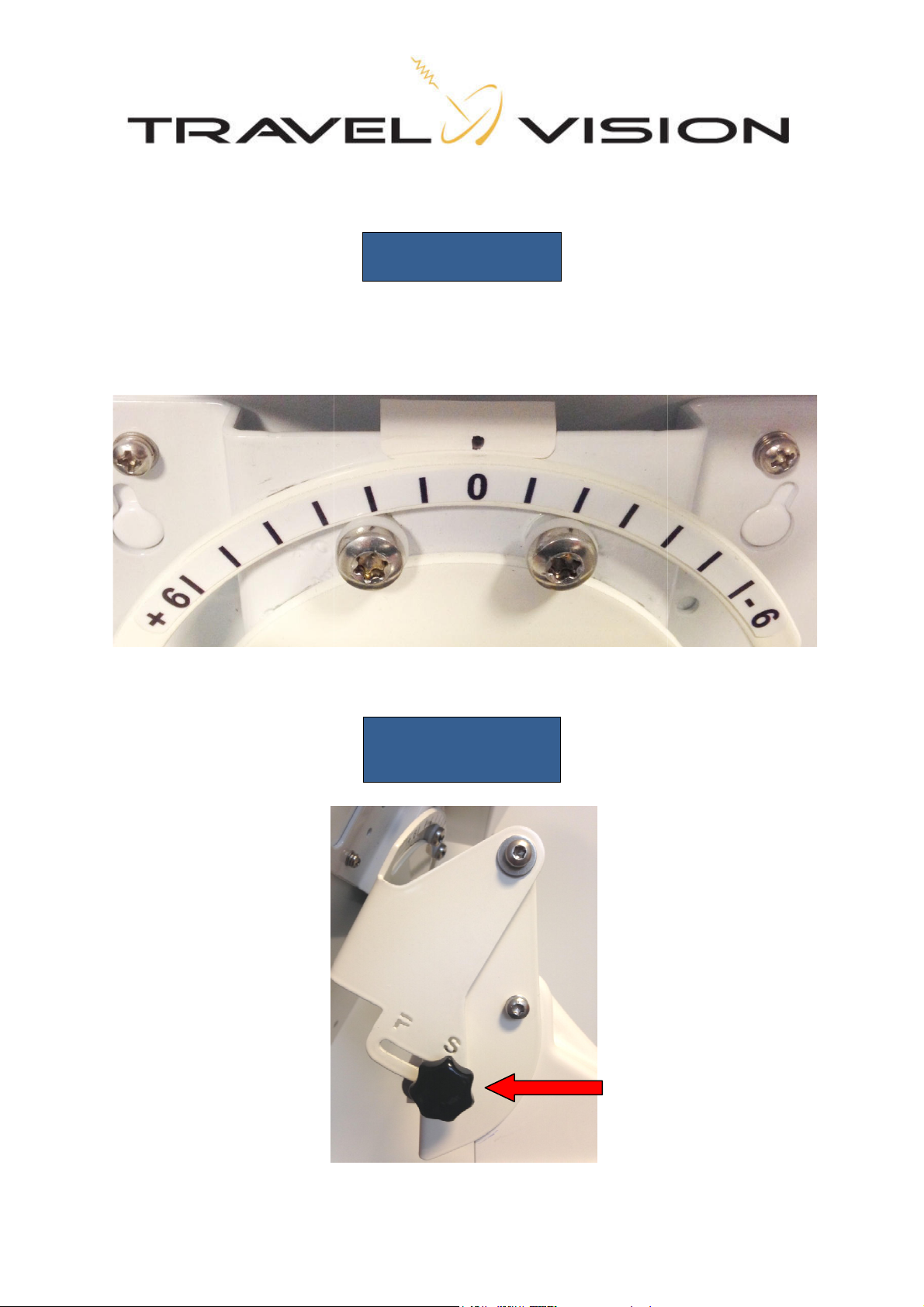

Put the bracket in position S
After you have correctly positioned the
Select the desired satellite, read off the corresponding LNB position from the display, and bring the
Dish/LNB
accordingly (see image below).
mentioned LNB position is only an example and first start.)
Additionally the correct position of LNB
/dish will be indicated after GPS location.
Bracket in
After you have correctly positioned the
Dish/LNB, and bracket press the Start button (1)
TURN LNB TO 0,0
DISH IN POS. S
AND PRESS START
Page
10
Select the desired satellite, read off the corresponding LNB position from the display, and bring the
Dish/LNB into
Bracket in
position S

page 11
The system will start the calibration within 5 seconds and search its vertical and horizontal reference points. The
following messages will be presented on the display:
CALIBRATING
PLEASE WAIT
CALIBRATING
ELEVATION
CALIBRATING
AZIMUTH
After this startup phase, the system will automatically begin its search for the selected satellite. For example:
ASTRA 2 28E
SEARCH SATELLITE
Once the Travel Vision R6 ® has found the satellite, it proceeds with an internal check followed by the
optimization of its alignment in small increments. This procedure will take about 1-2 minutes. The display will
show the following message:
ASTRA 2 28E
Optimize signal
After completion of the optimization phase the system is aimed exactly at the satellite. The following messages
are provided:
ASTRA 2 28E °
OPTIMAL SIGNAL
LNB IN POSITION **
MODULE CAN BE
REMOVED
The signal is now transmitted to the connected satellite receiver and you can watch television. Remove the
control module for safe storage.

3.6
Special remarks on searching for satellite
1.
With a weak GPS signal, it might be possible that the GPS
the system can be used as normal. However, finding the satellite will take longer and the optimal position
of the LNB will not be provided.
2.
If you began searching for the satellite during the determination of t
could suddenly stop searching and show the following message:
This indicates that the system has found the GPS location and that the position of the LNB
adjusted as shown on the display. If you do not adjust the LNB
a satellite signal.
Turn the LNB/dish
to the correct position and press the Start button (1) and then the system will resume
searching.
3. Wh
en the system finds a satellite with the correct characteristics, the dish will stop rotating. But if the
system concludes it has not found the selected satellite after the internal check, the following message
will be shown:
The system will automatically resume searching for the selected satellite.
3.7 Removing
the control module
A release pin is located on
the bottom of the control module. Pr
Remark:
The control module is splash-
proof so that you ca
that you remove
the control module
water damage.
Special remarks on searching for satellite
With a weak GPS signal, it might be possible that the GPS
location cannot be determined, in which case
the system can be used as normal. However, finding the satellite will take longer and the optimal position
of the LNB will not be provided.
If you began searching for the satellite during the determination of t
he GPS location, then the system
could suddenly stop searching and show the following message:
OPTIMAL SIGNAL
LNB IN POSITION +3,5
This indicates that the system has found the GPS location and that the position of the LNB
adjusted as shown on the display. If you do not adjust the LNB
/dish
position, the system may not receive
to the correct position and press the Start button (1) and then the system will resume
en the system finds a satellite with the correct characteristics, the dish will stop rotating. But if the
system concludes it has not found the selected satellite after the internal check, the following message
ASTRA 2 28E
WRONG SATELLITE
The system will automatically resume searching for the selected satellite.
the control module
the bottom of the control module. Pr
ess this release pin to remove
The control module is
unlocked after the release pen is pressed.
Carefully remove
the control module by pulling it to the right. Do this
gently to
ensure that the current alignment of the dish is not altered.
proof so that you ca
n align the system when it is raining
the control module
following each alignment of the system
to prevent theft and possible
Page
12
location cannot be determined, in which case
the system can be used as normal. However, finding the satellite will take longer and the optimal position
he GPS location, then the system
This indicates that the system has found the GPS location and that the position of the LNB
/dish has to be
position, the system may not receive
to the correct position and press the Start button (1) and then the system will resume
en the system finds a satellite with the correct characteristics, the dish will stop rotating. But if the
system concludes it has not found the selected satellite after the internal check, the following message
ess this release pin to remove
the control module.
unlocked after the release pen is pressed.
the control module by pulling it to the right. Do this
ensure that the current alignment of the dish is not altered.
n align the system when it is raining
. We recommend
to prevent theft and possible

3.8 Connection of second
receiver
After aligning the dish you
can optionally connect a second receiver to the satellite antenna.
4.1 Menu
The menu provides for optional settings, including:
1) Language
2) Firmware update
1) Language
You can select English
, German, French
Select the respective
language with the arrow buttons (4 and 5) and press Enter (3) for confirmation.
2) Firmware update
The Travel Vision R6 ® searches for satellites based on various preprogrammed fre
frequencies have been
carefully selected by
these frequencies change, Travel Vision BV will release new software so that the system can use the
new frequencies. This software is freely available for download at the website
and at your local dealer.
(be sure to download the Australian firmware update)
Download the software for your Travel Vision system fro
Insert the USB flash drive
in the USB port
The s
oftware transfer is only possible when the system is fully connected.
Select the firmware menu with the Enter button (3)
receiver
can optionally connect a second receiver to the satellite antenna.
Connect the coaxial cable of the 2nd receiver
The menu provides for optional settings, including:
, German, French
or Dutch as the user language.
Press the enter button
language with the arrow buttons (4 and 5) and press Enter (3) for confirmation.
The Travel Vision R6 ® searches for satellites based on various preprogrammed fre
carefully selected by
Travel Vision BV, but they are subject to
these frequencies change, Travel Vision BV will release new software so that the system can use the
new frequencies. This software is freely available for download at the website
www.travel
(be sure to download the Australian firmware update)
Download the software for your Travel Vision system fro
m the website and store it on a USB flash drive.
in the USB port
located on the bottom of the con
trol module (see section 2.1).
oftware transfer is only possible when the system is fully connected.
Select the firmware menu with the Enter button (3)
SETTINGS:
LANGUAGE
ENGLISH
page 13
can optionally connect a second receiver to the satellite antenna.
Connect the coaxial cable of the 2nd receiver
language with the arrow buttons (4 and 5) and press Enter (3) for confirmation.
The Travel Vision R6 ® searches for satellites based on various preprogrammed fre
quencies. These
Travel Vision BV, but they are subject to
change. When
these frequencies change, Travel Vision BV will release new software so that the system can use the
www.travel
-vision.com
m the website and store it on a USB flash drive.
trol module (see section 2.1).

Page
14
Press Enter and the display will show the current installed software version number. Press Enter again,
and the following message will be displayed:
Press Enter again
Press Enter again, and the system will be updated with the new software and will automatically reboot.
Remove the USB flash drive from the USB port. The system has now been updated with the new
software and is ready for use.
5.1 Park position
When storing the system, you should set it in the park position. In the park position the dish is rotated so
that the system is best suitable for storage.
Press on the blue park button (2) and you will see these messages:
Put the Bracket in P position and press Start
SETTINGS:
FIRMWARE
Firmware :
REV 1.*.**
Firmware update
Are you sure?
UPDATE
*******
TRAVELVISION
Recreation
DISH IN POS. P
AND PRESS START
CAUTION PARKING
IN ... SEC
SYSTEM
PARKED
MODULE CAN BE
REMOVED

page 15
Before storing the system, first disconnect the power supply before disconnecting the coaxial cable and
disassembling the antenna with the tripod etc. (Optionally, a special bag is available in which you can store the
system).
6.1 Stop button
You can push the red Stop button(8) at any time and as a result, the system will stop all actions and will
start over by displaying the satellite choice menu
7.0 Error messages
7.1 No satellite found, check manual
When the satellite has not been found, you will receive the following message:
•Check whether there are any obstructions. (See section 2.1)
•Check if the latest Travel Vision R6 ® software version has been installed for any possibly changed
satellite frequencies. See www.travel-vision.com or consult your dealer.
•You are possibly outside the broadcast area of the desired satellite.
7.2 Satellite found, but no picture
•Check the coaxial cable between the power inserter and your satellite receiver.
•Check the connection cables between your satellite receiver and your television.
•Switch the receiver and the television off and back on.
•Check the user manuals of your satellite receiver and television.
7.3 Satellite found, but not all channels
Check whether your subscription or smart cart is still valid.
7.4 Error No 24V connected:
The AC power adapter is probably not connected.
The PI inserter may be coonected the wrong way, Check all connectors and switch power off and back
on. Reinstall the control module. See also 8.1 troubleshooting
SYSTEM STOPPED
SATELLITE
NOT FOUND
PLEASE CONSULT
MANUAL
No 24V CONNECTED

Page
16
7.5 Error Voltage Low:
The voltage is too low for system to operate.
If you use the external satellite connector in your motor home or caravan: Connect the supplied 15 mtr
coaxial cable directly to the receiver and see if the system works. See also 8.1 troubleshooting
7.6 Error during software update:
Repeat the software update procedure
Check if the software has been correctly stored on the USB flash drive.
7.7 Error during software update:
Insert the USB flash drive once more.
7.8 Error messages: calibration failed, error azimuth adjustment, error elevation adjustment
Check that there are no obstructions which hinder the rotation or alignment of the dish. Remove the
control module from the antenna unit and reinsert it again.
7.9 No LNB signal:
Check if the F-connector from the Dish is connected and tightened.
Check if the LNB cable is damaged.
Check the ac power adapter for 24 V
8.0 Error E: OXBAFF
Fault in electronics. The control module requires repair, contact your dealer.
ERROR:
VOLATAGE LOW
E:FIRMWARE
NOT FOUND
E:USB DISK NOT
FOUND
ERROR DURING
CALIBRATING
ERROR AZIMUTH
ADJUSTMENT
ERROR ELEVATION
ADJUSTMENT
NO LNB SIGNAL
E: OXBAFF
SEE MANUAL

page 17
8.1 Troubleshooting and frequently asked questions
Display continues to indicate "Error, Low Voltage"
•Where an external socket is used, connect the supplied 15 metre coaxial cable directly to the power
inserter. See also the description of problems with an external socket.
•The correct adapter voltage is no longer present: check the 230 V mains supply voltage and the 24 V
adapter voltage.
•The 15m coaxial cable may be damaged and should be replaced.
Control module fails to illuminate, system fails to function. Possible causes and solutions:
•When using an external socket in a camper van or caravan: connect the coaxial cable supplied directly
to the receiver and check if the system is functioning. Next check your external socket.
•There is or there has been a short circuit.
Check the cables and connectors. The system must be reset: screw out the short coaxial cable from the
receiver on the power inserter, wait for 3 seconds and screw it on again. The power inserter has now
been reset and the system is ready for use.
•There is a problem with the receiver. Possible causes:
The receiver is not switched on.
If you have installed the control module in the system and you now tune the receiver to a random TV
channel, the 2
nd
green lamp on the power inserter will illuminate. At the same time the control module will
also illuminate and the system is ready for use.
LNB voltage is not switched on in the receiver menu.
Check the LNB voltage for the receiver, this is shown in the receiver's installation menu.
The system displays: calibration error
•Probably the control unit is not properly installed. Remove power from the system and remove the
control module. Insert the module again and turn the power back on. If the error remains please contact
your supplier.
Should the system be level?
•The system may not exactly be level to find the satellite. However, the flatter the system is installed, the
faster the correct satellite is found. Also works in favour of the indicated LNB skew and bracket position.
Should the software update files are opened before putting them on a USB stick?
•No, you cannot open the files with a computer. You only need to copy (right mouse button to copy) and
place (right click paste) on an empty USB flash drive. Due to installed anti-virus programs on your PC, it
could be possible that you cannot copy the files directly from your email program. In this case you can
create an intermediate step, first copy the files to your desktop and then copy it to the USB flash drive.
Where can I see the current software version?
•If the control module is inserted in the system (in a fully connected system), it starts up and displays the
text Travel Vision, and then the software version 2.*. **

Page
18
Using an external socket:
The use of an external socket may have consequences for the operation of the system. In many cases
this is due to voltage loss and the system will therefore display the error message "voltage too low".
There are a number of reasons why the system may not operate when an external socket is used:
•A thinner/lighter type of coaxial cable is often used in camper vans and caravans.
•The junction box or the cable may have a fault to earth, perhaps caused by damage.
Where the coaxial cable is too thin or there is a leakage of current somewhere in the circuit, too little
voltage will reach the R6 system. The cable and the junction boxes should be checked.
The system has found the satellite but is aligned to the caravan/camper van.
The system may align to a reflective surface like the side of the camper van/caravan, due to reflection of
the satellite signal. The satellite signal is sufficient to receive the satellite but is too weak to allow viewing
of some (or all) TV channels.
Move the antenna and then realign it, or stand between the dish and the reflective surface while the
search process is in progress.

page 19
9.1 Specifications
Dish Selfsat H50D2 Twin antenna
Weight 15,65 kg
Power adapter 230 V AC to 24 V DC
Power usage Max. 950 mA
Software update via USB
Wiring 75 Ωdouble shielded (15 m supplied by default)
Possible connections Max 2 satellite receivers
10.1 Warranty conditions
1. Warranty is only applicable when the Travel Vision system is set up properly and when it is used in
accordance with the procedures as described in this user manual.
2. Through strict quality control and high requirements set in regard to the utilized materials, Travel Vision
BV guarantees delivery of a sound and functional Travel Vision system.
3. Within 24 months after purchase and within 36 months after production, defects due to an error in
manufacturing and/or wrong materials which occurred during normal use will be resolved under the
hereafter defined warranty conditions.
4. Warranty applies only on presentation of (a copy of) the purchase receipt and after providing the serial
number, by the owner of the Travel Vision system.
5. Warranty is not transferable.
6. The holder of the Travel Vision system should at first observation of a defect immediately inform the
dealer and should enable the dealer to detect the defect.
7. Where in the judgments of the dealer a defect can be rectified on site, then the dealer is authorized to
carry out the rectification on site. In the event that this is impossible the dealer will, without creating any
obligation to temporarily install a replacement system, dismantle the Travel Vision system and take it to
his premises for repair, or following consultation with the help desk, send the system to Travelvision b.v.
so that they can carry out the repair.
8. Travelvision b.v. reserves the right to refer to third parties or to make use of their services in dealing with
the warranty or offering advice.
9. The warranty may only be called upon where all the warranty conditions have been met. Liability on the
part of Travelvision b.v. is therefore limited to the reimbursement of the costs of repair or the bearing of
such costs by Travelvision b.v., or replacement of the Travel Vision in whole or in part, or of the
component in which the defect has occurred, all entirely according to the opinion and judgment of
Travelvision b.v..
10. Travelvision b.v. reserve the right to judge, entirely in accordance with their own opinion, that a defect is
attributable to improper use and/or improper installation of the Travel Vision system, in which event all
claims against the warranty shall lapse and will therefore be rejected.
11. Travelvision b.v. shall not be responsible for the suitability of the Travel Vision system for any purpose
other than that for which Travelvision b.v. has given undertakings in the Installation and User Manual.
Travelvision b.v. will therefore accept no liability whatsoever for any damage resulting from such use.
12. Travelvision b.v. shall not be liable for any defect in the Travel Vision system and/or its functionality
where this is the consequence of damaging external factors, or of the improper or incomplete functioning
of third party products and/or services, or the unavailability thereof. Travelvision b.v. will therefore accept
no liability whatsoever for any damage resulting from such use.

Page
20
www.travel-vision.com
BENUTZERANLEITUNG
Vorwort
Herzlichen Glückwunsch zum Kauf Ihrer Travel Vision R6 SAT-Empfangsanlage.
Diese Anleitung gibt Ihnen alle relevanten Informationen zu Installation, Gebrauch und Instandhaltung Ihrer R6.
Lesen Sie vor Inbetriebnahme Ihrer Travel Vision R6 ® zuerst diese Benutzeranleitung. Folgen Sie den
Anleitungen und beachten Sie alle Anweisungen in dieser Benutzeranleitung.
Die SAT-Empfangsanlage Travel Vision R6 bietet Ihnen die größtmögliche Freiheit. Sie können Ihr Reisemobil
oder Ihren Wohnwagen zum Beispiel in den Schatten eines Baumes stellen, das System an einer beliebigen
geeigneten Stelle neben dem Fahrzeug aufstellen, und Ihre beliebten Radio- und Fernsehprogramme genießen.
Die Travel Vision R6 ist im Handumdrehen aufgestellt, sehr einfach im Gebrauch und wird mit nur einem Kabel
angeschlossen. Ein Tastendruck genügt und die Travel Vision R6 findet vollautomatisch den von Ihnen
gewünschten Satelliten. Nach dem Ausrichten können Sie die Bedieneinheit einfach aus dem System nehmen,
sicher aufbewahren und ununterbrochen fernsehen.
Damit eine lange Lebensdauer gewährleistet ist, wurden so viel wie möglich hochwertige Materialien wie
rostfester Stahl und dauerhafte Kunststoffe eingesetzt. Das System enthält keine Teile, die vom Benutzer eine
Wartung erfordern.
WARNUNGEN UND EMPFEHLUNGEN
Alle Informationen sind aktuell an dem Datum, an dem die Anleitung gedruckt wurde. Travelvision B.V. kann in
keiner Weise für eventuelle Fehler bei der Erstellung dieser Anleitung haftbar gemacht werden.
Travelvision B.V. behält sich das Recht vor, Änderungen am Produkt vorzunehmen, die als notwendig erachtet
werden oder dem technischen Fortschritt dienen und behält sich das Recht vor, die R6 und diese
Benutzeranleitung sowie die hierin beschriebenen Produkte ohne irgendwelche vorhergehende Mitteilung zu
ändern.
Travel Vision R6 ® ist ein eingetragenes Warenzeichen der Travelvision B.V.
Versichern Sie sich vor der Inbetriebnahme der Anlage davon, dass die Verkabelung korrekt angeschlossen ist.
Wenn Sie den Strom und den Satellitenempfänger eingeschaltet haben und dann an der R6 einen Satelliten
auswählen, berücksichtigen Sie bitte, dass die Parabolantenne innerhalb einiger Sekunden beginnen wird sich zu
drehen. Dies wird auch am Display der Bedieneinheit angezeigt.
Schalten Sie den Strom aus und ziehen Sie den Stecker aus der Steckdose bevor Sie Handlungen am System
vornehmen. Die Bedieneinheit ist tropfwasserdicht und darf nicht mit Wasser gereinigt werden.
Es wird davon abgeraten, die Antenne (ohne Bedieneinheit) mit einem Hochdruckreiniger zu reinigen. Verwenden
Sie lieber ein sanftes, feuchtes Tuch mit einer Seifenlösung.
Wir bitten Sie freundlich, für nähere Auskünfte Kontakt mit dem Fachhändler aufzunehmen, bei dem Sie das
System gekauft haben.
Gebrauchsanleitungen und eventuelle Softwareupdates lassen sich auf unserer Website nachschlagen:
www.travel-vision.com
© Copyright 2015 Travelvision B.V.
