ASSEMBLY MANUAL
Revision K
1.2M Ku-BAND Rx/Tx
SERIES 1132
ANTENNA SYSTEM
SATCOM & Antenna Technologies, Inc.
1700 Cable Drive NE
Conover, NC 28613 USA
t [phone]
f [phone]

1.2M Ku-BAND Rx/Tx
SERIES 1132 ANTENNA SYSTEM
K
Updated to CPI format.
02/03/21
R.F.
J
Revise text
7/23/19
RAH
I
Revise to Conover Address
4/19/16
RAH
H
General Revision
5-29-07
RAH
F
Del 0185-492 add 0185-491
12/16/04
RAH
E
Revised Az/El to 0185-492
10/12/04
RAH
D
Revised for new reflector
9/3/2003
CLT
-
ORIGINAL RELEASE
3/14/01
CLT
REV.
DESCRIPTION
DATE
APPROVED

4096-630
CPI Satcom & Antenna Technologies 1.2M Ku-BAND Rx/Tx SERIES 1132
2

4096-630
CPI Satcom & Antenna Technologies 1.2M Ku-BAND Rx/Tx SERIES 1132
3
TABLE OF CONTENTS
SECTION TITLE
I INTRODUCTION
1.0 GENERAL INFORMATION
1.1 UNPACKING & INSPECTION
1.2 FREIGHT DAMAGE
1.3 MATERIAL MISSING OR DAMAGED
1.4 MECHANICAL INSTALLATION TOOLS
1.5 FOUNDATION INTERFACE
II ANTENNA SYSTEM ASSEMBLY
2.0 REFLECTOR & SUPPORT ASM PART LIST
2.1 ANTENNA ASSEMBLY
2.2 FEED SUPPORT PART LIST
2.3 FEED SUPPORT ASSEMBLY
III SATELLITE ALIGNMENT
3.0 ANTENNA POINTING
IV MAINTENANCE
4.0 MAINTENANCE OVERVIEW
4.1 REFLECTOR
4.2 MOUNT & REFLECTOR SUPPORT
4.3 FEED & FEED SUPPORT

4096-630
CPI Satcom & Antenna Technologies 1.2M Ku-BAND Rx/Tx SERIES 1132
4
SECTION I INTRODUCTION
1.0 GENERAL INFORMATION
This manual describes the assembly and installation of CPI’s 1.2 meter antenna
system. The CPI 1.2 meter is a rugged and reliable mount which will operate in the
Ku-Band frequency with high efficiency and at the same time successfully
withstand the effects of the environment. The CPI 1.2 meter has an f/d ratio of .8
and an offset angle of 17.30°.
These instructions are listed by sections that cover all areas of assembly and
installation. Additional sections are included in the manual to provide information
on antenna alignment to the satellite and maintenance.
1.1 UNPACKING AND INSPECTION
The system containers should be unpacked and inspected at the earliest date to
insure that all material has been received and is in good condition. A complete
packing list for each major component is supplied.
1.2 FREIGHT DAMAGE
Any damage to materials while in transit should be immediately directed to the
freight carrier. He will instruct you onmatters regarding any freight damage claims.
1.3 MATERIAL –MISSING OR DAMAGED
Any questions regarding missing or damaged materials that are not due to the
freight carrier should be directed to CPI’s Customer Service Department at:
CPI Satcom & Antenna Technologies
1700 Cable Drive NE
Conover NC 28613 USA
Phone [phone]
www.cpii.com

4096-630
CPI Satcom & Antenna Technologies 1.2M Ku-BAND Rx/Tx SERIES 1132
5
1.4 MECHANICAL INSTALLATION TOOLS
The hardware supplied with this antenna system is U.S. SAE standard size.
However, the sizes have been chosen to allow use with compatibly sized metric
wrenches as shown in the table below.
HARDWARE SIZE
SAE WRENCH SIZE
METRIC WRENCH
SIZE
MAXIMUM REC.
TORQUE
5/16” Bolt
1/2”
13 mm
12 ft-lbs
(16.27 n-m)
1/4” Bolt
7/16”
11 mm
6 ft-lbs
(8.14 n-m)
3/8” Bolt
9/16”
15 mm
22 ft-lbs
(29.83 n-m)
1/2” Bolt
3/4”
19 mm
45 ft-lbs
(61.02 n-m)
Hi-Lo Screw
7/16”
11 mm
10 ft-lbs
(13.56 n-m)
Also recommended for installation:
Compass - graduated to .5°
Adjustable Wrench
1.5 FOUNDATION INTERFACE
The required interface from the foundation to the mount is 2-1/2" schedule 40
pipe (2.88" O.D.). A suggested in-ground foundation is shown in Figure 1.
Also available from CPI, as options, are a kingpost pedestal mount and a non-
penetrating mast mount.

4096-630
CPI Satcom & Antenna Technologies 1.2M Ku-BAND Rx/Tx SERIES 1132
6

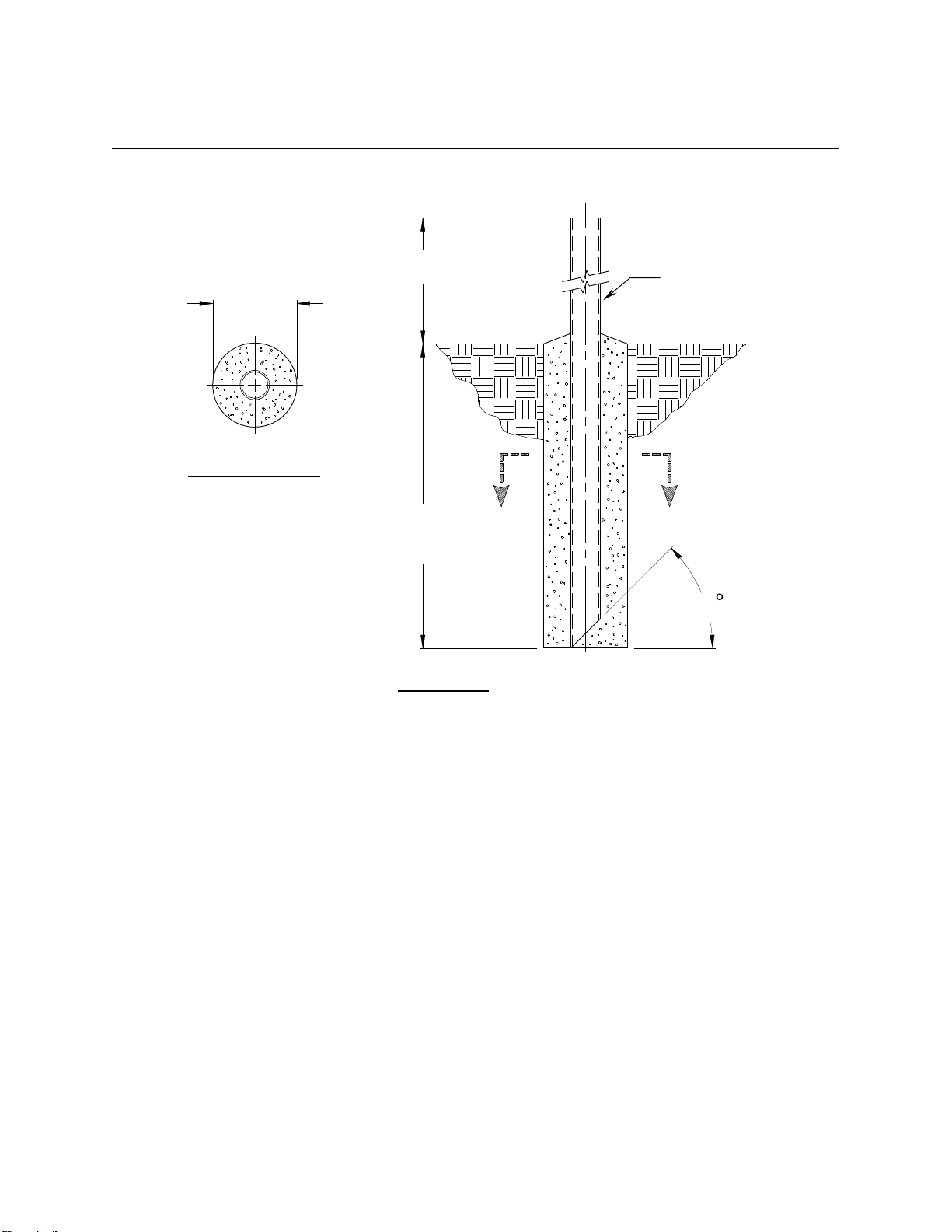

SUGGESTED IN-GROUND FOUNDATION
NOTES:
1. 2 1/2” schedule 40 pipe should conform to ASTM A53.
2. All concrete should conform to building code standards and have a minimum compressive
strength of 3000 PSI at 28 days. (Per ACI-318-77)
3. Soil bearing capacity should be no less than 2000 PSF.
4. Concrete should be poured against undisturbed soil.
5. Allow concrete 24 hours set time before installation of antenna.
6. The antenna should be properly grounded to meet applicable local codes.
7. Minimum depth as shown or extend to local frost line.
8. Foundation meets the design requirements as set forth by the uniform building code.
(1982 edition)
(CPI DOES NOT REPRESENT OR WARRANT THAT ANY PARTICULAR DESIGN OR SIZE OF
FOUNDATION IS APPROPRIATE FOR ANY LOCALITY OR EARTH STATION INSTALLATION.)
30.0
30.0
SEE NOTE #7
45
12.0
SECTION A - A
A
A
2 1/2” SCH 40 PIPE
(2.88 O.D.)
FIGURE 1.

4096-630
CPI Satcom & Antenna Technologies 1.2M Ku-BAND Rx/Tx SERIES 1132
7
SECTION II REFLECTOR AND SUPPORT ASSEMBLY
REFLECTOR AND SUPPORT ASSEMBLY PART LIST- TABLE 2.0
ITEM
PART NO.
DESCRIPTION
QTY
1
VARIES
1.2M Reflector
1
2
0185-4332
Az/El Positioner Assembly
1
3
8319-006
4

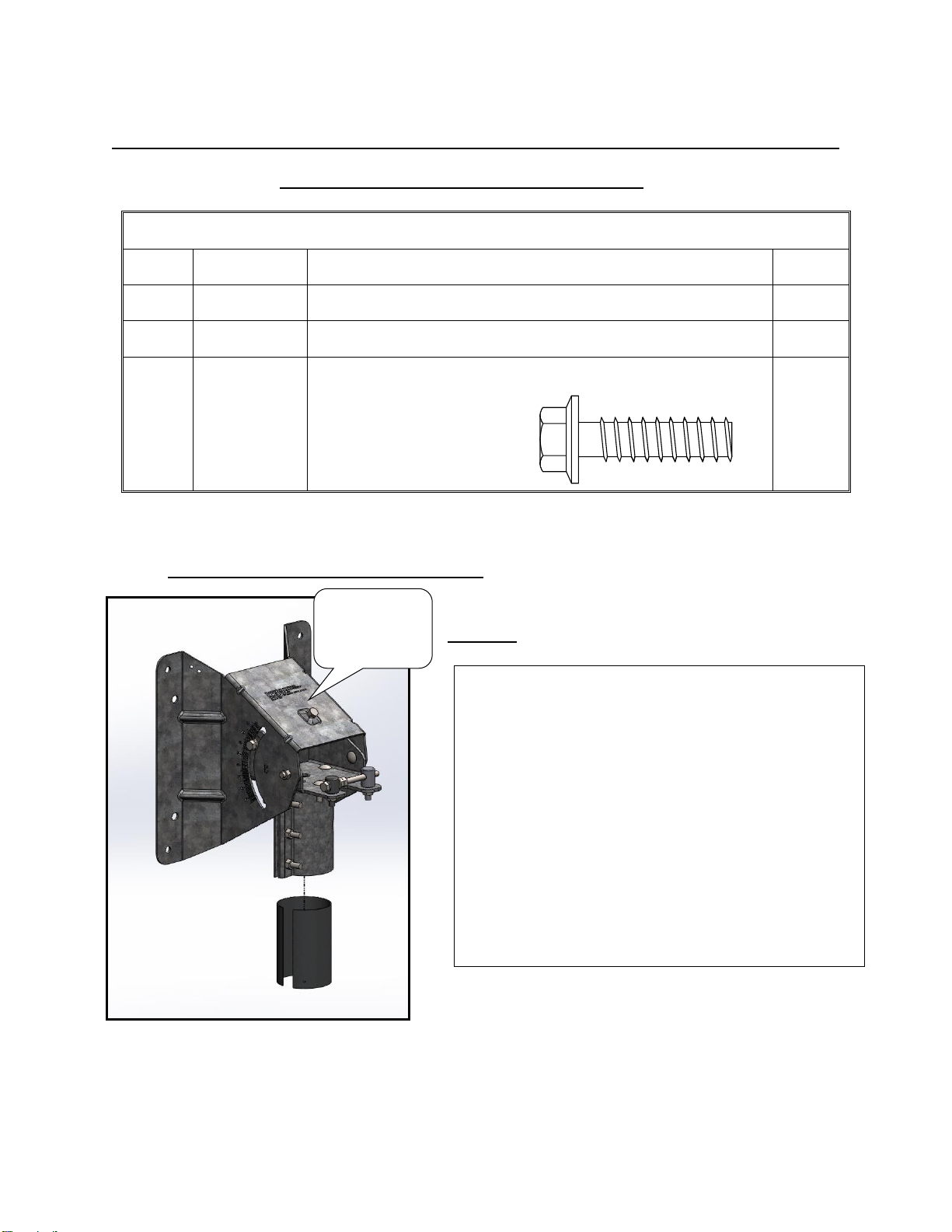

2.1 MOUNT & REFLECTOR ASSEMBLY
STEP 1.
Hi - Lo Screw
The Az/El Positioner Assembly is supplied with
a Mast Sleeve for use on 2.88” OD mast
pipes.
If the install is on a 2.88” OD mast pipe, the
Mast Sleeve should be inserted into the
Canister before proceeding to reduce the
Canister’s inside diameter appropriately.
If the install is on a 3.00” OD (76mm OD) mast
pipe, the Mast Sleeve can be omitted and
discarded.
Az/El
Positioner
Assembly

4096-630
CPI Satcom & Antenna Technologies 1.2M Ku-BAND Rx/Tx SERIES 1132
8
CAUTION: During the assembly procedure, the sequence of instructions must
be followed. Do Not Tighten Any Hardware Until Instructed.
Refer to the parts list table and the referenced steps.
STEP 2.
Slip the Az/El Positioner (item 2) onto
the mast pipe as shown.
Mast Pipe
Az/El
Positioner
Place reflector onto Az\El Positioner
Assembly and secure using the Hi-lo
screws provided.
Reflector
Hole for
Feed Rod
Hole for
Feed Support
STEP 3.

4096-630
CPI Satcom & Antenna Technologies 1.2M Ku-BAND Rx/Tx SERIES 1132
9
2.2 FEED SUPPORT ASSEMBLY
NOTE: These instructions are intended as a general reference for feed
support assembly. If your antenna system has specific feed support
installation instructions, then refer to them at this time.
CAUTION: During the assembly procedure, the sequence of instructions
must be followed. DO NOT TIGHTEN ANY HARDWARE UNTIL
INSTRUCTED. Refer to the feed support parts list and steps.

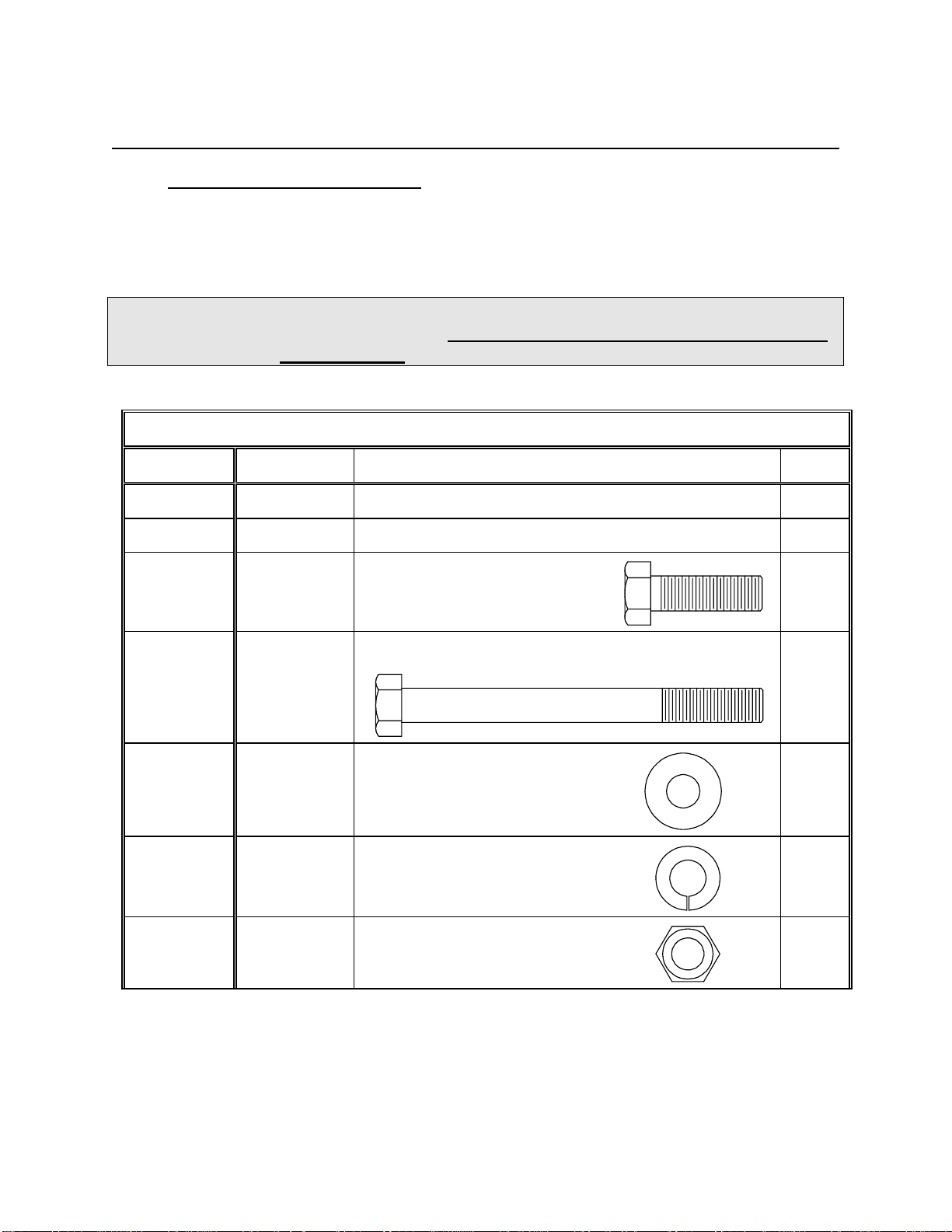

FEED SUPPORT PARTS LIST - TABLE 2.2
ITEM NO.
PART NO.
DESCRIPTION
QTY
1
VARIES
Feed Rod
2
2
VARIES
Feed Support Tube
1
3
8031-008
3
4
8031-026
1
5
8201-041
8
6
8202-041
4
7
8101-009
4
5 / 16” x 1.00” Bolt
5 / 16” x 3.25” Bolt
5 / 16” Flatwasher
5 / 16” Lock Washer
5 / 16” Hex Nut

4096-630
CPI Satcom & Antenna Technologies 1.2M Ku-BAND Rx/Tx SERIES 1132
10
STEP 1.
STEP 2.
A) Attach feed rods to reflector with
(items: 3, 6, 7 and with [ 2 ] of (item
5).
NOTE: The 2.00” flat end of the
feed rod mounts to the outside rim
of the reflector
Feed Rods
See Detail A
A) Attach feed support tube to the
reflector with (items: 3, 6, 7)
and with [ 2 ] of (item 5).
Feed Support Tube

4096-630
CPI Satcom & Antenna Technologies 1.2M Ku-BAND Rx/Tx SERIES 1132
11
STEP 3.
STEP 4.
A). Connect the feed rods to the feed
support tube with ( items: 4, 6, 7 )
and with [ 2 ] of ( item 5 ).
See Detail B
Feed Support
Tube
A). Tighten the hardware at the
reflector rim snugly ( Detail A ).
B). Tighten the hardware connecting
the feed rods to the feed support
tube ( Detail B ).
C). Tighten the hardware connecting
the feed support tube to the
reflector.
D). Refer to separate instructions for
the specific feed/ODU assembly
to feed support.
[ 5 ]
[ 3 ]
[ 5, 6, 7 ]
Reflector
Feed Rod
DETAIL A
[ 4 ]
[ 5 ]
Feed Support
Tube
[ 5, 6, 7 ]
Feed
Rod
DETAIL B

4096-630
CPI Satcom & Antenna Technologies 1.2M Ku-BAND Rx/Tx SERIES 1132
12
SECTION III ANTENNA POINTING
3.0 ANTENNA POINTING
The 1.2 meter reflector contains a 17.3° elevation offset look angle. Therefore,
when the reflector aperture is perpendicular to the ground, the antenna is actually
looking 17.3° in elevation. Refer to Figure 2.
Note: The following alignment procedure is intended only as a general reference
guide for this antenna. For proper antenna performance, accurate
alignment is critical. Therefore, it is recommended that your own detailed
procedure be used or contact CPI’s Technical Support Department for
additional recommendations.
STEP 1: BEFORE ADJUSTING ELEVATION LOOSEN THE HARDWARE ON
BOTH SIDES OF THE POSITIONER, REFER TO FIGURE 2 FOR
LOCATION. Adjust the reflector up or down in elevation by turning the 5/16”
Bolt at the az/el positioner until the desired elevation is read on the side of
the positioner. This scale is used for nominal readings and is accurate to
±2 degrees. Note: Elevation rod is for adjustment only, it is not
intended to be part of the structural integrity of the assembly,
tightening the elevation rod is not necessary. Snug the hardware at the
side of the positioner.
STEP 2: Azimuth Adjustment: With the electronics set to acquire the satellite, rotate
the antenna in azimuth until the satellite is found. Tighten the canister
hardware at this time.
STEP 3: Fine azimuth adjustment is achieved by loosening the three hex nuts
inside the Az/el positioner and the nut under the azimuth pivot then
turn the single hex bolt at the back of the positioner in either direction. Note:
Azimuth rod is for adjustment only, it is not intended to be part of the
structural integrity of the assembly, tightening the azimuth rod is not
necessary.
STEP 4: Peak the antenna signal by fine adjustments made in both azimuth and
elevation until the optimum signal is achieved.
STEP 5: Tighten all hardware used for adjustment.

4096-630
CPI Satcom & Antenna Technologies 1.2M Ku-BAND Rx/Tx SERIES 1132
13
FIGUIRE 2.
Tighten
canister after
rough
adjustment
Reflector Support
Elevation
Adjustment Bolt
Fine azimuth
adjustment
Scale “A” for
elevation
adjustment
LOOSEN THIS BEFORE
ELEVATION ADJUSTMENT
TYPICAL BOTH SIDES
LOOSEN THIS BEFORE
ELEVATION ADJUSTMENT
TYPICAL BOTH SIDES

4096-630
CPI Satcom & Antenna Technologies 1.2M Ku-BAND Rx/Tx SERIES 1132
14
SECTION IV MAINTENANCE
4.0 MAINTENANCE OVERVIEW
After installation, the antenna requires only periodic inspection. It is
anticipated that maintenance, if required, will be minimal and easily handled
by a local or in-house maintenance staff.
4.1 REFLECTOR
CPI’s reflector does not require any maintenance. The composite construction of
the reflector is virtually impervious to any damages that could be caused by
weather or atmospheric conditions. It is only necessary to inspect for any physical
damage done by vandalism or very severe weather conditions.
Should any damage be detected to a portion of the reflector, contact the Customer
Service Department at CPI for recommendations involving reflector repair.
4.2 MOUNT AND REFLECTOR SUPPORT STRUCTURE
The mount and reflector support structure supplied with this antenna is of steel
construction and has a galvanized finish.
If there are any signs of structural failure, the mount members that are damaged
should be repaired or replaced.
4.3 FEED AND FEED SUPPORT
The feed support and feed rods should be inspected to insure that all hardware is
secure. The feed/radio mounting bolts should be tight.
The feed horn window should be inspected to insure that it is intact so that no
moisture can collect inside the feed horn.
