Tempest™ 50k Lantern Wall Mount
(sku 94800832)
Page 1 of 11 17602229 - 4/14/22 © Travis Industries, Inc.

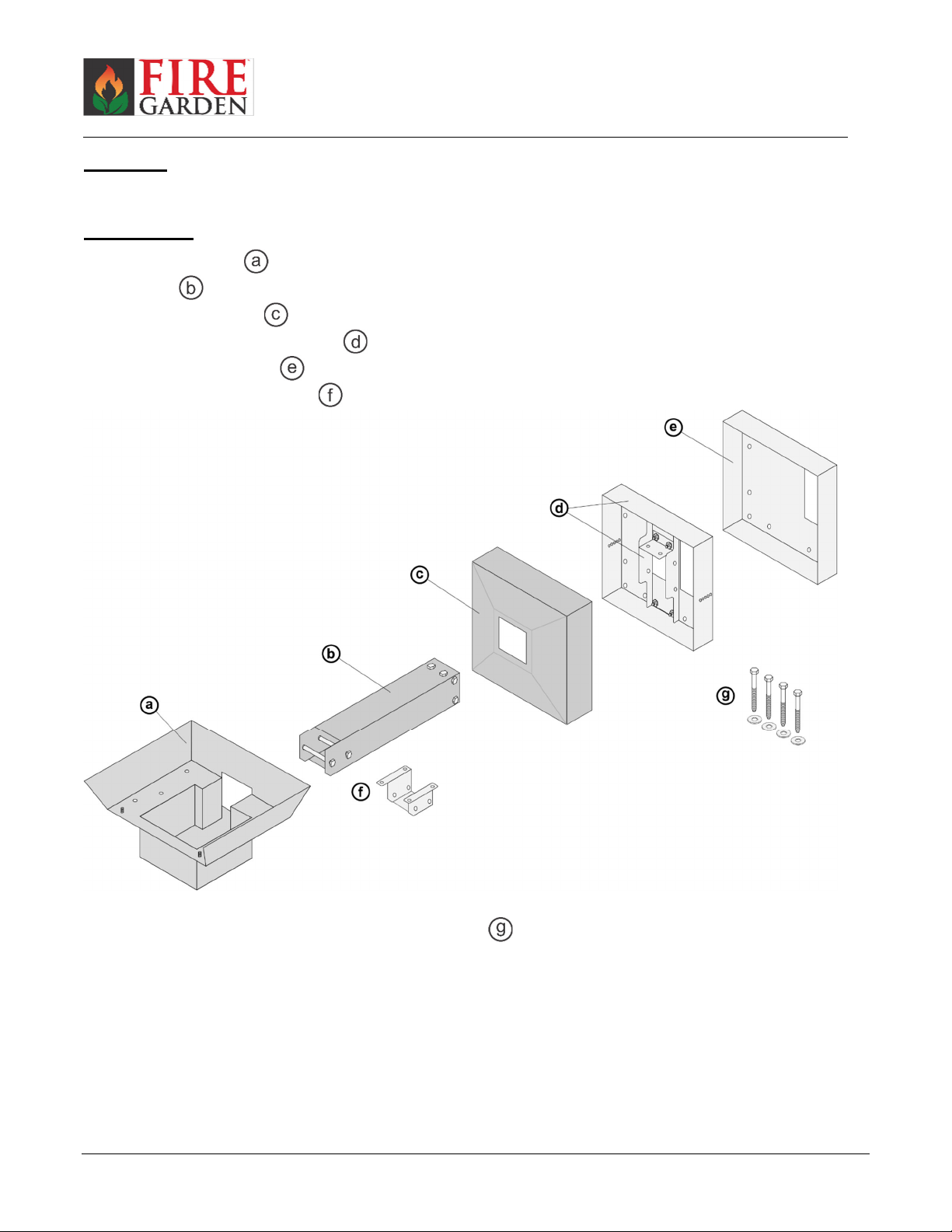

Overview
Tempest Lantern 50k - SKU 94900748
Packing List
Control Cover
Post
Wall Plate Cover
Wall Plate with Post Bracket
Rough-in Template
Head Mounting Brackets
Hardware Pack Components
(4) 2-1/2” Stainless Steel Lag Bolts and Washers
½” FPT to ½” MPT Elbow
Shutoff Valve - ½” FPT to 3/8” Flare
3/8” x 16” Stainless Flex Tubing
3/8” to 3/8” Tubing Connector

Tempest™ 50k Lantern Wall Mount
(sku 94800832)
Page 2 of 11 17602229 - 4/14/22 © Travis Industries, Inc.

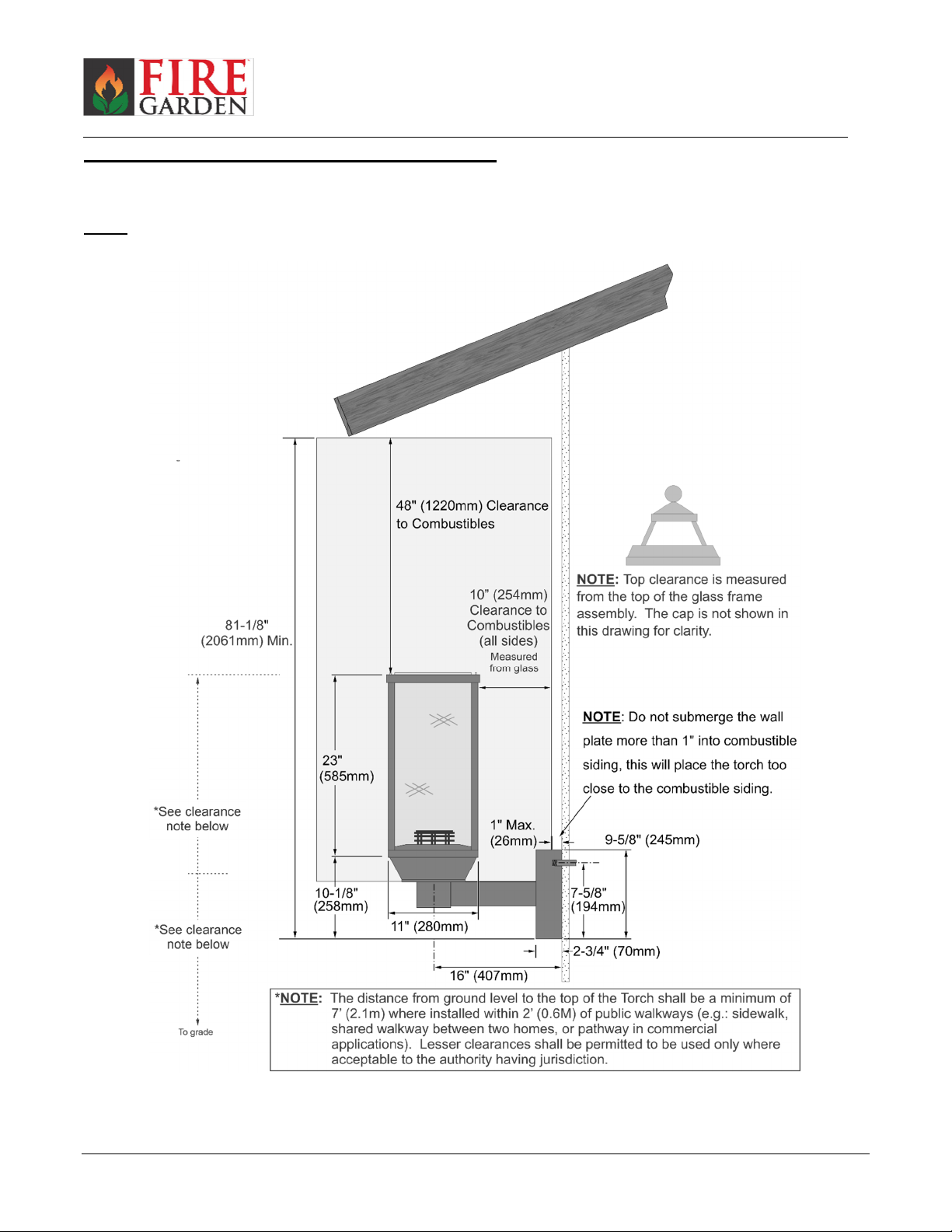

Lantern Location – Clearance to Combustibles
The wall mount must be properly positioned to provide proper clearance to combustibles when the lantern is
attached. See the illustration below for details.
NOTE: If the siding is thicker than 1” (26mm) add material behind the lantern mount so the base is not
submerged more than 1” (26mm) into the siding.

Tempest™ 50k Lantern Wall Mount
(sku 94800832)
Page 3 of 11 17602229 - 4/14/22 © Travis Industries, Inc.
Gas Line Location and Wall Plate Placement
The gas line must be located correctly to allow proper placement of the shutoff valve under the wall plate cover.
See the illustration below for details.

Tempest™ 50k Lantern Wall Mount
(sku 94800832)
Page 4 of 11 17602229 - 4/14/22 © Travis Industries, Inc.
Installation
NOTE: The illustrations below are for example only. Make sure to follow all gas line and building code
requirements for your location.
1. Make sure adequate framing is provided behind the wall to support the weight of the lantern. Install the
wall plate template in the desired location using the (4) included lag bolts. This template will help locate
where the gas line and electrical will penetrate the wall (see Figure 1).
Figure 1
2. Run the gas line to the correct location (see the illustration figure 3 details). Make sure the gas nipple
protrudes between ¾” and 1-1/2”
Figure 2
Stub in gas
line here
Install 24VDC
electrical here

Tempest™ 50k Lantern Wall Mount
(sku 94800832)
Page 5 of 11 17602229 - 4/14/22 © Travis Industries, Inc.
3. Attach the included elbow and shutoff valve to the nipple (use thread sealant, etc.). Make sure the elbow
is facing directly down and the shutoff valve is facing outwards as shown in Figure 3. Run the electrical
line (if applicable) through the center hole of the wall plate and leave at least 14” of wire forward of the
wall plate.
NOTE: You may wish to pressure-test the gas line at this time.
NOTE: If you are doing this installation in two stages, you can now mask off the front of the template box
and finish material can be applied to the wall surface around the mount. You will remove the template
and replace it with the wall plate when the site is ready for final installation.
Figure 3
4. Place the wall plate on a suitable work surface and remove the (4) nuts (and washers) that hold the post
bracket in place (see Figure 4). Remove the post bracket (see Figure 5).
Figure 4
Figure 5

Tempest™ 50k Lantern Wall Mount
(sku 94800832)
Page 6 of 11 17602229 - 4/14/22 © Travis Industries, Inc.

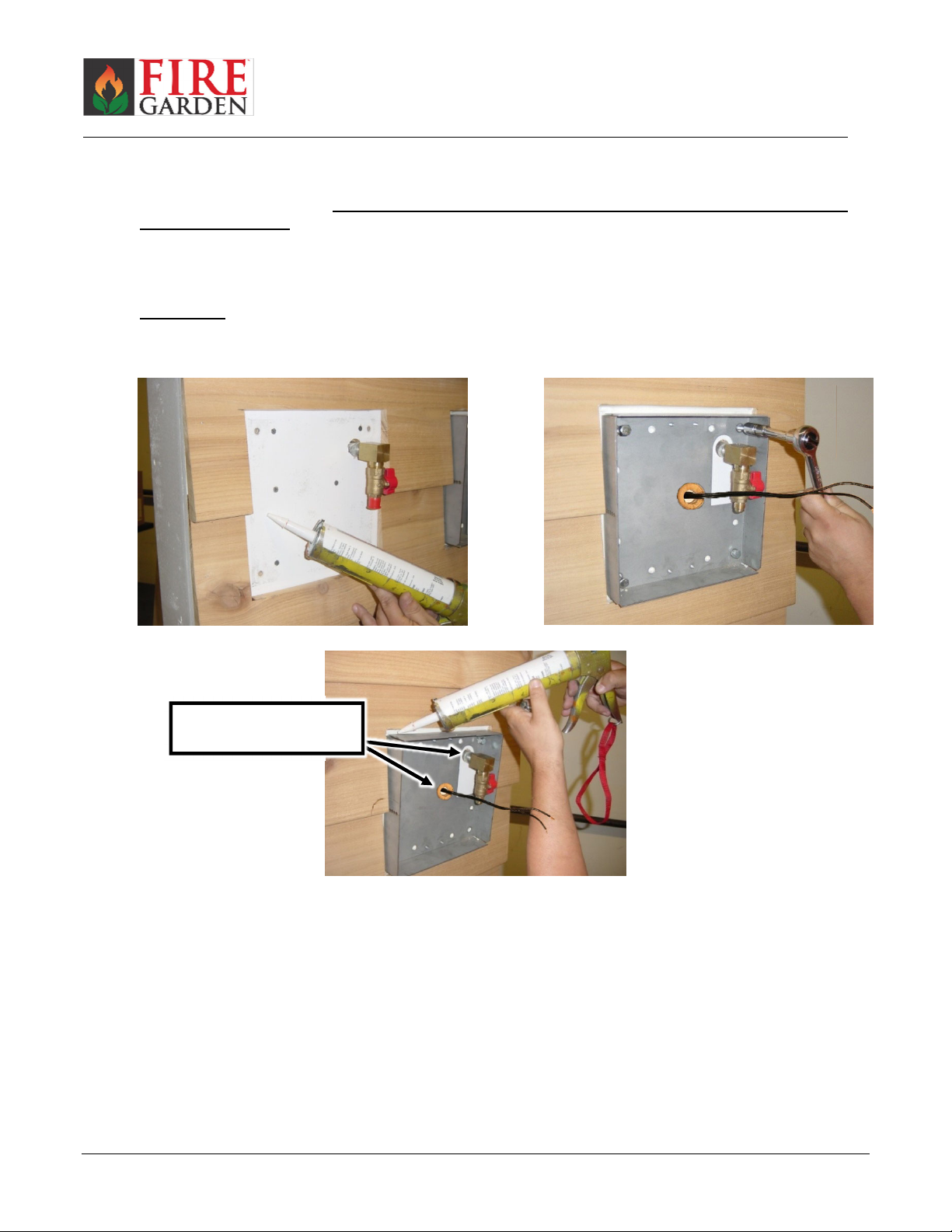

5. Remove and discard the templet used in step 3 (set the (4) lag bolts aside for reinstallation). Place a ¼”
bead of silicone around the perimeter of the wall plate location (see Figure 6). This silicone will help
weatherize the wall mount. Seal the gas line and electrical penetrations and any exposed exterior
sheeting at this time. Secure the wall plate to the wall using the four lag bolts used to secure the
template in step 3 (see Figure 7) or other suitable means. Once the wall plate is in place, you may wish
to seal the area around the perimeter of the wall plate if it is exposed to weather (see Figure 8). Make
sure the sealant does not interfere with the cover plate – wipe off any excess sealant before proceeding.
WARNING: Seal the penetrations for the electrical and gas lines. Negative pressure in the
building can cause heat failure of components.
Figure 6
Figure 7
Figure 8
Seal electrical and
gas line penetrations

Tempest™ 50k Lantern Wall Mount
(sku 94800832)
Page 7 of 11 17602229 - 4/14/22 © Travis Industries, Inc.
6. With the rain cap off and no glass installed, turn the lantern upside down and place it on a soft surface to
protect the finish.
7. Remove the (2) thumb screws that secure the bottom cover to the lantern (set aside for reinstallation).
Carefully remove the bottom cover from the lantern, make sure not to damage any gas or electrical
components.
8. Remove the hinged control cover from the front of the stock cover and install it on the cover included with
the wall mount kit.

Tempest™ 50k Lantern Wall Mount
(sku 94800832)
Page 8 of 11 17602229 - 4/14/22 © Travis Industries, Inc.
9. Use an 11/32” nut driver to remove the (4) nuts that secure the mounting collar to the lantern. Carefully
remove the mounting collar from the lantern base, make sure not to damage any gas or electrical
components. Discard the collar. Keep the nuts for reinstallation.
10. Install the wall mount brackets onto the lantern base. Make sure the brackets are oriented properly. The
lopped corners should face the front of the lantern (see illustration below). Use the nuts removed in the
previous step to secure the bracket to the base.

Tempest™ 50k Lantern Wall Mount
(sku 94800832)
Page 9 of 11 17602229 - 4/14/22 © Travis Industries, Inc.

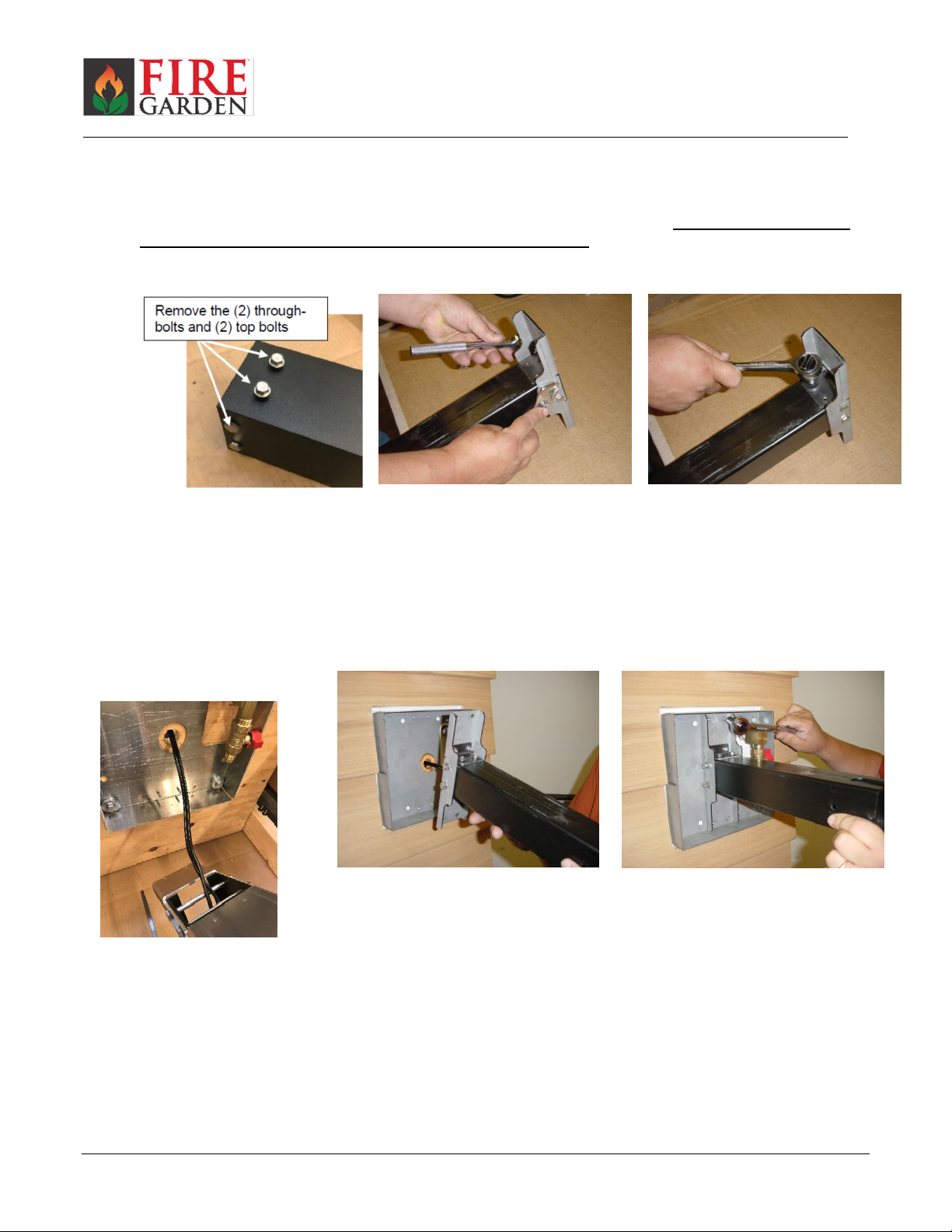

11. Place the post on a suitable work surface and remove the (2) through-bolts (with washers and nuts) and
the (2) bolts (with washers) from the threaded holes on the top of the post. Use the (2) through-bolts
(with washers and nuts) to secure the post bracket to the post (see Figure 11). Attach the (2) top bolts
through the leveling bracket (pre-installed on the post bracket) into the post – DO NOT OVERTIGHTEN
THESE BOLTS – THEY THREAD INTO THE ALUMINUM POST (see Figure 12)
Figure 11
12. Guide the electrical wire through the post. Position the post assembly over the wall plate and line up the
holes in the post bracket with the studs on the wall plate (see below). Attach the post with the four nuts
(and washers) removed in step 4.
NOTE: You may wish to level and square the wall mount if the post does not appear correct. Washers
may be placed between the post bracket and wall plate to shim the post to the correct position.

Tempest™ 50k Lantern Wall Mount
(sku 94800832)
Page 10 of 11 17602229 - 4/14/22 © Travis Industries, Inc.
13. Slide the wall plate cover (Figure 12 – make sure it is positioned correctly – the circular indents are on
the sides), and control cover over the post (Figure 13). Leave the cover loose so gas connections can be
made
NOTE: The images below show the Tempest Torch version of the wall plate cover. The Tempest Lantern version has
a tapered appearance but attaches in the same way.
Figure 12 Figure 13

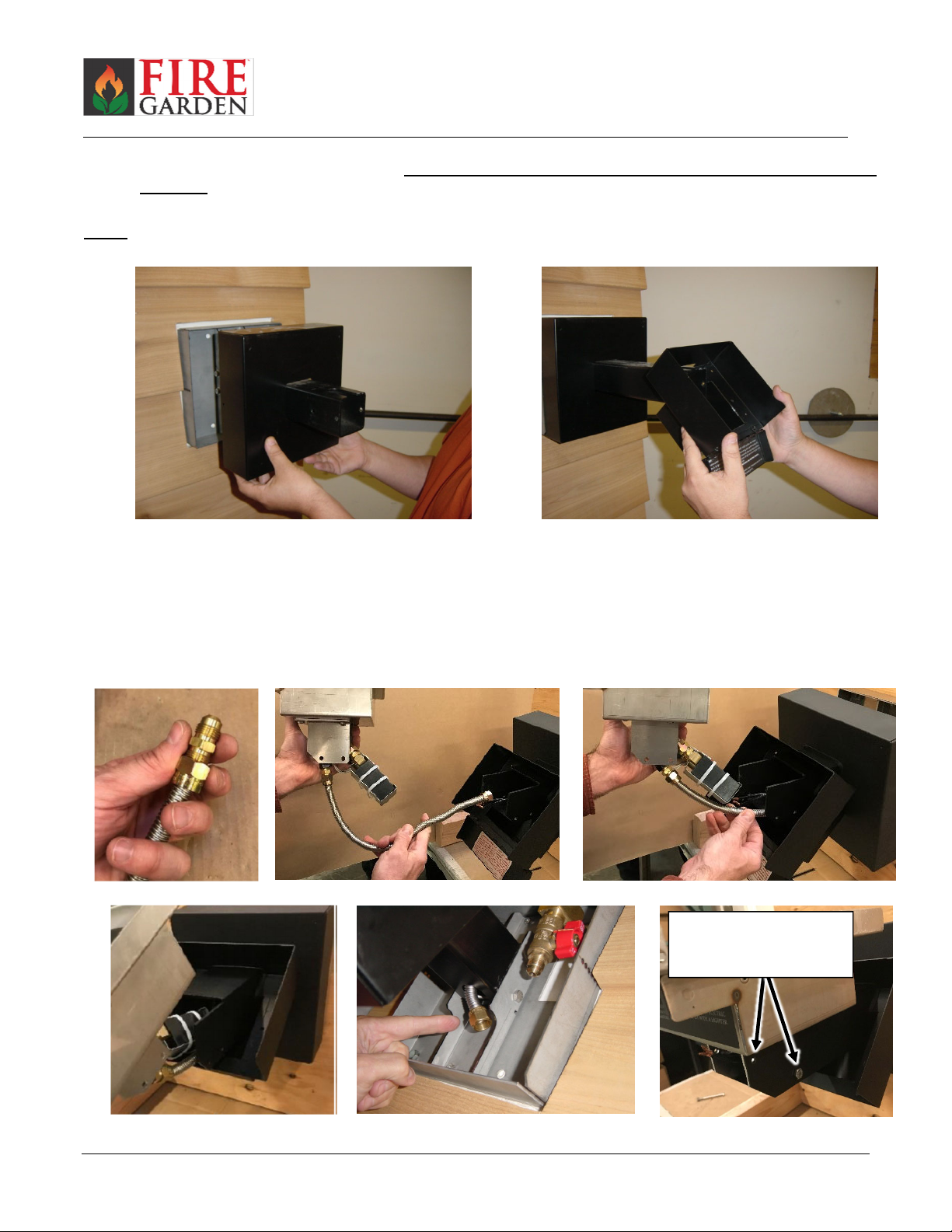

14. Attach the flex tube and fitting to the gas inlet on the lantern (use adapter included in the hardware pack.
See figure 14). Route the flex tube and the gas control assembly so it angles back and slightly
downward. Insert the gas line and control assembly through the post. Push the gas line through to the
mounting plate (see Figure 14,15 & 16). Grasp the end of the flex tube and pull it through as you position
the head mounting brackets over the outside end of the post and line up the holes in the head mounting
brackets with the holes in the mounting post (see Figure 17 &18). Attach the lantern to the post using the
through-bolts removed in step 8 (see Figure 19).
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Bolt the head to the
post with (2) through-
bolts removed in step 8

Tempest™ 50k Lantern Wall Mount
(sku 94800832)
Page 11 of 11 17602229 - 4/14/22 © Travis Industries, Inc.
15. Route flex tube from the post to the shutoff valve (see Figure 20). Attach the flex tube to the shutoff valve
(see Figure 21). At this time you should turn on the gas to the lantern, purge the gas line, and leak test
the gas line connections.
Figure 20
Figure 21
16. Connect the electrical supply wires to the two wires from the control module assembly with wire nuts (see
lantern manual for wiring details). Slide the wall mount cover into place.
17. Attach the control cover to the lantern using the thumbscrews removed in step 9 (see Figure 22).
Figure 22
18. Complete assembly of the lantern (see the owner’s manual for details).
