Travis Industries Tempest Lantern User manual

Tempest Lantern 50K 24V
Owner’s Manual
(sku 94900748)
Listed by
Omni-Test Laboratories, Inc.
ANSI Z21.97-2017 /CSA 2.41-2017
Outdoor Decorative Gas Appliances
Report #0028GM083S
WARNING: For Outdoor Use Only. Installation and service must be performed by a
qualified installer, service agency, or the gas supplier.
WARNING: If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury, or loss of life.
WARNING: Do not store or use gasoline, or other flammable vapors and liquids, in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
DANGER: FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, leave the area immediately.
After leaving the area, call your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion, which could cause
property damage, personal injury, or death.
CARBON MONOXIDE
HAZARD
This appliance can produce
carbon monoxide which has
no odor.
Using it in an enclosed
space can kill you.
Never use this appliance in
an enclosed space such as a
camper, tent, car, or home.
Hot glass will
cause burns.
Do not touch
glass until
cooled.
Never allow
children to
touch glass.
INSTALLER: Leave this manual
with the appliance.
CONSUMER: Retain this
manual for future reference.
French language manuals at
tempesttorch.com
Manuels de langue Française à
tempesttorch.com
$10.00 Copyright 2020, T.I. Part # 100-01569

2 Introduction
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
Overview
This manual details the installation, operation, and
routine maintenance for the Tempest Lantern.
Listing Details
This Lantern was tested to ANSI Z21.97-2017 /
CSA 2.41-2017 “Outdoor Decorative Gas
Appliances”, The listing label is chained to the
appliance. A copy is shown to the right.
Important Registration and Service
Information
No other Tempest Lantern has the same serial
number as yours. The serial number is on the
safety label attached by a chain near the control
panel. This serial number will be needed in case
you require service of any type. To receive full
warranty coverage, you will need to show evidence
of the date of purchase. Mail your warranty card or
visit traviswarranty.com to register your Tempest
Lantern. If any service issues may arise, contact
your dealer for details.

Table of Contents 3
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
Overview ................................................ 2
Listing Details......................................... 2
Important Registration and Service
Information ............................................. 2
Features: ............................................ 5
Installation Options:............................ 5
Gas Specifications:................................. 5
Electrical Specifications:......................... 5
Dimensions: ........................................... 5
Installation Warnings:............................. 6
Packing List............................................ 6
Additional Items Required ...................... 6
Recommended Order of Installation....... 7
Placement Requirements ....................... 8
Do Not Locate the Lantern: ................ 8
Clearances: ............................................ 8
Gas Line Requirements.......................... 9
LP and NG Configuration ................... 9
LP Conversion........................................ 10
Tools needed...................................... 10
Gas Line Connection.......................... 11
Electrical Connection Requirements ...... 12
Wiring Installation ............................... 12
24VAC Transformer ........................... 12
Wire Configuration - Direct-Run vs
Daisy-Chain Installations.................... 12
Lantern Wiring Diagram ......................... 13

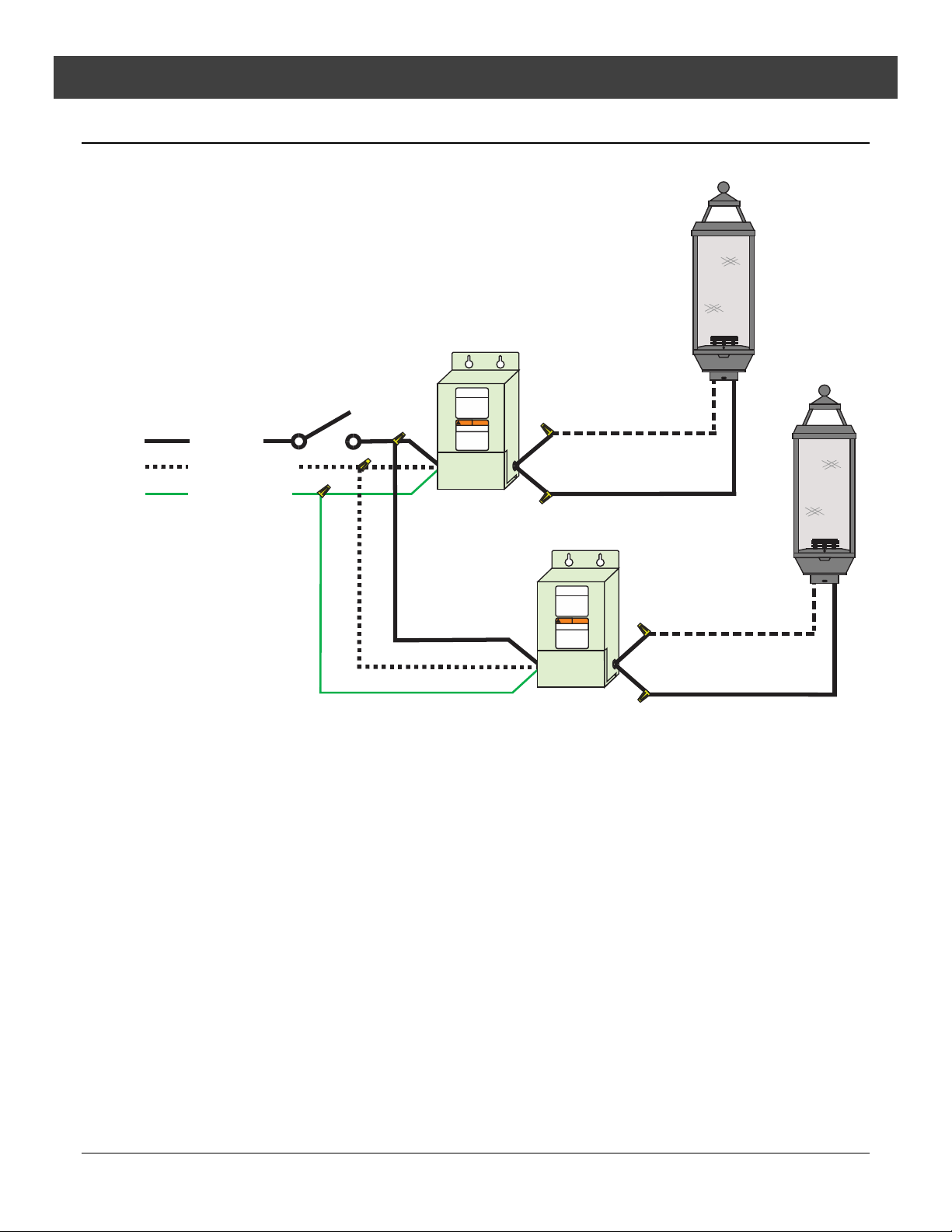

Wiring Multiple Transformers to One
Switch..................................................... 14
Wiring Multiple Lanterns to One
Transformer............................................ 15
Daisy-Chain Example......................... 15
Direct-Run Example ........................... 15
Daisy-Chain Wire Length Chart.............. 16
Direct-Run Wire Length Chart ................ 17
Wiring Examples: ................................... 17
Daisy-Chain Installations:................... 17
Direct Run Installations:...................... 17
Polarity ................................................... 18
Post Mount and Control Cover
Installation .............................................. 19
Lantern Assembly................................... 20
Glass Vibration Set Screws (Optional) ... 21
Post or Pier Mounted Lantern (Optional . 22
Wall Mounted Lantern (Optional) ........... 23
Before You Begin ................................... 24
Operating Instructions ............................ 24
How your Lantern works..................... 24
Maintaining Your Lantern ....................... 25
Winterizing the Lantern. ......................... 25
Replacement Parts................................. 26
Troubleshooting Table............................ 27
Warranty................................................. 28
Index ...................................................... 30

4Safety Precautions
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
! This appliance must be installed in accordance
with all local codes, if any; if not, follow ANSI
Z223.1. NFPA 54; National Fuel Gas Code;
Natural Gas and Propane Installation Code,
CSA B149.1; or Propane Storage and Handling
Code, CSA B149.2, as applicable
! This appliance must only be used outdoors in
a well-ventilated area. It may not be used in a
building, garage, or other enclosed space.
• This appliance is not for use with solid fuel.
• The Lantern must be kept clean and free of leaves
and debris to ensure safe operation.
• Any hose or gas-supply line that is damaged or
shows evidence of excessive abrasion or wear
must be replaced prior to use of the Lantern.
• If using a gas supply line to the Lantern, make
sure it is properly located away from any walkway
or in an area where it may be subject to accidental
damage.
• Educate all children and adults of the dangers of
the Lantern. Young children should be supervised
when they are in the same area as the Lantern.
Do not let children play with the Lantern.
• Do not place clothing or other flammable items on
or near the Lantern.
• Any screen or guard removed for servicing must
be replaced prior to operating the Lantern.
• This unit must be installed and repaired by a
qualified installer to prevent the possibility of an
explosion. Your dealer will know the requirements
in your area and can inform you of those people
considered qualified. The Lantern should be
inspected before use and at least annually by a
qualified service person. More frequent cleaning
may be required due to excessive debris from
leaves, dirt, insects, etc.
• Do not use this appliance if any part has been
underwater. Immediately call a qualified service
technician to inspect the appliance and to replace
any part of the control system and any gas control
that has been underwater.
• The instructions in this manual must be strictly
adhered to. Do not use makeshift methods or
compromise in the installation. Improper
installation will void the warranty and safety listing.
• This appliance is approved for either natural gas
(NG) or propane (LP). Burning the incorrect fuel
will void the warranty and safety listing and may
cause an extreme safety hazard. Direct questions
about the type of fuel used to your dealer. A label
is placed on the control panel to show which fuel
the Lantern is designed for.
• Contact your local building officials to obtain a permit
and information on any installation restrictions or
inspection requirements in your area.
• If the flame becomes sooty, dark orange in color, or
extremely tall, do not operate the Lantern. Call your
dealer and arrange for proper servicing.
• Do not operate the Lantern if it is not operating properly
in any fashion or if you are uncertain. Call your dealer
for a full explanation of your Lantern and what to
expect.
• Do not store or use gasoline or other flammable liquids
in the vicinity of this Lantern.
• Never remove, replace, modify or substitute any part of
the Lantern unless instructions are given in this manual
for routine maintenance and cleaning. A trained
technician must do all other work. Do not modify or
replace orifices.
• Allow the Lantern to cool before carrying out any
maintenance or cleaning.
• Operate the Lantern according to the instructions
included in this manual.
• If the burner does not start correctly turn the gas off at
the gas control valve and call your dealer for service.
• Do not use this appliance to cook food.
• Instruct everyone in the house how to shut the gas off
to the Lantern and at the gas main shutoff valve. The
gas main shutoff valve is usually next to the gas meter
or propane tank and requires a wrench to shut off.
• Do not operate the Lantern during a lightning storm or a
possible lightning storm.
• Do not operate the Lantern during high wind conditions.
• Do not install in or on recreational vehicles and/or
boats.
• Do not throw this manual away. This manual has
important operating and maintenance instructions that
you will need at a later time. Always follow the
instructions in this manual.
Solid fuels shall not be burned in this appliance.
The appliance must be isolated from the gas supply
piping system by closing its individual manual shutoff
valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than ½
psi (3.5 kPa).
• Travis Industries, Inc. grants no warranty, implied
or stated, for the installation or maintenance of
your Lantern, and assumes no responsibility for
any consequential damage(s).

Features and Specifications 5
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
F
eatures:
-
Electronic Ignition (switch turns Lantern on or off)
- Maximum 50,000 BTU Input
- Tempered Glass (easy to remove and clean)
- Stainless Steel Construction
- Automatic Gas Shutoff Valve for Safety
I
nstallation Options:
- For Outdoor Installation Only
- For Fixed Line Installations Only
- Wall Mount
- Post Mount
- Pillar Mount
Gas Specifications:
NG LP
Input Rating (BTU/h) 50,000 45,000
Orifice Size (DMS) #31 #48
Manifold Pressure 7" wc 11" wc
Max. Inlet Pressure 7" wc 11" wc
Electrical Specifications:
24 Volts AC, 1.6 amps (on startup), 40 watts (on startup)
Dimensions:
NOTE: Side clearances are measured from the glass – Top clearances are measured from the glass frame.

6Installation (qualified installers only)
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
Installation Warnings:
! This appliance is designed for outdoor use only, in well-ventilated areas.
! Failure to follow all of the requirements may result in property damage, bodily
injury, or even death.
! This Lantern must be installed by a qualified installer.
! This appliance is designed to operate on natural gas, or propane (LP).
! This appliance requires a switched, 110v AC, GFCI (ground-fault circuit
interrupter) protected power supply. This circuit provides power to the 24v AC
transformer (not supplied).
! Notify your insurance company before hooking up this appliance. All relevant
information on the Tempest Lantern is located on page 2, Important Information.
You provide them on page 2.
! The requirements listed below are divided into sections. All requirements must be
met simultaneously. The order of installation is not rigid – the qualified installer
should follow the procedure best suited for the installation.
Packing List
Main Assembly
Burner Top
Cap
Control Cover (pre-installed)
Glass (4 Pieces)
LP Conversion Kit (#38 orifice, conversion info tag)
(4) Glass Vibration Set screws (stainless 8-32 x 3/8”)
Additional Items Required
This Lantern Requires One of the Following Base Assemblies:
Wall Mount Kit
Post Mounting Kit
Pillar Mounting Kit
This Lantern Requires a 24Volt AC transformer.
Travis Industries offers the following transformer:
(sku# 94800830) Powers 1 to 6 Lanterns (120v input only with 26v and 28v output leads). See
the instruction sheet included with the transformer for details.

Installation (qualified installers only) 7
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
Recommended Order of Installation
1. If the installation will use LP gas, convert the appliance (see page 10).
2. Determine the location of Lantern. Make sure all clearances are met, (see page 8).
3. With the Lantern head location identified, prepare and mount the Lantern head support (pillar,
post, or wall mount). This order of installation may need to be modified due to individual
installation conditions. NOTE: sections 4, 5, 6, and 7 of this page detail gas and electrical
connections to the Lantern head.
4. GAS SUPPLY: The Lantern requires 50,000 BTU input (natural gas or LP). The gas supply
requires a shut off valve. Follow all local building codes for gas supply installation.
5. ELECTRICAL SUPPLY: The power supply must be routed through a switch to turn the Lantern
on and off (see page 12). Multiple Lanterns may be placed on a single circuit. Each Lantern
uses 24VAC at approximately 1.6 amps - make sure the circuit and wiring is appropriately sized
(see diagram on pg 14.). If multiple Lanterns are powered through a single switch, the control
modules for each of the individual Lanterns may be daisy-chained together (make sure polarity is
correct, see pg. 18). Make sure to leave slack in the electrical line so the head can be removed
for service.
6. For outside post and pillar installations route a ½” stainless steel flexible gas line from the shut off
valve to the Lantern head (you will have to provide this gas line).
For wall mount applications; if using flex line to pass through the wall of a building the flex line
must be enclosed in conduit for protection, or local code may require you to hard pipe the
connection from the control module to the Lantern head.
7. Place base cover over mounting pole.
8. Attach the Lantern head to the mount. Attach the gas line. Attach the 24vac electrical supply.
Leave the control covers loose to allow for leak testing access. Install the Lantern assembly (see
page 20).
9. Bleed the gas line and start the Lantern by switching on the electrical power to the control
module. Leak test the gas lines. Verify the Lantern works correctly and there are no gas leaks.
Attach the control covers.
10. Give the manual to the homeowner and explain the operation of the Lantern.

8 Installation (qualified installers only)
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
Placement Requirements
! For Outdoor Use Only. Install in well-ventilated areas.
Do Not Locate the Lantern:
In high traffic areas.
Under or near trees, plants, and buildings where debris may constantly fall into the
Lantern. Excessive debris will require high maintenance and/or cause malfunctioning of
the Lantern.
In places where people, children, and pets may contact the Lantern. Guards or fences
around the Lantern in these locations are recommended.
In places where the controls beneath the Lantern may be submerged underwater.
Submerging of any part of its controls may require the complete replacement of the
controls.
Clearances:
The distance from ground
level to the top of the
Lantern shall be a
minimum of 7 ft. (2.1M)
where installed within 2
feet (0.6M) of public
walkways (e.g.: sidewalk,
shared walkway between
two homes, or pathway in
commercial applications).
Lesser clearances shall be
permitted to be used only
where acceptable to the
authority having
jurisdiction.
Keep combustibles away
from the shaded heat zone
of the Lantern (see
illustration below).

Installation (qualified installers only) 9
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
Gas Line Requirements
MASSACHUSETTS INSTALLATIONS - WARNING:
THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE
COMMONWEALTH OF MASSACHUSETTS.
OTHER MASSACHUSETTS CODE REQUIREMENTS:
Flexible connector must not be longer than 36 inches.
Shutoff valve must be a “T” handle gas cock.
Only direct vent sealed combustion products are approved for bedrooms or bathrooms.
Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas log.
A carbon monoxide (CO) detector is required in the same room as the appliance.
! The gas line must be installed in accordance with all local codes or, in the absence of local codes,
with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, International Fuel Gas Code, Natural Gas,
and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2, as
applicable. Consult your local gas supplier or propane gas dealer for code regulations and
recommended procedures.
! The Lantern and gas control module must be disconnected from the gas supply piping during any
pressure testing of that system at test pressures in excess of 1/2 psig. For pressures less than 1/2
psig, isolate the gas supply piping by closing the manual shut-off valve.
! Leak test all gas line joints and the gas control valve prior to and after starting the Lantern.
LP and NG Configuration
This Lantern is shipped configured for natural gas but can be converted to burn LP gas. The Lantern has
unique orifices fuel. See the table below for details.
NG LP
Input Rating (BTU/h) 50,000 45,000
Orifice Size (DMS) #31 #48
Manifold Pressure 7" wc 11" wc
Max. Inlet Pressure 7" wc 11" wc

10 Installation (qualified installers only)
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
LP Conversion
WARNING
This conversion kit shall be installed by a qualified service agency in accordance with the
manufacturer’s instructions and all applicable codes and requirements of the authority
having jurisdiction. If the information in these instructions is not followed exactly, a fire,
explosion, or production of carbon monoxide may result causing property damage,
personal injury, or loss of life. The qualified service agency is responsible for the proper
installation of this kit. The installation is not proper and complete until the operation of the
converted appliance is checked as specified in the manufacturer’s instructions supplied
with the kit.
Caution: The gas supply shall be shut off prior to disconnecting the electrical power, before
proceeding with the conversion.
Note: Convert the appliance prior to installing the gas line to ensure proper gas use.
Tools needed
11/32” nut driver
Philips screwdriver
1/2” open-end wrench
Crescent wrench
Teflon thread sealant
Follow the steps below to convert the lantern.
1. Place the lantern head upside down on a soft surface to protect the finish. Use an 11/32” nut
driver to loosen the (4) nuts (2 on each side) that secure the lantern head to the glass frame.
Remove the burner head assembly from the glass frame assembly.
2. Use a Philips screwdriver to remove the (2) screws that secure the orifice manifold and air
restrictor to the burner head assembly (set the screws aside for reinstallation).

Installation (qualified installers only) 11
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
3. Gently pull the orifice manifold out of the mixing
tube and remove and discard the air restrictor
plate.
4. Follow the directions below to replace the orifice.
5. Use the screws removed earlier to secure
the orifice manifold to the burner head
assembly.
6. Your lantern is now converted to LP.
Return the lantern to the correct
configuration. Remove the LP conversion
sticker from the hardware pack and apply it
to the lantern head in a visible location.
Continue with the rest of the installation
process.

Gas Line Connection
A manual shutoff valve is required on the gas supply to the Lantern.
NG LP
#31 #48

12 Installation (qualified installers only)
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
Electrical Connection Requirements
! The appliance, when installed, must be electrically grounded in accordance with local codes, or in the
absence of local codes with the National Electrical Code, ANSI/NFPA 70; or the Canadian Electrical
Code, CSA C22.1
! The electrical line must be installed by a qualified installer and must meet all local codes. Consult
your local building official for code regulations and recommended procedures.
! The 24VAC transformer may require a circuit protected by a GFCI (see local building codes).
Wiring Installation
We recommend outdoor-suitable connectors (silicone-filled wire connectors, dielectric grease,
etc.) on the power-in connections to the control module to prevent corrosion.
Route the wires from the 24VAC transformer to the Lantern using listed wiring. The wiring is
routed through the post or wall mount. Make sure to provide slack in the electrical line for
removal and service.
Each Lantern uses approximately 40 watts during startup (1.6 amps at 24VAC). Make sure the
circuit and wire are sized appropriately. The Lantern requires a minimum of 21VAC to operate (if
the voltage drops below this, the Lantern may not start).
24VAC Transformer
This Lantern must be used with a 24VAC switched circuit. The transformer is sold separately.
Travis Industries offers the following transformer:
-- 94800830 Powers 1 to 6 Lanterns (120v input only with 26v and 28v output leads). See the
instruction sheet included with the transformer for details.
Wire Configuration - Direct-Run vs Daisy-Chain Installations
The manner in which you wire the Lanterns to the transformer affects the maximum length of wire and
wire gauge. Make sure to determine the wire configuration before installation. NOTE: You may use
both direct-run and daisy-chain configurations, just make sure the maximum number of Lanterns is
not exceeded.

Installation (qualified installers only) 13
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
Lantern Wiring Diagram
Control Module Wiring Diagram – July 2019 or Later
* NOTE: The thermopile must connect to the control module as shown above (white/orange wire connects
to the white thermopile wire and the orange wire connects to the red thermopile wire). Do not
reverse the wires. If the wires are reversed, the Lantern will not work correctly.
WARNING ATTENTION
Hereisanother sticker with
imp o r ta n t inf o r ma t io n t hat you
should also r ead
U
L
GHJH
TravisInd.
Makes nice
Fireplaces
Blahb lahblah blah
yaddayadda blah
blah y adda yadd a
Howmuchwoodcouldawoodchuck
chuck if a w oodchuck couldch uck
wood?
He’d chuck as m uch w ood as a
woodchuck could chuck ifa
woodchuck couldchuckw ood.
I ha v e n o ide a w hat t h is s t icke r sa y s bu t I w ill pu t in th is t ext t o
makeit lookm ore realistic. Please make sureyou read the
act ual labelso you don't hur t yo ur self .
Thankyou for your at t entionto this import ant m at t er .
I ha v e n o ide a w hat t h is s t icke r sa y s bu t I w ill pu t in th is t ext t o
makeit lookm ore realistic. Please make sureyou read the
act ual labelso you don't hur t yo ur self .
Thankyou for your at t entionto this import ant m at t er .
Whydo you never see a
hippopotamus hiding ina
tree?
Becausethey are goodat it!
What do you do whenyou
see a spacem an?
Youpark man!
Red*
White*
White/Orange*
Orange* Whi
te/G
r
een
Green
White
Ignitor
Gas Valve
Solenoid
Thermopile
Red
White/Red
Black
White/Yellow
Yellow
24VAC Control
Module
+

14 Installation (qualified installers only)
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
Wiring Multiple Transformers to One Switch
Multiple 24VAC transformers may be wired to a single switch (see diagram below).
WA R N ING
WARNING
ATT E NT ION
ATT E NT ION
1
1
Hot (Black)
Common (White)
Ground (Green)
P
o
w
e
r
S
u
p
p
l
y
(GFCI Protected)

Installation (qualified installers only) 15
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
Wiring Multiple Lanterns to One Transformer
The manner in which you wire the Lanterns to the transformer affects the maximum length of wire and wire gauge.
Make sure to determine the wire configuration before installation. NOTE: You may use both direct-run and daisy-chain
configurations.
Polarity must be maintained in all multiple Lantern installations.
Failure to maintain polarity will result in damage to the control
module.
Daisy-Chain Example
Direct-Run Example
1
Hot (Black)
Common (White)
Ground (Green)
P
o
we
r
S
u
p
p
l
y
(
GFCI Prot ected)
WA R N ING ATT ENTION
1
Hot (Black)
Common (White)
Ground (Green)
P
ower
S
upp
l
y
(GFCI Protected)

16 Installation (qualified installers only)
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
Daisy-Chain Wire Length Chart
This type of wire configuration allows for Lanterns to be wired in a series, reducing the amount
of wire used. Use the charts below to determine the correct wire gauge and length. In the
example below, the transformer has 3 Lanterns on one branch.
How to Calculate Wire Length: Add together all of the wire length(s) used for the entire
installation. If you have one 80’ length and three 20’ lengths, your wire length would be 140’.
24 Volt Lead # Of Lanterns On Branch
Wire 2 3 4 5 6
14 G min 0' 0' 0' 0' 0'
max 113' 71' 49' 37' 28'
12 G min 0' 0' 0' 0' 0'
max 173' 108' 75' 55' 43'
10 G min 0' 0' 0' 0' 0'
max 266' 165' 115' 85' 65'
26 Volt Lead* # Of Lanterns On Branch
Wire 2 3 4 5 6
14 G min 27' 10' 1' 0' 0'
max 184' 118' 85' 65' 51'
12 G min 41' 16' 2' 0' 0'
max 281' 179' 129' 99' 79'
10 G min 63' 23' 3' 0' 0'
max 432' 276' 198' 151' 121'
28 Volt Lead* # Of Lanterns On Branch
Wire 2 3 4 5 6
14 G min 104' 62' 40' 27' 19'
max 242' 157' 113' 88' 71'
12 G min 160' 94' 61' 41' 28'
max 369' 238' 173' 134' 108'
10 G min 245' 144' 93' 63' 43'
max 566' 366' 266' 206' 165'
* Not available on some transformers.
WAR N ING ATTENT ION
1
Hot (Black)
Common (White)
Ground (Green)
P
o
we
r
S
upp
l
y
(
GFCI Protected)

Installation (qualified installers only) 17
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
Direct-Run Wire Length Chart
This type of wire configuration allows for long distances between the transformer and
Lantern (see illustration below). Use the charts below to determine the correct wire
gauge and length.
24VoltLead26VoltLead*28VoltLead*
Wire  Wire  Wire 
14Gmin0'14Gmin79'14Gmin234'
max242'max384'max499'
12Gmin0'12Gmin120'12Gmin356'
max369'max584'max760'
10Gmin0'10Gmin184'10Gmin548'
max566'max897'max1168'
* Not available on some transformers.
Wiring Examples:
Daisy-Chain Installations:
When using 3 Lanterns on one branch, 14 G wire, and 150’ of wire, use the 28V Lead.
When using 4 Lanterns on one branch, 10 G wire, and 100’ of wire, use the 24V Lead.
Direct Run Installations:
When using a Lantern on a 200’ run, 14 G wire, use the 24V Lead.
When using 6 Lanterns, each on a 200’ run, 14 G wire, use the 24V Lead.
How to Determine Wire Gauge: When purchasing your wire, it should include a wire gauge (the larger
the number, the smaller the diameter wire). The wire will also be printed with a gauge number (e.g.
AWG#14 = 14 gauge, 10AWG = 10 gauge, etc.). Do not use wires of dissimilar gauges (do not use 14
gauge & 10 gauge wire on the same transformer).
WA R N ING AT T ENT ION
1
Hot (Black)
Common (White)
Ground (Green)
P
o
w
er
S
u
p
p
l
y
(GFCI Protected)

18 Installation (qualified installers only)
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
Polarity
WARNING: Make sure to keep polarity between Lanterns the same.
Do not allow a yellow wire to connect to a white/yellow wire (keep polarity the
same).
IF YOU REVERSE POLARITY, PERMANENT DAMAGE WILL OCCUR.
When wiring multiple Lanterns together using a single 24VAC transformer, it is important that
the polarity between the Lanterns are connected in parallel (all yellow wires connected
together and all white/yellow stripe wires connected together). Polarity between the Lanterns
and the transformer does not matter.

Installation (qualified installers only) 19
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
Post Mount and Control Cover Installation
A post mount is pre-attached to the Lantern for use with the optional post (3” round lamp post) or pillar
mount. If using the wall mount, use the control cover included with the wall mount kit.
(a) If using a post mount, slide
the control cover over the
post.
HINT: Use low-tack tape to
protect the post from
scratches.
NOTE: When installing the
post, make sure the post is
positioned with the
mounting holes 45° offset
from the front. The post
mount has obround holes
that allow 20° of rotation
(10° in each direction).
(b) Attach the gas and
electrical lines.
WARNING: Take care
when handling the Lantern
assembly to not damage
the gas or electrical line.
(c) Attach the Lantern base to
the post using the included
¼-20 screws.
NOTE: If removed, re-attach
the glass cage to the
lantern base (before
installing the base cover.
(d) Attach the control cover to
the Lantern with the two
thumbscrews.
! The safety label slides
into place between the
control cover and the
Lantern body.

20 Installation (qualified installers only)
© Travis Industries, Inc. 4/13/22 - 1569 Tempest Lantern 50k 24v
Lantern Assembly
(a) Place the burner top over the
main assembly. Make sure the
burner top is fully seated.
! Make sure the igniter element
lines up with the hole on the
burner top.
(b) Slide the glass panels into place
by aligning each panel with one
of the slots in the top plate of the
Lantern. Support the glass
panels as you lower them into
place to avoid damaging them.
HINT: Make sure the glass is
clean before installing and
handle with soft gloves or other
non-marking material (e.g. paper
towel).
(c) Place the cap on the top of the
Lantern glass assembly. The
cap will friction fit to assembly.
a
b
c
