Travis Industries 94800829 User manual

Tempest 24v Torch Transformer
Sku# 94800829
Page 1 of 4 17602011 – Printed 2/15/18 © Travis Industries, Inc.
Hazardous Voltage can shock, burn, or cause death. Disconnect all input power before
installing or maintaining this equipment.
Compatibility
This transformer is designed for the Tempest 24v Torch (NG or LP). It is not designed for
2017 (or earlier) Tempest 120v torches.
This transformer is rated at 0.500 kVA. The transformer will power up to 4 torch heads. The
maximum number varies depending upon the total length of cable attached between the
transformer and torches. See the torch manual for additional details.
Packing List
Transformer
(2) Strain Reliefs
Wiring Diagram 120V
Wiring Diagram 240V
Transformer Junction Box
Black
White
Grounding Post
Green
H2H2
H4H4
H1H1
H3H3
X2X2
X3X3
X4X4
X1X1 To 24V Tempest
Torch(es)
120V POWER IN
Romex Clamps
H2H2
H4H4
H1H1
H3H3
Transformer Junction Box
Hot
Hot
Grounding Post
Ground
X2X2
X3X3
X4X4
X1X1
To 24V Tempest
Torch(es)
240V POWER IN
Romex Clamps

Tempest 24v Torch Transformer
Sku# 94800829
Page 2 of 4 17602011 – Printed 2/15/18 © Travis Industries, Inc.
Dimensions
Mounting Requirements
Transformer weights approximately 12.5 lbs. Make sure mounting location provides
sufficient support.
Transformer is rated for damp locations.
Do not place transformer where it will become submerged.
We suggest placing the transformer out of direct contact with the elements (rain, snow,
sun, etc.) to extend longevity.
Consult your local building department for requirements in your area pertaining to
mounting and installation of this transformer.
5-1/8"
4-1/2"
10-1/4"
Knock-Outs for Strain Reliefs
(both sides and bottom)
TOP
Mounting Holes

Tempest 24v Torch Transformer
Sku# 94800829
Page 3 of 4 17602011 – Printed 2/15/18 © Travis Industries, Inc.
Wiring the Transformer
NOTE: Disconnect power at the service breaker prior to installing the transformer. After
installation, restore power to the transformer and test both the incoming and outgoing
circuits.
Installation should only done by a qualified electrician or installer (consult local codes).
Use suitable connectors when wiring the transformer (silicone-filled wire nuts).
The torches can be “Daisy Chained” together (see “Example A” below) or each torch can
be a “home run” back to the transformer (see “Example B” below).
Example A
Example B
Polarity must be maintained in all multiple torch installations. Failure to maintain polarity
will result in damage to the control module.

Tempest 24v Torch Transformer
Sku# 94800829
Page 4 of 4 17602011 – Printed 2/15/18 © Travis Industries, Inc.

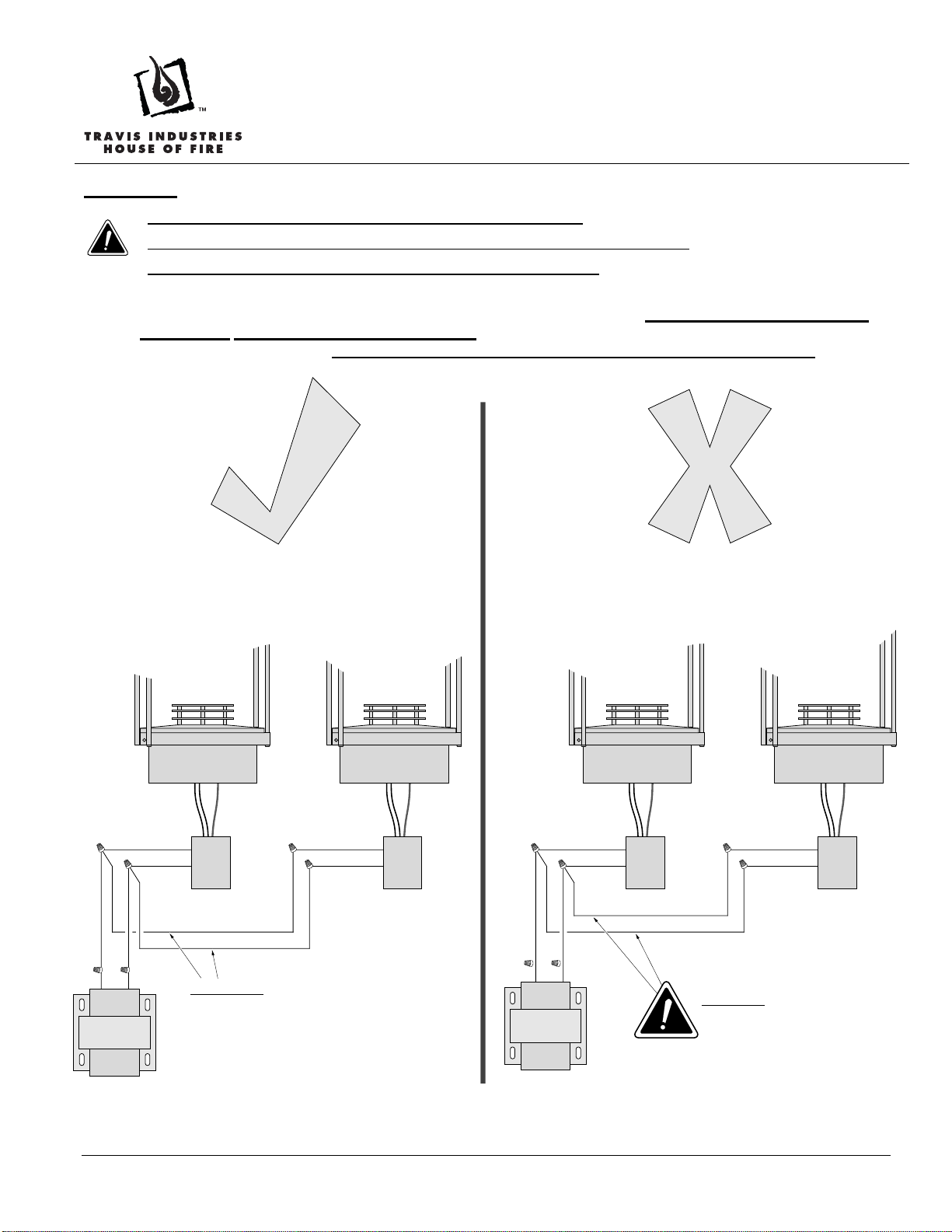

Polarity
WARNING: Make sure to keep polarity between torches the same.
Do not allow a white wire to connect to a white/blue wire (keep polarity the same).
IF YOU REVERSE POLARITY, PERMANENT DAMAGE WILL OCCUR.
When wiring multiple torches together using a single 24VAC transformer, it is important that the polarity
between the torches are connected in parallel (all white wires connected together and all white/blue stripe
wires connected together). Polarity between the torches and the transformer does not matter.
White
White/Blue
White
White/Blue
24V AC
Transformer
White
White/Blue
White
White/Blue
24V AC
Transformer
Correct Incorrect
WRONG! - DO NOT ALLOW
A WHITE WIRE TO
CONNECT TO A
WHITE/BLUE WIRE
CORRECT - ALL WHITE WIRES
TO CONNECT TO WHITE WIRES,
ALL WHITE/BLUE WIRES
CONNECT TO WHITE/BLUE
WIRES.
