TRD MS342-18001 Service manual

Installation・Handling Instructions manual
Thank you for purchasing a 86 for TRD rear trunk spoiler this time. This edition is based on the
note attached described above TRD rear trunk spoiler, and the procedure for handling.
Please read before installation by all means, please execute correct mounting, handling.
In addition, please give it to you should have a copy of this manual.
This product, please attached to the vehicle after registration.
When the installation is done prior to registration, initial inspection of carry‑is required.
№1201‑T1017001 1/6
ＭＳ３４２−１８００１・ＭＳ３４２−１８００２
Rear trunk spoiler
■Components list
90467‑06169②
①
№Product Name Part Number Qty
2
1
2
1
Note
③
④
Ｍ６
Set of ５
Nut
Black circle seal 1⑤ Set of 1４Black corner seal 1⑥ Pattern This book1⑦ Mounting・Handling Instructions manual
Rear trunk spoiler
Below, shipped with only MS342‑18002‑00 (not painted set)
Cushion
⑧
№Product Name Part Number Qty
(1ea)Note Molding Black / gray L = 2100mm supply part number
76877‑SP000
⑨ 1ＰＡＣPrimer Ｋ−５００
■Part・Fit list
MS342‑18001‑A0
MS342‑18001‑C0
MS342‑18002‑00
Part number NotePaint color
Satin White Pearl（37J）
Not painted(Primed goods）
Crystal Black Silica(D4S） ８６ All adaptation '１２．０４〜
① ③② ④ ⑥⑤ ⑦
ＰＡＣプライマー
K−５００
引火性固体 危険等級Ⅲ
切り口 有効期限/ＬＯＴ Ｎｏ:枠外に記載
火気厳禁
湿分・水分厳禁
接着促進剤
内用物重量：3.5ｇ
３Ｍ
⑧ ⑨
Below, shipped with only MS342‑18002‑00 (not painted set)
型紙
取 付 要 領 書
English version Courtesy of Takuban Motorsports LLC
Translation is not perfect. Use at your own risk.

№1201‑T1017001 2/6
■Note・mounting and handling
Within this manual are the following marks in order to use safely. Please observe, especially
in the mounting and handling procedure.
Warning
！
Caution
！
Not following in this content, performing incorrect installation, handling, human or
killed, seriously injured, etc.
It is written about a situation where there is a danger of serious bodily injury or death.
Did not obey to this content, performing incorrect installation, handling, human or
suffered failure, product It is written for the content that may lead to property damage
and so on.
Advice It describes information that you should know on where I am
working quickly There are.
！
！
！
！
！
！
！
！
！
！
！
！
！
！
！
！
！
！
！
！
！
Confirmation Please make sure this product after arrival, that there is no visible damage to the body immediately, that all accessories are everything.
Caution Please be performed in garages professional always exchange installation work of this product
Caution Repair manual for the appropriate vehicle in accordance with (Toyota Motor Corporation issued), please work with the precautions of this instruction
manual when installing the attention this product.
Warning The installation work, please go after confirming that turn off the engine in a flat place by all means, the
emergency brake is applied. Precarious place In work, work in a state where the vehicle is moving will be a
significant cause of the accident.
Warning When working in the vicinity of mufflers and engine room, please pay attention to serious injuries such as burns.
Warning Do not alter, or modify this product. if attached to non‑compliant models, it may cause damage or accident.
Caution Because this product is designed for this specific vehicle, I can receive as well as the inspection of the usual
vehicle inspection at the time. However, in some usage When installed in a non‑compliant models, or other are
modified the portion of the other, it does not apply to that.
Caution A car with no history of accidents in the past, this product can be securely mounted.
Caution For unpainted, painting to match the skin color of the vehicle is required. Were fixed product to prevent deformation If you want to be forced drying,
(MS342‑18002‑00) in 70 ℃ or less not painted set please be dried.
Caution If you want to degrease before painting the unpainted product, you can use the white gasoline or IPA, please do
not use thinner or silicon based solvents.
Caution During baking, when raised above 70 ℃, cracking and deformation can occur, please pay attention to baking
temperature.
Caution Please do not remove any parts of the vehicle other than those specified in this guide.
Caution To prevent scratches when mounting the rear trunk spoiler to the vehicle and removal of vehicle parts, prepare
the protective sheet before working, Please perform on the protective sheet always work only mounted.
Also, please be careful enough not to scratch the vehicle parts for the installation work.
Caution If the outside air temperature is below 15 ℃, the adhesive force of the double‑sided tape may decrease, please
attach when heated to about 40 ℃ with a dryer. Heat both the mounting surface and the tape unit.
Warning During installation, please tighten each bolt sufficiently as specified torque. Looseness gradually increases when
there is slack at the time of installation, you may have a serious accident, damage caused by falling off etc..
Warning After initial installation, bolts are likely to loosen, please re‑tighten after driving for a few kilometers.
Warning After installation, please make sure the parts of books and other products are to not interfere. If you have
interference, please consult the shop where you purchased the items. It may cause damage or malfunction to be run
as it is.
Warning After installation if this product and the main body mounting portion is subjected to strong shock of collision,
etc., it may become damaged, deformedor fail , please stop using it immediately.
Warning If you feel any unusual noise or vibration while driving, stop in a safe place immediately and have it inspected
by a repair shop. If you continue to drive this may cause damage to the vehicle.
Warning This product has been designed for driving on the paved road. Please stop driving in the snow‑covered roadsand
bad roads, because it can cause damage to the product.
Warning This product was designed to have sufficient strength and durability, but improper handling, storage or driving
conditions may cause damage. Please be careful when storing, installation and using the product.
Caution When maintaining, please do not use organic solvents thinner, such as gasoline. It causes the discoloration and
deformation.
Caution In the event of non‑professional installation, there will be no response to complaintsof this product or if the
vehicle body, is damaged.
Please observe the attached procedure of this document and above items.
！
English version Courtesy of Takuban Motorsports LLC
Translation is not perfect. Use at your own risk.

№1201‑T1017001 3/6
■Handling unpainted goods
□Painting rear trunk spoiler

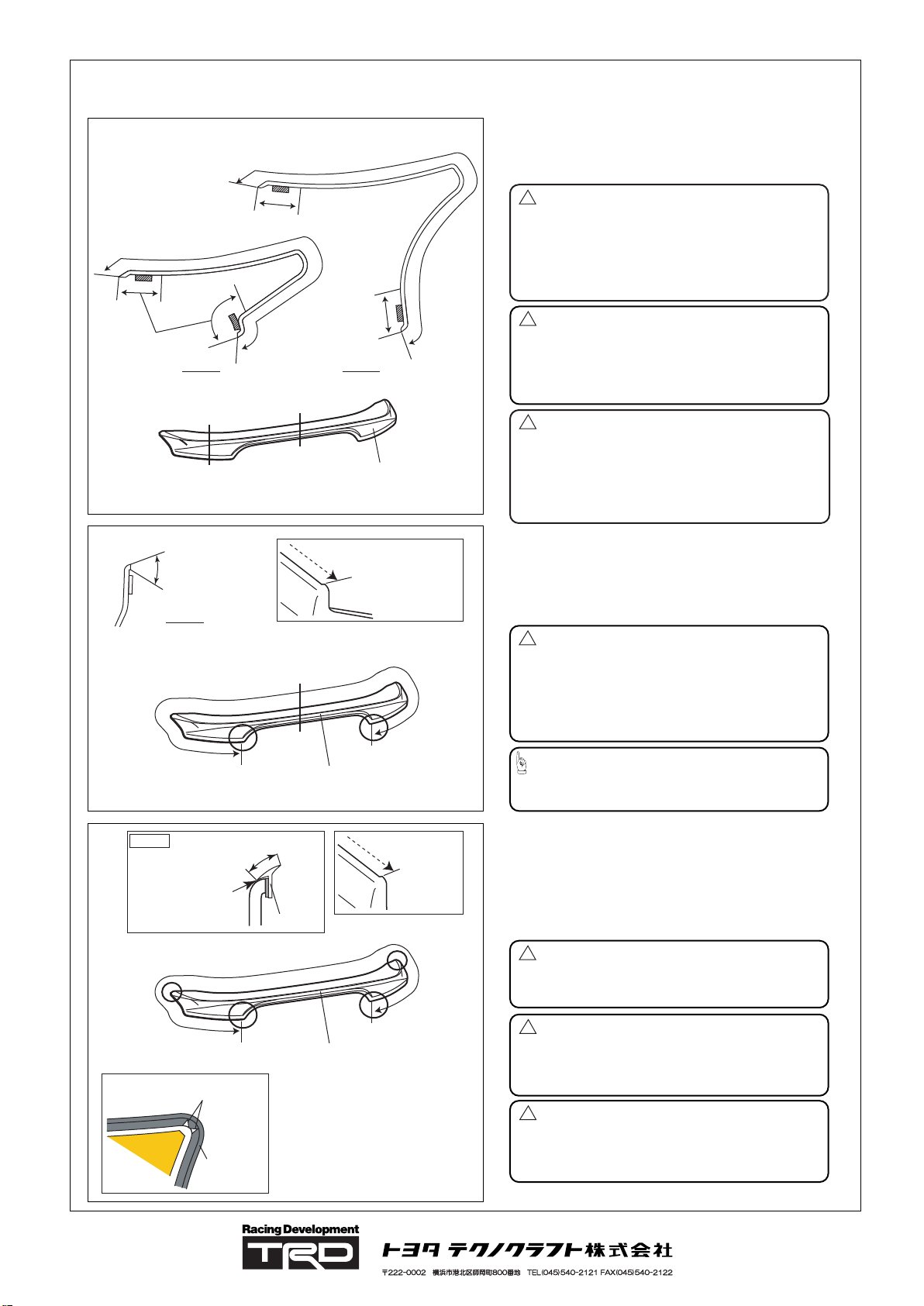

1. Paint the rear trunk spoiler ① as
shown in Figure 1.
□Molding
1.Remove dirt from molding attachment point
as shown in Figure 2. You can use IPA to
degrease area, ＰＡＣ primer Ｋ−５
Apply the 00 ⑨.
2.While peeling off the release paper of the
double‑sided tape of the molding ⑧, press
against the rear trunk spoiler ① as shown
in FIgure 3. {49N (5kgf)}
The molding ⑧ is longer than needed. Cut
off excess with scissors to fit the length.
Caution：When degreasing, please do
not use other types of solvents.
If oil content remains, it
may cause the tape comes off.
Also, please note protrusion
of the primers, because it
causes the stain.
！
Note：If the temperature is below
15℃, the adhesion of the tape
will fail. Use a dryer or heat
gun to raisethe temp to about
40℃
！
Note：When you put the equal notch
in the molding⑧, take care to
not damage the rear trunk
spoiler①
！
Advice：After degreasing the primer,
please let it dry for at least
10 minutes.
Note：Do not paint the double‑sided
tape
Adhesive force will decrease
Mask the corresponding taped
area.
！
Note：Bake paint at 70℃
If baked above that temperature,
cracking will occur. Please
pay careful attention to the
temperature if you want to
force‑dry the part
！
Caution：If you want to degrease, use
white gasoline or IPA, please
do not use thinner or silicon
based solvents.
There is a risk of melting
surface coat.
！
Before painting of (MS342‑18002‑00) not painted, below, have provided a work after the painting. Please perform the work according to the following procedure.
Note：Molding⑧is included in two
colors. Please choose the color
that best matches your paint
color.
！
Stepped Stepped
Figure 1
Figure 2
FIgure 3
Ａ
Ａ
Ｂ
ＢRear trunk spoilerー①
Rear trunk spoilerー①
Rear trunk spoilerー①
Ｄ
Ｂ‑Ｂ
Paint range
Masking range
Masking range
Paint range
Masking range
Ａ‑Ａ
Ｃ
Ｃ
Ｄ
Stepped Stepped
Ｄ
Ｄ
Ｃ‑Ｃ
Degreasing・primer
Application range
Degreasing・primer
Application range
To match the step
That the application
Part D
Part D
Stepped reference
Molding attached reference
Molding⑧
Paste so no gap
to note that in
inclusion
Cross‑section Scratch Caution
Range only Molding attached ⑧ Ｅ
Ｅ
Molding⑧
Put the V‑shaped cut in the R vertex
And affixed Molding
Part E
English version Courtesy of Takuban Motorsports LLC
Translation is not perfect. Use at your own risk.

№1201‑T1017001 4/6
1.Remove the existing trunk spoiler if one
is already attached.
2.If holes remain, use the black circle４
so that the degreasing does not enter the
trunk seal④(５places)、Place the black
corner seal ⑤on the square holes
(1 place left and right).
3.Remove the burr in vehicle trunk
4.Cut out paper for Pattern A ⑥, and
attach to the trunk as shown in Figure 5.
Mark the height of the spoiler with tape.
(１place)
□Preparing to Install
6.Wrap packing tape so that it creates a
stopper on the 3mm drill bit,10mm from the
tip, to drill a pilot hole into the
marking position with the 3mm drill bit
as shown in FIG 7.
(1 each left and right)
7.Drill the holes to 10mm wide,as shown in
Figure 7.Remove the burr in hole.
(1 each left and right)
Note：When you remove the burr, the
hole diameter is large, be careful
Please remove it with Li etc..
！
Note：When drilling in the trunk, take
care not to damage the wires and
the like.
！
Advice：When drilling, hold the drill
perpendicular to the surface
and take care to avoid walking
or shifting.
Note：Wear protective goggles while
working.
！
Note：When removing the inner burr,
refer to the manual, If parts
are dammaged, please note loss.
！
Note：Drilling without removing the
inner burr will cause scratching
to the wiring and the like.
！
5.Allign pattern B⑥according to the
garnish as shown in Figure 5. Mark the
height position with tape (1 point).
Note：Paper pattern is used for RH also
So take care to prevent tearing.
Maybe make a copy of it.
！
Figure 4
Figure 5
Figure 7
Drill pilot hole 3mm,
Final hole is 10mm
(1 each left and right）
10mm Packing tape
Drill
Black corner seal ⑤
Trunk
Trunk
Rear
Garnish
Trunk
Figure 6
Marking
(1 each left and right）
Trunk
⑥ Pattern B
Abutment
Rear Garnish
⑥Pattern A
⑥ Pattern A
⑥Pattern B
Abutment
Mark mounting height
position with tape
Black circle seal ④
Hole in front of
the vehicle is not
adhered
English version Courtesy of Takuban Motorsports LLC
Translation is not perfect. Use at your own risk.

№1201‑T1017001 5/6
9.Peel off about 30 mm from the center out,as
shown in Figure 9 and tape it on th front
side with masking tape (Three places each
left and right), the release paper of the
double‑sided tape on the outer corners of
rear trunk spoiler① is peeled off
completely.
10.Affix cushion ③ as shown in Figure 9
around the bolt of the rear trunk spoiler ①
(1 each left and right)
Caution：If you peel off all of the
release paper of double‑sided
tape, you will not be able to
mountin the correct position.
！
8.Remove dirt from the rear trunk spoiler ①
mounting portion of the trunk, as shown
in Figure 8. Spray degreaser in one
direction, white gasoline or IPA.
Warning：If the body coating is
applied,so as not to damage
the painting,after removal of
the compound,etc., please
perform a degreasing always.
！
Caution：Use white gasoline or IPA
When degreasing, please do
not use parts cleaner.
Oil content remains, it may
cause the tape to come off.
！
□Attachment for
1. temporarily tighten the nut ② to secure
the rear trunk spoiler ① to the trunk.
(1 each left and right)
Figure 8
Peel backing paper
Masking tape
Figure 9
Figure 10
Figure 11
Degreasing
Nut ②
Peel
backing paper
Trunk
Rear trunk spoilerー①
Rear trunk spoiler ①
Rear trunk spoiler ①
Peel
all
Peel
all
Cushion ③
Trunk
Trunk
Rear
Garnish
Rear trunk spoiler ①
2.Align the marking position to position
mounting height of the upper end of the
rear trunk spoiler ①, to match the R stop
the trunk bottom, Begin to remove tape in
numerical order as shown in the figure 11.
(each three places left and right) Once
all is released, press to promote adhesion.
｛４９Ｎ（５ｋｇｆ）Above｝
Note：Do not wash for 24 hours so the
adhesive tape can dry.
！
Caution：Press firmly so the tape
will seal. If pressure is
insufficient, it may cause
peeling or lifting.
！
Caution：If you do not peel off the
release paper of the double‑
sided tape in the order
instructed, it may cause a gap.
！
Caution：When the outside temperature
is below 15 ℃, the adhesive
force of the double‑sided
tape will be reduced. Warm
up with a dryer(about 40 ℃).
！
１
２５
６
４３
Ｇ‑Ｇ
Ｒstop criteria
Ｇ
Ｇ
English version Courtesy of Takuban Motorsports LLC
Translation is not perfect. Use at your own risk.

№1201‑T1017001 6/6
3.Tighten the rear trunk nuts ②that were
temporarily tightened earlier.
(1 each left and right)
4.Please clean the burr in the vehicle trunk.
■Inspection and notes after mounting
１．Chech that the nuts and rear trunk spoiler are securely installed.
２．Check that you did not scratch the vehicle.

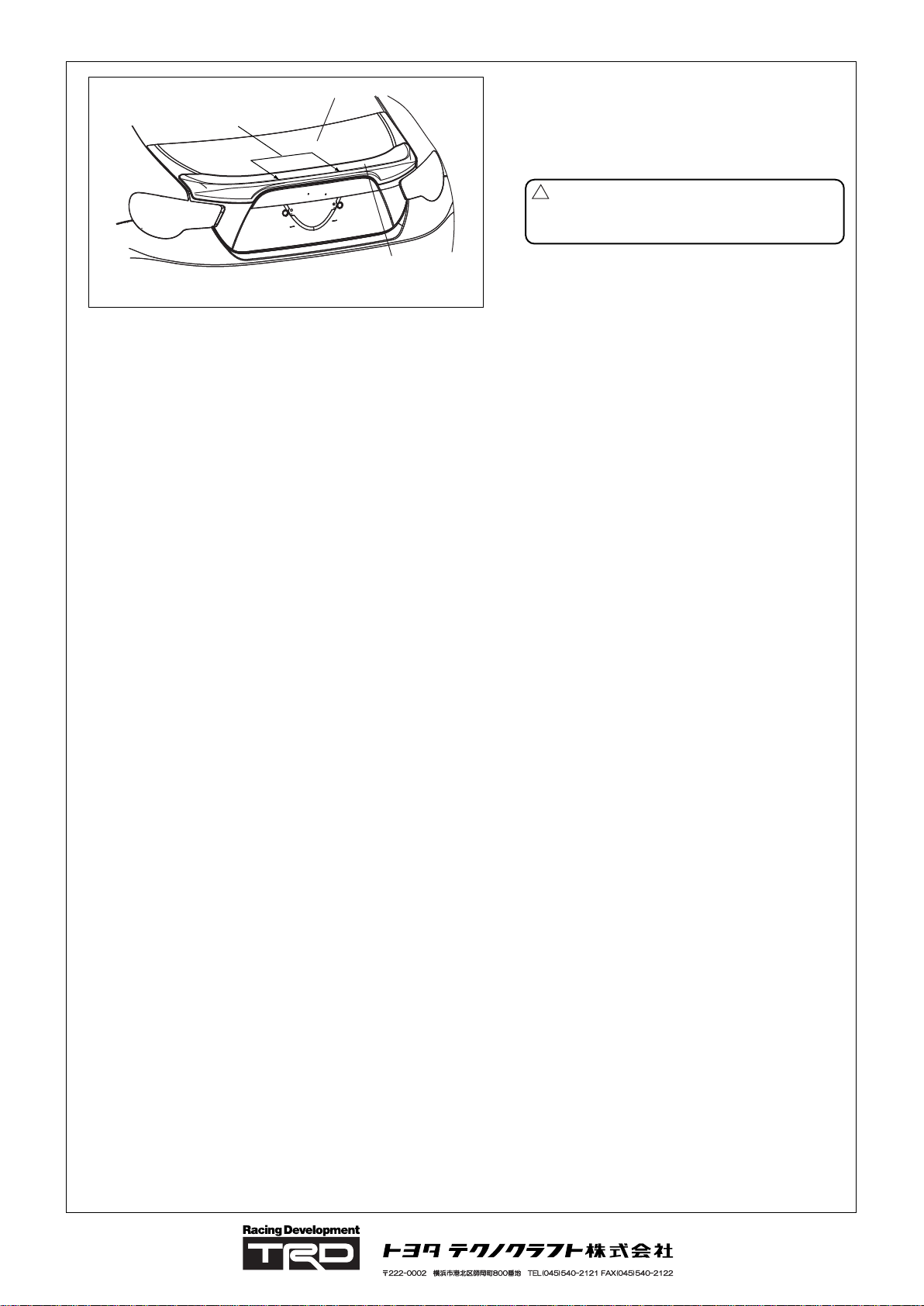

Figure 12
Final tightening
* This tightening of where it was temporarily tightened in Figure 10
Trunk
Rear trunk spoiler ①
Caution：When you restore the internal
flash, refer to the vehicle
service manual, please note
the damage to the parts.
！
English version Courtesy of Takuban Motorsports LLC
Translation is not perfect. Use at your own risk.
