TRENDnet TN-200 User manual

  

TRENDnetUser’sGuideCoverPage

  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTableofContents
i
Contents

ProductOverview.............................................................................2
PackageContents..........................................................................................................2
Features.........................................................................................................................2
ProductHardwareFeatures...........................................................................................3
ApplicationDiagram......................................................................................................5
InstallingHardDrive(s)..................................................................................................5
InstallNASSetupUtility...................................................................6
ConfiguringwiththeNASSetupUtility.............................................8
Interface......................................................................................................................11
PanelFeatures.............................................................................................................12
ConfiguringwithaWebBrowser....................................................14
ManagementCenter....................................................................................................15
Wizard.....................................................................................................................15
User.........................................................................................................................16
UserList..............................................................................................................16
GroupList............................................................................................................18
ShareList.............................................................................................................21
ISOMount...........................................................................................................27
Quota..................................................................................................................29
Application..............................................................................................................30
DLNAServer........................................................................................................30
iTunesServer.......................................................................................................33
File/FTPServer...................................................................................................34
Disk..........................................................................................................................37
RAID....................................................................................................................37
S.M.A.R.T.............................................................................................................43
ScanDisk.............................................................................................................45
VolumeInformation...........................................................................................46
Network..................................................................................................................46
NetworkSettings................................................................................................46
LLTD/DDNS..........................................................................................................48
System.....................................................................................................................49
Language/Time...................................................................................................49
Device.................................................................................................................50
System................................................................................................................50
Power..................................................................................................................52
Notifications........................................................................................................53
Syslog..................................................................................................................54
UBSDevices........................................................................................................55
Status......................................................................................................................56
SystemStatus......................................................................................................56
Device.................................................................................................................56
Network..............................................................................................................57
Disk.....................................................................................................................57
FileCenter...................................................................................................................57
FolderManagement................................................................................................57
BackupCenter.............................................................................................................58
RemoteBackup.......................................................................................................59
LocalBackup............................................................................................................64
CloudBackup..........................................................................................................71

  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTableofContents
ii
DownloadCenter.........................................................................................................74
AddURLDownload.................................................................................................74
AddBTDownload....................................................................................................74
FTP/HTTPDownload...............................................................................................75
P2PDownload.........................................................................................................77
Glossary.........................................................................................79
TechnicalSpecifications.................................................................80




  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTN‐200/TN‐200T1
2
ProductOverview


TN‐200/TN‐200T1

PackageContents

TN‐200TN‐200T1
‐TN‐200
‐Multi‐LanguageQuickInstallation
Guide
‐CD‐ROM(User’sGuide)
‐NetworkCable(1.5m/5ft.)
‐Poweradapter(12VDC,3A)
‐TN‐200
‐1x1TBSATAHardDrive
‐Multi‐LanguageQuickInstallation
Guide
‐CD‐ROM(User’sGuide)
‐NetworkCable(1.5m/5ft.)
‐Poweradapter(12VDC,3A)

Ifanypackagecontentsaremissingordamaged,pleasecontacttheretailstore,online
retailer,orreseller/distributorfromwhichtheproductwaspurchased.
Features

TRENDnet’s2‐BayNASMediaServerEnclosure,modelTN‐200/TN‐200T1,isthe
entertainmentandstoragehubofadigitalnetwork.DLNAcertifiedSmartTVs,media
players,andgameconsolescanautomaticallyfindandplaymultipleHDvideosand
musicsimultaneously.AniTunesserverprovidestheabilitytoshareamassiveiTunes
libraryacrossyounetwork.
TheNASacceptstwo3.5”SATAI/IIharddrives(soldseparately)foratotalstorage
capacityofupto8Terabytes.AdditionalstoragecanbeaddedusingtheconvenientUSB
shareport.AGigabitEthernetportmaintainsahighspeedconnectiontothenetwork.
AnintuitivesetupwizardgetstheTN‐200/TN‐200T1upandrunningquickly.Consume
andmanageyourdigitalcontentfromanywherewithTRENDnet’sTN‐200/TN‐200T1.

DLNACertified
DLNAtechnologyseamlesslybringsyourHDmoviesandmusictoyourSmartTVs,media
players,andgameconsoles.UseaDLNAapponyourtabletorsmartphonetostream
moviesandmusic.TheTN‐200/TN‐200T1supportsimultaneousHDstreamsto
differentdevices.
RemoteAccess
SafelysharecontentovertheinternetusingtheFTPserverorcreateloginprofileswith
restrictedremoteaccess.SupportedDynamicDNSserviceprovidersinclude
dyndns.com,freedns.afraid.org,zoneedit.com,andno‐ip.com.
AdvancedManagement
Quicklycreaterestricteduseraccessprofiles.SetyourharddrivestoJBOD(combines
drivestoappearasonelargeharddrive),RAID0(increasesdriveperformance),orRAID1
(zero‐lossarchitecturemirrorsalldatafromdrive1todrive2).PerformaS.M.A.R.T.test
(Self‐Monitoring,Analysis,andReportingTechnology)toverifyharddriveperformance
andhealthattributes.TheScanDiskfeaturescansfordataerrors.SetupSMS
notificationswhendownloadsarecompleteorkeysettingsarechanged.
BackupCenter
TheBackupCenterprovideseasylocal,remote,andcloudbackupoptionstosafeguard
yourvaluablecontent.ProgrambackuptoalocalNASdevice,usingAppleTime
Machine,ortoaconnectedUSBstoragedevice.SetupremotebackuptoaremoteNAS,
remoteserver,ortheAmazoncloudservice.

  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTN‐200/TN‐200T1
3
DownloadCenter
Programscheduleddownloadsfromawebsite,BitTorrent,anFTPsite,orpeertopeer.
MonitordownloadsinrealtimeandsetupSMSdownloadalerts.
EnergySavings
Programthedevicetohibernatewhenidle.Createaweeklyscheduletoautomatically
turnofftheTN‐200/TN‐200T1forspecifictimessuchaswhenatworkorasleep.

Sharedocuments,videosandmoreatGigabitspeeds
2SerialATAI/II3.5”harddrives(upto4TBeach)ofyourchoice(HDnot
included)
1x1TBSATAharddriveincluded(TN‐200T1only)
QuicklyexpandyourstorageordownloadmediawiththeexternalUSBport
ManageyourdatafromanyInternetconnection
Controlcontentanduseraccesswiththefeaturerichmanagementinterface
ScheduledatabackupsviaFTPandHTTPserverswithoutturningonyourPC
EnsurecompletemirroredbackupwithRAID1andimproveperformancewith
RAID0technology
UseJBODmanagementfeaturestomaketwoharddrivesactasone
ProvidesUSBone‐clickbackup,tocopyUSBcontentstoHDjustbypressinga
button
Supportsfile‐levelbackup,speedupthefiletransferbytransferringonlythe
differencebetweenremoteandlocalfiles
SupportsDigitalmediaservercompatiblewithDLNAcertifieddigitalmedia
players,iTunesserver
Managequotasforupto256useraccountsand32groups
Manageusersingroupswithuserquotaandgroupquotalimitations
Powermanagementfeatureconservesenergyandturnsoffharddrivesnotin
use
Receivenotificationviaemailforcriticalerrorsandfullharddrives
MacusersfriendlywithAFP,TimeMachineandSafarisupport
IntuitiveinstallationwithPlugandPlaysupport
SmartFANsupport
2‐yearlimitedwarranty
ProductHardwareFeatures

FrontView




PowerButton–PressthisbuttontopowerontheNAS.
HDDLEDs–Blinkswhentheharddrivesareactive








PowerButton
USBSyncButton
HDDLEDs

  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTN‐200/TN‐200T1
4
IndicatorLightDescriptionDescription
PowerLEDGreenSolidLightPowerison,deviceisready.
BlinkingGreenBooting/Restarting
LightOffDeviceisinhibernation
USBSyncLEDGreenSolidLightUSBStorageconnected
Blinking
T
ransferdatabypressingUSBSync
Button/USBdeviceisbeinginstalled
/
Deviceisbeingun‐mounted
LightoffUSBStorageun‐mounted,not
connected,orpowerisoff
RedSolidLightUSBstorageisinstalledbutfailedto
mount
HDD1LEDGreenSolidLightHDDisactive
BlinkingHDDisreading/writing
LightoffPowerisoff,ornoharddrive
inserted
RedSolidOrangeHarddriveisinstalledbutfailed
HDD2LEDGreenSolidLightHDDisactive
BlinkingHDDisreading/writing
LightoffPowerisoff,ornoharddrive
inserted
RedSolidOrangeHarddriveisinstalledbutfailed

USBSyncButton–copydatafromaUSBFlashdrivetotheNAS.





RearView


 



PowerConnector–Pluginthepowercord
EthernetPort–ConnecttheEthernetcabletothisport
USBPort–PluginaUSBflashdrivetoimport/exportfilesontheUSBflashdrive.
Power
Connector
USBPort
EthernetPort

  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTN‐200/TN‐200T1
5
ApplicationDiagram















InstallingHardDrive(s)

1. Slideandholdthelockandpushthetopcovertowardsthebacktoopenthe
topcover.

2. InsertSATAharddrive(s)andmakesuretheharddriveisfirmlyplacedintothe
SATAslots.
 


  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTN‐200/TN‐200T1
6

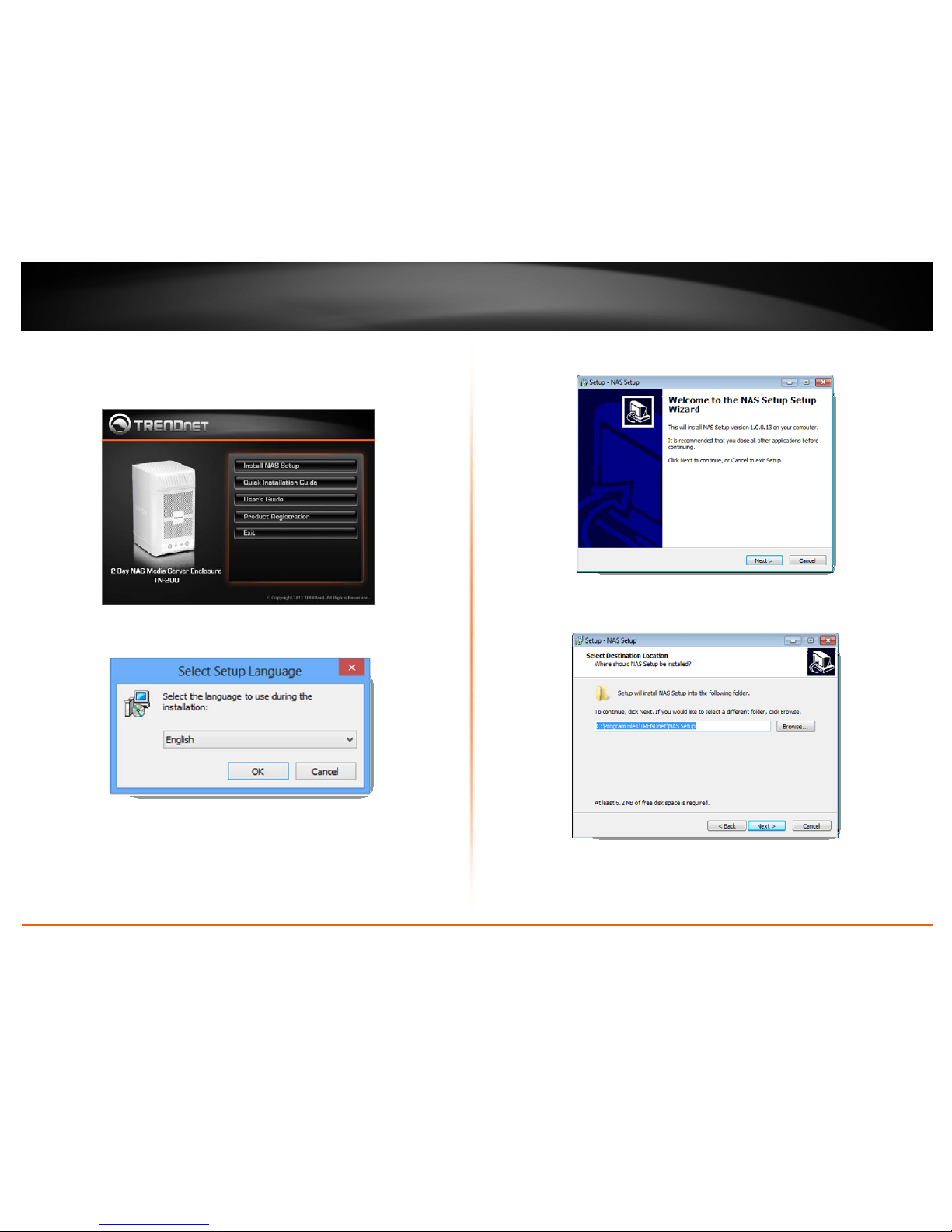

InstallNASSetupUtility

1. InserttheCD‐ROMandclickInstallNASSetup.


2. Selectyourpreferredlanguagefromthedrop‐downlist






3. TheNASSetupWizardwindowwillnowappear.ClickNexttocontinue.

4. ClickNexttostorethefilesandproceed




  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTN‐200/TN‐200T1
7
5. SelecttheStartMenufolderlocation.

6. ClickInstalltoinstalltheutility



7. ClickFinishtocompletetheinstallation.

8. TheNASSetupiconwillnowappearonyourDesktop.










  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTN‐200/TN‐200T1
8

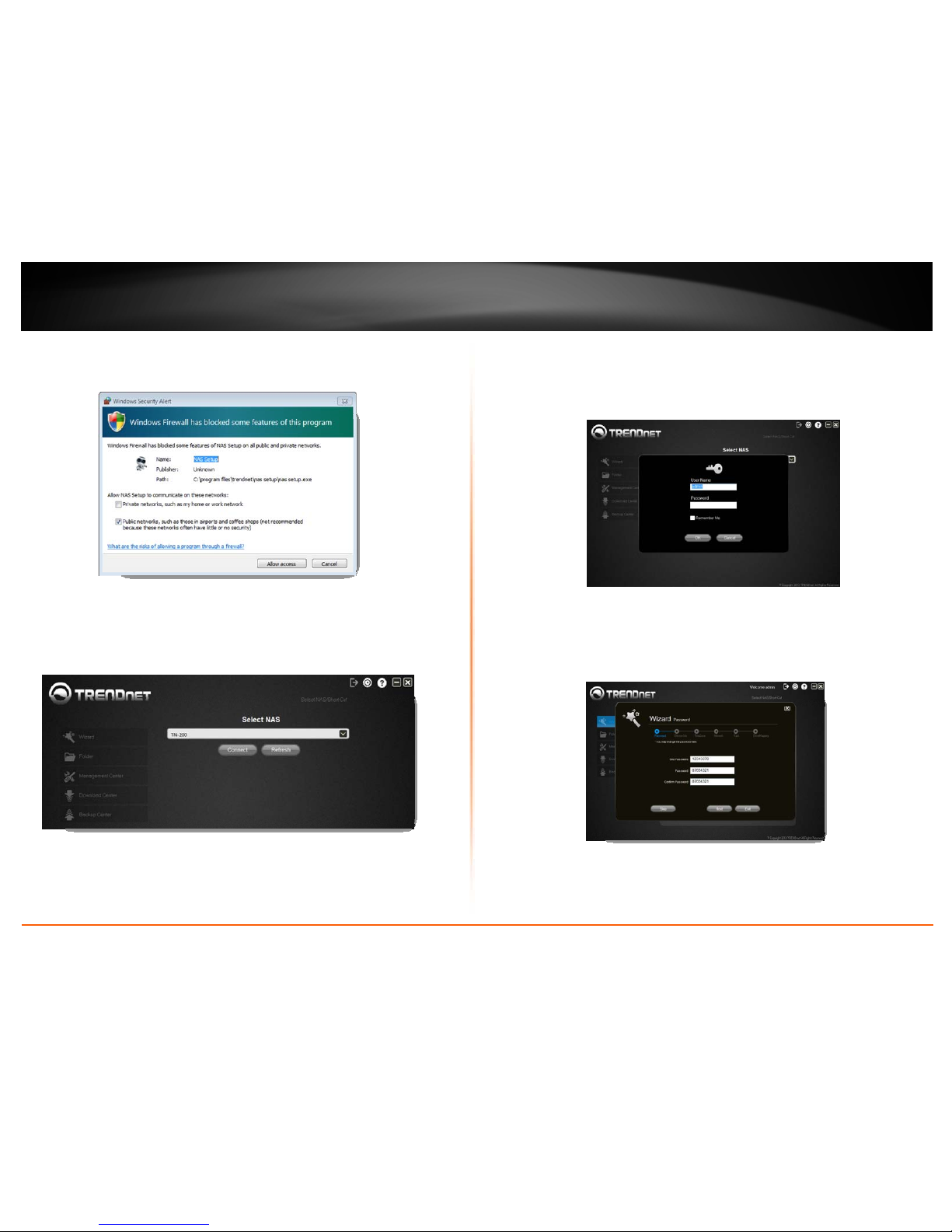

9. WindowsFirewallmightpromptapermissionrequesttoaccesstheNASSetup
utility.


ClickRefreshtodetecttheTRENDnetTN‐200/TN‐200T1.OncetheNASisdetected,the
mainwindowwillappearonthescreen.



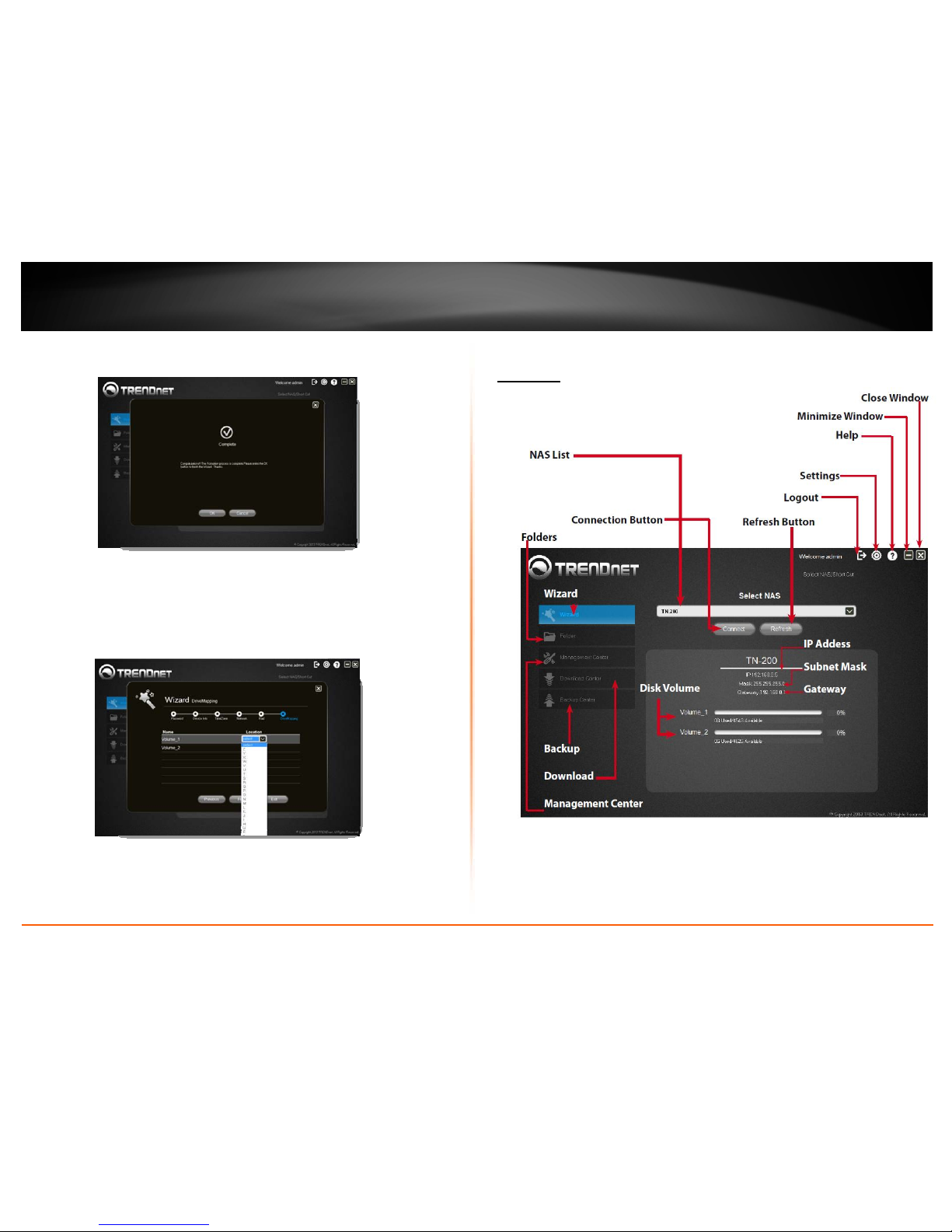

ConfiguringwiththeNASSetupUtility
1. TheloginscreenwillpromptyoutoenteraUserNameandPassword.Clickthe
RememberMecheckboxforthesoftwaretorememberyourdetails.The
defaultUserNameandPasswordisadmin/admin.


2. Forfirst‐timesetup,it’srecommendedthatyoutogothroughtheWizardto
configureallofthebasicsettingsfortheTN‐200/TN‐200T1.Updatethe
passwordwhenprompted.Passwordlengthmustbe8‐16characters;special
characterssuchas@,:,/,\,%,$,andspacekeysarenotvalid.



  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTN‐200/TN‐200T1
9
3. TheWizardautomaticallygeneratesaWorkgroupname,aName,anda
Description.Youcaneditthesefieldsaccordingly.ClickSkiptomoveontothe
nextstep.

4. SelectaTimeZonefromthedrop‐downlist.ClickNexttocontinue.


5. SelecteitheraDHCPoraStaticNetwork.WithDHCP,yourrouter
automaticallygeneratesanIPaddressfortheTN‐200/TN‐200T1.WithStatic
IP,youmustentertheIPaddressdetails.

WhenselectingStaticIP,clicktheradiobutton.EntertheIPAddress,Subnet
Mask,GatewayIP,DNS1andDNS2.ClickNexttocontinue.




  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTN‐200/TN‐200T1
10
6. TheWizardallowsfourRAIDoptions,Stand‐Alone,JBOD,RAID0,andRAID1.

Stand‐Alone‐Createstwoseparatevolumesfromthetwoharddrives.
JBODRAID‐Makesthedisksappeartobeasinglestoragedisk
RAID0‐StripedRAIDimprovesperformanceandprovidesmorestoragebutwithout
faulttolerance.Twodrivesarerequiredforthisoption.
RAID1‐MirroredRAID,dataiswrittenidenticallyontwodrives.Twodrivesare
requiredforthisoption.

Ifyouhavedatastoredintheharddrive(s),it’srecommendedthatyoubackupyour
databeforeplacingtheharddrive(s)inTN‐200/TN‐200T1.

Stand‐Aloneisusedasanexampleintheuser’sguide.OnceyouselectStand‐Alone,a
warningmessagewillappeartowarnyouthatalldatawillbelostandthediskwillbe
reformatted.ClickOKtocontinue.

Note:Ifthereisdataonyourharddrive,pleasemakesurethedataisbackedupfirst
beforeproceeding.


7. Thesoftwarewillbeginformattingthedrives.




  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTN‐200/TN‐200T1
11
8. Theformattingprocessisnowcomplete.ClickOKtocontinue.

9. IntheDriveMappingsetupwindow,clickthe“select”fieldandchoosealetter
forthedrivefromthedrop‐downlist.TheVolumelabelispre‐configuredfor
you.DriveMappingenablestheusertoaccessdataasiftheNASwerealocal
drive.

ClickFinishtosavesettingsandexitthewizardorclickExittoexitthewizard
withoutsavingsettings.

Interface


NASList–displaysalistofNASdevicesfoundonthenetwork
ConnectButton–clicktoconnecttotheselectedNAS
RefreshButton–clicktorefreshtheNASList
IPAddress–showstheIPaddressoftheconnectedNAS

  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTN‐200/TN‐200T1
12
Subnet–showsthesubnetmaskoftheconnectedNAS
Gateway–showsthenetworkgatewayoftheconnectedNAS

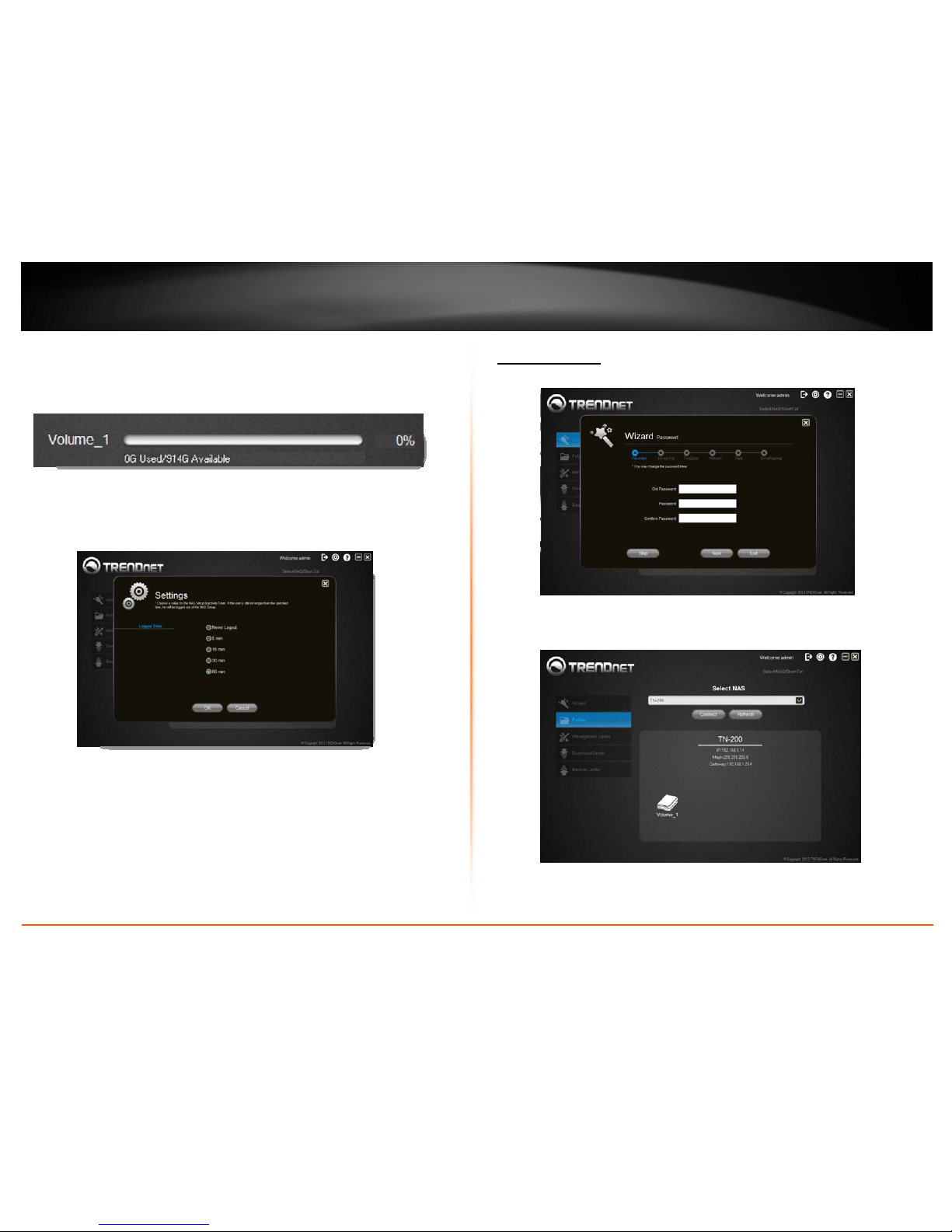

DiskVolume–showsthecapacityandusageoftheharddrive(s)

Logout–clickthisbuttontologoutofthecurrentNAS
Settings–clickthisbuttontosetlogoutintervals

Help–displaysthecurrentversionoftheNASSetuputility
Minimize–clicktominimizethewindow
Close–clicktoclosetheutility




PanelFeatures
1. Wizard–usethesetupwizardtoconfigureyourNAS


2. Folder–displaystheavailabledisksandcurrentvolume(s),double‐clickonone
oftheharddrivestoopenthefileexplorerforeasyfileaccess.




  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTN‐200/TN‐200T1
13
3. ManagementCenter(Webbrowser)–manageusers,harddrives,andsystem
andnetworkinformationhere
 

4. DownloadCenter(Webbrowser)‐allowsuserstodownloadfilesfromURLs,
FTPservers,andBitTorrent


5. BackupCenter(Webbrowser)‐allowsuserstobackupdatatolocal,remote,or
cloudbasedstorage


















  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTN‐200/TN‐200T1
14
ConfiguringwithaWebBrowser

Openawebbrowserandtypeinhttp://TN‐200ortheIPaddressoftheTN‐200/TN‐
200T1intheaddressfieldandpressEnter.

ThisopenstheTN‐200/TN‐200T1HomeScreeninthebrowser.

ClickLoginatthetopright‐handcorner.




TheMainScreen
TheMainScreenconsistsoffourtiles(ManagementCenter,FileCenter,BackupCenter,
andDownloadCenter)foryoutomanageyourNAS.Whenyouscrolloveratile,itturns
bluetoindicateyouhavehighlightedit.Clickonatiletomanageitscontents.

Sidebar
ThesidebarprovidesaccesstoHome,ManagementCenter,FileCenter,BackupCenter,
andtheDownloadCenter.Clickonanicontoaccessitscontents.


  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTN‐200/TN‐200T1
15
ManagementCenter

Wizard
Thebrowser‐basedManagementCenterfeaturesthesameconfigurationoptionsasthe
NASSetup.IfyouhavegonethroughthesetupprocesswiththeNASSetuputility,
pleaseskipthispart.AsfortheWizard,thereare5stepstoworkthroughtoconfigure
thesystem.Theintroductorywindowprovidestheprocess.ClicktheNextbuttonto
continue.

Step1–Tochangeyourpassword,entertheOldPassword;enteraNewPassword;and
re‐enterthesamePasswordtoconfirmthechange.ClickNexttocontinue.

Step2–TosettheDateandTime,selectaTimeZonefromthedrop‐downlist;selecta
datebyclickingtheCalendariconandsettingthedate;andclicktheSynctimefrommy
PCtosyncthetimewithyourcomputer.

Step3–TosettheLANConnectionType,selecttheDHCPorStaticClientoption.With
DHCP,therouterdesignatesanIPAddressfortheNAS.WithStaticIP,youmustsetanIP
Addressmanually.SelectyourpreferredoptionandclickNext.

DHCPSettings

  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTN‐200/TN‐200T1
16

StaticSettings

Step4–ToSetDeviceInformation,enteraWorkgroupname;aNameforthedevice;
andaDescription.ClickNexttocontinue.






Step5–Wizardsetupisnowcomplete.ClicktheFinishbutton.

User

TheUser(s)Windowisdividedinto5sections‐UserList,GroupList,ShareList,ISO
Mount,andQuota.

UserList
Youcancreate,modify,anddeleteauserunderthissection.

Tocreateauser,clickCreate;entertheUserName;Password;ConfirmPassword;
Group;Permissions;andQuotasettings.

Tomodifyauser,selecttheuserfromthelistandclickonModify.

Todeleteauser,selecttheuserfromthelistandclickonDelete.

  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTN‐200/TN‐200T1
17


Fromthedrop‐downlistselecttheGroupyouwantthisUsertobelongto.However,if
youhaven’tpreviouslysetupGroupsthisfieldwillbeblank.



UnderShare,selecttheVolumeyouwanttheaccounttofallunderandthenselect
“ReadOnly”,“Read/Write”,orDenyAccess”permissions.

ForQuota,enterhowmuchdata(inMB)youwishtoassigntheuser(s).Remember,if
theuserisapartofaGroup,theUseraccountsizecannotbebiggerthantheGroup
Quotasize.Enter0forunlimitedUseraccountsize.Userquotaswillonlybemanagedif
theQuotafeatureisenabledundertheQuotasection.

Permissionshasfivepermissionlevels.Eachusercanbeassignedadministrativerights
tothesepermissions.Theygiveaccessto:DownloadCenter,FileCenter,BackupCenter,
ManagementCenter,andSurveillanceCenter.ClickSavetocreatetheuseraccount.


  

©Copyright2013TRENDnet.AllRightsReserved.  


TRENDnetUser’sGuideTN‐200/TN‐200T1
18


ClicktheOKbuttonwhenfinished.

TheuserisaddedandsavedtotheUserList.

GroupList
Groupsareusedtoaddoneormoreuserstoanaggregation.TocreateaGroup,click
GroupListfromtheUserMainMenuandclickCreate.

CreatingaGroupListissimilartoaUserList.EnteraGroupNameinthefieldprovided.
SettheSharepermissions(Read,Read/Write).EntertheQuotaamountfortheaccount
(takeintoconsiderationthattheGroupsizemustbelargerthantheUsersize)and
selectwhichAuthoritypermissionsyouwanttheGrouptohaveaccessto.ClickSaveto
finishtheGroupAccountsetup.GroupquotaswillonlybemanagediftheQuotafeature
isenabledundertheQuotasection.

