1
Convertidor de fibra
Guía de instalación rápida
Contenidos del paquete
Requisitos mínimos
1. Antes de iniciar
Español
Un ambiente donde no haya generadores de campos electromagnéticos
fuertes (como motores), vibraciones, polvo o exposición directa a la luz solar.
Conmutador Ethernet a 10/100Mbps
Cables de fibra para conexiones multimodo o de modo sencillo
Cable CAT-5 RJ-45 para ethernet
Un chasis TFC-1600 (opcional) o una superficie firme y nivelada capaz
de sostener el peso del Convertidor de fibra.
Alimentación eléctrica de CA
(7,5 CC, 1,5 A)

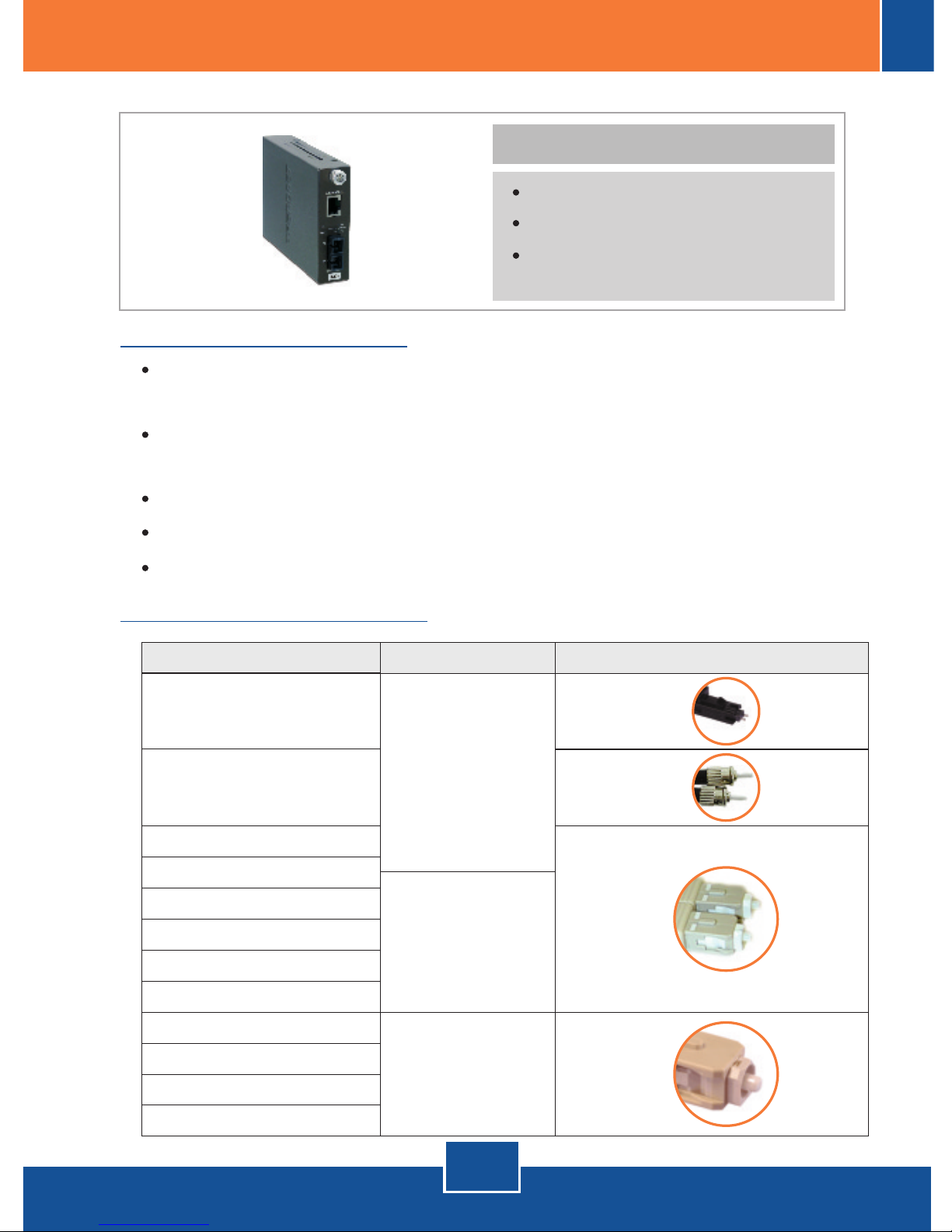

Detalles del producto
Model Name Multi/Single-Mode Fiber Connector
TFC-110MM
TFC-110MST
TFC-110MSC
TFC-15MS100
TFC-110S15
TFC-110S30
TFC-110S60
TFC-110S100
TFC-110S20D3
TFC-110S20D5
TFC-110S40D3
TFC-110S40D5
MT-RJ
ST
SC
SC
Multi-Mode
(Duplex)
Single-Mode
(Duplex)
Single-Mode
Bidirectional
(Simplex)

Español
2
2. Instalación del Hardware
1. Conecte el cable de fibra a los
convertidores. Para el
TFC-110MM/MST/MSC el cable
debe ser multimodo. El cable para
el TFC-110S15/S30/S60/S100/
S20D3/S20D5/S40D3/S40D5.
debe ser de modo sencillo
3. Conecte el adaptador de corriente
a la parte posterior del convertidor.
2. Conecte un cable de ethernet
RJ-45 desde el puerto ethernet de
los convertidores de fibra hasta un
puerto ethernet del conmutador
(como el E TEG-424WS).
Nota: Los cables TX y RX deben colocarse a la inversa en la conexión de fibra
del lado opuesto.
Nota: El TFC-110S20D3 debe quedar pareado con el TFC-110S20D5. El
TFC-110S40D3 debe estar apareado con el TFC-110S40D5.
Nota: El TFC-15MS100 convierte de fibra multimodo a fibra de modo sencillo,
puede conectarse a un conmutador dotado de conectores de fibra tipo SC
multimodo (como el TEG-S3000i con módulos de fibra) para extender la
distancia hasta 15 kilómetros con fibra en modo sencillo.
Instalación de 2 convertidores de fibra de forma
independiente

Español
3
La instalación ha sido completada

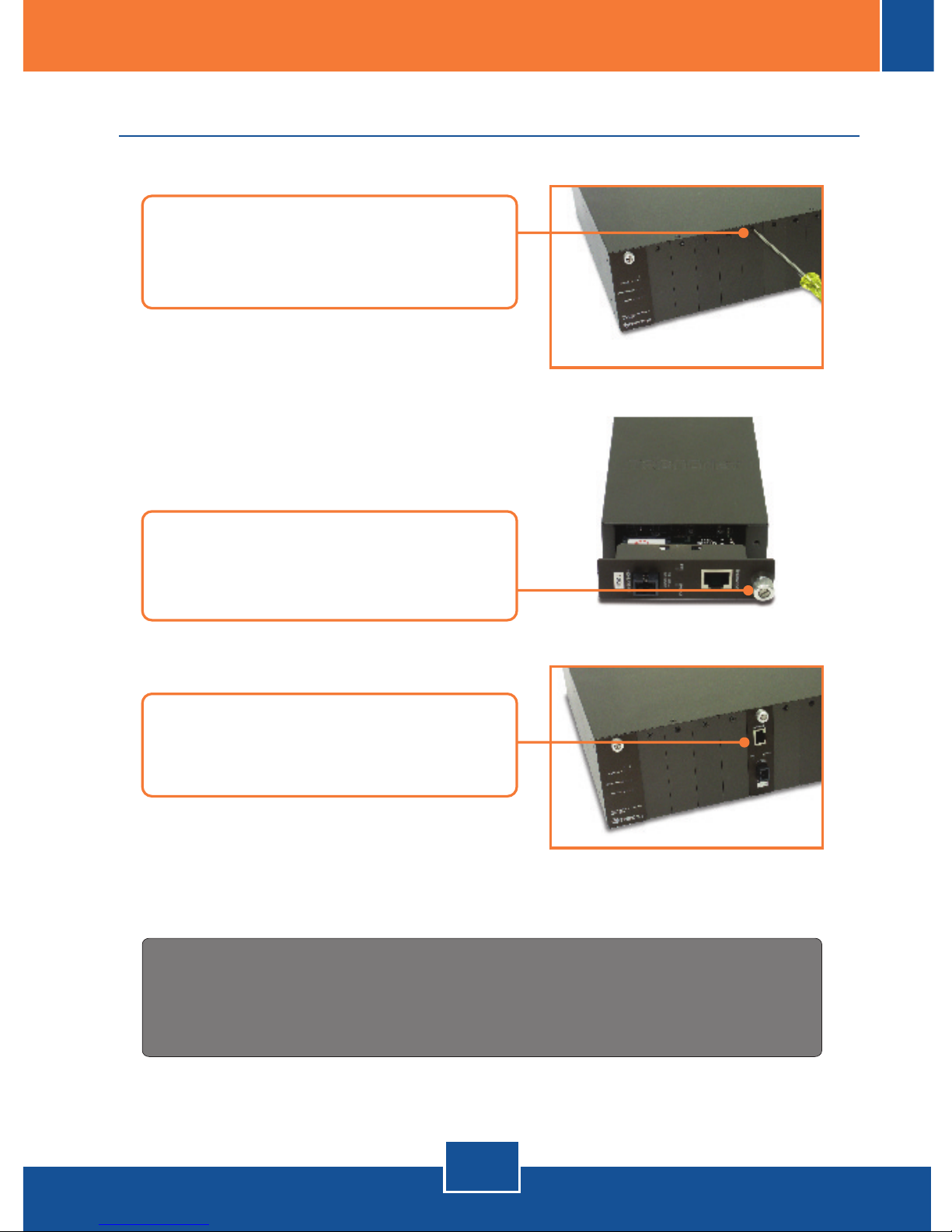

5. Afloje el tornillo de ajuste manual y
saque el convertidor de la caja de
metal.
4. Destornille la tapa del
compartimiento deseado del
chasis.
6. Inserte el convertidor de medios en
una ranura disponible y apriete el
tornillo de ajuste manual.
Instalación del convertidor de fibra sobre un chasis
Registre su producto
Para asegurar los más altos niveles de servicio y apoyo al cliente, registre su producto
en línea en: www.trendnet.com/register
Gracias por elegir TRENDnet

4
DIP Switches: TFC-110 series: Duplex (On/half-duplex, Off/full-duplex)
TFC-15MS100: None
Cable :
10BASE-T: 2-pair UTP Cat. 3,4,5
100BASE-TX: 2-pair UTP Cat. 5
100BASE-SX:
62.5/125um or 50/125um multi-mode fiber optic cable
100BASE-LX:
9/125um or 10/125um single-mode fiber optic cable
Applicable Standards: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX & 100BASE-FX
Fixed Ports: 1 TX port, 1 FX port
Speed: 10/20Mbps for half/full-duplex
100/200Mbps for half/full-duplex
148,800pps
Forwarding rate:
LED Indicators:
TFC-110 series
Per Unit: Power; Speed (100)
Per Port: FDX/COL, LINK/ACT
TFC-15MS100
Per Unit: Power
Per Port: Link/ACT
Weight: 305 g
Power: External power adaptor 7.5V 1.5A
7.2W Max.
10 ~ 90%, non-condensing
Power Consumption:
Operating: 0°C ~ 40°C (32°F ~ 104°F)
Storage: -25°C ~ 70°C (-13°F ~ 158°F)
Temperature:
Humidity:
FCC part 15 Class B, CISPR ClassB, VCCI Class B,
CE Mark
Certifications:
Dimensions: L120 × W88 × H25 mm
Specifications

5
Ordering Information
TFC-110MSC
TFC-110MST
TFC-110MM
TFC-110S15
TFC-110S30
TFC-110S60
TFC-110S100
TFC-110S20D3
TFC-110S20D5
TFC-110S40D3
TFC-110S40D5
TFC-15MS100
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
MMF 1300nm
(50 or 62.5 )
SC
µm µm
MMF
(50 or 62.5 )
SC
µm µm
MMF
(50 or 62.5 )
ST
µm µm
MMF
(50 or 62.5 )
MT-RJ
µm µm
SMF
(9 or 10 )
SC
µm µm
SMF
(9 or 10 )
SC
µm µm
SMF
(9 or 10 )
SC
µm µm
SMF
(9 or 10 )
SC
µm µm
SMF
(9 or 10 )
SC
µm µm
Bi-directional SMF
(9 or 10 )
SC
µm µm
Bi-directional SMF
(9 or 10 )
SC
µm µm
Bi-directional SMF
(9 or 10 )
SC
µm µm
Bi-directional SMF
(9 or 10 )
SC
µm µm
Media Converters
Model Number Speed
(Mbps)
Speed
(Mbps)
Cable/Connector Max.
Distance
Max.
Distance
Wavelength Cable(/125 µm )
/Connector
Port 1 Port 2
10/100
10/100
10/100
10/100
10/100
10/100
10/100
10/100
10/100
10/100
10/100
100
100
100
100
100
100
100
100
100
100
100
100
100
100m
100m
100m
100m
100m
100m
100m
100m
100m
100m
100m
2 km
1300nm
1300nm
1300nm
1300nm
1300nm
1300nm
1300nm
1300nm
TX: 1310nm
RX: 1550nm
TX: 1550nm
RX: 1310nm
TX: 1310nm
RX: 1550nm
TX: 1550nm
RX: 1310nm
2 km
2 km
2 km
15 km
30 km
60 km
100 km
20 km
20 km
40 km
40 km
15 km
Note: MMF (multi-mode fiber); SMR (single-mode fiber)

6
Troubleshooting
Q1:
A1:
Q2:
A2:
Q3:
A3:
After connecting the Fiber converter, the LEDs do not turn on. What should I
do?
First, check that the power outlet is receiving power. Second, make sure the
power adapter is firmly connected to the Fiber converter and the power outlet.
Third, make sure the Ethernet and the Fiber cables are connected.
All the LEDs are on, but I can't make a connection. What should I do?
First, verify that you are using the proper fiber cable (e.g. multi-mode fiber
cable for multi-mode converter; single-mode fiber cables for single-mode
converters). Second, verify that the TX and RX cables have been reverse on the
opposite Fiber connection. Third, power down the fiber converters and the
switches. Wait 15 seconds, then plug the switches and the fiber converters back
in.
What is the maximum distance that is supported by the fiber converter?
Please reference section 4 for distance information.
If you still encounter problems or have any questions regarding the Fiber Converters
please contact TRENDnet's Technical Support Department.

7
Limited Warranty
TRENDnet warrants its products against defects in material and workmanship, under
normal use and service, for the following lengths of time from the date of purchase.
If a product does not operate as warranted above during the applicable warranty period,
TRENDnet shall, at its option and expense, repair the defective product or deliver to
customer an equivalent product to replace the defective item. All products that are
replaced will become the property of TRENDnet. Replacement products may be new or
reconditioned.
TRENDnet shall not be responsible for any software, firmware, information, or memory
data of customer contained in, stored on, or integrated with any products returned to
TRENDnet pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to
service the product through any unauthorized service center. This warranty is voided if
(i) the product has been modified or repaired by any unauthorized service center, (ii) the
product was subject to accident, abuse, or improper use (iii) the product was subject to
conditions more severe than those specified in the manual.
Warranty service may be obtained by contacting TRENDnet office within the applicable
warranty period for a Return Material Authorization (RMA) number, accompanied by a
copy of the dated proof of the purchase. Products returned to TRENDnet must be pre-
authorized by TRENDnet with RMA number marked on the outside of the package, and
sent prepaid, insured and packaged appropriately for safe shipment.
5 Year Limited Warranty
Fiber Converters

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE
AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT
TRENDNET’S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING
WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER
WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF
LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET
NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT
ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES
NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S
MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED
ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE
RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER
HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET
ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER
BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,
CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND,
OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN
CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,
PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH
DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND
OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF
LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED
HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of
California.
Note: AC/DC Power Adapter, Cooling Fan, Cables and Power Supply carry 1-Year
Warranty
8

Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may
cause undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
Waste electrical and electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with you Local
Authority or Retailer for recycling advice.
ADVERTENCIA
En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de
alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al
mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador
de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria
existente en el pais o zona de instalación.

Copyright ©2009. All Rights Reserved. TRENDnet.
Product Warranty Registration
Please take a moment to register your product online.
Go to TRENDnet’s website at http://www.trendnet.com/register
20675 Manhattan Place
Torrance, CA 90501
USA
