TRENDnet TV-NVR104 User manual

Ÿ4-Channel 1080p HD PoE NVR
TV-NVR104
ŸQuick Installation Guide (1)
TV-NVR104 (V1)/06.16.2015

1. Before You Start
1
Minimum Requirements
ŸDisplay with VGA or HDMI connection
ŸSATA I/II HDD or SSD up to 4TB
ŸNetwork camera
ŸPhillips screwdriver
ŸComputer with CD-ROM drive and wired network port (for manual configuration)
Compatible Hardware
Compatible Camera List
Note: Visit http://www.trendnet.com/info/TV-NVR104 for the most current camera compatibility list.
Package Contents
ŸTV-NVR104 (Hard drive sold separately)
Ÿ1 x 6 ft. Network cable
ŸOptical mouse
ŸCD-ROM (User's Guide)
ŸQuick Installation Guide
ŸPower adapter (48V DC, 1A)
TV-IP310PI
TV-IP311PI
TV-IP320PI
TV-IP321PI
TV-IP342PI
TV-IP343PI
TV-IP430PI
TV-IP450P
TV-IP662PI
Outdoor 3MP Full HD PoE Day/Night Network Camera
Outdoor 3MP Full HD PoE Dome Day/Night Network Camera
Outdoor 1.3 MP HD PoE IR Network Camera
Outdoor 1.3 MP HD PoE Dome IR Network Camera
Outdoor 2MP Full HD Vari-Focal PoE Day/Night Dome Network Camera
Outdoor 2MP Full HD Vari-Focal PoE Day/Night Network Camera
Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera
Megapixel HD PoE Day/Night PTZ Network Camera
TV-IP320PI2K Outdoor 1.3 MP HD PoE IR Network Camera Twin Pack
TV-IP450PI Outdoor 1.3 MP HD PoE IR Speed Dome Network Camera
TV-IP322WI Outdoor 1.3 MP HD WiFi IR Network Camera
TV-IP312PI Outdoor 3MP Full HD 1080p PoE IR Network Camera
Outdoor 2MP Full HD 1080p PoE+ IR Mini Speed Dome Network Camera
For the best performance and interoperability, the following camera models are suggested:

2
Compatible Hard Drive
The TV-NVR104 is compatible with 3.5” SATA I or SATA II hard drives. To ensure uninterrupted 24/7 recording, it is recommended that you
select a drive rated for video or surveillance applications.
1.1 Camera Configuration
Plug and Play IP Cameras
For Plug and Play IP Cameras, no configuration is required. Go to Section 2, Hard Drive Installation.
TV-IP310PI
TV-IP311PI
TV-IP320PI
TV-IP321PI
TV-IP430PI
TV-IP450P
Outdoor 3MP Full HD PoE Day/Night Network Camera
Outdoor 3MP Full HD PoE Dome Day/Night Network Camera
Outdoor 1.3 MP HD PoE IR Network Camera
Outdoor 1.3 MP HD PoE Dome IR Network Camera
Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera
TV-IP320PI2K Outdoor 1.3 MP HD PoE IR Network Camera Twin Pack
TV-IP450PI Outdoor 1.3 MP HD PoE IR Speed Dome Network Camera
TV-IP322WI Outdoor 1.3 MP HD WiFi IR Network Camera
Model Description
TV-IP312PI Outdoor 3MP Full HD 1080p PoE IR Network Camera
Outdoor 2 MP Full HD 1080p PoE+ IR Mini Speed Dome Network Camera
To remote viewing the live video
on your mobile device, please
go to the app store to search
and install the TRENDnet
IPView. Alternatively, scan the
QR code to download and install
the free TRENDnet IPView app.
Mobile App
Apple Android

3
1.2 Camera Requiring Manual Configuration
TV-IP342PI
TV-IP343PI
TV-IP662PI
Outdoor 2MP Full HD Vari-Focal PoE Day/Night Dome Network Camera
Outdoor 2MP Full HD Vari-Focal PoE Day/Night Network Camera
Megapixel HD PoE Day/Night PTZ Network Camera
Model Description
For manual configuration, follow the steps below. We recommend that you configure your camera using the CD-ROM that was included
with your camera. If you are unable to do so, skip to the Manual Camera Configuration without CD-ROM (Installation Wizard) section
below.
1. For manual installation, set your computer's IP address to a static address. Use the IP address 192.168.10.10/255.255.255.0 and leave
the default gateway and DNS settings blank.
2. Connect a network cable from your computer to a LAN port on your TV-NVR104.
3. Connect the power adaptor to the TV-NVR104 and plug the adaptor into an electrical outlet.
4. Connect your camera to the TV-NVR104 and wait 30 seconds for the camera to power on.
5. Insert the CD-ROM that was included with your camera into your computer.
6. Select your language from the dropdown menu.
7. Select Install Camera.
8. Write down the MAC ID of the camera from the white label on the camera, then click Next.

4
9. Select your camera from the list, then click Next.
10. Select Fixed IP and click Next.
12. Click Next.
11. Enter the IP Address for the Camera. The IP default range for the NVR unit is: 192.168.10.XX
We recommended that you assign IP values that match the default range of the TV-NVR104 (192.168.10.1 – 192.168.10.254). Except
the default IP of TV-NVR104 (192.168.10.60)
Example: Camera 1: 192.168.10.50
Camera 2: 192.168.10.51
Camera 3: 192.168.10.52

5
13. Enter the Admin password. The default password is admin. If this is your first time logging in, you will need to change the password of
the camera. The new password must be between 8 and 32 characters (alphanumeric: a-z, A-Z, 0-9, !, @, #, $). Confirm the new
password and click Next.
Manual Camera Configuration without CD-ROM (Installation Wizard)
Example: Camera 1: 192.168.10.50
Camera 2: 192.168.10.51
Camera 3: 192.168.10.52
14. Camera configuration is now complete. Click Next.
15. Your camera is now ready for manual installation with the TV-NVR104. Click Finish to close the program.
1. Set your computer's IP address to a static address. Use the IP address 192.168.10.10/255.255.255.0 and leave the default gateway and
DNS settings blank.
2. Connect a network cable from your computer to a LAN port on your TV-NVR104.
3. Connect the power adaptor to the TV-NVR104 and plug the adaptor into an electrical outlet.
4. Connect your first camera (one at a time only) to the TV-NVR104 and wait 30 seconds for the camera to boot up.
5. Open a web browser, and type 192.168.10.30 into the address bar. This is the default IP address of the camera.
6. Log in to your camera. If your camera is new, or if the camera has been reset, the default login credentials are:
Username: admin
Password: admin
7. Change the IP address of the camera so that the default address (192.168.10.30) is not used.
8. Disconnect the camera, and repeat steps 1 through 3 for each camera that will be used. It is recommended that the IP addresses
assigned to each camera follow in sequential order, although this is not required.

6
2. Hardware Drive Installation (Sold Separately)
Note:
ŸStatic electricity can damage the TV-NVR104. Before handling the unit, discharge any static electricity by touching a metal object, or use
an anti-static wrist strap.
ŸThe TV-NVR104 supports 3.5” SATA I and II drives up to 4TB.
1. Remove the four retaining screws from the bottom panel of the TV-NVR104.
2. The top cover is slotted vertically. From the back of the unit, gently slide the cover up to separate it from the lower panel.
3. Attach the SATA cable to the hard drive (sold separately) and control board. SATA connectors are keyed to prevent improper installation.

7
5. Reattach the top cover to the unit. Make sure the lower panel lines up with the slots on the cover.
4. Mount the hard drive to the TV-NVR104's drive bay using the mounting screws included with your hard drive.

8
3. System Installation
Optional
network
connection*
(Sold separately)
(Sold separately)
(Included
mouse)
USB Flash drive
(sold separately)
(Not included)
(Sold separately)
(Not included)
(Sold separately)
(Not included)
(Not included)
Note: The following installation steps support a stand-alone setup WITHOUT a wired connection to a network. To set up the NVR using a
wired network connection (for remote access to NVR), proceed to the User's Guide for the appropriate setup steps (do not continue with
this section).
(Sold separately)
(Not included)

9
3.1 Camera Installation (Sold Separately)
1. Connect the IP camera to a PoE network port on the TV-NVR104. The use of non-PoE cameras is supported by the TV-NVR104 but the
camera will require an external power supply.
2. If you are using camera model TV-IP450P or TV-IP450PI, a PoE injector is required (one included with the camera). Camera model
TV-IP430PI also requires a PoE+ injector (sold separately). For all other models, no additional steps are required, please continue with
the camera configuration.
PoE network port
PoE cameras
(Sold separately)

10
3.2 Connect the Monitor
3.3 Connect the Mouse
Plug the optical mouse into the TV-NVR104.
HDMI
1. Using an HDMI or VGA cable, connect the TV-NVR104 to your monitor.
(Sold separately)
VGA
(Sold separately)
HDMI
or
Display Display
HDMI calbe
(Not included)
VGA cable
(Not included)
HDMI

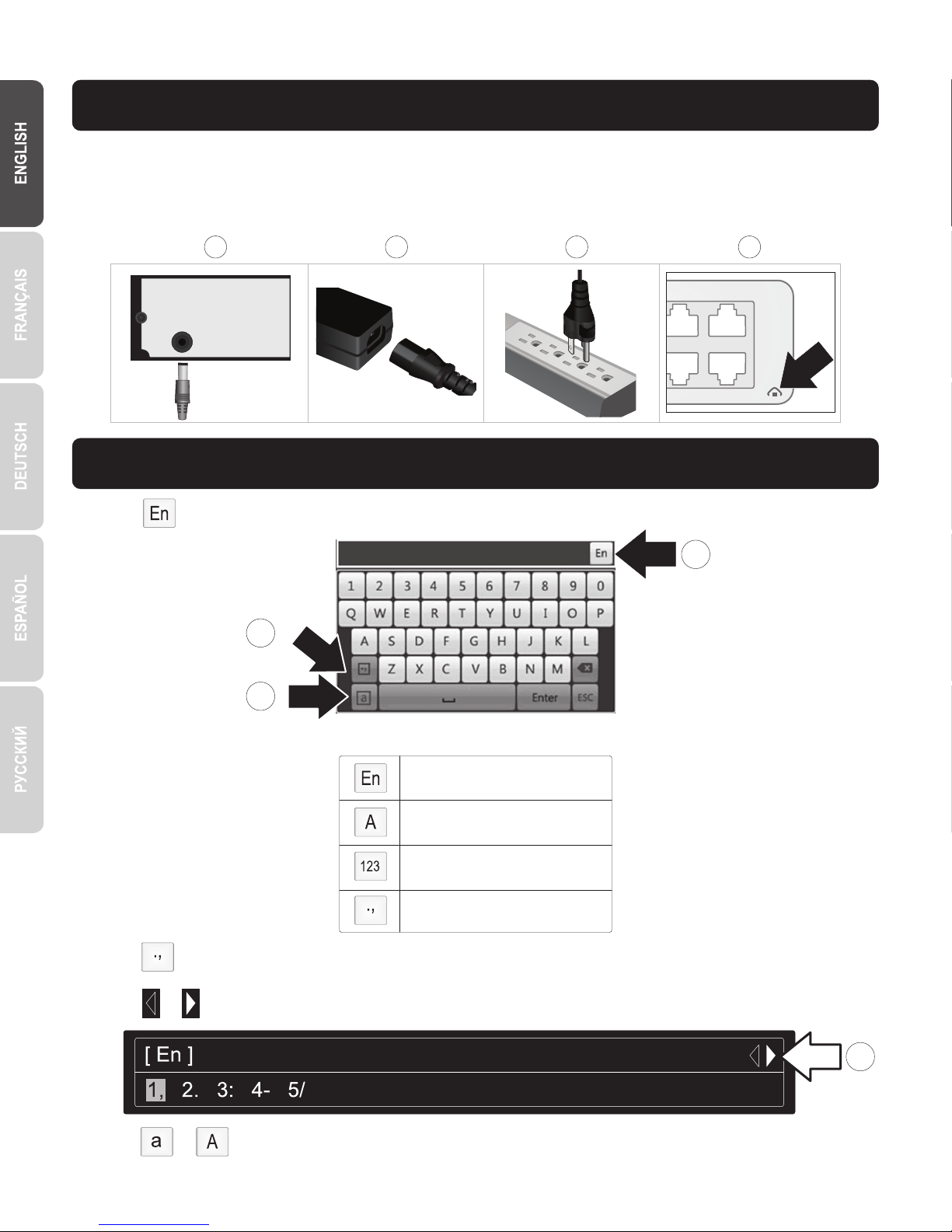

3.4 Connect the Power
11
List of Keyboard styles:
2. Click to enter special characters.
3. Click or to choose different symbols.
4. Click or to switch between uppercase and lowercase.
Lower case text
Upper case text
Numeric keyboard
Special characters
4. Soft Keyboard Instruction
1. Click to change the keyboard style.
2
4
1
3
1. TV-NVR104 Connect the power adapter to the power port.
2. Connect the power cable to the power adapter.
3. Plug the power cable into an electrical outlet.
4. (Optional) Connect a ground wire to the grounding point.
1 2 3 4

12
5. System Setup
1. The setup wizard will start after the TV-NVR104 is powered up. Click Next.
Start wizard when device starts?
Next Exit
2. Enter the default administrator password: admin.
3. Enter a new admin password.
4. Enter the new password again in the Confirm field.
5. Click Next.
1
6. Click the selection list to the right of Time Zone and select your time zone.
(GMT-08:00) Pacific Time (U.S. & Cananda)
(GMT-08:00) Pacific Time (U.S. & Canada)
(GMT-07:00) Mountain Time (U.S. & Canada)
(GMT-06:00) Central Time (U.S. & Canada)
(GMT-05:00) Eastern Time (U.S. & Canada)
(GMT-04:30) Caracas
(GMT-04:00) Atlantic Time (Canada)
(GMT-03:30) Newfoundland
(GMT-03:00) Georgetown, Brasilia
(GMT-02:00) Mid-Atlantic
(GMT-01:00) Cape Verde Islands, Azores
(GMT+00:00) Dublin, Edinburgh, London
Time Zone (GMT-08:00) Pacific Time (U.S. & Cananda)
Date Format MM-DD-YYYY
System Date 11-10-2014
System Time 16:41:08
ExitPrevious Next
6
Admin Password
New Admin Password
New Password
Confirm
Enter your new password must be between 8 and 15 characters
(Alphanumeric : a-z, A-Z, 0-9, I @, #, $).
ExitPrevious Next
5
3
4
2

13

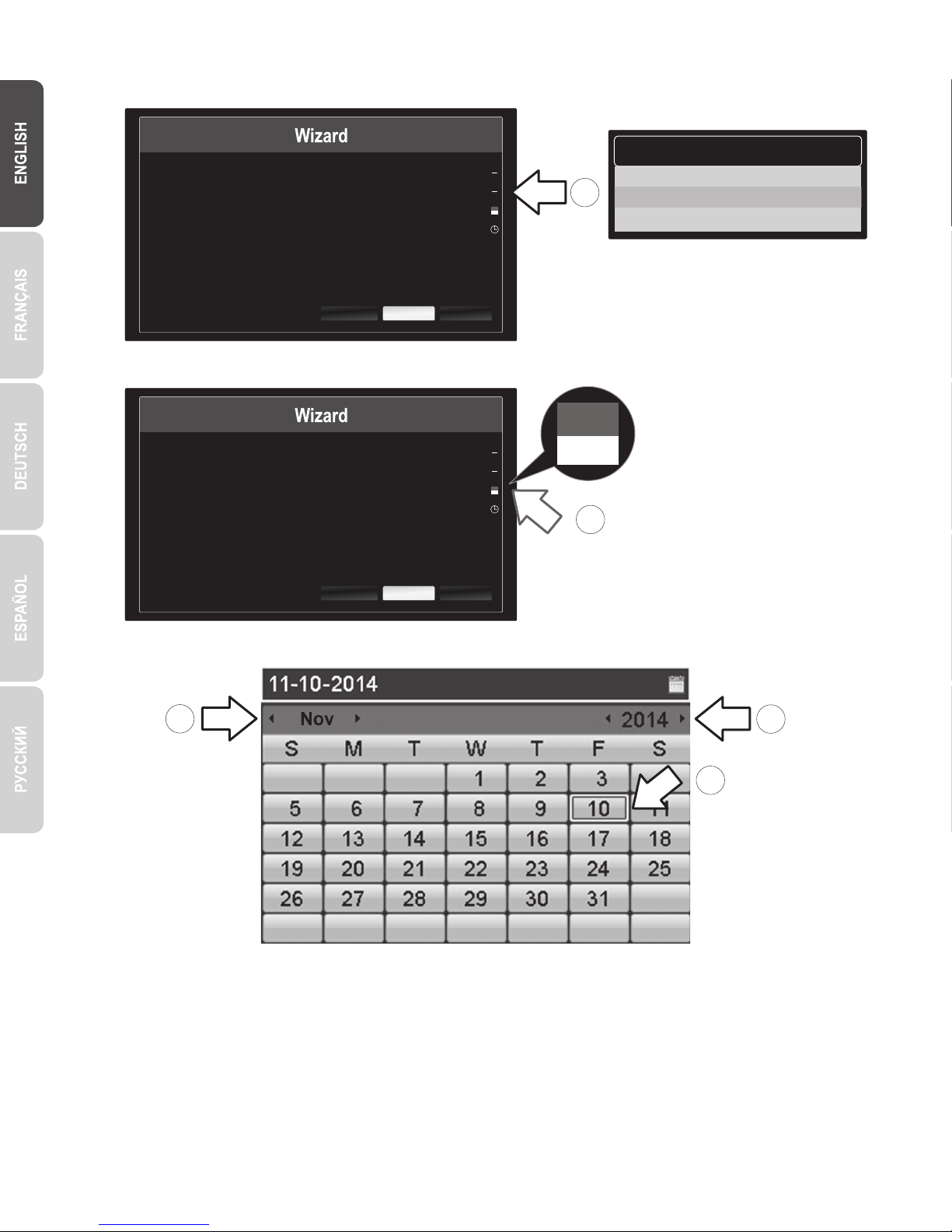

7. Click the selection list to the right of Date Format to choose a format.
8. Click the selection list to the right of System Date.
11
9
10
9. Select the month by clicking on left or right arrow.
11. Select the year by clicking on left or right arrow.
10. Select the day by clicking on the date.
Time Zone (GMT-08:00) Pacific Time (U.S. &
Cananda)
Date Format MM-DD-YYYY
System Date 11-10-2014
System Time 16:41:08
Next Exit Previous
7
Time Zone (GMT-08:00) Pacific Time (U.S. &
Cananda)
Date Format MM-DD-YYYY
System Date 11-10-2014
System Time 16:41:08
Next Exit Previous
8
MM-DD-YYYY
YYYY-MM-DD
MM-DD-YYYY
DD-MM-YYYY

14
12. Click the selection list to the right of System Time and then enter the time using a 24-hour format.
14.
a) Select your hard drive.
b) Click Init to initiate your hard drive.
c) When the initiation has completed, click OK to exit the wizard.
OK
a
b
c
13. Click Next.
Time Zone (GMT-08:00) Pacific Time (U.S. &
Cananda)
Date Format MM-DD-YYYY
System Date 11-10-2014
System Time 16:41:08
Next Exit Previous
Time Zone (GMT-08:00) Pacific Time (U.S. &
Cananda)
Date Format MM-DD-YYYY
System Date 11-10-2014
System Time 16:41:08
Next Exit Previous
13
12

15
6. Camera Setup
1. If your TRENDnet camera is Plug-and-Play compatible, as listed on the table below, live video will now be playing. No further setup is
required. Proceed to the next section.
Plug and Play Cameras
TV-IP310PI
TV-IP311PI
TV-IP320PI
TV-IP321PI
TV-IP430PI
TV-IP450P
Outdoor 3MP Full HD PoE Day/Night Network Camera
Outdoor 3MP Full HD PoE Dome Day/Night Network Camera
Outdoor 1.3 MP HD PoE IR Network Camera
Outdoor 1.3 MP HD PoE Dome IR Network Camera
Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera
TV-IP320PI2K Outdoor 1.3 MP HD PoE IR Network Camera Twin Pack
TV-IP450PI Outdoor 1.3 MP HD PoE IR Speed Dome Network Camera
TV-IP322WI Outdoor 1.3 MP HD WiFi IR Network Camera
TV-IP312PI Outdoor 3MP Full HD 1080p PoE IR Network Camera
Outdoor 2 MP Full HD 1080p PoE+ IR Mini Speed Dome Network Camera

16
2. If your Plug-and-Play camera is not showing live video, please confirm that the camera is properly installed, and give the system a few
minutes to complete initialization.
3. If your camera is not listed on the table, continue with the following steps to manually set up your camera.
4. Right-click the mouse to bring up the popup menu. Click on the Menu button.
5. Enter the TV-NVR104 password and click on OK to bring up the main menu.
Menu
6. Click the Camera Settings icon on the Main Menu.
OK

17
8. From the Edit IP Camera page, select the Adding Method menu, and click on Manual.
7. Click the Edit icon for your camera. If you are installing multiple cameras, please confirm you have selected the correct device.
9. Enter the camera's IP address.
192.168.10.50|
10. Find your TRENDnet camera from the table below, and note the unit's protocol and port information.
TV-IP342PI
TV-IP343PI
TV-IP662PI
Outdoor 2MP Full HD Vari-Focal PoE Day/Night Dome Network Camera
Outdoor 2MP Full HD Vari-Focal PoE Day/Night Network Camera
Megapixel HD PoE Day/Night PTZ Network Camera
ONVIF 80
ONVIF 80
TRENDnet1 80
Model DescriptionProtocol Default Port

18
11. Set the camera protocol according to the table in step 10.
TRENDnet1
12. Set the management port according to the table in step 10.
80
14. Enter the camera's username. For TRENDnet cameras, the username is admin.
admin
15. Enter the camera's password that was set up during the camera configuration.
16. Click OK to save your settings.
13. The NVR defaults to your camera's highest set video stream (Stream 1, listed as “Channel No.1”). To use a lower camera stream,
select it from the menu.

19
7. Start Recording
1. In Live View, right click anywhere on the screen to access the menu options.
4. Click Yes to confirm. (For more advanced video recording features, please see the User's Guide for more details.)
2. Click Start Recording and then choose between Continuous Record and Motion Detection Record.
3. Continuous Record is the recommended setting. Motion Detection Record mode requires advanced configuration from the main
menu before motion recording will be activated. To configure motion recording, please refer to the User's Guide.
1
