Copyright ©2004. All Rights Reserved. TRENDware International, Inc.
TRENDnet
TRENDware, USA
What's Next in Networking
Version 07.07.04
TEW-435BRM
54Mbps 802.11g ADSL Modem Router
Quick Installation Guide
Guide d'installation rapide du
Routeur Modem ADSL 54Mbps 802.11g
Anleitung zur Schnellinstallation des
54Mbps 802.11g ADSL Modem Router
Guía de Instalación Rápida
Enrutador Módem ADSL de 54Mbps 802.11g

Table of Contents
English ......................................................................................................
Troubleshooting ........................................................................................
1
1
3
4
9
16
11
1. Prepare for Installation ......................................................................
2. Install Hardware ................................................................................
3. Configure the computer's TCP/IP Settings ........................................
4. Wireless PC Configuration ................................................................
5. Configure the ADSL Modem Router ..................................................

Thank you for purchasing the TEW-435BRM. This Wireless ADSL Modem
Router will allow you to connect to and share your DSL broadband Internet
connection with 802.11g/802.11b wireless and wired computers.
This guide will help you setup and configure your router. Following the
installation instructions should be quick and easy. If you run into problems,
please refer to the Troubleshooting section or to the more detailed installation
procedures on the CD User’s Guide. If you need further technical support,
please visit www.TRENDNET.com or call by phone.
Verify Equipment
Before installing the Wireless ADSL Modem Router you should have:
1. A working DSL Internet connection.
2. A computer with wired or wireless network card installed.
3. An RJ45 Network Cable for each computer connected to the router.
4. TCP/IP protocol installed on each wired computer.
5. A Web Browser such as Internet Explorer (5.0 or higher) or Netscape
Navigator (4.7 or higher).
Verify Package Contents
Please make sure you have everything in the box:
1
TEW-435BRM
CD-ROM Quick Installation Guide
AC Power Adapter RJ-45 Ethernet (LAN) Cable RJ-11 (ADSL) Cable
English
1. Prepare for Installation
English QIG
TRENDnet
TRENDware, USA
What's Next in Networking
Version 07.07.04
TEW-435BRM
54Mbps 802.11g ADSL Modem Router
Quick Installation Guide
Guide d'installation rapide du
Routeur Modem ADSL 54Mbps 802.11g
Anleitung zur Schnellinstallation des
54Mbps 802.11g ADSL Modem Router
Guía de Instalación Rápida
Enrutador Módem ADSL de 54Mbps 802.11g

2
Collect Internet Service Provider (ISP) Information
During the installation of your Wireless ADSL Modem Router, the Setup Wizard
will automatically detect your ISP connection type. If the router cannot detect
your ISP connection type, you can manually specify the connection type.
Please verify your DSL Internet broadband connection type with your ISP and
ensure you have all the information for one of the following connection types:
A. Dynamic IP connection
ADSL Modem parameters (VPI or VCI), if it cannot be detected automatically.
ISP may require you to use a particular Hostname or Domain name.
B. Static or Fixed IP connection
Internet IP Address:_____. _____._____._____ (eg. 215.24.24.129)
Subnet Mask: _____. _____._____._____
Gateway IP Address: ____. _____._____._____
Primary DNS:_____. _____._____._____
Secondary:_____. _____._____._____
ADSL Modem Parameters (VPI or VCI), if it cannot be detected automatically.
C. PPPoE or PPPoA Dynamic IP connection
Login User Name: _________
Password: ________________
ADSL Modem Parameters (VPI or VCI), if it cannot be detected automatically.
D. IPoA Static or Fixed (IP over ATM) connection
Internet IP Address:_____. _____._____._____ (eg. 215.24.24.129)
Subnet Mask: _____. _____._____._____
Gateway IP Address: ____. _____._____._____
Primary DNS:_____. _____._____._____
Secondary:_____. _____._____._____.
ADSL Modem Parameters (VPI or VCI), if it cannot be detected automatically.
English

3
2. Install Hardware
321
TEW-435BRM
POWER
1. Connect a RJ-45 network cable from one of the Router’s LAN ports to your
computer’s network port.
2. Connect the ADSL Cable phone line from the WAN port on the TEW-
435BRM (the RJ11 phone connector) to the ADSL terminator.
3. Power on your ADSL Modem Router.
WLAN
POWER
WAN
LAN
Verify Hardware Installation
Make sure the following Router LEDs are on: Power, LAN, WLAN, WAN.
NOTE: Step 1. does not apply for wireless computer.
English

4
3. Configure the computer's TCP/IP Settings
Windows 95/98/98SE/ME
To verify that your computer can communicate with your ADSL Modem Router,
you need to configure the TCP/IP settings in your Operating System (OS).
Setup for Windows OS computers is shown below. If you are running any other
OS please see your system documentation for configuration information.
1. Find the Start Button located on the Desktop.
2. Click Start, click Settings, then click on Control Panel.
3. Double-Click the Network icon, and the Network Properties box will appear.
4. Under the General Configuration Tab, locate and select TCP/IP with the
corresponding network card (such as TRENDnet TE100-PCIWN
10/100Mbps Network Adapter), then click on the Properties button. The
TCP/IP window will appear.
NOTE: If you have a Fixed IP address connection, write down the
existing IP addresses from the following sections before you modify
them.
5. Under the IP Address Tab, click on Obtain an IP address automatically.
NOTE: Configure the Computer’s TCP/IP Settings apply for both wired
and wireless computers.
English

5
6. Now go to the Gateway tab and make sure no Gateways are listed in the
Installed Gateway's section. If there is Gateway installed, select it and click
Remove to remove it.
7. Now go to the DNS Configuration tab and click Disable DNS. Then click OK.
8. Click OK on the TCP/IP Properties box.
9. Click OK on the Network box to save the settings and close all properties
windows.
10. At this point, the installation may require files from your Windows CD-ROM.
If this is the case, insert your Windows 98 CD-ROM into your CD-ROM
drive and select CD-ROM drive to load the files.
English

6

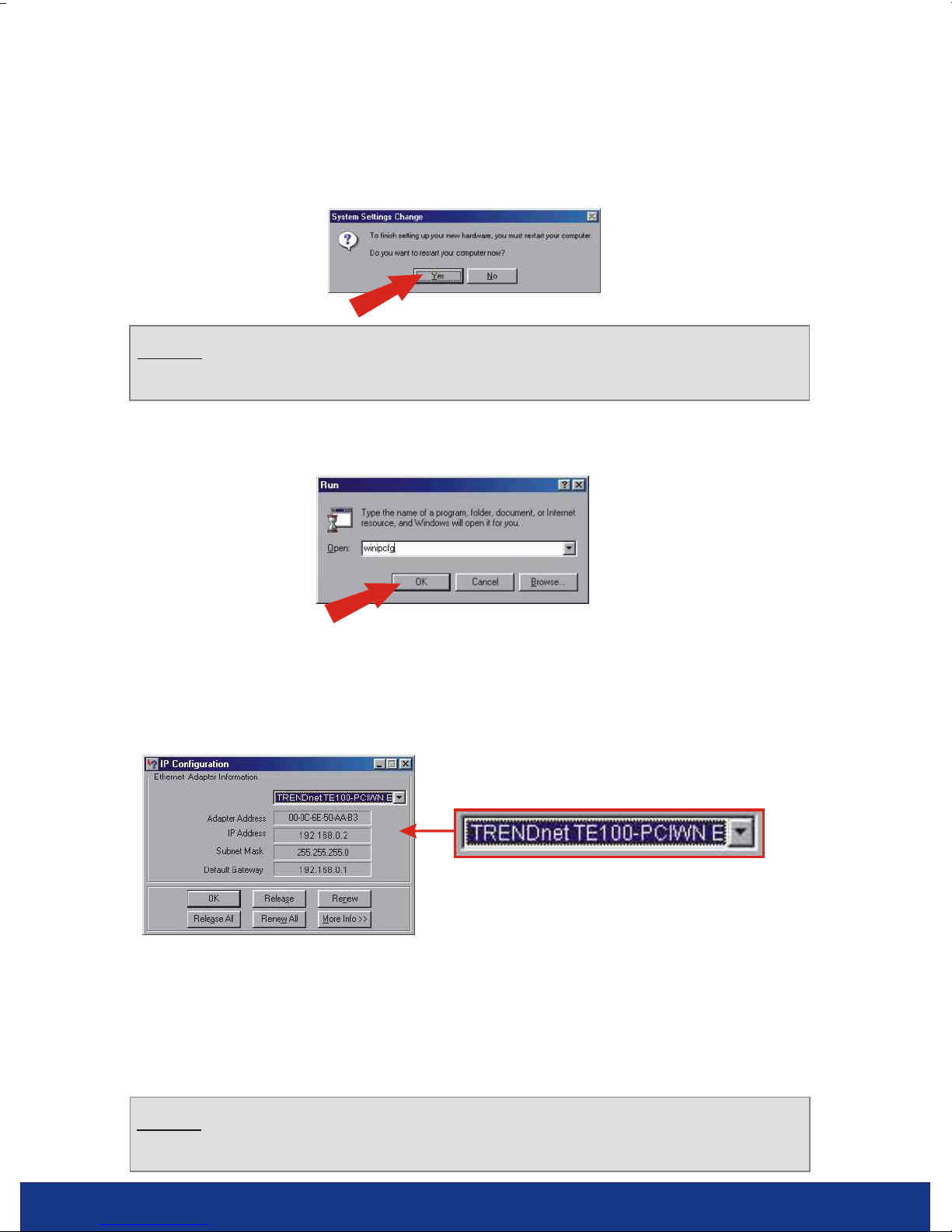

11. After the files load and the System Settings Change message appears,
click Yes to reboot your system. This will update your computer with the
new settings.
12. After your system reboots, click Start and click on Run. Then, type
winipcfg in the field and then click OK.
13. The IP configuration box will appear. Choose your Network adapter from
the dropdown box (such as TRENDnet TE100-PCIWN 10/100Mbps
network adapter) and your computer's current IP address information will
show in the box.
14. If your IP Configuration reads as follows, your computer is successfully
connected to the router:
IP Address: 192.168.0.x
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.0.1
NOTE: If the message does not appear, you need to manually restart
your computer.
NOTE: If your IP Configuration does not match the values above, please
reboot and try the steps again.
English

7
Windows 2000/XP
1. Click Start, click Settings, and click on Control Panel.
2. Double-Click the Network Connections icon.
3. Right-Click on the Local Area Connection icon, and then click on
Properties. The Local Area Connection Properties box will appear.
4. Under the General Configuration Tab, locate and select TCP/IP, then click
Properties. The Internet Protocol (TCP/IP) Properties box will appear.
6. Click OK.
7. Click Close on the Local Area Connection Properties box.
NOTE: If you have a Fixed IP address connection, write down the
existing IP addresses from the following sections before you modify
them.
5. Click on Obtain an IP address automatically and Obtain DNS Server
address automatically.
English

8

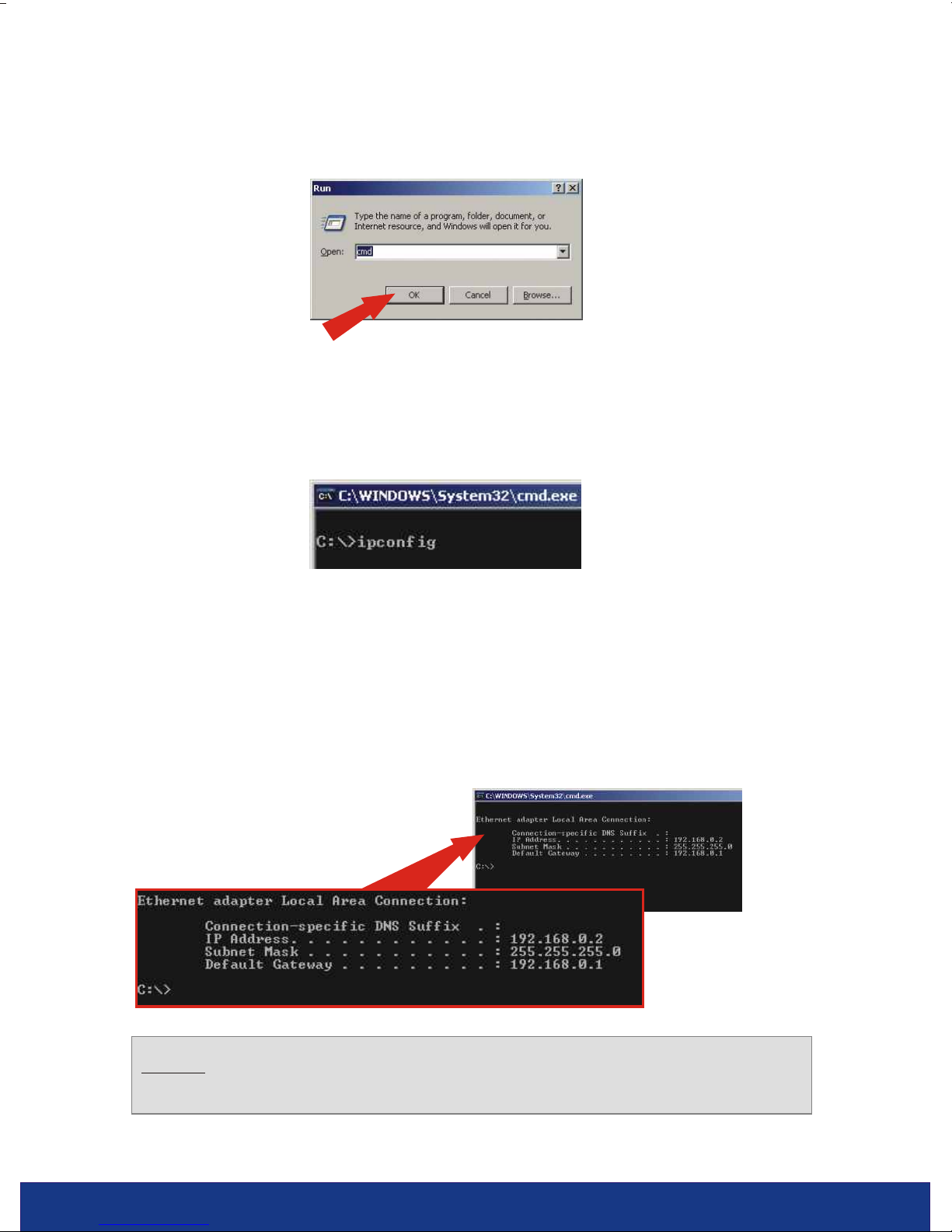

8. Click Start then click on Run. Type cmd and click OK.
9. The Command Prompt window will appear. Type ipconfig at the C:\ prompt
and Press the Enter key.
10. If your IP Configuration reads as follows, your computer is successfully
connected to the router:
IP Address: 192.168.0.x
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.0.1
NOTE: If your IP Configuration does not match the values above, please
reboot and try the steps again.
English

9
To connect your wireless computer to the Wireless ADSL Modem Router
regardless of the operating system, you need to configure your wireless
network card settings as follows:
• Wireless Network Mode : Infrastructure
• Wireless Network Identifier SSID or (ESSID): default
• Wireless Data Encryption WEP: disabled
1. Open the Wireless Utility Program and select the Configuration tab.
(Example uses TRENDnet’s TEW-421PC 802.11g Wireless PC Card).
2. Select Network Mode: Infrastructure and Network SSID: default. Click
Apply then click OK.
4. Wireless PC Configuration
English

10

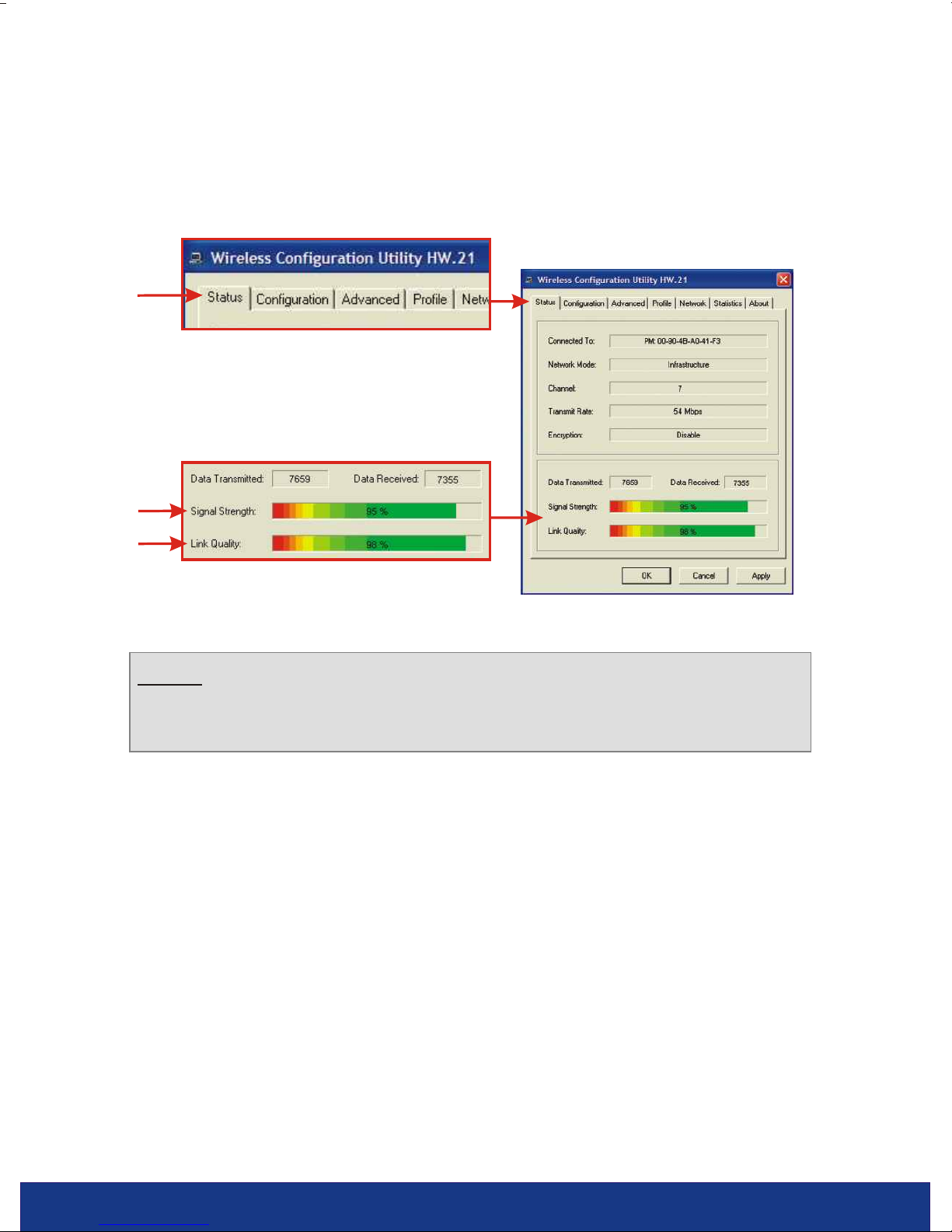

3. Select the Status tab. If you can see a percentage measurement of the
Signal Strength and Link Quality, you have successfully connected to the
wireless network . Click OK.
NOTE: If you need further help regarding the configuration of your
wireless network card on your computer, please refer to your wireless
network card User Manual.
Make sure you configure your wireless network card to obtain an IP address
automatically. For more information, refer to section Configure Computer
5. Configure the ADSL Modem Router
English

11

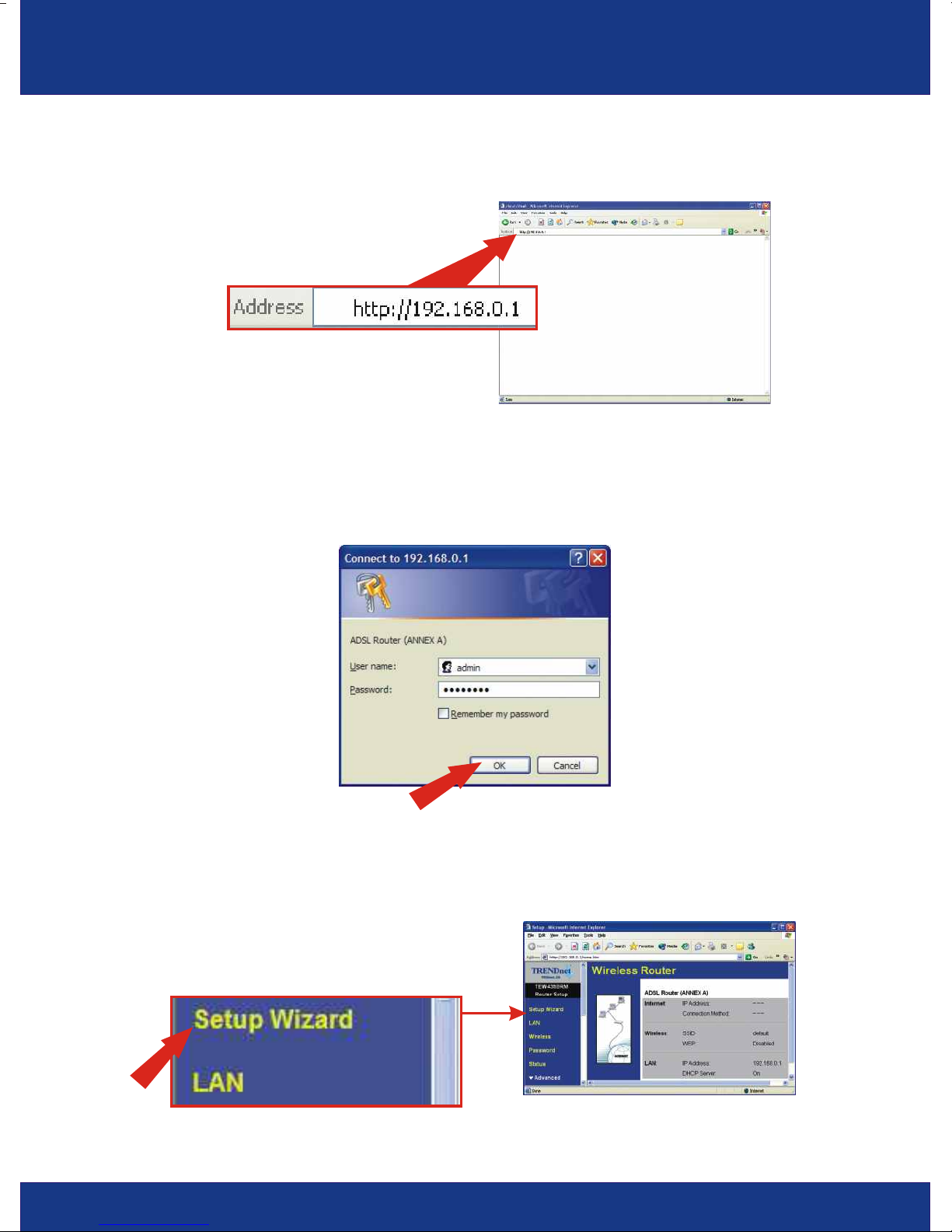

1. Open your web browser. Type http://192.168.0.1 in the Address bar and
press the Enter key.
5. Configure the ADSL Modem Router
2. A login pop-up window will appear; type "admin" for the username and
“password" for the password, then click OK to access the Setup Wizard.
3. Click Setup Wizard.
English

12
4. Click Next to configure your Wireless Router for Internet access.
NOTE: In the example, the DSL Connection is Dynamic IP.
5. Select Auto-detect option and click Next.
NOTE: If the Setup Wizard could not detect the Internet connection type
automatically, select the Manual Selection option and input the
information using the information provided by your ISP.
6. Wait for the Auto-Detection process to complete.
English

13

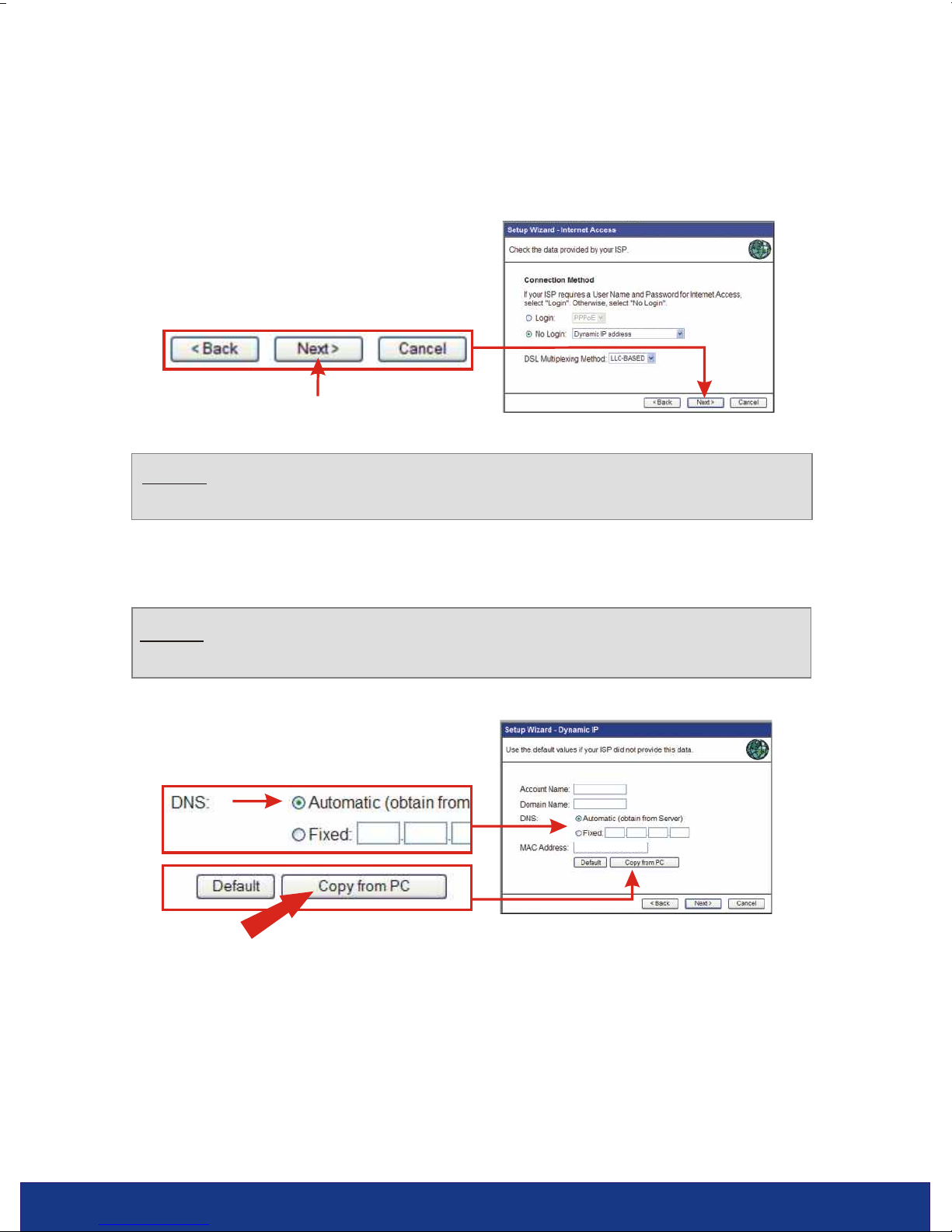

7. Click Next. In the example, the TEW-435BRM automatically detected the
connection type as Dynamic IP address.
NOTE: For other connection methods, follow the on-screen instructions
after Auto-Detection.
8. Select on DNS: Automatic, then Click Copy from PC.
NOTE: Copy the address of your PC into the hardware (MAC) address
field - only required if your ISP has recorded the PC’s hardware address.
English

14
10. Click Finish to test the Internet Connection.
11. Click Close to complete the ADSL Modem setup.
9. Click Next after obtaining the MAC address.
English

15
Verify TEW-435BRM installation. In this example, the Dynamic IP DSL
Connection has the following settings:
Congratulations! You have finished installing the TEW-435BRM Wireless ADSL
Modem Router. If you would like to enable WEP settings on the TEW-435BRM,
the wireless computer's WEP settings must be configured to match the TEW-
435BRM's WEP settings.
Enter http://www.TRENDNET.com into the address bar of your Web browser to
verify your connection to the Internet. If the website appears, your router is
configured properly. For advanced settings, refer to the TEW-435BRM User’s
Guide CD.
SSID: default
WEP: Disabled
Connection Method: DHCP
LAN DHCP Server: On
English

16
Technical Support Hours
7:00AM ~ 6:00PM, Monday through Friday
Pacific Standard Time (except holidays)
Contact Technical Support
Telephone: [phone]
Fax: [phone]
Website: www.TRENDNET.com
E-mail: [email protected]
6. Troubleshooting
Q1:
A1:
Q2:
A2:
Q3:
A3:
Q4:
A4:
The Wireless Router will not turn on. No LEDs light up
The power adapter might not be connected. Please connect the
power adapter to the power outlet and check the LEDs again. Please note
that using the wrong power adapter might physically damage the unit.
I am not sure what type of Internet broadband connection I have for
my DSL connection. How do I find out?
You can contact your Internet Service Provider (ISP)’s Customer
Service or Technical Support Department for the correct information.
I specified the IP address 192.168.0.1 in my Web browser, but an error
message says "The page cannot be displayed". How can I get into the
TEW-435BRM web configuration page?
Please check your hardware and TCP/IP settings again by following
the instructions in sections 1-3, make sure the Power, WAN, and on the
LAN LEDs are on. Then try to access the configuration page using your
Web Browser again.
I cannot see the wireless network with the SSID “default”. What can I
do?
First, check that your wireless network card settings match the ADSL
Modem Router’s default settings:
- wireless Network Mode: Infrastructure
- wirelesss Network Identifier SSID or (ESSID): default
- wireless Data Encryption WEP: disabled
Second, connect to the wireless network again with the above settings.
For help with the wireless router's advanced features refer to the User’s Guide
on the CD-ROM. If you still encounter problems setting up the router, we can
help. Please have your Internet account information ready (ISP, Account Type)
and contact us using the information indicated below.

Copyright ©2004. All Rights Reserved. TRENDware International, Inc.
TRENDnet
TRENDware, USA
What's Next in Networking
@
Product Warranty Registration
Please take a moment to register your product online.
Go to TRENDware’s website at http://www.TRENDNET.com
TRENDware International, Inc.
3135 Kashiwa Street
Torrance, CA 90505
http://www.TRENDNET.com
