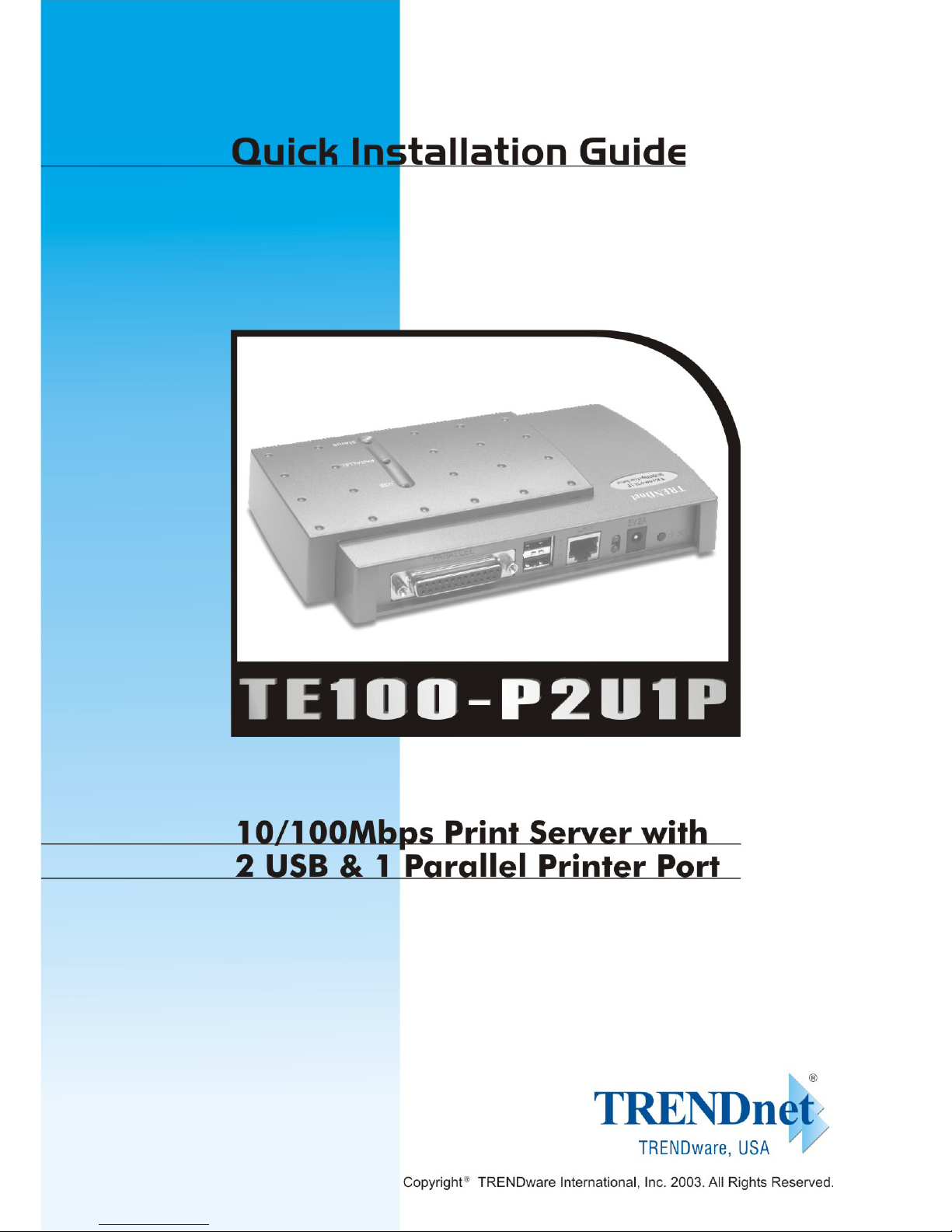

Quick Installation Guide
1. Print Server Layout
TE100-P2U1P
Before you start the installation, you will need
- Parallel or USB printer(s).
- One computer with Windows Operating System and connected to your
network.
LThis Quick Installation Guide contains
brief instructions of the followings:
• Print Server Installation & Setup
• Network Printer Setup for Windows
95/98/Me/NT/2000/XP
For Unix, Netware and Mac. (Apple) environments,
please refer to the User’s Guide in the Manual folder
on the CD-ROM.

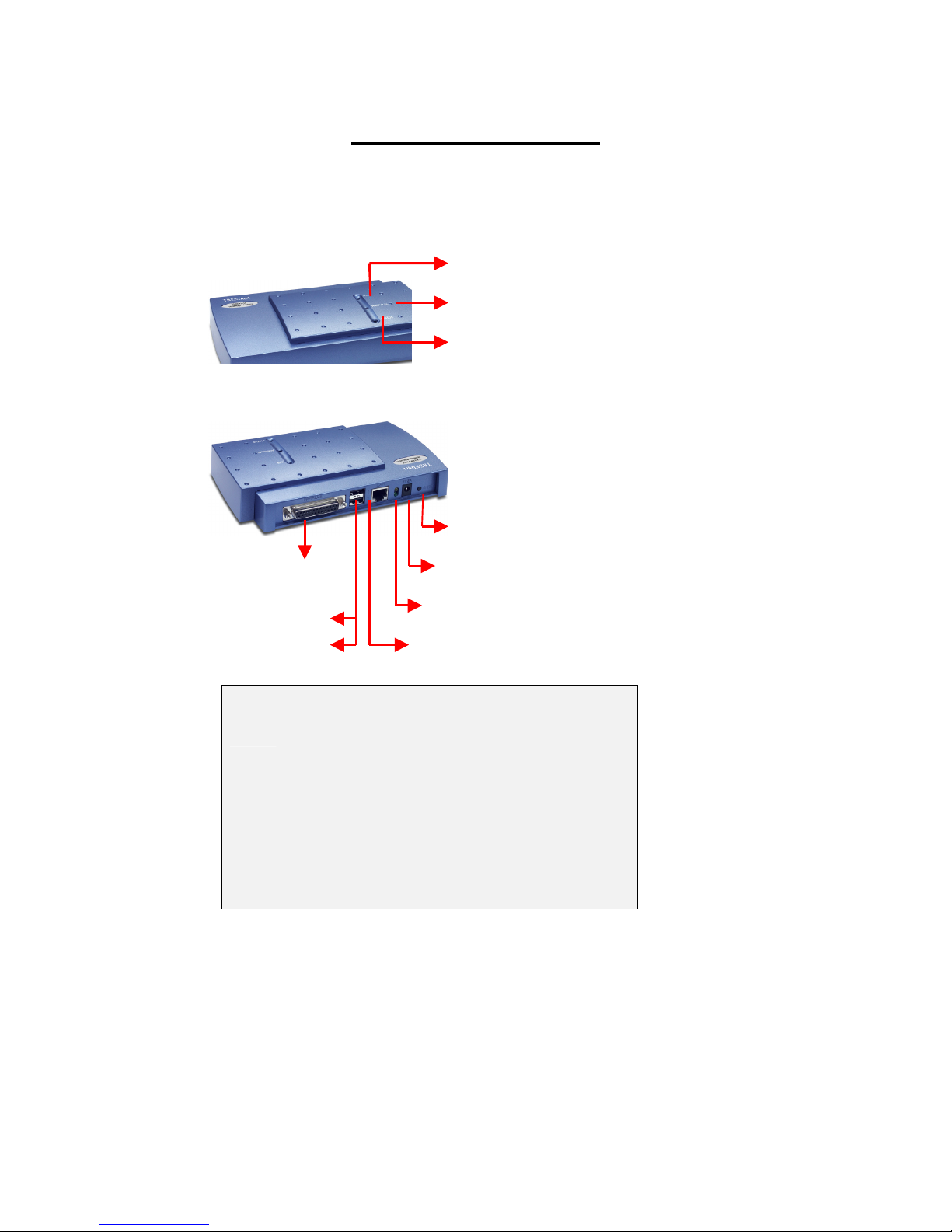

USB LED
Parallel LED
Status LED
Reset button
Power Adapter jack
LAN port
USB 1 port
USB 2 port
Parallel port
LAN status LED

Page 2
2. Hardware Installation
- Power off the Print Server and Printers.
- Connect the Print Server’s printer port to the printers.
- Connect the RJ45 cable to the LAN port and to your network hub or switch.
- Plug the AC power adapter into the power connector on the back of the
Print Server.
- Power on the printer.
- Installation Completed.
3. Software Installation (For Win95/98/ME/NT/2000/XP)
1. Insert the Utility CD into your CD-ROM.
2. The Autorun program starts and the following window appears.
If the setup program does not start automatically, run Autorun.exe in the
root folder from the CD-Rom

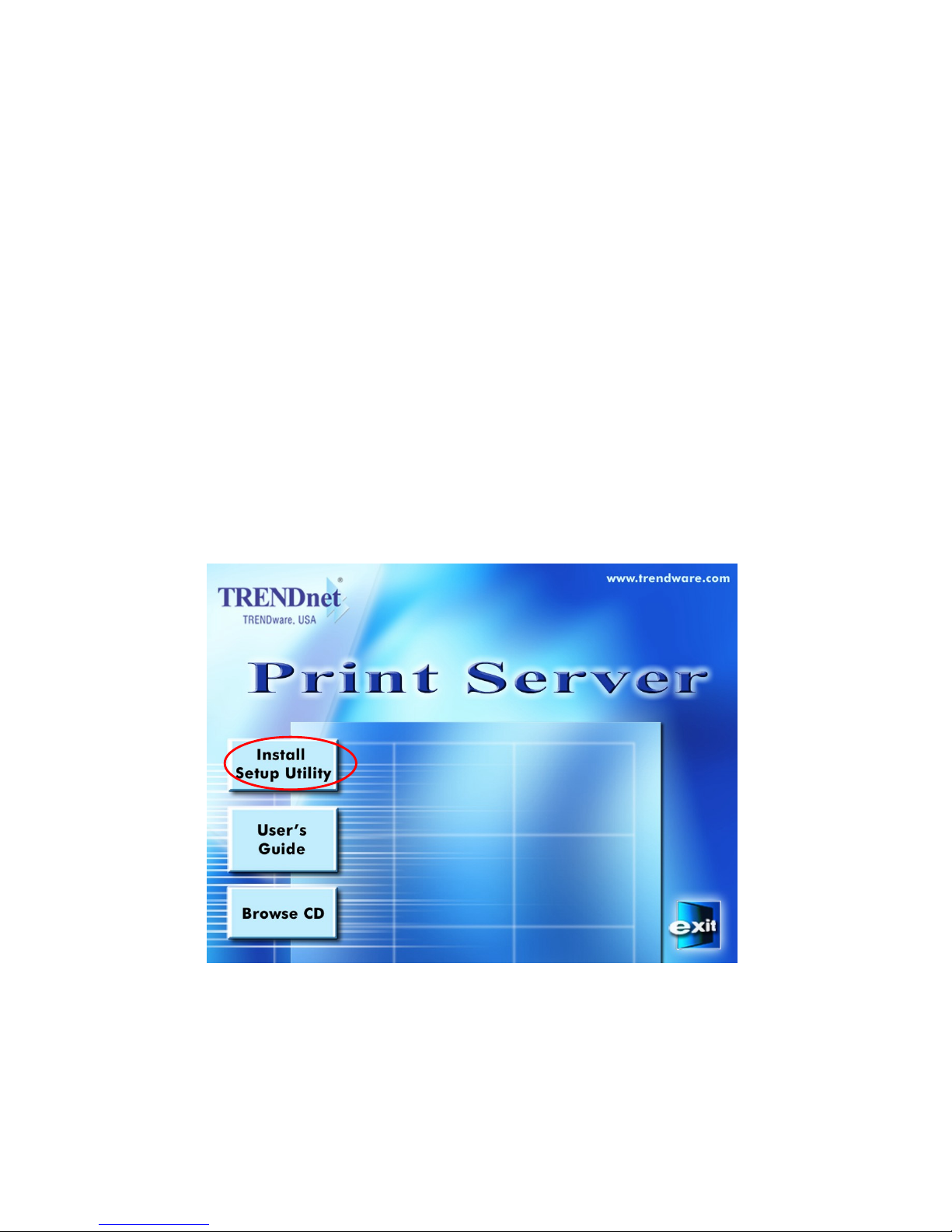

3. Choose Install Setup Utility, the program will automatically install Setup
Wizard into your computer.

Page 3

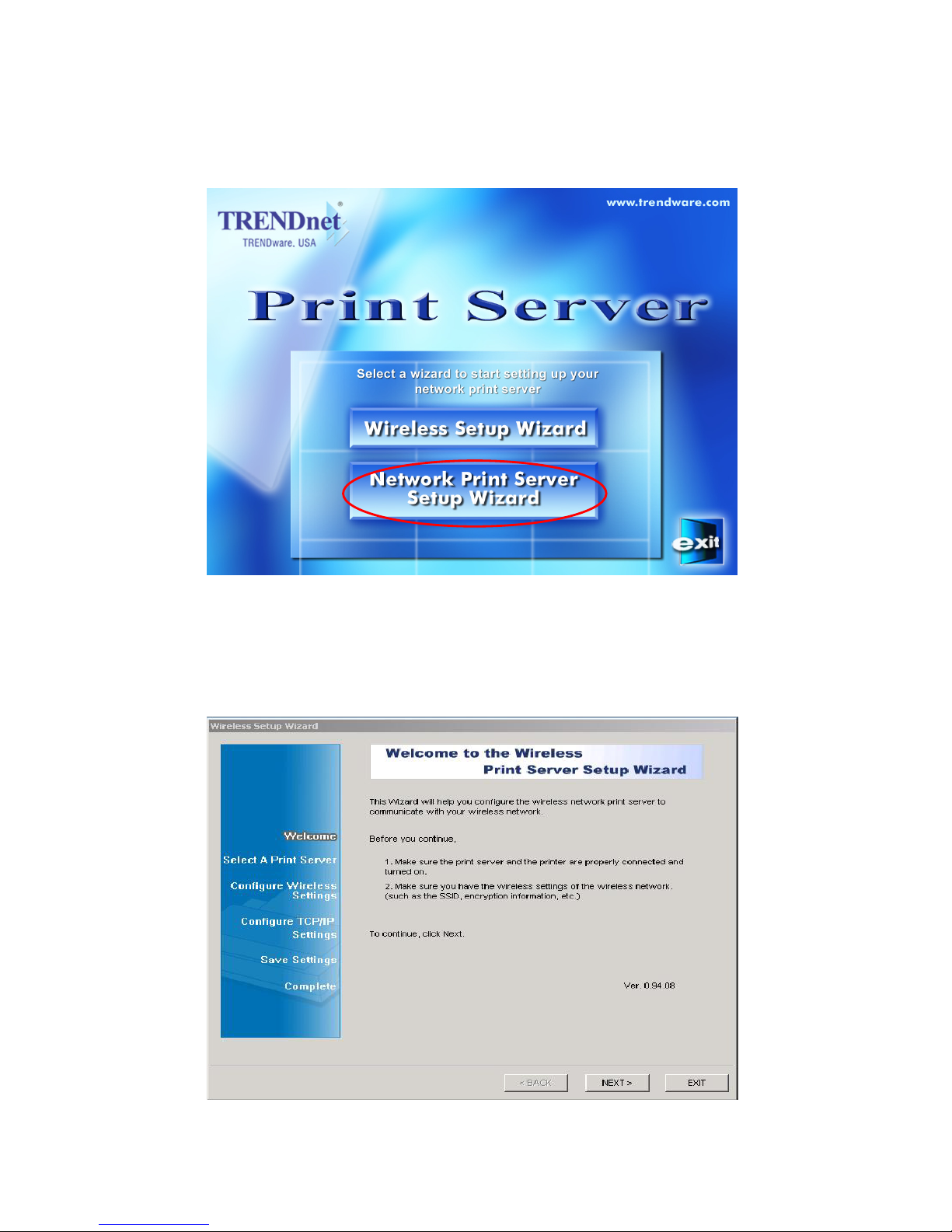

4. After the installation completes, the Setup Wizard window would appear,
Click on Network Print Server Setup Wizard to configure Print Server
settings and add Printer to the PC.
In the future, you can go to Start Æ Program Æ Network Print Server Æ
SetupWizard to run the program again
5. Click NEXT, the wizard will automatically discover the print server, if it can
not be found, try Refresh.

Page 4
6. The Print Server will appear in the list, select the print server you want to
configure and click NEXT.
The printer name will display 3 times with different port number. Select Port 1
to configure the printer on Parallel port, select Port 2 to configure the printer on
USB 1 port, select Port 3 to configure the printer on USB 2 port.

Page 5
7. Select YES if you want to change the configuration and press NEXT to
continue.

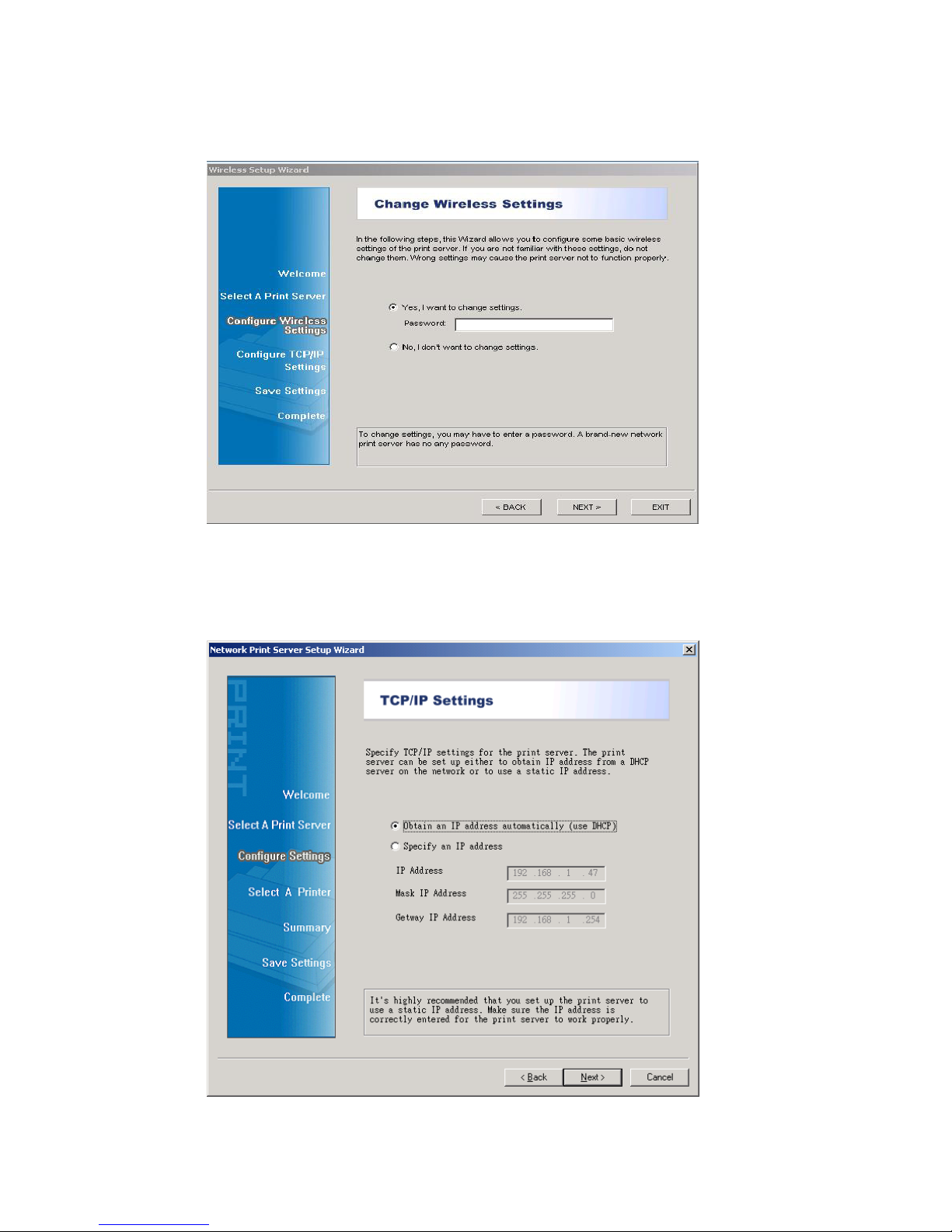

8. Configure TCP/IP settings. If you have a DHCP server on the network,
select “Obtain an IP address automatically”, or click “Specify and IP
address” and input the IP, Mask, and Gateway IP addresses. Click “Next”.

Page 6

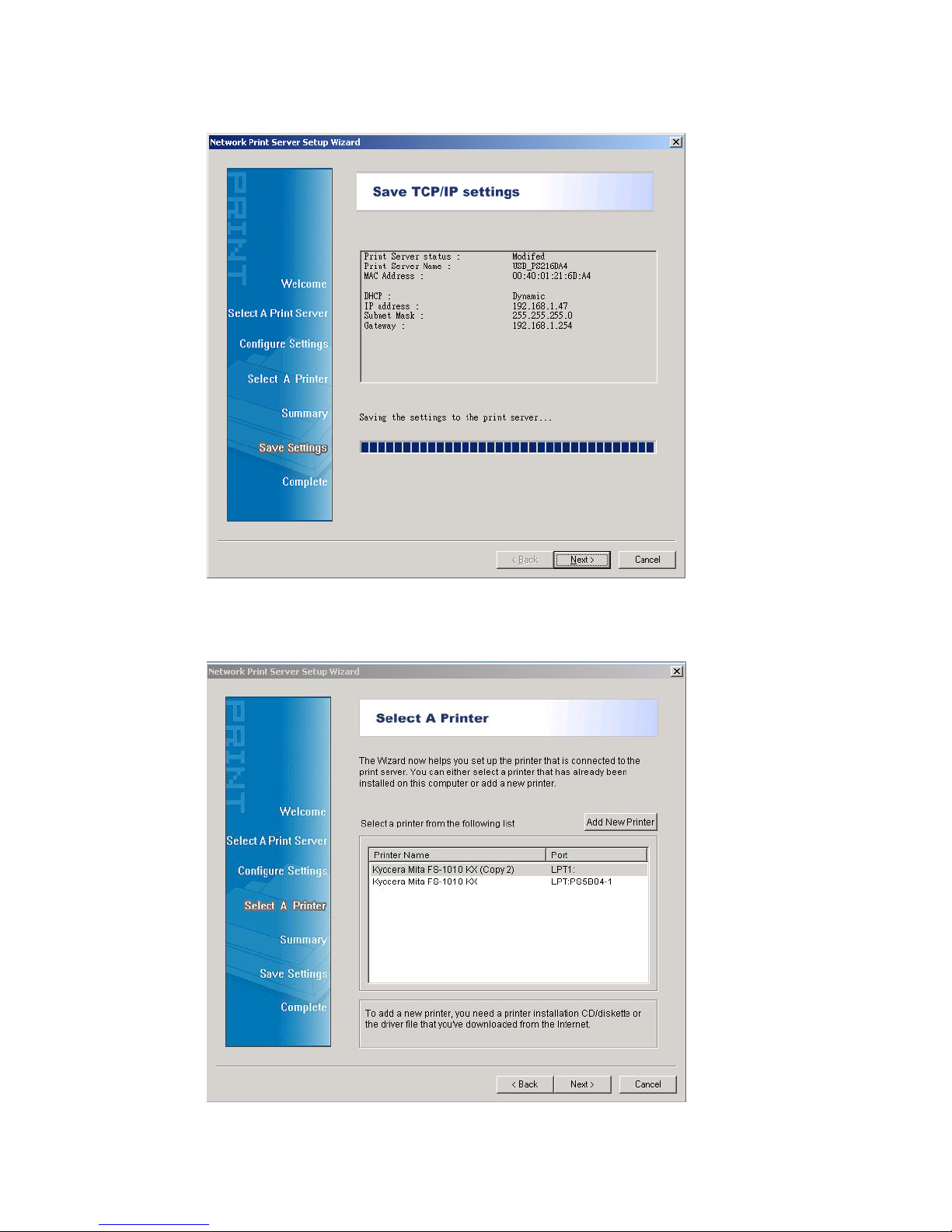

9. TCP/IP settings are saved, click Next to start install the printer for your PC.
10. Click Next and choose the printer you want to install. You can also add a
new printer in this step.

Page 7

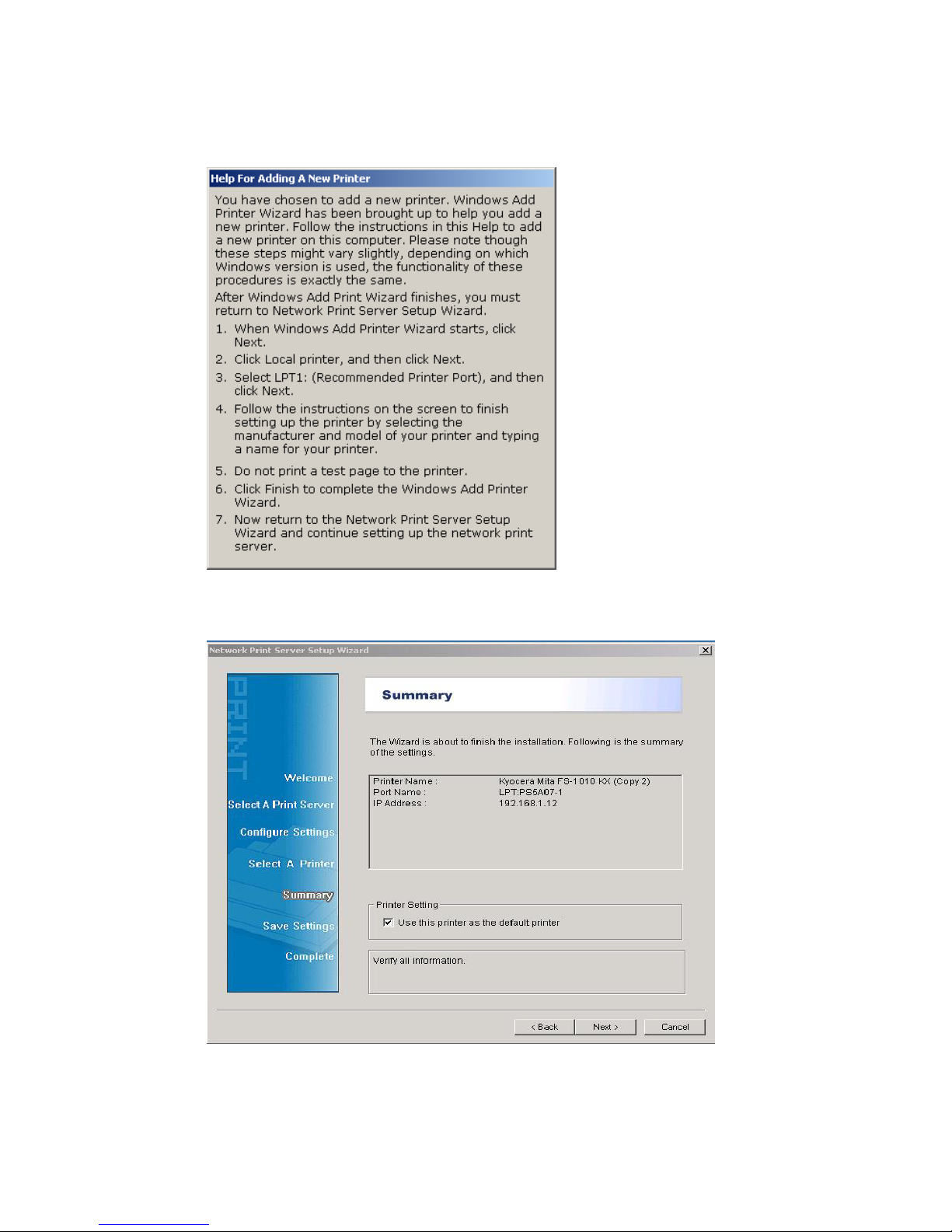

If the printer is not listed under Printer Name, click on Add New Printer and
follow the below instruction.
11. Click Next and setup program will display the summary of your printer’s
configuration.
A
fter new printer is
added the printe
r
will be listed unde
r
the Print Name
section, select the
printer and clic
k
NEXT.

Page 8

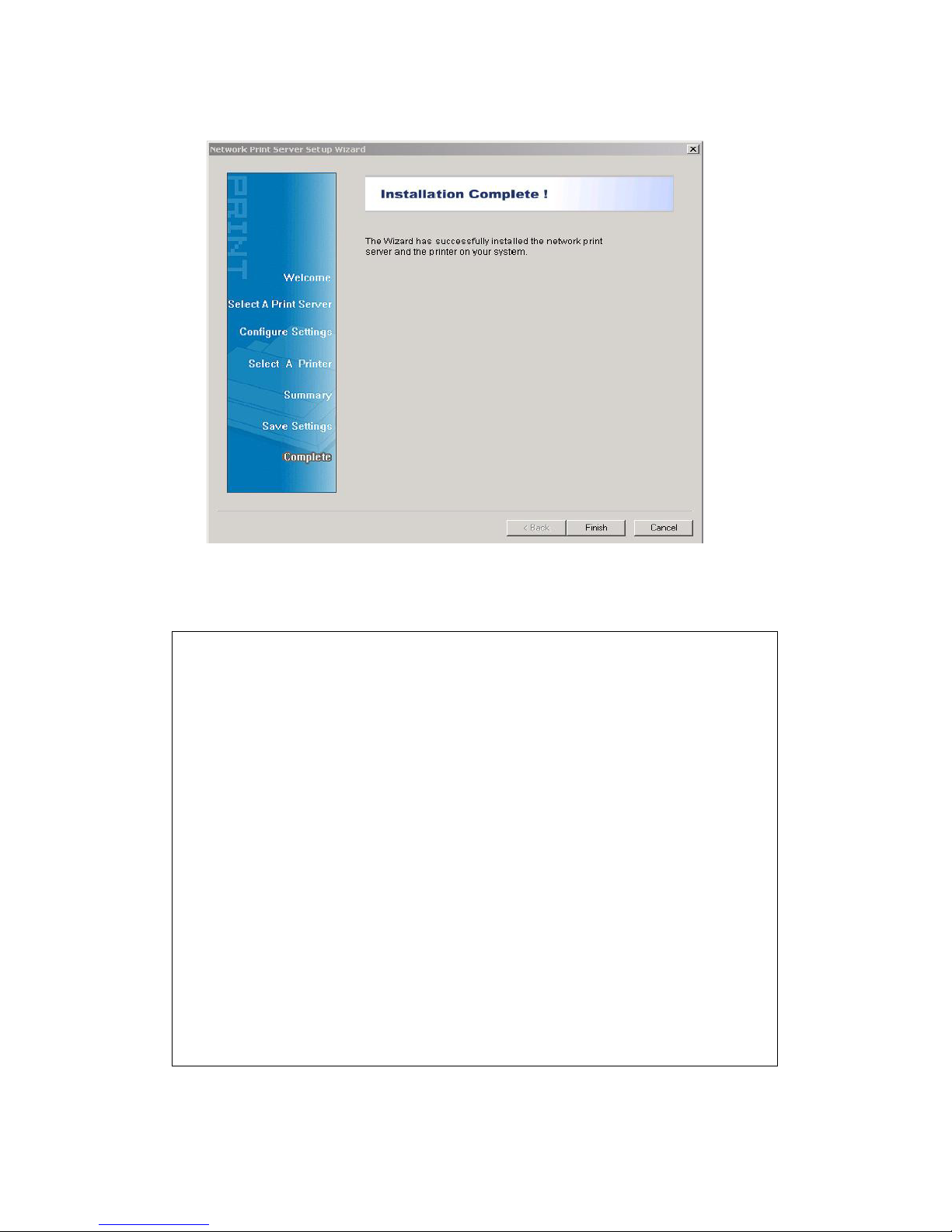

12. Click Finish to complete the printer installation
13. Please repeat the steps to configure each Printer.
14. Installation Completed.
