TRENDnet TV-IP110WN User manual

- 1 -
PREFACE
Thank you for purchasing the TV-IP110WN Wireless N Internet Camera
Server, a powerful and high-quality image network camera. The camera
can be installed asa standalone system within your application
environment easily and quickly, and supports remote management
function so that you can access andcontrol it using a Web browser on your
computer.
This guide will provide you more information of instruction and
illustrations on how to use your camera, which includes:
Chapter 1 Introduction to Your Camera describes the featuresof the
camera. You will also know the components and functions of
the camera.
Chapter 2 Hardware Installation helps you install the camera according
to your application environment. You can use thiscamera at
home, at work, at any where you want.
Chapter 3 Accessing the Camera letsyou start using yourcamera
without problem. The camera can be set up easily and work
within your network environment instantly.
Chapter 4 Configuring the Camera guides you through the configuration
of the camera using the web browser on your PC.
Chapter 5 SecurView™ Pro showsyou the detail instructions on
operating SecurView™ Pro software.
Chapter 6 How to Access the Camera Behind a Router provides the
instruction how to setup your DDNS.
Chapter 7 Appendix provides the specification of the camera and some
useful information for using your camera.
NOTE: The illustrations and configuration values in this guide are for reference
only. The actual settings will depend on your practical applicationof the
camera.

- 2 -
Contents
PREFACE...........................................................................1
CHAPTER 1.......................................................................4
INTRODUCTION TO YOUR CAMERA...........................4
1.1 CHECKING THE PACKAGE CONTENTS..............................................4
1.2 GETTING TO KNOW YOUR CAMERA...............................................5
1.3 FEATURES AND BENEFITS ............................................................7
1.4 SYSTEM REQUIREMENT...............................................................8
CHAPTER 2.......................................................................9
HARDWARE INSTALLATION .........................................9
2.1 INSTALLING THE CAMERA STAND ..................................................9
2.2 CONNECTING THE CAMERA TO LAN............................................10
2.3 APPLICATIONS OF THE CAMERA..................................................11
CHAPTER 3.....................................................................12
ACCESSING THE CAMERA...........................................12
3.1 USING IPSETUP......................................................................12
3.2 ACCESSING TO THE CAMERA ......................................................17
3.3 CONFIGURING THE IPADDRESS OF THE PC...................................20
CHAPTER 4.....................................................................21
CONFIGURATION OF THE CAMERA..........................21
4.1 USING THE WEB CONFIGURATION ..............................................21
4.2 USING SMART WIZARD.............................................................22
4.3 BASIC SETUP...........................................................................27
4.4 NETWORK SETTINGS ................................................................31
4.5 SETTING UP VIDEO...................................................................40
4.6 EVENT SERVER CONFIGURATION.................................................43
4.7 MOTION DETECT.....................................................................47
4.8 EVENT CONFIG........................................................................49
4.9 TOOLS ...................................................................................54

- 3 -
4.10 INFORMATION ........................................................................56
CHAPTER 5.....................................................................57
SECURVIEW™ PRO SOFTWARE .................................57
5.1 INSTALLATION .........................................................................58
5.2 USING SECURVIEW™PRO.........................................................61
CHAPTER 6.....................................................................92
HOW TO ACCESS THE CAMERA BEHIND A ROUTER..........92
CHAPTER 7.....................................................................98
APPENDIX ......................................................................98
A.1 SPECIFICATION ........................................................................98
A.2 GLOSSARY OF TERMS..............................................................100
LIMITED WARRANTY......................................................109

- 4 -
CHAPTER 1
INTRODUCTION TO YOUR CAMERA
1.1 Checking the Package Contents
Check the items contained in the packagecarefully. You should have the
following:
1 x TV-IP110WN
1 x CD-ROM (Utility& User’s Guide)
1 x Multi-Language Quick Installation Guide
1 x External antenna
1 x 5V 2.5Apower adapter
1 x Network Cable
1 x Camera Stand
NOTE: If there is any item damage or missing, please contact your local
authorized dealer for replacement.

- 5 -
1.2 Getting to Know Your Camera

- 6 -
-Power LED: A steady orange light indicatesthe camera is powered
on.
-Link LED: A flash green light indicates the camera’s network
connection correctly.
-Lens: Adjust the focus by rotate outside of the Lens.
-WPS button: A quick connection button to your encrypted
wireless network
-Detachable Antenna:
Adjust the antenna position toget the maximum signal.
-Camera Stand Connector: Connects the camera with the camera
stand.
-Power Connector: Connects the power adapter in order to supply
the power to the camera.
-LAN Port: Connects one end of the Network cable to LAN port and
connect the other end cable to your network
-Reset Button: Press the reset button once to reset the current
setting. Press the reset button continuously for 5 seconds to
restore the camera to factory default setting.

- 7 -
1.3 Features and Benefits
Surveillance Supported
The camera supports “nightshot mode” to deliver clearer images in
the dark environment. Enablemotion detection and setup automated
email alerts and upload the still image into FTP.
Remote Control Supported
By using a standard Web browser or the included SecurView Pro
software application, the administrator can easily change the
configuration of the camera via Intranet or Internet. In addition, the
camera can be upgraded remotely when a new firmware is available.
The users are also allowed to monitor the image and take snapshots
via the network.
Multiple Platforms Supported
The camera supports multiple network protocols, includingTCP/IP,
SMTP e-mail*, HTTP, and other Internet related protocols. Therefore,
you can use the camera in a mixed operating system environment,
such as WindowsVistaand Windows7.
Multiple Applications Supported
Through the remote access technology, you can use the cameras to
monitor various objects andplaces for your own purposes.
For example, babies athome, patientsin the hospital, offices and
banks, and more. The camera can capture both still imagesand video
clips, so that you can keep the archives and restore them at any time.
WPS Supported
WPS (Wi-Fi Protected Setup) standard is a new solution that simplifies
the process of configuring Wi-Fi security settings, allowing you to
establish a secure wireless network by simply pressing a button.
Note: Support SSL with complimentary software

- 8 -
1.4 System Requirement
Networking
LAN: 10Base-T Ethernet or 100Base-TX Fast Ethernet,
Auto-MDIX
WLAN: Based on IEEE 802.11n technology,IEEE 802.11g/b
Accessing the Camera using Web Browser
Platform: Microsoft® Windows® 7/Vista/XP
CPU: Intel Pentium III 800MHz or above
RAM: 512MB
Resolution: 800x600 or above
User Interface: Microsoft® Internet Explorer 6.0or above
Accessing the Camera using SecurView Pro
Platform: Microsoft® Windows® 7/Vista/XP
Hardware Requirement:
1 ~ 8 cameras: Intel Core 2 Duo; 2GB RAM
9 ~ 32 cameras: Intel Core 2 Quad; 4GB RAM
NOTE: It is higher recommended that using a high performance computer
to monitor multiple cameras.

- 9 -
CHAPTER 2
HARDWARE INSTALLATION
2.1 Installing the Camera Stand
The camera comes with acamera stand,whichuses a swivel ball screw
head to lock to the camera’s screw hole. When the camera stand is
attached, you can place the camera anywhere by mounting the camera
through the three screw holes located in the base of the camera stand.
The Camera Stand

- 10 -
2.2 Connecting the Camera to LAN

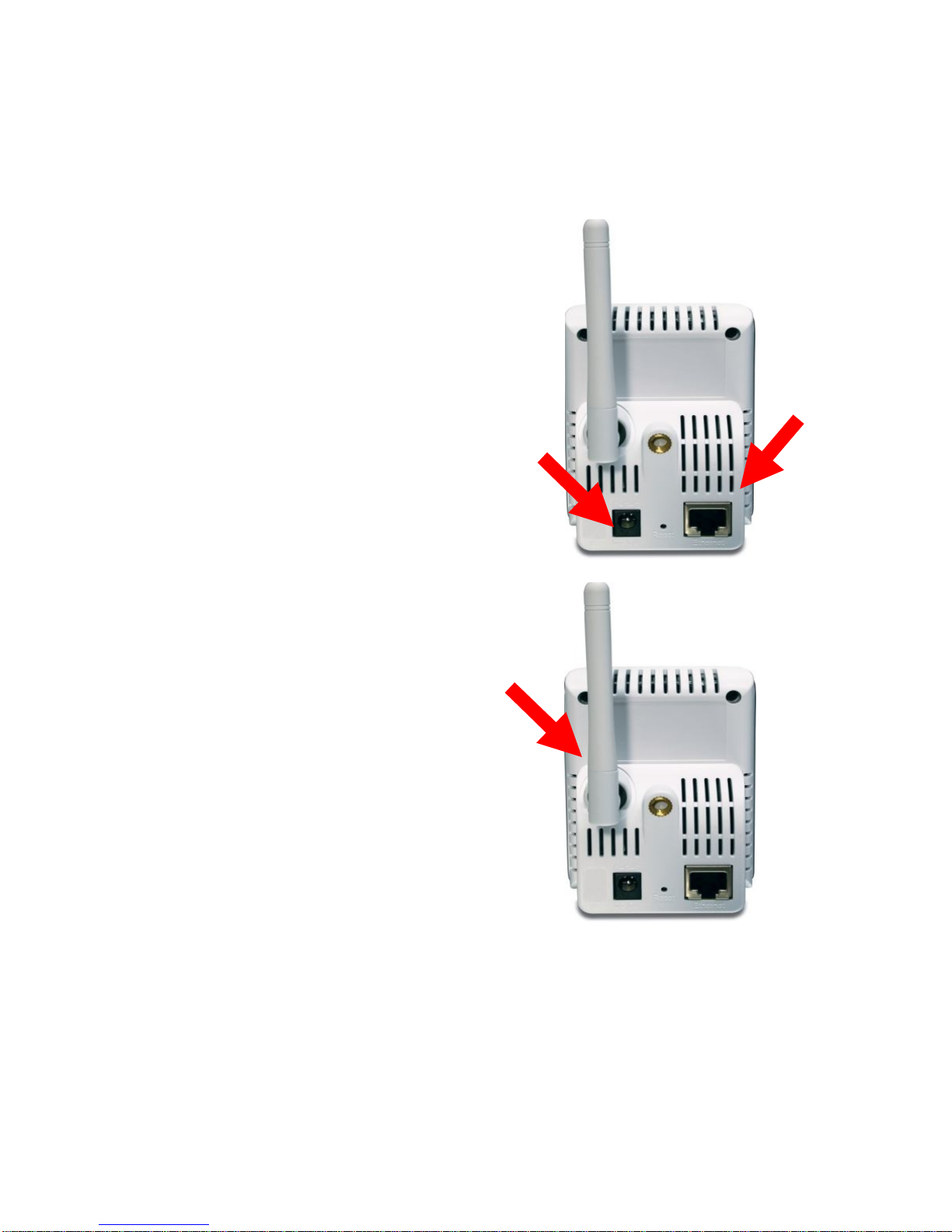

Use the provided Ethernet cable to
connect the camera to your local area
network (LAN).
When you connect the power
adapter, the camera is powered on
automatically. You can verify the
power status from thePower LED
(amber) on the front panel of the
camera.
Once connected,the Link LED starts
flashing green light and the camera is
on standby and ready for use now.
If you use a wireless network in your
application environment, you need to
attach the included detachable
antenna to the camera.
If your wireless network has set
encryption, you can use WPS button
or configure the wirelessconnection
via a LAN connection.
NOTE: Please configure the wireless setting via the wire connection.

- 11 -
2.3 Applications of the Camera
The camera can be applied in multiple applications, including:
Monitor local and remote places and objects viaInternet orIntranet
Capture still images and video clips remotely
Upload images or send email messageswith the still imagesattached

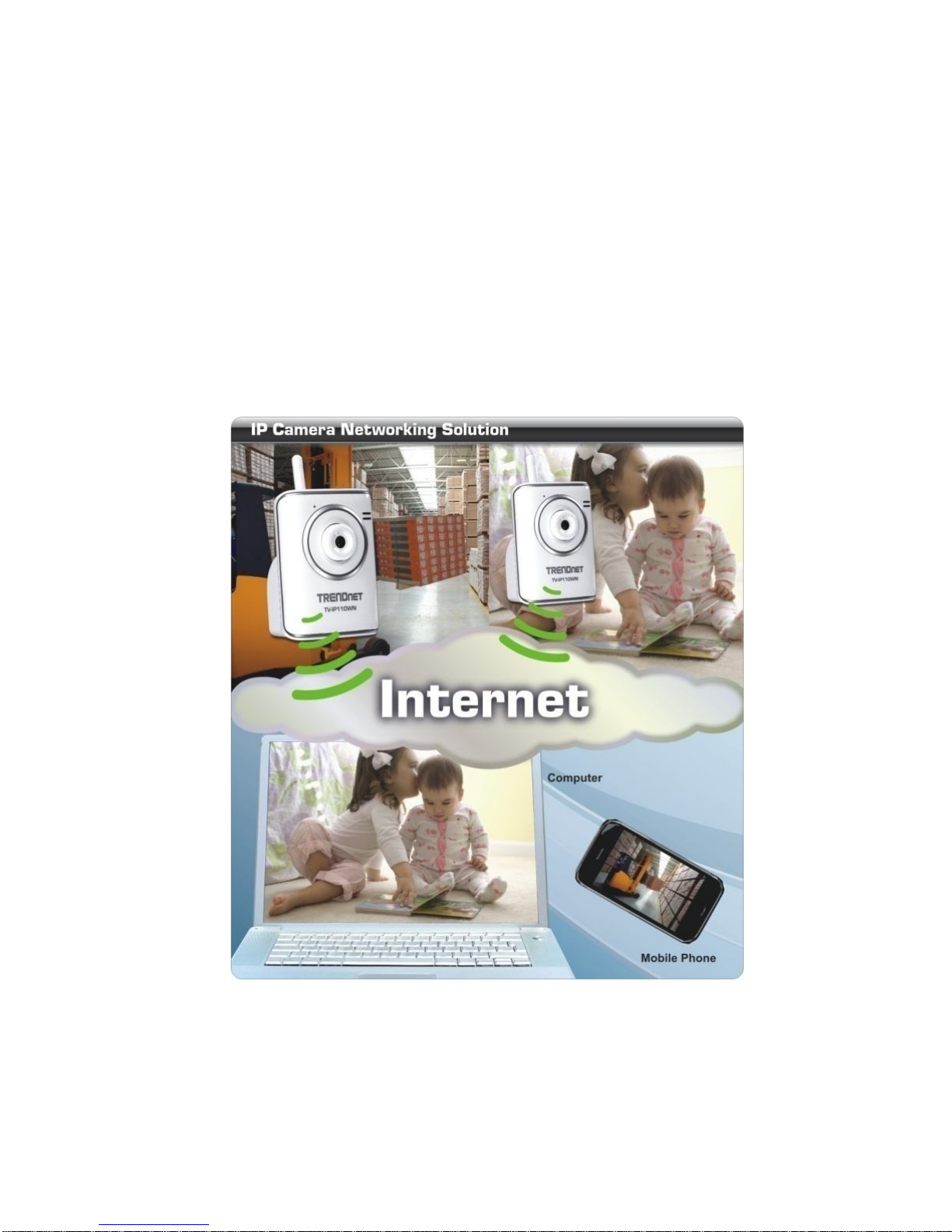

The following diagramexplains one of thetypical applications for your
camera and provides a basic example for installing the camera.
*

- 12 -
CHAPTER 3
ACCESSING THE CAMERA
3.1 Using IP Setup
The cameracomes with a conveniently utility, IP Setup, which isincluded
in the Installation CD-ROM, allowing you to search the camera on your
network easily.

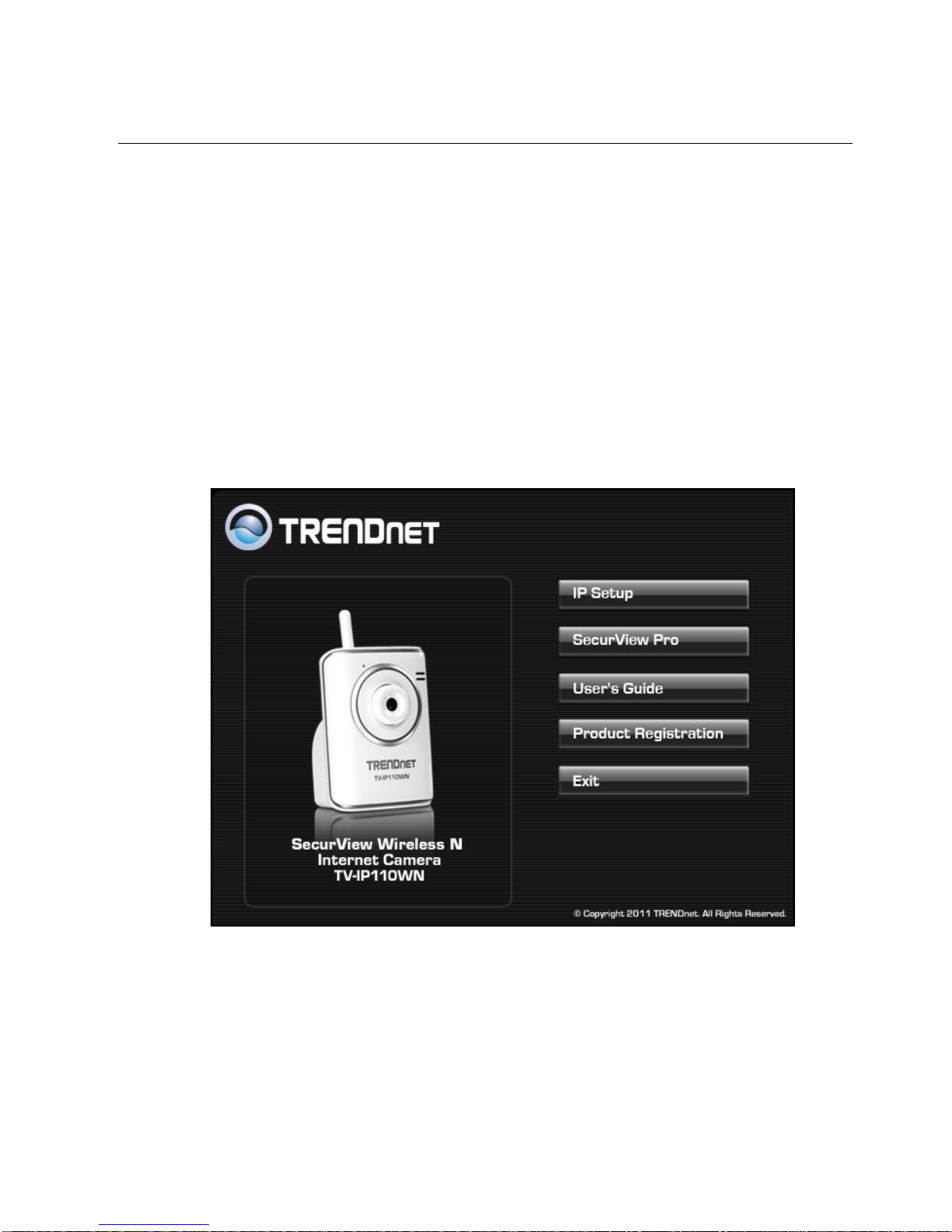

1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to
initiate the Auto-Runprogram.

- 13 -
2. Click the IP Setup from the Auto-Run menu screen. Then IP Setup
Wizard will appear. Click “Next” when the Welcome to the IPSetup
Setup Wizard appears.
3. Click “Browse” to choose the desired destination location. By default,
the destination location is C:\Program Files\TRENDnet\IPSetup. Then
Click “Next”.

- 14 -
4. Click “Next” to confirm the IPSetup software to be installed to the
computer.
5. When the Installation Complete window appears, click “Finish”.

- 15 -
6. After installing the IPSetup utility, the application is automatically
installed to your computer, and creates a folder in “Start
\Program\TRENDnet\IPSetup”.
7. Click Start > Programs > TRENDnet > IPSetup, and then click IPSetup
8. The IPSetup window will appear. It will search the Camerawithin the
same network.
Camera Display Area

- 16 -
-Camera Display Area: It shows the connected camera(s) within the
same network. By default, the IP setting on the Camera is set up DHCP.
If you have DHCP server, the camera will automatic get the IP address
from DHCP server. If you do not have DHCP server on yournetwork,it
will show the default IP as 192.168.10.30.
Double click the IP address; it will link to Camera’s Web Configuration
page.

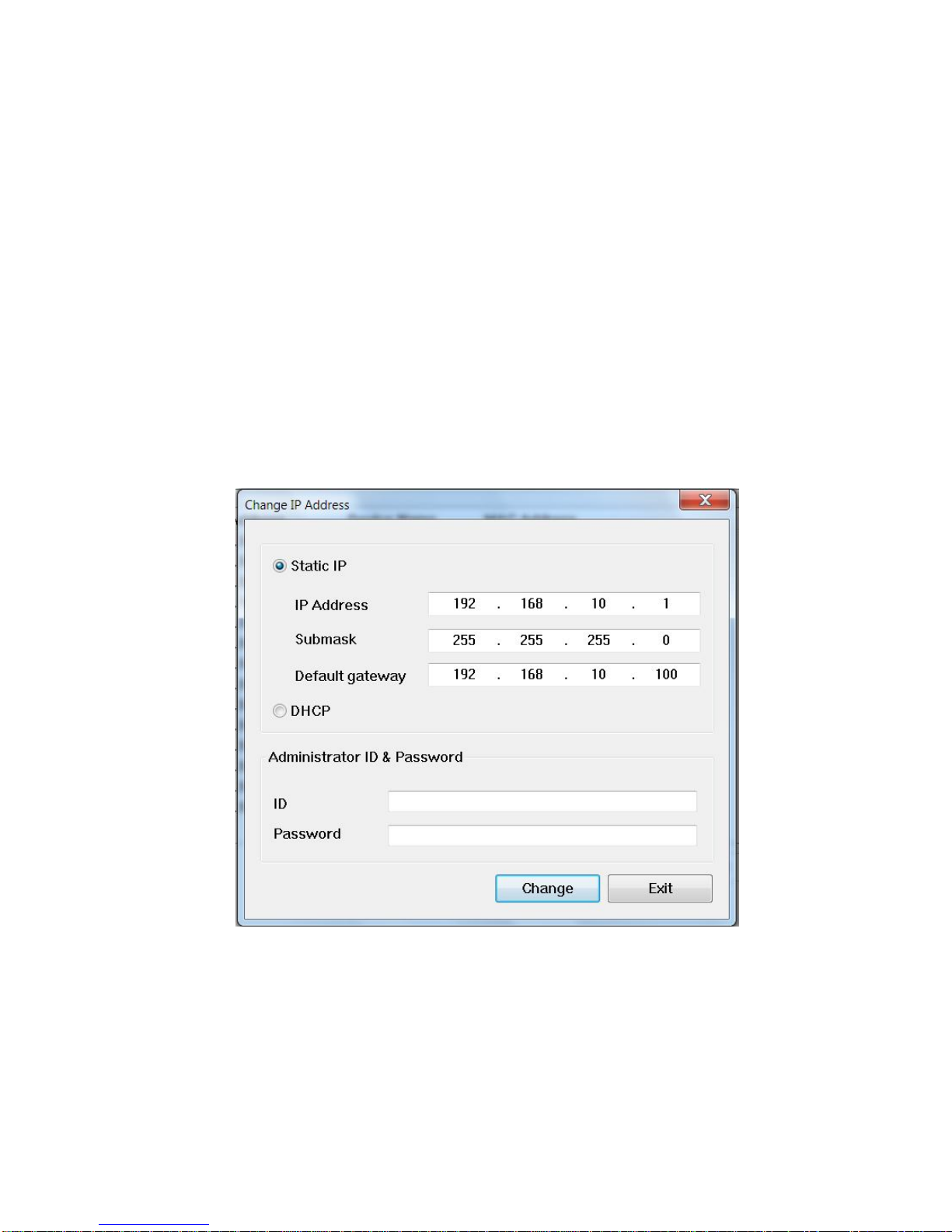

-Change IP: Click this button to bring up the following window. It
allows you to change the IP Address. You can select either Static IP or
click DHCP. Then, enter the Administrator ID& password. By default
ID/password is: admin. When complete, click “Change”.
-Search: Click this button to search the connected camera in the
same network.”
-Exit: Click this button to exit the program.

- 17 -
3.2 Accessing to the Camera
1. Open the Web browser on your computer (example showed in the
User’s Guide is based on the Internet Explorer)
2. Type the Camera IP address that DHCP server assigned in the web
browser URL (e.g. 192.168.10.30) and then press [Enter].
3. When the login window appears, enter the default User name (admin)
and password (admin) and press OK to access to the main screen of
the camera’s Web Configuration.
NOTE: If you are initially access to the camera, you will be asked to install
a new plug-in for the camera. Permission request depends on the
Internet security settings of your computer. Click Yes to proceed.

- 18 -
After you login into the Web Configuration of the camera, the main page
will appear as below:
The main page of the Web Configuration provides you withmany useful
information and functions, including:
Camera Information –Display the camera’s location and the current
date & time. The information can bemodified in the Web
Configuration.
Live View Image –Displays the real-time image of the connected
camera.
Zoom In –Click the buttons tozoom in the live view imageby 1x, 2x,
and 3x.
Live View Image
Live View/ Setup
Function
Camera Information
Zoom In

- 19 -
Live View/Setup Switch –Click Setup to configure the camera. Please
refer toChapter 4 for more information.
Function –Use these buttons to control the video functions.
-Manual Record allows you to record and save a video clip.
-Snapshot allows you to capture and save a still image.
-Browse allows assign the destination folder to store the video
clips and still images.
NOTE: If you are using Microsoft 7/Vista platform, you may not be able
to find these recorded files that are stored by Snapshot or
Manual Record. You will need to disable the protected mode of
Security in the IE Browser before manual record video file or
taking a snapshot.
Please follow the below Steps:
1. OpenIE Browser
2. Select ToolsInternet Options
3. Select Security
4. Uncheck the ”Enable Protected Mode” then press OK
