TRENDnet TV-IP252P - SecurView PoE Dome Internet Camera... User manual

- 1 -
PREFACE
Thank you for purchasing the TV-IP252 SecurView PoE Dome
Internet Camera, a standalone system that can be connected
directly to an Ethernet or Fast Ethernet network.
The camera features the latest Motion JPEG and MPEG-4 image
technology, advanced management functionality, and GPIO
connectors (e.g. connecting to the door sensors or alarm bells),
allowing you to record streaming video (Motion JPEG or MPEG-
4 ), enable motion detection, and setup automated FTP/Email/
Network Storage service for security.
The audio function (connected external microphone and audio-out
device like the active speaker) of the camera allows you to
deliver/receive sound to/from the camera. In addition, the superior
lens and hardware design enable the camera to capture high
quality images even in the low-lux condition.
Compared to the conventional PC Camera, the camera features a
built-in CPU and Web-based solutions that can provide a cost-
effective solution to transmit the real-time high-quality video
images and sounds synchronously for monitoring. The camera
can be managed remotely, so that you can use a Web browser to
access and control it from any desktop/notebook computer over
the Intranet or Internet.
The simple and versatile installation allows you to integrate it into
your network environment easily. With comprehensive
applications supported, the camera is your best solution for
demanding surveillance and remote monitoring applications.

- 2 -
This User Guide provides you with the instructions and
illustrations on how to use your camera, which includes:
Chapter 1 Introduction to Your Camera describes the features
of the camera. You will also know the components
and functions of the camera.
Chapter 2 Hardware Installation helps you install the camera
according to your application environment. You can
use this camera at home, at work, any where you
want.
Chapter 3 Accessing the Camera lets you start using your
camera without any problems. The camera can be
set up easily and work within your network
environment instantly.
Chapter 4 Configuring the Camera guides you through the
configuration of the camera using the Web browser
on your PC.
Chapter 5 Using SecurView™ shows you the detail instructions
on operating SecurView™ software.
Appendix Provides the specification of the camera and some
useful information for using your camera.
NOTE The illustrations and configuration values in this guide are
for reference only. The actual settings depend on your
practical application of the camera.

- 3 -
Contents
PREFACE.........................................................................1
CHAPTER 1.....................................................................5
INTRODUCTION TO YOUR CAMERA.......................5
1.1 CHECKING THE PACKAGE CONTENTS ...................................5
1.2 GETTING TO KNOW YOUR CAMERA .....................................6
1.3 FEATURES AND BENEFITS.....................................................9
1.4 SYSTEM REQUIREMENT ......................................................11
CHAPTER 2...................................................................12
HARDWARE INSTALLATION...................................12
2.1 APPLICATIONS OF THE CAMERA .........................................12
2.2 INSTALLING THE CAMERA ..................................................13
ACCESSING THE CAMERA.......................................17
3.1 USING IPSETUP...................................................................17
3.2 ACCESSING TO THE CAMERA ..............................................22
3.3 CONFIGURING THE IP ADDRESS OF THE PC........................26
CHAPTER 4...................................................................27
CONFIGURING THE CAMERA .................................27
4.1 USING THE WEB CONFIGURATION......................................27
4.2 USING SMART WIZARD.......................................................28
4.3 BASIC SETUP.......................................................................31
4.4 NETWORK SETTINGS...........................................................35
4.5 SETTING UP VIDEO &AUDIO ..............................................42
4.6 EVENT SERVER CONFIGURATION .......................................47
4.7 MOTION DETECT.................................................................52
4.8 EVENT CONFIG....................................................................53
4.9 TOOLS.................................................................................59
CHAPTER 5...................................................................63
CHAPTER 6...................................................................90
APPENDIX.....................................................................90

- 4 -
A.1 SPECIFICATION....................................................................90
A.2 GLOSSARY OF TERMS .........................................................92

- 5 -
CHAPTER 1
INTRODUCTION TO YOUR
CAMERA
1.1 Checking the Package Contents
Check the items contained in the package carefully. You should
have the following:
TV-IP252P
Power Adapter (12V DC, 1.5A)
Mounting Kit
Cat. 5 Ethernet Cable (1.8m / 6ft.)
GPIO Adapter
CD-ROM (Utility & User’s Guide)
Multi-Language Quick Installation Guide
NOTE If there is any item damaged or missing, please contact
your local authorized dealer for replacement.

- 6 -
1.2 Getting to Know Your Camera
Physical Components
Connectors
Power: Connects the power adapter to supply power to
the camera.
GPIO: Connects the external device that features
additional controlling function, such as motion detection,
event triggering, alarm notification, and a variety of
external control functions.
Before connecting the external device for GPIO
function, you have to attach the provided external GPIO
connectors to the device.
Dome cover






Connectors

- 7 -
Mic In: Connects an external microphone to receive the
on-the-spot sound where the camera is installed. (Pink
Connector)
Audio Out: Connects an external audio device (such
as the active speaker) to deliver sound via the camera.
(Green Connector)
TV Out: The BNC connector is used to connect the
composite video input of external video device.
LAN: Plugs the provided Ethernet cable to connect to
your local area network (LAN). The LAN port of the
camera supports the NWay protocol so that the camera
can detect the network speed automatically.

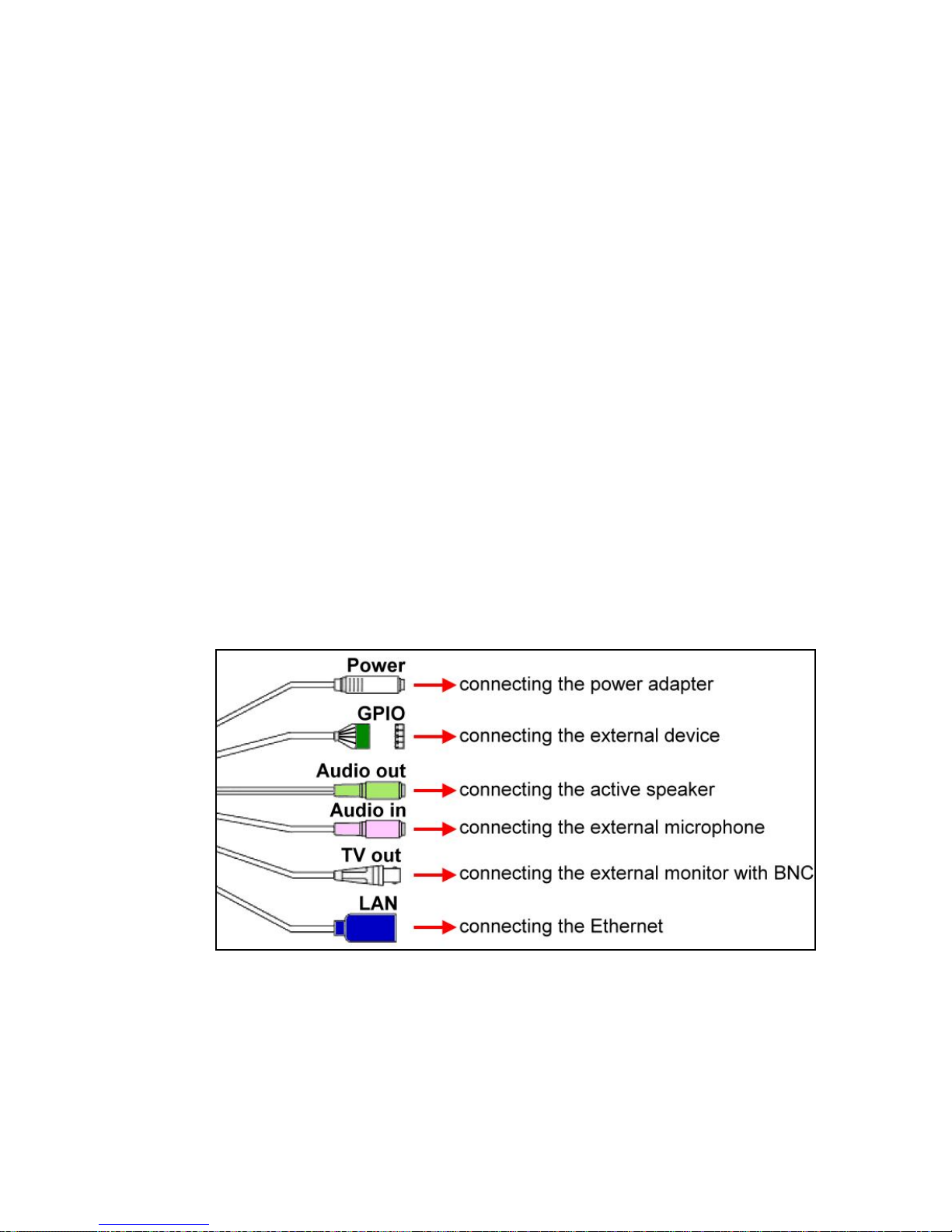

Connecting Cables

- 8 -

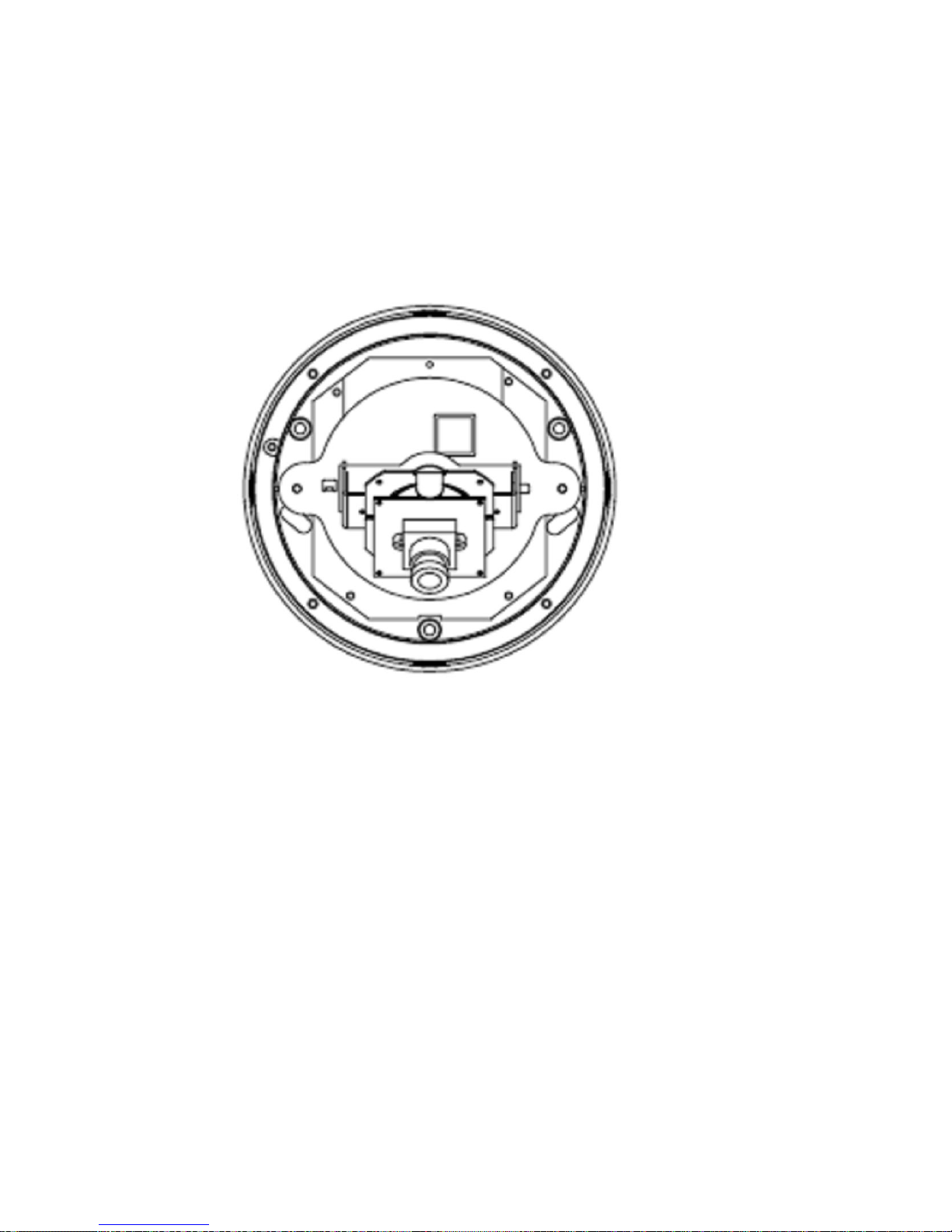

Inside Components
Reset button: Press the button to restart the camera.
Press and hold the button for five seconds, the camera will
resume the factory default settings.
LED indicators
-
Power
indicates the camera is powered
on with the steady amber light.
-
-Link indicates the camera’s network
connectivity with the flashing green light.
Link & Power switches:
The two switches allow you to turn off the
LED indicators manually.
Unscrew the four screws to
disassemble the Dome cover.
Lens
with the
adjustable base
Reset button
LED indicators
Link & Power switches

- 9 -
1.3 Features and Benefits
MPEG4/MJPEG Dual-codec Supported
The camera provides you with excellent images by the
MPEG4/MJPEG dual-codec selectable technology, allowing
you to adjust image size and quality, and bit rate according
to the networking environment.
Flexible Audio Capability
The camera allows you to connect the external microphone
to receive on-the-spot audio via the Internet, allowing you to
monitor the on-site voice. In addition, you can connect an
external active speaker to the camera to speak through the
camera (supporting mono audio only).
Supports RTSP
The camera supports RTSP (Real Time Streaming
Protocol), which is a technology that allows you to view
streaming media via the network. You can view the real-
time video with the Quick Time player or RealPlayer. To
view the real-time streaming image on your computer, open
the Web browser and enter the RTSP link:
rtsp://(IP address of the camera)/mpeg4.
Remote Control Supported
By using a standard Web browser or the bundled Ultra
View software application, the administrator can easily
change the configuration of the camera via Intranet or
Internet. In addition, the camera can be upgraded remotely
when a new firmware is available. The users are also
allowed to monitor the image and take snapshots via the
network.

- 10 -
I/O Connectors Supported
The I/O connectors (2-in/1-out) of the camera provide the
physical interface to send and receive digital signals to a
variety of external alarm devices. You can configure the
settings and control the device from the GPIO Trigger
setting of Web Configuration.
Multiple Platforms Supported
The camera supports multiple network protocols, including
TCP/IP, SMTP e-mail, HTTP, and other Internet related
protocols. Therefore, you can use the camera in a mixed
operating system environment, such as Windows 2000,
Windows XP and Windows Vista.
Multiple Profiles Supported
The camera supports multiple profiles simultaneously, so
that you can separately set up different image settings
(such as image quality and frame rate) for the three video
types of the camera: MPEG4, MJPEG, and 3GPP.
Multiple Applications Supported
Through the remote access technology, you can use the
cameras to monitor various objects and places for your own
purposes. For example, babies at home, patients in the
hospital, offices and banks, and more. The camera can
capture both still images and video clips, so that you can
keep the archives and restore them at any time.

- 11 -
1.4 System Requirement
Networking
-LAN: 10Base-T Ethernet or 100Base-TX Fast
Ethernet.
Accessing the Camera using SecurView™
-Platform: Microsoft® Windows® 2000/XP/Vista.
Accessing the Camera using Web Browser
-Platform: Microsoft® Windows® 2000/XP/Vista
-CPU: Intel Pentium III 350MHz or above
-RAM: 128MB
-Resolution: 800x600 or above
-User Interface: Microsoft® Internet Explorer 6.0 or
above
Hardware Requirement
-Resolution: 1024x768 or above
-1 camera: Intel Pentium III 800MHz;
512MB RAM
-2 ~ 4 cameras: Intel Pentium 4 1.3GHz; 512MB RAM
-5 ~ 8 cameras: Intel Pentium 4 2.4GHz; 1GB RAM
-9 ~ 16 cameras: Intel Pentium 4 3.4GHz; 2GB RAM
NOTE If you connect multiple cameras within the network to
monitor various places simultaneously, you are
recommended to use a PC with higher performance.

- 12 -
CHAPTER 2
HARDWARE INSTALLATION
2.1 Applications of the Camera
The camera can be applied in multiple applications, including:
Monitor local and remote places and objects via Internet or
Intranet.
Capture still images and video clips remotely.
Upload images or send email messages with the still
images attached.

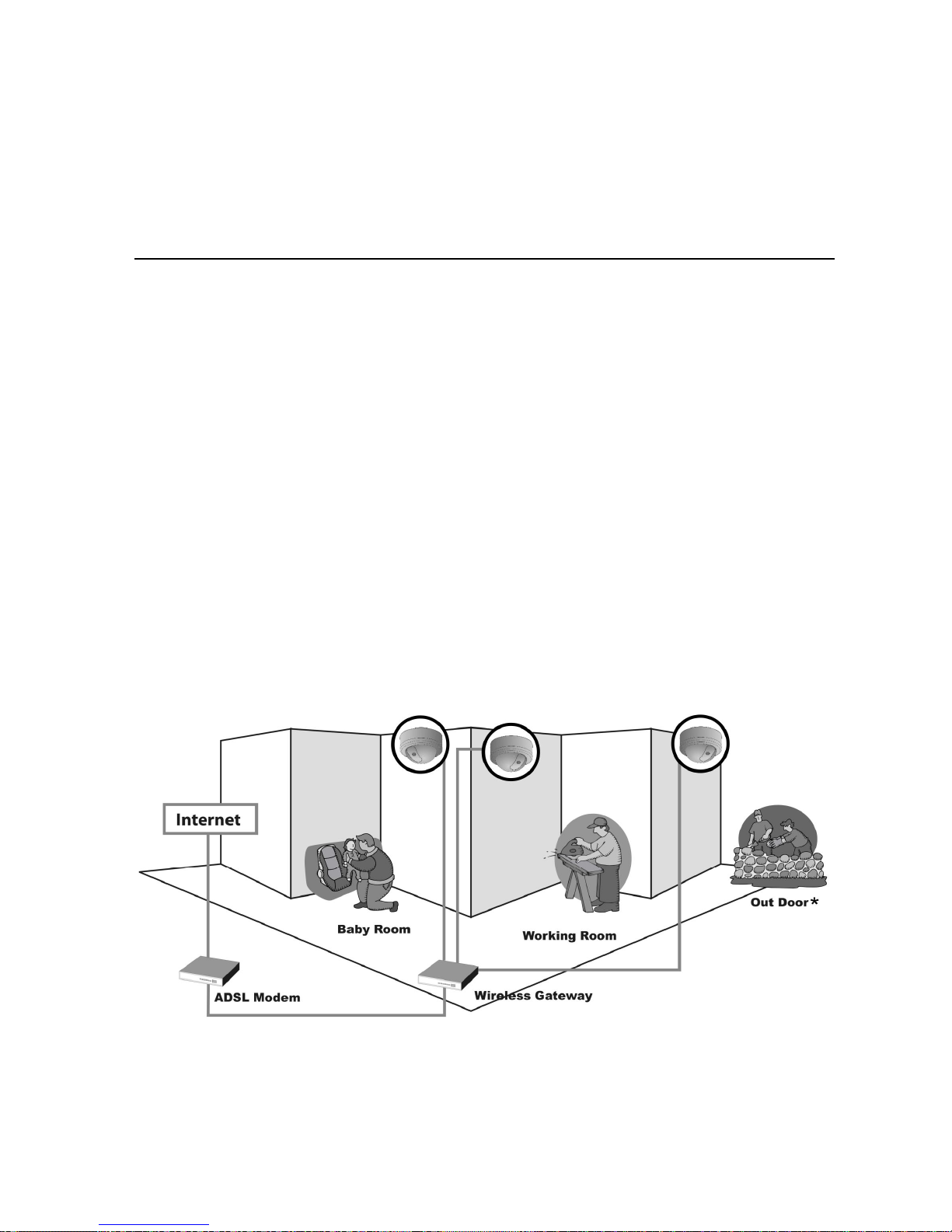

The following diagram explains one of the typical applications for
your cameras and provides a basic example for installing the
cameras.
Cameras within Your Network
* Please enclose with waterproof housing when using in outdoor
environment. The unit itself is not weatherproof.

- 13 -
2.2 Installing the Camera
Basic Installation (Surface)
The camera can be mounted to the ceiling surface directly by
the following steps:

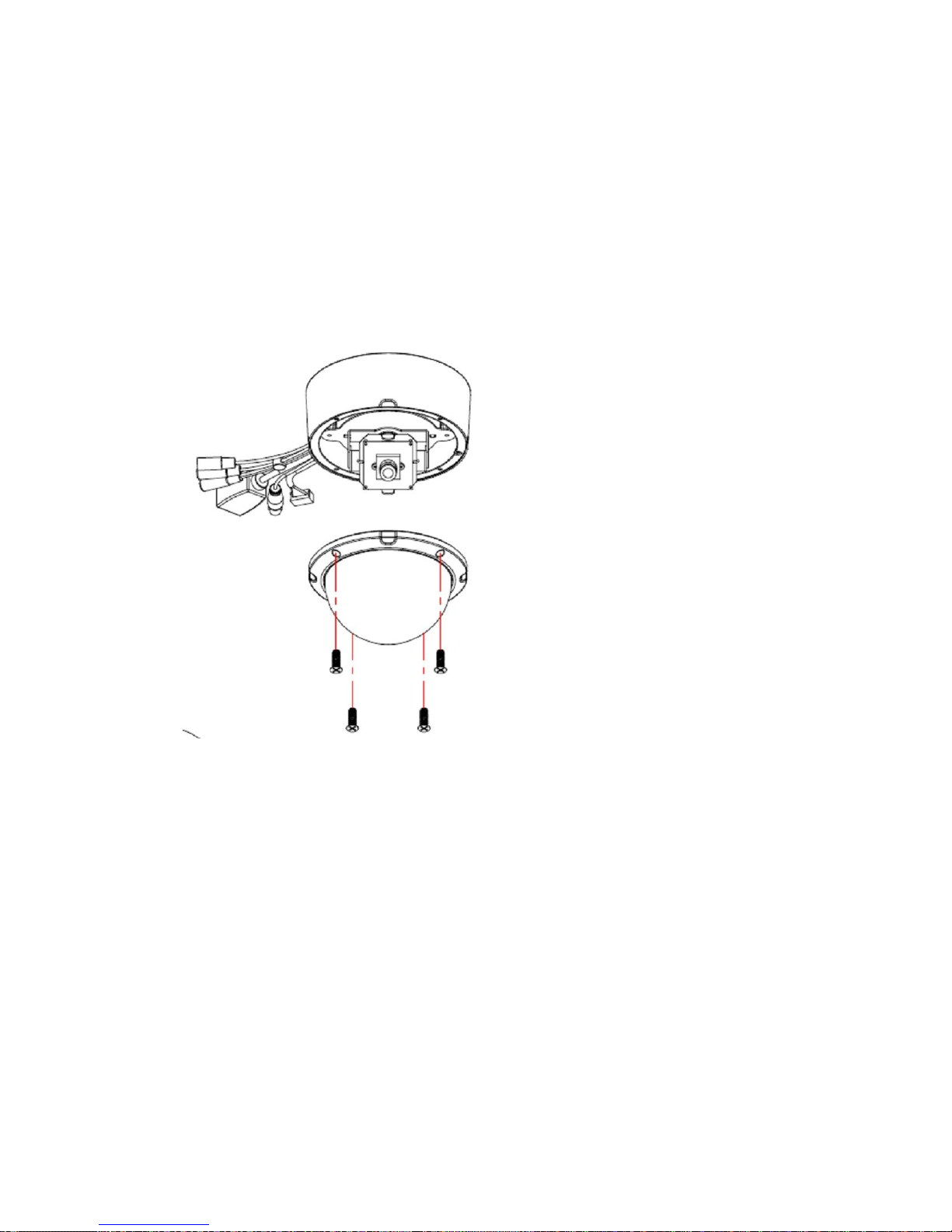

1. Remove the Dome cover by unscrewing four screws.
2. Drill three pilot holes into the ceiling and hammer the
plastic anchors into the holes.
TIP You can easily and precisely drill the three pilot holes
with the provided drill template. Put the drill template on
the location where you want to install the camera, and
then drill the pilot holes according to the marked screw
position on the drill template.

- 14 -
3. Install the camera to the ceiling with three screws.

- 15 -
4. Make connections according to your needs (refer to the
illustration of connecting cables on page 6).
5. Pan/tilt the camera lens to a proper position by using the
adjustable base, and adjust the lens focus by turning the
lens ring slowly in either clockwise or anti-clockwise
direction.
NOTE You can review the image quality from the Web
browser when you complete the installation. If the
image quality is poor, you have to disassemble the
Dome cover to adjust the lens focus until the desired
image appears clearly.
6. Replace the Dome cover and secure with four screws.

- 16 -

- 17 -
CHAPTER 3
ACCESSING THE CAMERA
3.1 Using IPSetup
The camera comes with a convenient utility, IPSetup, which is
included in the Installation CD-ROM, allowing you to search the
camera(s) on your network easily.
1. Insert the Installation CD-ROM into your computer’s CD-
ROM drive to initiate the Auto-Run program.

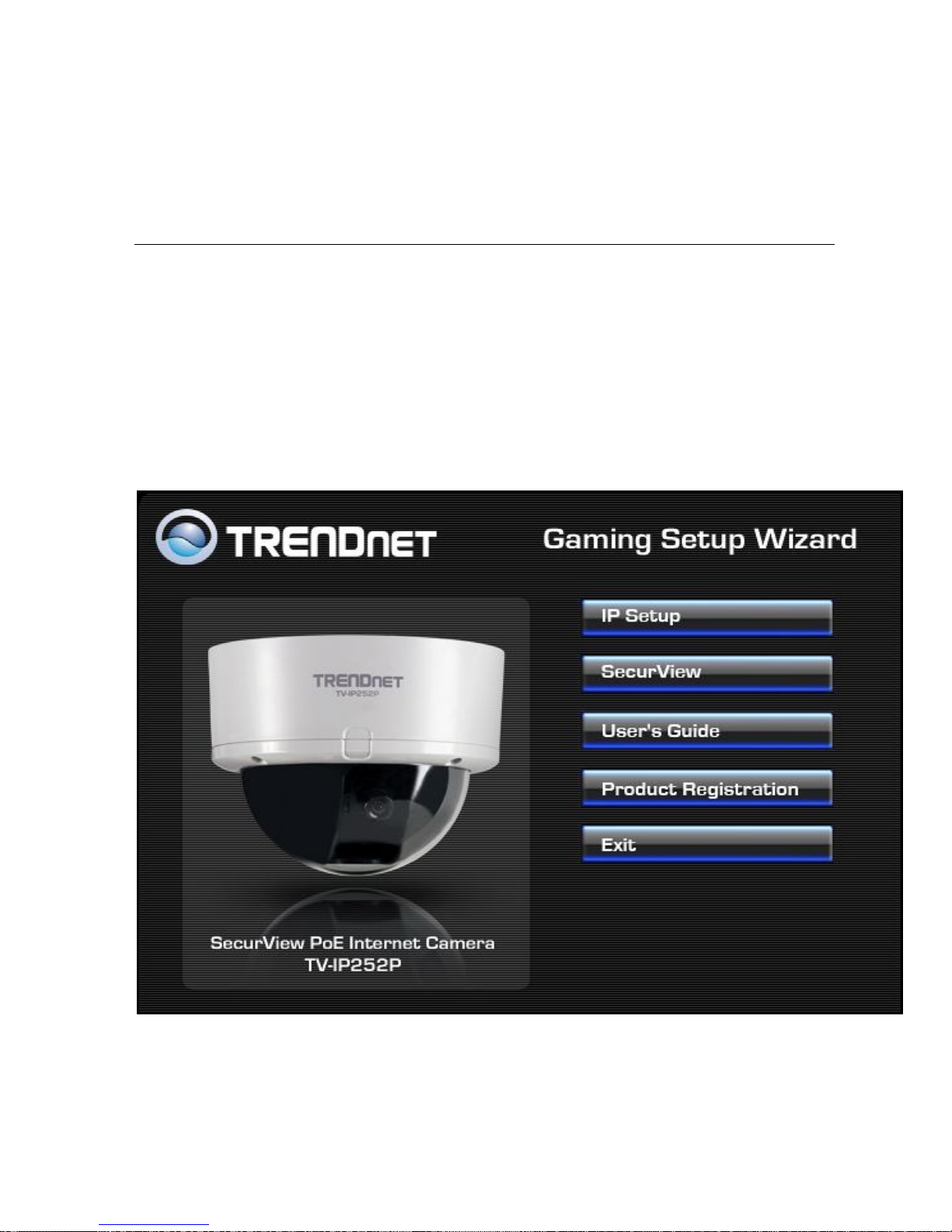

2. Click the IPSetup from the Auto-run menu screen. Then the
IPSetup Wizard will appear. Click Next when the Welcome
to the IPSetup Wizard appears.

- 18 -
3. Click Browse to choose the desired destination location.
By default the destination location is C:\Program
Files\TRENDnet\IPSetup. Then click Next.

- 19 -

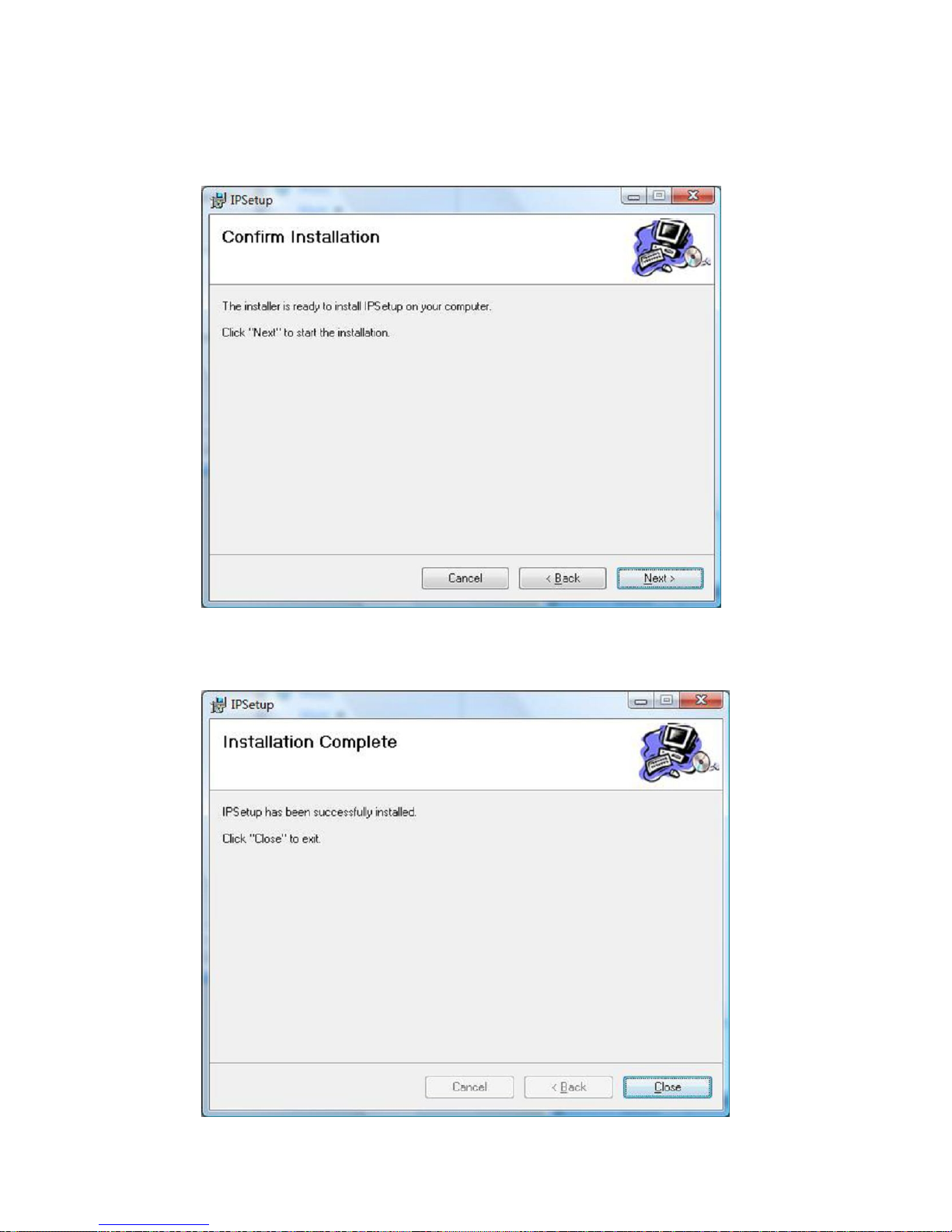

4. Click Next to confirm the IPSetup software to be installed to
the computer.
5. When the Installation Complete window appears, click
Close.
