TRENDnet TV-IP400 User manual

1
TABLE OF CONTENTS
ABOUT THIS GUIDE...................................................3
INTRODUCTION............................................................4
FEATURES AND BENEFITS..................................................5
UNPACKING THE PACKAGE................................................7
SYSTEM REQUIREMENT .....................................................8
PHYSICAL DESCRIPTION ....................................................9
HARDWARE INSTALLATION ................................12
A TTACHING THE M ETAL P LATE .......................................12
CONNECTING THE ETHERNET CABLE ...............................13
ATTACHING THE POWER SUPPLY.....................................13
SECURITY......................................................................14
APPLICATION..............................................................15
APPLICATION DIAGRAMS OF THE CAMERA..............................16
USING THE CAMERA ...............................................17
WEB CONFIGURATION UTILITY .......................................17
ADMINISTRATION ............................................................19
VIEWING VIDEO...............................................................51
IPVIEW PRO..................................................................55
INSTALLATION.................................................................55
GETTING STARTED...........................................................59
USING IPVIEW PRO .........................................................62

2
CONFIGURING THE SYSTEM .............................................68
APPENDIX .....................................................................82
A. FREQUENTLY ASKED QUESTIONS ...............................82
B. PING YOUR IP ADDRESS............................................85
C. TROUBLE SHOOTING ...................................................86
D. TIME ZONE TABLE ......................................................90
E. XPLUG CONTROL INSTALLATION.................................92
F. ADJUST INTERNET CAMERA FOCUS.............................95
G. SPECIFICATION............................................................96
H. GLOSSARY OF TERMS..................................................98

3
ABOUT THIS GUIDE
This manual provides instructions and illustrations on how to use
your TV-IP400/TV-IP400W Pan/Tilt (Wireless) Internet Camera,
includes:
zChapter 1, Introduction, provides the general information
on the camera.
zChapter 2, Hardware Installation, describes the hardware
installation procedure for the camera.
zChapter 3, Security, explains the security feature of the
camera.
zChapter 4, Application of the Camera, provides the
illustrations of the camera’s applications.
zChapter 5, Using the Camera, guides you through the
configuration using the web browser.
zChapter 6, IPView Pro, helps you to install and use the
software.
zChapter 7, Appendix.
Please note that the illustrations or setting values in this manual
are FOR YOUR REFERENCE ONLY. The actual settings and
values depend on your system and network. If you are not sure
about the respective information, please ask your network
administrator or MIS staff for help.

4
1
INTRODUCTION
Thank you for purchasing the TV-IP400/TV-IP400W Pan/Tilt
(Wireless) Internet Camera, a standalone system that can be
connected directly to an Ethernet or Fast Ethernet. TV-IP400W
also supports in addition wireless transmission that based on the
IEEE 802.11g standard. Compared to the conventional PC
camera, the Pan/Tilt Internet (Wireless) Camera features a built-in
CPU and web-based solutions that can provide a cost-effective
solution to transmit the real-time high-quality video images for
monitoring. The camera can be managed remotely, so that you
can use a web browser to access and control it from any
notebook/desktop PC over the Intranet or Internet. The simple
installation procedures and web-based interface allow you to
integrate it into your network easily. With comprehensive
applications supported, the Internet camera is your best solution
for remote monitor, high quality, and high performance video
images.

5
Features and Benefits
Simple to Use
The TV-IP400/TV-IP400W Pan/Tilt Internet (Wireless) Camera
is a standalone system with built-in CPU, no special hardware
(such as a PC frame capture card) or software required. The
camera supports DirectX 9.0; therefore, the only requirement you
need is the web browser software such as Internet Explorer 5.0 or
above. Once you have a valid IP Address, just connect it and you
can view the picture from your camera. In addition, the camera’s
pan/tilt function allows you to adjust the camera for optimal
viewing angle. You can tilt the camera right or left (up to
170/170 degrees), forward or backward (up to 45/90 degrees)
using the Web Configuration Utility.
Support Variety of Platforms
Supporting TCP/IP networking, SMTP e-mail, HTTP and other
Internet related protocols. The camera can be utilized in a mixed
operating system environment, such as Windows. It can be
integrated easily into other Internet/Intranet applications.
Web Configuration
Using a standard web browser, the administrator can configure
and manage the camera directly from its own web page via the
Intranet or Internet. Up to 64 users name and password are
permitted with privilege setting controlled by the administrator.

6
Remote Utility
The powerful IPView Pro application assigns the administrator
with a pre-defined user ID and password, allowing the
administrator to modify the camera settings from the remote site
via Intranet or Internet. When new firmware is available, you can
also upgrade remotely over the network for added convenience.
Users are also allowed to monitor the image, and take snapshots.
Broad Range of Applications
With today’s high-speed Internet services, the camera can provide
the ideal solution for live video images over the Intranet and
Internet for remote monitoring. The camera allows remote access
from a web browser for live image viewing, and allows the
administrator to manage and control the camera anywhere and
anytime in the world. Apply the camera to monitor various
objects and places such as homes, offices, banks, hospitals, child-
care centers, amusement parks and other varieties of industrial
and public monitoring. The camera can also be used for intruder
detection; in addition, it can capture still images for archiving and
many more applications.

7
Unpacking the Package
Unpack the package and check all the items carefully.
One TV-IP400/TV-IP400W
One Detachable Antenna (TV-IP400W only)
One Multi-Language Quick Installation Guide
One Driver & Utility CD-ROM with User’s Guide
One External Power Adapter (5V DC, 2.5A)
One RJ-45 Ethernet Cable
One Metal Plate
If any packaging content is damaged or missing, please contact
your local dealer immediately. Also, keep the box and packing
materials fur future shipment is necessary.

8
System Requirement
Networking
Local Area Network:
10Base-T Ethernet or 100Base-TX Fast Ethernet
Wireless Local Area Network (TV-IP400W only):
IEEE 802.11g Wireless LAN
Accessing the Camera
For Web Browser Users
Operating System: Microsoft® Windows® 98SE/ME/
2000/XP
CPU: 300 MHz or above
Memory Size: 32MB (64MB recommended)
Resolution: 800x600 or above
Microsoft® Internet Explorer 5.0 or above
For IPView Pro Application Users
OS: Microsoft® Windows® 98SE/ME/ 2000/XP.
CPU: 1GHz or above
Memory Size: 256MB
Resolution: 800x600 or above
NOTE: When you connect multiple cameras and monitor their images
synchronously. it is recommended to use a high performance system such as
a Pentium 4 2.4GHz PC.

9
Physical Description
This section provides the information of camera and explains the
function of each component.

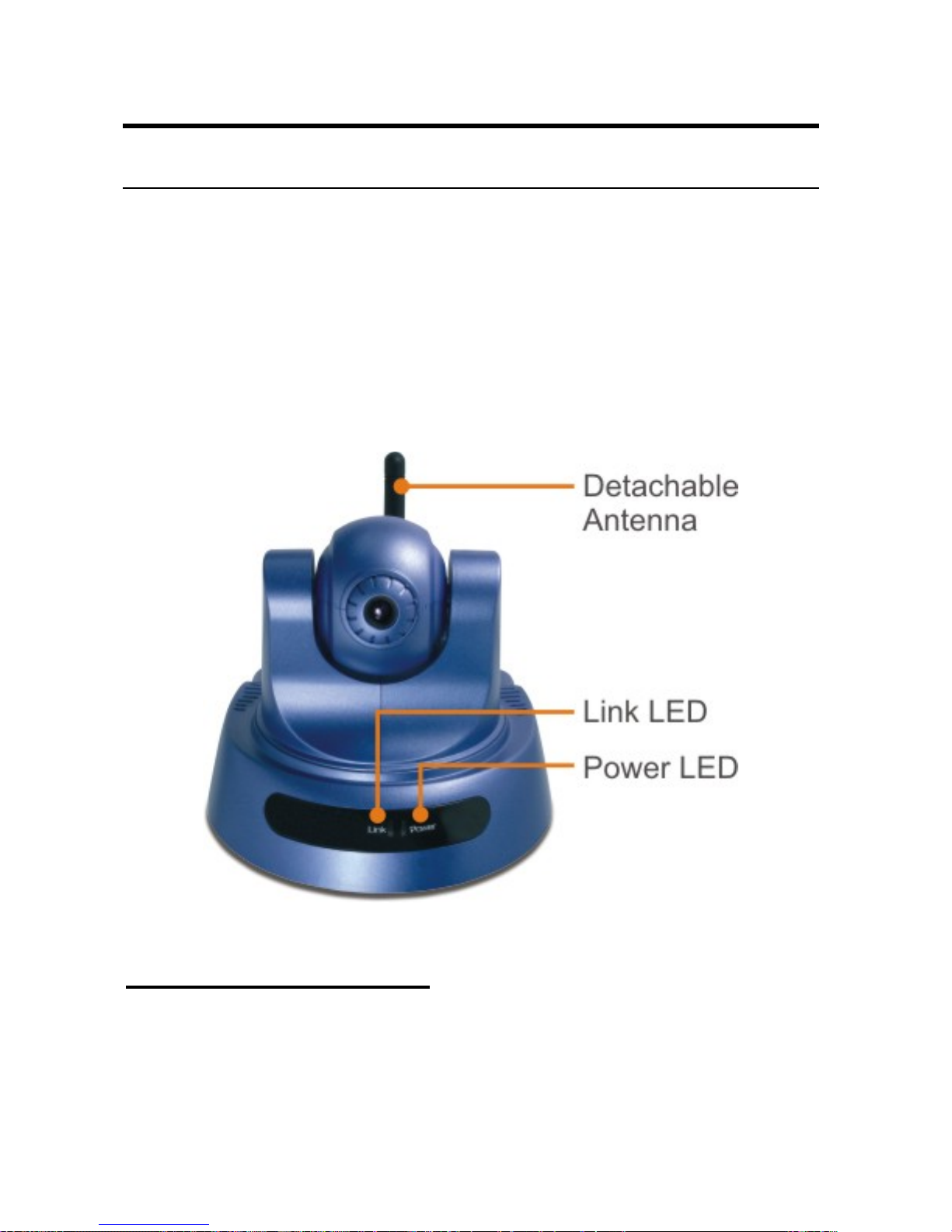

Front Pane, Top/Bottom Panel
There are two LED indicators on the front panel of the camera:
Power LED and Link LED.
1. Detachable Antenna
The detachable external antenna allows you to adjust its position
to obtain the maximum signal.

10
2. Link LED
The Link LED is positioned on the left side of the two LEDs. A
steady ORANGE light confirms that the camera has good
connection to LAN connectivity. Dependent on the data traffic,
the LED will begin to flash to indicate that the camera is
receiving/sending data from/to the network.
3. Power LED
The Power LED is positioned on the right side of the two LEDs.
A steady BLUE light confirms that the camera is powered on.

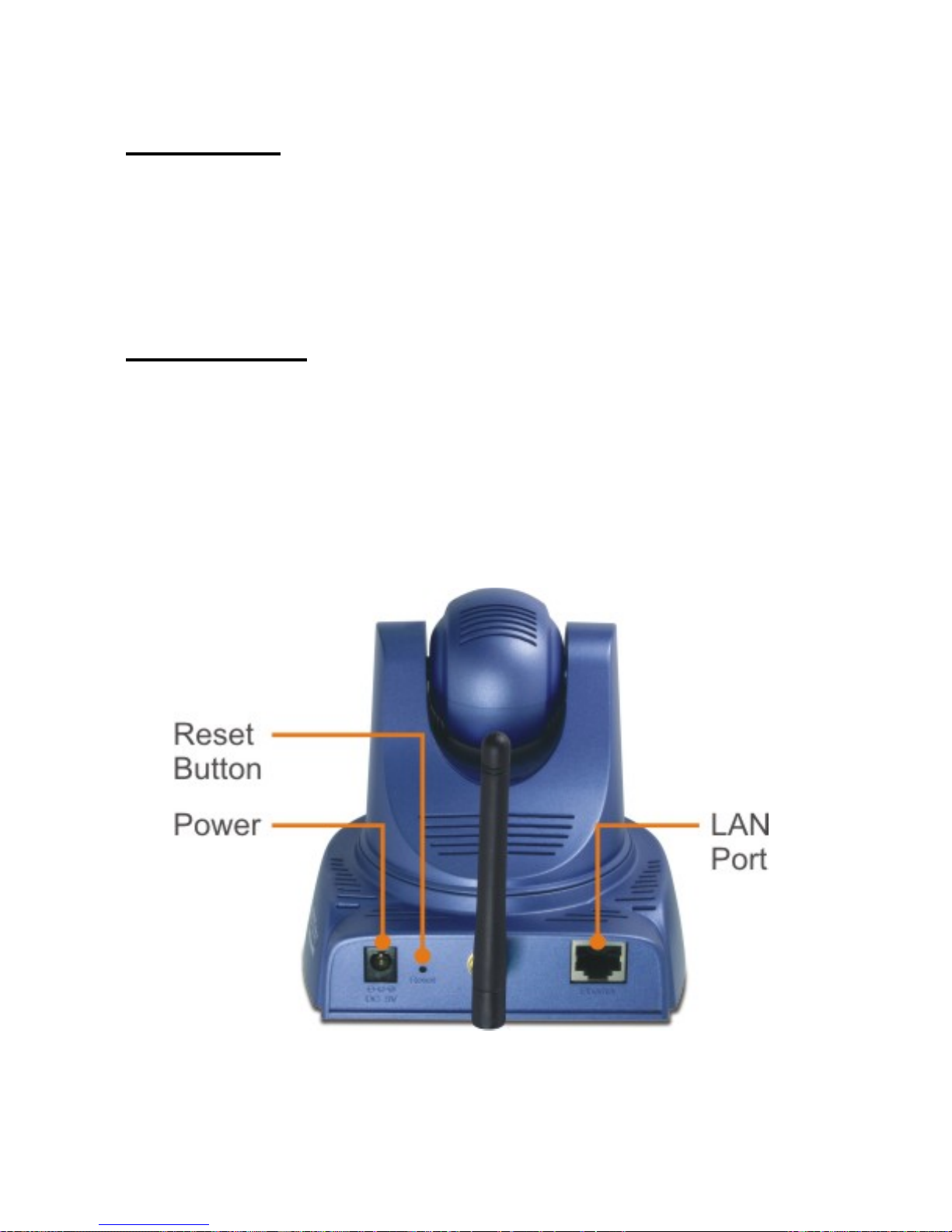

Rear Panel

11
1. Power Connector
The DC power input connector is located on the camera’s rear
panel, and is labeled DC5V 2.5A with a single jack socket to
supply power to the camera. Power will be generated when the
power supply is connected to a wall outlet.
2. Reset Button
Reset will be initiated when the reset button is pressed once, and
Power LED begins to flash.
Factory Reset will be initiated when the reset button is pressed
continuously for three seconds or when Power LED begins to
light up. Release the reset button and the Power LED will begin
to flash, indicating the camera is changing to factory reset. When
factory reset is completed, the camera will be set to default on
channel 11 and SSID is set as “NULL String” (This default
setting will let the camera connect to ANY access point on the
infrastructure network). The IP address will also return to the
default setting as 192.168.0.20.
3. LAN Port
The RJ-45 connector is used to connect the 10Base-T Ethernet or
100Base-TX Fast Ethernet network (which should be Category 5
twisted-pair cable). The port supports the Auto-MDIX which
allowing the camera automatically detects or negotiates the
transmission speed of the Network.

12
2
HARDWARE
INSTALLATION
Attaching the Metal Plate
To attach the metal clip, remove the two rubber pads under the
base of the camera firstly. Place the metal clip onto the camera
base, and align the two holes of metal clip with two screw holes
on the base. Secure the metal clip to the base with two screws
(provided). Then, you can:
1. Install the camera to the ceiling using two ceiling screws (X);
or,
2. Install the camera to the wall using two wall screws (Y).
Base of the camera
Wall screw
Screw Screw
Ceiling screw
Ceiling screw
Wall screw
X
X
Y
Y

13
Connecting the Ethernet cable
Connect an Ethernet cable to the
network cable connector located on
the camera’s rear panel, and then
attach it to the network
Attaching the Power Supply
Attach the external power supply
to the DC power input connector
located on camera’s rear panel,
and then connect it to your local
power supply.
TIP: You can confirm power
source is supplied from the Power
LED on the camera is illuminated.

14
3
SECURITY
To ensure the highest security and prevent unauthorized usage of
the camera the Administrator has the exclusive privilege to access
the System Administration for settings and control requirements
to allow users the level of entry and authorize the privileges for
all users. The camera supports multi-level password protection
and access to the camera is strictly restricted to define the user
who has a “User Name” and “User Password” that is assigned by
the Administrator.
The administrator can release a public user name and password to
allow remote users to access the camera.
NOTE: Since the default settings are Null String, it is highly
recommended to set the "Admin ID" and "Admin Password"
when you are the first time to use the camera. Once the ID
and Password are defined, only the administrator has the
access to management the camera. This procedure should be
done as soon as possible since the security features with the
camera will not be enabled until the "Admin ID" and "Admin
Password" is defined.

15
4
APPLICATION
The TV-IP400/TV-IP400W camera can be applied in wide
variety of applications. Including:
zMonitoring of local and remote places and objects such as
construction sites, hospitals, amusement parks, schools and
day-care centers through the use of a web browser.
zCapture single frame images from the IPView Pro
application.
zConfigure the camera to upload image or send-mail
messages with a single frame image.
The following provides the typical applications for your camera
with the IPView Pro application, and also includes some basic
knowledge to assist in the installation and configuration of the
camera.

16
Application Diagrams of the Camera
Home or business Applications

17
5
USING THE CAMERA
You can access and manage the camera through: 1) a web
browser, and 2) the enclosed software IPView Pro. This chapter
describes the Web Configuration Utility, and provides the
instructions on using the camera with a web browser.
Web Configuration Utility
The camera must be configured through its built-in Web-based
Configuration. (Extensive knowledge of LAN will be helpful in
setting up the camera.)
From the web browser, enter the default IP address to access the
Welcome screen of the camera. To configure your camera, type
http://192.168.0.20 in the address box. The number is the default
IP address of your camera. Then, press [Enter].
NOTE: The computer’s IP address must correspond with the
camera’s IP address in the same segment for devices to
communicate.

18
Welcome Screen of the Configuration Utility
After the default IP address is entered from the browser, the
camera Welcome screen will appear with a still image. There
will be three options to choose from to set-up and view your
camera, including:
zHome – Main Page
zAdministration
zView Video – ActiveX
zView Video – Java
Default IP address
Pre-view area

19
Administration
On the Welcome screen of the Configuration Utility, click
Administration to enter the administration window that contains
the settings required for the camera in the top menu bar, including
Status, Configuration, Tools and Help
TIP: Click Save to store the setting, or Cancel to abandon, or
Refresh to reload the status. Click Home on the top menu bar
will link to Welcome Window.
Administration J Status
The Management window contains the information of your
configuration. Click the items in the left column to view your
settings, including: System, Video, Wireless (Wireless is for
TV-IP400W only), Network, and Active User.
