PREFACE
Thank you for purchasing the TV-IP110/TV-IP110W Wire/Wireless
Internet Camera Server, a powerful and high-quality image network camera.
The camera can be installed as a standalone system within your application
environment easily and quickly, and supports remote management function
so that you can access and control it using a Web browser on your PC.
This guide will provide you more information of instruction and
illustrations on how to use your camera, which includes:
Chapter 1 Introduction to Your Camera describes the features of the
camera. You will also know the components and functions of
the camera.
Chapter 2 Hardware Installation helps you install the camera according
to your application environment. You can use this camera at
home, at work, at any where you want.
Chapter 3 Accessing the Camera lets you start using your camera
without problem. The camera can be set up easily and work
within your network environment instantly.
Chapter 4 Configuring the Camera guides you through the
configuration of the camera using the web browser on your PC.
Chapter 5 Using SecurView™ shows you the detail instructions on
operating SecurView™ software.
Chapter 6 Appendix provides the specification of the camera and some
useful information for using your camera.
NOTEThe illustrations and configuration values in this guide are for
reference only. The actual settings depend on your practical
application of the camera.

- 2 -
Contents
PREFACE .........................................................................1
CHAPTER 1.....................................................................4
INTRODUCTION TO YOUR CAMERA...............4
1.1 CHECKING THE PACKAGE CONTENTS ...................................4
TV-IP110 (FRONT/BACK VIEW) ....................................................5
TV-IP110W (FRONT/BACK VIEW).................................................6
1.3 FEATURES AND BENEFITS .....................................................8
1.4 SYSTEM REQUIREMENT.........................................................9
CHAPTER 2...................................................................10
HARDWARE INSTALLATION..............................10
2.1 INSTALLING THE CAMERA STAND.......................................10
2.2 CONNECTING THE CAMERA TO LAN...................................11
2.3 APPLICATIONS OF THE CAMERA..........................................12
CHAPTER 3...................................................................13
ACCESSING THE CAMERA..................................13
3.1 USING IP SETUP ..................................................................13
3.2 ACCESSING TO THE CAMERA...............................................18
3.3 CONFIGURING THE IP ADDRESS OF THE PC ........................21
CHAPTER 4...................................................................22
CONFIGURING THE CAMERA ...........................22
4.1 USING THE WEB CONFIGURATION ......................................22
4.2 USING SMART WIZARD .......................................................23
4.3 BASIC SETUP .......................................................................27
4.4 NETWORK SETTINGS ...........................................................31
4.5 SETTING UP VIDEO ..............................................................38
4.6 EVENT SERVER CONFIGURATION........................................41
4.7 MOTION DETECT.................................................................44
4.8 EVENT CONFIG....................................................................46
4.9 TOOLS .................................................................................51
4.10 INFORMATION .....................................................................53
CHAPTER 5...................................................................54

- 3 -
SECURVIEW™ SOFTWARE..................................54
5.1 INSTALLATION ...............................................................54
5.2 USING INSTALLATION ..................................................59
ITEM FEATURES ............................................................................59
TO REMOVE A CAMERA ................................................................69
TO LINK TO THE WEB PAGE OF THE CAMERA...............................70
TO RECORD VIDEO........................................................................71
TO CONFIGURE THE RECORDING SETTINGS...................................76
TO PLAYBACK THE RECORDED VIDEO ..........................................78
TO SET UP MOTION DETECTION OPTIONS ......................................78
ACCOUNT .....................................................................................81
OTHER..........................................................................................81
INFORMATION...............................................................................82
CHAPTER 6...................................................................83
APPENDIX.....................................................................83
A.1 SPECIFICATION....................................................................83

- 4 -
CHAPTER 1
INTRODUCTION TO YOUR
CAMERA
1.1 Checking the Package Contents
Check the items contained in the package carefully. You should have the
following:
TV-IP110/TV-IP110W Network Camera.
Multi-Language Quick Installation Guide
Utility CD-ROM
Detachable External Antenna (for TV-IP110W only)
Camera Stand
RJ-45 Ethernet Cable
AC Power Adapter (5VDC, 2.5A)
NOTE: If there is any item damage or missing, please contact your
local authorized deal for replacement.

- 5 -
1.2 Getting to Know Your Camera

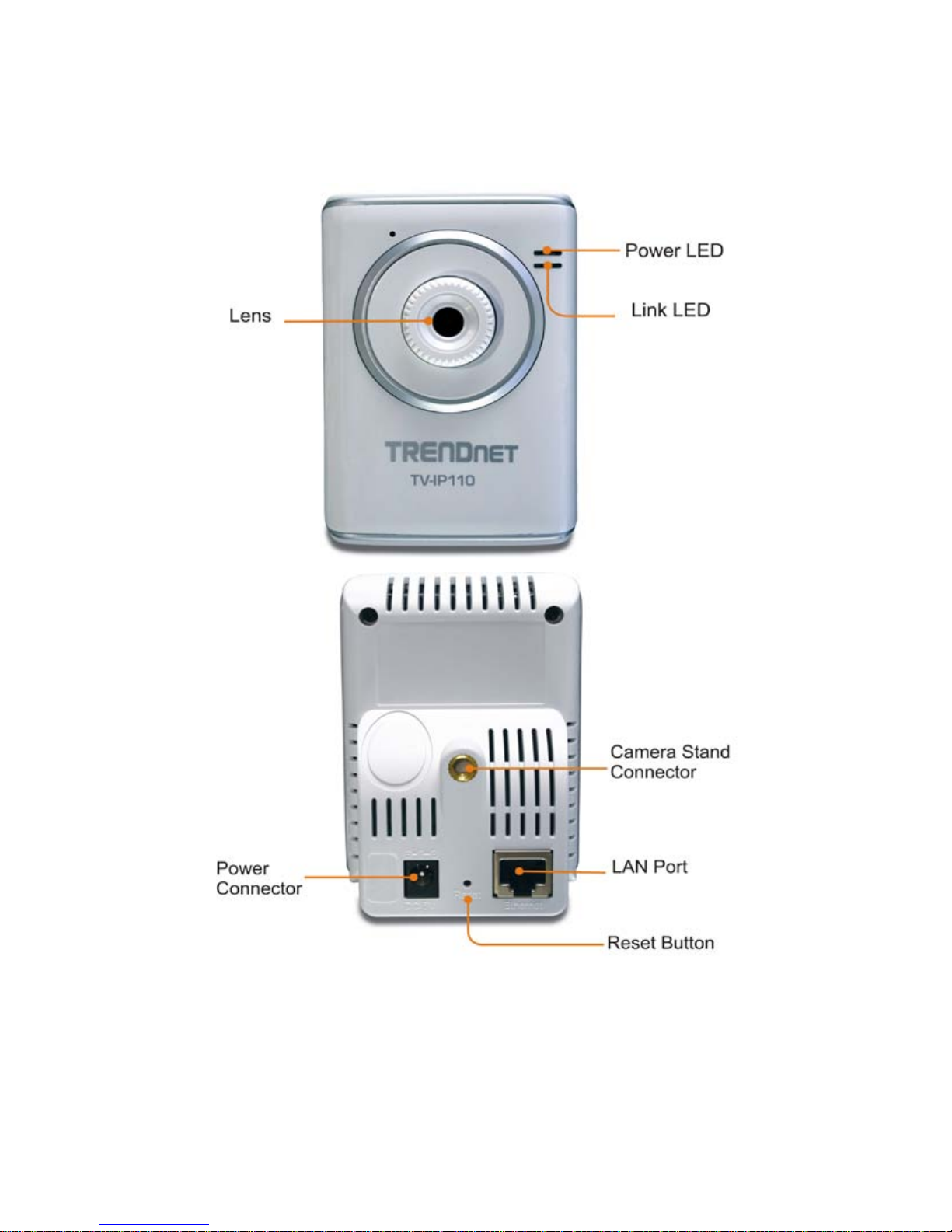

TV-IP110 (Front/Back View)

- 6 -

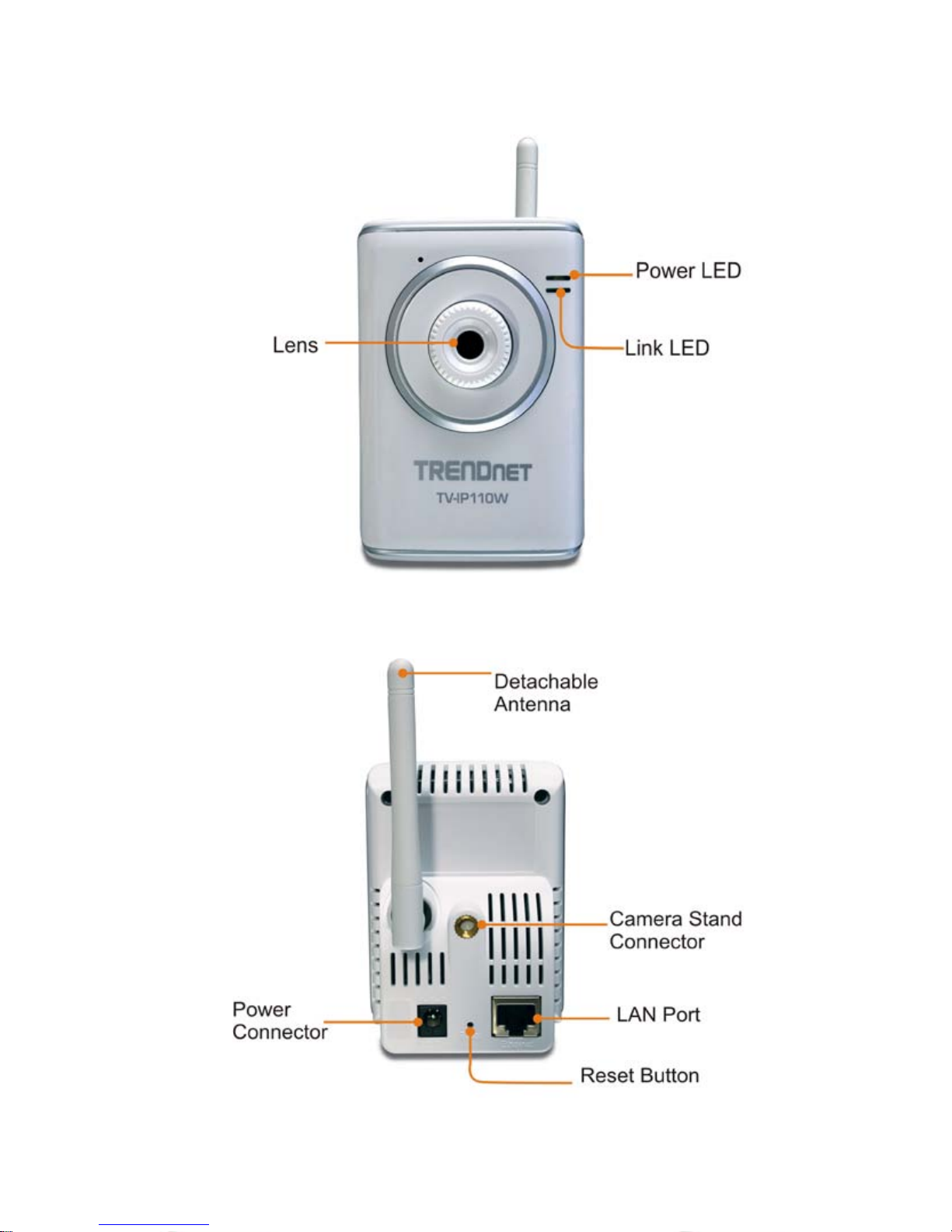

TV-IP110W (Front/Back View)

- 7 -
-Power LED: A steady orange light indicates the camera is
powered on.
-Link LED: A flash green light indicates the camera’s network
connection correctly.
-Detachable Antenna (TV-IP110W only):
The detachable external antenna allows you to adjust its position to
obtain the maximum signal.
-Camera Stand Connection: Connects the camera with the camera
stand.
-Power Connector: Connects the AC power adapter to supply
power to the camera.
-LAN Port: It is used to connect the network RJ-45 cable, which
supports the NWay protocol so that the camera can detect the
network speed automatically.
-Reset Button: Reset will be initiated when the reset button is
pressed once. The power LED begins to flash.
Factory Reset will be initiated when the reset button is pressed continuously
for three seconds or when Power LED begins to light up. Release the reset
button and the Power LED will begin to flash.

- 8 -
1.3 Features and Benefits
Surveillance Supported
Enable motion detection and setup automated email alerts and upload
FTP for security.
Remote Control Supported
By using a standard Web browser or the bundled SecurView software
application, the administrator can easily change the configuration of the
camera via Intranet or Internet. In addition, the camera can be upgraded
remotely when a new firmware is available. The users are also allowed
to monitor the image and take snapshots via the network.
Multiple Platforms Supported
The camera supports multiple network protocols, including TCP/IP,
SMTP e-mail, HTTP, and other Internet related protocols. Therefore,
you can use the camera in a mixed operating system environment, such
as Windows 2000, XP, and Vista.
Multiple Applications Supported
Through the remote access technology, you can use the cameras to
monitor various objects and places for your own purposes.
For example, babies at home, patients in the hospital, offices and banks,
and more. The camera can capture both still images and video clips, so
that you can keep the archives and restore them at any time.

- 9 -
1.4 System Requirement
Networking
LAN: 10Base-T Ethernet or 100Base-TX Fast Ethernet.
WLAN: IEEE 802.11b/g. (For TV-IP110W)
Accessing the Camera using Web Browser
Platform: Microsoft® Windows® 2000/XP/Vista/Windows 7
Macintosh OSX
CPU: Intel Pentium III 350MHz or above
RAM: 128MB
Resolution: 800x600 or above
User Interface: Microsoft® Internet Explorer 6.0 or above
Accessing the Camera using SecurView
Platform: Microsoft® Windows® 2000/XP/Vista/Windows 7
Hardware Requirement:
1 camera connected: Intel Pentium III 800MHz; 512MB RAM
2 ~ 4 cameras connected: Intel Pentium 4 1.3GHz; 512MB RAM
5 ~ 8 cameras connected: Intel Pentium 4 2.4GHz; 1GB RAM
9 ~ 16 cameras connected: Intel Pentium 4 3.4GHz; 2GB RAM
Resolution: 1024x768 or above
NOTEIf you connect multiple cameras to monitor various places
simultaneously, you are recommended to use a computer with
higher performance.

- 10 -
CHAPTER 2
HARDWARE INSTALLATION
2.1 Installing the Camera Stand
The camera comes with a camera stand, which uses a swivel ball screw
head to lock to the camera’s screw hole. When the camera stand is attached,
you can place the camera anywhere by mounting the camera through the
three screw holes located in the base of the camera stand.
The Camera Stand

- 11 -

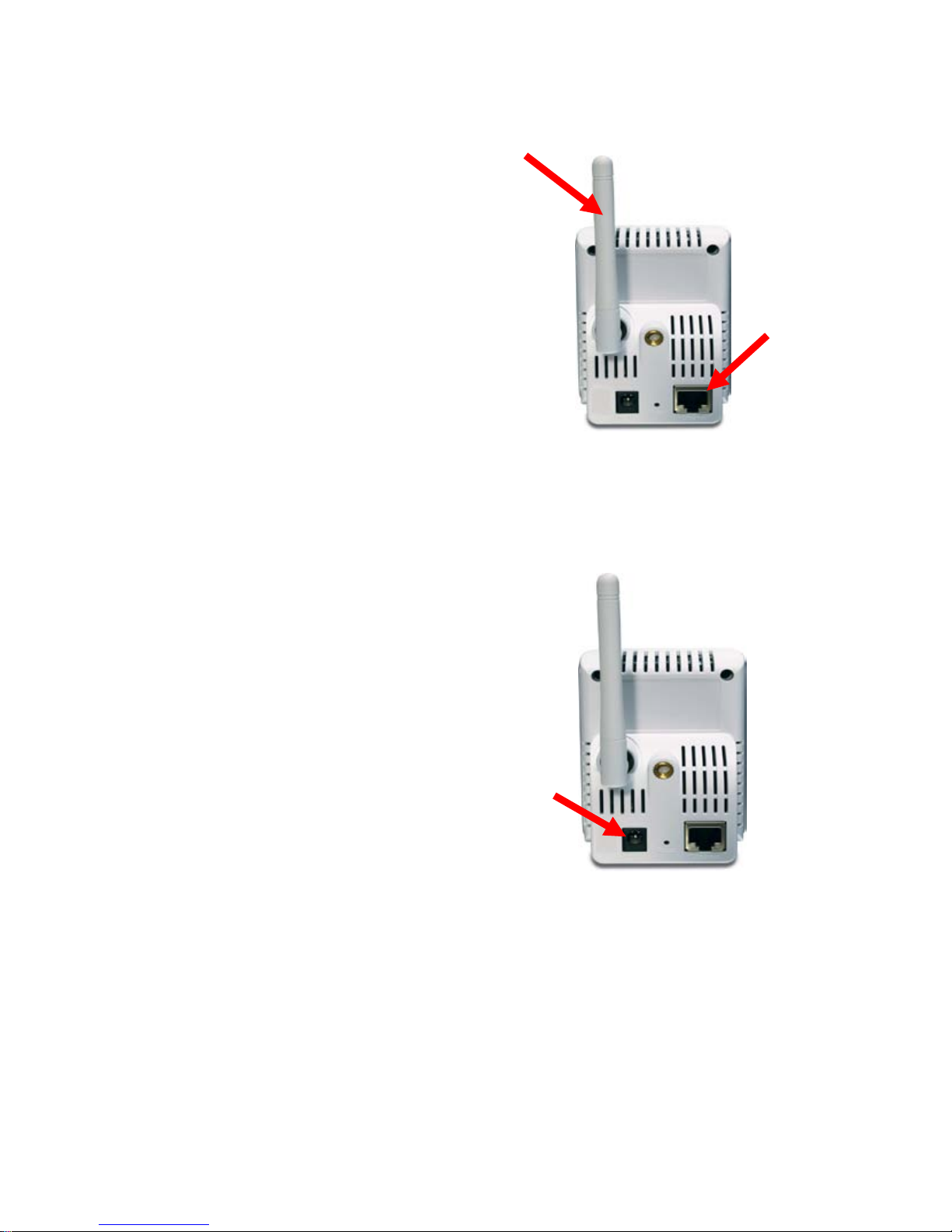

2.2 Connecting the Camera to LAN
Connects an Ethernet cable to the
LAN port located on the Camera’s real
panel, and then attaches it to the
network.
Connects an antenna to the antenna
connector. (TV-IP110W)
Attach the external power supply to
the DC power input connector located
on Camera’s real Panel, and then
connect it to your local power supply.
NOTE Please configure the wireless setting via the wire connection.

- 12 -
2.3 Applications of the Camera
The camera can be applied in multiple applications, including:
Monitor local and remote places and objects via Internet or Intranet.
Capture still images and video clips remotely.
Upload images or send email messages with the still images attached.
The following diagram explains one of the typical applications for your
camera and provides a basic example for installing the camera.
*

- 13 -
CHAPTER 3
ACCESSING THE CAMERA
3.1 Using IP Setup
The camera comes with a conveniently utility, IP Setup, which is included
in the Installation CD-ROM, allowing you to search the camera on your
network easily.

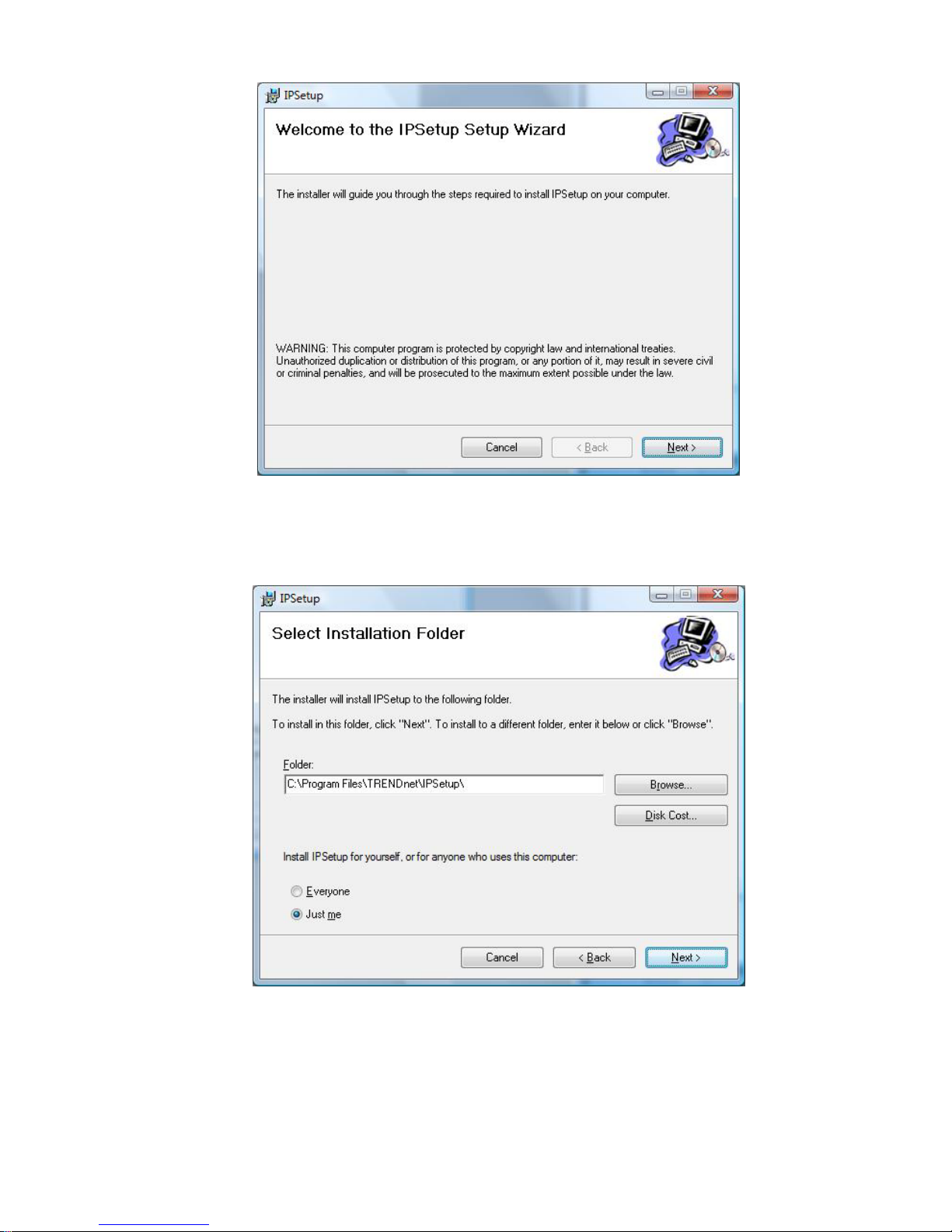

1. Insert the Installation CD-ROM into your computer’s CD-ROM drive
to initiate the Auto-Run program.
2. Click the IP Setup from the Auto-Run menu screen. Then IP Setup
Wizard will appear. Click “Next” when the Welcome to the IPSetup
Setup Wizard appears.

- 14 -
3. Click “Browse” to choose the desired destination location. By default,
the destination location is C:\Program Files\TRENDnet\IPSetup. Then
Click “Next”.
4. Click “Next” to confirm the IPSetup software to be installed to the
computer.
5. When the Installation Complete window appears, click “Finish”.

- 15 -
6. After installing the IPSetup utility, the application is automatically
installed to your computer, and creates a folder in “ Start
\Program\TRENDnet\IPSetup”.
7. Click Start > Programs > TRENDnet > IPSetup, and then click
IPSetup
8. The IPSetup window will appear. It will search the Camera within the
same network.

- 16 -
-Camera Display Area: It shows the connected camera(s) within the
same network.
Double click the IP address; it will link to Camera’s Web Configuration
page.
-Change IP: Click this button to bring up the following window. It
allows you to change the IP Address. You can select either Static IP or
click DHCP. Then, enter the Administrator ID & password. By
default ID/password is: admin. When complete, click “Change”.
Camera Display Area

- 17 -
-Search: Click this button to search the connected camera in the
same network.”
-Exit: Click this button to exit the program.

- 18 -
3.2 Accessing to the Camera
1. Open the Web browser on your computer (example showed in the
User’s Guide is based on the Internet Explorer)
2. Type the Camera IP address that DHCP server assigned in the web
browser URL (e.g. 192.168.10.30) and then press [Enter].
3. When the login window appears, enter the default User name (admin)
and password (admin) and press OK to access to the main screen of the
camera’s Web Configuration.

- 19 -
NOTE If you are initially access to the camera, you will be ask to install a
new plug-in for the camera. Permission request depends on the
Internet security settings of your computer. Click Yes to proceed.
After you login into the Web Configuration of the camera, the main page
will appear as below:
Live View Image
Live View/ Setup
Function
Camera Information
Zoom In
