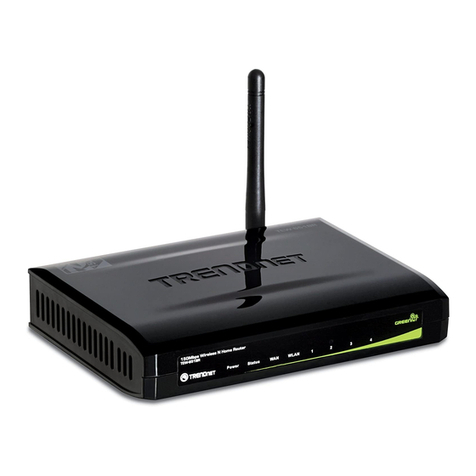

TRENDnet TEW-651BR User manual

The 150Mbps Wireless N Home Router delivers the highest level of
security with 6x the speed and 3x the coverage of wireless g products.
Quickly install the router and use it with TRENDnet wireless n adapters to
receive the full benefits of wireless n speed and coverage.
The latest in wireless encryption and a secure firewall protect your
valuable data. Router setup is fast and intuitive. Wireless Protected
Setup (WPS) integrates other WPS supported wireless adapters at the
touch of a button. Seamlessly stream HD media, download files and surf
online with wireless n speed.
TEW-651BR (V1.0R)
150Mbps Wireless N Home Router
TEW-651BR
rev: 07.16.2010
wireless
Features

SPECIFICATIONS
WAN
Standards
LAN
WPS Button
Connection Type
Supported Web Browsers
• IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.11b, IEEE 802.11g, based on IEEE 802.11n technology
• 225g (7.8oz)
• 1 x 10/100Mbps Auto-MDIX WAN port (Internet)
• 4 x 10/100Mbps Auto-MDIX LAN port
• Enables Wi-Fi Protected Setup (WPS) function
• Dynamic IP, Static (fixed) IP, PPPoE, PPTP, L2TP
• MAC Address Filter (20 entries), Domain/URL Filter (40 entries), Protocol/IP Filter (20 entries)
Temperature
Hardware
SPECIFICATIONS
Wireless
Media Access Protocol
• 10% ~ 95% max (non-condensing)
Humidity
• CE, FCC
Certifications
• 802.11g: OFDM with BPSK, QPSK and 16/64-QAM
Module Technique
Weight
• 802.11b: up to 11Mbps
• 802.11g: 15dBm (typical) @ 54Mbps
Frequency
• 1 x 2dBi fixed dipole antenna
• 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
• 2.412 ~ 2.484 GHz ISM band
Antenna
• Power, Status, LAN1 - LAN4, WAN, WLAN
Internet Access Control
LED Indicators
• 802.11b: -85dBm (typical) @ 11Mbps
• 64/128-WEP, WPA-PSK/WPA2-PSK, WPA/WPA2-RADIUS
• 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
• 1-11 (FCC), 1-13 (ETSI)
• CSMA/CA with ACK
• 5V DC, 1.2A external power adapter
Power Supply
• 3.5 watts (max)
Power Consumption
• 150 x 110 x 30mm (5.9 x 4.3 x 1.2in)Dimensions (LxWxH)
• Internet Explorer 6.0 or above, Firefox, Safari
* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending
on interference, network traffic, building materials and other conditions.
TEW-651BR (V1.0R)
150Mbps Wireless N Home Router
Data Rate (Auto Fallback)
Output Power
Receiving Sensitivity
Encryption
Channels
• Operating: 0° ~ 40°C (32° ~ 104°F) • Storage: -10°C ~ 70°C (-14° ~ 158°F)
• 802.11g: up to 54Mbps • 802.11n: up to 150Mbps
• 802.11b: 15dBm (typical) @ 11Mbps • 802.11n: 13dBm (typical) @ 150Mbps
• 802.11g: -68dBm (typical) @ 54Mbps • 802.11n: -62dBm (typical) @ 150Mbps
TEW-651BR
rev: 07.16.2010

• Multi-Language Quick Installation Guide
ORDER INFORMATION
RELATED PRODUCTS
PACKAGE CONTENTS
• TEW-651BR
• CD-ROM (User’s Guide)
TEW-624UB
TEW-638APB
300Mbps Wireless N USB Adapter
300Mbps Wireless N Access Point
20675 Manhattan Place,Torrance, CA 90501 USA
Tel: [phone]
Fax: [phone]
Web:
Email:
To Order Please Call:
1-888-326-6061
[email protected]
www.trendnet.com
TEW-648UB 150Mbps Mini Wireless N USB Adapter
TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet
products and is subject to change at any time, without notice. For the most recent product information please visit
http://www.trendnet.com.
©
Copyright TRENDnet. All Rights Reserved.
TEW-651BR (V1.0R)
150Mbps Wireless N Home Router
• Cat. 5 Ethernet cable (1.5m / 4.9ft)
• Power adapter (5V DC, 1.5A)
NETWORKING SOLUTIONS
Wireless N Connection
150Mbps Wireless N Home Router
(TEW-651BR)
Notebook with
Mini Wireless N USB Adapter
(TEW-648UB)
150Mbps
Workstation with
Wireless N Access Point
(TEW-638APB)
300Mbps Workstation with 300Mbps
Wireless N USB Adapter
(TEW-624UB)
Cable/DSL
Modem
Internet
