Tricity Bendix CSB4431 User manual

39
MODEL NO.
CSB4411 / CSB4431
OPERATING AND INSTALLATION INSTRUCTIONS

MODEL NO. CSB4411
Voltage: 230/240 Volts AC 50Hz
Wattage: 10.9/11.9kW
Height: 1290mm
Width: 550mm
Depth: 595mm
Weight: 54kg
MODEL NO. CSB4431
Voltage: 230/240 Volts AC 50Hz
Wattage: 10.3/12.3kW
Height: 1290mm
Width: 550mm
Depth: 595mm
Weight: 58kg
This appliance complies with: European Council Directive 73/23/EEC.
EMC Directive 89/336/EEC.
CE Marking Directive 93/68/EEC.
2
TECHNICAL DETAILS

Please refer to the sections in this book which are appropriate to your model.
Technical Details ................................................................................. 2
Contents ......................................................................................... 3
Preface ........................................................................................... 5
Safety ............................................................................................. 6
Before Installation ........................................................................... 6
During Operation ........................................................................... 6
After Use ................................................................................... 7
General .................................................................................... 7
Introduction ...................................................................................... 8
Rating Plate ................................................................................ 8
Installation .................................................................................. 8
Reversible Main Oven Door ................................................................. 9
General Notes On Using Your Cooker ....................................................... 9
Condensation and Steam ................................................................... 9
Oven and Grill Furniture ..................................................................... 9
Getting to know your Cooker .................................................................... 10
The Control Panel ......................................................................... 10
The Timer ................................................................................. 11
The Sealed Hotplates ............................................................................ 14
Recommended Saucepans ................................................................. 14
Hints and Tips ............................................................................. 14
Deep Fat Frying ................................................................................. 15
Preserving ....................................................................................... 15
The Grill ........................................................................................ 16
Selecting the Grill (CSB4411) .............................................................. 16
Selecting the Grill (CSB4431) .............................................................. 16
Things to Note ............................................................................. 16
The Grill Pan and Handle ................................................................... 16
Hints and Tips ............................................................................. 17
Grilling Chart .............................................................................. 17
The Top Oven (CSB4431 only) .................................................................. 18
Uses of the Top Oven ...................................................................... 18
Selecting the Top Oven .................................................................... 18
To Fit the Top Oven Shelf .................................................................. 18
Hints and Tips ............................................................................. 18
The Oven (CSB4411 only) ....................................................................... 20
Selecting the Oven ......................................................................... 20
Things to Note ............................................................................. 20
To Fit the Oven Shelves ................................................................... 20
Hints and Tips ............................................................................. 20
Oven Cooking Chart ....................................................................... 21
Oven Roasting Chart ....................................................................... 22
The Main Fan Oven (CSB4431 only) ............................................................. 23
Uses of the Fan Oven ...................................................................... 23
Selecting The Fan Oven ................................................................... 23
Things to Note ............................................................................. 23
To Fit the Main Oven Shelves .............................................................. 23
Hints and Tips ............................................................................. 24
Roasting Chart ............................................................................. 24
Oven Cooking Chart (CSB4431 only) ....................................................... 25
3
CONTENTS

Defrost Feature (CSB4431 only) ................................................................. 26
Uses of Defrost Feature ................................................................... 26
Selecting Defrost ......................................................................... 26
Things to Note ............................................................................ 26
Hints and Tips ............................................................................ 26
Care and Cleaning ............................................................................... 27
Cleaning Materials ........................................................................ 27
Cleaning the Sealed Hotplates and Hotplate Trims .......................................... 27
Things to Note ............................................................................ 27
Cleaning the Outside of the Cooker ........................................................ 27
Cleaning the Grill Deflector, Grill Pan, Grill Pan Grid and Oven Shelves ..................... 28
Cleaning Inside the Oven/Grill Compartments .............................................. 28
Care of Stayclean Surfaces ................................................................ 28
Hints and Tips ............................................................................ 28
Something not Working? ........................................................................ 29
Service and Spare Parts ......................................................................... 30
Customer Service Centres ....................................................................... 31
Guarantee Conditions ........................................................................... 33
4
CONTENTS

Dear Customer,
Thank you for buying a Tricity Bendix cooker. With our 80 years experience in
developing and manufacturing the very best in U.K. cookers, you can be
assured that you have purchased a hard working, reliable, quality product.
Tricity Bendix cookers comply with British Standard safety and performance
requirements. They are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix cooker, we ask that you PLEASE
READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be
made to cooking times and temperatures which may differ from your previous
cooker.
It is most important that this instruction book is retained with the appliance for
future reference. Should the appliance be sold, or if you move house and
leave the appliance, always ensure that the book remains with the appliance.
This will enable the new owner to be acquainted with the functioning of the
appliance and the relevant warnings.
Please read the whole instruction book before attempting to use the appliance
ensuring you follow the recommendations given.
5
PREFACE

THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND
THEM ALL BEFORE INSTALLING OR
USING THE COOKER.
PLEASE
READ
CAREFULLY
BEFORE INSTALLATION
This cooker is heavy and care must
be taken when moving it.
Ensure that all packaging, both
inside and outside the appliance,
has been removed before the
appliance is used.
If the cooker is to be placed on a
base, measures must be taken to
prevent the cooker slipping from the
base.
Do not try to move the appliance by
pulling the door handles.
The electrical installation work must
be undertaken by a qualified
electrician/ competent person.
It is dangerous to alter or modify
the specifications of the product in
any way.
DURING OPERATION
Do not use this cooker if it is in
contact with water. Never operate it
with wet hands.
This appliance is designed to be
operated by adults. Young children
must not be allowed to tamper with
the cooker or play with the controls.
During use the cooker becomes Hot.
Care should be taken to avoid
touching heating elements inside the
oven.
Accessible parts especially around
the grill area may become hot when
the cooker is in use. Children should
be kept away until it has cooled.
Take great care when heating fats
and oils as they will ignite if they
become too hot.
This product has been designed for
cooking edible foodstuffs only, and
must not be used for any other
purposes.
Never place plastic or any other
material which may melt in the oven
or on the hob.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
The handles of saucepans which are
smaller than the heated area on the
hob will become hot. Ensure your
hand is protected before handling the
pan.
Take care to follow the
recommendations given for tending
the food when grilling.
6
SAFETY

Ensure that all vents are left
unobstructed to ensure ventilation of
the oven.
Ensure that the anti-tilt shelves are
put in place correctly. Refer to
instructions on pages 18 and 20.
Never line any part of the appliance
with aluminium foil.
Always stand back from the
appliance when opening the oven
door to allow any build up of steam
or heat to release.
Do not place sealed cans or
aerosols inside the oven. They may
explode if they are heated.
After installation, please dispose of
the packaging with due regard to
safety and the environment.
AFTER USE
Ensure that all control knobs are in
the OFF position when not in use.
For hygiene and safety reasons this
appliance should be kept clean at all
times. A build-up of fats or other
foodstuffs could result in a fire,
especially in the grill pan.
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
appliance in case it is inadvertently
switched ON.
Cookers and hobs become very hot,
and retain their heat for a long period
of time after use. Children should be
kept well away from the appliance
until it has cooled.
GENERAL Under no circumstances should
repairs be carried out by
inexperienced persons as this may
cause injury or serious malfunction.
This product should be serviced by
an authorised Service Engineer and
only genuine approved spare parts
should be used. Details of servicing
and repair arrangements are given on
page 31 of this book.
Do not stand on the appliance or on
the open oven door.
Do not hang towels, dishcloths or
clothes from the appliance or its
handle. They are a safety hazard.
After allowing the cooker to cool
always switch OFF the cooker at its
power point before any maintenance
or cleaning work is carried out.
Only clean this cooker in accordance
with the instructions given in this
book.
7
Your safety is of paramount importance.
Therefore, if you are unsure about any of the
meanings of these WARNINGS contact the:
Customer Care Department
Telephone [phone]

RATING PLATE
Record the model, product and serial numbers on the
back cover from the rating plate. This is situated on
the front frame of the appliance and can be seen
upon opening the oven door.
The appliance must be protected by a suitably rated
fuse or circuit breaker. The rating of the appliance is
given on the rating plate.
Do not remove the rating plate from the cooker
as this may invalidate the guarantee.
INSTALLATION
If your cooker has been damaged in transit, contact
your supplier immediately. DO NOT attempt to install
it.
Your cooker left the factory fully packaged to protect
it from damage. If it is delivered without packaging
and damage has occurred, the manufacturer cannot
accept responsibility. Contact your supplier for
advice.
Once the packaging has been removed the cooker
should only be moved by hand. DO NOT use a sack
barrow or any other aid to lift the cooker as damage
may occur.
Connection to the electricity supply must be carried
out by a qualified electrician/competent person.
The electrical connection should be made using a
double pole isolating switch (cooker socket) with at
least 3mm contact separation. The cable must have
conductors of sufficiently high cross-sectional area to
prevent overheating and deterioration.
.
The cable should be routed away from potentially hot
areas marked by X in the diagram below.
To move the cooker, open the main oven door and
lift the cooker by holding inside the top of the
compartment.
This is a type X appliance which means it is
free-standing and can be fitted with cabinets on one
or both sides. It may also be fitted in a corner setting.
A nominal air gap of 2mm all around the cooker is
required to enable the cooker to be moved into
position.
Side walls which are above hob level should be
protected by heat resistant non-combustible material
and MUST NOT be nearer than 40mm to the hob
side.
Overhanging surfaces or a cooker hood should be a
minimum of 685mm above the hob.
It is important to ensure that the appliance is level
after installation. Levelling feet are fitted to the
appliance to accommodate uneven floors.
8
WARNING: THIS APPLIANCE MUST BE EARTHED
INTRODUCTION
Six square millimetres (6.00mm²) is the recommended
cross-section area.

REVERSIBLE MAIN OVEN DOOR
If you require the oven door to be hinged on the
opposite side, you will need to contact a qualified
Service Engineer. See page 31 for your nearest
Service Centre. PLEASE NOTE that a charge will
be made.
GENERAL NOTES ON USING YOUR
COOKER
We suggest that you run the oven elements for 10 -
15 minutes at 220°C to burn off any residue from
their surfaces.
The procedure should be repeated with the grill for
approximately 5 - 10 minutes.
During this period an odour may be emitted, it is
therefore advisable to open a window for ventilation.
CONDENSATION AND STEAM
When food is heated it produces steam similar to a
boiling kettle. The ovens are vented to allow some of
this steam to escape. However, always stand back
from the appliance when opening the oven door to
allow any build up of steam or heat to release.
If the steam comes into contact with a cool surface
on the outside of the appliance, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the appliance.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
GRILL AND OVEN FURNITURE

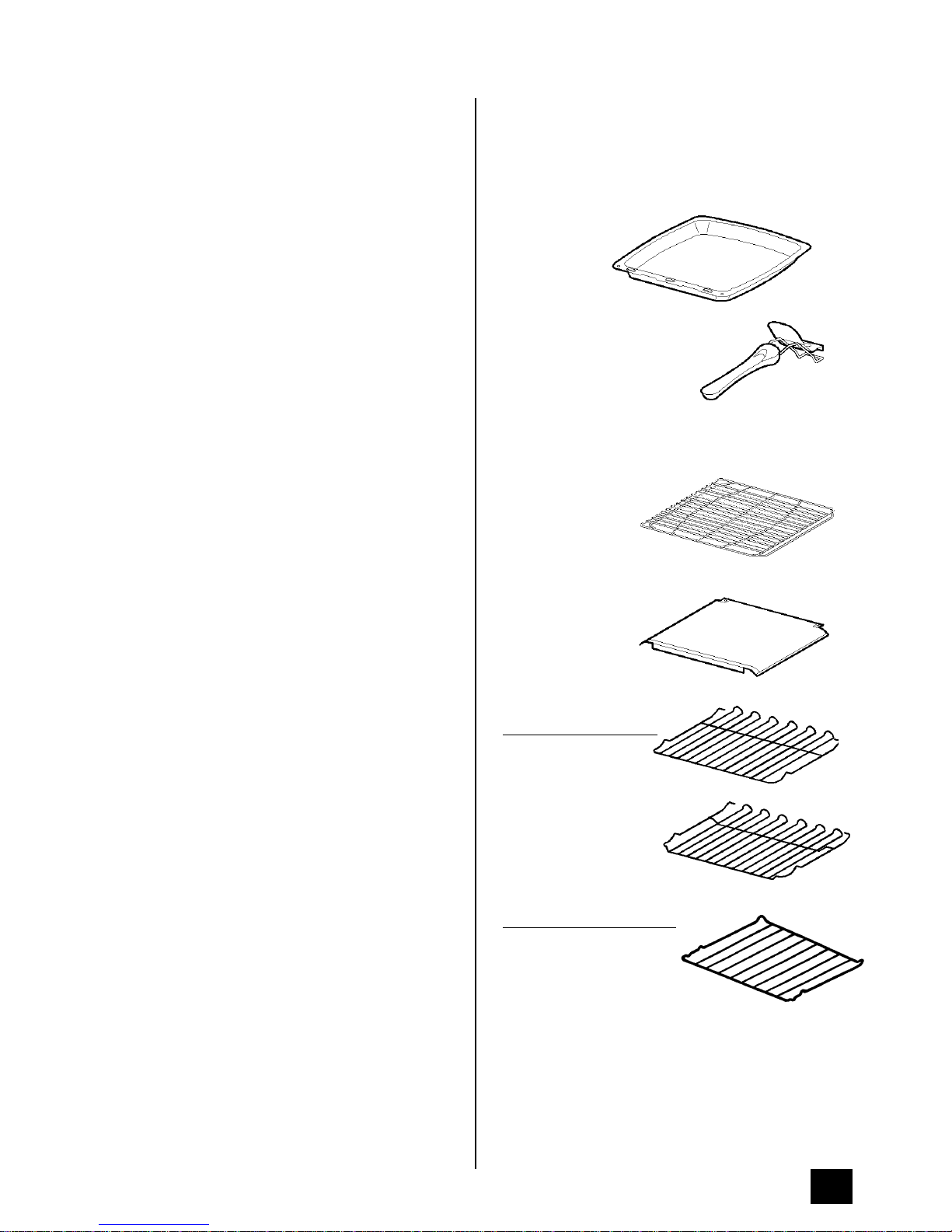

The following items of oven furniture have been
supplied with the cooker: If you require
replacements of any of the items listed below, please
contact your local Service Force Centre quoting the
relevant part number.
1 grill pan
(311409401)
1 detachable grill pan handle
(311468100)
Note
If you require an additional handle for your grill pan,
this can be ordered from your local Tricity Bendix
Service Centre by quoting part number 311479800\6.
1 grill pan grid
(311419801)
1 grill deflector
CSB4431 Gourmet only
2 straight shelves
for main oven cooking
1 cranked shelf for use
in the top oven
CSB4411 White Rose only
2 straight shelves
for main oven cooking
The grill deflector sits above the grill element and
prevents fat splashing onto the grill roof.
The deflector may be easily removed for cleaning.
9

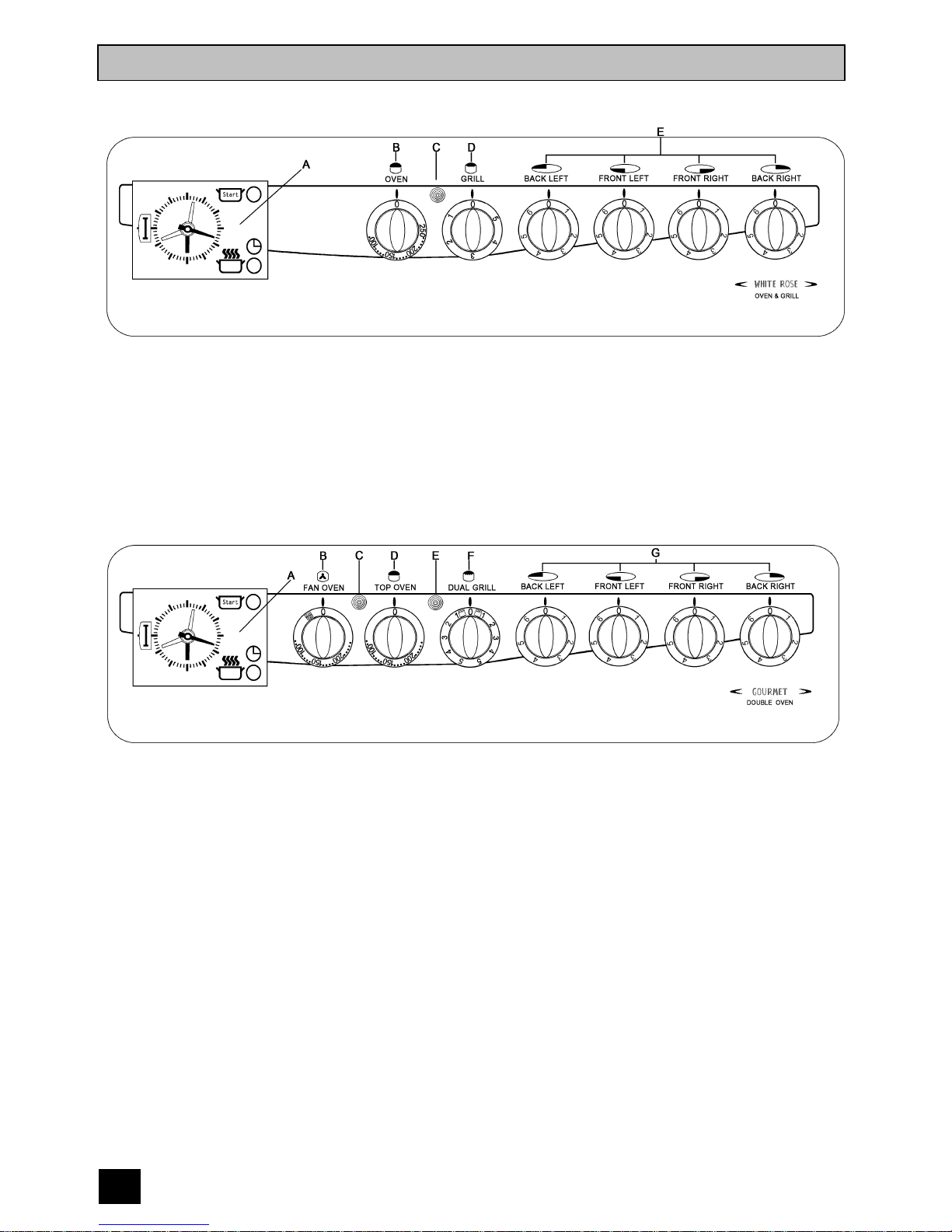

THE CONTROL PANEL (CSB4411 WHITE ROSE)
FEATURESA - Timer D - Grill Control
B - Oven Temperature Control E - Hotplate Controls
C - Oven Indicator Neon
THE CONTROL PANEL (CSB4431 GOURMET)
FEATURESA - Timer F - Dual Grill Control
B - Main Oven Temperature Control G - Hotplate Controls
C - Main Oven Indicator Neon
D - Top Oven Temperature Control
E - Top Oven Indicator Neon
10
GETTING TO KNOW YOUR COOKER

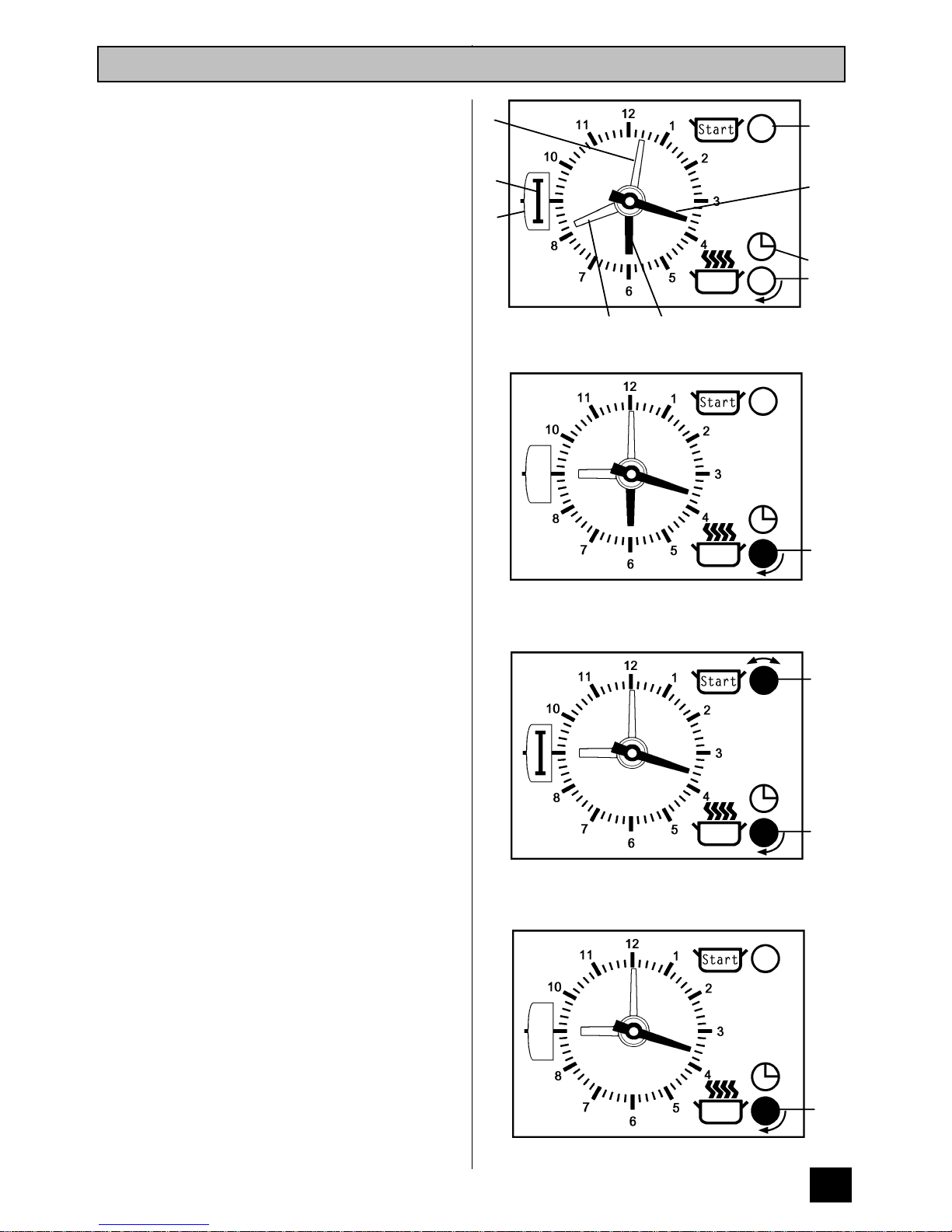

A START TIME SETTING KNOB
B SECOND HAND
C CLOCK SYMBOL
D CLOCK/MINUTE MINDER/LENGTH
OF COOKING TIME SETTING KNOB
E START TIME INDICATOR
F HOUR HAND
G DISPLAY WINDOW
H MANUAL SYMBOL
J MINUTE HAND
1. TO SET THE TIME OF DAY
The clock will operate when the cooker is
switched ON at the wall.
To set, pull out and turn setting knob (D)
clockwise until the right time of day is displayed,
e.g. 9 a.m. as Fig.1.
2. TO SET FOR MANUAL COOKING
Ensure the time of day has been set as above.
Push in and turn setting knob (A) in either
direction until the start time indicator (E) lines up
with the hour hand of the clock.
Push in and turn setting knob (D) clockwise until
the manual symbol can be seen in the display
window as Fig. 2.
The oven temperature controls can now be
operated as required. The oven indicator neon
will glow.
3. TO SET THE MINUTE MINDER
Turn setting knob (D) clockwise, without pulling
it out. The selected minutes can be seen in the
display window, e.g. 80 minutes as Fig. 3.
A period of up to 3 hours can be timed using the
minute minder. The minute minder cannot be
used when an automatic programme has been
set on the oven timer.
At the end of the set time a continuous buzzer
will sound for up to 6 minutes. The oven will
switch off.
11
THE TIMER
Fig. 1
Fig. 2
Fig. 3
B
C
D
J
H
G
EF
D
A
A
D
D
80
90
70

4. TO CANCEL MINUTE MINDER
Turn setting knob (D) clockwise, without pulling
it out until the manual symbol appears in the
display window as Fig.4.
5. HOW TO SET THE OVEN TIMER
When using the oven timer for the very first time,
it is advisable to let it operate while you are at
home. The timer can be checked to show that it
is operating correctly and then you will then feel
confident to leave a meal to cook automatically in
the future.
A) TO SWITCH THE OVEN ON AND OFF
AUTOMATICALLY
i) Make sure the electricity supply is switched
ON.
ii) Check the clock shows the right time of day
and the cooker is set in manual (see point 2).
Adjust as necessary as Fig. 5.
iii) Place food in oven.
iv) To set the length of time you want the food to
cook; turn setting knob (D) clockwise,
without pulling it out, until the required
cooking period can be seen in the display
window e.g. 160 minutes (2 hours 40 mins) as
Fig. 6.
v) Set the start time, by pushing in and turning
setting knob (A) in either direction until
indicator (E) lines up with the time you want
the food to start cooking, e.g. 1.30 p.m. as
Fig. 7.
vi) Turn the oven temperature control to the
required setting. The oven indicator neon
should be OFF.
vii)When automatic cooking starts the oven
indicator neon will cycle ON and OFF showing
that the oven temperature is being
maintained.
viii)The start time indicator will move with the
hour hand of the clock until the length of
cooking time is complete. A buzzer will sound
which can be cancelled by following point 4 as
Fig. 8.
ix) The maximum cooking time on automatic is 3
hours.
12
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
D
A
D
A
E
D
160
160

B) TO START COOKING NOW, THEN SWITCH
OFF AUTOMATICALLY
Follow the first 3 points under section 5. (A)
above, and then;
iv) To set the length of time you want the food to
cook; turn setting knob (D) clockwise,
without pulling it out, until the required
cooking period can be seen in the display
window, e.g. 120 minutes (2 hours) as Fig. 9.
v) Turn the oven temperature control to the
required setting. The oven indicator neon
should glow.
vi) The oven indicator neon will cycle ON and
OFF showing that the oven temperature is
being maintained.
vii)The start time indicator will move with the
hour hand of the clock until the length of
cooking time is complete. A buzzer will sound
which can be cancelled by following point 4 as
Fig. 10.
6. RETURNING THE COOKER TO
MANUAL OR TO CANCEL AN
AUTOMATIC PROGRAMME
Turn the oven temperature control OFF.
Ensure the start time indicator lines up with
the hour hand of the clock by pushing in and
turning in either direction, setting knob (A) Fig.
11.
The manual symbol should be displayed in
the display window by turning setting knob (D)
clockwise.
Turn the oven temperature control ON to
check that the oven operates manually. The
oven indicator neon should light.
7. THINGS TO NOTE
CSB4431 GOURMET ONLY
The delay time plus the cooking time MUST
NOT exceed 11 hours and 59 minutes.
1 The automatic control can be used to control
either oven but you can only use the control
for both ovens at the same time if the cooking
time is the same.
2 When an automatic programme has been set
on one oven, IT IS NOT possible to use the
oven manually.
3 If an automatic programme has been set on
the main oven, the grill WILL operate
manually. But the grill WILL NOT operate
when the top oven is set for automatic
cooking. 13
Fig. 9
Fig. 10
Fig. 11
D
D
A
120
130
110

l To operate the hotplates, turn the control knobs
in either direction to vary the heat setting.
l The highest number represents the hottest
setting and the lowest represents the coolest
setting. Choose a setting appropriate to the
quantity and type of food to be cooked
RECOMMENDED SAUCEPANS
For speed and economy only good quality
saucepans with flat bases and close fitting lids are
recommended.
To check the flatness of the saucepan, place a ruler
across the pan base, hold at eye level and look for
light showing. There should be very little or no light
visible between the ruler and the pan base.
The size of the base of the saucepan should be the
same or up to 2.5cm/1inch larger than the hotplate. If
the base is too small, energy will be wasted,
boilovers will also be more difficult to deal with as
spillage will fall directly onto the hotplate.
Pressure cookers, preserving pans etc., should
comply with the recommendations given above.
HINTS AND TIPS
l Avoid the use of decorative covers as they can
cause condensation to form on the hotplates
which may lead to deterioration.
l Follow any guidelines provided by the saucepan
manufacturer, particularly those relating to
recommended heat settings.
l Avoid using thin, badly dented or distorted
saucepans as they can lead to sticking and
burning of food.
l To prolong the life of the hotplates:
l Never use utensils with a skirt, e.g. a bucket
l Never use an asbestos mat
14
BEFORE USING THE HOTPLATES FOR THE FIRST TIME
Turn the control knob to a medium/high setting and allow the hotplate to heat, uncovered by a saucepan for 3-5
minutes. This hardens the protective coating on the hotplates and makes it more resistant to normal use. A
harmless smoke will be given off from the hotplates.
(CSB4411 WHITE ROSE)
THE SEALED HOTPLATES
(CSB4431 GOURMET)

DEEP FAT FRYING
SPECIAL FRYING NOTE:
For safety purposes when deep fat frying, fill the pan
one-third full of oil, DO NOT cover the pan with a lid
and DO NOT leave the pan unattended. In the
unfortunate event of a fire, switch OFF at the
electricity supply and cover the pan with a lid or
damp cloth to assist in smothering the flames.
DO NOT use water on the fire. Leave the pan to cool
for at least 30 minutes before moving it.
DO NOT leave the fat or oil in the frying pan on the
hob to store it in case the hob is inadvertently
switched ON.
1. Preparing the food
Seal the food by coating with flour, egg and
breadcrumbs or batter. Do not use a basket with
batter coated foods as they will stick.
2. Amount of oil
For safety purposes fill the pan only one-third full
of oil.
3. Testing the temperature of the oil
It is advisable to use a thermometer to test the
temperature of the oil. Alternatively, drop a small
cube of bread into the oil which should brown in
just under a minute if the oil is at the correct
temperature of 190°C/375°F.
4. Cooking the food
Lower the food gently into the oil. Do not add
too much food at once or the temperature of the
oil will be reduced and may result in soggy,
greasy food.
Turn the food if necessary; doughnuts float to the
surface so will not brown on the upperside if not
turned. Once cooked, drain the food on
absorbent paper.
5. Double frying chips
Double frying will ensure good chips. First fry the
chips for a few minutes at 170°C/340°F to seal
the outside. Remove the chips from the oil.
Increase the temperature of the oil to
190°C/375°F to finish cooking and brown the
chips.
Chips may be kept for several hours after the first
frying before finishing off with the second frying.
6. Frying temperatures Celsius Fahrenheit
Scale (oC) Scale (oF)
150 300
First frying of potatoes 170 340
175 350
180 360
Second frying of potatoes 190 375
Frying chicken and fish 195 380
200 390
PRESERVING
1. DO NOT use a pan that overlaps the perimeter of
the hob trim.
2. To allow for a full rolling boil, the pan should be
no more than one third full when all the
ingredients have been added. It is better to use
two pans rather than overfill one, or use half
quantities.
3. Use firm fruit or vegetables and wash well before
using.
4. Preserving sugar gives clear jam, however
granulated sugar is cheaper and gives equally
good flavour.
5. Crystallization may be caused if sugar is not
completely dissolved before bringing jam to the
boil. Over boiling will affect the flavour, setting
properties and colour of the jam.
6. To test jam for setting:
If a jam thermometer is available, boil jam to
104°C. Marmalade should be boiled to 106°C.
If a jam thermometer is not available, remove
pan from heat, place sample of jam on a cold
dish and cool quickly (i.e. in a freezer or frozen
food storage compartment of a refrigerator).
When cold, it will crinkle and hold the mark of a
finger run through it, if it is at setting point.
7. The scum should be removed as soon as
possible after setting, but marmalade should be
allowed to cool before potting to prevent the peel
rising.
15

The grill neon will illuminate when the grill control
is set. It will stay on until the grill is turned OFF.
l Turn the grill control to the required setting. The
highest number represents the hottest setting
and the lowest the coolest setting.
l Turn the grill control clockwise for full grill or
anticlockwise for the centre section only. The
highest number represents the hottest setting and
the lowest the coolest setting.
l The outer grill element may appear to glow
slightly brighter than the inner element. This is
quite normal.
THINGS TO NOTE
THE GRILL DOOR MUST BE LEFT OPEN DURING
GRILLING.
THE GRILL PAN AND HANDLE
The grill pan is supplied with a removable handle.
To attach the handle, place the wirework under the
cut out in the pan so that the metal plate hooks over
the top of the grill pan.
Slide the handle to the left and over the central bump
on the grill pan.
Ensure the handle is correctly located. It is not
necessary to remove the grill pan handle during
grilling.
16
CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE
KEPT AWAY.

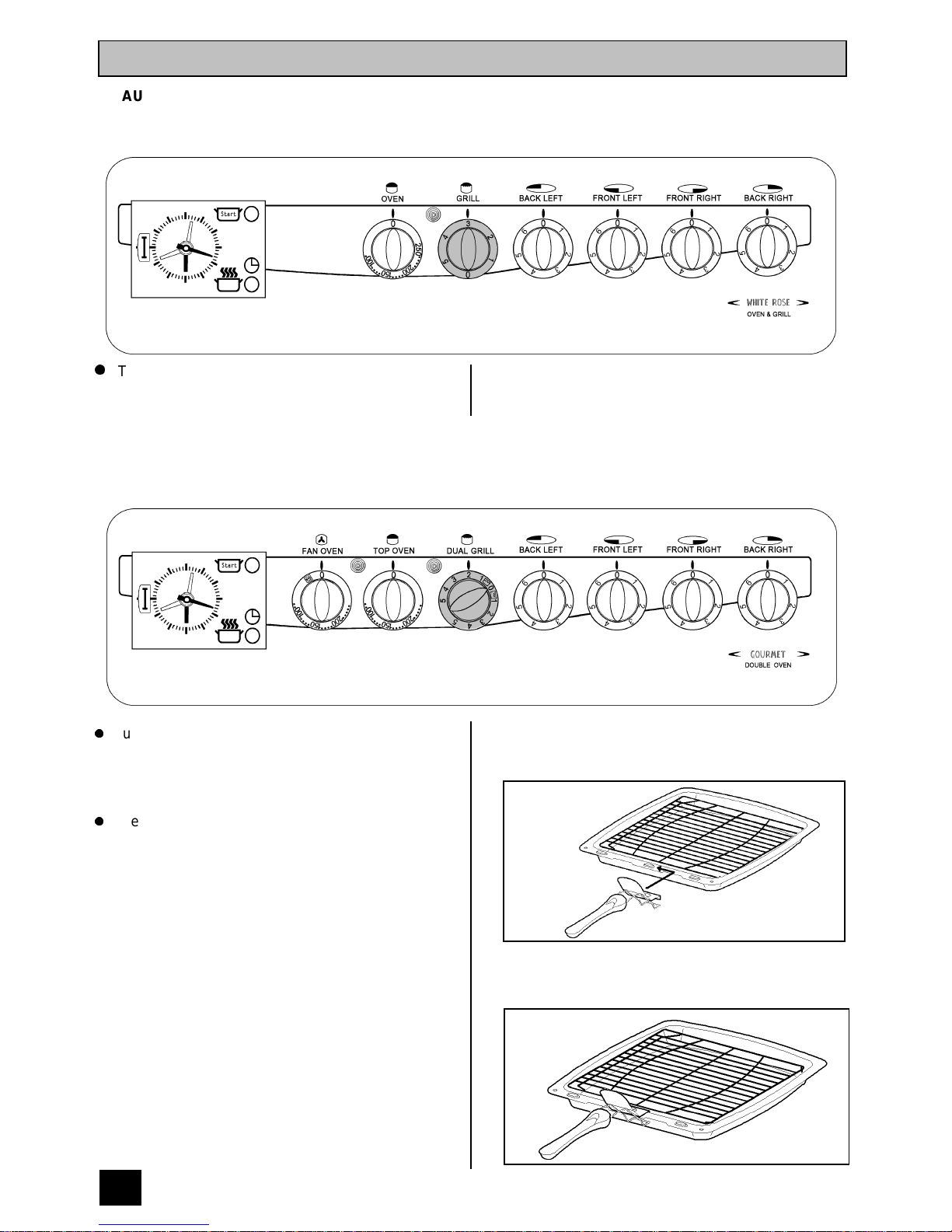

SELECTING THE GRILL (CSB4411 WHITE ROSE)
SELECTING THE GRILL (CSB4431 GOURMET)
The grill is a dual circuit grill which means that the full area of the grill can be used or for economy purposes, the
centre section only can be used when cooking smaller quantities of food.
16
THE GRILL

To remove the handle, slide the handle to the right
and lift the handle away from the cut out on the grill
pan.
Place the grill pan on the shelf so that the pan is
positioned centrally beneath the grill.
To check the progress of the food being grilled, the
grill pan should be withdrawn on the shelf to tend the
food during cooking, or the carrier shelf can be lifted
away from the cooker and rested on a heat resistant
work surface.
HINTS AND TIPS
l Food should be thoroughly dried before
grilling to minimise splashing. Brush lean
meats and fish lightly with a little oil or melted
butter to keep them moist during cooking.
l Adjust the grid and grill pan runner position to
allow for different heights of food.
l When toasting bread use the cranked shelf
in position 2. Adjust the grill pan grid to suit.
l Accompaniments such as tomatoes and
mushrooms may be placed underneath the
grid when grilling meats.
l Preheat the grill on a full setting for a few
minutes before cooking. Adjust the heat setting
and the shelf as necessary during cooking.
l Turn foods over during the cooking time as
required.
NOTE
If you require an additional handle for your grill pan,
this can be ordered from your local Tricity Bendix
Service Centre by quoting part number 311479800\6.
GRILLING CHART
FOOD SHELF GRILL TIME
Bacon Rashers
Beefburgers
Chicken Joints
Chops - Lamb
Pork
Fish - Whole
Trout/Mackerel
Fillets - Plaice/Cod
Kebabs
Kidneys - Lamb/Pig
Liver - Lamb/Pig
Sausages
Steaks - Rare
Medium
Well Done
Toasted Sandwiches
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2-3 each side
6-10 each side
15-20 each side
7-10 each side
10-15 each side
8-12 each side
4-6 each side
10-15 each side
4-6 each side
5-10 each side
10-15 each side
3-6 each side
6-8 each side
7-10 each side
1¼-1½ each
side
Shelf positions are counted from the bottom
upwards.
The times quoted above are given as a guide and
should be adjusted to suit personal taste.
17

l Turn the top oven temperature control to the
required setting. Our diagram shows the oven set
to 150°C. Close the oven door.
THINGS TO NOTE
1. The grill cannot be operated when the top oven is
in use. Only the outer part of the top oven
element in conjunction with the base element will
operate when using the top oven.
2. The top oven indicator neon will glow until the
oven has reached the desired temperature and
then go out. It will then turn ON and OFF
showing that the oven temperature is being
maintained.
3. Always place plates on the oven shelf to warm.
Never place directly on the top oven base as it
becomes very hot and damage may occur.
TO FIT THE TOP OVEN SHELF
The cranked shelf must only be used in the top oven
compartment.
The shelf should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt and
safety stop mechanism will be affected.
HINTS AND TIPS
l All cooking should be carried out using an oven
shelf positioned in one of the shelf runners.
l Stand dishes on a suitably sized baking tray on
the shelf to prevent spillage onto the oven base
and to help reduce cleaning.
18
USES OF THE TOP OVEN
The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is
designed for cooking on one level and for smaller quantities of food. It gives especially good results if used to cook
fruit cakes, sweet or savoury flans or quiche.
The top oven is also ideal for use as a warming compartment to warm dishes and keep food hot. Use a
temperature setting of 90-100°C on the top oven control dial.
SELECTING THE TOP OVEN
18
THE TOP OVEN (CSB4431 GOURMET ONLY)

l There should always be at least 2.5cm (1")
between the top of the food and the element.
This gives best cooking results and allows room
for rise in yeast mixtures, Yorkshire puddings,
etc.
l When cooking cakes, pastry, scones, bread, etc.,
place the tins or baking trays centrally on the
shelf directly below the element.
l DO NOT place dishes directly onto the oven
base as it becomes very hot and damage may
occur.
l The material and finish of the baking trays and
dishes will affect the degree of base browning of
the food. Enamelware, dark, heavy or non-stick
utensils increase base browning. Shiny
aluminium or polished steel trays reflect the heat
away and give less base browning.
l DO NOT use the grill pan as a baking tray as this
will increase base browning of the food.
l Because of the smaller cooking space, lower
temperatures and shorter cooking times are
sometimes required. Be guided by the
recommendations on pages 24 and 25.
l For economy leave the door open for the
shortest possible time, particularly when placing
food into a pre-heated oven.
19

l To operate the oven simply set the oven control
dial to the required temperature.
THINGS TO NOTE
1. The oven indicator neon will glow until the oven
has reached the required temperature and then
go out.
2. It will turn ON and OFF periodically during
cooking showing that the temperature is being
maintained.
TO FIT THE OVEN SHELVES
The shelves should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt and
safety stop mechanism will be affected.
HINTS AND TIPS
l Arrange the shelves in the required positions
before switching the oven ON. Shelves are
numbered from the bottom upwards.
l The oven is fitted with side elements. The top of
the oven is the hottest, the bottom the coolest.
l Avoid placing food too close to the side element
covers to prevent scorching.
l Do not line any part of the oven with aluminium
foil as it may cause damage or interfere with the
air circulation.
l Use the recommended temperatures and
cooking times given in the oven cooking chart on
pages 21 and 22.
20

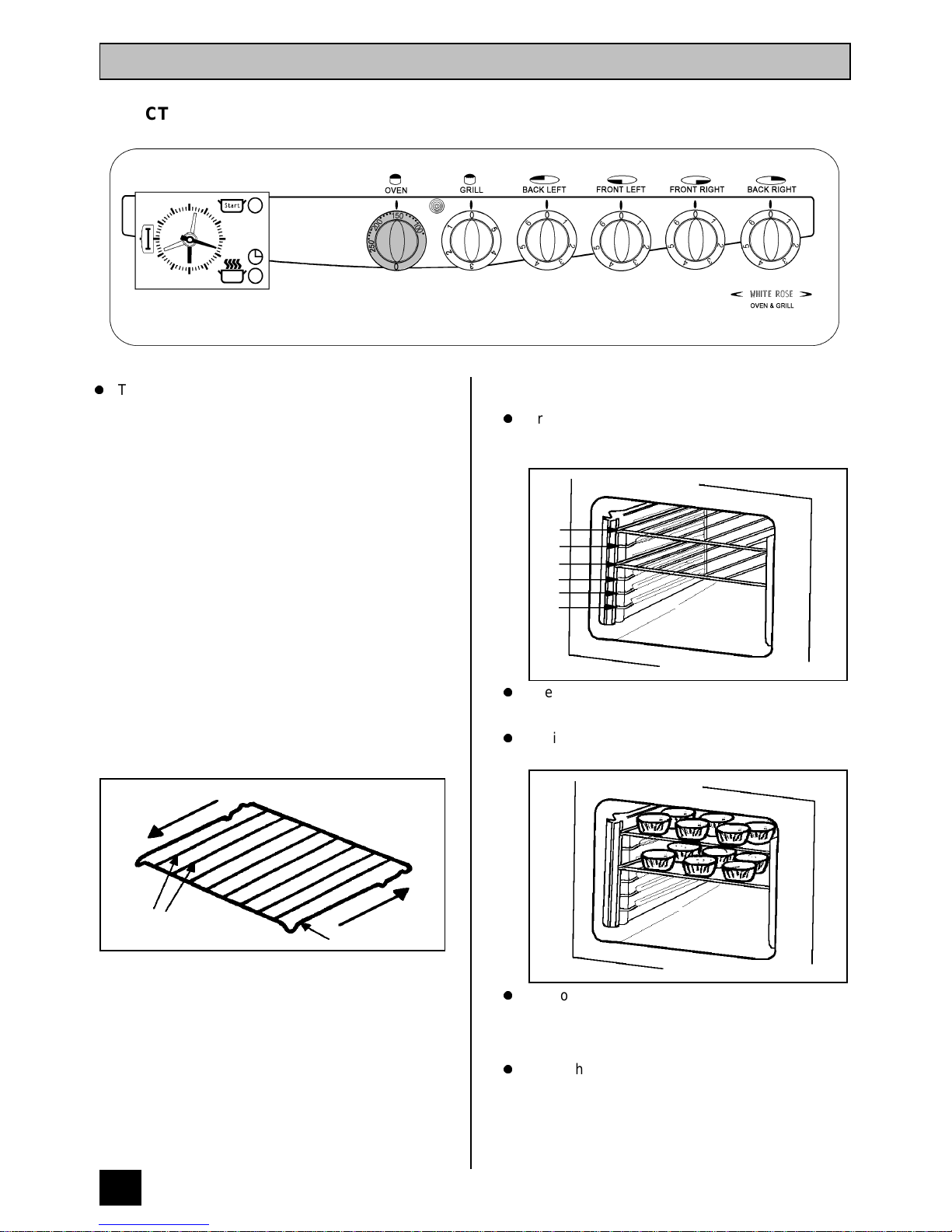

SELECTING THE OVEN
20
THE OVEN (CSB4411 WHITE ROSE ONLY)
Back of the Oven
Straight Rods Frame
1
2
3
4
6
5
