INSTRUCTION BOOKLET
MODEL NOS.
HG 211 - HG 240 - HG 215 GR - EG 205 - HG 242

WARNINGS AND GUIDANCE
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move
house and leave the appliance, always ensure that the book is left with the appliance in order
that the new owner can get know the functions of the appliance and the relevant warnings.
These warnings are provided in the interest of safety. You MUST read them carefully before
installing or using the appliance.
• This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the product.
• Any installation and electrical work must be
undertaken by a qualified electrician. The
appliance must be installed according to the
instructions.
• It is dangerous to alter the specifications or
modify the product in any way.
• Do not use this appliance if it is in contact with
water. Do not operate the appliance with wet
hands.
• Always ensure that the control knobs are in the
‘OFF position when not in use.
• Hobs became very hot with use and retain their
heat for a long period of time after use. You must
therefore take great care when using the
appliance, supervise children at ALL times and do
NOT allow them to touch the surface or be in the
vicinity of the appliance, until it has cooled after
use. Children also can injure themselves by
pulling pans or pots off the hob.
• The cooking zones heat up quickly when they are
turned on. Turn them on only when you have
placed a saucepan onto the cooking area.
• If you use an electric socket close to the hob,
take care when using an electrical appliance that
the cable does not touch the hot surface of the
hob.
• Do not leave items on the hob surface. Any items
you place on the hob could be damaged if the
hob is accidentally turned on.
• Unstable or misshapen pans should not be used
on the hob as unstable pans can cause an
accident by tipping or spillage.
• Never leave the hob unattended when working
with oil and fats because of the danger of fire.
• Never use plastic or aluminum foil dishes on the
hob surface.
• Always remove any spillage from the surface of
the hob immediately, do not allow spills to dry and
harden.
• If you use a saucepan which is smaller than the
heated area of the hob, the handle may became
hot. Please ensure that you protect your hands
before touching the handle.
• Certain food, plastic items and aerosols can be
alterate by heat and should NOT be stored above
or below the hob unit.
• Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local Tricity
Bendix Service Centre. Always insist on genuine
Tricity Bendix spare parts.
• A protective film has been placed over the control
panel of the hob to avoid damage during
transportation. This film must be removed before
using your hob. The protective film is easily
peeled off, but should a small amount of glue
remain on the control panel this can be removed
by rubbing gently with a soft cloth damped with
white spirit.
3

CONTENTS
YOU AND YOUR NEW HOB
Page
5
INSTALLATION
Page
5
ELECTRICAL CONNECTIONS
Page
6
HOB FEATURES
Page 7
OPERATION
Page
8

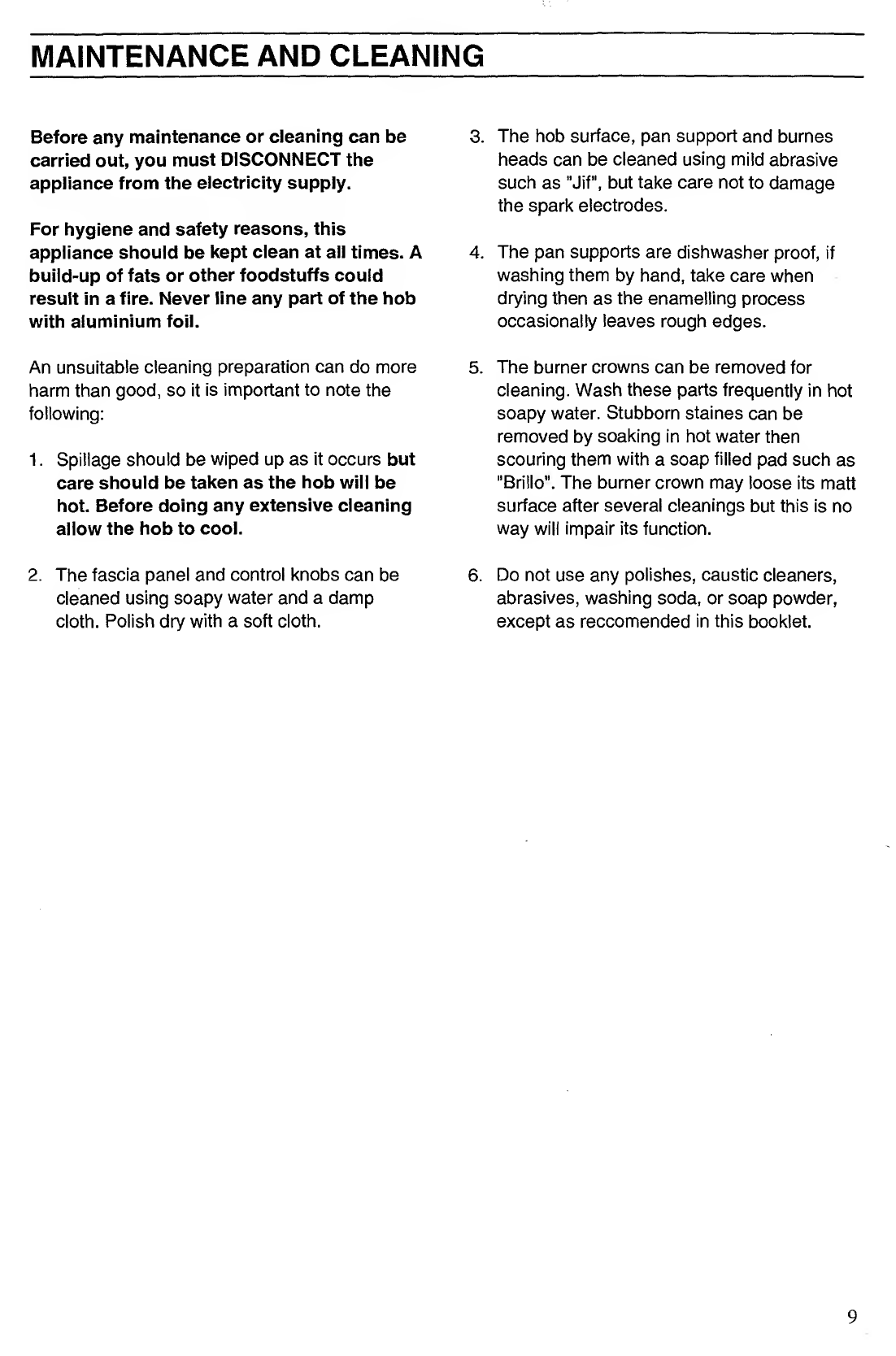

MAINTENANCE AND CLEANING
Page 9
HELP US TO HELP YOU
Page 10

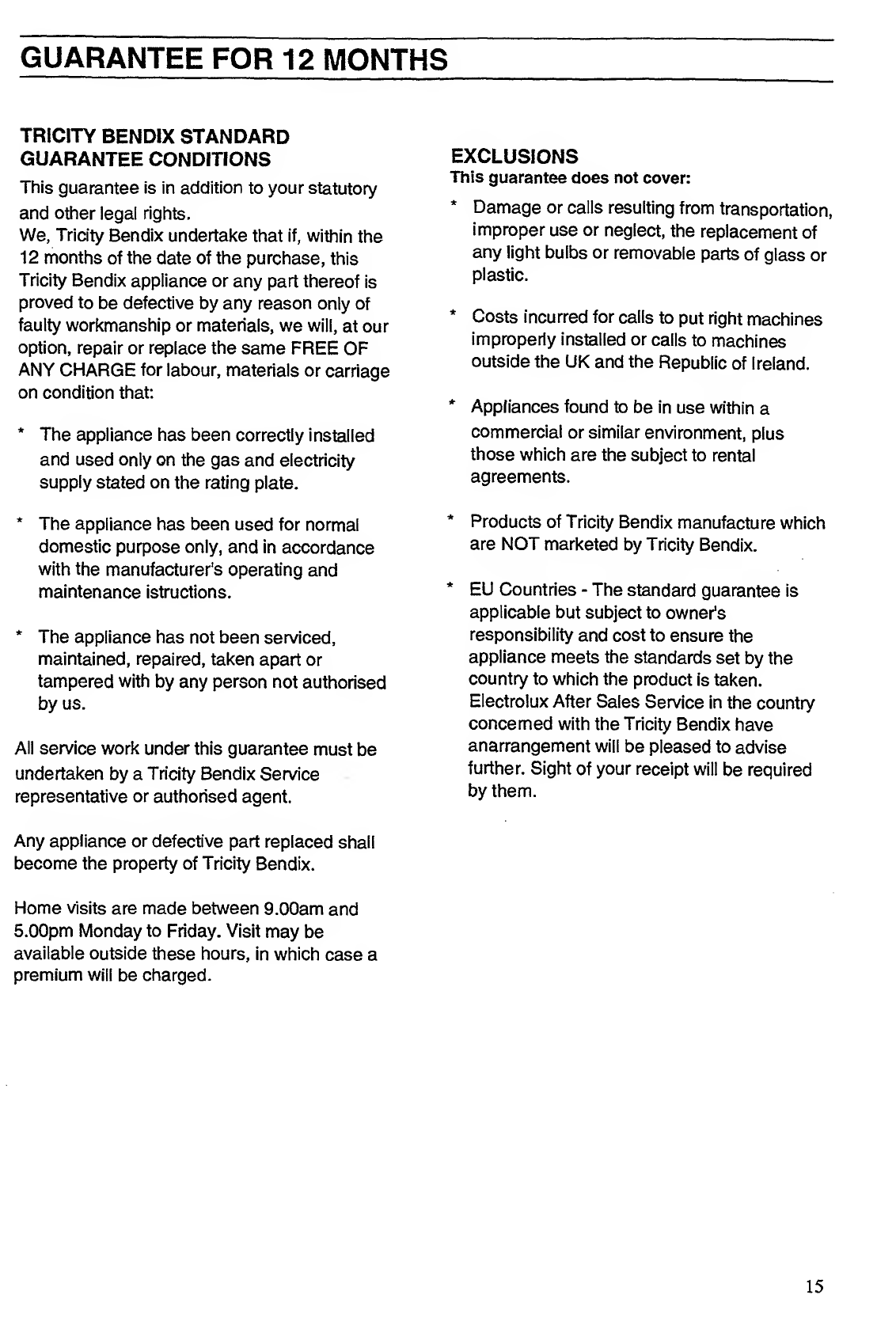

GUARANTEE FOR 12 MONTHS
Page
15
WARNING
Please remember that an appliance used
for cooking does get hot, so make sure
that children are kept well away.
THIS PACK INCLUDES
Hob Unit
Pan supports
Burners and bodies
Hob fixing kit
Installation and operating instructions
THIS APPLIANCE IS FOR USE ON NATURAL GAS ONLY
IN THE INTEREST OF SAFETY THIS APPLIANCE MUST BE INSTALLED
AND/OR SERVICED BY A COMPETENT PERSON IN ACCORDANCE WITH THE GAS
SAFETY (INSTALLATION AND USE) REGULATIONS, 1984 AS AMENDED IN 1990.
YOUR WARRANTY
Please complete and return the Guarantee form.
In case of a complaint, and for ordering spare parts, you must specify the
model number and serial which appear on the rating plate situated underneath the hob
and in the back cover of the installation booklet.
4

YOU AND YOUR NEW HOB A GREAT TEAM
You'd be amazed how many good cooks use
gas. Research has shown that it's the preferred
fuel for cooking by both professionals and home
cooks.
If you've never cooked with gas before, you'll be
pleasantly surprised by the speed and economy
and how easy it is to use.
Now that your new HOB is here, you probably
can't wait to get cooking, but before you do, take
time out to read through this booklet which is
designed help you make the most of all the
features of your new hotplate.
In particular it is important that you read and
understand the advice highlighted in bold
italics. This has been included for and your
family's safety.
A HOB becomes hot with use and retains its
heat for a long period of time after use.
Whilst it has been designed and
manufactured to the relevant European
Standards care should be taken when either
using or cleaning it.
The HOB is designed to be used for
domestic purpose only and by adults to cook
edible foodstuffs and must not be used for
any other purposes. Children, babies and
toddlers should be kept away from the hob
at all times.
Please ensure that you retain this instruction
book and make it available to guests etc.
who may want to use the hob, also pass it on
with the HOB if you give or sell it to another
user.
The installation Instructions found on
installation and servicing instruction book
give instructions on how and where it can be
fitted. If already installed you should satisfy
yourself that all requirements have been met,
if in doubt check with a competent person.
Any installation work must be undertaken by a
competent installer in accordance with the Gas
Safety (installation and use) Regulations 1984
and the relevant codes of practise. In the U.K.
C.O.R.G.I. registered installers (including
regions of British gas) undertake the work to
safe and satisfactory standards.
It is dangerous to alter the specifications or
modify the product in any way.
All gas appliances require adequate ventilation.
Your installer will advise if in doubt.
INSTALLATION
It is mandatory that all operations required for
the installation be carried out by a Competent
Gas Installer (Corgi registered installers
normally meet this criteria), and in accordance
with existing rules and regulations.
The relevant instructions are to be found in the
separate installation manual.
Please ensure that when the appliance is
installed, it is easily accessible for the engineer
in the event of a breakdown.
This appliance meets the requirements laid
down in EEC Directive No. 87/308 dated 2/6/87
relating to the suppression of radio and TV
interferences.
WARNING: THIS APPLIANCE
MUST BE EARTHED.
WHEN THE HOB IS FIRST INSTALLED
Once the hob has been installed it is important to
remove the protective materials, which were put
on in the factory.
5

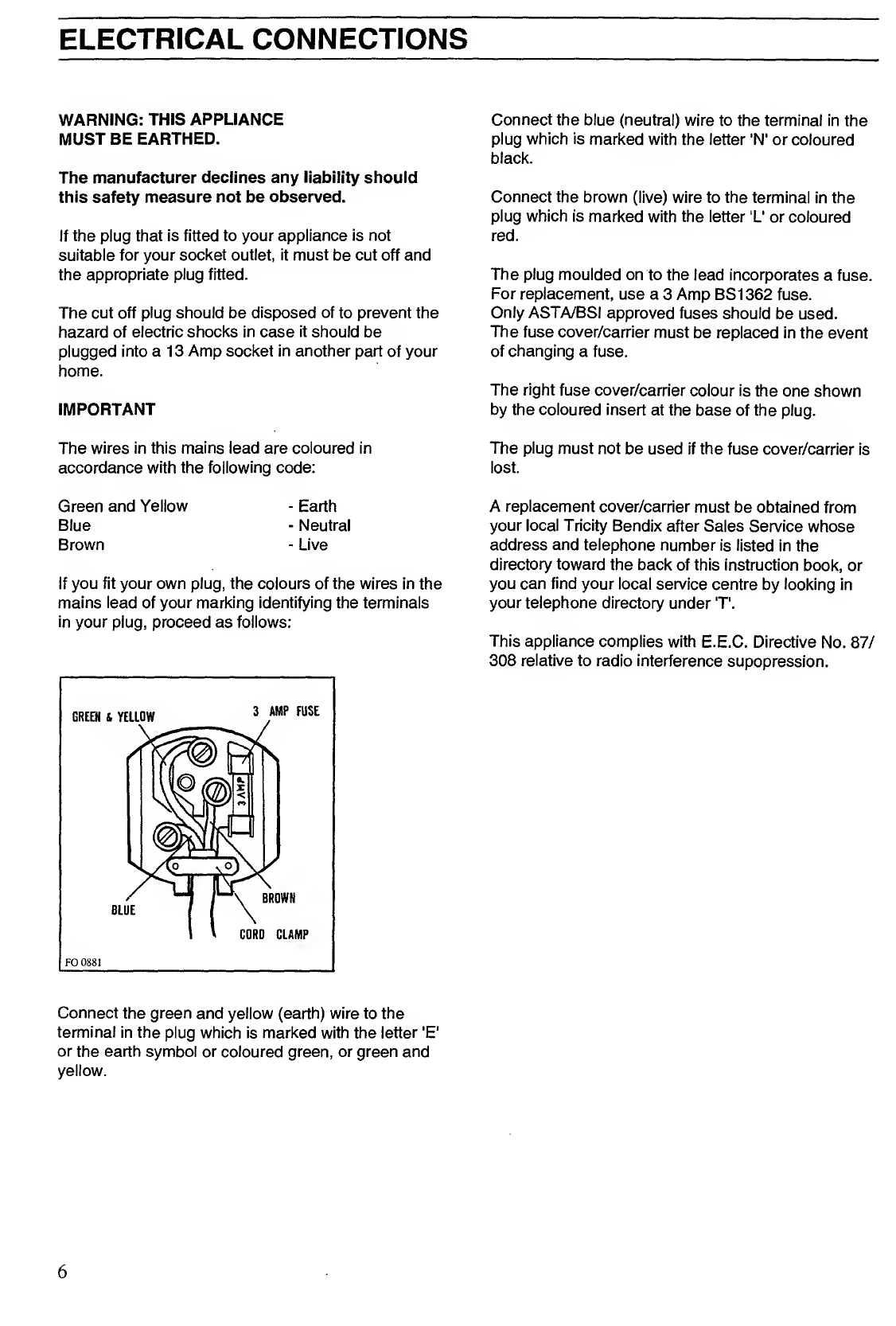

ELECTRICAL CONNECTIONS
WARNING: THIS APPLIANCE
MUST BE EARTHED.
The manufacturer declines any liability should
this safety measure not be observed.
If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.
The cut off plug should be disposed of to prevent the
hazard of electric shocks in case it should be
plugged into a 13 Amp socket in another part of your
home.
IMPORTANT
The wires in this mains lead are coloured in
accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
If you fit your own plug, the colours of the wires in the
mains lead of your marking identifying the terminals
in your plug, proceed as follows:
FO 0881
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter ’N‘ or coloured
black.
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter 'L' or coloured
red.
The plug moulded on to the lead incorporates a fuse.
For replacement, use a 3 Amp BS1362 fuse.
Only ASTA/BSI approved fuses should be used.
The fuse cover/carrier must be replaced in the event
of changing a fuse.
The right fuse cover/carrier colour is the one shown
by the coloured insert at the base of the plug.
The plug must not be used if the fuse cover/carrier is
lost.
A replacement cover/carrier must be obtained from
your local Tricity Bendix after Sales Service whose
address and telephone number is listed in the
directory toward the back of this instruction book, or
you can find your local service centre by looking in
your telephone directory under T.
This appliance complies with E.E.C. Directive No. 87/
308 relative to radio interference supopression.
Connect the green and yellow (earth) wire to the
terminal in the plug which is marked with the letter 'E'
or the earth symbol or coloured green, or green and
yellow.
6

Mod. EG 205 W
7. Control knob for back left hotplate
8. Control knob for back right hotplate
9. Control knob for front right hotplate
10. Control knob for front left hotplate
11. Control knob for back hotplate
12. Control knob for front hotplate
13. Safety cut off device

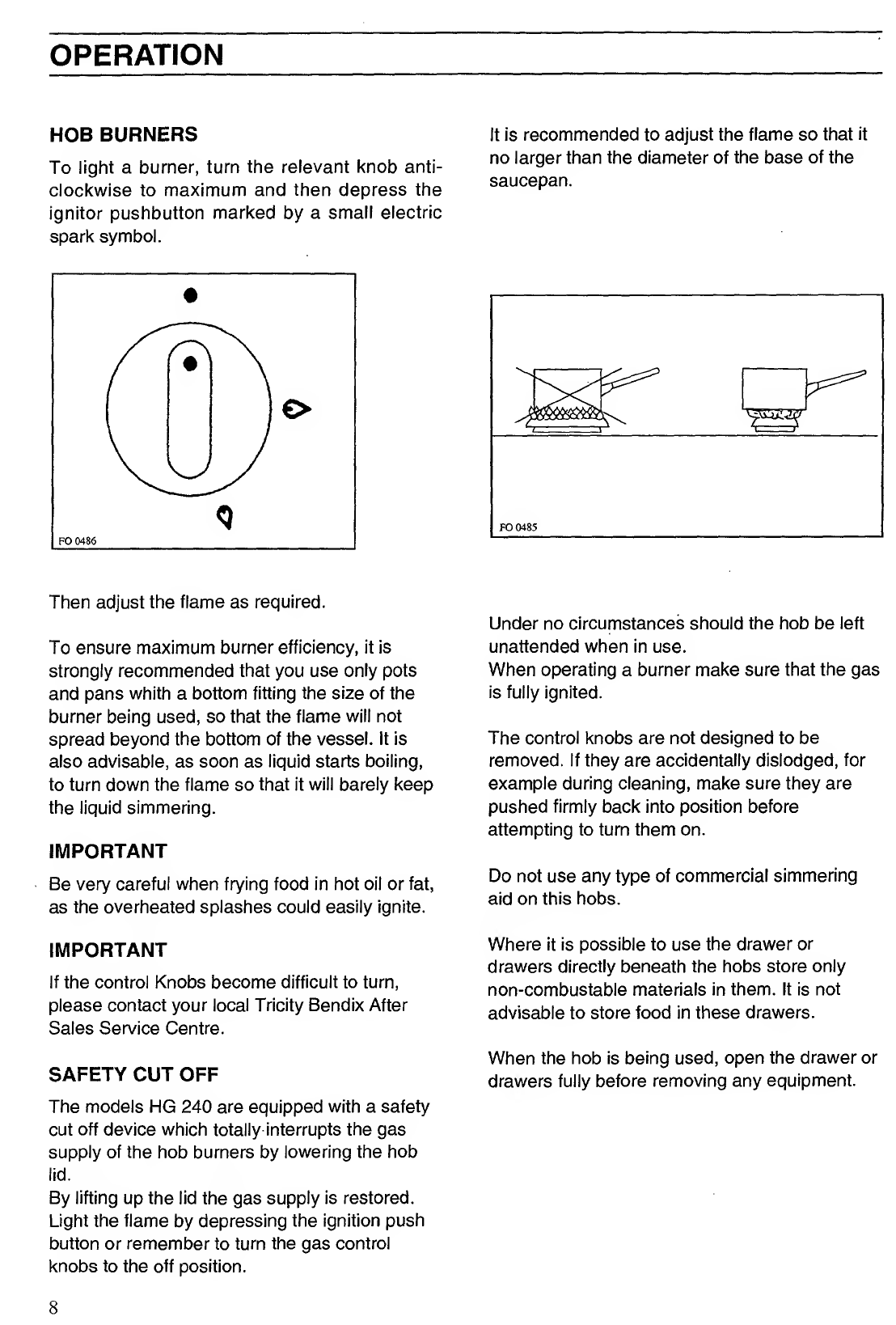

OPERATION
HOB BURNERS
To light a burner, turn the relevant knob anti¬
clockwise to maximum and then depress the
ignitor pushbutton marked by a small electric
spark symbol.
Then adjust the flame as required.
To ensure maximum burner efficiency, it is
strongly recommended that you use only pots
and pans whith a bottom fitting the size of the
burner being used, so that the flame will not
spread beyond the bottom of the vessel. It is
also advisable, as soon as liquid starts boiling,
to turn down the flame so that it will barely keep
the liquid simmering.
IMPORTANT
Be very careful when frying food in hot oil or fat,
as the overheated splashes could easily ignite.
IMPORTANT
If the control Knobs become difficult to turn,
please contact your local Tricity Bendix After
Sales Service Centre.
SAFETY CUT OFF
The models HG 240 are equipped with a safety
cut off device which totally interrupts the gas
supply of the hob burners by lowering the hob
lid.
By lifting up the lid the gas supply is restored.
Light the flame by depressing the ignition push
button or remember to turn the gas control
knobs to the off position.
It is recommended to adjust the flame so that it
no larger than the diameter of the base of the
saucepan.
Under no circumstances should the hob be left
unattended when in use.
When operating a burner make sure that the gas
is fully ignited.
The control knobs are not designed to be
removed. If they are accidentally dislodged, for
example during cleaning, make sure they are
pushed firmly back into position before
attempting to turn them on.
Do not use any type of commercial simmering
aid on this hobs.
Where it is possible to use the drawer or
drawers directly beneath the hobs store only
non-combustable materials in them. It is not
advisable to store food in these drawers.
When the hob is being used, open the drawer or
drawers fully before removing any equipment.
8

MAINTENANCE AND CLEANING
Before any maintenance or cleaning can be
carried out, you must DISCONNECT the
appliance from the electricity supply.
For hygiene and safety reasons, this
appliance should be kept clean at all times. A
build-up of fats or other foodstuffs could
result in a fire. Never line any part of the hob
with aluminium foil.
An unsuitable cleaning preparation can do more
harm than good, so it is important to note the
following:
1. Spillage should be wiped up as it occurs but
care should be taken as the hob will be
hot. Before doing any extensive cleaning
allow the hob to cool.
2. The fascia panel and control knobs can be
cleaned using soapy water and a damp
cloth. Polish dry with a soft cloth.
3. The hob surface, pan support and burnes
heads can be cleaned using mild abrasive
such as "Jif", but take care not to damage
the spark electrodes.
4. The pan supports are dishwasher proof, if
washing them by hand, take care when
drying then as the enamelling process
occasionally leaves rough edges.
5. The burner crowns can be removed for
cleaning. Wash these parts frequently in hot
soapy water. Stubborn staines can be
removed by soaking in hot water then
scouring them with a soap filled pad such as
"Brillo". The burner crown may loose its matt
surface after several cleanings but this is no
way will impair its function.
6. Do not use any polishes, caustic cleaners,
abrasives, washing soda, or soap powder,
except as reccomended in this booklet.
9

HELP US TO HELP YOU
Something not working
Before contacting your nearest Tricity Bendix
Service Centre, please make the following
checks:
The hob will not work
Check that:
• The electricity supply is connected
• The correct plate has been turned on
The Plate is not giving satisfactory results
Check that:
• The plate is clean and dry
• The cooking pan is the correct size for the
plate
• The cooking pan has a flat base
• The control setting is correct for this type of
cooking
If after all these checks, the appliance is still not
working satisfactorily, contact your local Tricity
Bendix Service Centre.
Service

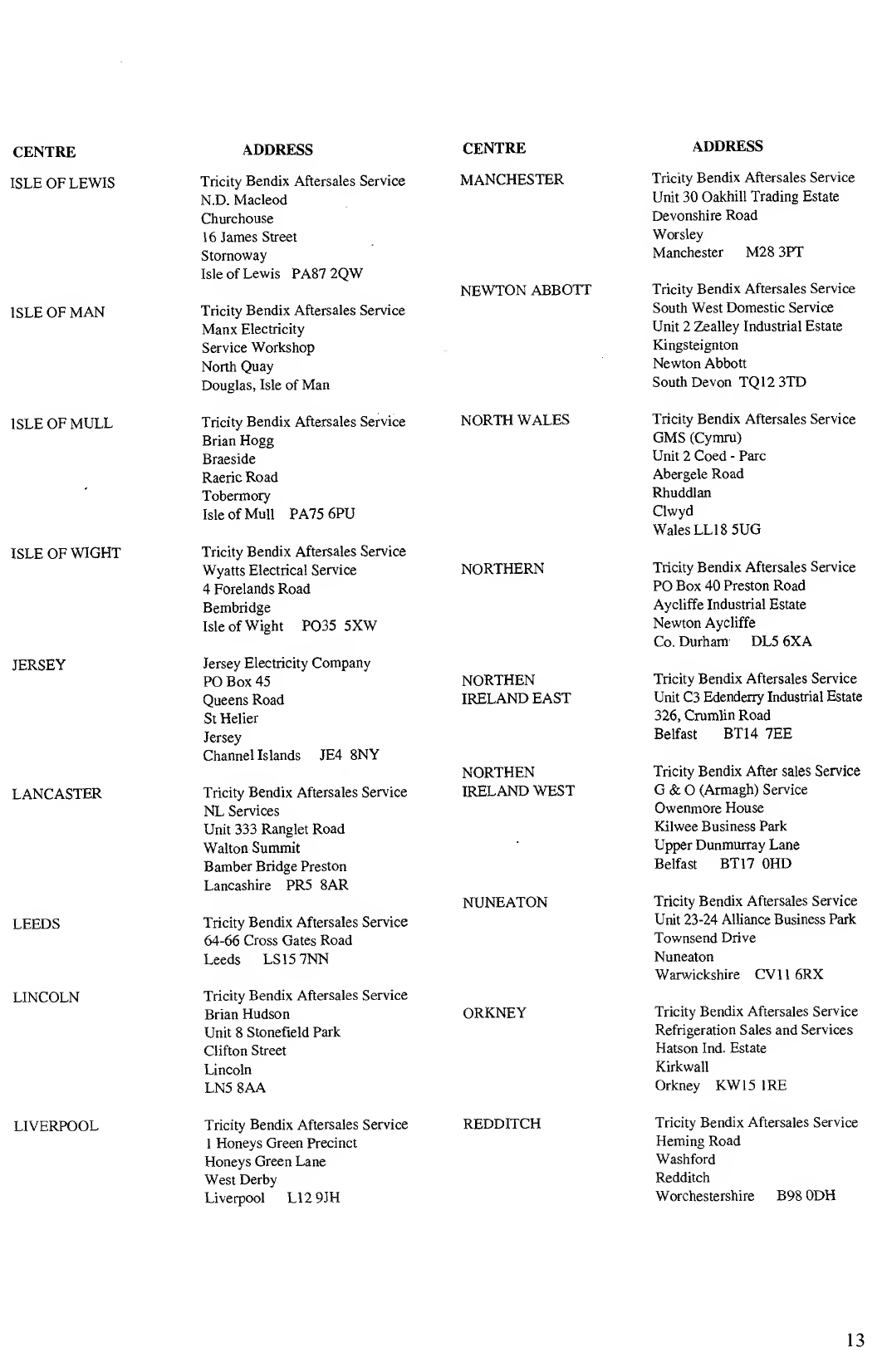

The address and telephone number of your local
Tricity Bendix Service Centre is detailed on the
list headed "Tricity Bendix Service Centres".
When you contact us we need to now:
1. Your name, address and postcode.
2. Your telephone number.
3. Clear and coincise details of the fault.
4. The model number.
5. When it was purchased.
Please note that all enquires concerning service
should be addressed to your local Service
Centre.
Customer Care
For general enquiries concerning your Tricity
Bendix appliance, or further information on
Tricity Bendix products, you are invited to
contact our Customer Care Department by letter
or telephone as follows:
Customer Care Department
Tricity Bendix Limited
99, Oakley RD
Luton
Beds LU4 9QQ
Tel.: [phone]
10

TRICITY BENDIX AFTER SALES SERVICE
POSTCODE TO SERVICE CENTRE CROSS REFERENCE
Postcode Telephone
Service Centre
AB 01224-696569
Aberdeen
AL
0181-965 9699 Canvev
Bl-48,62-79
90-94
0121-3587076
Nuneaton
B49,50,60 01527-512919/
Redditch
61,80,95-98 01993-704411
BA
0117-9211876 Bristol
BB 01614777758
Manchester
BD
0113-2608511 Leeds
BH
01705-667411 South Coast
BL 01614777758
Manchester
BN1-18,
BN20-27
01273-694341
Tonbridge
BR 0181-6589069
Tonbridge
BS 0117-9211876 Bristol
BT1-30
01232-746591
N/l East
BT36-57 01232-746591
N/IEast
BT63-67 01232-746591
N/l East
BT31-35
01861-510400
N/l West
BT60-62 01861-510400
N/l West
BT68-82 01861-510400
N/I West
BT92-94 01861-510400 N/I West
CA
01228-594747 Cumbria
CB 0181-9659699
Canvey
CF 01222460131
Cardiff
CH 0151-2541724 Liverpool
CM
012682-694144 Canvey
CO
012682-694144 Canvev
CR
0181-6589069
Tonbridge
CT 01732-357722
Tonbridge
•r-WSKl
01203-354424
Nuneaton
0151-2541724 Liverpool
23
01732-357722 Tonbridge
: 01250-876285
Dundee
B;Si§iSS
0113-2608511
Leeds
i!3'
01387-265166
Dumfries
01325-301400
Northern
01914932025
Northern
DL 01325-301400
Northern
DNl-7,10-12 0113-2608511 Leeds
DN8-9,15-20
DN21
01472-267978 S. Humberside
Subcodes 3,4
01472-267978
DN31-40
01472-267978
DN14
01482-585678
Hull
DN21 01522-514603 Lincoln
Subcodes 1,2,5
DT 01705-667411 South Coast
DundeeoasOniy 01382-642828
Tayside Refrigeration
DY
0121-3587076
Nuneaton
E
0181-4433464 Canvey
EC
0181-4433464
Canvey
EH 0141-6474381
Glasgow
EN
01814433464 Canvey
EX1-17 01626-65909
Newton Abbott
EX 18-23 01271-328826
Barnstaple
EX31-39
01271-328826
Barnstaple
FK 0141-6474381 Glasgow
FY 0151-2541724 Liverpool
G 0141-6474381
Glasgow
GL
01527-512919/
01993-704411
Redditch
GUI-35 01252-24505 Tonbridge
Postcode Telephone Service Centre
01481-46931 Guernsey Elec.
mum
0181-9659699
Canvey
0113-2608511
Leeds
0113-2608511
Leeds
HP
0181-9659699 Canvey
HR 01432-340334 Hereford
HS9 Isle of Barra
01871-890206 J. Zerfahs
HU
01482-585678 Hull
HX
0113-2608511
Leeds
IG 01268-694144 Canvey
IM 01624-687794 Manx Electricity
IP 01603-667017 Canvey
IV1-39,52-56 01463-792952
Highland Appliances
IV40-51
01855-821315
Inverness gross
Jersey 01534-505050
Jewey Electricity
KA1-2628-30 0141-6474381
Glasgow
KA27
01773-302909 Arran
Domestics
KT 0181-6589069
Tonbridge
KW1-14 01463-792952 Highland Appliances
KW15-17 01856-875457 Refrigeration Sales & Service
KY
0141-6474381
Glasgow
L
0151-2541724 Liverpool
LA
01772-316175
Lancaster
LD 01432-340334 Hereford
LE 01203-354424 Nuneaton
LL
01745-591616
North Wales
LN1.2.4-6
01522-514603 Lincoln
LN3
01522-514603 Lincoln
Subcodes4&5
LN3 01472-267978
S. Humberside
Subcodes6only
LN7,11-13
01472-267978
S. Humberside
LN8-10 01522-514603
Lincoln
LS
0113-2608511 Leeds
LU 0181-9659699 Canvey
M
0161-4777758 Manchester
ME 01732-357722 Tonbridge
MK 0181-9659699
Canvey
ML 0141-6474381
Glasgow
N
0181-4433464 Canvey
NE 0191-4932025 Northern
NGl-22,25
0113-2608511
Leeds
NG23,24
NG31-34
01522-514603
Lincoln
NN 01203-354424 Nuneaton
NP14,6,9-44 01222460131 Cardiff
NP5,7,8 01432-340334 Hereford
NR
01603-667017
Canvey
0181-4433464
Canvey
0161-4777758 Manchester
OX 01527-512919
01993-704411
Redditch
PA1-19,21-23 0141-6474381
Glasgow
PA20 01700-504777
D McGlashan
PA24-26,28-61
01369-703161 Argylle
PA62-75
01688-302262 BHogg Is. of Mull
PA83-87
01851-705555 Isle of Lewis
PEI-13,20-25 01522-514603 Lincoln
PE14-19,30-38 01603-667017
Canvey
PHI-7
0141-6474381
Glasgow
PH8-18 01250-876285 Dundee
PH19-26.42-44 01463-792952
Highland Appliances
Postcode Telephone
Service Centre
PH30-41
01855-821315
Inverness g.ross
PLl-9,16,19-21 01626-65909
Newton Abbott
PL10-15,17,18
PL 22-35
01209-314407
Redruth
POl-22 01705-667411 South Coast
PO30-41
01983-872552 Isle of Wight
PR 0151-2541724 Liverpool
RG 01252-24505 Tonbridge
RH 01273-694341
Tonbridge
RM 01268-694144
Canvey
S 0113-2608511 Leeds
SA1-18,21-32
01222-460131 Cardiff
SA-19,20,40
SA45-48
01222-461972
Cardiff
SA33-39,41-44 01437-710914
SA61-73
Haverfordwest
SE
0181-6589069 Tonbridge
SG
0181-9659699
Canvey
Shetland 01595-692855 Bolts
01806-566546
Leask Electrical
Retailer’s own 01595-692915 G. Robertson
sales
01595-692225
Tait Electronics
SK 0161-4777758 Manchester
01252-24505 Tonbridge
0181-6589069 Tonbridge
SN 01527-512919
01993-704411
Redditch
SO 01705-667411 South Coast
SP 0117-9211876
Bristol
SR 0191-4932025
Northern
SS
01268-694144
Canvey
ST
0121-3587076 Nuneaton
sw
0181-6589069 Tonbridge
SYl-6,8-17,
SY19-22
01743-450279
Shrewsbury
SY7.18 01432-340334
Hereford
SY23-25 01222-461972 Cardiff
TA 0117-9211876
Bristol
TD 01573-224411
Borders
TF 01743-450279 Shrewsbury
TN 01732-357722 Tonbridge
TQ 01626-65909 Newton Abbott
TR 1-20,26,27 01209-314407
Redruth
TR21-25 0117-9211876
South Coast
TS 01325-301400
Northern
TW
0181-6589069
Tonbridge
UB 0181-9659699
w 0181-4433464
Canvey
WA(Noi14,1S)
0151-2541724 Liverpool
WA14.15
0161-4777758 Manchester
WC
0181-4433464
Canvey
WD 0181-9659699
Canvey
WF
0113-2608511 Leeds
WN 0151-2541724
Liverpool
WR (NotWR 15)
01527-512919
01993-704411
Redditch
WR15 01203-354424
Nuneaton
WS 0121-3585051
Nuneaton
WV
0121-3585051
Nuneaton
YOl-3-,5-8 0113-2608511
Leeds
Y04,11-18,25
01482-585678
Hull
Y021.22
01325-310444
Northern
11
