TrickleStar TS2501 User manual

Installation Guide
TS2501 Wi-Fi Smart Thermostat

2
Table of Contents
1 Welcome 4
2 Preparation 5
- What is in the box? 5
- Tools needed for installation 6
- Accessories (Sold separately) 6
- Quick Start Guide for Homeowner Installation 7
- Quick Start Guide for Contractor Installation 8
- Precautionary measures 9
- Let's get started! 11
- With or without C-Wire? 12
3 Installation With a C-Wire 13
- Step 1: Disconnect and label old thermostat wires 13
- Step 2: Remove old jumper wire 14
- Step 3: Unscrew old Mounting Plate 15
- Step 4: Replace with new Thermostat Mounting Plate 16
- Step 5: If the Trim Plate is used (Optional) 17
- Step 6: Pull the labeled wires through the hole of the Mounting Plate 18
- Step 7: Attach the Mounting Plate on the wall 19
- Step 8: Connect the wires 20
- Step 9: Set the jumpers on the back of your Thermostat 22
- Step 10: Attach the Thermostat onto its Mounting Plate until it clicks 23
- Step 11: Turn on the power 24
- Installation done! 25
4 Installation Without a C-Wire 26
- Step 1: Check if there are 3 or 4 wires 27
- Step 2: Prepare the necessary tools 29
- Step 3: Open your HVAC system's cover 30
- Step 4: Label the wires 31
- Step 5: Disconnect the wires from the HVAC control board 32
- Step 6: Connect the wires from the C-Wire Adapter to the HVAC 33
control board
- Step 7: Connect the disconnected wires from the HVAC control board 34
to the C-Wire Adapter
- Step 8: Mount the C-Wire Adapter inside your HVAC system 35

3
- Step 9: Disconnect and label old thermostat wires 36
- Step 10: Unscrew old Mounting Plate 37
- Step 11: Replace with new Thermostat Mounting Plate 38
- Step 12: If the Trim Plate is used (Optional) 39
- Step 13: Pull the labeled wires through the hole of the Mounting Plate 40
- Step 14: Attach the Mounting Plate on the wall 41
- Step 15: Connect the wires 42
- Step 16: Set the jumpers on the back of your Thermostat 43
- Step 17: Attach the Thermostat onto its Mounting Plate until it clicks 44
- Step 18: Turn on the power 45
- Installation done! 46
5 Start-UpConguration 47
 -Option1:CongurationusingtheTrickleStarPortal 48
 -Option2:CongurationwithoutusingtheTrickleStarPortal 49
6 Thermostat Features 54
7 Thermostat LCD Display 55
8 WiringDiagrams 56
- Conventional heating and cooling systems 56
- Heat pump with auxiliary heat 57
- Boiler and radiant system 58
- C-Wire Adapter wiring 59
 -Withoneaccessorywire(humidier/dehumidier/ventilator) 60
 -Withtwoaccessorywires(humidier/dehumidier/ventilator) 61
9 Troubleshooting 62
10 Legal 63
11 Warranty 65

4
Welcome!
Thank you for choosing the TrickleStar®TS2501 Wi-Fi Smart Thermostat™.
We are your smart partner in optimizing comfort and maximizing savings for your Heating,
Ventilation, and Air Conditioning (HVAC) systems. You can now remotely control and monitor the
heating and cooling systems in your home and business from anywhere.
If you have any inquiries about TrickleStar products or need technical support, visit our website for
tutorials, videos and Frequently Asked Questions (FAQ). You can also contact us by email or phone.
Instruction Videos
If you want to see the Installation Instructions
as videos, visit our YouTube channel:
https://www.youtube.com/user/TrickleStarUS/
Website: www.tricklestar.com
Email: [e-mail]
Toll Free: 1-888-700-1098

5
Preparation

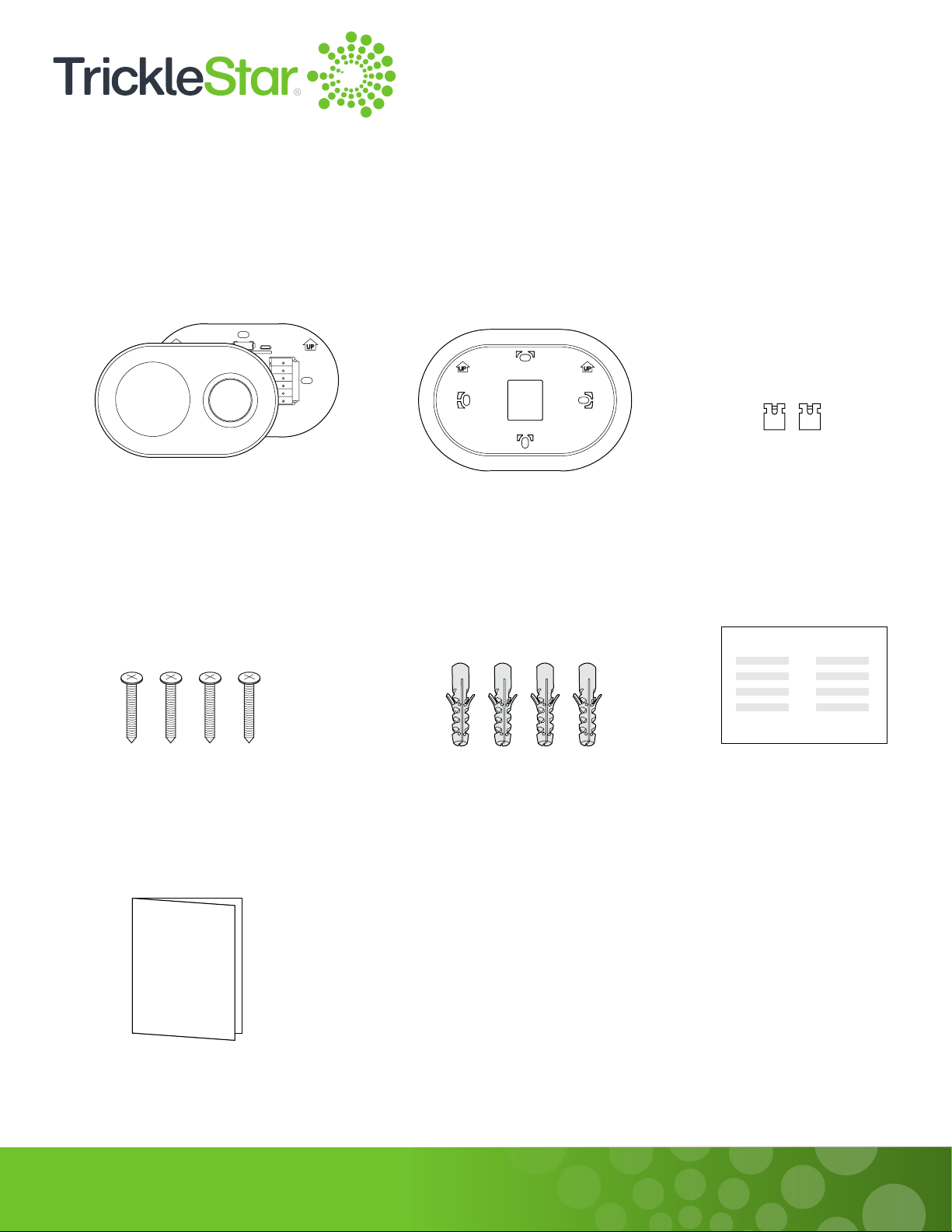

What is in the box?
Thermostat with
Mounting Plate
Trim Plate
Screws (4 pcs) Drywall plugs (4 pcs)
Extra jumpers
Quick Start Guide
Wire labels

6
Tools needed for installation
Drill with 3/16 in. (3.3 mm) drill bit PencilPhillips screwdriver
TS1921 Occupancy Sensor
TS2104 C-Wire Adapter
Mobile devices with Wi-Fi connection (to access to
TrickleStar Portal):
Tablet
or or
Laptop Smartphone
Accessories (Sold separately)
For more information on these accessories, scan the QR code or visit our website
at: www.tricklestar.com

7
Quick Start Guide for Homeowner Installation
Before you start the installation, be sure to check the Thermostat compatibility and create a Portal
account.
Installation Workflow
Step 1
Install the
TrickleStar
Thermostat.
+
A. Check compatibility
- Is the TrickleStar Thermostat
compatible with your HVAC system?
- Is the C-Wire Adapter needed?
https://portal.tricklestar.com/tstat/
compatibility
B. Create and log in to Portal
Create a Portal account using the QR code
or through the website: portal.tricklestar.com
Then, log in to the Portal.
C. Add your device and start the
Thermostat Setup Wizard
+
Step 2
Connect the
TrickleStar
Thermostat to Wi-Fi
via the Portal and
complete the Start-Up
Configuration.
Step 4
Add the Tr
ickleStar
App. (Optional)
Step 3
Select the settings for
the TrickleStar
Thermostat. (Optional)
+

8
Quick Start Guide for Contractor Installation
Installation Workflow
Step 1
Install the
TrickleStar
Thermostat.
D. At Thermostat Setup Wizard,
create a new site for homeowner
Step 2
Connect the
TrickleStar
Thermostat to
Wi-Fi via the
Portal and
complete the
Start-Up
Configuration.
Step 3
Select the
settings for the
TrickleStar
Thermostat.
(Optional)
Before you start the installation, be sure to check the
Thermostat compatibility and create a Portal
account.
+
A. Check compatibility
- Is the TrickleStar Thermostat
compatible with your HVAC system?
- Is the C-Wire Adapter needed?
https://portal.tricklestar.com/tstat/
compatibility
B. Create and log in to Portal
Create a Portal account using the QR code
or through the website:
portal.tricklestar.com
Then, log in to the Portal.
C. Add your device and start the
Thermostat Setup Wizard
+
+
Step 5
Add the
TrickleStar App
on homeowner’s
smartphone.
(Optional)
Step 4
Transfer
ownership to
homeowner.

9
Precautionary measures
OFF
OFF
Hint: Your system should not make any noise and you should not feel any air
exiting your vents when the power is OFF.
•
Read all instructions carefully before starting the installation.
•
Before installing the Thermostat, be sure to turn off the power for your HVAC system either at the
Circuit Breaker Box or at the Main Switch.
•
Leave the power OFF until you have finished the installation.

10
• Remove the front cover of your old thermostat from its base.
•
Your system is not compatible with the TrickleStar Thermostat if you see:
- thick black wires with wire nuts.
- the base on the old thermostat has “L1” and “L2” on the terminal blocks.
- “120 - 240 V AC” or “High Voltage” labels.
•
The TrickleStar Thermostat is ONLY designed for 24 V AC with a total switching current of 3 A
maximum.
L1 L2 120-240 V AC/
High voltage
24 V AC with
3 A (max)
X X
Alert: If you have any doubts about installing the Thermostat, contact a professional contractor.
X

11
Let’s get started!

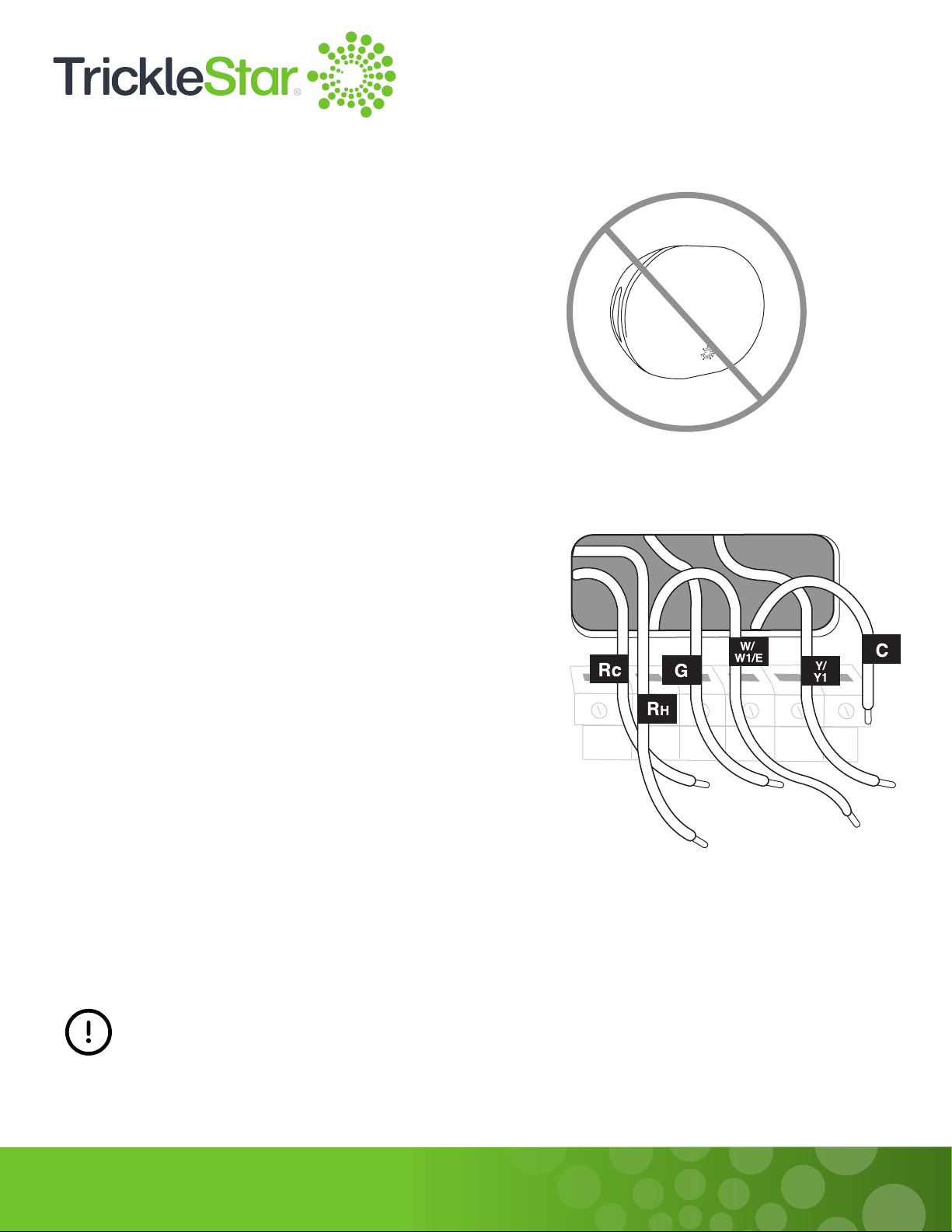

After removing the front cover of your old thermostat from its base, we recommend that you take a
photo of the wires connected to the terminals at the base.
You may need to refer to this photo at a
later stage.
Before you start the installation, we recommend that you take a photo of the label attached at the
bottom of your
Thermostat. You may need to refer to this information when you connect your
Thermostat to Wi-Fi via the
TrickleStar Portal.

12
With or without C-Wire?
The
TrickleStar Thermostat supports installation for both with and without C-Wire, but the installation is
a little dif
ferent.
Do you have a C-Wire connected to your old thermostat? Check the wires connected to the terminals
on the base of your old thermostat.
• If a wire is connected to the “C” terminal, then your system has a C-Wire to power your new
TrickleStar Thermostat.
• If there is no wire connected to the “C” terminal, then you need to install a C-Wire Adapter to
power your new TrickleStar Thermostat.
RcRHGYWCRcRHGYW
X
Yes, with C-Wire.
Continue to page 13.
No, without C-Wire.
Continue to page 26.
Note: Make sure that the C-Wire at your old thermostat is directly connected to the HVAC
Control Board.

13
RH
Installation With a C-Wire
If your system has a C-Wire, it will power your new
TrickleStar Thermostat.
You do not need a C-Wire Adapter (sold separately as an
accessory).
Step 1: Disconnect and label old thermostat
wires
Disconnect and label the wires from your old thermostat
carefully, one wire at a time, using the wire labels
provided.
Make sure the wires do not fall back into the wall when
released from the terminals and that the labels are
fastened to the wires securely.
Note: Make sure that the C-Wire at your old thermostat is directly connected to the HVAC
Control Board.

14
Step 2: Remove old jumper wire
If the terminals on your old thermostat has a jumper wire between RH, RC or R, remove the jumper
wire.
Your new TrickleStar Thermostat does not need this jumper wire.
Rc
Jumper wire
RH

15
Step 3: Unscrew old Mounting Plate
Unscrew the Mounting Plate of your old thermostat to remove it from the wall. When you remove the
Mounting Plate, be sure not to tear of
f the labels on the wires.

16
Step 4: Replace with new Thermostat Mounting Plate
Decide if you want to mount the
TrickleStar Thermostat directly to the wall or you want to use the Trim
Plate.
The Trim Plate helps you to hide marks or holes left on the wall by your old thermostat.
Trim PlateMounting Plate
OR
Rc
RH
G
Y1
Y2
W1
W2
O/B
GK/
C
ACC-
ACC+
YK

17
Step 5: If the Trim Plate is used (Optional)
If you use the
Trim Plate, align the mounting holes on the Trim Plate and Mounting Plate, then press
them together into place.
UP
UP
UP
UP
UP
UP

18

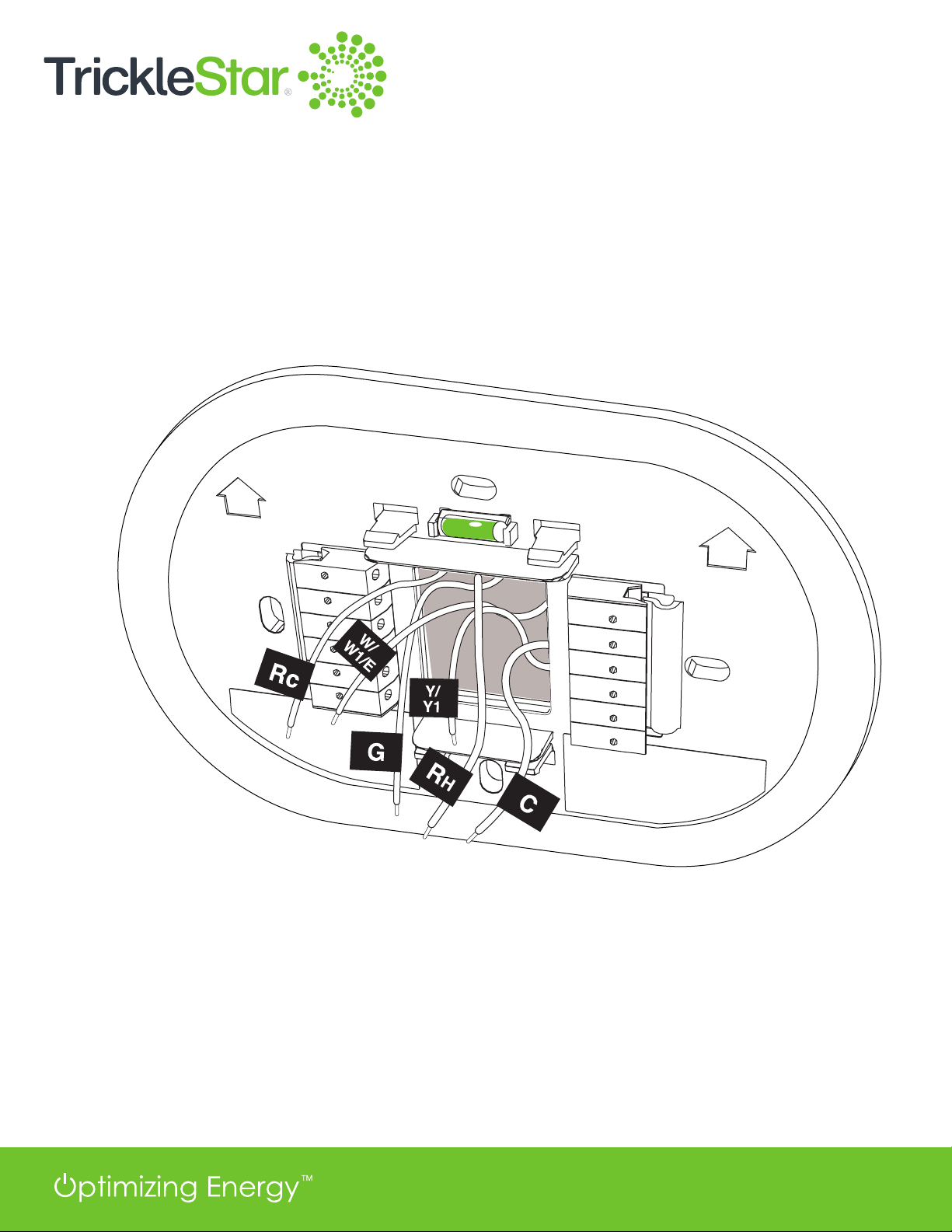

Step 6: Pull the labeled wires through the hole of the Mounting Plate
Pull the labeled wires carefully through the hole of the Mounting Plate.
UP
UP

19
UP
UP
UP
UP
Step 7: Attach the Mounting Plate on the wall
Attach the Mounting Plate on the wall using the drywall plugs and screws provided. Use the built-in
bubble level to make sure the base is level
.
Trim Plate
Mounting Plate
Drywall plug to be inserted
behind Mounting Plate
Bubble level
Without Trim Plate
With Trim Plate
Mounting Plate
Use a drill with 3/16 in. (3.3 mm) drill bit to drill four holes for the drywall plugs.
Drywall plug to be inserted
behind Trim Plate
Bubble level

20
Step 8: Connect the wires
Connect the labeled wires to their corresponding terminals on the Thermostat Mounting Plate.
Do you have more than one R wire? (That includes R, Rc, and RH
)
Connect the R or RC wire to the RC terminal.
Connect the R or RC wire to the RC terminal and the RH wire to the RH terminal.
Rc
RH
G
Y1
Y2
W1
W2
O/B
GK/
C
ACC-
ACC+
YK
Rc
RH
G
Y1
Y2
W1
W2
O/B
GK/
C
ACC-
ACC+
YK
