Trillium ROTO-JET RO III 4x3 Quick start guide

Disassembly/Assembly
Manual
RO III 4x3
RJ-DA-6 11/19

ROTO-JET PUMP
DISASSEMBLY/ASSEMBLY
RO III 4x3
Table of Contents
i
1. GENERAL.................................................................................................. 1
1.1. INTRODUCTION............................................................................. 1
1.2. ROTO-JET PUMP DESIGN ............................................................ 1
1.3. PUMP IDENTIFICATION ................................................................ 2
2. DISASSEMBLY/ASSEMBLY ..................................................................... 2
2.1. GENERAL....................................................................................... 2
2.2. RECOMMENDED TOOLS .............................................................. 3
2.3. DISASSEMBLY/ASSEMBLY STANDS........................................... 5
2.3.1. Model RO III 4x3 Dimension Drawing .................................. 6
2.4. RO III 4 x 3 Section Drawing........................................................... 7
2.4.1. Parts List - RO III 4 x 3 Pump............................................... 8
2.5. RO III 4 x 3 ROTOR ASSEMBLY SECTION DRAWING .............. 10
2.5.1. Parts List - RO III 4 x 3 Rotor Assembly............................. 11

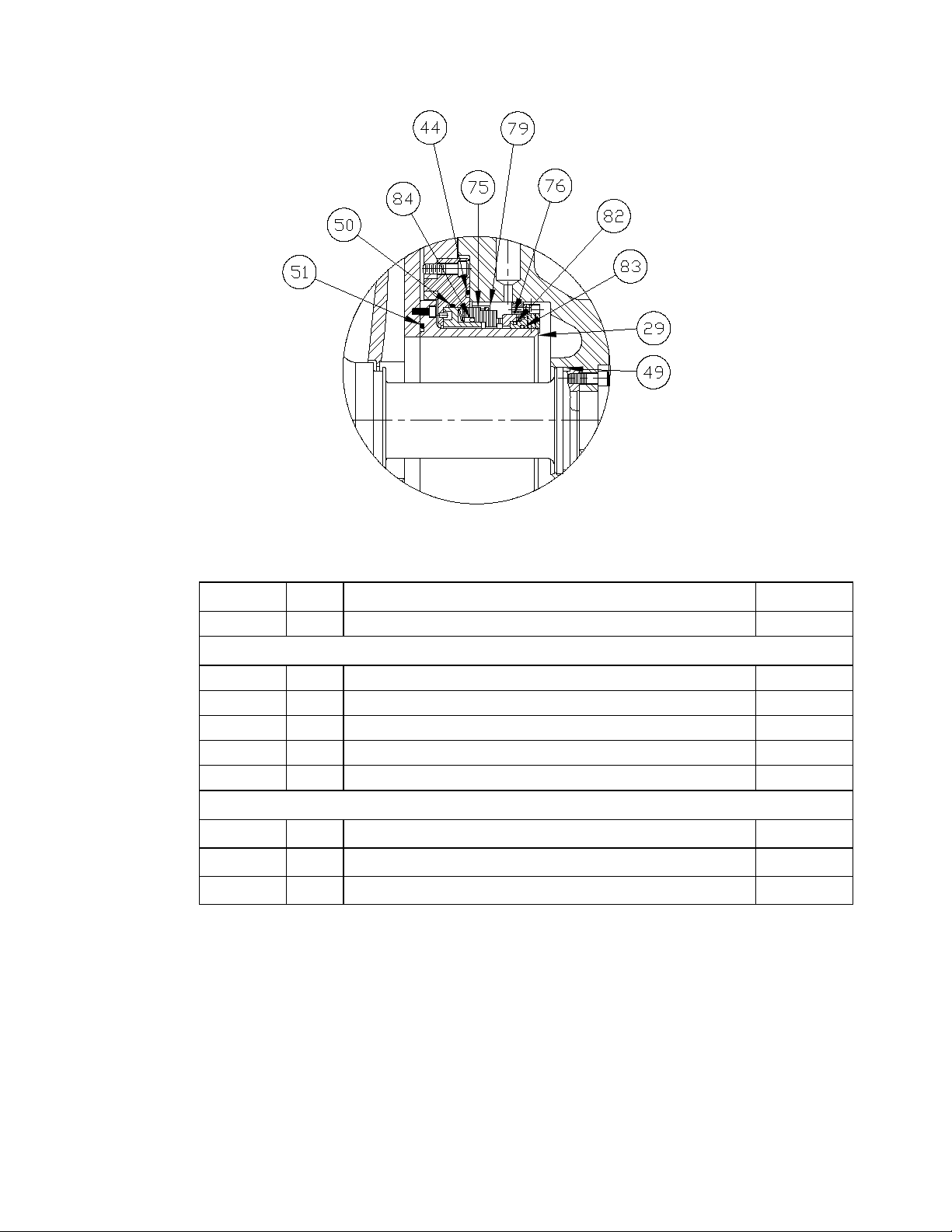

2.6. Seal Parts Lists ............................................................................. 12
2.6.1. Parts List - Stationary Single Seal - 4 x 3 Pump................. 12
2.7. CAUTIONS ................................................................................... 14
2.8. SEAL REPLACEMENT ................................................................. 15
2.9. PICK UP TUBE REPLACEMENT ................................................. 19
2.10. BEARING REPLACEMENT .......................................................... 20
2.11. ROTATING COMPONENT REPLACEMENT ............................... 25

ROTO-JET PUMP
DISASSEMBLY/ASSEMBLY
RO III 4x3
Table of Contents
Continued
ii
3. DRIVE BEARING CONVERSION............................................................ 26
4. HYDROSTATIC PRESSURE TEST ........................................................ 27
5. ROTOR ASSEMBLY BALANCING.......................................................... 27
6. PARTS..................................................................................................... 28
6.1. MINIMUM RECOMMENDED SPARE PARTS LIST ..................... 28
6.2. PARTS LIST - AUXILIARY EQUIPMENT ..................................... 29
6.3. ORDERING PARTS...................................................................... 29
7. MAINTENANCE RECORD ...................................................................... 30
8. APPENDIX A ……………………………………………………………31

RO 4x3 1
ROTO-JET PUMP
DISASSEMBLY/ASSEMBLY
RO III 4x3
1. GENERAL
1.1. INTRODUCTION
This manual has been prepared to assist you in understanding the construction and
the correct methods of disassembly and assembly for your new Roto-Jet pump.
The Roto-Jet pump is the simplest and most reliable high pressure pumping device
ever invented. The design, material and workmanship incorporated in the
construction of Roto-Jet pumps makes them capable of giving long, trouble free
service. The life and satisfactory service of any mechanical unit, however, is
dependent upon correct application, proper installation, periodic inspection and
careful maintenance.
We urge you to read and follow all of the directions in this manual. If additional
copies are required or other detailed instructions are needed, the information may
be obtained upon request.
1.2. ROTO-JET PUMP DESIGN
The exclusive patented Roto-Jet pump has only two basic working parts...a rotating
case and a stationary pick-up tube collector arm within the rotating case. The Roto-
Jet design completely eliminates the need for packing glands, wear rings or multiple
stages as used in conventional centrifugal pumps, and also eliminates the complex
pistons, rods, valves and springs required in reciprocating pumps.
The Roto-Jet operates in the following manner: Liquid enters the intake manifold
and passes into the rotating case where centrifugal force increases the pressure of
the liquid and at the same time its velocity is increased. The velocity of the liquid in
the rotor is converted into additional pressure as it jets into the pick-up tube.

RO 4x3 2
1.3. PUMP IDENTIFICATION
Roto-Jet pumps are designated by a series of letters and numbers, such as ROA-
S484. The first group, ROA, is an indication of the basic mechanical configuration
and the second group, S484, designates the pick-up tube size. The pump
nameplate gives both the pump model designation and the pump serial number.
Permanent records for this pump are kept by the serial number and it must therefore
be used with all correspondence and spare parts orders. This will ensure
replacement of components in the original materials of construction.
2. DISASSEMBLY/ASSEMBLY
2.1. GENERAL
The following are recommended dismantling and assembly instructions for your
Roto-Jet pump. We urge that the instructions be read thoroughly before attempting
to dismantle the unit. The component parts must be handled with care during the
dismantling and assembly process. The work area should be clean and be
equipped with the required tools.
Depending on the accessibility of the pump and the extent of the repair or inspection
required, the pump can be dismantled in place on its foundation. However, to
facilitate the disassembly procedure, it is recommended that the pump be removed
from its foundation and placed securely into a position in which the pump shaft is
facing downward and the manifold is facing upward. Roto-Jet pumps offers
assembly stands for mounting the unit during disassembly and assembly.
CAUTION
READ THESE INSTRUCTIONS CAREFULLY BEFORE BEGINNING WORK
ON THIS ROTO-JET PUMP. OBSERVE ALL INSTRUCTIONS
PARTICULARLY SAFETY RELATED INSTRUCTIONS OR CAUTIONS AND
USE SAFE SHOP PRACTICES.

RO 4x3 3
2.2. RECOMMENDED TOOLS
DESCRIPTION QUANTITY PART NUMBERS
Complete Tool Kit (includes special and purchased tools) 1 0663678
Special Tool Kit (includes items under special tools) 1 0663679
SPECIAL TOOLS
Alignment Tool-Pick-Up Tube (5/16" - 24) 1 060582064
Alignment Tool-Endbell 3 060580573
Guide, Center-Pick-Up Tube 1 0663677
Tee, Handle-5/16"-24 UNF 1 0663676
Measuring Bar (For Shimming) 1 060580635
Forcing Screw - All Thd. Gr. 5 3 060580643
Pin, Guide-Endplate 1 060581220
Pin, Alignment-Rotor Cover 2 060581222
Tool box - 32" x 8-1/2" x 9" 1 060095050
Adapter, Torque Wrench-F/Bearing Locknut (Drive End) 1 060580571
Adapter, Torque Wrench-F/Bearing Locknut (Rotor End) 1 060582334
Plate - 2" x 2" x 1/4" 3 060582336
Socket - 1/4" Hex Bit x 4-3/4" Lg., 3/8" Drive 1 060582391
Seal Assembly Tool 1 0663987
PURCHASED TOOLS
Eye Bolt - 1/2" - 13 x 1-1/4" Lg. Shank 3 060055411
Eye Bolt - 5/8" - 11 x 1-1/2" Lg. Shank 3 060055413
Bearing Separator-Spread 1/2" - 8 5/8" 1 060095022
Puller - 17.5 Ton, 9-1/2" 1 060095023
Torque Wrench - 30-150 Ft. Lbs., 1/2" Drive 1 060095026
Torque Wrench - 5 - 80 Ft. Lbs., 1/2" Drive 1 060095027
Adapter - 3/8" Sq. Male x 1/2" Sq. Female 1 060095033
Socket - 5/32" Hex Bit, 3/8" Drive 1 060095035
Socket - 3/16" Hex Bit, 3/8" Drive 1 060095031
Socket - 5/16" Hex Bit, 3/8" Drive 1 060095060

RO 4x3 4
2.2 RECOMMENDED TOOLS, continued
PURCHASED TOOLS, continued
Socket - 3/8" Hex Bit, 3/8" Drive 1 060095034
Socket - 1/2" Hex Bit, 1/2" Drive 1 060095036
Protector, Shaft Puller 1 060095037
Heat Gun - 750° Max (120V/60Hz) 1 060095046
Tempilstick - 150° F 1 060095047
Tempilstick - 175° F 1 060095048
Tempilstick - 200° F 1 060095049
Depth Micrometer - 0.3", 6" Base 1 060095051
Indicator, Test-Dial. .0005" 1 060095053
Magnetic Base-Test Indicator 1 060095054
Tester-V-Belt Tension 1 060095057
Legs, Puller - 16-1/2" 1 Pr. 060095025
Legs, Puller - 22-1/2" 1 Pr. 060095056
Scriber/O-ring Remover 1 060095045
ACCESSORIES*
Pump Assembly Stand Kit (Includes stand & swivel hoist ring) 1 060580652-K1
Rotor Assembly Stand 1 0665443-01
Ring, Swivel Hoist (D-Ring) 1 0667025
*Note: Accessories are not included with special tools or purchased tools and
must be ordered separately.

RO 4x3 5

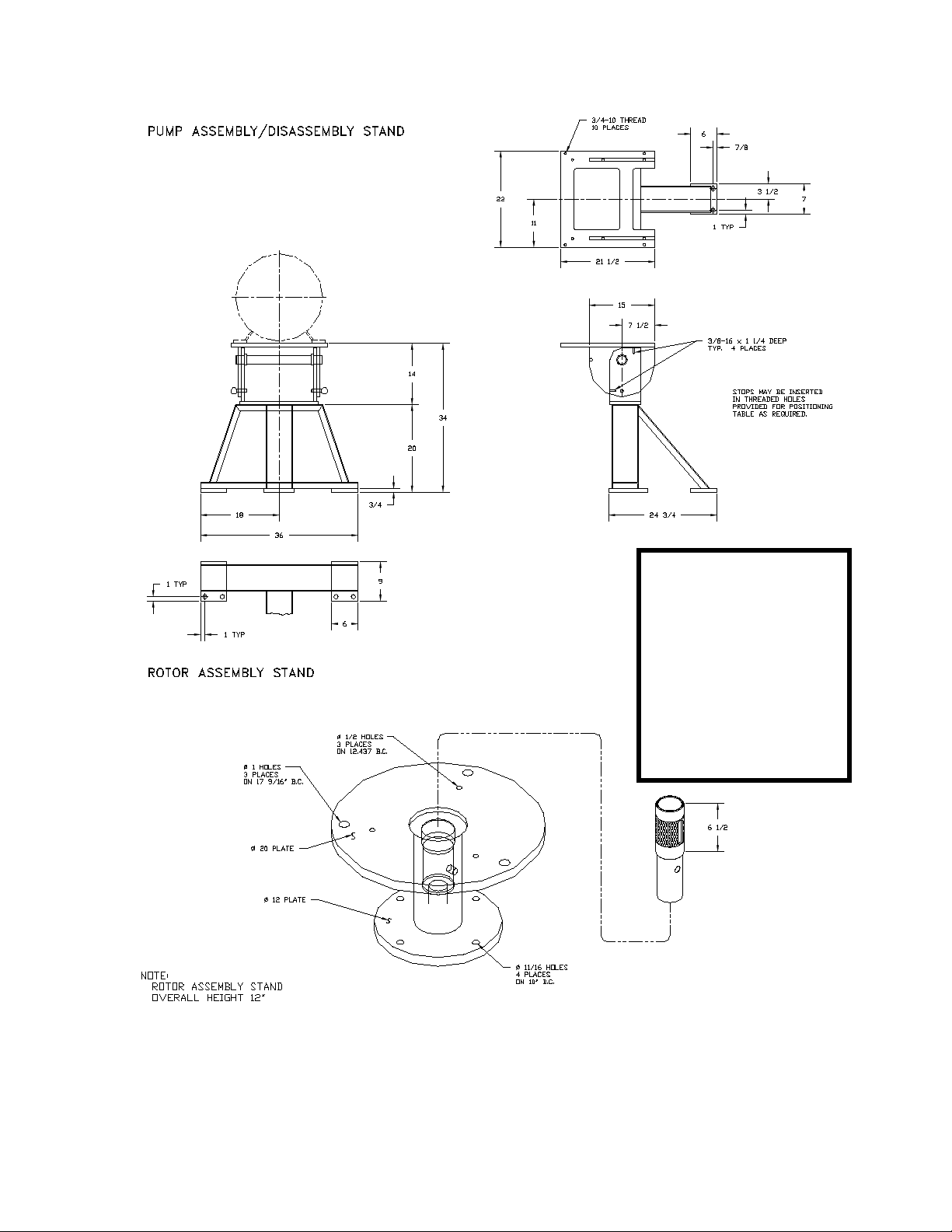

2.3. DISASSEMBLY/ASSEMBLY STANDS
CAUTION
When lifting the pump
into the vertical
position with or
without the assembly
stand a swivel hoist
ring shall be used in
place of the lifting eye
bolt.

RO 4x3 6

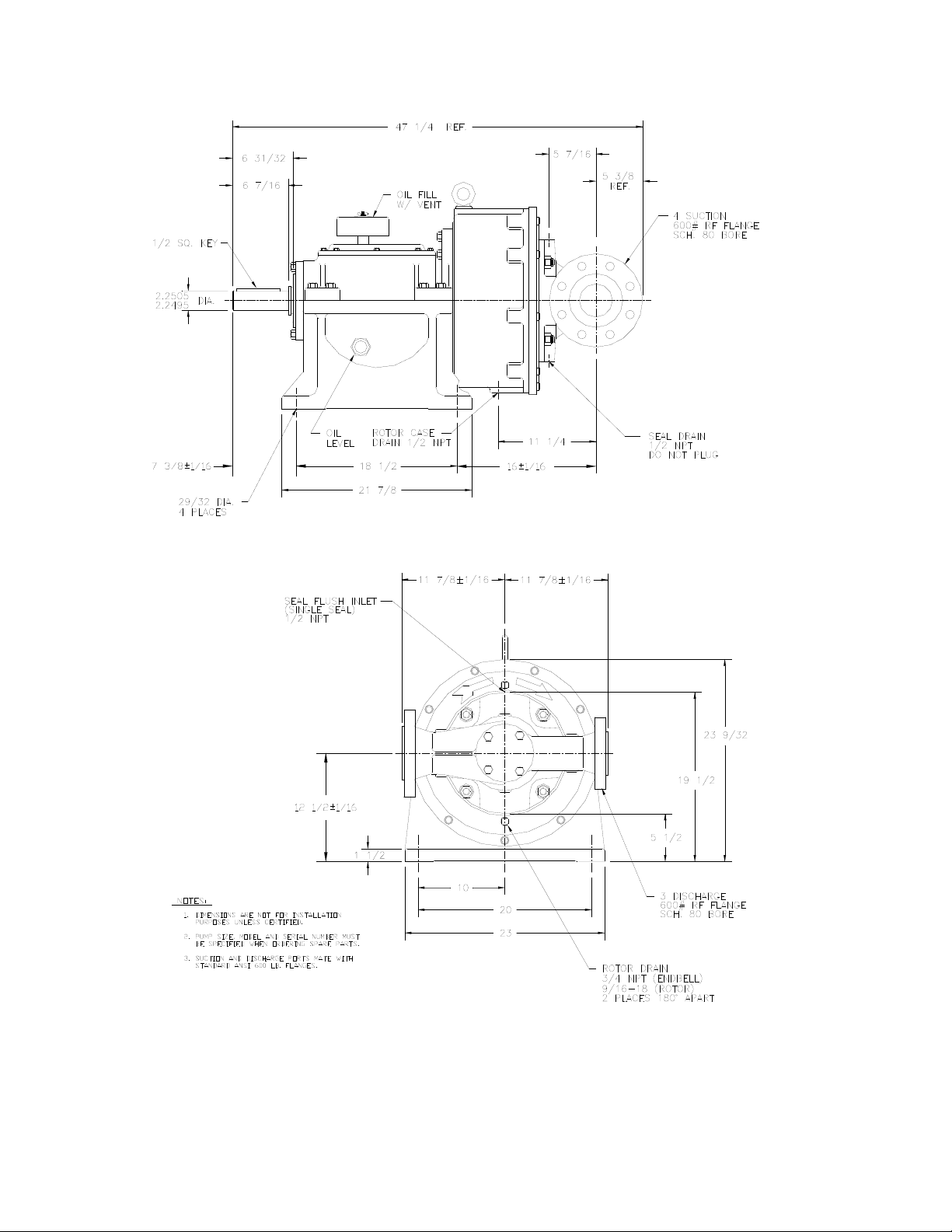

2.3.1. Model RO III 4x3 Dimension Drawing
Figure 2.3.1

RO 4x3 7
2.4. RO III 4 x 3 Section Drawing
Figure 2.4

RO 4x3 8
2.4.1. Parts List - RO III 4 x 3 Pump
Item
No.
Qty. Description Part Number
1 1 Pick-up Tube D-850
17-4 PH
718 Iconel
0663170
0663170-1
2 1 Rotor Assembly (See section 2.5.1
for parts list)
14 1 Cap, Bearing 0655488
16 1
Pedestal
High Thrust
Low Thrust
0662377
0655514
17 1 Pedestal 0662377
18 1
Cover, Pedestal
High Thrust
Low Thrust
0662376
0655517
22 2 Ring, Oiler 0655547
24 1 Plate, Seal 0663633-1
26 1 Endbell 0663634-1
29 1 Hub, Seal 0663636-01
30 3 Retainer, Oil Ring 0655583
31 1 Case, Rotor - Standard 0653206
32 4 Stud, Manifold 0655592
33 1 Plug, Manifold
STL
SST
0663368-1
0663368-2
34 1 Gasket, Pedestal Cover 0655601
35 1 Nameplate Oil Level 0655609
36 1 Manifold 4 x 3 Flanged
Steel 300 x 600
Stainless Steel 300 x 600
Steel 600 x 600
Stainless Steel 600 x 600
0663168
0663168-1
0663168-2
0663168-3
37 1 Nameplate 0660681
38 5 Shim, Bearing 0655622
39 1 Bolt, Eye 0656866
40 11 Capscrew, Soc. Hd. Pick-Up Tube 0658775
41 1 Plug, Pipe Soc. Hd. 0663203
42 2 Plug, Endbell 060067738
43 1 Key, Drive Shaft 060076024
44 1 O-Ring, Seal Plate 0663084-264
45 4 Nut, Hex Manifold 060081111
48 1 O-ring, Manifold Plug 0663084-154
49 1 O-Ring, Pick-Up Tube 0663084-233
50 1 O-Ring, Seal (Not Shown) 0662499-261

RO 4x3 9
2.4.2. Parts List - RO III 4 x 3 Pump, Cont'd.
Item
No.
Qty. Description Part
Number
51 1 O-Ring, Seal Hub 0663084-254
52 1 O-Ring, Bearing Cap 060083686
53 3 O-Ring, Oil Ring Retainer 060083734
54 1 O-Ring, Bearing Retainer 060083914
56 8 Capscrew, Hex Head Pedestal (Not shown) 060088814
57 10 Capscrew, Hex Head Cover 060088325
58 3 Capscrew, Hex Head Bearing Retainer 060088395
60 3 Capscrew, Hex Head Bearing Cap 060088399
61 4 Capscrew, Hex Head Manifold Plug 060088365
62 8 Capscrew, Hex Head Rotor Case 060088399
63 9 Capscrew, Soc. Head Endbell 0661091
64 5 Capscrew, Soc. Head Seal Hub 060088926
67 4 Capscrew, Soc. Head Seal Plate 0662650
68 1 Glass, Sight 0661242
69 1 Bushing, Throttle 0663579-1
70 1 Plate, Warning, Direct Drive 0655541
71 3
Plug, Pipe Manifold
Steel
Stainless Steel
060067736
060067741
72 3 Screw, Self Tap (Oil Rough) High Thrust 0662669
73 1 Trough, Oil Return High Thrust 0662668-1
74 12 Screw, Drive 060093116
77 1 Filter, Breather 060099061
79 1 Seal, Mechanical Single (View A) 0663643-01
80 2 Pin, Roll 0663975
81 1 Plate, Mounting Oil Trough High Thrust 0662668-3
82 5 Set Screw, Seal Hub 0663452

RO 4x3 10
2.5. RO III 4 x 3 ROTOR ASSEMBLY SECTION DRAWING
Figure 2.5

RO 4x3 11
2.5.1. Parts List - RO III 4 x 3 Rotor Assembly
Item
No. Qty Description Part No.
3A 1 Rotor, Ductile Iron 0656217 X X
3B 1 Rotor, Stainless Steel 0656756 X X
3C 1 Rotor, Steel 0655555 X X
4A 1 Rotor Cover, Ductile Iron 0663635-3 X X
4B 1 Rotor Cover, Stainless (CF8M) 0663635-2 X X
4C 1 Rotor Cover, Steel (WCB) 0663635-1 X X
5 1 Driveshaft 0661945 X X X X X X
6 1 O-ring, Rotor (NIT) 060083904 X X X X X X
7 22 Capscrew 060088578 X X X X X X
8A 2 Rotor Cover Drain Plug S/S NIT 060068677 X X
8B 2 Rotor Cover Drain Plug STEEL 060068656 X X X X
11 1 Rotor Bearing 060052137 X X X X X X
*12 3 Thrust Bearing 060052138 X X X X X X
13A 1 Thrust Radial Bearing RO-A 060052138MP-1 X X X
13B 1 Radial Bearing RO-B 060052243 X X X
15 1 Bearing Retainer 0655492 X X X X X X
19 1 Rotor End Oil Slinger 0655544 X X X X X X
20 1 Drive End Oil Slinger 0655545 X X X X X X
21 1 Shaft Slinger 0655546 X X X X X X
23 1 Bearing Spacer (Matched Pair) 0663163 X X X X X X
25 1 Rotor Bearing Sleeve 0655550 X X X X X X
27 1 Bearing Cap Slinger 0659206 X X X X X X
28 1 Shaft Sleeve 0659205 X X X X X X
46 1 Self-locking Nut, Drive End 060081346 X X X X X X
47 1 Self-locking Nut, Rotor End 060081348 X X X X X X
66 2 Wave Spring Washer 060098229 X X X X X X
NOTE: ONLY ONE (1) THRUST BEARING P/N 060052138 IS REQUIRED FOR A LOW THRUST CONFIGURATION.

RO 4x3 12
2.6. Seal Parts Lists
2.6.1. Parts List - Stationary Single Seal - 4 x 3 Pump
Figure 2.6.1 - Stationary Single Seal
Item No. Qty. Description Part No.
1 Seal Kit 0663652-01
Consisting of:
44 1 O-Ring, Seal Plate (Nitrile) 0663084-264
49 1 O-Ring, Pick-Up Tube (Nitrile) 0663084-233
50 1 O-Ring, Seal (Viton) 0662499-261
51 1 O-Ring, Seal Hub (Nitrile) 0663084-254
79 1 Seal-Pusher - Carbon With Seal Mating Ring -Tungsten Carbide Kit 0663643-01
Seal and Seal Mating Ring Components
*82 1 O-Ring, Seal Mating Ring, O.D. (Viton) 0662499-162
*83 1 O-Ring, Seal Mating Ring, I.D. (Viton) 0662499-161
*84 1 O-Ring, Seal Cartridge (Internal) (Viton) 0662499-257
* These parts are supplied as part of the Seal (79) 0663643-01

RO 4x3 13
2.6.2. Parts List - Stationary Single Seal with labyrinth bushing - 4 x 3 Pump
Figure 2.6.2 - Stationary Single Seal with labyrinth bushing
Item No. Qty. Description Part No.
1 Seal Kit 0663652-02
Consisting of:
44 1 O-Ring, Seal Plate (Nitrile) 0663084-264
49 1 O-Ring, Pick-Up Tube (Nitrile) 0663084-233
50 1 O-Ring, Seal (Viton) 0662499-261
51 1 O-Ring, Seal Hub (Nitrile) 0663084-254
79 1 Seal-Pusher - Carbon With Seal Mating Ring -Tungsten Carbide Kit 0663643-02
Seal and Seal Mating Ring Components
*82 1 O-Ring, Seal Mating Ring, O.D. (Viton) 0662499-162
*83 1 O-Ring, Seal Mating Ring, I.D. (Viton) 0662499-161
*84 1 O-Ring, Seal Cartridge (Internal) (Viton) 0662499-257
* These parts are supplied as part of the Seal (79) 0663643-02

RO 4x3 14
2.7. CAUTIONS
The following precautions are recommended to insure continued satisfactory
operation of unit after reassemble.
WARNING
PLEASE STUDY THESE INSTRUCTIONS CAREFULLY BEFORE PERFORMING
PUMP MAINTENANCE. ADHERENCE TO THESE INSTRUCTIONS IS
NECESSARY FOR SATISFACTORY REPAIR OF YOUR ROTO-JET PUMP.
MAINTENANCE PERSONNEL MUST READ AND UNDERSTAND THE ASSEMBLY
AND DISASSEMBLY SECTION.
WARNING
WHEN PERFORMING EQUIPMENT MAINTENANCE OR IF THE PUMP IS TO
REMAIN OUT OF SERVICE FOR A PERIOD OF TIME, THE EQUIPMENT
ELECTRICAL SERVICE MUST BE LOCKED OUT WITH AN APPROVED
LOCKOUT AND KEY. FAILURE TO LOCKOUT EQUIPMENT MAY RESULT IN
INJURY.
2.7.1. Do not re-use o-rings on components during reassembly as they lose their seal
integrity and may leak.
2.7.2. When replacing pick up tube, always replace pick up tube capscrews to avoid
attachment complications.
2.7.3. Never re-use bearing locknuts when replacing bearings as they lose their positive
locking capability when removed.
2.7.4. During rotor cover removal mark location of cover on rotor and location of each
capscrew so that they can be assembled in same location. Failure to do this may
create an out of balance condition making pump susceptible to vibration damage.
2.7.5. Replacement of major rotating component such as shaft, rotor or cover will
require rebalancing of rotating assembly.
2.7.6. Be sure all parts are free of dirt, stray metal chips or any foreign matter and have
been thoroughly cleaned.
2.7.7. All torque values given assume lubrication with an anti-seize agent to threads and
underside of bolt heads.

RO 4x3 15
2.7.8. WARNING: When lifting the pump into the vertical position with or without the use of the
assembly stand a swivel hoist ring shall be used in place of the lifting eye. Reference
APPENDIX A Drawing.
WARNING
THE EYE-BOLT HOLE LOCATED ON THE TOP OF THE PUMP HOUSING IS
INTENDED FOR LIFTING THE PUMP ONLY, AND NOT THE COMPLETE
PUMP AND BASE PACKAGE.
WARNING
EQUIPMENT LIFTING DEVICES SUCH AS CHAIN, LIFTING EYES, HOOKS,
ETC. MUST BE APPROVED BY LOCAL, STATE OR FEDERAL SAFETY
CODES.
HOISTS AND CRANES MUST BE ADEQUATELY SIZED TO LIFT RATED
LOADS.
FAILURE TO USE APPROVED LIFTING DEVICES MAY RESULT IN INJURY.
WHEN LIFTING THE PUMP, IT IS IMPORTANT TO MAKE SURE THAT THE
CHAIN AND CABLES ARE FASTENED RELIABLY TO THEIR RETAINING
HOOKS.
2.8. SEAL REPLACEMENT
WARNING: Before lifting the pump into the vertical position first remove the
lifting eye and install the swivel hoist. When tightening the swivel hoist ring,
torque to 100ft-lbs. Once the pump is re-assembled and in the horizontal
position remove the swivel hoist and re-install the lifting eye. Reference
APPENDIX A Drawing.
2.8.1. General Instructions
2.8.1.1. Lock out and tag drive.
2.8.1.2. Remove drive connection to pump (belts or flexible coupling).
2.8.1.3. Remove inlet and discharge lines from manifold. Remove seal flush
lines and drainage piping if applicable.

RO 4x3 16
2.8.1.4. Seals may be changed with pump in horizontal (mounted) position or
removed from mount and secured in position in which pump shaft is
facing downward. The steps for replacing seal remain the same.
However, extreme care must be taken to avoid face damage during
handling of pump components in the horizontal position.
2.8.1.5. Drain oil before removing pump from base.
2.8.2. Disassembly - Manifold
2.8.2.1. (Flanged manifold only) Remove 4 bolts (61) from the end of the
manifold (36). Now the plug (33) can be removed.
2.8.2.2. Remove the 11 socket head capscrews (40) which secure the pick
up tube (1).
2.8.2.3. Push pick up tube (1) inward until free of o-ring (49). Recommended
use of pick up tube guide (P/N 0663676).
2.8.2.4. Remove 4 hex nuts (45) which mount manifold (36) to endbell (26).
2.8.2.5. Pull manifold (36) away from endbell (26). When manifold (36) is
free of studs (32) remove pick up tube o-ring (49) and place manifold
(36) aside.
2.8.3. Single Stationary Seal 4x3 pump (reference figure 2.6.1.)
2.8.3.1. Remove 10 set screws from seal mating ring carrier (76) and then
remove mating ring, carrier (76) and o-ring (83) from seal hub (29).
The seal mating ring can separate from the carrier while being
removed from the seal hub. If it does, remove the seal mating ring
from the seal hub before proceeding and slide seal mating ring back
in to carrier.
2.8.3.2. Remove 2 socket head capscrews (67), then remove seal plate (24)
and seal cartridge (75) from the endbell (26).
2.8.3.3. Remove seal cartridge (75) and 0-ring (50) from seal plate (24).
Clean seal cavity.
2.8.3.4. Replace seal hub (29) , if required, seal hub radial runout must be
checked and adjusted as required. Reference section 2.8.4 for seal
hub replacement.
2.8.3.5. Install new o-ring (50) in seal plate (24). Apply light oil to seal cavity.
2.8.3.6. Install and seat the seal cartridge (74) in seal plate (24). Caution
should be taken to avoid chipping face.
