Trion 707-U User manual

www.trioninc.com
707-U
Atomizing Humidifier
H-707U-1008

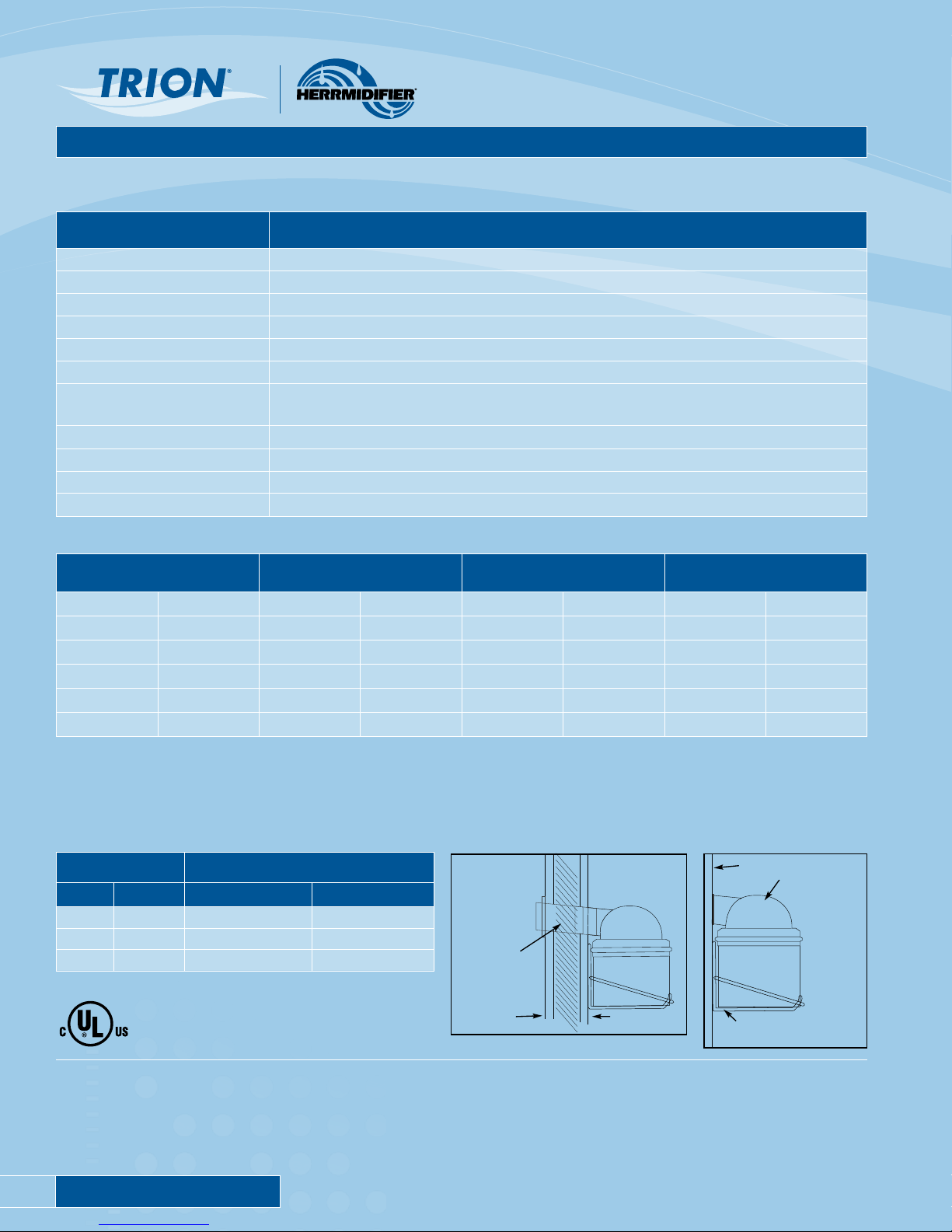

TECHNICAL ENGINEERING SPECIFICATION
Air Purification Systems
Performance:
Save on Energy Costs and Improve Comfort.•
Increasing A Home’s Relative Humidity Makes it Feel More•
Comfortable at 68ºF / 20ºC Than it Does at 73ºF / 23ºC at a Low
Relative Humidity Level
Lower Thermostat Settings Deliver Substantial Savings on Monthly•
Energy Bills
High Capacity Output: G200 – 14.4 Gallons Per Day at 120º F.•
G300 – 18.0 Gallons Per Day at 120º F
Features:
Installation is Quick and Easy•
Easy Assembly – Just Fit the Dome Snugly on top of the Pan –•
That’s It!
120v Wall or Duct-Mount Humidistat is Easily Adjustable from 20%•
to 80% Relative Humidity
CentrifugalAtomizingHumidiersareInstalledontotheReturn•
DuctorasaFree-StandingUnitwhereaSuperneMistisFed
Directly to a Room
Includes an Independent Mounting Bracket and Discharge•
Extension to Extend Through Wall for Installation Flexibility
How Humidifiers Work:
Centrifugal atomizing humidiers are installed onto the return duct or
asafree-standingunitwhereasupernemistisfeddirectlytoaroom.
There are no pads or lters to change, so there is little maintenance
needed.
Warranty:
2-year Limited Warranty•

www.trioninc.com
707-U
Atomizing Humidifier
©2008 Trion®-IndoorAirQualitySolutions|Herrmidier®-EngineeredHumidicationSolutionsTrion® andHerrmidier® are registered trademarks
ofAirSystemComponents,Inc.Trion®reservestherighttoreviseormodifyproductsand/orspecicationswithoutnotice.
Allproductspecicationsreectavailableinformationattheprintingofthisbrochure.
Trion®|101McNeillRoad|Sanford,NC27330|Phone:800-884-0002|Fax:800-458-2379
Web: www.trioninc.com | Email: [email protected]
H-707U-1008
TECHNICAL ENGINEERING SPECIFICATION
Air Purification Systems
Evaporator Supply Capacity
Humidifier Capacity Selection Guide
Furnace Temp. 707-U
°F °C Gallons per Day Liters per Hour
100°F 37.7°C 6.0 0.95
120°F 48.8°C 6.0 0.95
140°F 60°C 6.0 0.95
Model 707-U
Part No. 356686-001
Type Of Unit Centrifugal Atomizer
Max Evaporative Capacity 6.0GallonsPerDay-(0.95Lph)
Voltage 120 V
Unit Weight 11Lbs(5.0Kg)
Shipping Weight 13Lbs(5.9Kg)
Dimensions 10 1/2" Diameter x 12" H / Packaging - 13 1/4" W x 13 1/4" D x 16 3/4" H
(276mmx305mm)/(Packaging-336Wx336DX425Hmm)
Water Supply 1/4"(6.4mm)CopperorPlastic,125PSI(8.6Bar),NotIncluded
Drain 1/2"(13mm)
Humidistat Adjustable from 20% to 80% Relative Humidity
Drain 1/2”(12.8mm)O.D.
707-U
Sq. Footage (m) of Home Tight1House Average2House Loose3House
1000 (92.9m2) 0.5 (0.08) 5.0 (0.8) 10.0 (1.6)
1500 (139.4m2)3.0 (0.5) 10.0 (1.6) 16.5 (2.6)
2000 (185.8m2) 5.0 (0.8) 14.0 (2.2) 24.0 (3.8)
2500 (232.3 m2) 7.5 (1.2) 19.0 (3.0) 30.5 (4.8)
3000 (278.7 m2)10.0 (1.6) 23.5 (3.7) 37.5 (5.9)
3500 (325.2m2) 14.5 (2.3) 33.0 (5.2) 51.5 (8.1)
1.A“TightHome”isassumedtobewellinsulatedwithvaporbarriers,tightstormwindowsanddoors,andadamperedreplace.Airexchangerateof.5changesperhour.
2.An“AverageHome”isinsulatedandhasadamperedreplace,buttherearenovaporbarriers,stormdoors,orstormwindows.Airexchangerateof1.0changeperhour.
3.A“LooseHome”isgenerallyoneconstructedbefore1930,haslittleornoinsulation,nostormdoors,stormwindows,weatherstrippingorvaporbarriers,andoftenno
effectivedamperingofreplaces.Airexchangerateisashighas1.5changesperhour.
Cold Air Return Duct
Discharge
Dome
Wire Mounting
Bracket
Extension
Nozzle
Discharge
Extension
Nozzle
Outside
Wall Inside Wall
Installation Options
