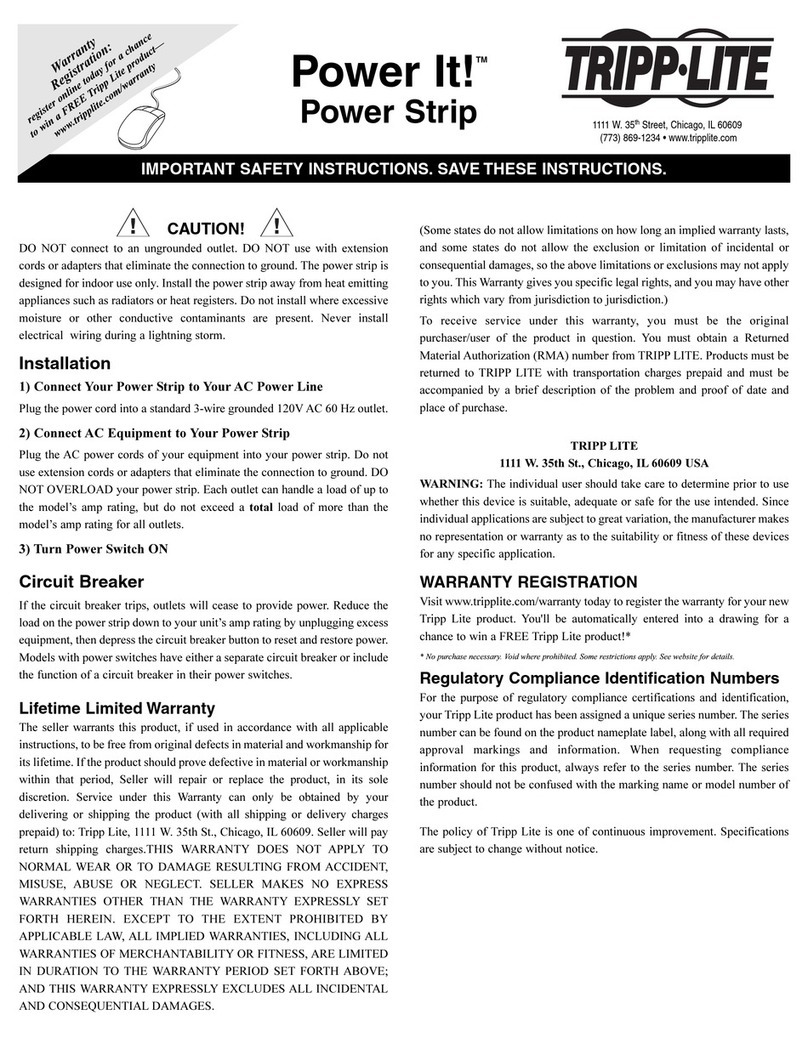

Tripp Lite PS712B Owner's manual

Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +[phone]
E-mail: [email protected]
Model Number: PS712B
7 outlet, 12-ft cord, black strip - Power It! Power Strip
Highlights
7 outlets
12 ft power cord
Illuminated on/off switch
15 amp circut breaker
Keyhold mounting slots
Description
Tripp Lite's PS712B power strip offers reliable, convenient and cost-effective power distribution for applainces, power tools, lighting and other
electrical equipment. PS712B offers 7 total outlets, 12 foot cord. Attractive black housing with keyhole mounting slots and 1 designated transformer
plug outlet. Multi-outlet strip reduces cable clutter and enables the connection of multiple electrical devices to a single AC wall socket.
PLUG/OUTLETS: Input: NEMA5-15P/Output: 7 NEMA5-15R/12 ft. AC line cord
ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA5-15R wall receptacle)
FORMAT: Corded multi-outlet strip with 1 transformer spaced outlet
Applications
Offers a reliable convenient and cost-effective method of power distribution for appliances, power tools, lighting and other electrical
equipment in home, office or worksite.
Package Includes
PS712B Surge Suppressor
Instruction manual and warranty information
Features
7 outlets / 12-ft cord
Attractive black housing
EMI/RFI noise filtering
Can accommodate 1 transformer without blocking remaining outlets
Diagnostic LEDs indicate protection present & ground present
Keyhole supports for wall mounting
Specifications
OVERVIEW
Intended Application Home/Office
OUTPUT
Frequency compatibility 50 / 60 Hz

Output watts 1800
Circuit Breaker (amps) 15
Outlet quantity / type 7 NEMA 5-15R
Transformer accommodation Supports 1 large transformer plug accessory without covering remaining outlets, accepts up to 4
transformers total
Outlet orientation Single row
INPUT
Nominal Input Voltage(s)
Supported
120V AC
Recommended Electrical
Service
120V (110-125V)
Input connection type NEMA 5-15P
Input cord length (ft.) 12
Input cord length (m) 3.66
Input cord gauge, type 14 gauge, SJT
Voltage compatibility (VAC) 120
Maximum Surge Amps 72000
LEDS ALARMS & SWITCHES
Switches Combination AC circuit breaker and 2 position red illuminated on/off power switch
DATALINE SURGE SUPPRESSION
Cable (Coax) Protection No
Network (Ethernet)
Protection
No
PHYSICAL
Shipping Dimensions
(HWD/in)
13.78 x 4.92 x 2.36
Shipping Dimensions
(HWD/cm)
35.00 x 12.50 x 5.99
Shipping weight (lbs) 1.92
Shipping weight (kg) 0.87
Unit Dimensions (HWD/in) 1.32 x 2.05 x 11.69
Unit Dimensions (HWD/cm) 3.35 x 5.21 x 29.69
Unit weight (lbs) 1.76
Unit weight (kg) 0.80
Material of construction Plastic
Integrated keyhole mounting
tabs
Keyhole mounting slots enable wall mounting
Receptacle Color Black
AC line cord color Black

Style Strip
Outlets center to center
measurement
Distance between standard outlets = 29mm; Distance between last standard outlet and transformer outlet =
33mm
Keyhole slot center to center
measurement
Distance between slots = 151mm; Distance between slot height = 24mm
CERTIFICATIONS
Additional International
Approvals
RoHS
NOM (Mexico) NOM
UL1363 (Power Tap) UL1363
cUL / CSA (Canada) cUL
Approvals Exceeds IEEE 587 category A&B specifications
WARRANTY
Product Warranty Period
(Worldwide)
Lifetime limited warranty
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
http://www.tripplite.com/sku/PS712B.
