Tritech SeaHub User manual

Issue 1 TIL – Eng – Spec – 080 SeaHub OM
Supplied By
Please read this manual carefully before setting-up and using your unit
For the latest manual revision always visit “www.tritech.co.uk”
The electronic version of this document is the controlled copy. Therefore all
printed versions of this document are uncontrolled.

F063.1
COPYRIGHT
© Tritech International Ltd
The copyright in this document is the property of Tritech International
Limited. The document is supplied by Tritech International Limited on
the understanding that it may not be copied, used, or disclosed to
others except as authorised in writing by Tritech International Limited.
Tritech International Limited reserved the right to change, modify and
update designs and specifications as part of their ongoing product
development programme.

Operator Manual
Issue 1 TIL – Eng – Spec – 080 Page 3 of 70
SeaHub
1. Contents
1. Contents.................................................................................................................................................. 3
2. Notices..................................................................................................................................................... 4
2.1. Trademarks ............................................................................................................................... 4
2.2. Handling of Electrostatic Sensitive Devices.............................................................................. 5
2.3. Warranty Policy ......................................................................................................................... 6
2.4. Statutory Compliances .............................................................................................................. 7
2.4.1. Compliance Notice – CE Mark....................................................................................... 7
2.4.2. Waste Electrical and Electronic Equipment Directive (2002/96/EC - WEEE) ............... 7
2.4.3. Restriction of Hazardous Substances Directive (2002/95/EC – RoHS) ........................ 7
2.5. Safety Statements..................................................................................................................... 8
2.6. Technical Support & Software Upgrades.................................................................................. 9
3. Before Using......................................................................................................................................... 10
3.1. Package Contents................................................................................................................... 10
3.2. General Overview ................................................................................................................... 11
3.3. Front Panel.............................................................................................................................. 13
3.4. Rear Panel .............................................................................................................................. 13
3.5. Underside Label ...................................................................................................................... 13
4. Operation............................................................................................................................................... 14
4.1. Hardware Installation .............................................................................................................. 14
4.2. Hardware Driver Installation and Configuration ...................................................................... 14

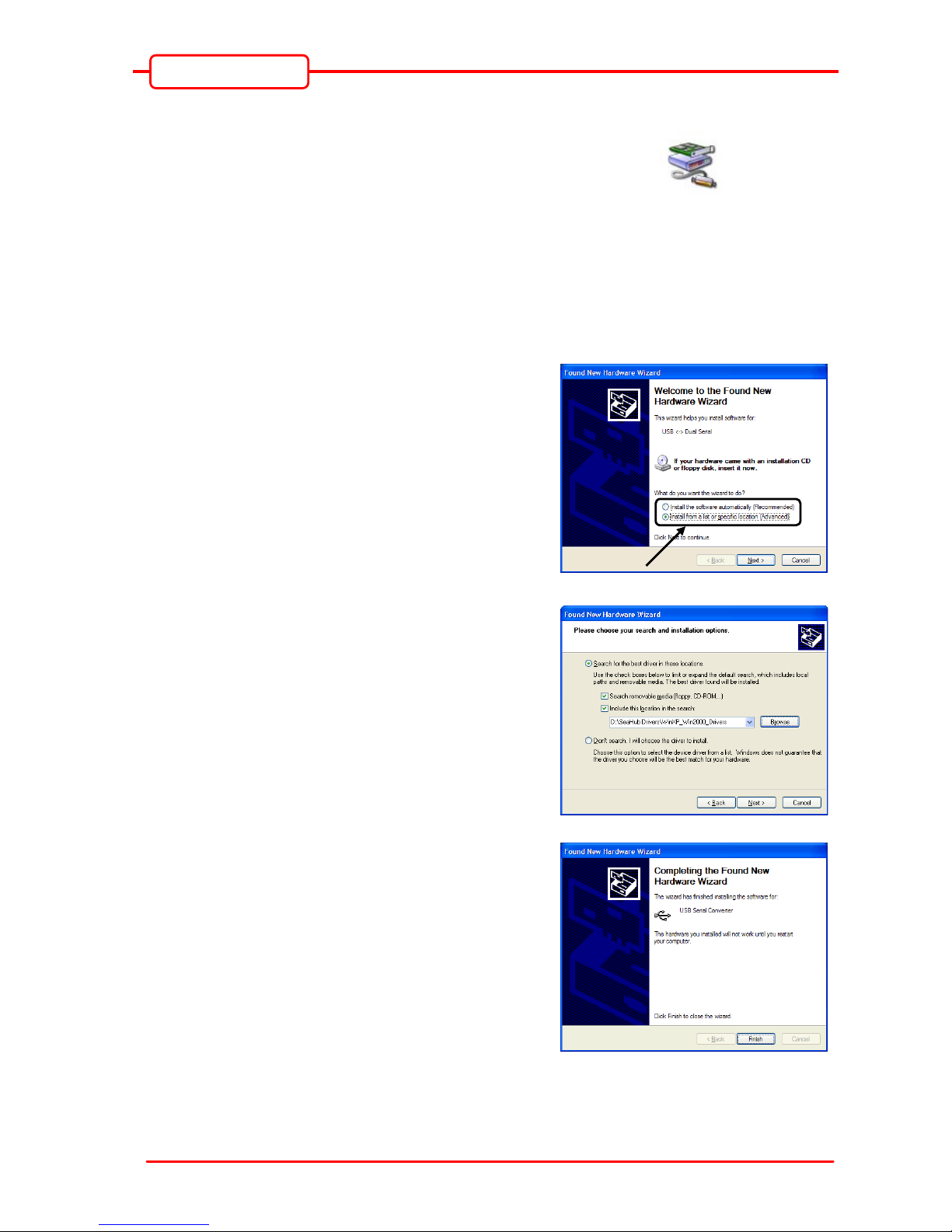

4.2.1. Windows Driver Installation.......................................................................................... 14

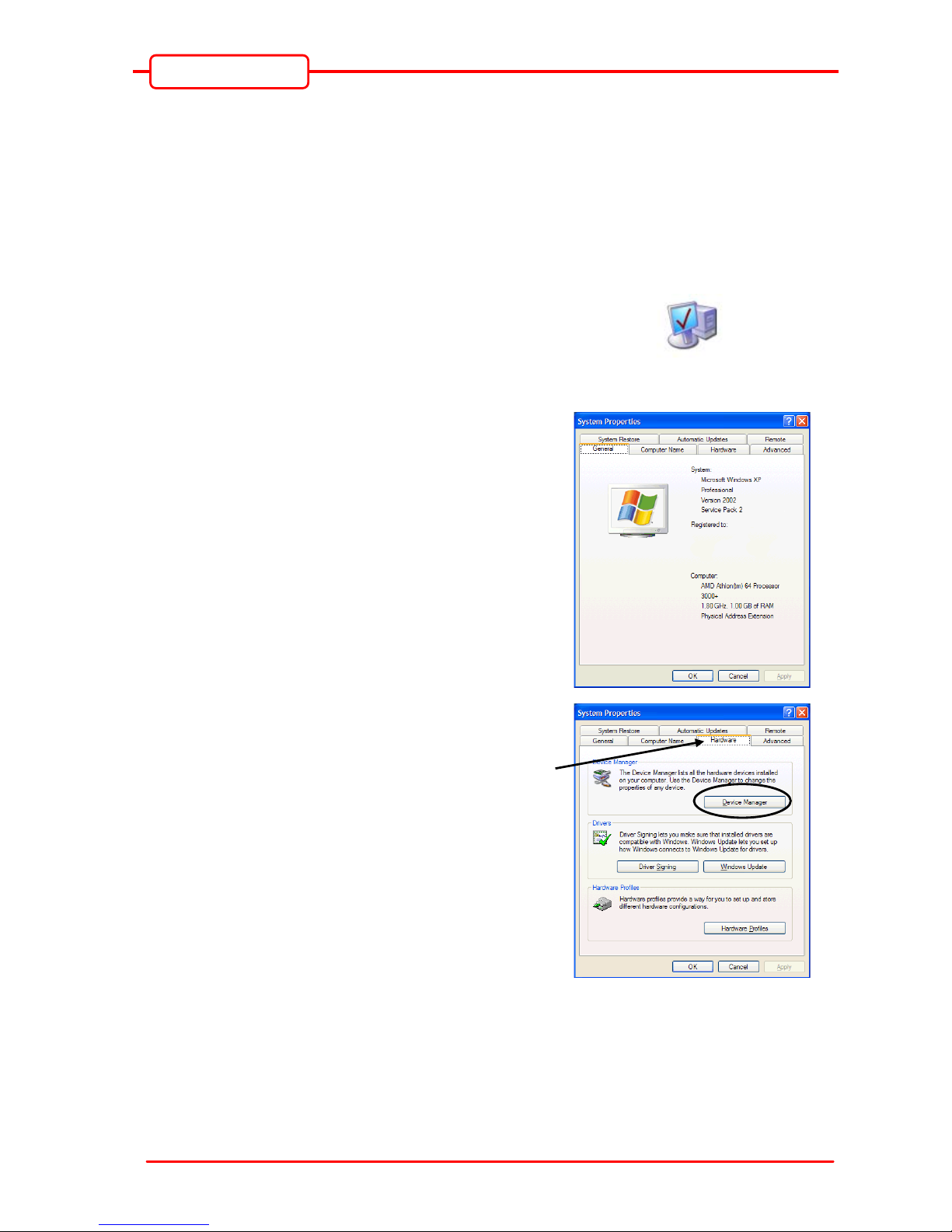

4.2.2. Identifying SeaHub Serial Ports................................................................................... 17
4.2.3. SeaHub Serial Port Functions ..................................................................................... 19
4.3. Seanet Software Installation and Configuration...................................................................... 20
4.3.1. Seanet Software Installation ........................................................................................ 20
4.3.2. Configuring Seanet with SeaHub COM Ports.............................................................. 21
4.3.3. Selecting SeaHub Port Hardware Modes .................................................................... 22
4.4. Software & Driver Un-installation ............................................................................................ 24
4.4.1. Serial Driver Un-installation ......................................................................................... 24
4.4.2. Seanet Un-installation.................................................................................................. 24
4.5. Status & Mode Indicators ........................................................................................................ 25
4.6. Device Connection, Wiring & Installation ................................................................................ 26
4.6.1. Connecting a Tritech Micron DST Sonar (or Echosounder) ........................................ 26
4.6.2. Connecting a Tritech SeaKing, SeaKing DST, SeaPrinceDST, Bathy, Roll Sensor or
SideScan Sonar ..................................................................................................................... 29
4.6.3. Connecting other Serial Devices ................................................................................. 32
4.6.4. ArcNet Line Termination .............................................................................................. 33
4.6.5. Subsea Sensor Electrical Installation .......................................................................... 33
4.6.6. Ground Fault Monitoring Equipment............................................................................ 33
5. Power Supplies..................................................................................................................................... 34
5.1. Power Inputs ........................................................................................................................... 34
5.2. Choosing a DC Source ........................................................................................................... 35
5.3. Power Outputs ........................................................................................................................ 36
5.3.1. Communication Signal Grounding ............................................................................... 37
5.3.2. “Ports C & D” Power Output ........................................................................................ 37
5.3.3. “DC Output Sockets” Power Output............................................................................. 37
5.3.4. “AIF (ARCNET)” Power Output.................................................................................... 37
5.3.5. Power Output Types .................................................................................................... 38
6. Data Interfaces...................................................................................................................................... 39
6.1. USB PC/Laptop Interface........................................................................................................ 39
6.2. USB Peripheral Ports .............................................................................................................. 39
6.3. Communication (Sonar/Sensor/Serial) Ports .......................................................................... 40
6.3.1. Port A (RS232[5] & RS485) .......................................................................................... 40
6.3.2. Port B (RS232[3], RS485 & RS422) ............................................................................. 41
6.3.3. Port C & Port D (RS232, RS485 & ArcNet) ................................................................. 42
6.4. AIF (ArcNet) Connector........................................................................................................... 43
6.5. RAT Interface .......................................................................................................................... 43
6.5.1. RAT Connection........................................................................................................... 44
6.5.2. RAT Configuration ....................................................................................................... 44

Operator Manual
Issue 1 TIL – Eng – Spec – 080 Page 4 of 70
SeaHub
7. Hardware Configuration & Maintenance............................................................................................ 45
7.1. Opening the SeaHub housing................................................................................................. 46
7.2. Resetting the Software Default Settings ................................................................................. 47
7.3. Selecting the DC “Power Out” Supply Voltage & Ground....................................................... 48
7.4. Checking & Replacing Fuses .................................................................................................. 51
7.4.1. Checking/replacing the AC “Mains” fuse ..................................................................... 51
7.4.2. Checking/replacing the DC Main Output Power (+28V Supply) Fuse ......................... 52
7.4.3. Checking/replacing the DC Ext Output Power (+12V & +5V Supply) Fuses............... 53
7.5. Making Pin 5 link between Ports C-D for ArcNet Dual Profiler ............................................... 54
7.6. Changing the ArcNet Power Supply ....................................................................................... 55
7.7. Changing the ArcNet Termination Resistor ............................................................................ 56
7.8. Enabling the legacy Serial Port on the AIF connector ............................................................ 57
7.9. Firmware & Software Update Procedure ................................................................................ 59
7.9.1. Updating the SeaHub with the new software BinFile................................................... 59
7.9.2. Updating the SeaHub with new FPGA firmware.......................................................... 60
7.10. Portable Appliance Testing Guidelines ................................................................................. 62
8. Troubleshooting................................................................................................................................... 63
9. Technical Specifications...................................................................................................................... 66
9.1. Electrical.................................................................................................................................. 66
9.2. Software .................................................................................................................................. 68
9.3. Environmental ......................................................................................................................... 69
9.4. Statutory Compliances ............................................................................................................ 69
9.5. Mechanical .............................................................................................................................. 70
2. Notices
2.1. Trademarks
•Microsoft and Windows 98, Windows ME, Windows 2000 and Windows XP are registered
trademarks of the Microsoft Corporation
•IBM and AT are registered trademarks of International Business Computers.
•AMD is a registered trademark of Advanced Micro Devices.
•Intel and Pentium is a trademark of the Intel Corporation
Tritech International Limited reserved the right to change, modify and update designs and specifications
as part of their ongoing product development programme.
Whilst every effort is taken to keep all the information contained in this document up to date, information
in this document is subject to change without notice and does not represent a commitment on the part of
Tritech International or System Technologies.

Operator Manual
Issue 1 TIL – Eng – Spec – 080 Page 5 of 70
SeaHub
2.2. Handling of Electrostatic Sensitive Devices
ATTENTION
Observe Precautions For Handling
Electrostatic Sensitive Devices
Caution: Certain semiconductor devices used in the equipment are liable to damage due to
static voltages.
Observe the following precautions when handling these devices in their unterminated state, or sub-
units containing these devices:
•Persons removing sub-units from any equipment using electrostatic sensitive devices must be
earthed by a wrist strap via a 1MΩresistor to a suitable discharge reference point within the
equipment.
•Soldering irons used during any repairs must be low voltage types with earthed tips and
isolated from the Mains voltage by a double insulated transformer. Care should be taken
soldering any point that may have a charge stored.
•Outer clothing worn must be unable to generate static charges.
•Printed Circuit Boards (PCBs) fitted with electrostatic sensitive devices must be stored and
transported in appropriate anti-static bags/containers.
F110.1

Operator Manual
Issue 1 TIL – Eng – Spec – 080 Page 6 of 70
SeaHub
2.3. Warranty Policy
Tritech International Limited herein after referred to as TIL
TIL warrants that at the time of shipment all products shall be free from defects in material and workmanship and suitable
for the purpose specified in the product literature.
The unit/system warranty commences immediately from the date of customer acceptance and runs for a period of 365
days. Customer acceptance will always be deemed to have occurred within 72 hours of delivery.
Note: Any customer acceptance testing (if applicable) must be performed at either TIL premises or at one of their
approved distributors unless mutually agreed in writing prior to despatch.
Conditions:
These include, but are not limited to, the following:
1 The warranty is only deemed to be valid if the equipment was sold through TIL or one of its approved distributors.
2 The equipment must have been installed and commissioned in strict accordance with approved technical
standards and specifications and for the purpose that the system was designed.
3 The warranty is not transferable, except or as applies to Purchaser first then to client.
4 TIL must be notified immediately (in writing) of any suspected defect and if advised by TIL, the equipment subject
to the defect shall be returned by the customer to TIL, via a suitable mode of transportation and shall be freight
paid.
5 The warranty does not apply to defects that have been caused by failure to follow the recommended installation or
maintenance procedures. Or defects resulting from normal wear & tear, incorrect operation, fire, water ingress,
lightning damage or fluctuations in vehicles supply voltages, or from any other circumstances that may arise after
delivery that is out with the control of TIL.
(Note: The warranty does not apply in the event where a defect has been caused by isolation incompatibilities.)
6 The warranty does not cover the transportation of personnel and per diem allowances relating to any repair or
replacement.
7 The warranty does not cover any direct, indirect, punitive, special consequential damages or any damages
whatsoever arising out of or connected with misuse of this product.
8 Any equipment or parts returned under warranty provisions will be returned to the customer freight prepaid by TIL
9 The warranty shall become invalid if the customer attempts to repair or modify the equipment without appropriate
written authority being first received from TIL.
10 TIL retains the sole right to accept or reject any warranty claim.
11 Each product is carefully examined and checked before it is shipped. It should therefore be visually and
operationally checked as soon as it is received. If it is damaged in anyway, a claim should be filed with the courier
and TIL notified of the damage.
Note: TIL reserve the right to change specifications at any time without notice and without any obligation to
incorporate new features in instruments previously sold.
Note: If the instrument is not covered by warranty, or if it is determined that the fault is caused by misuse, repair
will be billed to the customer, and an estimate submitted for customer approval before the commencement of
repairs.
F167.1

Operator Manual
Issue 1 TIL – Eng – Spec – 080 Page 7 of 70
SeaHub
2.4. Statutory Compliances
2.4.1. Compliance Notice – CE Mark
Declaration of Conformity (DoC)
“Hereby, Tritech International Limited declares that this product is in compliance with the
essential requirements and other relevant provisions of the Directive 1999/5/EC.”
This notice is based upon compliance of the product to the following directives and standards
•73/23/EEC Low Voltage Directive with amendment 93/68/EEC
•89/336/EEC EMC Directive with amendments 92/31/EEC and 93/68/EEC
2.4.2. Waste Electrical and Electronic Equipment Directive (2002/96/EC - WEEE)
Tritech International Limited is very aware of its responsibilities to the environment and to the
sustainability of the resources of our planet. The European Commission has issued the above Directive in
an effort to reduce the impact on the environment due to electronic appliances being committed to landfill
after they have come to the end of their useful life.
When the appliance referred to in this manual is no longer serviceable, it MUST NOT be discarded by
placing in landfill, dumping in the sea or incineration. SEPARATE collection is mandatory.
The owner of the appliance should either return it and its associated leads & accessories, if appropriate,
to Tritech International Limited with a certificate of decontamination (we reserve the right to protect our
staff from the effects of any contamination) or sent to an appropriate treatment or recycling agency.
Any goods manufactured after 08/2005 that fall within the scope of the WEEE Directive are
marked as shown opposite and will have the date of manufacture and the manufacturer’s
identification marks.
2.4.3. Restriction of Hazardous Substances Directive (2002/95/EC – RoHS)
This product is built using lead free (RoHS directive compliant) components and assembly processes.

Operator Manual
Issue 1 TIL – Eng – Spec – 080 Page 8 of 70
SeaHub
2.5. Safety Statements
NOTE
Throughout the manual certain potential problems, or further information relating to
the installation, maintenance, understanding or use of the apparatus will be
highlighted to the operator by indications identified by the adjacent symbol and text.
CAUTION!
Throughout the manual certain safety or operational related comments and
requirements will be highlighted to the operator by indications identified by the
adjacent symbol and text.
DANGER!
Throughout the manual certain safety or operational related comments and
requirements that could lead to injury or loss of life will be highlighted by the
adjacent symbol and text.
Before proceeding please read all of the following safety points…
DANGER!
Power Supply & Power Lead
•Disconnect the unit from a mains or DC power source before attempting
installation or maintenance on the unit. Do not open the unit with a power supply
connected.
•Do not overload a mains supply outlet, extension cord or adapter as this may
result in electric fire or shock.
•Do not modify the power cord or plug.
•Do not bend or twist the power cord.
•Do not place the power cord near any heat sources that may melt the protective
insulation.
•Do not use a damaged or defective power cord.
•Do not use (and unplug) the unit in situations where a power-line surge may occur
(such as a lightning storm), or if the unit is not used for a prolonged period of time.
DANGER!
Liquids
•The unit is NOT protected against the ingress of water, so take care to avoid
exposing the unit to sources of conductive liquids.
•Do not touch the unit with wet hands
DANGER!
Maintenance & Cleaning
•Disconnect the product from the power supply before attempting any maintenance
or cleaning.
•Do not clean with solvents, and only use a light damp cloth on the exterior of the
unit.
•Do not undertake maintenance of the unit, outside the scope of that defined within
this manual, unless instructed to do so by Tritech International Ltd technical
support.
•Do not insert extraneous object (metal or other alien substance) into the unit or
any of its connector apertures.
DANGER!
Location & Ventilation
•Do not place near a source of heat that may cause the operational temperature
parameters to be exceeded, or stacking other heat generating equipment onto of
the unit.
•Do not block any openings on the unit
•Always use the unit on a stable, rigid, flat and lint-free surface.
•Make sure the unit is more than 10cm away from any other appliance that may be
susceptible to electromagnetic interference.

Operator Manual
Issue 1 TIL – Eng – Spec – 080 Page 9 of 70
SeaHub
2.6. Technical Support & Software Upgrades
Contact your local agent or Tritech International Ltd
Mail
Tritech International Ltd.
Peregrine Road,
Westhill Business Park,
Westhill, Aberdeen,
AB32 6JL, UK
Telephone ++44 (0)1224 744111
Fax ++44 (0)1224 741771
Email [email protected]
Web www.tritech.co.uk
An out-of-hours emergency number is available by
ringing the above telephone number
Troubleshooting remedies are included in section 8 (page 63) of this manual. If these do not help, or you
have other cause to use our Technical Support service, please ensure that you have the following details
at hand prior to calling:
•Serial Numbers of the unit any Tritech International Ltd equipment connected directly or indirectly
to it.
•Software/Firmware Revision Numbers
•Fault Description
•Any remedial action implemented
Due to the expansion of equipment capabilities and the fact that new sub-modules are continually being
introduced, this manual cannot detail every aspect of the operation.
The name of the organisation which purchased this system is held on record at Tritech International Ltd.
Details of new software and hardware packages will be announced at regular intervals. Depending on the
module, free upgrades will be offered in keeping with our policy of maintaining the highest levels of
customer support.
Tritech International Ltd can only undertake to provide software support for systems loaded with
Operating System and Tritech Seanet software in accordance with the instructions given in this manual. It
is the customers responsibility to ensure the compatibility of any other package that they may choose to
load unless with the prior consent of Tritech.

Operator Manual
Issue 1 TIL – Eng – Spec – 080 Page 10 of 70
SeaHub
3. Before Using
Read the following sections carefully to learn what parts are included, gain an understanding of the
product, its configurations and setup & installation procedures.
3.1. Package Contents
Upon delivery your SeaHub package contains the following items…
•A “SeaHub Surface Interface” module
•A mains power cord
•A 3m USB2 (Type-A to Type-B) cable
•Quick-start installation and setup guide
•Manuals
•Software & Driver CD – containing…
Seanet Pro software
SeaHub drivers
Electronic Manuals (PDF format) and Acrobat PDF reader
•Transit Case
•Connection Kit - comprising…
2 ×9-Way Female D-Type connectors (solder bucket) and shells
2 ×6-Way DIN plugs (solder bucket) and shells
1 ×15-Way Male D-Type connector (solder bucket) and shell
3 ×4mm “Banana Style” plugs (red, black and green)
1 ×Yellow Waterblock Adapter with 39Ωinternal termination resistor

Operator Manual
Issue 1 TIL – Eng – Spec – 080 Page 11 of 70
SeaHub
3.2. General Overview
The “SeaHub Surface Interface Module” is designed to be a portable and universal interface box
providing a single module solution for interfacing the range of Tritech’s sub-surface products (sonars,
acoustic modems and other undersea sensors) into a PC computer or Laptop.
Power In
The module may be powered from either a “universal mains” AC power-supply, or a DC power input over
the +12 to +36V range, allowing operation from batteries, bench-power-supplies - please refer to section
5 (page 34) for further details and safety instructions.
Communications
Tritech’s sub-surface products, or other supported peripherals may be connected to the ‘AIF ArcNet’ port
or alternatively to one of four communication ports on the rear of the unit. Under software control, the
hardware communication standard of each port may be selected, and these include; ArcNet LAN, RS232
(3 and 5 wire variants), RS485 (Half-Duplex), RS422 (Full-Duplex) and RS232 (Full-Duplex) – although
not all standards are supported on each port, refer to section 6.3 on page 40 for further details.
The front of the module provides LED status indicators for power and the selected communication mode
on each of four communication ports.
For more integrated connections, the ‘AIF ArcNet’ connector is provided giving access to +12V, +5V and
ArcNet signals – both TTL and Analogue variants. Additional legacy wiring configurations are also
supported on this connection, but consult Technical Support for further details.
Power Out
Tritech’s sub-surface products may additionally derive DC power if connected to either of the two 6-pin
“DIN” communications ports (labelled “C” or “D”). If the AC “mains” power input is being used, then the
output voltage on Ports “C” and “D” will be +28V(±5%)1, while a DC power source will have a fused
version of the input voltage available on the output instead – check compatibility with all devices before
connection, see sections 5.2 & 5.3 on pages 35 & 36 for details.
Further DC output power (and Earth) connections are provided for external devices through three 4mm
sockets on the rear of the unit. If the “mains” power input is being used, then the output is internally
jumper selectable from +28V (factory default, see note below), +12V or +5V, while a DC power source
will have a fused version of the input voltage available on the output instead.
NOTE
The +28V(±5%) DC Output, available when AC Mains power is applied, is the factory set
voltage which if necessary can be increased to a maximum of 36V(±5%) by internal
adjustments.
RAT
For sonar specific control, the front panel also contains provision for connection to a RAT (Remote
Access Terminal). However, only RATs with a PS2 “Togglestick” mouse-controller and RS485 serial
communications are supported.
USB
Two USB Type-A sockets are also provided for user specific peripherals to be connected.
Each socket is capable of delivering 500mA of current (to a self-powered hub), and is protected
accordingly.
1Factory set to 28V. Internal PSU adjustable up to 36V(±5%).

Operator Manual
Issue 1 TIL – Eng – Spec – 080 Page 12 of 70
SeaHub
The internal design of the SeaHub can be summarised by the figure below…
ArcNet
Controller
(and source selection)
Microprocessor
Programmable
Gate Array
Dual USB
Interface
USB Hub Controller
Over Current
Protection
2 External
USB Ports
Isolation Barrier
Serial Hardware
(RS232, RS485)
(and source selection)
Port A Connector
(9-Way D-Type)
Port B Connector
(9-Way D-Type)
Port C Connector
(6-Way DIN or 9-
Way D-Type)
Port D Connector
(6-Way DIN or 9-
Way D-Type)
Serial Hardware
(RS232, RS485,
RS422)
(and source selection)
Serial Hardware
(RS232, RS485)
(and source selection)
Serial Hardware
(RS232, RS485)
(and source selection)
Physical Layer
Selection Circuit
Physical Layer
Selection Circuit
Physical Layer
Selection Circuit
Physical Layer
Selection Circuit
Dual USB
Interface
Status and Mode
LED’s
Differential
Driver
Isolation Barrier
AIF (ArcNet) Connector
TTL
Dual USB
Interface
RAT Interface
(PS2 to USB &
RS485)
RAT Port
PC USB Interface

Operator Manual
Issue 1 TIL – Eng – Spec – 080 Page 13 of 70
SeaHub
3.3. Front Panel
cPower and Status LED
dTransmit (Green) & Receive (Red) Status LEDs
eCommunications Port Hardware Mode LEDs (Blue)
fRAT Interface
gDual USB “Type-A” Interfaces
3.4. Rear Panel
c2.1mm DC Power Inlet
dIEC “Mains” AC Power Inlet
e9-Way D-Type (Male) Communication Ports “A” and “B”
f6-Way DIN Communication Ports “C” and “D”
gDC Power Outlet – 3 ×4mm “Banana” Sockets
h15-Way D-Type (Female) “AIF” Connector
iUSB “Type-B” Interface to Host Computer
3.5. Underside Label
The underside label of the
SeaHub unit is intended to
provide a quick reference for
connector wiring, fuses and
general handling procedure.
However, always consult
this user manual for further
details, when carrying out
any wiring or maintenance
procedures.

Operator Manual
Issue 1 TIL – Eng – Spec – 080 Page 14 of 70
SeaHub
4. Operation
It is suggested that users installing the SeaHub for the first time should read through the following
sections in a sequential order, prior to proceeding. A ‘Quick Start’ Installation Guide will also be provided
as part of the supplied documentation.
This section covers the hardware installation of the SeaHub unit, software and driver installation on the
PC, configuration of the Seanet software, and connection of devices to the SeaHub. However, it does not
cover device specific use of Seanet – for further details refer to the Seanet Users Manual.
NOTE
Please be aware that Seanet Pro and the SeaHub drivers only support Windows 2000,
Windows XP and subsequent operating systems.
4.1. Hardware Installation
1) Unpack the SeaHub module from its transit case.
NOTE
Before connecting the SeaHub to the PC, ensure that Seanet Pro has first been installed
on the PC from the Installation CD provided, see NOTE below.
2) Connect the SeaHub module’s rear USB port (labelled “PC-USB”) to the PC/Laptop using the
USB cable provided. The SeaHub should be connected to a High-Speed (480Mbps) USB 2.0 port
to achieve maximum performance.
3) Connect the power supply to the SeaHub, and power up – this may be either using an AC mains
power supply, and the power cord provided, or a DC supply and the 2.1mm plug.
4) On the first successful connection and power-up to the PC, the Windows operating system may
start the “plug-and-play” detection of the SeaHub devices. If this happens, refer to “Windows
Drivers Installation” section below (in section 4.2) for further details.
The SeaHub driver package will be loaded across during installation of Seanet Pro from the
Installation CD provided. The SeaHub should be connected to the computer after this software
installation has completed which should ensure that the “plug-and-play” setup be automatic and
not require any user-intervention.
If the drivers have previously been installed on the PC then automatic detection will occur, and
the COM ports will be added. Seanet may be run at this point, although COM port allocation may
need to be checked.
4.2. Hardware Driver Installation and Configuration
4.2.1. Windows Driver Installation
This section covers the driver installation process for the SeaHub hardware on Windows 2000 and
Windows XP operating systems. Other operating systems are currently not supported.
NOTE
Before connecting the SeaHub to the PC, ensure that Seanet Pro has first been installed
on the PC from the Installation CD provided (refer to Section 4.3.1 on Page 20). During
this installation, the SeaHub driver package will also be loaded onto the PC. When the
SeaHub is then connected, “plug-and- play” detection and setup should be automatic,
otherwise follow the manual driver installation procedures below.

Operator Manual
Issue 1 TIL – Eng – Spec – 080 Page 15 of 70
SeaHub
1) On the first connection of a SeaHub to a PC System,
the plug-and-play system should start the automatic
detection and setup of the hardware.
If this fails to happen, manually start the process by
selecting “Add New Hardware” from the Windows
Control Panel, and follow the onscreen instructions
for detecting new hardware.
Add Hardware
The installation process normally occurs in two parts. First the driver for the “USB to Serial”
hardware is identified and installed; once this is done the driver for the “Virtual Communications
Port” (VCP) is then installed.
2) Once the “Found New Hardware Wizard” starts, a
window similar to that shown opposite should appear.
If your PC has an internet connection, you can select
“Install the Software Automatically”. This will search
the internet for the correct drivers, download and
install them – you will not need the driver CD.
Following this option means you may skip over the
next step.
For PC’s without an internet connection, select
“Install from a list or Specific Location”.
Click “Next” to continue.
3) Insert the SeaHub driver CD into the PC’s CD-ROM
drive and ensure the top check-box “Search
removable media” is ticked.
Alternately, copy the contents of the directory onto
the PC’s Hard-Disk and install the driver from there.
To do this, tick the “Include this location in the
search” check-box. Click “Browse” and select the
driver location. The drivers can be found on the
Installation CD at the following location…
<CD Drive>\SeaHub Drivers\WinXP_Win2000_Drivers
Click “Next” to continue.
4) The driver installation wizard will now try to find the
drivers – this process may take several seconds, so
be patient.
During this process and depending on the PC’s setup
prior to installation, the wizard may identify newer
versions of the drivers installed or from an alternate
source on the internet. Select the required driver and
continue.
When the drivers have been found and installed, the
wizard will show the screen opposite.
Click “Finish” to continue.

Operator Manual
Issue 1 TIL – Eng – Spec – 080 Page 16 of 70
SeaHub
5) Windows may display a “speech” bubble showing the
new hardware has been detected and installed. Click
the “X” in the bubble to acknowledge it.
6) The plug-and-play system should now identify that
the Serial ports now need installing, for each USB-to-
Serial converter identified by the pervious part of the
installation.
This installation is the same process as before, so
repeat the above steps to locate the driver
7) When the process is complete, the following
“success” window should be displayed.
Click “Finish” to complete the installation.
8) Windows may display a “speech” bubble showing the
new hardware has been detected and installed. Click
the “X” in the bubble to acknowledge it.
9) If prompted, reboot the PC. The drivers should then
be installed and ready to use.

Operator Manual
Issue 1 TIL – Eng – Spec – 080 Page 17 of 70
SeaHub
4.2.2. Identifying SeaHub Serial Ports
Having completed the driver installation procedure, the PC should have installed six “Virtual
Communication Ports” (VCPs) that map to Windows serial communication (COM) ports. These ports will
be removed when the SeaHub is disconnected or powered down, and reappear next time the SeaHub is
connected.
The exact allocation of these ports numbering will vary between systems, and depend on other PC
hardware present or previously installed. This section describes how to identify which ports are allocated
to the SeaHub – this allocation must then be used to correctly configure Seanet in subsequent installation
stages…
10) To determine which COM ports have been created,
right click on the “My Computer” icon on the Desktop,
then select “Properties” from the drop-down menu.
Alternately, double click on the “System” from the
control-panel.
System Properties
This will display the “System Properties” window, on
the “General” tab…
11) Select the “Hardware” tab in the “System Properties”
window, and then click on the “Device Manager”
button.

Operator Manual
Issue 1 TIL – Eng – Spec – 080 Page 18 of 70
SeaHub
12) When the “Device Manager” window appears, this
will show all connected hardware to the PC.
Expand the “Ports (COM & LPT)” branch of the tree,
by clicking on the “+” symbol to its left. This will show
all the installed ports on the PC.
There should be six entries titled “USB Serial Port
(COMx)” in this list, each representing a serial port
within the SeaHub module. In the example shown
here, these are numbered from 9 to 14.
Make a note of these numbers, as the Seanet
software will need to be configured with them.
13) Close the “Device Manager” and “System Properties”
windows.

Operator Manual
Issue 1 TIL – Eng – Spec – 080 Page 19 of 70
SeaHub
4.2.3. SeaHub Serial Port Functions
The SeaHub module will always install six serial ports when connected correctly to the PC. As mentioned
earlier, the operating system will allocate COM port numbers to these ports, and depending on the
system setup these numbers may vary.
However, the block of six SeaHub ports will always be installed sequentially in the following order…
SeaHub Port Functions
COM Port
Number Example
(see previous
example) Function
Base + 0 COM9 SeaHub Port A
These four ports will return serial data
from devices connected to respective
ports on the rear of the SeaHub, that
use RS232, RS422 or RS485
hardware modes. Ports C & D can
additionally be configured for ArcNet
device connections.
These devices may be Tritech
“SeaNet” compatible devices, or other
serial peripherals (i.e. GPS, Compass,
Modem etc.)
These ports must be configured in
Seanet, for the SeaHub and ArcNet
devices to operate correctly – see
section 4.3 below.
Base + 1 COM10 SeaHub Port B
Base + 2 COM11 SeaHub Port C
Base + 3 COM12 SeaHub Port D
Base + 4 COM13 SeaHub System Connection
This port returns “SeaNet” formatted
messages from devices connected to
Ports C & D, and the “AIF ArcNet”
connector, which use the ArcNet
hardware mode.
Additionally, RAT messages and
system control information to the
SeaHub, is sent via this port
This port must be configured in
Seanet, for the SeaHub and ArcNet
devices to operate correctly – see
section 4.3 below.
Base + 5 COM14 SeaHub Auxiliary Reserved Port
This auxiliary port is reserved for
future use by SeaHub expansion
modules.
This port does not need to be
configured in Seanet, for general
SeaHub operation.

Operator Manual
Issue 1 TIL – Eng – Spec – 080 Page 20 of 70
SeaHub
4.3. Seanet Software Installation and Configuration
4.3.1. Seanet Software Installation
1) Insert the “Seanet Pro” Installation CD into the
PC CD-ROM drive and run the “SerialSetup.exe”
program. Note: If the CD autoruns then select the
“RS-232 Installation” type from the menu page.
2) When the installation program starts, click “Next”
to continue.
3) Read the license agreement, then select the
“YES” option, before you can click “Next”.
Click “Next” to continue.
4) Choose the installation destination directory. By
default this will be “C:\Program Files\SeaNet”.
Click the browse button if you wish to change this
location
Click “Next” to continue.
5) Installation will then proceed copying files onto
your computer, and making entries in the
Windows Registry. This process may take several
minutes.
If any anti-spyware software is running this may
warn you that registry changes are being made.
Allow any changes to be made if prompted.
Once files are copied, you will be prompted to
restart the PC. Click “Finish” to reboot
immediately. Rebooting may be deferred by
selecting “No”, then clicking “Finish”.
