Triumph Pop Shot 8-in-1 User manual

Item# 45-6099
If you have any problems with your new product,
please contact Triumph Sports USA at 1-866-815-4173,
or e-mail us at [email protected]
for any technical support or warranty issues.
Please keep this instruction manual for future reference
Pop Shot 8-in-1
2-Player Basketball

A PURCHASE RECEIPT (or other proof of purchase date) will be required before
any warranty service is initiated. All requests for warranty service can be submitted
by email, in writing or by contacting our Customer Service Department at:
1-866-815-4173 or email us at [email protected].
IMPORTANT NOTICE! Please contact us before returning the product to the store.
All TSU games have a 90-day from date of purchase warranty. This warrants the retail
purchaser for any TSU game purchased to be free from any defect in materials and
construction for 90 days from the date of purchase. Normal play wear and usage is not
covered under the warranty, nor is wear or damage due to improper use of the TSU
game. This will void any and all TSU warranties.
90-Day Triumph Sports USA, Inc. (TSU) Game Warranty
WARNING:Choking Hazard--Toy contains small balls and/or small parts.
Not for children under 3 years of age.
Warnings
Triumph Sports USA
Milwaukee, WI
www.triumphsportsusa.com
© 2012 Triumph Sports USA. All Rights Reserved.

Parts List

Assembly Instructions
1. Find a clean, level place to begin the assembly of your Basketball Game. We recommend that two adults
work together to assemble this basketball game.
2. Remove all the parts from the box and verify that you have all of the listed parts as shown on the Parts list
page. Carefully cut or tear the four corners of the box so that the bottom of the box can be used as your work
surface.

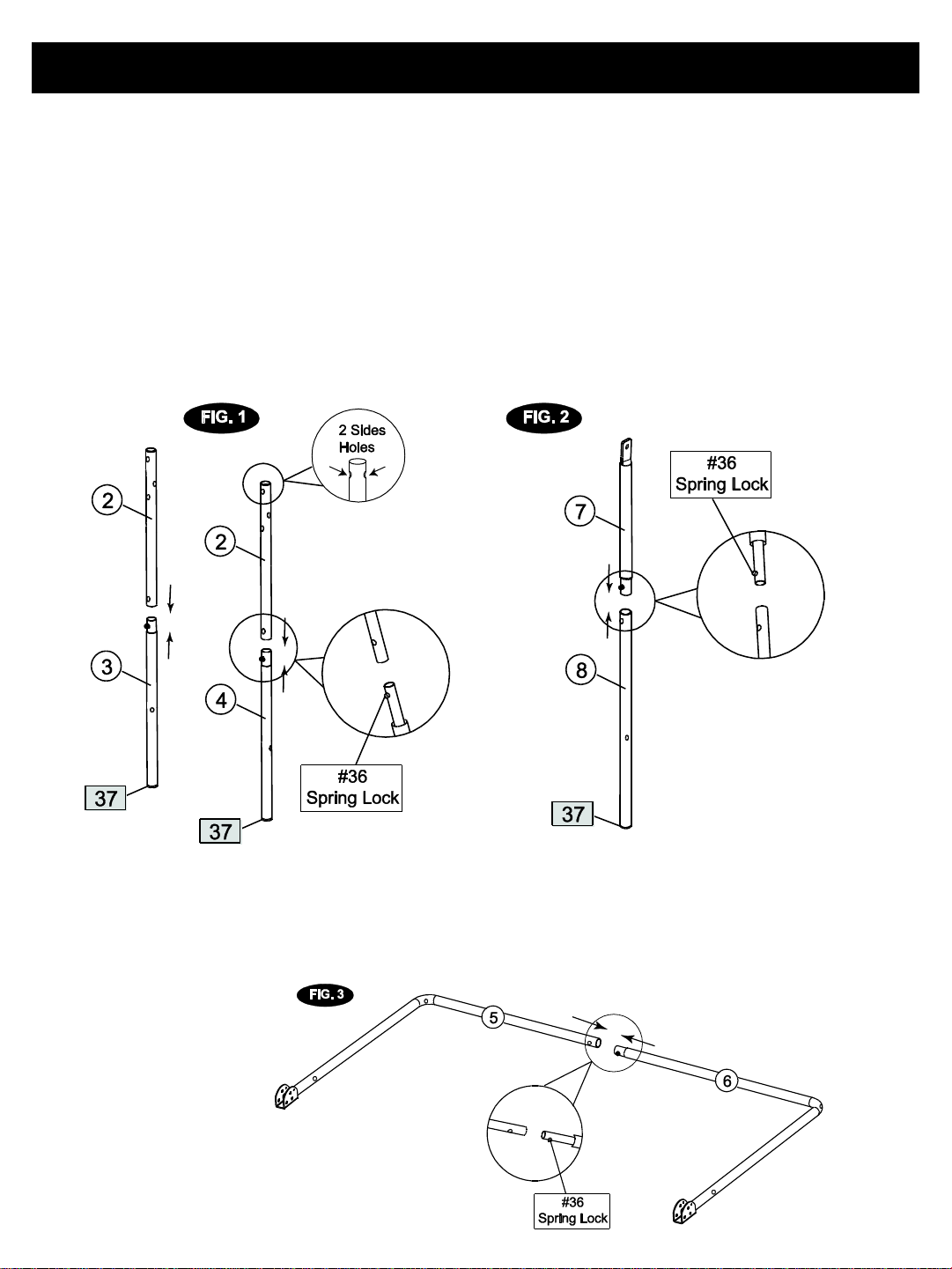

3. Attach the Vertical Board Support Mounting Tubes (#2) to the Left and Right Vertical Support Tubes (#3 &
#4) using spring lock as shown in FIG.1.
4. Attach the Angle Top Frame Support Tubes (#7) to the Angle Bottom Frame Support Tubes (#8) using
spring lock as shown in FIG.2
5. Attach the Left and Right Horizontal Frame Brace Tubes (#5 and #6) together using spring lock as shown in
FIG.3.

6. Attach the Horizontal Frame Brace Tubes (#5 & #6) to Left and Right Support Tubes (#3 & #4) using Bolts
(#27), Washers (#22) and Nuts (#28), and then attach the Horizontal Frame Brace Tubes (#5 & #6) to the
Angle Bottom Support Tubes (#8) using Bolts (#27), Washers (#22) and Nuts (#28) as shown in FIG.4, 4A
and 4B.
7. Attach the Angle Support Tubes (#7 & #8) to the Vertical Support Mounting Tube (#2) using Bolt (#24),
Washers (#22) and Nut (#28) as shown in FIG.4C, repeat this step for other side. Note: Make sure the
spring lock is face down.

8. Attach the Short Horizontal Cross Brace (#12) to the Vertical Board Support Mounting Tubes (#2) using
Bolts (#25), Washers (#22) and Nuts (#28) as shown in FIG.5A. And then insert the Net Hanger Tubes (#1)
to the Vertical Board Support Mounting Tubes (#2) as shown in FIG.5.

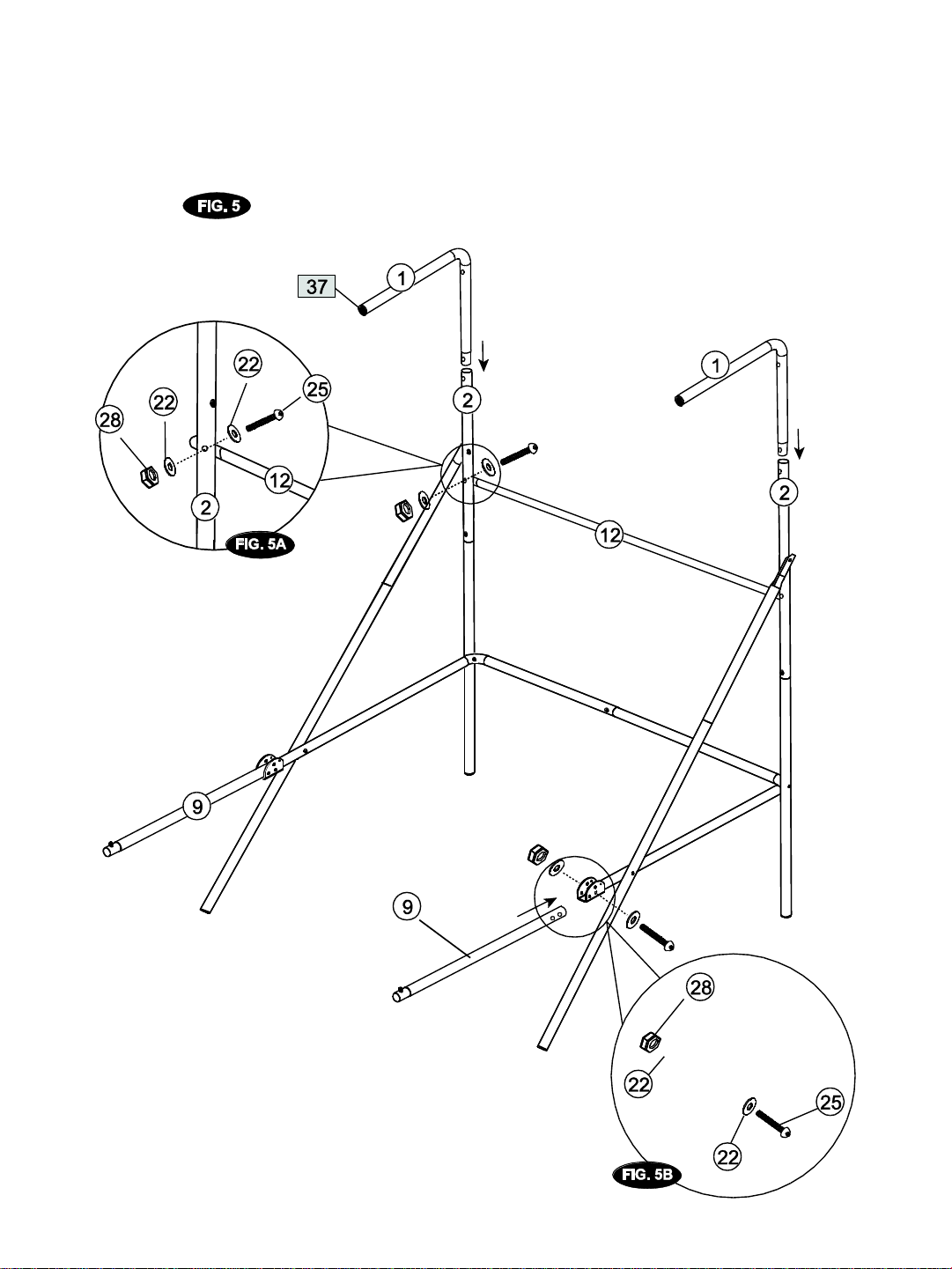

9. Attach the Middle Ramp Tubes (#9) to Horizontal Frame Brace Tubes (#5 & #6) using Bolts (#25 ), Washers
(#22) and Nuts (#28) as shown in FIG.5 and 5B.

10. Attach the Front Ramp Tubes (#10) to the
Middle Ramp Tubes (#9) using spring lock as
shown in FIG.6.

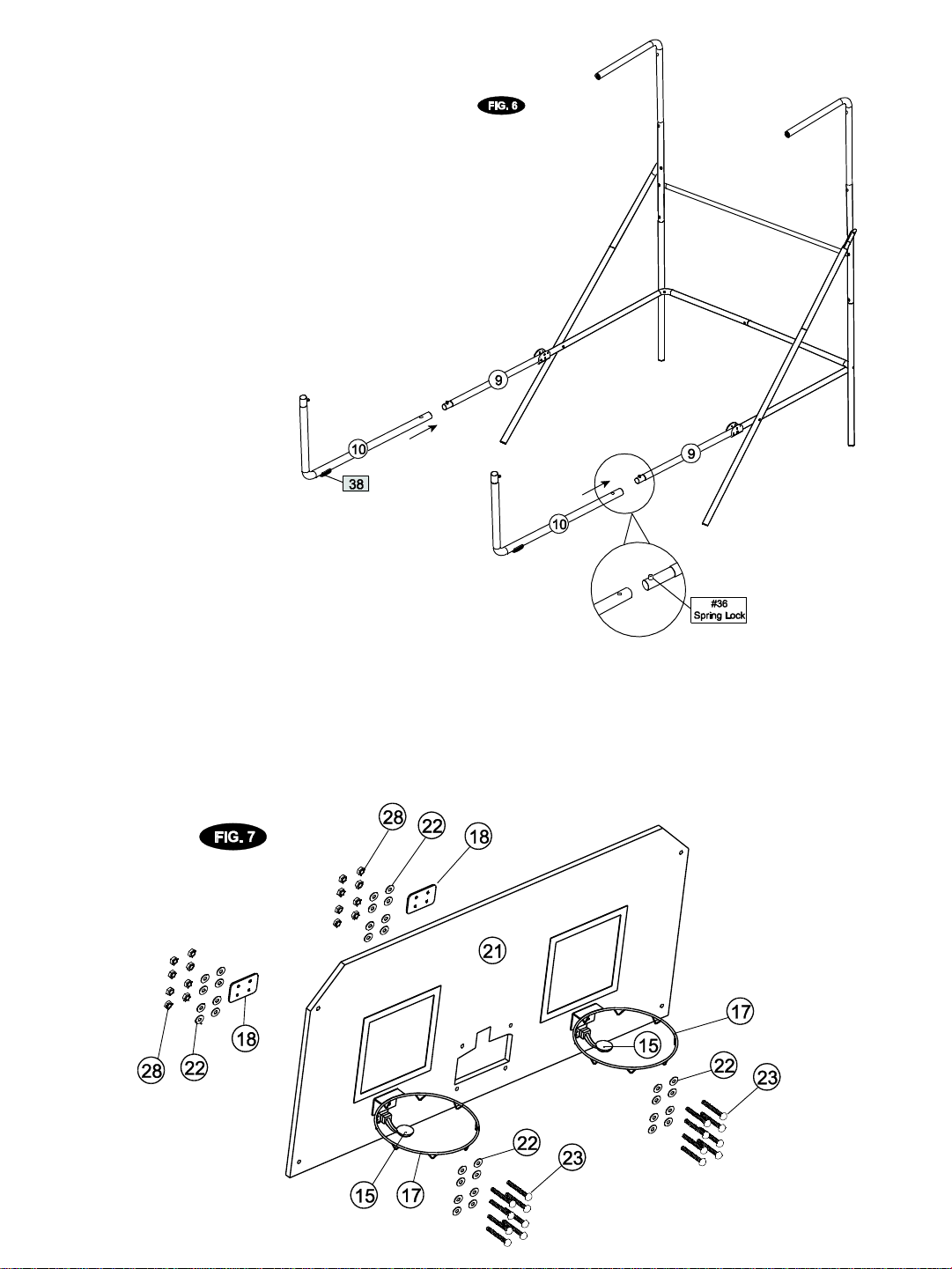

11. Attach the Rim Assemblies (#17) and Rim Support Plates (#18) to the Backboard (#21) using the Bolts
(#23), washers (#22) and Nuts (#28). And then attach the Switch and Paddle Assembly (#15) to the
Backboard (#21) using the Bolts (#23), washers (#22) and Nuts (#28). Make sure that you use washer on
both sides of the backboard as shown in FIG. 7.

12. Attach the Electronic Scorer
Face Plate (#30) to the front of
Backboard and connect with the
Electronic Scorer (#14) using
Bolts (#29) as shown in FIG. 8.
15. Connect the Front Horizontal Ramp
Support Tube (#11) to the Front
Ramp Tubes (#10) using spring
lock as shown in FIG. 9D.
16. Slide the Long Horizontal Cross
Brace (#13) in front of the Ball
Return with Side Netting (#35) and
attach it to the Front Horizontal
Ramp Support Tube (#11) using
Bolts (#24), Washers (#22) and
Nuts (#28) as shown in FIG.9E.
13. Slide elastic straps and sleeve of Ball Return with Side Netting (#35) onto Top Net Hanger Tubes (#1)
as shown in FIG. 9A & 9B.
14. Slide the Front Horizontal Ramp Support Tube (#11) into the sleeve of Ball Return with Side
Netting(#35) as shown in FIG. 9C.

17. With the help of another adult,
attach the Backboard (#21) to the
Top Net Hanger Tubes (#1) using
Bolts (#26), Washers (#22) and
Nuts (#28) as shown in FIG.10A.
At each bottom hole of the
backboard, attach the ramp tabs of
Ball Return with Netting (#35)
using Bolts (#26), Washers (#22)
and Nuts (#28) as shown in
FIG.10B.
18. Connect the Lock Pin (#31) to the
Left & Right Frame Brace Tubes
(#5 & #6) and insert it to the Left &
Right Frame Brace Tubes (#5 &
#6) as shown in FIG.10C.

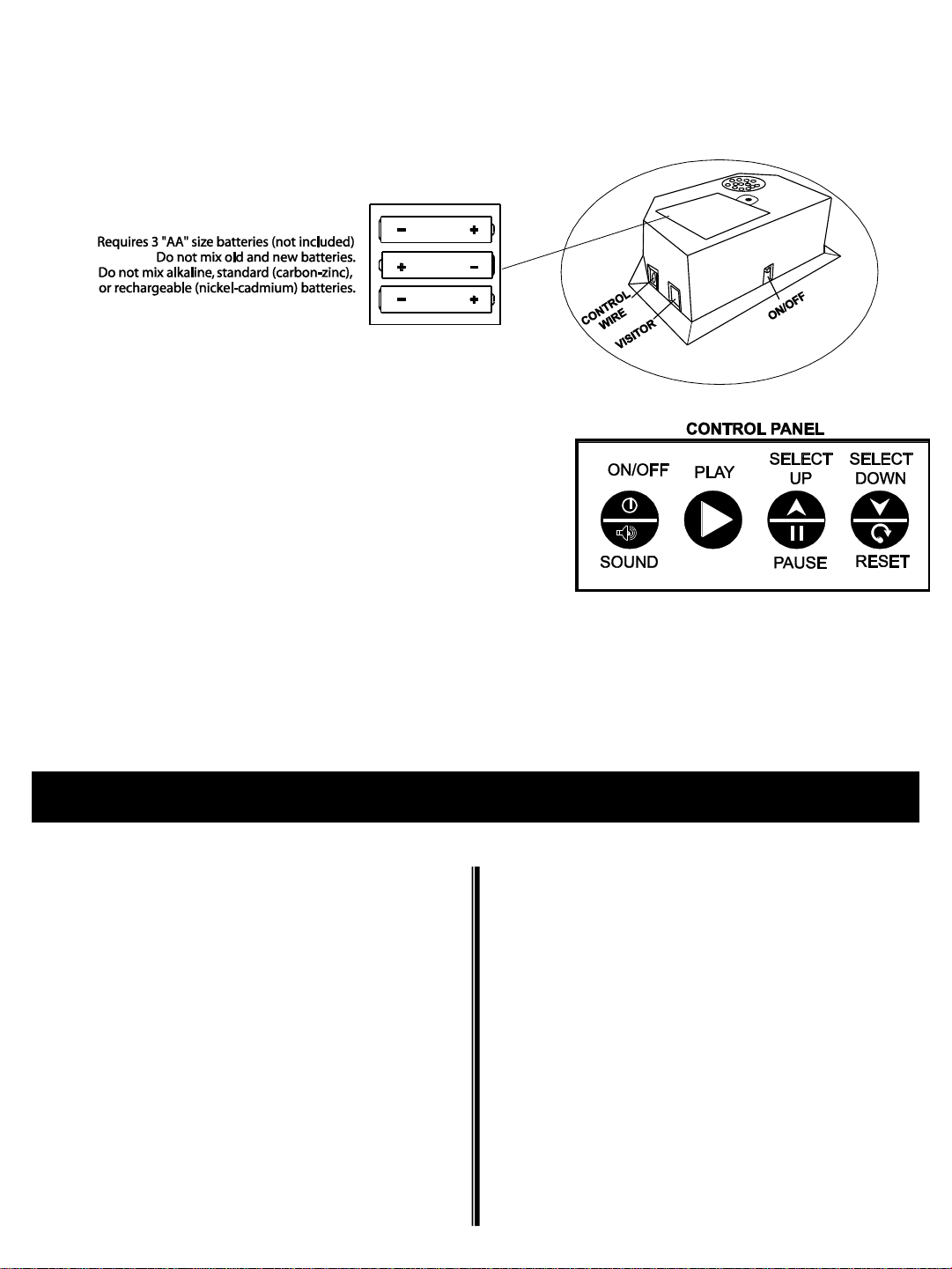

19. Attach the Control Box (#16) to middle of the Front Horizontal Ramp Support Tube (#11) as
shown in FIG.11A.
20. Run the rest of the Control Wire through the loops on the Ball Return with Side Netting (#35) as
shown in FIG.11.

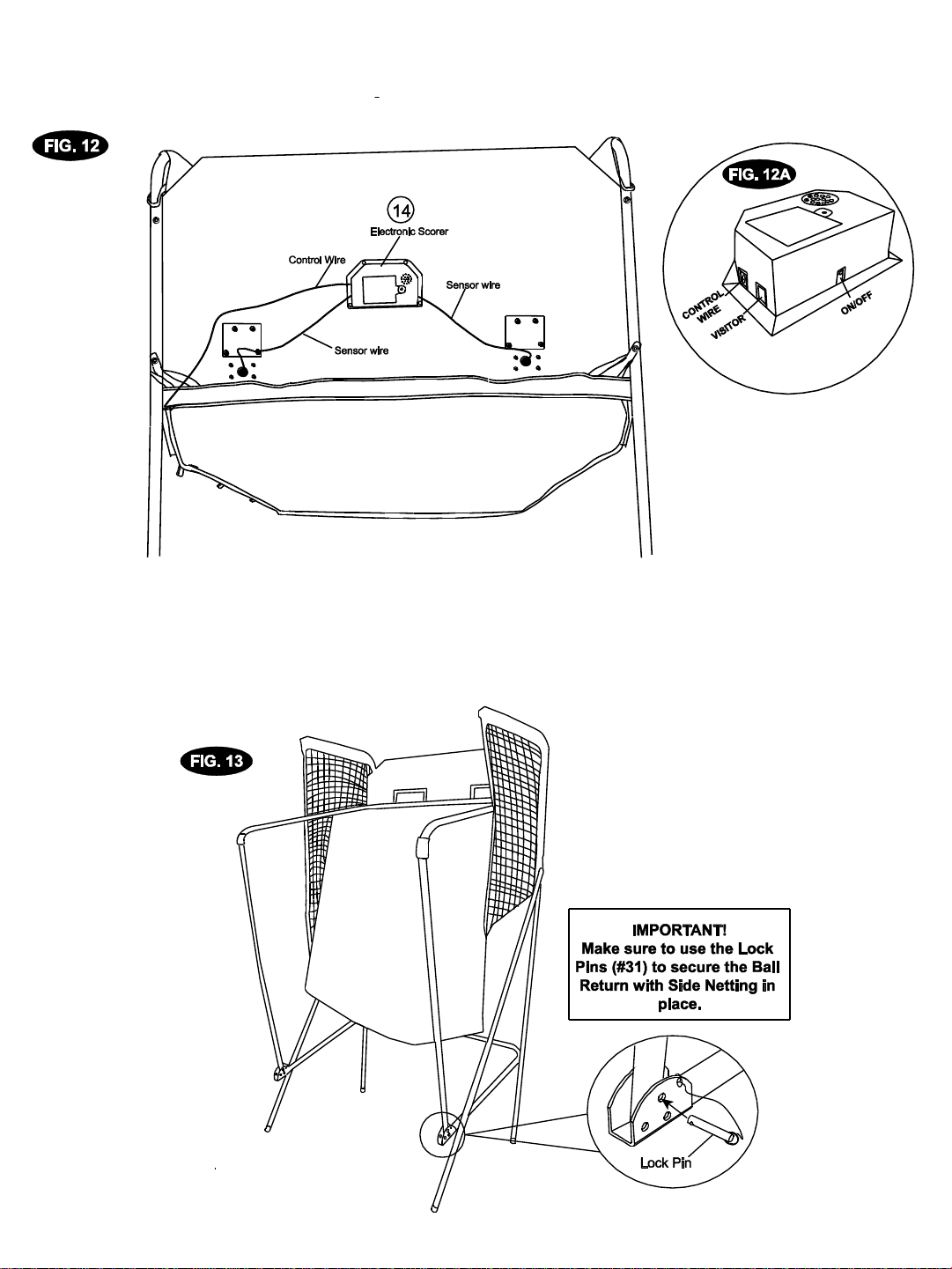

21. Connect the Sensor Wire from Switch and Paddle Assembly (#15) to the Electronic Scorer (#14) as shown
in FIG.12 and 12A. Connect the Control Wire to the Electronic Scorer (#14) as shown in FIG.12 and 12A.
22. Folding position when not in use the basketball game and insert the Lock Pin (#31) as shown in FIG.13.
Note: The lock pin (#31) needs to be removed from its original position when the game is being used
before insertion to the new position when folded.
