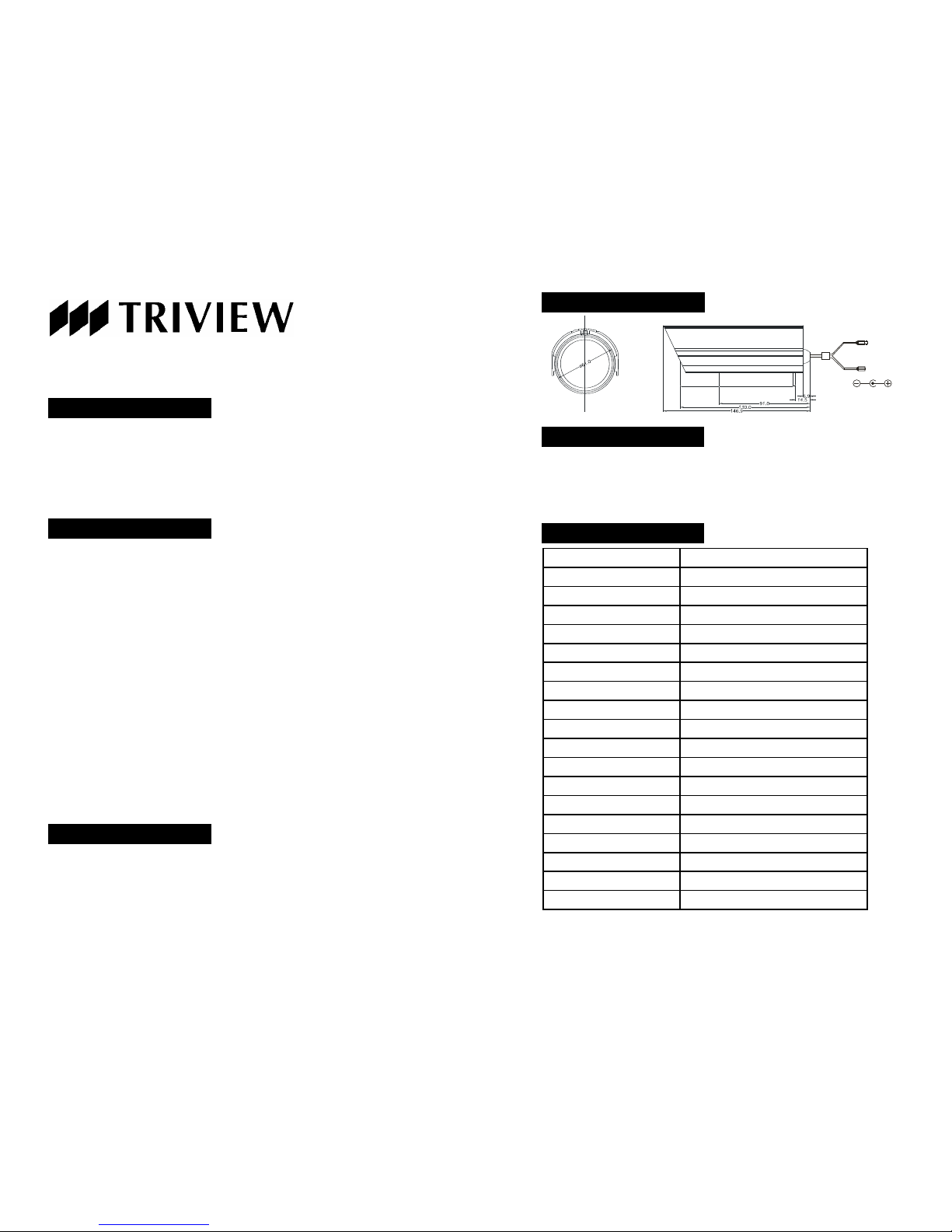

TRIVIEW TCY-H36FI12 User manual

PRODUCT FEATURES
• 1/3” Sony CCD
• 480 TVL
• 3.6mm Fixed Lens
• 12VDC
• Weather-Proof
• Light weight
SAFETY PRECAUTIONS
• The installation should be made by a qualified service person and should be
complied with all local codes.
• Only use class 2 regulated power supply as 12VDC power source.
• To prevent fire or electrical shock, UL listed class 2 wiring should be used for the
power supply.
• Make sure the ceiling / wall is strong enough to support the weight of the camera.
• Do not attempt to disassemble the camera. There are no user-serviceable parts
inside. The warranty will be avoided if the seal is broken.
• Do not attempt to aim the camera directly at the sun or other extremely bright
objects. This can damage the CCD.
• Do not place the camera under the following locations.
1. Extremely high or low temperatures
(Operating temperature: -10°C to +50°C [10°F to 122°F])
2. High levels of humidity and dust
(Operating humidity: max 85% no condensation)
3. Locations where there are large amounts of water vapor and steam.
• Avoid strong impacts or shocks. The camera could be damaged by improper
handling or storage.
• Be sure to use the proper screws to mount the camera on the wall or ceiling.
SPECIFICATIONS
Image Sensor 1/3” Sony CCD
Effective Pixels 768 (H) x 494 (V)
Resolution 480TVL
Sensitivity 0.8 Lux
S/N Ratio 48dB
Horizontal Frequency 15.734k Hz
Vertical Frequency 59.94 Hz
Power Supply 12VDC regulated
Power Consumption 140mA
Synchronization Internal
Electronic Shutter Up to 1/100,000 sec
Video Output 1.0 Vpp, 75Ω
Lens 3.6mm / F2.0
Operating Temperature -10ºC to +50ºC
Operating Humidity max 85% RH (NC)
Dimensions: 29mm (DIA) x 122mm (Length)
Weight: 220g
Note: Design and specifications are subject to change without notice.
INSTALLATION
1. Fasten the camera body to the bracket.
2. Mount the bracket to the wall with the supplied screws.
3. Connect the BNC video output to a monitor and 12VDC power
source to the power input socket.
4. Adjust the camera direction
Version: 20090204
Model:
TCY-H36FI12
High Resolution Bullet Camera
OPERATION INSTRUCTIONS
DIMENSION (unit: mm)
V
IDEOOUTOU
T
POWER INPUT
CONTENT LIST
• TCY-H36FI12 1 pc
• Power Supply (12VDC) 1 pc
• Pigtail Cable 1 pc
• Mounting Bracket 1 pc
• Screws 4 pc
• Operating Instruction 1 pc

Standard Resolution IR Bullet Camera
OPERATION INSTRUCTIONS
PRODUCT FEATURES
• 1/3” Sony CCD
• 380 TVL
• 3.6mm Fixed Lens
• 12VDC
• 24 LEDs with emitting range of 36ft
• Weather-Proof
SAFETY PRECAUTIONS
• The installation should be made by a qualified service person and should be
complied with all local codes.
• Only use class 2 regulated power supply as 12VDC power source.
• To prevent fire or electrical shock, UL listed class 2 wiring should be used for the
power supply.
• Make sure the ceiling / wall is strong enough to support the weight of the camera.
• Do not attempt to disassemble the camera. There are no user-serviceable parts
inside. The warranty will be avoided if the seal is broken.
• Do not attempt to aim the camera directly at the sun or other extremely bright
objects. This can damage the CCD.
• Do not place the camera under the following locations.
1. Extremely high or low temperatures
(Operating temperature: -10°C to +50°C [10°F to 122°F])
2. High levels of humidity and dust
(Operating humidity: max 85% no condensation)
3. Locations where there are large amounts of water vapor and steam.
• Avoid strong impacts or shocks. The camera could be damaged by improper
handling or storage.
• Be sure to use the proper screws to mount the camera on the wall or ceiling.
SPECIFICATIONS
Image Sensor 1/3” Sony CCD
Effective Pixels 510 (H) x 492 (V)
Resolution 380TVL
Sensitivity 0.8 Lux
S/N Ratio 48dB
Horizontal Frequency 15.734k Hz
Vertical Frequency 59.94 Hz
Power Supply 12VDC regulated
Power Consumption 100mA, 200mA (IR on)
Synchronization Internal
Electronic Shutter Up to 1/100,000 sec
Video Output 1.0 Vpp, 75Ω
Lens 3.6mm / F2.0
Operating Temperature -10ºC to +50ºC
Operating Humidity max 85% RH (NC)
Dimensions: 61mm (DIA) x 130mm (Length)
Weight: 500g
Illuminate Distance 36ft
IR Illuminator Twenty-four (24) 850nm LED
Note: Design and specifications are subject to change without notice.
INSTALLATION
1. Fasten the camera body to the bracket.
2. Mount the bracket to the wall with the supplied screws.
3. Connect the BNC video output to a monitor and 12VDC power
source to the power input socket.
4. Adjust the camera direction
Version: 20090204
Model:
TCY-S36FI12IR
DIMENSION (unit: mm)
V
IDEO OUTPU
T
POWER INPUT
CONTENT LIST
• TCY-S36FI12IR 1 pc
• Power Supply (12VDC) 1 pc
• Pigtail Cable 1 pc
• Mounting Bracket 1 pc
• Screws 3 pc
• Operating Instruction 1 pc

Standard Resolution IR Bullet Camera
OPERATION INSTRUCTIONS
PRODUCT FEATURES
• 1/3” Sony CCD
• 480 TVL
• 3.6mm Fixed Lens
• 12VDC
• 24 LEDs with emitting range of 36ft
• Weather-Proof
SAFETY PRECAUTIONS
• The installation should be made by a qualified service person and should be
complied with all local codes.
• Only use class 2 regulated power supply as 12VDC power source.
• To prevent fire or electrical shock, UL listed class 2 wiring should be used for the
power supply.
• Make sure the ceiling / wall is strong enough to support the weight of the camera.
• Do not attempt to disassemble the camera. There are no user-serviceable parts
inside. The warranty will be avoided if the seal is broken.
• Do not attempt to aim the camera directly at the sun or other extremely bright
objects. This can damage the CCD.
• Do not place the camera under the following locations.
1. Extremely high or low temperatures
(Operating temperature: -10°C to +50°C [10°F to 122°F])
2. High levels of humidity and dust
(Operating humidity: max 85% no condensation)
3. Locations where there are large amounts of water vapor and steam.
• Avoid strong impacts or shocks. The camera could be damaged by improper
handling or storage.
• Be sure to use the proper screws to mount the camera on the wall or ceiling.
SPECIFICATIONS
Image Sensor 1/3” Sony CCD
Effective Pixels 768 (H) x 494 (V)
Resolution 480TVL
Sensitivity 0.8 Lux
S/N Ratio 48dB
Horizontal Frequency 15.734k Hz
Vertical Frequency 59.94 Hz
Power Supply 12VDC regulated
Power Consumption 100mA, 200mA (IR on)
Synchronization Internal
Electronic Shutter Up to 1/100,000 sec
Video Output 1.0 Vpp, 75Ω
Lens 3.6mm / F2.0
Operating Temperature -10ºC to +50ºC
Operating Humidity max 85% RH (NC)
Dimensions: 61mm (DIA) x 130mm (Length)
Weight: 500g
Illuminate Distance 36ft
IR Illuminator Twenty-four (24) 850nm LED
Note: Design and specifications are subject to change without notice.
INSTALLATION
1. Fasten the camera body to the bracket.
2. Mount the bracket to the wall with the supplied screws.
3. Connect the BNC video output to a monitor and 12VDC power
source to the power input socket.
4. Adjust the camera direction
Version: 20090204
Model:
TCY-H36FI12IR
DIMENSION (unit: mm)
V
IDEO OUTPU
T
POWER INPUT
CONTENT LIST
• TCY-H36FI12IR 1 pc
• Power Supply (12VDC) 1 pc
• Pigtail Cable 1 pc
• Mounting Bracket 1 pc
• Screws 3 pc
• Operating Instruction 1 pc
