Tronic TPA 65 A1 User manual

USB CHARGING STATION
TPA 65 A1
IAN 367976_2010
USB CHARGING HUB
Operation and Safety Notes

GB / IE / NI
Operation and Safety Notes Page 5

3
4
7 56
21

GB/IE/NI 5
Warnings and symbols used ........... Page 6
Introduction ............................................ Page 8
Intended use............................................ Page 8
Product features....................................... Page 8
Trademark notices................................... Page 9
Scope of delivery.................................... Page 9
General safety instructions.............. Page 9
Description of parts ............................. Page 13
Technical data........................................ Page 13
Before use ............................................... Page 15
Operation and use............................... Page 15
Connecting the charger to the
power supply........................................... Page 15
Connecting your devices ........................ Page 15
Disconnecting your device...................... Page 16
Disconnect from the power supply......... Page 16
Storage when not in use .................. Page 16
Cleaning ................................................... Page 16
Troubleshooting.................................... Page 16
Disposal.................................................... Page 17
Warranty and service ........................ Page 18
Warranty ................................................. Page 18
Warranty claim procedure ..................... Page 18
Service ..................................................... Page 19

GB/IE/NI 6
Warnings and symbols used
These instructions for use contain the following
symbols and warnings:
DANGER!
This symbol with the signal word “DANGER“
indicates a hazard with a high level of risk which, if
not avoided, will result in serious injury or death.
WARNING!
This symbol with the signal word “WARNING“
indicates a hazard with a medium level of risk which,
if not avoided, could result in serious injury or death.
CAUTION!
This symbol with the signal word “CAUTION“
indicates a hazard with a low level of risk which, if
not avoided, could result in minor or moderate injury.
ATTENTION!
This symbol with the signal word“ ATTENTION“
indicates a potential property damage, if not
avoided, could result in property damage.
NOTE
This symbol with the signal word “NOTE“ provides
additional useful information.
Use product only in dry indoor areas.

GB/IE/NI 7

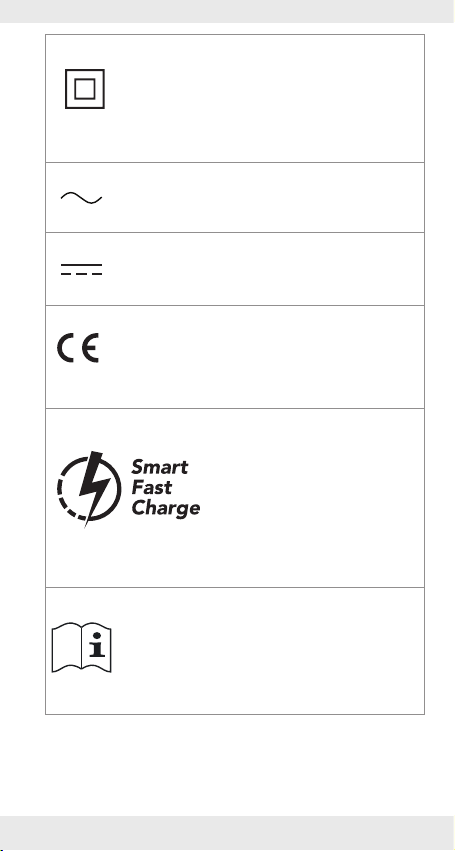

Safety class II The product has double
insulation and no safety connection with
grounding is required.
Alternating current / voltage
Direct current / voltage
CE mark indicates conformity with
relevant EU directives applicable for this
product.
Technology to optimize charging time.
This symbol means that the operating
instructions must be observed before using
the product.

GB/IE/NI 8
USB CHARGING STATION
PIntroduction
We congratulate you on the purchase of your new
product. You have chosen a high quality product. The
instructions for use are part of the product. They contain
important information concerning safety, use and
disposal. Before using the product, please familiarise
yourself with all of the safety information and
instructions for use. Only use the unit as described and
for the specified applications. If you pass the product
on to anyone else, please ensure that you also pass on
all the documentation with it.
Intended use
This USB CHARGING STATION (hereinafter called
„product“) is an information technology device
designed for charging and operating USB devices that
are charged or operated from a USB port by default.
Compatible connected devices are automatically
detected and supplied with the appropriate output
voltage and current from the USB charger.
The product is not intended for commercial use. The
manufacturer is not liable for any damages caused by
any use other than for the intended purpose.
Product features
The product has 4 USB ports with a total maximum
output power of 65 W. When multiple USB ports are
used at the same time, the maximum output current and
power are 4 A / 20 W for type A USB port 2while
each port with max. 2.4 A / 12 W output. For type C
USB port 1, the maximum output current and power
are 3 A / 45 W.

GB/IE/NI 9
Trademark notices
 USB®is a registered trademark of USB
Implementers Forum, Inc.
 The Smart Fast Charge trademark and trade name
is the property of their respective owners.
 The Tronic trademark and trade name is the
property of their respective owners.
 Any other names and products are trademarks or
registered trademarks of their respective owners.
Scope of delivery
1 x USB charging station
1 x Power cable
1 x Instructions for use
General safety instructions
Before using the product, please familiarize yourself
with all of the safety instructions and instructions for
use! When passing this product on to others, please
also include all the documents!
DANGER!
DANGER TO LIFE AND RISK OF ACCIDENT
FOR INFANTS AND CHILDREN!
Risk of suffocation!
Never leave children unsupervised with the packaging
material. The packaging material poses a suffocation
hazard. Children frequently underestimate the dangers.
The packaging material is not a toy.
This product may be used by children age 8 years
and up, as well as by persons with reduced physical,
sensory or mental capacities or lacking experience
and / or knowledge, so long as they are supervised or
instructed in the safe use of the product and understand

GB/IE/NI 10
the associated risks. Do not allow children to play with
the product. Cleaning and user maintenance should
not be performed by children without supervision. The
product is not a toy.
DANGER!
• Danger to life due to electric shock! Keep the
product away from moisture, damp areas, dripping
and splashing water!
• Never open the product. There is the risk of electrical
shock, if the product is open.
• Refer all servicing to qualified personnel. Servicing
is required when the product has been damaged in
any way, such as liquid has been spilled or objects
have fallen into the product, the product has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
WARNING!
• Unplug the product during lightning storms or when
unused for long periods of time.
• Grip the power plug everytime directly whenever you
want to pull it from the mains socket. Do not pull on
the power cable itself.
• Never touch the power plug with wet hands, as this
could result in either a short circuit or electric shock.
• Do not place any furniture or similar items on the
power cable and ensure that it cannot become
trapped.
• Never tie knots in the power cable and do not bind it
together with other cables.
• A damaged power cable or power plug can cause
fire or electric shock. Check the power cable and
power plug regularly. Do not use a damaged power
cable or power plug.

GB/IE/NI 11
• The mains socket used must be easily accessible so
that the power plug can be quickly disconnected in
an emergency.
• To completely disconnect the product from the
power, you must remove the power plug from the
mains socket. The power plug serves as a separator.
At standby mode, a minor power is consumed.
• If you notice any unusual noise, smoke or similar
uncertian situations, immediately disconnect the
power plug from the mains socket and disconnect all
connected devices. Have the product checked by a
qualified person before using it again.
WARNING!
• Before operating this product, check the input
voltage of this product to see if it is identical to the
voltage of your local power supply.
• The product may only be used in dry indoor areas.
• Unplug the product from the mains socket before
cleaning.
• The socket-outlet shall be installed near the
equipment and shall be easily accessible.
ATTENTION! RISK OF PROPERTY DAMAGE
• This product does not contain any parts which can
be serviced by the user.
• Do not place burning candles or other open fire on
or next to the product.
• Check the product and accessories for damage
before each use. Never use a damaged product.
• Do not operate the product near heat sources, e.g.
radiators or other devices emitting heat!
ATTENTION! Ensure that:
• the product is not exposed to bright artificial light.

GB/IE/NI 12
• any contact with splashed and dripping water and
corrosive liquids is avoided and the product are not
operated in the vicinity of water. In particular, the
product should never be submerged in liquid; do
not place any vessels filled with liquid, for example,
vases or drinks, on or near the product.
• the product is not used in the immediate vicinity of
magnetic fields (e.g. speakers).
• no foreign objects penetrate the product.
• the product is never subjected to extreme
temperature fluctuations as this could result in
condensation and electrical short circuits. If the
product were subjected to extreme temperature
fluctuations, however, wait (approx. 2 hours) until
the product has reached ambient temperature before
use.
• the product is never subjected to excessive shocks
and vibrations.
• the connected cables are always laid in such a
manner that nobody can step on or trip over them.
There is a risk of injury.
• no objects are placed on a cable and cables are not
connected over sharp edges because they could be
damaged.
• the power cable is protected from being walked
on and pinched or kinked particularly at plugs,
convenience receptacles, and the point where they
exit from the product.

GB/IE/NI 13
PDescription of parts
Please refer to the fold out page.
1USB type C port
2USB Type A ports
3USB charging hub
4Power cable socket
5Power cable connector
6Power cable
7Power plug
PTechnical data
Manufacturer’s name or
trade mark, commercial
registration number and
address: OWIM GmbH & Co. KG
HRA 721742
Stiftsbergstraße 1, 74167
Neckarsulm, GERMANY
Model identifier: HG07784-BS
Input voltage and
current:
100 - 240 V ∼ , 2 A
Input AC frequency: 50 / 60 Hz
Output voltage
USB Type A 2:
5.0 V
Output voltage
USB Type C (PD*) 1:
5.0 V / 9.0 V /
12.0 V /15.0 V /
20.0 V

GB/IE/NI 14
Output current
USB Type A 2:
2.4 A (per USB port)
4.0 A (Total)
Output current
USB Type C (PD*) 1:
3.0 A (for 5.0-15.0 V )
2.25 A (for 20.0 V )
Total output power: 20.0 W (USB Type A)
45.0 W (USB Type C)
65.0 W (USB Type A & C)
Average active
efficiency:
86.00 %
Efficiency at low load
(10 %):
74.00 %
No-load power
consumption:
0.30 W
Protection class: II /
Dimensions: approx. 94 x 90 x 21 mm
Weight (main device): approx. 210 g
Operating temperature: 0 – 35 °C ,
40 to 85 % rel. humidity
Storage temperature: 0 – 45 °C
Humidity
(no condensation): 10 – 70 %
Length of power cable: approx. 1.2 m
NOTE:
The specification and design may be changed without
notification.
*Power Delivery (PD) is a cutting edge technology which
enables extremely fast charging for all PD-compatible
devices, including Apple iPhone and Samsung Android
mobile devices.

GB/IE/NI 15
PBefore use
NOTE:
• All parts have to be unpacked and the packaging
material has to be removed completely.
• Before use, verify the package contents are complete
and undamaged!
• If you notice any damage or missing parts, please
contact the dealer who sold this product.
POperation and use
Attention! Risk of overheating! The total
power consumption of the connected devices must
not exceed 65 W (USB Type-A 20 W 2and USB
Type-C 45 W 1).
ATTENTION! If you use the product under max.
loading condition, the product may get hot. This is
normal because in this condition, the product uses
more power and therefore generates more heat.
Connecting the charger to the power
supply
 Connect the power cable connector 5to the
power cable socket 4.
 Insert the power plug 7into an easily accessible
mains socket. The requirements for the voltage can
be found in the “Technical data“ section.
Connecting your devices
 Connect your devices USB plugs into desired USB
port (USB Type A 2or USB type C 1). The
optimum charging voltage / charging current for the
connected device is set automatically.

GB/IE/NI 16
Disconnecting your device
 After charging is complete, simply unplug your
device’s USB plug from the the product.
Disconnect from the power supply
 Grip the power plug 7and unplug it from the
mains socket. Do not pull on the power cable 6.
PStorage when not in use
Store the product in a dry environment, protected from
dust and direct sunlight.
PCleaning
• Disconnect the product from the mains socket and
remove all plugs before cleaning!
• Be sure moisture does not enter the product during
cleaning to prevent damage to the product and
related repairs.
• Only use a clean, dry cloth for cleaning the product
and never use any corrosive liquids / abrasive
cleaning agents. Use a slightly moistened cloth and
a mild cleaning agent to remove stubborn dirt.
PTroubleshooting
What should I do if external devices cannot
get power from the product?
 Check the power cable connection between the
mains socket and the product.
 Check the USB cable (not included) connection
between the external devices and the product.
 Make sure the external device‘s charging socket is
working properly.

GB/IE/NI 17
What should I do if the device charges very
slowly?
 Check if you have connected the device to the
wrong USB port.
PDisposal
Packaging:
The packaging is made of environmentally friendly
materials, which may be disposed of through your local
recycling facilities.
Observe the marking of the packaging
materials for waste separation, which are
marked with abbreviations (a) and numbers
(b) with following meaning: 1–7: plastics /
20–22: paper and fibreboard / 80–98:
composite materials.
Product:
Contact your municipality for information on
how to dispose of your worn-out product.
The adjacent symbol of a crossed out dustbin
on wheels indicates this product is subject to
Directive 2012/19/EU. This directive states
at the end of the life this product must not be
disposed of through regular household refuse
but must be returned to special collection
sites, recycling depots or waste management
companies.
This disposal is free of charge to you.
Protect the environment and dispose of properly.
The product is recyclable, subject to extended
manufacturer responsibility, and collected separately.

GB/IE/NI 18
PWarranty and service
PWarranty
The product has been manufactured to strict quality
guidelines and meticulously examined before delivery.
In the event of product defects you have legal rights
against the retailer of this product. Your legal rights are
not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date
of purchase. The warranty period begins on the date
of purchase. Please keep the original sales receipt in a
safe location. This document is required as your proof
of purchase.
Should this product show any fault in materials or
manufacture within 3 years from the date of purchase,
we will repair or replace it – at our choice – free
of charge to you. This warranty becomes void if the
product has been damaged, or used or maintained
improperly.
The warranty applies to defects in material or
manufacture. This warranty does not cover product
parts subject to normal wear, thus possibly considered
consumables (e.g. batteries) or for damage to fragile
parts, e.g. switches, rechargeable batteries or glass
parts.
PWarranty claim procedure
To ensure quick processing of your case, please
observe the following instructions:
Please have the till receipt and the item number (e.g.
IAN 123456_7890) available as proof of purchase.
You will find the item number on the rating plate, an
engraving, on the front page of the instructions for use
(bottom left), or as a sticker on the rear or bottom of
the product.

GB/IE/NI 19
If functional or other defects occur, please contact the
service department listed either by telephone or by
e-mail.
You can return a defective product to us free of charge
to the service address that will be provided to you.
Ensure that you enclose the proof of purchase (till
receipt) and information about what the defect is and
when it occurred.
PService
Service Great Britain
Tel.: [phone]
E-Mail: [email protected]
Service Ireland
Tel.: [phone]
E-Mail: [email protected]
Service Northern Ireland
Tel.: [phone]
E-Mail: [email protected]

OWIM GmbH & Co. KG
Stiftsbergstraße 1
74167 Neckarsulm
GERMANY
Model-No.: HG07784-BS
Version: 06/2021
IAN 367976_2010
