Tronic TWC 10A1 User manual

IAN 367975_2010
WIRELESS CHARGING STAND
TWC 10A1
WIRELESS CHARGING STAND
Operation and Safety Notes
INDUKČNÁ NABÍJAČKA
Pokyny pre obsluhu a bezpečnostné pokyny
INDUKTIVE LADESTATION
Bedienungs- und Sicherheitshinweise

GB
Operation and Safety Notes Page 5
SK
Pokyny pre obsluhu a bezpečnostné pokyny Strana 21
DE/AT/CH
Bedienungs- und Sicherheitshinweise Seite 38

1
23
4
57
6

5
GB
Warnings and symbols used.................................. Page 6
Introduction ................................................................... Page 8
Intended use.................................................................. Page 8
Trademark notices...................................................... Page 8
Safety notes................................................................... Page 9
Description of parts ................................................... Page 11
Technical data .............................................................. Page 12
Scope of delivery ........................................................ Page 13
Before use ...................................................................... Page 13
Operation....................................................................... Page 13
Troubleshooting........................................................... Page 16
Storage when not in use .......................................... Page 17
Cleaning .......................................................................... Page 17
Disposal........................................................................... Page 18
Simplified EU declaration of conformity ........... Page 19
Warrenty and service................................................ Page 19
Warranty ........................................................................ Page 19
Warranty claim procedure............................................ Page 20
Service............................................................................ Page 20

6 GB
Warnings and symbols used
These instructions for use contain the following symbols and
warnings:
DANGER! This symbol with the signal word
“DANGER“ indicates a hazard with a high level of
risk which, if not avoided, will result in serious injury
or death.
WARNING! This symbol with the signal word
“WARNING“ indicates a hazard with a medium
level of risk which, if not avoided, will result in serious
injury or death.
CAUTION! This symbol with the signal word
“CAUTION“ indicates a hazard with a low level of
risk which, if not avoided, could result in minor or
moderate injury.

7
GB
ATTENTION! This symbol with the signal word“
ATTENTION“ indicates a potential property damage,
if not avoided, could result in property damage.
NOTE: This symbol with the signal word “NOTE“
provides additional useful information.
Direct current / voltage
“Qi“ and the Qi logo mark are trademark of the
Wireless Power Consortium (WPC).
This symbol means that the operating instructions must
be observed before using the product.

8 GB
WIRELESS CHARGING STAND
PIntroduction
We congratulate you on the purchase of your new product. You
have chosen a high quality product. The instructions for use are
part of the product. They contain important information concerning
safety, use and disposal. Before using the product, please
familiarise yourself with all of the safety information and instructions
for use. Only use the product as described and for the specified
applications. If you pass the product on to anyone else, please
ensure that you also pass on all the documentation with it.
PIntended use
The WIRELESS CHARGING STAND (hereinafter referred to as the
„Product“) is an information electronics device. This product is only
for charging mobile devices that use Qi technology. Other devices
cannot be charged with the product. The product is intended for
private use only and not for commercial use. The manufacturer
accepts no liability for damage resulting from unauthorised
modifications or improper use.
PTrademark notices
 USB®is a registered trademark of USB Implementers Forum, Inc.
 “Qi“ and the Qi logo mark are trademark of the Wireless Power
Consortium (WPC).
 The TRONIC trademark and trade name is the property of their
respective owners.

9
GB
 Any other names and products are trademarks or registered
trademarks of their respective owners.
Safety notes
Before using the product, please familiarize yourself with all of
the safety instructions and instructions for use! When passing this
product on to others, please also include all the documents!
WARNING! DANGER TO LIFE AND RISK OF
ACCIDENT FOR INFANTS AND CHILDREN!
DANGER! RISK OF SUFFOCATION! Never leave children
unsupervised with the packaging material. The packaging material
poses a suffocation hazard. Children frequently underestimate the
dangers. The packaging material is not a toy.
 This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
The product is not a toy.
ATTENTION! Damage to property
 Check the product before every use! Discontinue use if any
damage to the product or the connection cable is detected!
 This product does not contain any parts which can be serviced
by the user.

10 GB
 Keep the product away from moisture, dripping and splash
water!
 Do not place burning candles or other open fire on or next to
the product.
 If you notice smoke or unusual noise or odour, immediately
disconnect the USB connection.
 Sudden temperature changes may cause condensation inside
the product. In this case, allow the product to acclimate for some
time before using it again to prevent short circuits!
 Do not operate the product near heat sources, e.g. radiators or
other devices emitting heat!
 Do not throw the product into fire and do not expose to high
temperatures.
 Never open the product. It has no internal parts requiring
maintenance.
 The product must not be covered during operation, no foreign
objects may be introduced into the product, no foreign objects
may lie on the Qi charging surface during operation.
 The product must not be charged at a PC or notebook due to the
high power consumption.
ATTENTION! Radio interference
 Do not use the product on aeroplanes, in hospitals, service
rooms, or near medical electronic systems. The wireless signals
transmitted could impact the functionality of sensitive electronics.
 Keep the product at least 20 cm from pacemakers or
implantable cardioverter defibrillators, as the electromagnetic

11
GB
radiation may impair the functionality of pacemakers.
 The radio waves transmitted could cause interference in hearing
aids.
 Never use the product near flammable gases or potentially
explosives areas (e.g. paint shops), as the radio waves emitted
can cause explosions and fire.
 The OWIM GmbH & Co KG is not responsible for interference
with radios or televisions due to unauthorised modification
of the product. The OWIM GmbH & Co KG further assumes
no liability for using or replacing cables and products not
distributed by OWIM.
 The user of the product is solely responsible for rectifying
malfunctions caused by unauthorized changes to the product
and the replacement of such modified products.
PDescription of parts
Please refer to the fold out page.
1Qi Charging area
2LED indicator
3USB type C input socket
4USB type A plug
5USB charging cable
6USB type C plug
7Instructions for use

12 GB
PTechnical data
Dimensions (W x H x D): approx. 70 x 114 x 78 mm
Weight: approx. 130 g
Operating temperature: 5 – 35 °C
Storage temperature: 0 – 45 °C
Humidity(no condensation): 10 – 70 %
USB charging cable length: approx. 1 m
Input: 5 V , 2 A
Output: 5 W max.
OR
Input: 9 V , 2 A
Output: 10 W max.
Total power: 10 W max.*
Frequency band: 109.8 – 146.8 kHz
Transmitted maximum radio
frequency power (H-field): -12.62 dBuA/m at
10m distance
Maximum distance
between Qi charging area
and mobile device: ≤ 5 mm
*NOTE: To achieve the maximum output power of 10 W,
you must use a USB adapter with output voltage of 9 V and output
current of at least 2 A. Such USB adapter is not included in delivery.
(Only USB charging cable type A to type C is included.)
The specification and design may be changed without notification.

13
GB
PScope of delivery
1 Wireless charging stand
1 USB charging cable
1 Instructions for use
PBefore use
NOTE:
 Before use, verify the package contents are complete and
undamaged!
 All parts have to be unpacked and the packaging material has
to be removed completely.
 If you notice any damage or missing parts, contact the dealer
who sold this product.
POperation
ATTENTION! The product must not be charged at a PC or
notebook due to the high power consumption.
NOTE:
 The product only supports devices with Qi wireless technology.

14 GB
Charge your mobile device

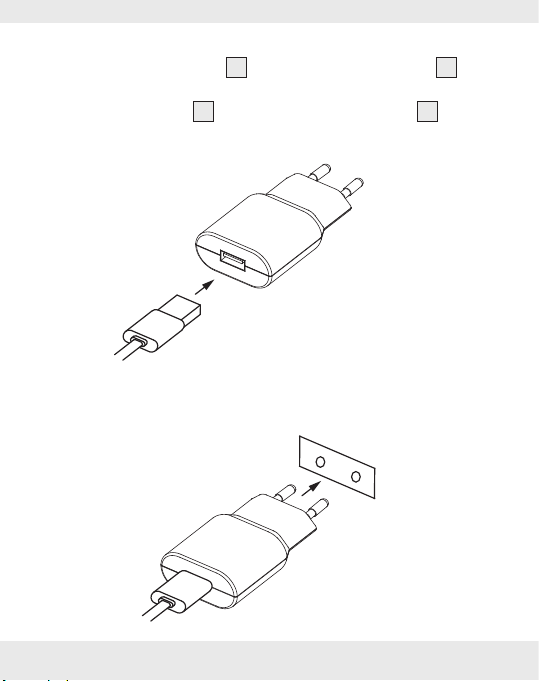

1. Plug the USB type A plug 4of the USB charging cable 5into
the USB port on a suitable USB adapter (not included) and plug
the USB type C plug 6into USB type C input socket 3of the
product.
2. Plug the USB adapter (not included) into an easily accessible
mains socket.

15
GB
3. LED indicator 2will light up blue for approx. two seconds when
the product is under standby mode and there is no mobile device
on the Qi charging surface 1.
4. Place the mobile device on the Qi charging surface 1. Make
sure the center of the device is aligned over the center of the
Qi charging surface. Charging will begin on contact. The LED
indicator 2lights up blue when charging is active on Qi
charging surface 1.
Protective covers that protect the mobile device may interfere
with the charging process. In this case, the mobile device must be
removed from the protective cover.
*NOTE: The charging power is up to 10 W, depending on the
power adapter used.
LED indicator 2status
The product uses an LED indicator to show the operating status:
LED indicator Status
Blue lights up two
seconds Starting process (Boot phase) / Standby
Blue lights up Charging / Full Charge
Blue is flashing Metal obstruction
Green is flashing Incompatible adapter or cable connected

16 GB
PTroubleshooting
What should I do if the LED indicator of the product is
not lit during starting process (Boot phase)?
 Check the USB cable connection between USB adapter (not
included) and the product. The USB cable must be firmly
connected.
 Check the connection between the mains socket and the USB
adapter (not included).
 Alternatively, the user must try another mains socket.
What should I do if the mobile device does not get
charging ?
 Check that the mobile device have Qi wireless charging
technology.
 Check the mobile device is placed horizontally on the center
position of the Qi charging surface.
 Check that no foreign object blocking the charging.
 Check whether the protective cover has been removed from the
mobile device.
What should I do if the LED indicator flashes blue?
 This indicates a Metal obstruction occurred.
 Disconnect the USB connection immediately.
 Check that no foreign object blocking the charging.
 Let the product cool down for a while and try to use it again.

17
GB
What should I do if the LED indicator flashes green?
 This indicates an incompatible adapter or cable is connected.
 Disconnect the connection immediately.
 Choose the appropriate adapter, cross-check the adapter
manual and ensure it can be used with this product.
 Use the provided USB cable to connect with the product.
PStorage when not in use
Store the product in a dry interior, away from direct sunlight,
preferably in its original packaging.
PCleaning
 This product has no internal parts requiring maintenance.
Moisture entering the product may result in damage.
 Ensure no moisture enters the product during cleaning to prevent
damaging the product beyond repair.
 Do not use abrasive, solvent-based or aggressive cleaners. These
can damage the surface of the product.
 Only clean the product with a slightly damp cloth and mild
washing-up liquid.

18 GB
PDisposal
Packaging:
The packaging is made of environmentally friendly materials, which
may be disposed of through your local recycling facilities.
Observe the marking of the packaging materials for
waste separation, which are marked with abbreviations
(a) and numbers (b) with following meaning: 1–7:
plastics / 20–22: paper and fibreboard / 80–98:
composite materials.
Product:
Contact your municipality for information on how to
dispose of your worn-out product.
The adjacent symbol of a crossed out dustbin on wheels
indicates this product is subject to Directive 2012/19/EU.
This directive states at the end of the life this product must
not be disposed of through regular household refuse but
must be returned to special collection sites, recycling depots or
waste management companies.
This disposal is free of charge to you.
Protect the environment and dispose of properly.
The product is recyclable, subject to extended manufacturer
responsibility, and collected separately.an be obtained from your
local authority.

19
GB
PSimplified EU declaration of
conformity
Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1,
74167 Neckarsulm, GERMANY, declares that the product
WIRELESS CHARGING STAND HG07785A / HG07785B, is in
compliance with Directives 2014/53/EU and 2011/65/EU.
The full text of the EU declaration of conformity is available at the
following internet address: www.owim.com
PWarranty and service
PWarranty
The product has been manufactured to strict quality guidelines
and meticulously examined before delivery. In the event of product
defects you have legal rights against the retailer of this product.
Your legal rights are not limited in any way by our warranty
detailed below.
The warranty for this product is 3 years from the date of purchase.
The warranty period begins on the date of purchase. Please
keep the original sales receipt in a safe location. This document is
required as your proof of purchase.
Should this product show any fault in materials or manufacture
within 3 years from the date of purchase, we will repair or replace
it – at our choice – free of charge to you. This warranty becomes
void if the product has been damaged, or used or maintained
improperly.

20 GB
The warranty applies to defects in material or manufacture. This
warranty does not cover product parts subject to normal wear, thus
possibly considered consumables (e.g. batteries) or for damage to
fragile parts, e.g. switches, rechargeable batteries or glass parts.
PWarranty claim procedure
To ensure quick processing of your case, please observe the
following instructions:
Please have the till receipt and the item number (e.g. IAN
123456_7890) available as proof of purchase.
You will find the item number on the rating plate, an engraving, on
the front page of the instructions for use (bottom left), or as a sticker
on the rear or bottom of the product.
If functional or other defects occur, please contact the service
department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the
service address that will be provided to you. Ensure that you
enclose the proof of purchase (till receipt) and information about
what the defect is and when it occurred.
PService
Service Great Britain
Tel.: [phone]
E-Mail: [email protected]

21
SK
Použité výstrahy a symboly...................................Strana 22
Úvod .................................................................................Strana 24
Určené použitie ............................................................Strana 24
Informácie týkajúce sa
ochranných známok ..................................................Strana 24
Bezpečnostné poznámky ........................................Strana 25
Popis jednotlivých častí ...........................................Strana 28
Technické údaje ...........................................................Strana 28
Obsah dodávky...........................................................Strana 29
Pred použitím................................................................Strana 29
Používanie......................................................................Strana 30
Riešenie problémov ...................................................Strana 32
Skladovanie, keď sa výrobok nepoužíva........Strana 34
Čistenie ............................................................................Strana 34
Likvidácia .......................................................................Strana 34
Zjednodušené vyhlásenie
o zhode v rámci EÚ .....................................................Strana 35
Záruka a servis ............................................................Strana 36
Záruka.............................................................................Strana 36
Postup v prípade poškodenia v záruke ........................Strana 37
Servis ..............................................................................Strana 37
