Tronsmart T1000 Mirror2TV User manual

Catalogue
I. Product Notice
II. Product Introduction
III. Preparation
IV. Windows PC / Mac
V. Android / iOS
VI. Setting Functions
VII. Frequently Asked Questions

I. Product Notice
1. This manual includes safety guidelines and proper
operating instructions for the Miracast TV Dongle. Please read
it completely before operating your new device.
2. Please do not expose this item to high temperatures,
extreme humidity, or dusty environments.
3. Avoid dropping or conflicting.
4. Please do not disconnect item when uploading or
downloading content, while formatting, or an error may occur
with your device.
5. Please do not disassemble your device, do not use
rubbing alcohol, chemical dilutents, or Benzene-based
products on or near your Miracast dongle.
6. No notice will be provided for product software changes
or improvements. Owner is responsible for checking on
updated software releases.
7. Warranty covers device hardware, service, and
maintenance. We are not responsible for data loss or any
kind.
8. This item is not waterproof.
9. The pictures provided are for reference purposes only.

II. Product Introduction
1、Operates using the HDMI port of your TV, LCD, or Projector.
2、This product supports Windows, Mac, iOS, and Android
Operating systems, the four most widely used in the world.
3、The device gives you the ability to stream local and internet
data, music, or video wirelessly from one device to a separate
display in a few easy steps.
4、Supports the sharing of the following types of media
between your Smartphone, PC, and Tablet: Pictures, music,
video, Youtube streaming, web search, Office, PDF, Mac OS
Page sharing, as well as supports DLNA connections.
5、The special I-Cast function is a capability not found in most
devices and gives you the ability to share in a very small and
portable dongle device.
6、Able to support up to 1080p video display and capable of
switching display resolutions for lesser devices or lower
resolution video feeds.

III. Preparation

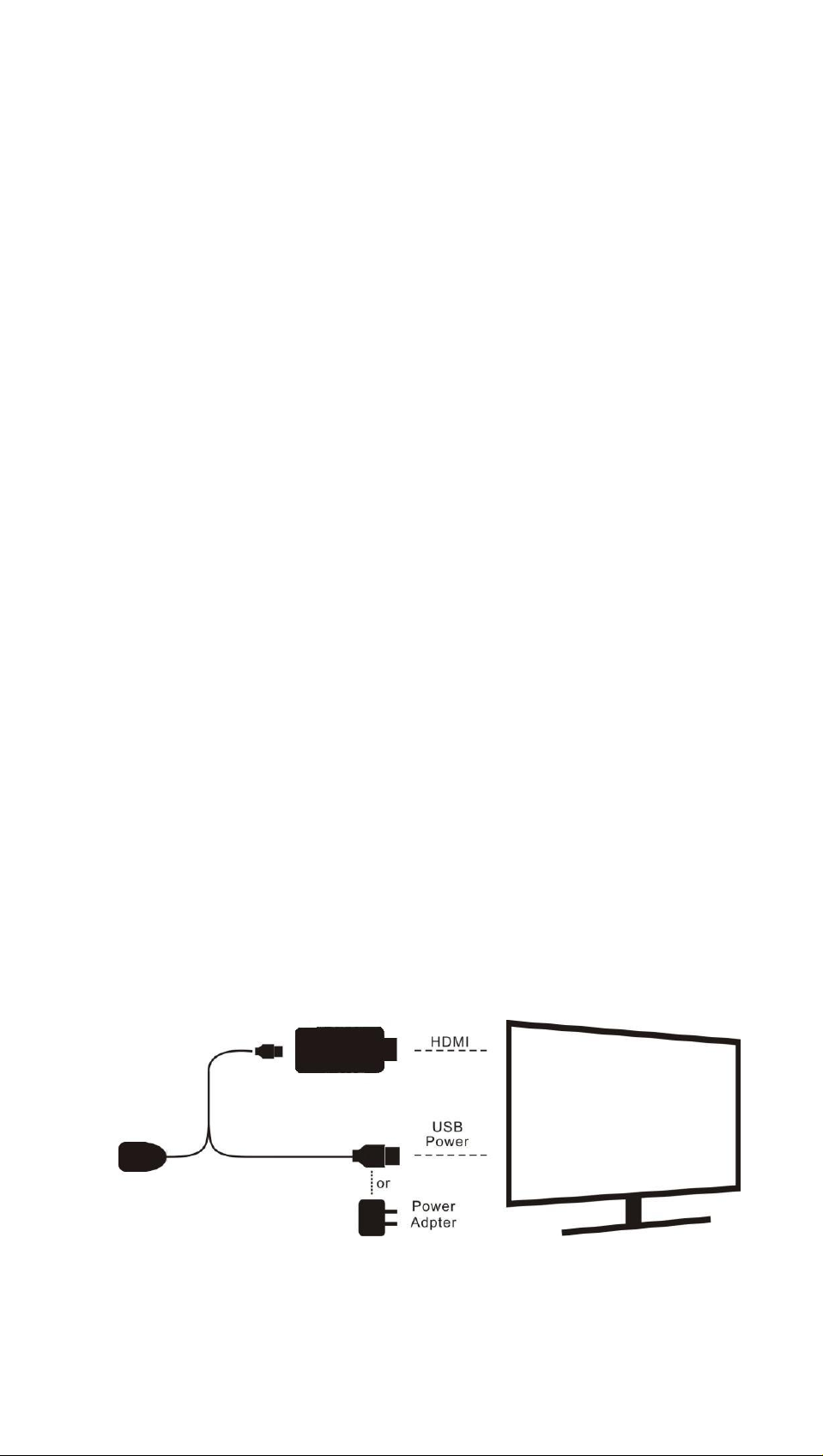

1. Before using, please connect the HDMI extending line to
the Miracast dongle before you connect it to the HDMI port on
your display / TV.
2. Power on your TV and adjust the signal output of the TV or
display device using the proper channel. For example: “HDMI
1”, Choose HMDI 1.
3. Next, please connect the dongle to a source of power.
You can use a standard USB mobile phone adapter or, if
available, a powered USB port on your TV. If you connect to
the TV for power, please make sure that the USB output is at
least 1A / 1Amp. If your powered USB port is rated less than
1A, you may experience device restarts under heavy load. In
this situation, the processor, memory, and video chip are
under load and require a minimum of 1A of power to function.

Switch on page:
4. You will now see your screen display the image above.
5. The user name of your Wireless LAN connection will
be:Tronsmart-050654F6 and the Password will be:23798965
6. The download for Windows / Mac OS users is located at the
7. The download for IPhone or IPad users can be accessed by
QR Code, Apple App Store (Search: EZ Cast), or the website.
http://www.tronsmart.com/support/download-center

8. The download for Android users can be accessed by QR
Code, Google Play Store (Search: EZ Cast), or the website.
9. Open the EZ Cast mode using your device and the EZ Cast
will check for proper connection. If not connected, please use
step 5 to attempt another connection manually.

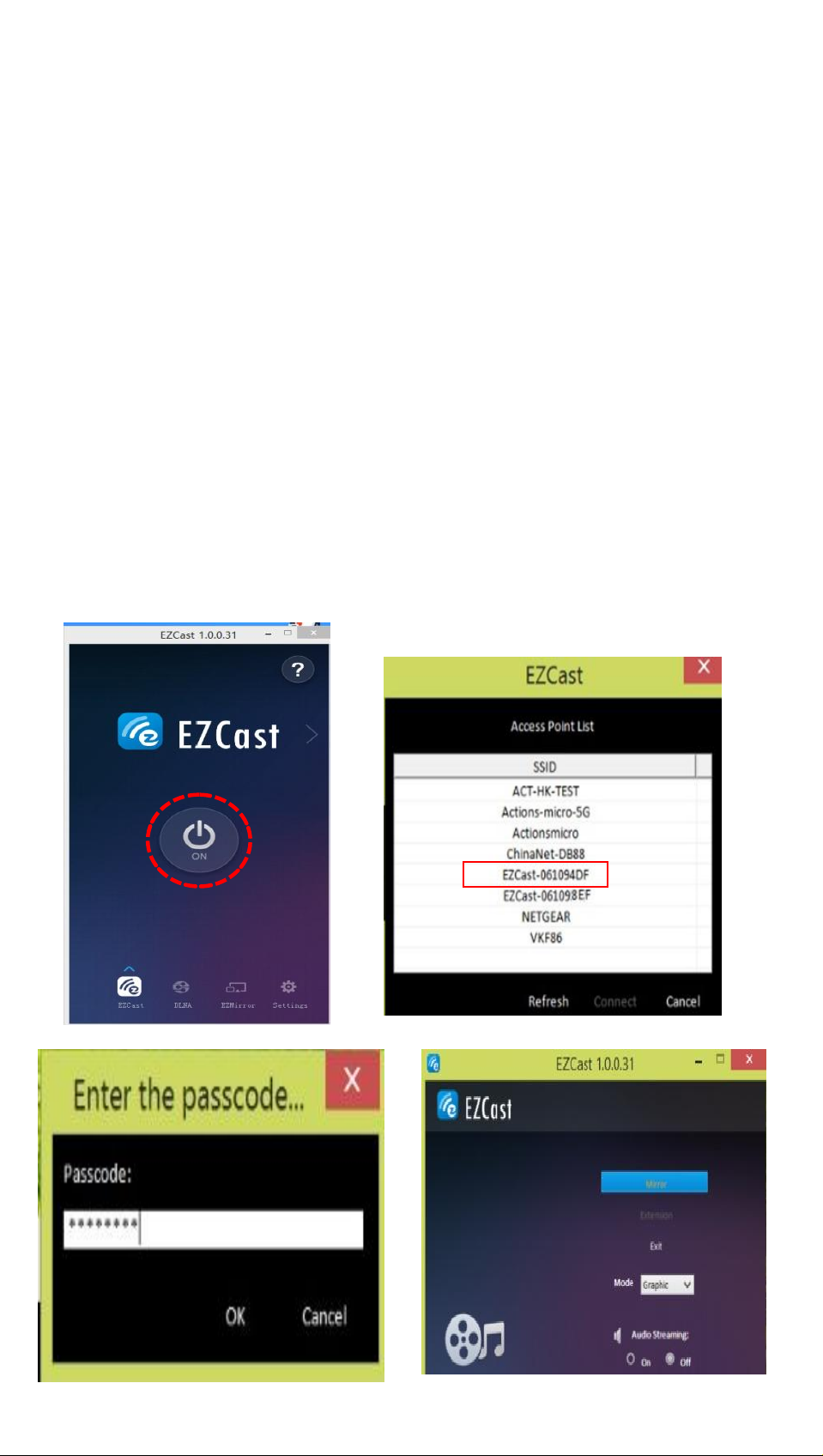

IV. Windows PC / Mac User
User will run the EZ Cast App to start.
From there, simply select your device to connect.
V. Android / IOS

Operating System User
1. Install the EZ Cast APP. Open the EZ
Cast mode using your device and EZ
Cast app will check for a proper
connection. If not connected, please use
step 5 to attempt another connection
manually.
2. Use either the Wifi link from your
Mobile phone or the dongle connected to
your display.
3. After linking the two devices by WiFi,
return to the EZ Cast App.
4. Now that you are connected and have
returned to the EZ Cast App, there
should be a total of 6 functions showing
on the screen.

1. Photos
The sharing of
photos from your
Android device to
your TV is now
simple. Click the photo icon, EZ Cast will search out all of the
photos on your Android device, and display them as a file.You
can even click the Pen ，mark on the photo, and click the
to save.
2. Files
Share the files on
your Android device
directly to your TV.
Supports numerous
file types, including:
PDF, DOC, PPT, and EXCEL.
Click the File icon, EZ Cast will search the files on your Android
device. These files can be altered and saved as above.
3. Internet
Using the internet, you can
search sites such as Yahoo
and Google or stream video

and music from Youtube.
4. Camera
Click on the camera icon to open your mobile
phone or tablet camera to take a photo. Once
open, adjust the focus ；Camera switch,
Take a picture.
5. Streaming
Share and stream the music and video from your Android
device wirelessly to your TV through the data connection
6. DLNA
DLNA mode: you can share the local or internet video in your
device on the TV screen while operating it remotely using the
other device. Activate the DLNA icon and the EZ cast APP will
scan the device. If there is DLNA software, it will show the
available devices for you to choose from listed on your TV.

Note:
DLNA mode requires both devices to have DLNA installed.
7. EZ Air
Used for Apple Air Play, functions exactly as the DLNA
described above, but for the Iphone or the Ipad users to be
able to share TV, music, and streaming video wirelessly. If the
third-party APP supports Air Play, then you can also use apps
viewable directly on your TV.
8. EZMirror
With the EZMirror mode (for Android OS only) you can mirror
the phone to your TV. In order to do this, activate the EZmirror
icon, then the EZcast APP will guide you visually on how to
operate this function and display your mobile phone or tablet
screen directly onto the TV. If there is no device connected to
the TV within 60 seconds, this function will close.

Note:
The Android OS must be Android 4.2 or higher. The device
must support the Miracast function.
Please see the list of supported phones by clicking the “?”icon.
The Miracast function operates differently from device to
device, depending on model and manufacturer. Not all phones
are supported and not all manufacturers include this function.
Currently (1/2014), the Screen-mirroring function is still under
development for iOS devices. Only EZ Cast and EZ Air are
available for use by iOS devices until an update is available at
http://www.tronsmart.com/support/download-center
please check official website often.
VI. Setting Functions
1. Software upgrade automatically from internet.
The upgrade icon will be blue when there is new software
available on the server.

Please be careful to never unplug the power from your device
during software installation or upgrade. This may cause the
device to no longer work properly.
2. Connect Your Tronsmart T1000 to the Internet
Click the Internet menu, it will then search the available WiFi
signals and display a list. Next, choose the WiFi broadcast that
you want to connect to, and enter the password on your
smartphone / tablet. Once done, hit ENTER and your
Tronsmart T1000 should now be connected to the internet.
3. Change Screen Resolution
The Tronsmart T1000 supports a maximum of 1080p @ 30fps.
You can change the resolution under the, “Settings” menu if
you prefer a different display output. Please note, after you
change the screen resolution the device will restart in order to
apply the new display resolution.
4. Change System Language
The Tronsmart T1000 offers multi-language support in over
20 different languages. You can change this setting to your
preferred language in the, “Settings” menu.
5. Change the password
If you think the default password is difficult to remember or
you prefer to user a password unique to you, this can be

changed at your convenience any time you like. Please note,
this password is only for the Tronsmart T1000’s Wifi
connection and does not affect the device itself.
VII. Frequently Asked Questions (FAQ)
1. Please check the HDMI connection if there is any display
abnormality or the splash screen does not appear properly.
2. Please check that the WLAN / WiFi is connected if the
device indicates that you cannot access to the internet.
3. If the device reboots unexpectedly, please check that the
power being supplied is at least 1Amp or above.
4. If the EZMirror function is not operating, please confirm
that your device is supported and that the phone or tablet
software is updated to the latest version.
5. If you are experiencing a poor WiFi connection, please use
the provided WiFi dongle extension, which will amplify the
signal for you.
6. If you are experiencing video buffering or stop / start,
please confirm that your device is positioned properly to
receive a strong and stable wireless signal for connection.
Any questions in using Tronsmart T1000, please contact with [email protected]
