Trotec BH30 User manual
TRT-BA-BH30-TC2017-10-002-EN
BH30
EN
OPERATING MANUAL
SOCKET HYGROSTAT
2 EN
socket hygrostat BH30
Table of contents
Notes regarding the operating manual.................................2
Safety .....................................................................................2
Information about the device................................................4
Transport and storage...........................................................5
Operation ...............................................................................6
Maintenance and repair ........................................................9
Disposal .................................................................................9
Notes regarding the operating manual
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
operating manual must be observed.
You can download the current version of the operating manual
and the EU declaration of conformity via the following link:
BH30
https://hub.trotec.com/?id=40268
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use!
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/ or serious injury.
Save all warnings and instructions for future
reference.
This appliance can be used by children aged from
8years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
• The device is supplied with a warning sign. Prior to initial
start-up, make sure to paste the corresponding warning
sign in your local language over the one present at the rear
of the device as described in chapter Operation.
• Do not use the device in potentially explosive rooms.
• Do not use the device in aggressive atmosphere.
• Do not use the device with wet or damp hands.
• This appliance is not a toy! Keep away from children and
animals. Do not leave the device unattended during
operation.
• Protect the device from permanent direct sunlight.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Do not open the device.
EN 3
socket hygrostat BH30
• Do not connect several devices by plugging one into
another.
• Only operate the device in dry surroundings.
• Please note that the device is only de-energized when the
plug has been disconnected from the mains.
• Observe the storage and operating conditions as given in
the Technical data chapter.
Intended use
Only use the device as humidity-controlled plug adapter
between mains connection and terminal device whilst adhering
to the technical data.
Only use the device in interior spaces.
To use the device for its intended use, only use accessories and
spare parts which have been approved by Trotec.
Improper use
The device is not suitable for use with any type of extension
cables. The device must not be used in potentially explosive
areas, when wet or very humid.
Any unauthorised changes, modifications or alterations to the
device are forbidden.
Personnel qualifications
People who use this device must:
• have read and understood the operating manual, especially
the Safety chapter.
Residual risks
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Caution
Keep a sufficient distance from heat sources.
Note
To prevent damages to the device, do not expose it to
extreme temperatures, extreme humidity or moisture.
Note
Do not use abrasive cleaners or solvents to clean the
device.
4 EN
socket hygrostat BH30
Information about the device
Device description
The device BH30 permits the humidity regulation of
dehumidifiers or humidifiers between 20%RH and 90%RH.
For this purpose, install the device in-between consumer and
socket and set the desired humidity level.
With its integrated sensors the device measures the actual
relative humidity and regulates the connected terminal device
according to the desired target value.
The device comes with two operating modes, one for
dehumidification (activated when exceeding the target value)
and one for humidification (activated when falling below the
target value).
The currently achieved humidity level and the set operating
mode can be gathered from the display.
The device is equipped with an internal battery and a memory,
that way the settings are retained.

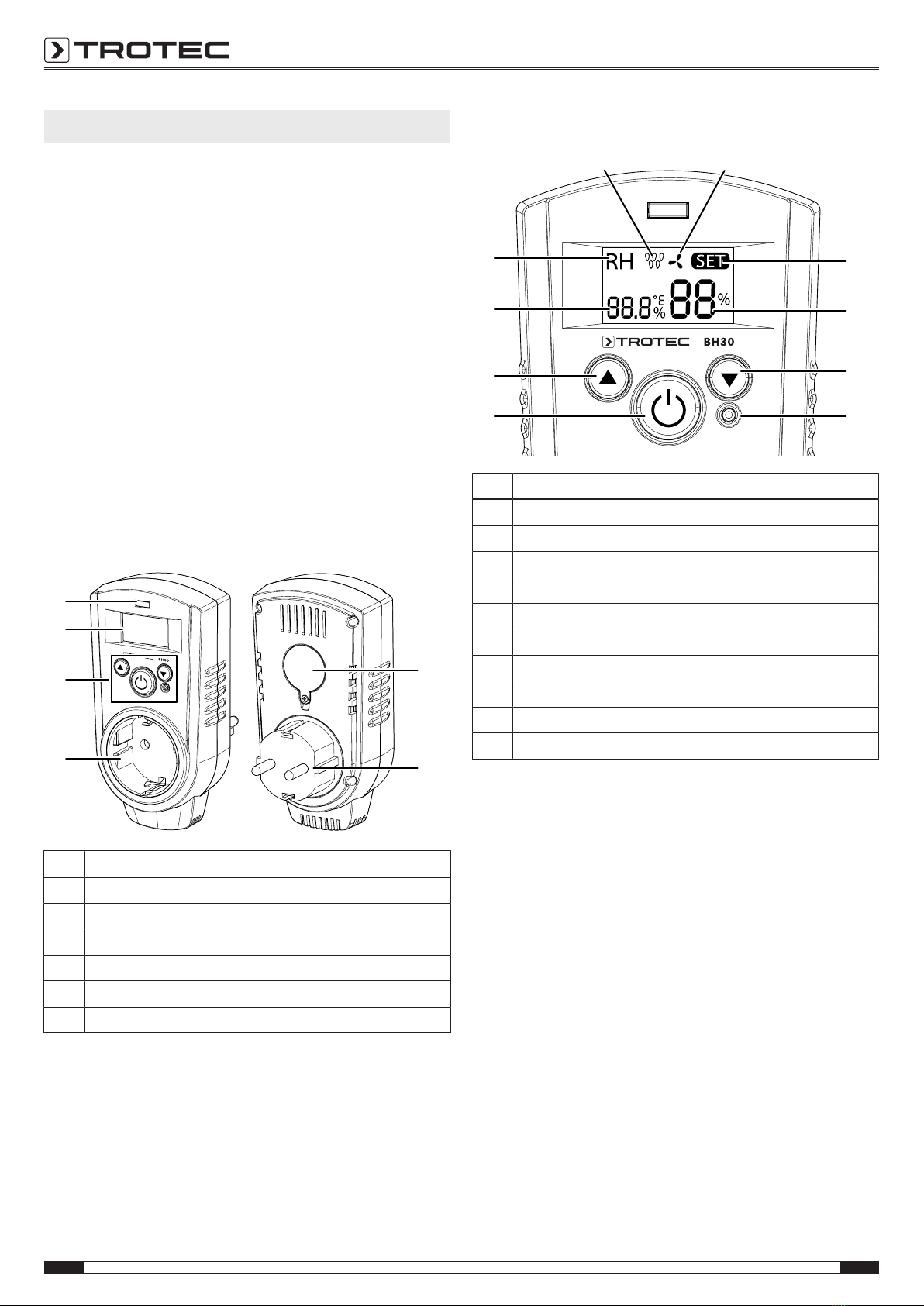

Device depiction
Reset
1
2
3
4
5
6
No. Designation
1 Battery compartment
2 Mains plug
3 Connection for the terminal device (plug adapter)
4 Operating elements
5 Display
6 Operation indicator LED
Display and operating elements
Reset
9
11
14
16
15
78
10
13 12
No. Designation
7 Humidifier mode indication
8 Dehumidifier mode indication
9 SET indication
10 Indication of the target humidity value
11 Arrow down button
12 Reset button
13 Power button
14 Arrow up button
15 Indication of the current humidity level
16 RH indication
EN 5
socket hygrostat BH30
Technical data
Parameter Value
Model BH30
Article number 6,100,004,205
Control range 20%RH to 90%RH
Accuracy ± 5 % RH
Measuring interval 10 s
Switching capacity
Resistive load
Inductive load
16A/ 3680VA
9 A/ 2070VA
Socket CEE 7/3 (Schuko socket type F)
Mains connection 230V/ 50Hz
Connection plug CEE 7/7 (plug type F + E)
Protection class I
Protection type IP30
Battery 1x 3V CR2032 button cell
Operating conditions 5°C to 35°C with max.
95%RH (non-condensing)
Storage conditions -10°C to +50°C with max.
80%RH (non-condensing)
Weight 165g
Dimensions 126 mmx 68 mmx 76 mm
Scope of delivery
• 1x Device BH30
• 1x 3V CR2032 button cell battery
• 1x Quick Guide
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
For transporting the device, use the transport case included in
the scope of delivery in order to protect the device from external
influences.
Storage
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• protected from dust and direct sunlight
• For storing the device, use the transport case included in
the scope of delivery in order to protect the device from
external influences.
• The storage temperature is the same as the range given in
the Technical data chapter.
• Remove the battery from the device.
6 EN
socket hygrostat BH30
Operation
Removing the battery insulation tab
Note
Make sure that the surface of the device is dry and the
device is switched off.
The battery is already inserted. The battery tab must be
removed before initial start-up to close the contact between
battery and device. To do so, please proceed as follows:
1. Pull the plastic strip out of the battery compartment.
ðThe device is ready for operation.
Attaching the warning sign
Prior to initial start-up, check whether the warning sign at the
rear of the device is in your local language, if not, paste the
proper one over it. A warning sign in your native language is
supplied along with the device. Please proceed as follows to
attach the warning sign to the rear of the device:
1. Remove the label in your local language from the supplied
film.
2. Affix the label in the intended position at the rear of the
device.
Switching the device on
1. Plug the device into a properly fused socket.
2. Plug the power cable of the terminal device (consumer)
into the plug adapter.
3. Press the Power button(13).
ðThe operation indicator LED(6) is illuminated in red.
ðThe device is switched on.
EN 7
socket hygrostat BH30
Setting the target humidity value
The target value defines at which humidity level the plug
adapter switches on or off. The switch-on/-off depends on the
selected mode. The operation indicator LED(6) indicates
whether the plug adapter is switched on or off:
• LED illuminated in red: plug adapter inactive =>
non-conducting.
• LED illuminated in green: plug adapter active =>
conducting.
Info
Please bear in mind that it can take a few minutes until
the load circuit is fully enabled for the first time. The
measured humidity level should be at least 5% above
or below the target value over a specific period of time
before the plug adapter is switched on. This prevents
excessive switching in highly fluctuating conditions or
with a permanently but only slightly changing humidity
level.
Humidifier mode
Choose this mode if you want to connect e.g. a humidifier
without hygrostat or an air cooler. The room's humidity level is
lower than the set target value. The device switches off the plug
adapter upon reaching the set target value.
Example:
• The target value is set to 65%RH and the measured room
humidity amounts to 40%RH.
• The plug adapter remains active until the humidity level in
the room reaches or exceeds 65%RH.
• The plug adapter switches off as soon as the humidity
value exceeds 65%RH.
• The plug adapter will switch back on when falling below
the value of 65%RH for a while.
Dehumidifier mode
Choose this mode if you want to connect e.g. a dehumidifier
without hygrostat or a fan. The room's humidity level is higher
than the set target value. The device switches off the plug
adapter upon reaching the set target value.
Example:
• The target value is set to 50%RH and the measured room
humidity amounts to 75%RH.
• The plug adapter remains active until the humidity level in
the room reaches or falls below 50%RH.
• The plug adapter switches off as soon as the humidity
value falls below 50%RH.
• The plug adapter will switch back on when exceeding the
value of 50%RH for a while.

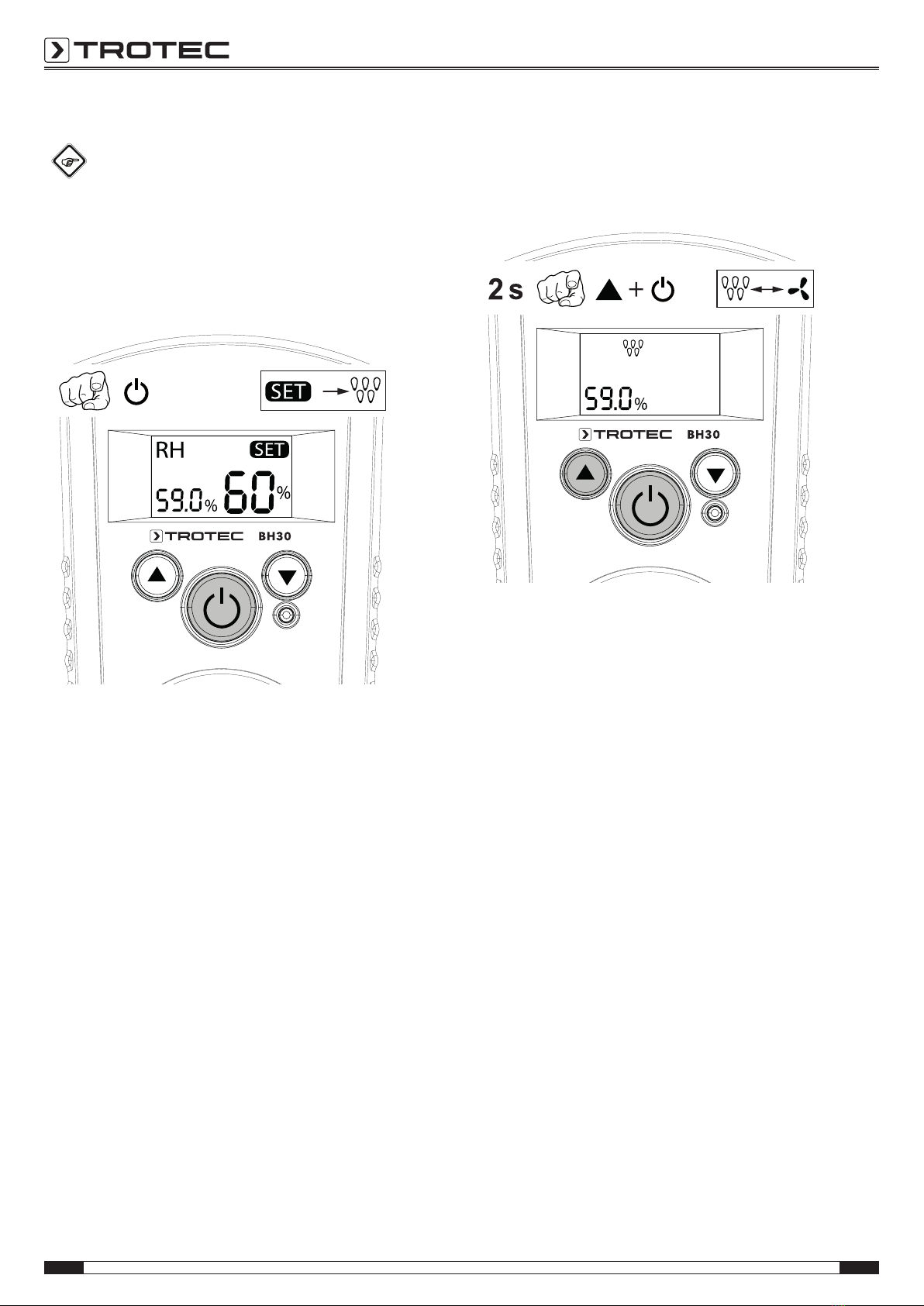

Please proceed as follows to set the target humidity value:
üThe device is switched on.
üThe SET indication(9) appears on the display.
1. Press the buttons Arrow up(14) or Arrow down(11) to set
the target humidity value.
Reset
ðThe SET indication(9) flashes.
2. The target humidity value has been set if the SET
indication(9) is again permanently displayed after approx.
5s.
8 EN
socket hygrostat BH30
Setting the mode
Info
If the desired humidity value is lower than the humidity
level of the room, please use Dehumidifier mode. If
the desired humidity value is higher than the humidity
level of the room, please use Humidifier mode.
üThe device is switched on.
üThe SET indication(9) appears on the display.
Reset
1. Press the Power button(13).
ðThe device now enters standby mode.
ðThe currently active mode is indicated at the top of the
display.
Reset
2. Press and hold the Arrow up button(14).
3. Press and hold the Power button(13) for 2s.
ðThe respectively other mode is set.
Resetting the device to the factory settings
You can reset the device to its factory settings. The saved target
values for the Humidifier and Dehumidifier modes will be set
back to 40% RH.
1. Use a suitable tool (e. g. the end of a straightened
paperclip or the tip of a pencil) to press the Reset
button(12) for approx. 2s.
Switching the device off
1. Press the Power button(13).
ðThe operation indicator LED(6) goes out.
ðThe device is switched off.
2. Remove the mains plug of the terminal device from the
plug adapter by holding the device with one hand and
pulling the plug with the other.
3. Unplug the device from the mains socket.
EN 9
socket hygrostat BH30
Maintenance and repair

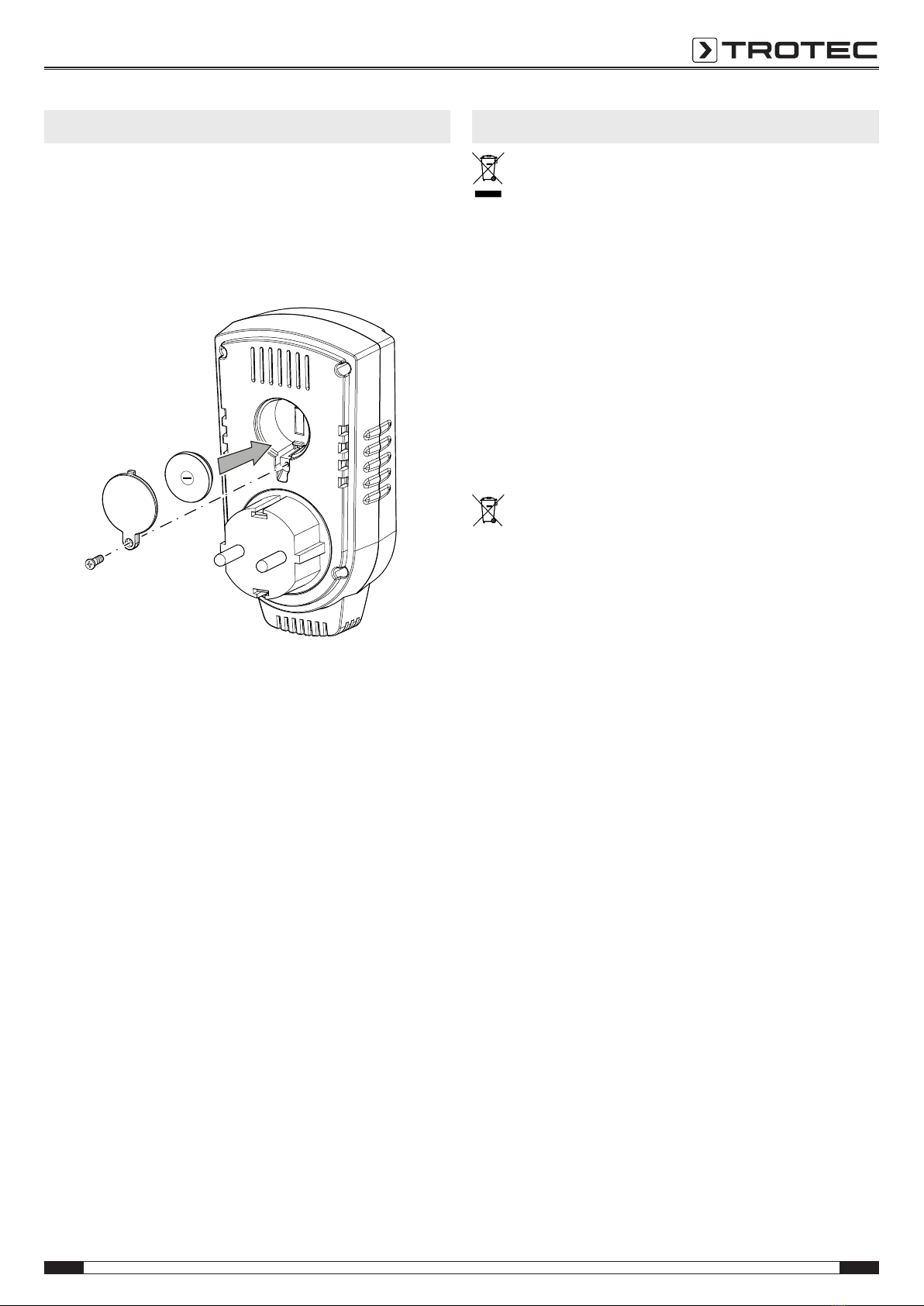

Battery change
The battery is to be changed when the device can no longer be
switched on or the target value indication(10) instead displays
Lo.
1. Open the battery compartment at the rear of the device by
loosening the screw at the battery compartment.
2. Remove the used battery and dispose of it according to the
national regulations.
3. Insert the new battery in the compartment with correct
polarity.
4. Reattach the cover of the battery compartment and tighten
the screw.
Cleaning
Clean the device with a soft, damp and lint-free cloth. Make
sure that no moisture enters the housing. Do not use any
sprays, solvents, alcohol-based cleaning agents or abrasive
cleaners, but only clean water to moisten the cloth.
Repair
Do not modify the device or install any spare parts. For repairs
or device testing, contact the manufacturer.
Disposal
The icon with the crossed-out waste bin on waste
electrical or electronic equipment stipulates that this equipment
must not be disposed of with the household waste at the end of
its life. You will find collection points for free return of waste
electrical and electronic equipment in your vicinity. The
addresses can be obtained from your municipality or local
administration. For further return options provided by us please
refer to our website www.trotec24.com.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.
In the European Union, batteries and accumulators must not be
treated as domestic waste, but must be disposed of
professionally in accordance with Directive 2006/66/EC of the
European Parliament and of the Council of 6September 2006
on batteries and accumulators. Please dispose of batteries and
accumulators according to the relevant legal requirements.
Trotec GmbH
Grebbener Str. 7
D-52525 Heinsberg
+49 2452 962-400
+49 2452 962-200
www.trotec.com
Other manuals for BH30
2
Table of contents
Other Trotec Accessories manuals
