Trotec PPLS 10-20V User manual

TRT-BA-PPLS10-20V-TC2020-39-001-EN
PPLS 10-20V
EN
ORIGINAL INSTRUCTIONS
CORDLESS PLANER

2 EN
cordless planer PPLS 10-20V
Table of contents
Notes regarding the instructions ..........................................2
Safety .....................................................................................3
Information about the device................................................8
Transport and storage.........................................................10
Start-up................................................................................10
Operation .............................................................................14
Available accessories..........................................................16
Errors and faults..................................................................16
Maintenance ........................................................................17
Disposal ...............................................................................20
Declaration of conformity ...................................................20
Notes regarding the instructions
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning of explosive substances
This symbol indicates dangers to the life and health of
persons due to potentially explosive substances.
Warning of hot surface
This symbol indicates dangers to the life and health of
persons due to hot surface.
Warning of sharp object
This symbol indicates dangers to the life and health of
persons due to pointed objects.
Warning of hand injuries
This symbol indicates dangers to the health of persons
due to hand injuries.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
instructions must be observed.
Wear hearing protection
Information marked with this symbol indicates that you
should wear hearing protection.
Wear safety glasses
Information marked with this symbol indicates that you
should wear eye protection.
Wear a protective mask
Information marked with this symbol indicates that you
should wear a protective mask.
Wear protective clothing
Information marked with this symbol indicates that you
should wear protective clothing.
Wear protective gloves
Information marked with this symbol indicates that you
should wear protective gloves.
You can download the current version of the instructions and
the EUdeclaration of conformity via the following link:
PPLS 10-20V
https://hub.trotec.com/?id=44532

EN 3
cordless planer PPLS 10-20V
Safety
General Power Tool Safety Warnings
Warning
Read all safety warnings, instructions, illustrations
and specifications provided with this power tool.
Failure to follow all instructions listed below may result
in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
The term power tool in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
General Power Tool Safety Warnings– Work area
safety
•Keep work area clean and well lit. Clutter or dark areas
invite accidents.
•Do not operate power tools in explosive atmosphere,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
•Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
General Power Tool Safety Warnings– Electrical
safety
•Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
•Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is
earthed or grounded.
•Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
•Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
•When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
•If operating a power tool in a damp location is
unavoidable, use a residual current device(RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
General Power Tool Safety Warnings– Personal
safety
•Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a
power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious personal
injury.
Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
•Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites
accidents.
•Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
•Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situation.
•Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
•If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can
reduce dust-related hazards.
•Do not let familiarity gained from frequent use of tools
allow you to become complacent and ignore tool
safety principles. A careless action can cause severe
injury within a fraction of a second.

4 EN
cordless planer PPLS 10-20V
General Power Tool Safety Warnings– Power tool
use and care
•Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
•Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
•Disconnect the plug from the power source and/or
remove the battery pack, if detachable, from the power
tool before making any adjustments, changing
accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool
accidentally.
•Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
•Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the
power tool's operation. If damaged, have the power
tool repaired before use. Many accidents are caused by
poorly maintained power tools.
•Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
•Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
•Keep handles and grasping surfaces dry, clean and
free from oil and grease. Slippery handles and grasping
surfaces do not allow for safe handling and control of the
tool in unexpected situations.
General Power Tool Safety Warnings– Battery tool
use and care
•Recharge only with charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another battery pack.
•Use power tools only with specifically designed battery
packs. Use of any other battery packs may create a risk of
injury and fire.
•When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects, that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
•Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
•Do not use a battery pack or tool that is damaged or
modified. Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion or risk
of injury.
•Do not expose a battery pack or tool to fire or
excessive temperature. Exposure to fire or temperature
above 130°C may cause explosion.
•Follow all charging instructions and do not charge the
battery pack or tool outside the temperature range
specified in the instructions. Charging improperly or at
temperatures outsides the specified range may damage
the battery and increase the risk of fire.
General Power Tool Safety Warnings– Service
•Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
•Never service damaged battery pack. Service of battery
packs should only be performed by the manufacturer or
authorized service providers.
Safety instructions for planers
•Wait for the cutter to stop before setting the tool down.
An exposed rotating cutter may engage the surface leading
to possible loss of control and serious injury.
•Use clamps or another practical way to secure and
support the workpiece to a stable platform. Holding the
workpiece by your hand or against the body leaves it
unstable and may lead to loss of control.
•Only hold the power tool against the workpiece when
the tool is switched on and running. Otherwise there is
a risk of kickbacks.
•Do not use the power tool for processing metal.
Otherwise, the blade or cutting head could be damaged.
•During operation hold onto the power tool with both
hands and make sure you stand firmly on the ground.
It is safer to handle the power tool with two hands.

EN 5
cordless planer PPLS 10-20V
•Do not under any circumstances use the power tool if
you detect damages on the mains plug or power cable.
If the supply cord is damaged, it must be replaced by the
manufacturer, his service agent or similarly qualified
persons in order to avoid a hazard.
Defective power cables pose a serious health risk!
•Keep your hands away from the cutting head. Do not
reach into the area between the power tool and the
workpiece. Do not rest your hands near the power tool.
Risk of injury upon contact with the blade.
•Do not treat the surface to be processed with liquids
containing solvents. Toxic fumes may be produced
during scraping owing to the heat-up of the materials.
•Use appropriate detection equipment to track down
concealed supply lines or consult the local utility
companies. Contact with electrical lines may result in fire
and electric shock. Damaging a gas line may lead to an
explosion. Penetrating a water line causes property
damage and may cause an electric shock.
•Use sharp blades only.
Intended use
Only use the device PPLS 10-20V:
• for planing wood materials, e.g. beams and boards, while
keeping base plate contact,
• for chamfering edges of wood materials while keeping
base plate contact,
• for rebating wood materials while keeping base plate
contact
whilst adhering to the technical data.
We recommend using the power tool with original Trotec
accessories.
Foreseeable misuse
The device PPLS 10-20V is not suitable for planing metal.
The device is not intended for processing damp wood.
Any other use than the one described in the chapter "Intended
use" is regarded as reasonably foreseeable misuse.
Personnel qualifications
People who use this device must:
• have read and understood the instructions, especially the
Safety chapter.
Safety signs and labels on the battery
Note
Do not remove any safety signs, stickers or labels from
the device. Keep all safety signs, stickers and labels in
legible condition.
The following safety signs and labels are attached to the
battery:
Warning of explosion risk!
These symbols indicate the following:
Do not expose the battery pack or tool to fire or
excessive temperature! Do not let the battery come into
contact with water or fire! Avoid direct sunlight and
moisture. There is a risk of explosion!
Never charge the battery at ambient temperatures
below10°C or above40°C. Charging improperly or at
temperatures outsides the specified range may damage
the battery and increase the risk of fire.
Observe the correct disposal of the battery!
This symbol indicates the following:
Ensure that the battery is disposed of correctly and
never dispose of it in waste water or public waters.
The battery contains irritating, caustic and toxic
substances that pose significant risks to people and the
environment.
Personal protective equipment
Wear hearing protection.
Excessive noise can lead to hearing loss.
Wear eye protection.
With it you protect your eyes from splintering, falling
and flying pieces which could cause injuries.
Wear a protective mask.
It saves you from inhaling harmful dusts generated
when processing workpieces.
Wear protective gloves.
They protect your hands from burns, crushing injuries
and skin abrasions.
Wear tight-fitting protective clothing.
This protects you from the draw-in and entanglement
hazard posed by rotating parts.

6 EN
cordless planer PPLS 10-20V
Residual risks
Warning of electrical voltage
Electric shock from insufficient insulation.
Check the device for damages and proper functioning
before each use.
If you notice damages, no longer use the device.
Do not use the device when the device or your hands
are damp or wet!
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket and the battery from the device!
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Warning of electrical voltage
Make sure that you do not contact power lines.
Improper handling of the device entails a risk of
electric shock!
Warning of electrical voltage
There is a risk of a short-circuit due to liquids
penetrating the housing!
Do not immerse the device and the accessories in
water. Make sure that no water or other liquids can
enter the housing.
Warning of explosive substances
Do not expose the battery to temperatures above
45°C! Do not let the battery come into contact with
water or fire! Avoid direct sunlight and moisture. There
is a risk of explosion!
Warning of explosive substances
Fine dust produced during planing is highly flammable.
Risk of fire and explosion!
Use a dust or chip bag or a dust extraction system for
collecting the produced dusts.
Warning of explosive substances
Make sure that you do not contact gas lines.
There is a risk of explosion!
Warning of hot surface
The cutting head might still be hot after the application.
Burn hazard when touching the cutting head.
Do not touch the cutting head bare-handed!
Wear protective gloves!
Warning of hand injuries
Crushing hazard near cutting head and base plate if
handled without due care.
Wear protective gloves!
Warning of hand injuries
Do not insert any limbs or objects into the chip ejector.
Crushing hazard if handled without due care.
Wear protective gloves!
Warning of sharp object
Blades have sharp cutting edges. Risk of injury from
cuts if handled without due care.
Wear protective gloves!
Warning
Toxic dusts!
The harmful / toxic dusts produced during operation
pose of risk to the health of the operator and persons
in the vicinity.
Wear eye protection and a dust mask!
Warning
Do not process materials containing asbestos.
Asbestos is considered carcinogenic.
Warning
Risk of injuries caused by flying parts.
Use a dust or chip bag or a dust extraction system.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Caution
Vibration emissions can cause a health hazard if the
device is used for an extended period of time or if it is
not properly handled and maintained.
Caution
Keep a sufficient distance from heat sources.
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.

EN 7
cordless planer PPLS 10-20V
Behaviour in the event of an emergency/ emergency
stop function
Emergency stop:
Removing the battery results in the function of the device
stopping immediately. Leave the battery out in order to secure
the device against accidental switch-on.
Behaviour in the event of an emergency:
1. Switch the device off.
2. In the event of an emergency, remove the battery from the
device: Hold the release button of the battery and pull the
battery off the device as described in chapter "Removing
the battery".
3. Do not insert the battery if the device is defective.

8 EN
cordless planer PPLS 10-20V
Information about the device
Device description
The device PPLS 10-20V is an electrical planer with an idle
speed of 12,000rpm for processing wooden surfaces.
The cutting depth can be set up to 1.5millimetres at the rotary
knob.
The lift-off device, which folds out automatically, prevents
damage of the workpiece or blade when the device is put down.
The 3V grooves are suited for chamfering edges.
Chip ejection is possible on the left or right as desired.
The device is equipped with a start lock preventing unintentional
switch-on of the device.
The battery comes with its own battery level indication. As a
result you can check the current charging status without having
to connect it to the device.
Device depiction
24
23
5
1
2
3
5
4
7
19
20
21
22
6
8
9
18
10
17
16
14
11
12
13
15

EN 9
cordless planer PPLS 10-20V
No. Designation
1On/off switch
2Chip ejector / connection for dust extraction system
3Fastening screw for rip fence
4Rotary knob for cutting depth setting
5Fastening screw for rebating depth stop
6V grooves
7Base plate
8Quick charger
9Red battery LED (battery charging)
10 Battery
11 Rip fence
12 Rebating depth stop
13 Adapter for dust extraction
14 Allen wrench
15 Open-end wrench
16 3-stage battery level indication
17 Release button
18 Green battery LED (quick charger ready for operation)
19 Lift-off device
20 Cutting head
21 Protective cover
22 Tension element with blade
23 Start lock
24 Handle
Scope of delivery
• 1x Device PPLS 10-20V
• 1 x Rechargeable battery
• 1x Quick charger
• 1 x Adapter for dust extraction
• 1 x Rip fence
• 1x Rebating depth stop
• 1 x Allen wrench
• 1x Open-end wrench
• 1x Manual
Technical data
Parameter Value
Model PPLS 10-20V
Idle speed 12,000 min-1
Planing width 82 mm
Cutting depth 0 to 1.5 mm
Rebating depth max. 10 mm
Cutting head type Indexable knives
Weight 2 kg
Battery Multiflex 20–4.0DC
Type Li-ion
Nominal voltage 20V
Capacity 4Ah
Quick charger Multiflex 20–4.0AC
Input
Nominal voltage 230 – 240V/ 50Hz
Power consumption 94W
Output
Nominal voltage 21.5V
Charging current 3.5A
Charging time 1.5 h
Protection class II/
Vibration information according to EN62841
Vibration emission value ah1.2 m/s²
Uncertainty K 1.5 m/s²
Sound values according to EN62841
Sound pressure level LpA 85 dB(A)
Sound power LWA 96 dB(A)
Uncertainty K 3 dB(A)
Wear hearing protection.
Excessive noise can lead to hearing loss.

10 EN
cordless planer PPLS 10-20V
Information on noise and vibration:
• The specified total vibration and noise emission values
were measured by means of a test procedure standardized
in EN62841 and can be consulted for the comparison of
one power tool with another.
• The specified total vibration and noise emission values
can also be used for preliminary load assessment.
Caution
Vibration emissions can cause a health hazard if the
device is used for an extended period of time or if it is
not properly handled and maintained.
• The actual vibration and noise emission may differ from
the stated values during operation of the power tool. This
depends on how the power tool is used and especially on
the type of workpiece being processed. Try to keep the
vibration load to a minimum. Exemplary measures for
reducing the vibration load include wearing gloves during
operation of the tool and the limitation of working hours.
All parts of an operating cycle must be considered for this
(e.g. times at which the power tool is switched off and
times when it is switched on but runs without load).
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
Before transporting the device, observe the following:
• Switch off the device.
• Hold onto the mains plug while pulling the power cable of
the charger out of the mains socket.
• Allow the device to cool down.
• Remove the battery from the device.
• If attached, disconnect the dust extraction system from the
device.
The supplied Li-ion batteries are subjects to the requirements of
dangerous goods legislation.
Observe the following when transporting or shipping Li-ion
batteries:
• The user may transport the batteries by road without any
additional requirements.
• If transport is carried out by third parties (e.g. air transport
or forwarding company), special requirements as to
packaging and labelling must be observed. This includes
consulting a dangerous goods specialist when preparing
the package.
– Only ship batteries if their housing is undamaged.
– Mask open terminals with tape and pack the battery in
a way that it cannot move inside the packaging.
– Please also observe any other national regulations.
Storage
Before storing the device, proceed as follows:
• Switch off the device.
• Hold onto the mains plug while pulling the power cable of
the charger out of the mains socket.
• Allow the device to cool down.
• Remove the battery from the device.
• If attached, disconnect the dust extraction system from the
device.
• Clean the device as described in the Maintenance chapter.
• Do not store Li-ion batteries which are completely
discharged. Storing discharged batteries can lead to a
deep discharge and thus damage the battery.
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• Ambient temperature below 45°C
• protected from dust and direct sunlight
Start-up
Unpacking the device
• Take the device and the accessories out of the packaging.
Warning of electrical voltage
Electric shock from insufficient insulation.
Check the device for damages and proper functioning
before each use.
If you notice damages, no longer use the device.
Do not use the device when the device or your hands
are damp or wet!
• Check the scope of delivery for completeness and look for
damages.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
• Dispose of the packaging material according to the
national regulations.

EN 11
cordless planer PPLS 10-20V

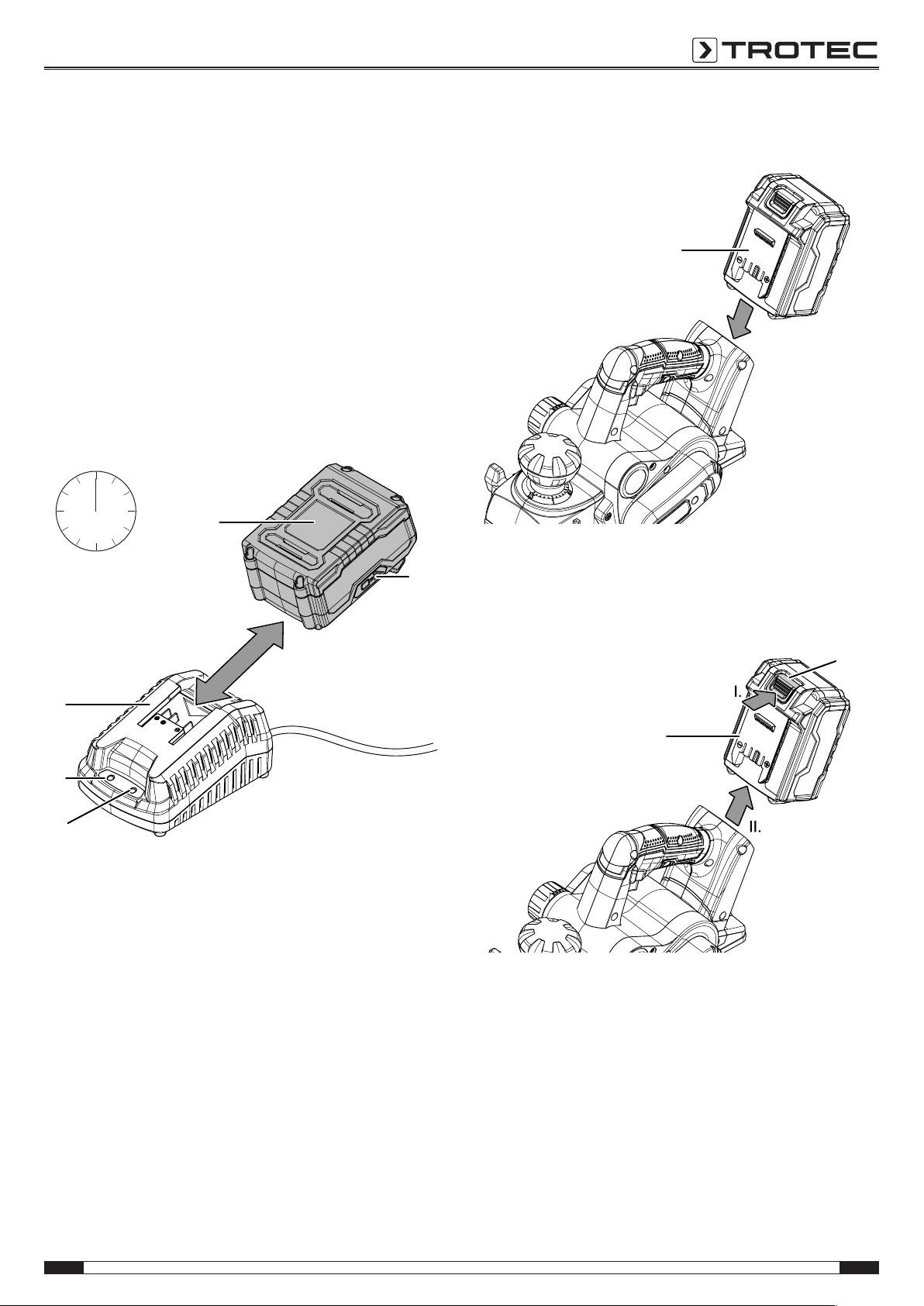

Charging the battery
Note
The battery can be damaged in case of improper
charging.
Remove the charger's mains plug before inserting or
removing the battery.
Never charge the battery at ambient temperatures
below 10°C or above 40°C.
The battery is partially charged upon delivery to avoid damage
to the battery caused by a deep discharge.
Prior to initial start-up and when the battery is low (only the red
LED in the battery level indication(16) is illuminated), the
battery should be charged. To do so, please proceed as follows:
1. Slide the battery(10) onto the quick charger(8) upside
down until it locks in place.
1,5 h
10
8
18
9
16
2. Insert the mains plug of the quick charger(8) into a
properly fused mains socket.
ðThe red battery LED(9) lights up.
ðCharging requires approx. one and a half hours.
3. Wait until the red battery LED(9) goes off and the green
battery LED(18) lights up.
ðThe battery(10) is fully charged.
4. Hold onto the mains plug while pulling the power cable of
the quick charger(8) out of the mains socket.
ðThe battery(10) and the quick charger(8) may have
become warm during charging.
Allow the battery(10) to cool down to room
temperature.
5. Take the battery(10) out of the quick charger(8) by
pressing and holding the release button(17) and pulling
the battery(10) off the quick charger(8).
Inserting the battery
1. Slide the battery(10) onto the device until it locks in place.
10
Removing the battery
1. Detach the battery(10) from the device by pressing and
holding the unlocking button(17, I.) and pulling the battery
off the device(II.).
17
10
2. If required, charge the battery(10) as described in the
section Charging the battery.

12 EN
cordless planer PPLS 10-20V

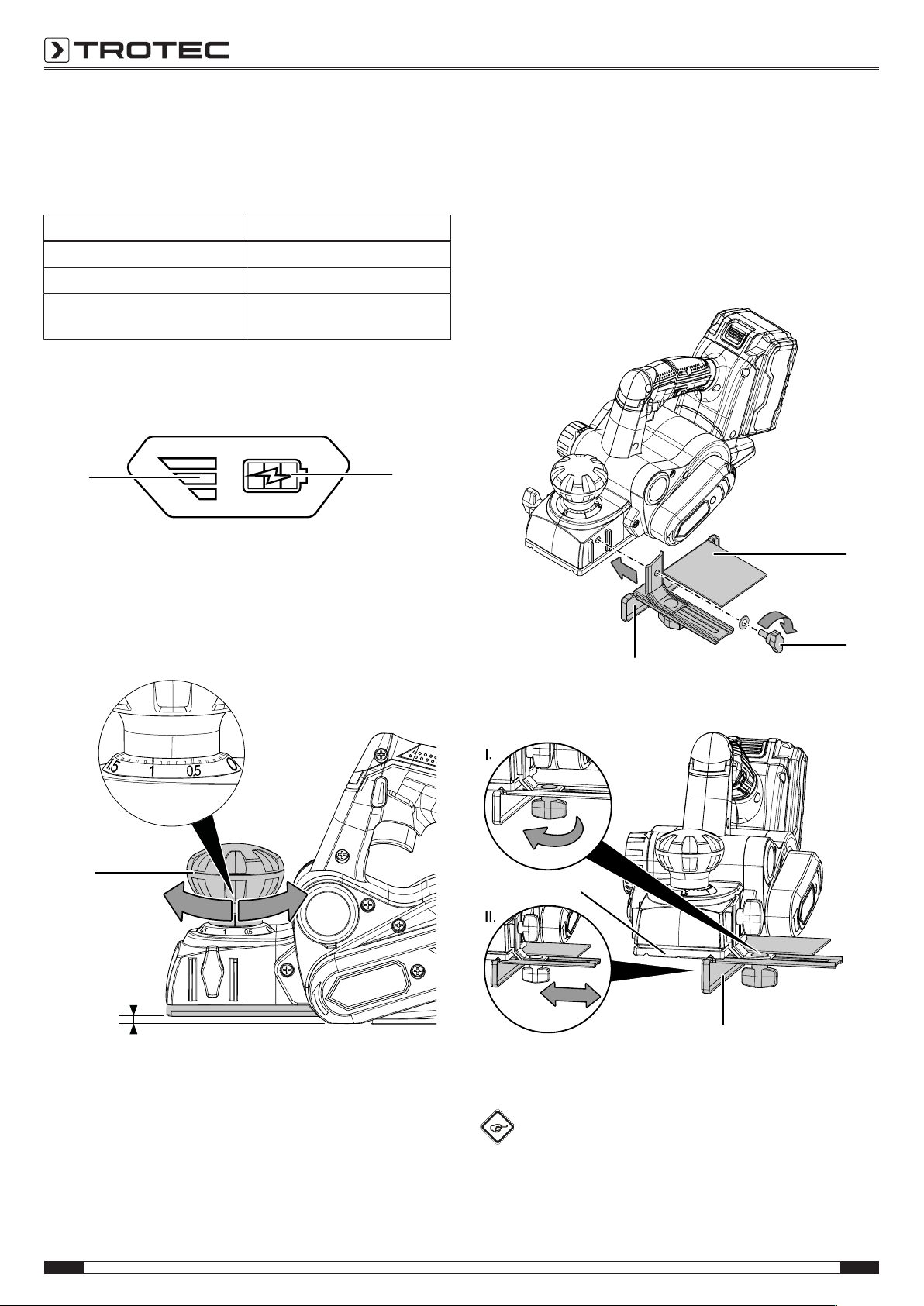

Checking the battery charging status
The battery comes with an integrated battery level indication.
The battery status is displayed as follows by the three LEDs of
the battery level indication(16):
LED colour Meaning
Green – Orange – Red maximum charge/ power
Orange – Red medium charge/ power
Red weak charge – Recharge the
battery.
1. Press on the battery icon(25) on the battery(10).
ðYou can read the battery status from the battery level
indication(16).
25
16
Setting the cutting depth
The cutting depth can be set in steps of 0.1mm in the range
between 0mm and 1.5mm.
1. You can set the desired cutting depth at the rotary
knob(4).
4
Mounting the rip fence
The rip fence serves as a guide for precise working at the edge
of a workpiece. Furthermore, you can use the rip fence to
reduce the width of the planing track or of the base plate resting
on the workpiece.
Proceed as follows to mount the rip fence:
1. Use the fastening screw(3) to fasten the rip fence(11) to
the left side of the device. Note that the guide rail(26)
must always point downwards.
3
11
26
2. Loosen the set screw(27) to adjust the width of the base
plate(7) or the position of the guide.
7
27
3. Tighten the set screw(27) after the desired position has
been set.
Info
If you are using the rip fence, apply slight lateral
pressure on the device while guiding it over the
workpiece.

EN 13
cordless planer PPLS 10-20V

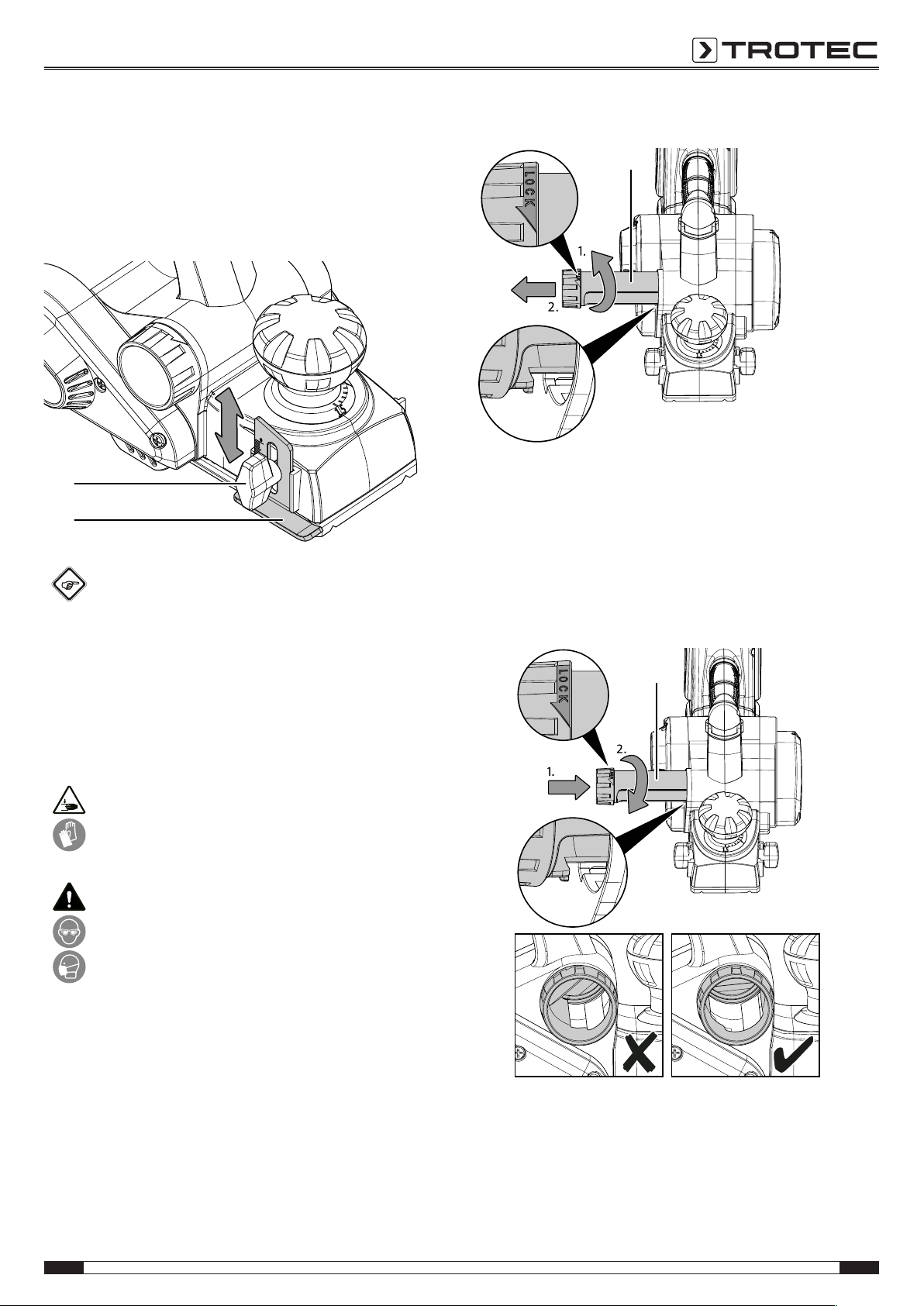

Adjusting the rebating depth stop
The rebating depth stop serves to adjust the depth of the
planing track on your workpiece.
Please proceed as follows to adjust the rebating depth stop:
1. Set the desired depth using the fastening screw(5) at the
rebating depth stop(12).
5
12
Info
If you are using the rebating depth stop and the rip
fence simultaneously, you can create steps with the
desired depth (rebating depth stop) and width(rip
fence).
Adjusting the chip ejector
You can mount the chip ejector on the left or right-hand side of
the device as needed.
The chip ejector is already preassembled.
Warning of hand injuries
Do not insert any limbs or objects into the chip ejector.
Crushing hazard if handled without due care.
Wear protective gloves!
Warning
Toxic dusts!
The harmful / toxic dusts produced during operation
pose of risk to the health of the operator and persons
in the vicinity.
Wear eye protection and a dust mask!
Please proceed as follows to attach the chip ejector to the other
side of the device:
1. Detach the chip ejector(2) by turning it in the opposite
direction of the arrow(LOCK).
2. Pull the chip ejector out of the device(2).
2
3. Clean the chip ejector if necessary.
4. Slide the chip ejector into the device on the other side. Pay
attention to the position of the opening at the device and of
the notch at the chip ejector while doing so.
5. Lock the chip ejector(2)by turning it fully in the direction
of the arrow(LOCK). The opening of the device and of the
chip ejector must fit each other precisely so that all dust
and chips produced will be discharged.
2

14 EN
cordless planer PPLS 10-20V
Operation
Tips and notes on handling the planer
General information:
• At the beginning, only position the front part of the device
on the workpiece.
• Only guide the part of the device where the cutting head is
located against the workpiece after the device has been
switched on.
• Guide the device over the workpiece in an even forward
motion. Hold onto the device with both hands; one hand at
the rotary knob(4) and the other one at the device
handle(24). The front and rear base plate should fully rest
on the workpiece.
Planing:
• Use sharp blades only. Worn blades can yield an uneven
result.
• If you want to use the full planing width or process hard
wood, we recommend choosing a small cutting depth and
working with a slow forward motion.
• For a higher surface quality, we recommend applying the
pressure on the centre of the device and working with a
slow and even forward motion.
Using the lift-off device
The lift-off device serves as an aid when putting the device
down and for protecting the workpiece.
Note
Never remove the lift-off device from the device. A
missing lift-off device causes instability of the device
and can damage the workpiece or device.
Please proceed as follows to use the lift-off device:
1. Make sure that the lift-off device(19) folds down when the
device is lifted, and put the device down safely.
19
2. If you want to continue working, first position the front
base plate and, while advancing, bring the rear base plate
into contact with the workpiece. The lift-off device(19) will
automatically fold up.
19

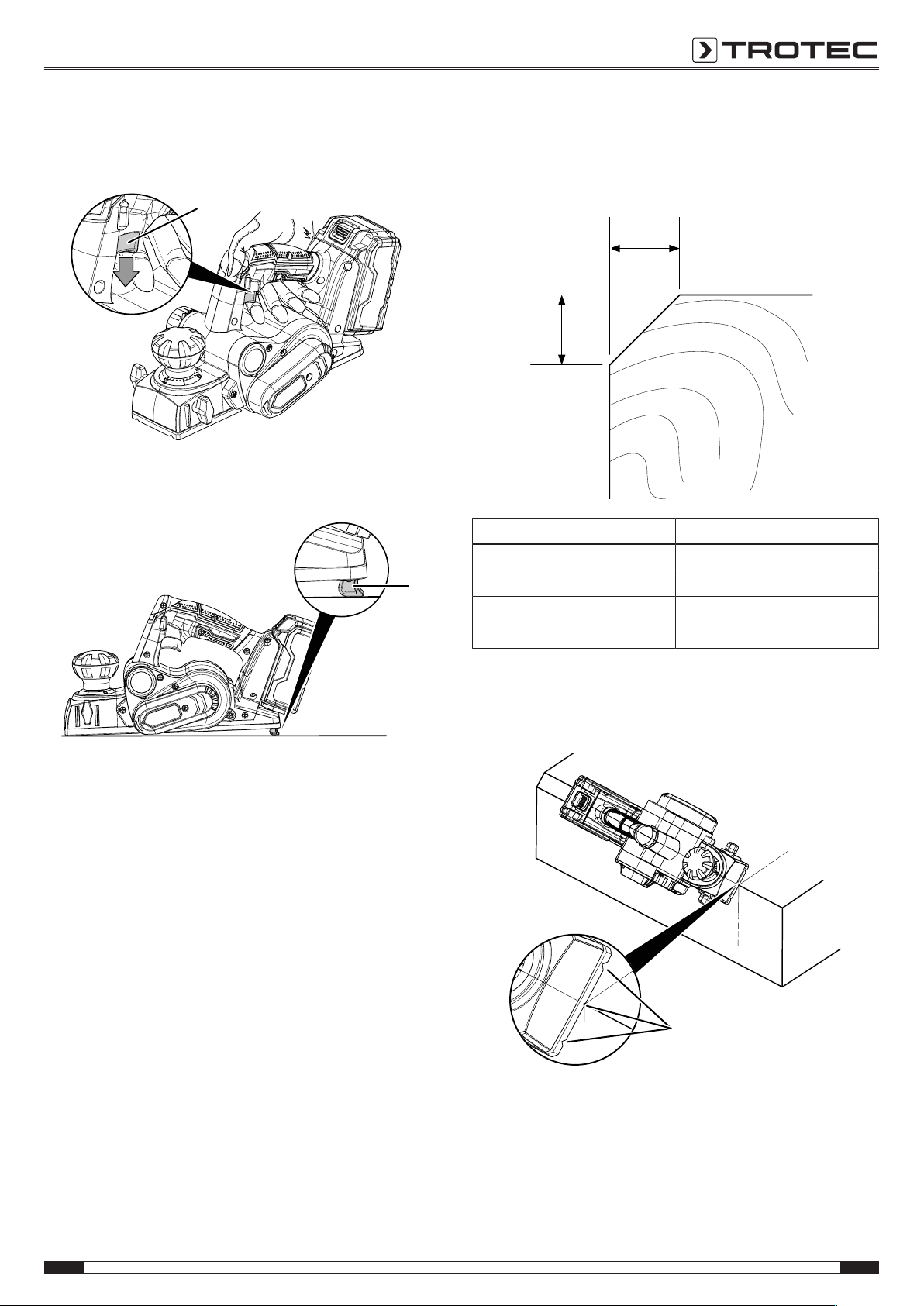

Switching the device on and off
Wear your personal protective equipment when working with
the device.
1. Check whether the set cutting depth is suitable for the
intended application.
2. Check whether the workpiece is secured and the worktop
prepared correspondingly.
3. Position the front base plate on the workpiece.
4. Press the start lock(23) to be able to actuate the on/off
switch.
5. Press the on/off switch(1) and hold it during operation.
1
23
6. Slowly guide the device along the workpiece while
applying slight, even pressure.

EN 15
cordless planer PPLS 10-20V
7. Let go of the on/off switch(1) to switch the device off.
Please note that the cutting head continues running for a
while.
1
8. Make sure that the lift-off device(19) folds down when the
device is lifted, and put the device down safely.
19
Chamfering edges
You can use the V grooves at the front base plate to chamfer
edges. These grooves determine the width of the chamfer and
additionally serve as a guide.
a
a
Groove used Measure a (mm)
none approx. 0 to 4
small approx. 2 to 6
medium approx. 4 to 9
large approx. 6 to 10
Please proceed as follows to chamfer edges:
1. Position the front base plate on the edge of the workpiece
with the desired Vgroove(6). Make sure that the device is
positioned at an angle of45° to the workpiece.
6
2. Guide the device along the edge while applying even
pressure.

16 EN
cordless planer PPLS 10-20V
Connecting the dust extraction system
You can connect a vacuum cleaner to the device. The adapter
included in the scope of delivery allows to connect smaller pipe
diameters.
Caution
Use a special vacuum cleaner to suck off harmful or
toxic materials.
Please proceed as follows to connect the dust extraction
system:
1. If necessary, change the side of the chip ejection as
described in chapter "Adjusting the chip ejection".
2. Connect a suitable vacuum cleaner (e.g. industrial vacuum
cleaner) directly to the chip ejector(2).
3. If required, you can connect the adapter(13) for the dust
extraction system to the chip ejector(2) first.
2
13
Connecting a dust bag (optional)
For small-scale work, you can optionally connect a dust bag.
1. Insert a suitable dust or chip bag firmly into the chip
ejector(2).
2. Empty the dust bag in due time to guarantee proper
absorption of a sufficient amount of dust and chips.
Shutdown
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch off the device.
• Hold onto the mains plug while pulling the power cable of
the charger out of the mains socket.
• If required, allow the device to cool down.
• Remove the battery from the device (see Start-up chapter).
• If attached, disconnect the dust extraction system from the
device.
• Clean the device according to the Maintenance chapter.
• Store the device according to the Storage chapter.
Available accessories
Warning
Only use accessories and additional equipment
specified in the instructions.
Using insertion tools or accessories other than those
specified in the instructions may cause a risk of injury.
Designation Article number
Multiflex 20V 2.0Ah spare battery 6.200.000.303
Multiflex 20V 4.0Ah spare battery 6.200.000.320
Errors and faults
The device has been checked for proper functioning several
times during production. If malfunctions occur nonetheless,
check the device according to the following list.
Troubleshooting tasks which require the housing to be opened
must only be carried out by an authorized specialist electrical
company or by Trotec.
Light smoke or odour is emitted during the first use:
• This is not a fault. These phenomena disappear after a
brief runtime.
The battery does not charge:
• Check whether the battery is inserted correctly in the quick
charger.
Slide the battery into the quick charger in a way that the
battery terminals engage in the quick charger. The battery
must lock in place in the quick charger.
• Check the power connection.
• Check the power cable and mains plug for damage.
• Check the on-site fusing.
• Check the quick charger for damage. If the quick charger
is damaged, stop using it. Contact the Trotec customer
service.
• Check the battery terminals for dirt. Remove any dirt.
• The battery might be defective and have to be replaced.
Only use batteries of the same type.

EN 17
cordless planer PPLS 10-20V
The device does not start:
• The battery power might be too low. Recharge the battery.
• Check whether the battery is correctly connected to the
device.
Slide the battery onto the device in a way that the battery
terminals engage. The battery must lock in place in the
device.
• Check the battery terminals for dirt. Remove any dirt.
Info
Wait for at least 10 minutes before switching the
device back on.
The device's performance decreases:
• Check for slippage between the cutting head and the
motor. This indicates ageing of the drive belt. It must be
exchanged. Contact the Trotec customer service.
• Check whether the blades are correctly inserted. If
necessary, insert them correctly, see Tool change chapter.
• Check whether the blades are blunt and may have to be
replaced, see Tool change chapter.
• Check whether the chip ejector is clogged. Clean it if
necessary, see Cleaning chapter.
The planing result is not as desired:
• Check the cutting depth and adjust it if necessary.
• Check whether the chip ejector is clogged. Clean it if
required.
The device becomes hot:
• Make sure not to exert too much pressure on the device
during operation.
• Keep the venting slots clear to prevent the motor from
overheating.
• Wait for at least 10 minutes before switching the device
back on.
Note
Wait for at least 3 minutes after maintenance and
repair work. Only then switch the device back on.
Your device still does not operate correctly after these
checks?
Please contact the customer service. If necessary, bring the
device to an authorised specialist electrical company or to
Trotec for repair.
Maintenance
Activities required before starting maintenance
Warning of electrical voltage
Do not touch the mains plug or the battery with wet or
damp hands.
• Switch off the device.
• Allow the device to cool down completely.
• Remove the battery from the device.
Warning of electrical voltage
Maintenance tasks which require the housing to be
opened must only be carried out by authorised
specialist companies or by Trotec.
Notes on maintenance
Inside the device, there are no parts that need to be maintained
or lubricated by the user.
Safety signs on the battery
Check the safety signs attached to the battery at regular
intervals. Replace illegible safety signs!
Cleaning
The device should be cleaned before and after each use.
Note
The device does not have to be lubricated after
cleaning.
Warning of electrical voltage
There is a risk of a short-circuit due to liquids
penetrating the housing!
Do not immerse the device and the accessories in
water. Make sure that no water or other liquids can
enter the housing.
• Clean the device with a soft, damp and lint-free cloth.
Make sure that no moisture enters the housing. Protect
electrical components from moisture. Do not use any
aggressive cleaning agents such as cleaning sprays,
solvents, alcohol-based or abrasive cleaners to dampen
the cloth.
• Dry the device with a soft, lint-free cloth.
• Keep the connecting terminals on the device and charger
clean.
• Keep the ventilation openings free from dust deposits to
prevent overheating of the motor.
• Remove dust and chips from the chip ejector. If the chip
ejector is blocked, clean it with suitable means (e.g.
compressed air).
• Clean the lift-off device regularly to make sure that it
moves freely.

18 EN
cordless planer PPLS 10-20V
Tool change
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket and the battery from the device!
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Warning of hand injuries
Crushing hazard near cutting head and base plate if
handled without due care.
Wear protective gloves!
Warning of sharp object
Blades have sharp cutting edges. Risk of injury from
cuts if handled without due care.
Wear protective gloves!
Info
Always replace the blades in pairs.
The blades have 2cutting edges each and can be turned over
when one of them is worn. If both cutting edges are worn, the
blades must be replaced with new ones.
Info
The blades must not be sharpened!
Info
The hexagonal bolts must not be loosened! The Allen
wrench only serves to adjust the height of the tension
element if you want to insert another type of blades.

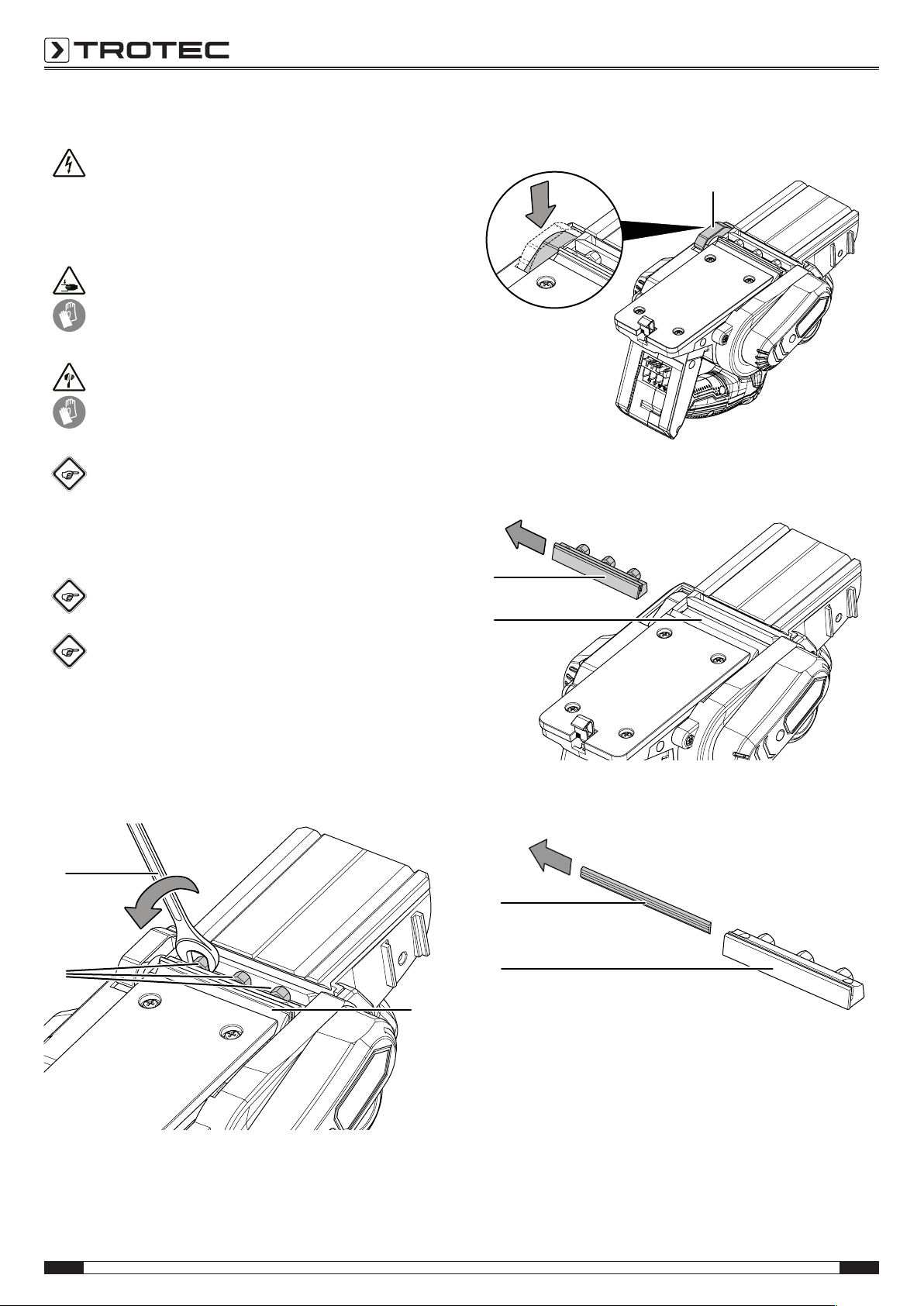

Please proceed as follows to turn over or change the blades:
1. Remove the battery from the device.
2. Use the open-end wrench(15) to loosen the 3nuts(28) at
the tension element(22).
15
22
28
3. Slide the protective cover(21) of the cutting head back and
hold it in place.
21
4. Slide the tension element(22) sideways out of the cutting
head(20).
22
20
5. Use a suitable tool to carefully slide the blade(29) out of
the tension element(22).
29
22
6. If required, clean the tension element and the blade with a
dry, lint-free cloth or a brush.
7. Turn the blade over or replace it.

EN 19
cordless planer PPLS 10-20V
8. Carefully slide the blade(29) into the tension element(22).
29
22
9. Slide the protective cover(21) of the cutting head back and
hold it in place.
10. Slide the tension element(22) into the cutting head(20).
Make sure that the cutting edge is correctly aligned.
22
20
11. Bring the protective cover(21) of the cutting head into the
correct position by letting go of it.
21
12. Retighten the 3nuts(28) at the tension element.
28
13. Turn the cutting head(20) by 180°and repeat the
procedure with the other tension element.

20 EN
cordless planer PPLS 10-20V
Disposal
The icon with the crossed-out waste bin on waste
electrical or electronic equipment stipulates that this equipment
must not be disposed of with the household waste at the end of
its life. You will find collection points for free return of waste
electrical and electronic equipment in your vicinity. The
addresses can be obtained from your municipality or local
administration. For further return options provided by us please
refer to our website https://de.trotec.com/shop/.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.
Li-Ion
In the European Union, batteries and accumulators must not be
treated as domestic waste, but must be disposed of
professionally in accordance with Directive 2006/66/EC of the
European Parliament and of the Council of 6September 2006
on batteries and accumulators. Please dispose of batteries and
accumulators according to the relevant legal requirements.
Declaration of conformity
The text below sets out the contents of the declaration of
conformity. The signed declaration of conformity can be found
at https://hub.trotec.com/?id=44532.
Declaration of conformity
in accordance with the ECMachinery Directive 2006/42/EC,
AnnexII, Part1, SectionA
Herewith, we– TrotecGmbH– declare that the machinery
designated below was developed, constructed and produced in
compliance with the requirements of the ECMachinery
Directive in the version 2006/42/EC.
Product model/ Product: PPLS 10-20V
Product type: cordless planer
Year of manufacture as of: 2020-09
Relevant EU directives:
• 2011/65/EU: 01/07/ 2011
• 2012/19/EU: 24/07/2012
• 2014/30/EU: 29/03/2014
Applied harmonised standards:
• EN ISO 12100:2010
• ENISO 20607:2019
• EN 62841-1:2015
• EN62841-2-14:2015
Applied national standards and technical specifications:
• Regulation (EC) 1907/2006
• EN 55014-1:2017
• EN 55014-2:2015
Manufacturer and name of the authorised representative of
the technical documentation:
Trotec GmbH
Grebbener Straße 7, D-52525 Heinsberg
Phone: [phone]
E-mail: [email protected]
Place and date of issue:
Heinsberg, 25.09.2020
Detlef von der Lieck, Managing Director
