Trotec IC200 User manual

TRT-BA-IC200/IC300-TC220829TTRT01-001-EN
IC200 / IC300
EN
INSTRUCTIONS
THERMAL IMAGING CAMERA

2 EN
thermal imaging camera IC200 / IC300
Table of contents
Information on the use of this instructions..........................2
Safety .....................................................................................2
Information about the device................................................4
Transport and storage...........................................................7
Operation ...............................................................................7
Software...............................................................................11
PC software..........................................................................17
Emissivity.............................................................................18
Thermography terms...........................................................20
Errors and faults..................................................................21
Maintenance and repair ......................................................21
Disposal ...............................................................................23
Declaration of conformity ...................................................23
Information on the use of this instructions
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
instructions must be observed.
You can download the current version of the instructions and
the EUdeclaration of conformity via the following link:
IC200
https://hub.trotec.com/?id=46837
IC300
https://hub.trotec.com/?id=46838
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use.
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
• Do not use the device in potentially explosive rooms or
areas and do not install it there.
• Do not use the device in aggressive atmosphere.
• Do not immerse the device in water. Do not allow liquids to
penetrate into the device.
• The device may only be used in dry surroundings and must
not be used in the rain or at a relative humidity exceeding
the operating conditions.
• Do not point the device at intense energy sources, such as
the sun or laser radiation, in order to avoid damage to the
device.
• Protect the device from permanent direct sunlight.
• Do not open the device.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Observe the storage and operating conditions (see
Technical data).

EN 3
thermal imaging camera IC200 / IC300
Intended use
Only use the device for visual or thermographic representation
of objects whilst adhering to the technical data.
Any use other than the intended use is regarded as misuse.
Reasonably foreseeable misuse
Do not use the device in potentially explosive areas. Trotec
accepts no liability for damages resulting from improper use. In
such a case, any warranty claims will be voided. Any
unauthorised modifications, alterations or structural changes to
the device are forbidden.
Personnel qualification
People who use this device must:
• have read and understood the instructions, especially the
Safety chapter.
Safety signs and labels on the battery
Warning of explosion risk!
These symbols indicate the following:
Do not expose the battery pack or tool to fire or
excessive temperature! Do not let the battery come into
contact with water or fire! Avoid direct sunlight and
moisture. There is a risk of explosion!
Do not open the appliance!
This symbol indicates the following:
This device may only be repaired and serviced by the
manufacturer. Any unauthorised modifications,
alterations or structural changes to the device are
forbidden.
Risk of injury due to electrical voltage. Damage to the
device may occur.
Observe the correct disposal of the battery!
This symbol indicates the following:
Ensure that the battery is disposed of correctly and
never dispose of it in waste water or public waters.
The battery contains irritating, caustic and toxic
substances that pose significant risks to people and the
environment.
Residual risks
Warning of electrical voltage
There is a risk of a short-circuit due to liquids
penetrating the housing!
Do not immerse the device and the accessories in
water. Make sure that no water or other liquids can
enter the housing.
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning of explosive substances
Do not expose the batteries to temperatures above
60°C! Do not let the batteries come into contact with
water or fire! Avoid direct sunlight and moisture. There
is a risk of explosion!
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Caution
Lithium-ion batteries might catch fire in case of
overheating or damage. Ensure a sufficient distance to
heat sources, do not subject lithium-ion batteries to
direct sunlight and make sure not to damage the
casing. Do not overcharge lithium-ion batteries. If the
battery is not permanently installed in the device, only
use smart chargers that switch off automatically when
the battery is fully charged. Charge lithium-ion
batteries in due time before they are discharged
completely.
Caution
Keep a sufficient distance from heat sources.
Note
To prevent damages to the device, do not expose it to
extreme temperatures, extreme humidity or moisture.
Note
Do not use abrasive cleaners or solvents to clean the
device.

4 EN
thermal imaging camera IC200 / IC300
Information about the device
Device description
The thermal camera IC200/IC300 creates a visible image
depicting infrared radiation, which is otherwise invisible to the
human eye. The thermal image and temperature are displayed
on the screen in real time. To improve the view, you can select
various colour palettes for depicting the thermal image.
Furthermore, you can superimpose IR and digital images in
order to obtain a higher-contrast thermal image.
The device has an LCDtouchscreen with a screen diagonal of
3.5inches.
For a measured result which is as precise as possible the
ambient temperature, reflected temperature, humidity, distance
and emissivity can be adjusted.
A stepless 16-fold digital zoom allows viewing of distant details.
The focus ring of the IC300 lens additionally allows the desired
measuring object to be focused.
A list of emissivities for various surfaces is provided in the
chapter Emissivity. For a precise evaluation, the thermal image
on the screen can be frozen or saved. The saved images can
later be viewed either directly on the camera screen or on a PC
using an analysis software.
An internal image analysis tool supports the evaluation of the
data, which you can save as photos, IRimages or a fusion of
both, as well as videos.
The USB-C interface enables data transfer and real-time
viewing of the recordings on a PC. The software included in the
scope of delivery (download) is used for external storage and
editing of the recordings.
Device depiction
1
2
3
4
13
12
6
5
7
8
9
10
4
11
No. Designation
1Connectors cover
2Display
3Control panel
4Battery clamps
5Infrared camera lens
6Digital camera lens
7Focus ring (IC300 only)
8Holder for protective cap
9Trigger
10 1/4" tripod thread
11 Battery
12 USB-C port
13 microSD slot

EN 5
thermal imaging camera IC200 / IC300
Battery
16
15
11
14
No. Designation
11 Battery
14 Battery charger
15 Power battery LED
16 Charge battery LED
Control panel
17
18
19
20
21
22
23
No. Designation Meaning
17 Up arrow button Button for menu control
18 On/Off button Switching the device on and
off, switching the temperature
scale
19 Right arrow button Button for menu control
20 Menu/OKbutton Button for menu control,
confirming the selection
21 Down arrow button Button for menu control
22 Left arrow button Button for menu control
23 Play button Opening data memory
Display
24 25 26 27 28 29
30
31
32
33
No. Designation
24 Temperature unit indication
25 Distance unit indication
26 Emissivity indication
27 microSD indication
28 Battery status indication
29 Time indication
30 Upper measuring point indication
31 Temperature scale indication
32 Lower measuring point indication
33 Temperature scale setting indication

6 EN
thermal imaging camera IC200 / IC300
Technical data
Parameter Value
Model IC200 IC300
Measure Temperature range -20 °C to +550 °C 0 °C to +650 °C
Accuracy ±2°C, ±2% of the measured value, at 10°C to 35°C ambient temperature and >0°C object
temperature
Radiometric image
performance
Detector type Focal Plane Array (FPA), uncooled microbolometer
Detector resolution 256x 192 pixels 384 x 288 pixels
Spectral range 8 to 14 µm
Field of view (FOV) 56°x42° 41.1°x31.1°
Geometric resolution 3.5 mrad 1.89 mrad
Thermal sensitivity ≤ 0.1°C at 30°C 0,05°C at 30°C
Refresh rate 25Hz 50Hz
Focus/ min. focus
distance
fixed/ 0.5m manual/ 0.5m
Visual image
performance
Digital photo camera 2 megapixels
Field of view (FOV) 65°
representation
Display 3.5inch touch LCD, 640x 480 pixels
Zoom 16x infinitely variable digital
Image display Pseudo colours, 8 colour palettes
Image display options IR image, real image, DuoVisionPlus display (overlay of infrared and real images in random intensities),
DuoVisionPlus display (fusion of infrared and real image as contour-accentuated detail-enhanced
thermogram), picture-in-picture, auto fusion, zoom
Measurement and
analysis
Measuring spots 1centre spot, 3movable temperature measuring spots (can be freely configured)
Measuring functions Isotherm, line profile analysis, sector analysis (rectangle), various alarm functions, Min/Max temperature
tracking (hot/cold spot), measurements at up to 3temperature measuring points
Area measurement 3 areas
Degree of emission User-defined variably adjustable from 0.01 to 1.0
Measurement correction Emissivity, reflected object temperature, ambient temperature, relative humidity level, object distance
Data storage Memory 3.4GB internal eMMC memory
(> 60minutes video/6000images) plus 16GB microSDcard
Video file format MPEG-4, 640x 480pixels at 30fps
Image file format JPEG or HIRfiles with measurement data; simultaneous saving of IR and real image possible
Interfaces USB type C, Wi-Fi 802.11
Power supply Battery type Li-ion battery (2,600mAh); rechargeable, exchangeable
Operating time approx. 4h
Mains power 5 V, 2.4 A
Energy saving mode User-defined
Ambient conditions Operating and storage
temperature
-15°C to +50°C, -40°C to +70°C (without battery)
Humidity 10% to 90% RH (non-condensing)
Type of protection IP54
Impact resistance
(falling from)
2 m
Dimensions Dimensions 96x 77x 224mm
Weight 500g
Tripod thread ¼inch

EN 7
thermal imaging camera IC200 / IC300
Scope of delivery
• 1x Thermal imaging camera
• 1x USB power adapter
• 1x Battery charging station (IC300 only)
• 1 x USB cable
• 1 x Wrist strap
• 1 x microSDcard
• 1 x Software (via download)
• 1 x Transport case
• 1x Quick guide
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
For transporting the device, use the transport case included in
the scope of delivery in order to protect the device from external
influences.
The supplied Li-ion batteries are subjects to the requirements of
dangerous goods legislation.
Observe the following when transporting or shipping Li-ion
batteries:
• The user may transport the batteries by road without any
additional requirements.
• If transport is carried out by third parties (e.g. air transport
or forwarding company), special requirements as to
packaging and labelling must be observed. This includes
consulting a dangerous goods specialist when preparing
the package.
– Only ship batteries if their housing is undamaged.
– Mask open terminals with tape and pack the battery in
a way that it cannot move inside the packaging.
– Please also observe any other national regulations.
Storage
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• protected from dust and direct sunlight
• For storing the device, use the transport case included in
the scope of delivery in order to protect the device from
external influences.
• the storage temperature complies with the values specified
in the Technical data
• Battery/Batteries removed during prolonged storage
Operation
Inserting the microSD memory card
The microSD memory card can be used to extend the device's
internal memory in order to store images and videos.
Please proceed as follows to insert the microSD memory card:
1. Open the rubber cover on the top of the device(1).
2. Push the microSDcard into the slot(13) until it clicks into
place.
ðThe microSD indication(27) appears on the display.
3. Close the rubber cover(1).
Inserting/changing the battery
Note
Make sure that the surface of the device is dry and the
device is switched off.
1. If applicable, remove the empty battery. To do so, press
the clamps on both sides(4) and pull out the battery(11).
4
11
2. Charge the battery as described in the section Charging
the battery in the Maintenance chapter.
3. Reinsert the charged battery until it perceptibly clicks into
place.
11

8 EN
thermal imaging camera IC200 / IC300
Switching the device on
1. Remove the protective cap from the IRlens.
2. Press the Powerbutton(18) for approx.3seconds.
ðThe Trotec logo appears on the display.
ðThe real image is displayed.
3. Wait a moment until the device has started up completely.
ðThe IRcalibrating indication briefly appears on the
display.
ðAfter calibration, a current IRimage appears in the
display and the main menu is displayed.
Manually focussing (IC300 only) and calibrating the
IRcamera
Info
An image that is not sharply focussed leads to
deviations in the temperature measurement!
1. Turn the focus ring(7) to the left or right until the object to
be thermographed is sharply focussed.
ðThe internal shutter of the IR camera closes briefly and
an automatic adjustment (calibration) to the
temperatures in the image section is performed.
ðThe automatic adjustment is performed at regular
intervals.
Freezing the camera image
The camera image can be paused and released as follows:
1. Pull the trigger(9).
ðThe image is frozen and the menu for saving opens.
2. Pull the trigger(9) again.
ðThe display shows the current, movable camera image
again.
Taking/recording an infrared image/video
Please proceed as follows to record and save an image:
1. Pull the trigger(9).
ðThe image is frozen and the menu for saving opens.
ðYou can add text or edit the image settings before
saving.
2. Use the Right arrow button(19) and the Left arrow
button(22) to navigate to the Add text button(35) and add
the desired text. Confirm with theMenu/OK button(20) or
touch the button on the display.
34
35
3. Use the other menus as described in the Software chapter
to edit the image if necessary.
4. Use the Right arrow button(19) and the Left arrow
button(22) to navigate to the Save button(34) and confirm
with the Menu/OK button(20) or touch the button on the
display.
ðThe image is saved with the desired settings.
Please proceed as follows to record and save a video:
1. Pull and hold the trigger(9) for approx. 2seconds.
ðThe image and sound recording is started.
2. Briefly pull the trigger(9).
ðThe recording is saved.

EN 9
thermal imaging camera IC200 / IC300
Setting the temperature scale
You can adjust the temperature scale and thus control the
display of the current camera image. You can choose from the
following options:
• Manual (MANUAL): The user can determine the limit
measuring points and thus the temperature scale
independently. This option helps you visualize even small
temperature differences (see chapter "Thermography
terms").
• Automatic (AUTO): The device constantly adjusts the
temperature span automatically. The relation of
temperature and colour is linear.
• Histogram (HG): The infrared image is enhanced by means
of special algorithms emphasizing the colour differences.
The relation of temperature and colour is not linear.
1. To set the temperature scale manually, tap the
Temperature scale indication (31) until "MANUAL"
appears.
ðA lock icon appears next to the number in the Upper
measuring point indication(30) and Lower measuring
point indication(32).
2. Tap the Upper measuring point indication(30) or Lower
measuring point indication(32) and select the upper or
lower measured value. To do so, tap the arrows to the right
and left of the value or use the Right arrow button(19) and
Left arrow button(22).
3. Tap on a free area next to the settings window to close the
settings window.
ðThe upper or lower measured value is set.
4. Tap the Temperature scale indication(31) again to set the
temperature scale automatically.
ðThe Temperature scale indication(31) shows "AUTO".
ðAn "A" appears next to the number in the Upper
measuring point indication(30) and Lower measuring
point indication(32).
5. Tap the Temperature scale indication(31) again to switch
to histogram display.
ðThe Temperature scale indication(31) shows "HG".
ðAn "H" appears next to the number in the Upper
measuring point indication(30) and Lower measuring
point indication(32).
Info
By briefly pressing the Power button(18) you can
quickly switch between the "MANUAL" and "AUTO"
scales while viewing the current IRimage.
Playing back images and videos
In playback mode, you can view and edit stored images and
videos. To do so, please proceed as follows:
1. Press the Playbutton(23) to open the playback mode.
2. Tap the arrows on the left and right of the display to scroll
through the stored images and videos.
ðThe Sequence number indication(37) shows the
number of the stored file.
In playback mode, you have the following options:
36 37 38 39 40
41
No. Button
36 Exit playback mode
38 Edit image
39 Show information on image/video
40 Delete image/video
41 Play video

10 EN
thermal imaging camera IC200 / IC300
1. Press the Play video button(41) to play a video. Press the
button again to pause the video.
2. Press the Edit image button(38) to edit a stored image.
ðYou have the same options as for a newly taken image
(see section Taking/recording an infrared image/video
and chapter Software).
3. Press the Info button(39) to display more detailed
information on the image/video.
ðThe recording date, time and thermal resolution are
displayed.
4. Press the Delete button(40) to delete the image/video.
5. Press the Exitbutton(36) to exit the playback mode.
Data transfer via USB
You can either access the microSD memory card inserted in the
device using a USB-C data cable, or transfer the data to the
optionally available IR-ReportNG PCsoftware in real time and
thus record fully radiometric infrared videos.
To do so, first select the desired transmission mode in the
settings:
•PC Connection (data memory access)
•PC Camera (real-time data transmission to software)
1. Press the Menu/OKbutton(20).
ðThe main menu will be displayed.
2. Select the Device Setting menu.
3. Select the submenu USB Mode.
4. Select the desired transmission mode.
5. Connect the supplied USB-Cdata cable to the device's
USB-Cport(12).
6. Connect the data cable to a PC or notebook.
7. Use the Menu/OK button(20) to confirm the connection or
tap the OK button.
ðIn PC Connection transmission mode, the display shows
USB CONNECTED.
ðIn PC Camera transmission mode, the current camera
image is displayed.
Info
To view the real-time images in the IR-ReportNG
PCsoftware, please follow the instructions in the
software documentation.
Switching the device off
1. Press the Power button(18) for approx. 3seconds.
2. Confirm the prompt with the Menu/OK button(20) or tap
the OK button.
ðThe device will be switched off.
If desired, the device will switch off automatically after a preset
time. This time can be set in the submenu Auto Power Off (see
chapter Software).

EN 11
thermal imaging camera IC200 / IC300
Software
You can navigate through the device's software using both the
control panel buttons and the touch display.
Main menu
To open the main menu, press the Menu/OK button(20) or tap
on the display.
The main menu consists of the following menus:

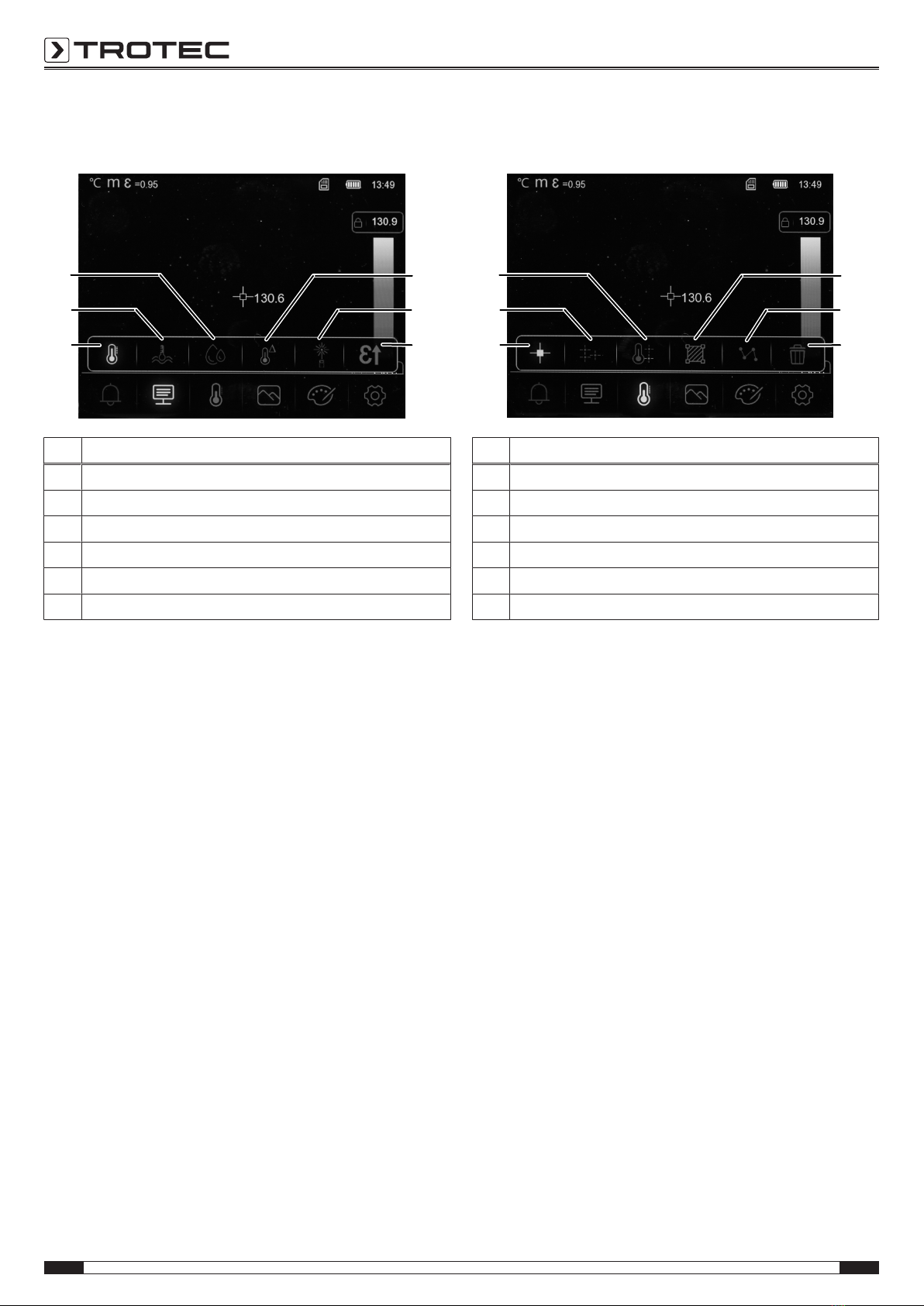

42 43 45 46 4744
No. Menu
42 Alarm
43 Parameters
44 Measurements
45 Image Mode
46 Display
47 Device Setting
Navigation in the Alarm, Parameters, Measurements, Image
Mode and Display menus
You can select the menus and submenus either using the
control panel buttons or the touch display.
• Use the Right arrow button(19) and the Left arrow
button(22) to navigate to the desired submenu. Then press
the Up arrow button(17) to open a menu/submenu and the
Down arrow button(21) to close a menu/submenu. If
necessary, use the Right arrow button(19) and the Left
arrow button(22) to set the desired value.
• Tap the icon of the desired menu/submenu on the display
to open the menu/submenu and tap in the centre of the
display to close the menu/submenu. If necessary, set the
desired value by scrolling or touching the arrows on the
display.
Navigation in the Device Setting menu
The submenus of the Device Setting menu are controlled
differently from the other menu options:
• Use the Up arrow button(17) and the Down arrow
button(21) to navigate to the desired submenu or press
the Menu/OK button(20) to open the submenu. Press the
Left arrow button(22) to exit the submenu.
• Tap the desired submenu to open it. Tap the arrow in the
upper left corner of the display to exit the submenu again.
Alarm menu
The following settings can be made in this menu:
48 49
No. Submenu
48 Below alarm
49 Above alarm
Please proceed as follows to set an alarm.
1. From the main menu, select the Alarm menu(42).
2. Choose between the options Below alarm(48) and Above
alarm(49).
3. Set the desired value.
ðIn the Display menu you can adjust the colour display
for falling below and exceeding the alarm thresholds.
4. Exit the menu.
ðAll set values are saved.

12 EN
thermal imaging camera IC200 / IC300
Parameters menu
The following settings can be made in this menu:
50
51
52
53
54
55
No. Submenu
50 Infrared compensation
51 Distance
52 Emissivity
53 Ambient temperature
54 Reflection temperature
55 Humidity
Please proceed as follows to make the individual settings:
1. From the main menu, select the Parameters menu(43).
2. Select the desired setting.
3. Set the desired value.
4. If necessary, open another submenu by exiting the first
submenu and then navigating to the respective submenu.
ðAll set values are saved. In the next submenu, new
values can be set.
5. Exit the menu.
ðAll set values are saved.
Measurements menu
The following settings can be made in this menu:
56
57
58
61
60
59
Item Submenu
56 Area
57 Line
58 No measurement (delete all measuring tools)
59 Centre spot
60 Measuring point
61 High/Low (min./max. temperature)
1. From the main menu, select the Measurements menu(44).
ðYou can now choose between the submenus.
Showing the centre spot
1. Select the submenu Centre spot(59).
ðA centre spot appears in the middle of the display.
Setting a measuring point
1. Select the menu Measuring point(60).
ðA measuring point appears on the display.
ðAn acoustic signal is emitted.
ðNext to the measuring point, a number (e.g. P1) and the
current temperature are displayed, provided that this
was set in the general settings for this point.
2. Tap the measuring point and drag it to the desired position.
ðThe currently active measuring point is highlighted in
grey.
3. Add one or two measuring points by pressing the Menu/OK
button(20) or tapping the Measuring point icon(60).
ðYou can set up to three measuring points if needed.
4. To delete the measuring point, tap and hold it. The query
Delete Spot? appears. Select the Delete All or Delete
button.
Showing the minimum/maximum value
1. Open the submenu High/Low(61).
ðThe highest and lowest measured values are shown
next to the corresponding measuring points on the
display.

EN 13
thermal imaging camera IC200 / IC300
Creating an area
1. Open the submenu Area(56).
ðAn area appears on the display.
2. Tap the middle of the area and drag it to the desired
position.
3. Tap the corners of the area to increase or reduce the size
of the area.
4. Add one or two areas by pressing the Menu/OK button(20)
or tapping the Area icon(56).
ðYou can add up to three areas if needed.
5. To delete the area, tap and hold it. The query Delete Area
Box? appears. Select the Delete All or Delete button.
Activating a line
1. Open the submenu Line(57).
ðA horizontal line and the temperature profile along this
line are displayed.
2. When the line is activated, press the Up arrow button(17)
or the Down arrow button(21) or tap the line and drag it up
or down.
3. Move the measuring point on the line with your finger.
4. Add a vertical line by pressing the Menu/OK button(20) or
tapping the Line icon(57).
5. To delete the line, tap and hold it. The query Delete Line?
appears. Select the Delete button.
Hiding all measuring tools
1. Select the submenu No measurement(58).
ðAll previously set measuring tools will be hidden.
Image Mode menu
The following settings can be made in this menu:
62
63
66
65
64
No. Submenu
62 Auto fusion
63 Zoom
64 Thermal image
65 Fusion
66 Camera
1. From the main menu, select the Image Mode menu(45).
ðYou can now choose between the submenus.
Showing the thermal image
1. Open the submenu Thermal image(64).
ðThe infrared camera image is shown on the display.
Setting the fusion value
1. Open the submenu Fusion(65).
2. Set the desired value.
ðDepending on the setting selected, part of the display is
shown as a real image and the remaining part as an
infrared image.
Activating the camera image
1. Open the submenu Camera(66).
ðThe real image of the camera is shown on the display.
Setting auto fusion
1. Open the submenu Auto fusion(62).
ðThe infrared image is highlighted with contour lines
from the digital image to increase its contrast. The
device calculates the ratio of the image parts
automatically.
Setting the zoom
1. Open the submenu Zoom(63).
2. Set the desired value.
ðYou can continuously set a zoom of up to 16x.
ðThe image on the display is enlarged by the value set.

14 EN
thermal imaging camera IC200 / IC300
Display menu
In this menu, you can select the colour palette for the display of
the infrared image and adjust the display for falling below and
exceeding the alarm values.
67
68
69
78
77
76
75 70
71
7273
74
Please proceed as follows to select the colour palette of the
infrared image:
1. From the main menu, select the Display menu(46).
2. Select one of the following colour palettes:
No. Submenu
67 Black hot
68 Brown hot
69 Blue red
74 Feather
75 Hot cold
76 Iron
77 Rainbow
78 White hot
Please proceed as follows to adjust the display for falling below
and exceeding the alarm values:
1. From the main menu, select the Display menu(46).
2. Select one of the following alarm value displays:
No. Submenu Display
70 Vision zone The areas whose temperature is
between the set alarm values are
displayed as an infrared image using the
selected colour palette. The remaining
image is displayed as a real image.
71 Zone alarm The areas whose temperature is
between the set alarm values are shown
in yellow. The remaining image is shown
in grey.
72 Below alarm The areas whose temperature falls
below the set alarm value are shown in
blue. The remaining image is shown in
grey.
73 Above alarm The areas whose temperature exceeds
the set alarm value are shown in red.
The remaining image is shown in grey.
Setting menu
The following settings can be made in this menu:
79
80
81

EN 15
thermal imaging camera IC200 / IC300
Submenu Setting Option/function
Device
Setting(79)
USB Mode PC Connection, PC Camera
Brightness Continuously 0–100%
WIFI On/Off
Time/Date Date/time
Language Traditional Chinese, English,
German, Spanish, French,
Italian, Japanese, Korean,
Dutch, Turkish, Simplified
Chinese, Portuguese, Polish
Auto Power Off Off/5min./10min./15min./
30min.
About Information about the device
(manufacturer, production
date, serial number,
software, memory space)
Measure
Setting(80)
Max Temp On/Off
Min Temp On/Off
Distance Unit m/ft
Temp. Unit °C/°F/K
Temp. Range -20 to 150°C/50 to 550°C
Emissivity Available options: water,
stainless steel, aluminium
plate, asphalt, concrete,
cast iron, rubber, wood,
brick, tape, brass plate,
human skin, PVC plastic,
polycarbonate, oxidized
copper, rust, paint, soil
Alarm mode OFF/Above alarm/
Below alarm/Zone alarm
Shutter period Auto/1min./3min./5min./
10min./15min./30min./
OFF
Image Align Alignment of image overlay/
contour lines of digital and
infrared image
Reset(81)Format Memory Delete all saved files
Default settings Delete all saved settings,
import factory settings
Device Setting
1. From the main menu, select the Setting menu(47).
2. Open the submenu Device Setting(79) and make the
following settings.
Selecting the USB mode
To select the USB mode, please proceed as described in the
section "Data transfer via USB".
Setting the brightness
Please proceed as follows to adjust the brightness of the
display:
1. Open the submenu Brightness.
2. Press and hold the Up arrow button(17) to decrease the
brightness or the Down arrow button(21) to increase the
brightness.
Alternatively, you can move the slider on the display with
your finger to set the desired brightness.
ðThe brightness of the display changes continuously
during the setting.
Switching Wi-Fi on/off
Please proceed as follows to switch on Wi-Fi for connection to
the free Trotec app MultiMeasure Mobile.
1. Open the submenu WIFI.
2. Press the Menu/OK button(20) or move the slider of the
WIFI option to switch Wi-Fi on or off.
ðIn addition, the SSID and the Wi-Fi password are
displayed.
Setting the date and time
Please proceed as follows to set the date and time for the
system and the time stamp on the images/videos:
1. Open the submenu Time/Date.
2. Select the desired date.
3. Select the desired time.
4. Tap the Set date button to confirm the selection.
ðDate and time have been set.
ðThe time is shown in the Time indication(29).
Selecting a language
Please proceed as follows to set the language for the menu
texts:
1. Open the submenu Language.
2. Navigate to the desired language.
ðA frame is displayed around the currently selected
language.
3. Confirm the selection with the Menu/OKbutton(20).
ðAll menu text are displayed in the set language.

16 EN
thermal imaging camera IC200 / IC300
Setting the automatic switch-off
Please proceed as follows to activate or deactivate the
automatic switch-off of the device or to set the time until
automatic switch-off:
1. Open the submenu Auto Power Off.
2. Select the desired option.
3. Confirm the selection with the Menu/OKbutton(20).
ðThe option for automatic switch-off is set.
Device information
Please proceed as follows to view information about the device:
1. Open the submenu About.
ðThe following information about the device is displayed:
- manufacturer
- production date
- serial number
- software version
- memory space
Measure Setting
1. From the main menu, select the Setting menu(47).
2. Open the submenu Measure Setting(80) and make the
following settings.
Setting the maximum and minimum temperature display
Please proceed as follows to show or hide the maximum and
minimum temperatures:
1. Open the submenu Max Temp or Min Temp(89).
2. Press the Menu/OK button(20) or move the slider of the
desired option to show or hide the maximum/minimum
values.
3. Confirm the selection with the Menu/OKbutton(20).
ðThe option for showing or hiding the maximum and
minimum temperature is set.
Selecting the distance unit
Please proceed as follows to select the unit for distances:
1. Open the submenu Distance Unit.
2. Select the desired option.
3. Confirm the selection with the Menu/OKbutton(20).
ðThe distance unit is set.
ðThe distance unit is shown in the Distance unit
indication(25).
Selecting the temperature unit
Please proceed as follows to select the unit for the temperature:
1. Open the submenu Temp. Unit.
2. Select the desired option.
3. Confirm the selection with the Menu/OKbutton(20).
ðThe temperature unit is set.
ðThe temperature unit is shown in the Temperature unit
indication(24).
Selecting the temperature scale
Please proceed as follows to select the scale to be used by the
device for measuring the temperature:
1. Open the submenu Temp. Range.
2. Select the desired option.
3. Confirm the selection with the Menu/OKbutton(20).
ðThe temperature scale is set.
Selecting the emissivity
Info
Observe the information in the chapter Emissivity when
selecting the emissivity!
Please proceed as follows to select the emissivity:
1. Open the submenu Emissivity.
2. Select the desired option.
3. Confirm the selection with the Menu/OKbutton(20).
ðThe emissivity is set.
ðThe emissivity is shown in the Emissivity indication(26).
Setting the alarm mode
Please proceed as follows to enable and disable or to select the
alarm mode:
1. Open the submenu Alarm mode.
2. Select the desired option.
3. Confirm the selection with the Menu/OKbutton(20).
ðThe alarm mode is set.
Setting the recalibration
Please proceed as follows to set the time interval at which the
device should recalibrate the infrared image:
1. Open the submenu Shutter period.
2. Select the desired option.
3. Confirm the selection with the Menu/OKbutton(20).
ðThe recalibration is set.

EN 17
thermal imaging camera IC200 / IC300
Aligning the camera image
Note
For a good result, make sure that the infrared image is
superimposed as precisely as possible on the contour
lines resulting from the digital image. Note that the
aperture angles of the infrared and digital camera are
different and therefore an exact overly of all objects at
all distances is naturally impossible.
Please proceed as follows to align the image overlay/contour
lines of the digital and infrared image:
1. Open the submenu Image Align.
ðThe current camera image is displayed.
2. Either use the Up(17), Down(21), Right(19) and Left(22)
arrow buttons or tap on the arrows on the display to align
the image.
ðThe camera image is shifted in the desired direction.
3. Confirm the selection with the Menu/OKbutton(20).
ðThe camera image is aligned.
Reset
Info
Save important images and videos externally before
formatting the device's memory!
1. From the main menu, select the Setting menu(47).
2. Open the submenu Reset(81) and make the following
settings.
Format Memory
Select this option to format the memory of the device. All saved
files will be deleted.
Default settings
Select this option if you want to restore the original settings of
the device. All device settings made will be deleted.
PC software
Use the IR-Report NG PCsoftware (download) included in the
scope of delivery to carry out a detailed analysis and
visualisation of your measured results. You can only use all
configuration, visualisation and functional options of the device
when using this PCsoftware.
Installation requirements
Make sure that the following minimum requirements for
installing the IR-Report NG PCsoftware are fulfilled:
• Supported operating systems (32 or 64bit version):
– Windows7
– Windows8
– Windows10
– Windows11
Installing the PC software
The PCsoftware can be downloaded and installed as follows:
1. Visit the website uk.trotec.com.
2. Click on Products & Services.
3. Click on Services and on Downloads.
4. Then select Software in the category menu.
5. Select the IR-Report NG PCsoftware from the list.
6. Double-click on the downloaded file to start the
installation.
7. Follow the instructions of the installation wizard.
Starting the PC software
1. Connect the activated device and your PC with the
USBconnection cable included in the scope of delivery or
read out the SDcard included in the scope of delivery with
a corresponding card reader. Then transfer the desired
data to your PC.
Info
Information regarding the use of the IR-Report NG
software is provided in the help text of the software.

18 EN
thermal imaging camera IC200 / IC300
Emissivity
The emissivity is used to describe the energy radiation
characteristic of a material (see also chapter Thermography
terms).
A material's emissivity depends on various factors:
• composition,
• surface condition,
• temperature.
The emissivity can range between 0.01 and 1 (in theory). The
following rule of thumb can be assumed:
• When a material is rather dark and its surface texture matt,
it probably has a high emissivity.
• The brighter and smoother the surface of a material, the
lower will be its emissivity, presumably.
• The higher the emissivity of the surface to be measured,
the better it is suited for non-contact temperature
measurement by use of a pyrometer or thermal imaging
camera, since falsifying temperature reflections can be
neglected.
Entering an emissivity as accurate as possible is indispensable
for a precise measurement.
Most organic materials have an emissivity of 0.95. Metals or
shiny materials come with a much lower value.
Material Temperature
(°C)
Emissivity
(approximate)
Aluminium
Polished aluminium 100 0.09
Customary aluminium
foil
100 0.09
Electrolytically
chromium-plated
aluminium oxide
25 – 600 0.55
Mild aluminium oxide 25 – 600 0.10 – 0.20
Strong aluminium
oxide
25 – 600 0.30 – 0.40
Iron
Polished cast iron 200 0.21
Processed cast iron 20 0.44
Polished tempered
iron
40 – 250 0.28
Polished steel ingot 770 – 1040 0.52 – 0.56
Raw, welded steel 945 – 1100 0.52 – 0.61
Surface iron oxide 20 0.69
Fully rusted surface 22 0.66
Rolled iron plate 100 0.74
Oxidized steel 198 – 600 0.64 – 0.78
Material Temperature
(°C)
Emissivity
(approximate)
Cast iron
(oxidizing at 600 °C)
198 – 600 0.79
Steel
(oxidizing at 600 °C)
125 – 520 0.78 – 0.82
Electrolytic iron oxide 500 – 1200 0.85 – 0.95
Iron plate 925 – 1120 0.87 – 0.95
Cast iron, heavy iron
oxide
25 0.80
Tempered iron, iron
oxide
40 – 250 0.95
Melting surface 22 0.94
Molten cast iron 1300 – 1400 0.29
Molten structural steel 1600 – 1800 0.28
Liquid steel 1500 – 1650 0.28
Pure iron ore 1515 – 1680 0.42 – 0.45
Galvanized, shiny iron
plate
28 0.23
Copper
Copper oxide 800 – 1100 0.13 – 0.16
Copper mirror 100 0.05
Strong copper oxide 25 0.078
Liquid copper 1080 – 1280 0.13 – 0.16
Brass
Brass mirror 28 0.03
Brass oxide 200 – 600 0.59 – 0.61
Chromium
Polished chrome 40 – 1090 0.08 – 0.36
Gold
Gold mirror 230 – 630 0.02
Silver
Polished silver 100 0.05
Nickel
Nickel chromium
(heat-resistant)
50 – 1000 0.65 – 0.79
Nickel chromium alloy 50 – 1040 0.64 – 0.76
Nickel chromium
alloyed (heat-
resistant)
50 – 500 0.95 – 0.98
Nickel silver alloy 100 0.14
Polished, galvanized 25 0.05
Galvanized 20 0.01
Nickel wire 185 – 1010 0.09 – 0.19

EN 19
thermal imaging camera IC200 / IC300
Material Temperature
(°C)
Emissivity
(approximate)
Lead
Pure lead
(not oxidized)
125 – 225 0.06 – 0.08
Stainless steel
18 -8 25 0.16
304 (8Cr, 18Ni) 215 – 490 0.44 – 0.36
310 (25Cr, 208Ni) 215 – 520 0.90 – 0.97
Tin
Finished tin plate 100 0.07
Heavily oxidized 0 – 200 0.60
Zinc
Oxidizing at 400°C 400 0.01
Zinc oxide ash 25 0.28
Magnesium
Magnesia 275 – 825 0.20 – 0.55
Metallic materials
Hg 0 – 100 0.09 – 0.12
Sheet metal 0.88 – 0.90
Non-metallic materials
Brick 1100 0.75
Fire brick 1100 0.75
Graphite (lamp black) 96 – 225 0.95
Porcelain enamel
(white)
18 0.90
Asphaltum 0 – 200 0.85
Glass (surface) 23 0.94
Lime paint 20 0.90
Oak 20 0.90
Piece of coal 0.85
Isolation piece 0.91 – 0.94
Glass tube 0.90
Porcelain enamel
products
0.90
Porcelain enamel
designs
0.83 – 0.93
Solid materials 0.80 – 0.93
Ceramic (vase) 0.90
Film 0.90 – 0.93
Heat-resistant glass 200 – 540 0.85 – 0.95
Mica 0.94 – 0.95
Glass 0.91 – 0.92
Level chalk layer 0.88 – 0.93
Material Temperature
(°C)
Emissivity
(approximate)
Epoxy glass plate 0.86
Epoxy hydroxybenzene
plate
0.80
Electric materials
Semiconductor 0.80 – 0.90
Transistor
(plastic sealed)
0.30 – 0.40
Transistor
(metal diode)
0.89 – 0.90
Gold-plated copper
sheet
0.30
Soldered plated
copper
0.35
Zinc-plated lead wire 0.28
Brass wire 0.87 – 0.88

20 EN
thermal imaging camera IC200 / IC300
Thermography terms
Span (contrast)
If the temperatures in the image are homogenously distributed
and close together, the image might not be very colourful /
contrasty, and the contours might not be easily visible. To
increase the contrast of the image, first go to the MANUAL
display mode (see section "Setting the temperature scale"). The
menu bar at the bottom of the screen must be deactivated.
Point the camera at the area to be examined, hold it steady and
then press the Play button(23) for approx. 1second. The
calibration indicator briefly appears in the display and you can
hear the shutter in the device. This is done to set LEVEL and
SPAN optimally for the selected image section and can be
repeated as often as desired. If you press the Up arrow
button(17) or Down arrow button(21) after these settings, the
set temperature range will be increased or decreased. The
representation of individual thermal areas in the image changes
and becomes more contrasty.
Level (average temperature / temperature level /
brightness)
When changing the span (see Span), it often makes sense to
also adjust or shift the average temperature (Level). If, for
instance, the span is reduced to a minimum first and then the
level of this extremely narrowed temperature range is shifted
up/down (by pressing the right/left arrow button), the image will
become useless even in parts as it will either have a totally
excessive or insufficient contrast. However, this allows you to
visualize even the smallest temperature differences in the object
when traversing the individual temperature sections (e.g. in
underfloor heating).
Emission
Any object whose temperature lies above absolute
zero (-273,15°C) emits heat radiation. Its surface condition
(e.g. colour, structure, material composition etc.) and
temperature, among other things, determine how well the heat
is emitted. The emissivity of an object indicates who much heat
it radiates compared to an ideal black body. An ideal black body
has a theoretical emissivity of 1. Other factors such as
transmission and reflection can be neglected in this ideal case.
In practice, however, this is not possible. Surfaces that strongly
reflect in the visible light spectrum are often also highly
reflective in the infrared spectral range, as is the case with
polished aluminium for instance.
The formula is: transmission + reflection + emission = 1
In most cases, the transmission factor can be neglected. If the
surface to be thermographed is highly reflective, the share of
reflection increases correspondingly and the share of emission
decreases.
Example:
• transmission = 0
• reflection = 0,8
• emission = 0.2
Highly reflective surfaces reflect all temperatures whatsoever
from surrounding heat sources, which are thus indirectly
captured and measured by the thermal imaging camera, while
the surface temperature of the actual measuring object is not
being measured. To overcome this problem, special labels or
sprays with a high defined emissivity are often applied on the
surface to be measured.
The general rule is: The higher the emissivity, the lower the
reflectance, the easier the thermography.
Reflected temperature
The location of heat sources in the surroundings influencing the
measurement and the determination of the average temperature
which is emitted by them and can be reflected by the object to
be thermographed.
