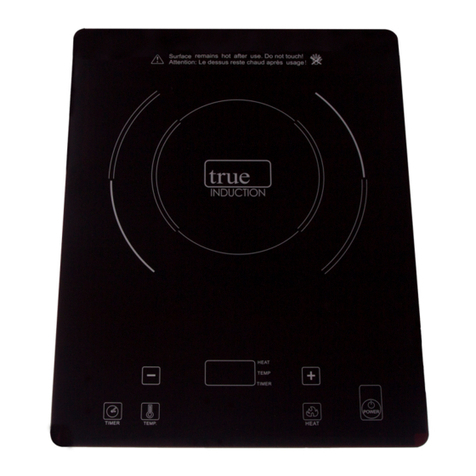

True Induction TI-1B User manual

1
SINGLE BURNER INDUCTION COOKTOP MANUAL
TRUE INDUCTION SINGLE BURNER
INDUCTION COOKTOP MANUAL

2
I.
II.
III.
IV.
V.
VI.
VII.
Cooktop Installation
Important safety Information
Product Specifications
How to Use
> Power Invariance Technology
> Using the Temperature Setting
> Using the Timer Function
> Built-In Safety Shut Off
> Turning Off Unit
Compatible Cookware
Cleaning & Maintenance
Troubleshooting Error Codes
SINGLE BURNER INDUCTION COOKTOP MANUAL
TABLE OF CONTENTS
1-3
4-5
5
6
6
6-7
7
7
7
8
8
9
Thank you for purchasing the True Induction Single Burner TI-1B cook-
top. Please read the entire instruction manual prior to using your unit.
If you have any questions regarding the True Induction cooktop please
visit http://www.Truelnduction.com or call: 1-877-862-7049.

3
SINGLE BURNER INDUCTION COOKTOP MANUAL P.1
11 3/8”
13 3/4”
I. Cooktop Installation
Dimensions and Placement for Cut-out in Countertop



Cut a rectangle hole in the countertop where the cook top is to be placed. The dimensions
for the cut-out are 11 3/8'' x 13 3/4''
The cut-out must be placed at least 2 1/2" from any side of the countertop.
To achieve flush mounting installation, use a router tool to round the corners of the hole cut
into the countertop.




4
SINGLE BURNER INDUCTION COOKTOP MANUAL P.2
I. Cooktop Installation Continued...
First feed the power wire through the hole and to the location of the power receptacle un-
derneath the cabinet.
The 'h'' overhang on the induction cooker comes with pre-installed foam gasket. Peel offthe
adhesive protector on the bottom of the gasket and set the induction cooker into the cut-
out. Gently press down on the induction cook top to secure the adhesive gasket to the coun-
tertop. The cook top should be sitting on the supports previously installed.
For RV use, apply butyl tape instead of the supplied foam tape. Butyl tape will provide ade-
quate adhesion and still allow for removal if the unit needs to be serviced.



5
I. Cooktop Installation Continued...
Clearance Needed for Air Circulation
Below you will see a diagram of the air flow. Be sure not to block either the intake or exhaust
For proper air circulation, allow at least 3" of clearance from the bottom of the induction
cooker to any shelving or storage. The underside of the countertop should not be closed off
from the cabinetry underneath for better air flow.
SINGLE BURNER INDUCTION COOKTOP MANUAL P.3















6
II. Important Safety Information
When using electrical appliances, basic safety precautions should always be followed. For the True
Induction cooker, even with built-in safety features, it is essential to heed all precautions:
When the unit is on, do not touch outside the control panel as the surface may contain residual
heat.
To protect against electric shock, do not immerse cord plugs or cooker in water (or other liquid
substances).
When using any electric appliance used around children, close supervision is strongly suggested.
Do not operate any appliance with a damaged cord or plug, after a malfunction or if it has been
damaged in any manner. Read the seller's guidelines for warranty repairs and returns.
Do not cook on a broken or damaged cooktop as spillovers may penetrate the surface and cre-
ate a risk of electric shock.
To avoid potential injury, do not use accessory attachments which aren't recommended by the
manufacturer.
Do not let the cord dangle over the edge of the table or counter. Keep the cord away from hot
surfaces.
Do not place cooktop on or near: hot gas, electric burner or heated oven.
To prevent accidents and achieve optimal fan ventilation, allow for sufficient space around the
cooking area.
Items with a magnetic field such as: radios, televisions, credit cards, cassette tapes etc., can
affect the unit.
The power cord provided has been sized accordingly, however, with caution and care extension
cords may be used.
a.The marked electrical rating should be at least as great as the electrical rating of the
appliance.
b.The cord should be arranged so that it will not drape over the countertop or tabletop
where it can be pulled on by children or tripped over.
Do not use with empty pans/pots.
Do not place metallic objects such a knives, forks, spoons, lids, cans or aluminum foil on the
cooktop.
To prevent accidents and achieve optimal ventilation, allow for sufficient space around the cook-
ing area.
SINGLE BURNER INDUCTION COOKTOP MANUAL P.4







7
II. Important Safety Information Continued...
This appliance has a polarize plug (one blade is wider than the other). To reduce the risk of
electric shock, the plug will fit on the outlet only one way. If the prongs do not fit fully, re-
verse the plug. If it still does not fit, contact the seller for warranty support; do not attempt
to modify the plug in anyway.
To properly turn offunit press the Power button.
It is important to be aware that the unit's surface will remain hot for a short period of time
after use.
Disconnect power and allow to cool before performing any maintenance or repairs.
Clean cooktop with caution - do not clean while unit is still hot, some cleaners produce
steam or fumes if applied to a heated surface.
Do not use cooktop for any other use then directed by the manufacturer.
SINGLE BURNER INDUCTION COOKTOP MANUAL P.5
1750

8
IV. How to Use
Using the Temperature Setting
Using the +/ - keys you can change the temperature settings at any time. Settings range from
150-450 degrees Fahrenheit. (Exact temperatures: 150, 180, 210, 240, 270, 300, 330, 360, 390,
420 and 450 F).
SINGLE BURNER INDUCTION COOKTOP MANUAL P.6
Plug the power plug into a standard outlet.
All indicators and display will light up once with a Beep sound. Then all indicators won’t light
up before next operation.
The device will remain in standby mode, awaiting user direction.
Place ferromagnetic cookware (with water, oil or food already inside) on the center of the
glass-ceramic top center.
Now press the Power button on the control panel, this will turn the cooktop on. The power
display will light up and sound another indicator.
Press the Heat function key once. The pre-set power level "5" is the default selection as the
device turns on.
Using the +/ - keys you can change the settings at any time, ranging from 1- 10. This is con-
sidered to be the HEAT function.
•
•
•
•
•
•
•




9
IV. How to Use Continued...
Using the Timer Function
Built-In Safety Shut Off
SINGLE BURNER INDUCTION COOKTOP MANUAL P.7
The True Induction cooktop is designed to automatically shut offafter 120 minutes of use.
This built-in auto shut off is a safety feature.
This function occurs for both the HEAT and TEMP settings. Display will show "H" if the
cooking zone is hot.
In the event your food requires further cooking, the unit can easily be turned back on and
re-set to the desired setting
●
●
Lock Mode
Activating the Child Safety Lock
In the standby mode: Press the Lock key for 3 seconds to activate the function, Child Lock
prevents activation of any sensor key, except for the "Lock" key, so you must deactivate the
child lock, then press the "Power" key to turn on the cooktop.
In the cooking mode: Press the Lock key for 3 seconds to activate the function, Child Lock
prevents activation of any sensor key, except for the "POWER" key to turn off the cooktop
and the "Lock" key to deactivate the Lock mode.
Switch Off the Lock
While in Lock mode, press t he Lock key for 3 seconds to deactivate the function. The indica-
tor light will turn off.
After selecting the HEAT or TEMP mode, press the TIMER button once. The display will show
the number "0." Using the +/ - keys you can select the operating time in 5-minute intervals
(up to max 150 min.) and reducing 1 minute.
The display will count down the duration in minutes. Once the time is up, the unit sounds
and automatically goes into standby mode. To continue cooking, press the Power button
and Heat button to restart.
During the timer operation, you can change the timer duration at any time with the arrow
keys. The device's built-in memory maintains the HEAT or TEMP setting previously entered.
You can also change the HEAT or TEMP settings without affecting the current timer setting.
During timer count down,display only shows the HEAT or TEMP settings. User can press the
TIMER button once to check the rest timer, it will show in 5 seconds.
•
•
•
•
•








IV. How to Use Continued...
Turning Off Unit
When you are finished cooking, simply press the Power button to turn off the machine.
Upon completion of cooking, the fan may remain on until the unit is cool.
10
V. Compatible Cookware
Induction requires pots and pans that are made of ferrous (meaning magnetic) materials. Check
your cookware's retail box for the induction symbol. To tell if your current cookware is compati-
ble with the induction technology, grab a magnet and see if it holds. If your magnet stays then
your cookware is ready to be used on the True Induction double burner induction portable
cooktop!
Optimal cookware has a flat bottom and a diameter of 4.72" - 10.24" inches. Round, flat
bottom pans give the best results. Pans with warped or curved bottoms will not heat evenly.
For work cooking, use a flat-bottom wok. Do not use a wok with a support ring. Look for
this induction image on the retail box:
The following are NOT COMPATIBLE:
Heat-resistant glass, ceramic, copper, aluminum pan/pots, round bottomed cookware, or
cookware with a base less than 4.72 inches.
VI. Cleaning & Maintenance
Please follow these directions along with important safety steps for cleaning advised at the begin-
ning of the manual:
Before cleaning always switch OFF the device and wait for it to be completely cool. Clean the unit
after each use to remove food residues.
Wipe off the glass-ceramic plate and the plastic surface with a slightly damp cloth (mico-fiber
works best). Dishwashing soap may be used when necessary.
Make sure that no water seeps into the device. Never use abrasive cleaners (i.e. metal pads) or
oil-based liquids. Never run the cooktop under water.
A vacuum cleaner attachment may be used to suck up dirt from the air intake and exhaust vent.
SINGLE BURNER INDUCTION COOKTOP MANUAL P.8

11
SINGLE BURNER INDUCTION COOKTOP MANUAL 8.15.2023 Verison 1.0.01 P.9
Internal circuit error. Contact manufacturer
Top plate over heat. Please turn off the cooktop to let it cool down.
No cookware found or improper placement of cookware on cooking
zone. Ensure . cookware is centered on cooking zone and that it's
induction compatible -see COMPTIBLE COOKWARE
IGBT (insulated Gate Bipolor Transistor) overheating. Turn off the unit to
allow IGBT to cool Restart unit once cooled.
Supplied voltage to cooktop is too high. This may occur when there is an
increase in voltage supplied to the house circuit. Once the supplied
voltage returns to normal, the code will disappear.
Supplied voltage to cooktop is too low. This may occur when there is an
increase in voltage supplied to the house circuit. Once the supplied
voltage returns to normal, the code will disappear.
Top plate sensor open/short circuit. Turn OFF the cooktop: then shut off
power at the circuit breaker for 30 secs. Turn the power on and press
POWER button to the unit. If error message persists, call for service.
IGBT sensor open circuit/short circuit. Turn OFF the cooktop: then shut
off power at the circuit breaker for 30 secs. Turn the power on and press
POWER button to the unit. If error message persists, call for service.
Error Code
E1
E2
E3
E4
E5
E6
E7
- - -
Cause and Potential Solution
