True TA1F-2HS User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TA1F-2HS
TA1F-2HS
8/07
Designed using the highest quality
materials and components to
provide the user with colder product
temperatures, lower utility costs and
exceptional food safety.
Oversized, factory balanced,
refrigeration system holds -10°F
(-23.3°C) for the best in food
preservation. Ideal for frozen food
and ice cream.
300 series stainless steel exterior
front, sides, back and bottom. The
very finest stainless with higher
tensile strength for fewer dents and
scratches.
NSF approved, white aluminum
interior sides and back liner. 300
series stainless steel door liner and
floor with coved corners.
Adjustable, heavy duty PVC coated
shelves.
Positive seal self-closing doors with
120° stay open feature. Lifetime
guaranteed door hinges.
Lifetime guaranteed recessed door
handles.
Automatic defrost system time-
initiated, temperature-terminated.
Saves energy consumption and
provides shortest possible defrost
cycle.
Entire cabinet structure and solid
doors are foamed-in-place using
high density, CFC free, polyurethane
insulation.
TA Series:
Reach-In Solid Half Door Freezer
R
®
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LDH*
HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TA1F-2HS 2 31
878
329
737
345/8
880
781/4
1988
1/2115/60/1 10.8 5-15P 9
2.74
410
186
* Height does not include 5" (127 mm) for castors, 6" (153 mm) for optional legs, and 1" (26 mm) for system mechanical components.

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TA1F-2HS TFQY50E TFQX72S TFQX60P TFQX723
TA1F-2HS
DESIGN
• True’s solid half door reach-in’s are designed with
enduring quality that protects your long term
investment.
• Designed using the highest quality materials and
components to provide the user with colder product
temperatures, lower utility costs and exceptional
food safety.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary tube
system using environmentally friendly (CFC free)
404A refrigerant.
• Extra large evaporator coil balanced with higher
horsepower compressor and large condenser
maintains -10°F (-23.3°C) cabinet temperature. Ideal
for both frozen foods and ice cream.
• Sealed, cast iron, self-lubricating evaporator fan
motor(s) and larger fan blades give True reach-
in’s a more efficient low velocity, high volume
airflow design. This unique design ensures faster
temperature recovery and shorter run times in the
busiest of foodservice environments.
• Top mounted refrigeration system with evaporator
positioned out of food zone to maximize capacity.
• Automatic defrost system time-initiated,
temperature-terminated. Saves energy consumption
and provides shortest possible defrost cycle.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel doors, front, sides,
back and bottom.
• Interior - NSF approved, white aluminum side walls
and back liner. 300 series stainless door liners and
floor with coved corners.
• Insulation - entire cabinet structure and solid doors
are foamed-in-place using high density, CFC free,
polyurethane insulation.
• Welded, heavy duty galvanized frame rail dipped in
rust inhibiting enamel paint for corrosion protection
inside and out.
• Frame rail fitted with 4" (102 mm) diameter stem
castors - locks provided on front set.
DOORS
• 300 series stainless steel exterior and liners. Doors
open within cabinet dimensions. Door locks
standard.
• Lifetime guaranteed recessed door handles. Each
door fitted with 12" (305 mm) long recessed handle
that is foamed-in-place with a sheet metal interlock
to ensure permanent attachment.
• Positive seal self-closing doors with 120° stay open
feature. Lifetime guaranteed door hinges.
• Magnetic door gasket of one piece construction,
removable without tools for ease of cleaning.
SHELVING
• Three (3) adjustable, heavy duty PVC coated wire
shelves 25
" x 27
3
/ 4 " (635 mm x 705 mm). Four (4)
shelf supports included per shelf. Shelves adjustable
on 6
" increments.
• Four (4) different interior kits available (see Kit
Options). Pilasters and tray slides require field
installation.
LIGHTING
• Incandescent interior lighting - safety shielded lights
activated by rocker switch mounted above top door.
MODEL FEATURES
• Exterior digital temperature display, available with
either °F or °C .
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• Backguard improves airflow.
• Minimum wattage heater in cabinet frame
and door.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and ready
for final connection to a 115/60/1 phase - 15 amp
dedicated outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 6" (153 mm) stainless steel legs.
❒ Stainless steel rail skirt for use with legs (field
installed).
❒ Metal door handles (factory installed).
❒ Novelty baskets.
❒ Additional shelves.
❒ Electronic temperature control (factory installed).
❒ Curb mountable units.
❒ Remote cabinets (condensing unit supplied by others;
system comes standard with 404A expansion valve and
requires R404A refrigerant). Consult factory technical
service department for BTU information.
KIT OPTIONS
Upcharge applies. Lead time may apply.
❒Kit #1: Nine (9) sets of #1 type tray slides and pilasters
(field installed), bottom support of (1) 18"L x 26"D
(458 mm x 661 mm) pan or (2) 14"L x 18"D (356 mm x
458 mm) pans.
❒Kit #2: One (1) set half-section #2 steel rod
tray slides and pilasters (field installed), rim support of
(1) 18"Lx 26"D (458 mm x 661 mm) pan.
❒Kit #3: Six (6) sets of universal type tray
slides and pilasters (field installed), bottom support of
(1) 18"L x 26"D (458 mm x 661 mm) pan,
(2) 14"L x 18"D (356 mm x 458 mm) pans or
(2) 12"L x 20"D (305 mm x 508 mm) pans.
❒ Kit #4: Three (3) chrome shelves (field installed) 25"L
x 273/4"D (635 mm x 705 mm). Four (4) shelf supports
included per shelf. Shelves adjustable on 6" (153 mm)
increments.
Optional wall mounted shelf support
pilasters (field installed) with four (4) shelf clips per
shelf available on
1
/ 2 " (13 mm) increments (must
order at time of cabinet order).
❒ Additional kit option components available
individually.
115/60/1
NEMA-5-15R
TG Series:
Reach-In Solid Half Door
Freezer

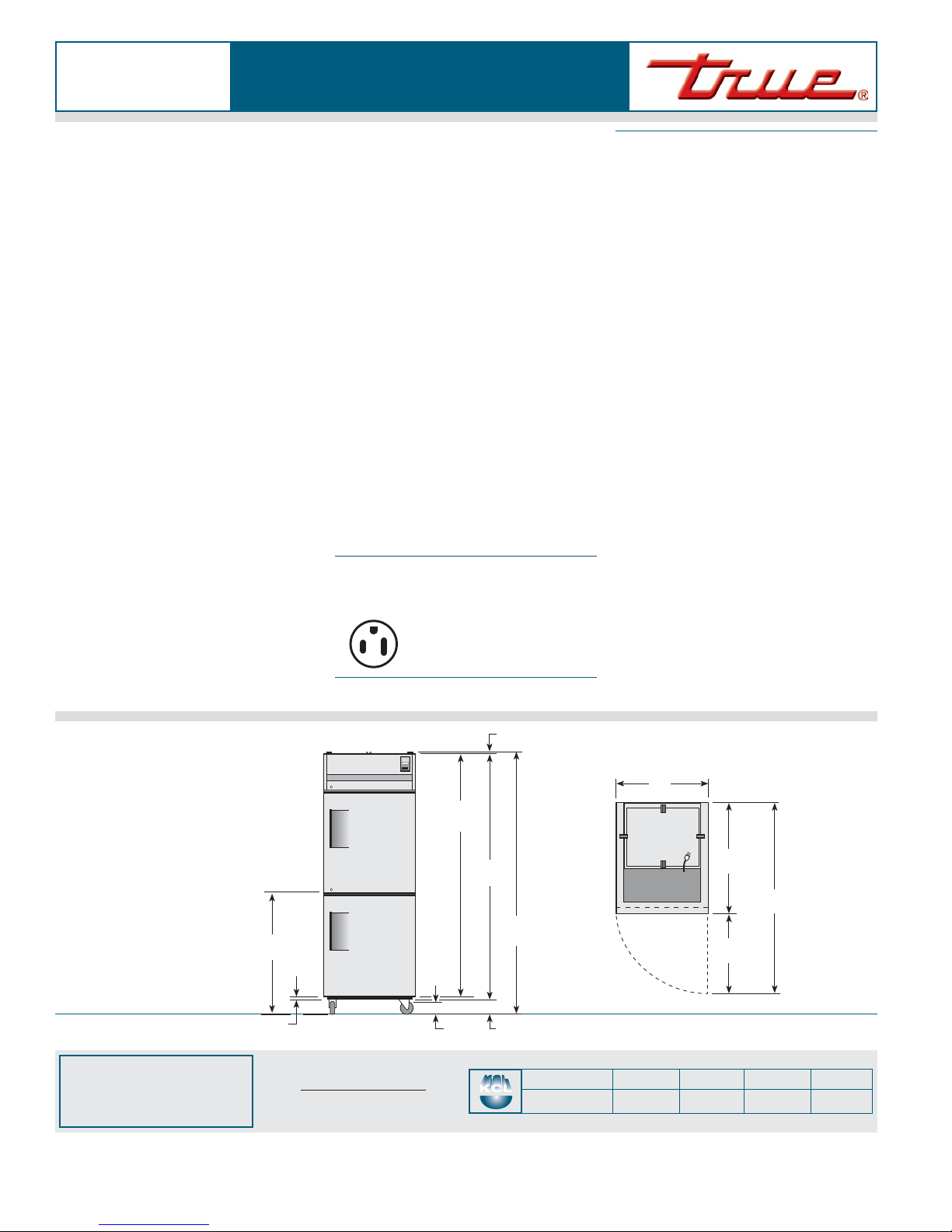

ELEVATION PLAN VIEW
13/16"
(31 mm)
29"
(737 mm)
345/8"
(880 mm)
2623/32"
(679 mm)
6111/32"
(1559 mm)
385/8"
(982 mm)
783/16"
(1986 mm)
843/16"
(2139 mm)
5"
(127 mm)
1"
(26 mm)
77"
(1956 mm)
4"
(102 mm)
