True GDM-72F User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
R
®
GDM-72F
GDM-72F
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†HHP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
GDM-72F 3 72
2039
12 781/8
1985
297/8
759
793/8
2017
11/2
11/2
115/208-230/60/1
230-240/50/1
14.1
13.2
14-20P
▲
9
2.74
880
400
†Depth does not include 11/8" (29 mm) for door handles. ▲Plug type varies by country.
Requires 115/208-230/60 Hz, single phase, 3 pole, 4 wire circuit.
12/05
The world’s #1 manufacturer of glass
door merchandisers.
Designed using the highest quality
materials and components to provide
the user with an attractive, point of
purchase merchandiser that brilliantly
displays frozen food and ice cream,
resulting in high impulse sales.
Oversized, factory balanced,
refrigeration system holds -10°F
(-23.3°C). Ideal for ice cream and
frozen food products.
Exterior - non-peel or chip white
laminated vinyl; durable and permanent.
Interior - attractive, NSF approved,
white aluminum interior liner with
300 series stainless steel floor.
Self closing doors. Positive seal,
torsion type closure system.
Triple pane thermal glass door assemblies
with extruded aluminum frames.
Patented integrated door light (IDL)
system for brighter, shadow free
illumination.
Entire cabinet structure is foamed-
in-place using high density, CFC free,
polyurethane insulation.
Bottom mounted units feature
”No stoop” lower shelf to maximize
product visibility
Storage on top of cabinet.
Easily accessible condenser coil for
cleaning.
Glass Door Merchandiser:
Freezer

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
KCL
Model Elevation Right Plan 3D
PLAN VIEW
GDM-72F TFAY01E TFAY01S TFMY02P TFAY013
GDM-72F
DESIGN
• True’s glass door freezers are designed with
enduring quaility that protects your long
term investment.
• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, and lower utility costs in an
attractive merchandiser that brilliantly displays
frozen food and ice cream.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) R404A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains -10°F (-23.3°C).
• Sealed, cast iron, self-lubricating evaporator
fan motors and larger fan blades give True
merchandisers a more efficient low velocity,
high volume airflow design. This unique
design insures colder standard temperatures
and faster recovery in high use situations.
• Bottom mounted condensing unit positioned
for easy maintenance. “No stoop” lower
shelf maximizes visibility by raising
merchandised product to higher level.
• Automatic defrost system time-initiated,
temperature-terminated. Saves energy
consumption and provides shortest possible
defrost cycle.
CABINET CONSTRUCTION
• Exterior - non-peel or chip white laminated
vinyl; durable and permanent.
• Interior - attractive, NSF approved, white
aluminum liner with 300 series stainless steel
floor.
• Insulation - entire cabinet structure is
foamed-in-place using high density,
CFC free, polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with leg levelers.
• Illuminated exterior sign panel. Variety of
sign options available.
DOORS
• Triple pane thermal glass.
• Each door fitted with 15" (381 mm) extruded
aluminum handle.
• Self closing doors. Positive seal, torsion type
closure system.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Twelve (12) adjustable, heavy duty PVC
coated wire shelves 24
1
/ 8 "L x 20
3
/ 4 "D
(613 mm x 528 mm). Four (4) chrome plated
shelf clips included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on
1
/ 2 " (13 mm) increments.
LIGHTING
• Safety shielded fluorescent interior
lighting. Doors utilize full-length, patented,
integrated door light (IDL) system.
• Cabinet lighting utilizes electronic ballast
and T-8 bulbs for brighter illumination,
longer bulb life and increased energy
efficiency.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• See our website www.truemfg.com for latest
color and sign offerings.
• Backguard and floor rack insures optimum
airflow.
• Listed under NSF-7 for the storage and/or
display of packaged or bottled product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/208-
230/60Hz single phase - 20 amp dedicated
outlet. Cord and plug set included.
OPTIONAL FEATURES / ACCESSORIES
Upcharge and lead times may apply.
❒ 230 - 240V / 50 Hz.
❒Black exterior.
❒Rosewood exterior.
❒Stainless exterior.
❒Black aluminum interior liner with black
shelving.
❒Stainless interior liner.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒2
1
/ 2 " (64 mm) diameter castors.
❒4" (102 mm) diameter castors.
❒Padlock.
❒Additional shelves.
❒1
1
/ 4 " (32 mm) pricing strips.
❒Novelty baskets.
❒Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires 404A
refrigerant). Consult factory technical service
department for BTU information.

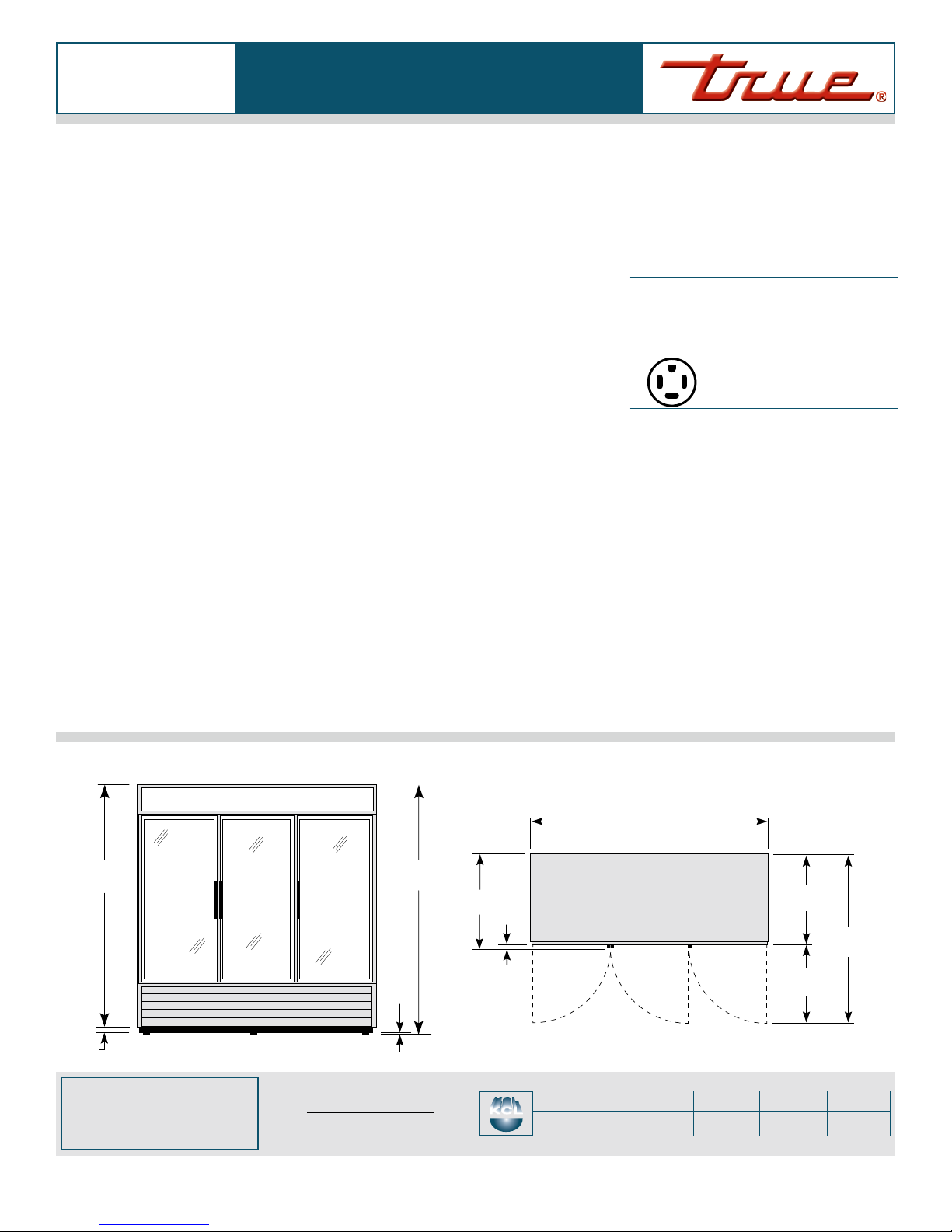

ELEVATION RIGHT VIEW
115/208-230/1
NEMA-14-20R
781/8"
(1985 mm)
3029/32"
(786 mm)
13/32"
(28 mm)
2913/16"
(758 mm)
2313/16"
(605 mm)
535/8"
(1363 mm)
Glass Door Merchandiser:
Freezer
793/8"
(2017 mm)
7615/16"
(1955 mm)
21/8"
(54 mm) 5/16"
(8 mm)
