True TWT-27F User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
AVAILABLE AT:
TWT-27F
TWT-27F
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†H*HP Voltage Amps
NEMA
Config.
Cord Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TWT-27F 1 6.5
185
227
5/8
702
301/8
766
333/8
848
1/3
1/3
115/60/1
230-240/50/1
8.3
3.4
5-15P
▲
7
2.13
195
89
†Depth does not include 1
" (26 mm) for rear bumpers. ▲Plug type varies by country.
*Height does not include 61/4
" (159 mm) for castors or 6 " (153 mm) for optional legs.
12/05
True’s worktop units are
designed with enduring quality
that protects your long term
investment.
Designed using the highest
quality materials and
components to provide the
user with colder product
temperatures, lower utility
costs, exceptional food safety
and the best value in today’s
food service marketplace.
Oversized, environmentally
friendly (R404A) forced-air
refrigeration system holds -10°F
(-23.3°C). Ideally suited for both
frozen foods and ice cream.
All stainless steel front, top
and cabinet ends. Matching
aluminum finished back.
Cabinet top and backsplash -
one piece formed construction.
Bacteria and food particles can
not be trapped underneath as
with other two-piece worktop
units.
Front breathing.
Foamed-in-place, high density
polyurethane insulation
(CFC free).
Heavy duty PVC coated wire
shelves.
Worktop:
Solid Door Freezer
R

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

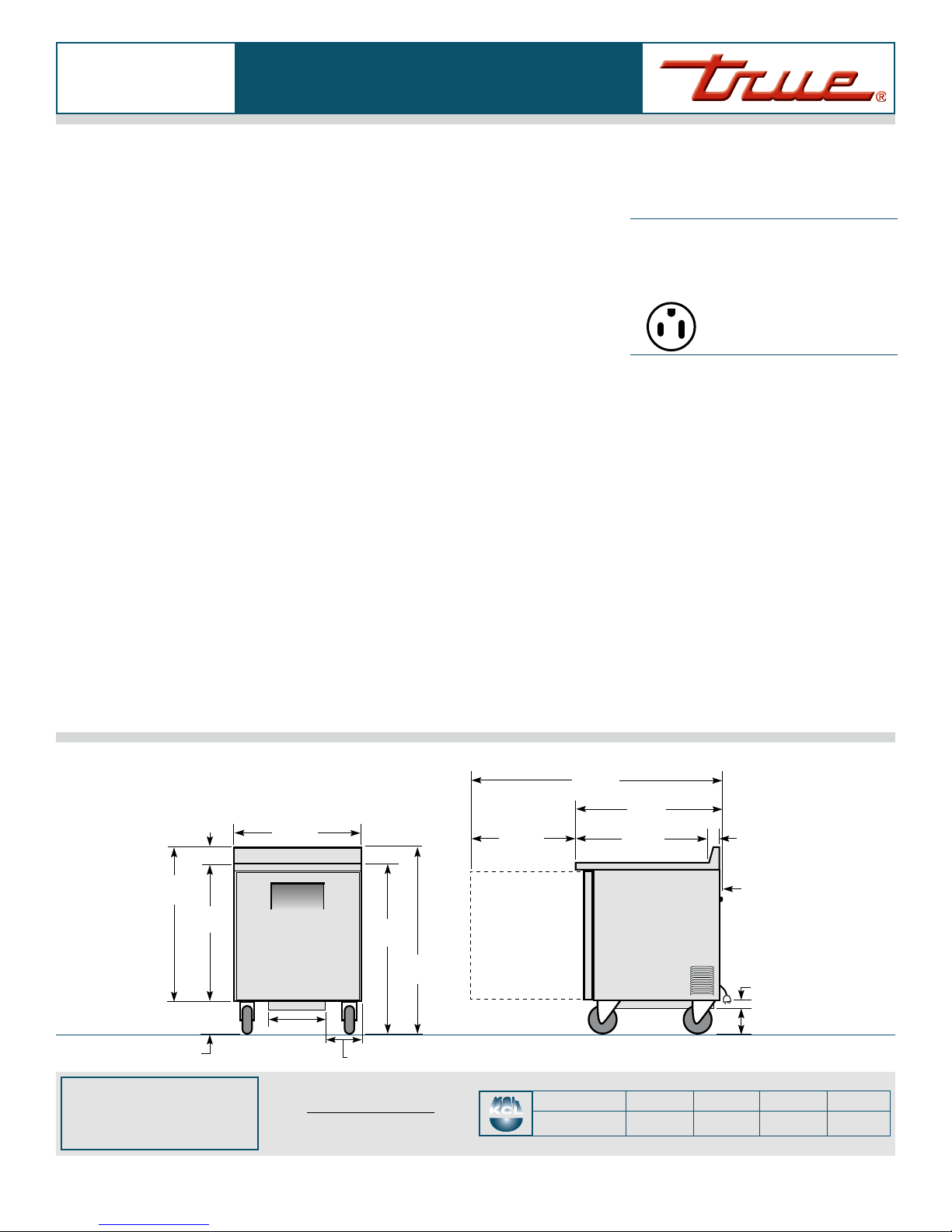

Model Elevation Right Plan 3D
PLAN VIEW
KCL
301/16"
(764 mm)
5529/32"
(1421 mm)
37/8"
(99 mm)
TWT-27F TFPY01E TFPY01S TFPY01P TFPY013
TWT-27F
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures,
lower utility costs, exceptional food
safety and the best value in today’s
food service marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
R404A refrigerant.
• Oversized, factory balanced
refrigeration system with guided
airflow to provide uniform product
temperature.
• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains -10°F
(-23.3°C). Ideal for both frozen foods
and ice cream.
• Sealed, cast iron, self-lubricating
evaporator fan motor and larger fan
blades give True worktop units a more
efficient low velocity, high volume
airflow design. This unique design
insures faster temperature recovery and
shorter run times in the busiest of food
service environments.
• Condensing unit access in back
of cabinet, slides out for easy
maintenance.
• Automatic defrost system time-
initiated, time-terminated.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and
ends. Matching aluminum finished
back. Top and backsplash - one piece
formed construction.
• Interior - attractive, NSF approved,
white aluminum liner. 300 series
stainless floor with coved corners.
• Insulation - entire cabinet structure and
solid door are foamed-in-place using high
density, CFC free, polyurethane insulation.
• 5" (127 mm) diameter stem castors -
locks provided on front set. 36"
(915 mm) work surface height.
DOOR
• Stainless steel exterior with white
aluminum liner to match cabinet
interior.
• Door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place
with a sheet metal interlock to insure
permanent attachment.
• Positive seal self-closing door with 90°
stay open feature. Door swings within
cabinet dimensions.
• Magnetic door gasket of one piece
construction, removable without tools
for ease of cleaning.
SHELVING
• Two (2) adjustable, heavy duty PVC
coated wire shelves 231/4"L x 16"D
(591 mm x 407 mm). Four (4) chrome
plated shelf clips included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory
and ready for final connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
❒ 230 - 240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 21/2" (64 mm) diameter castors.
❒ Basic overshelf.
❒ Single utility shelf.
❒ Double utility shelf.
❒ 281/4" (718 mm) deep, 1/2" (13 mm)
thick, white polyethylene cutting
board. Requires “L” brackets.
❒ 281/4" (718 mm) deep, 1/2" (13 mm)
thick, composite cutting board.
Requires “L” brackets.
❒ Additional shelves.
❒ Heavy duty, 16 gauge tops.
❒ ADA compliant models with 34"
(864 mm) work surface height.
❒ Remote cabinets (condensing unit
supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant).
Consult factory technical service
department for BTU information.
115/60/1
NEMA-5-15R
ELEVATION RIGHT VIEW
2427/32"
(632 mm)
283/32"
(714 mm)
1"
(26 mm)
Worktop:
Solid Door Freezer
131/32"
(51 mm)
39/16"
(91 mm)
125/8"
(321 mm)
75/16"
(186 mm)
279/16"
(701 mm)
293/4"
(756 mm)
391/2"
(1004 mm)
63/16"
(158 mm)
3515/16"
(913 mm)
25/16"
(59 mm)
335/16"
(847 mm)
