True TUC-67F User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
AVAILABLE AT:
TUC-67F
TUC-67F
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†H*HP Voltage Amps
NEMA
Config.
Cord Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TUC-67F 2 20.6
584
467
1/4
1709
321/4
820
293/4
756
3/4115/60/1 11.7 5-15P 7
2.13
400
182
†Depth does not include 1
" (26 mm) for rear bumpers and 1/4 " (7 mm) for front bumper.
*Height does not include 61/4
" (159 mm) for castors 6 " (153 mm) for optional legs.
12/05
True’s deep undercounter units are
designed with enduring quality that
protects your long term investment.
Designed using the highest
quality materials and components
to provide the user with colder
product temperatures, lower utility
costs, exceptional food safety and
the best value in today’s food
service marketplace.
Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser maintains
-10°F (-23.3°C). Ideally suited for
both frozen foods and ice cream.
All stainless steel front, top and
cabinet ends. Matching aluminum
finished back.
NSF approved, white aluminum
interior liner. 300 series stainless
floor with coved corners.
Foamed-in-place, high density
polyurethane insulation (CFC free).
Heavy duty PVC coated wire
shelves.
Automatic defrost system time-
initiated, time-terminated.
Deep Undercounter:
Solid Door Freezer
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

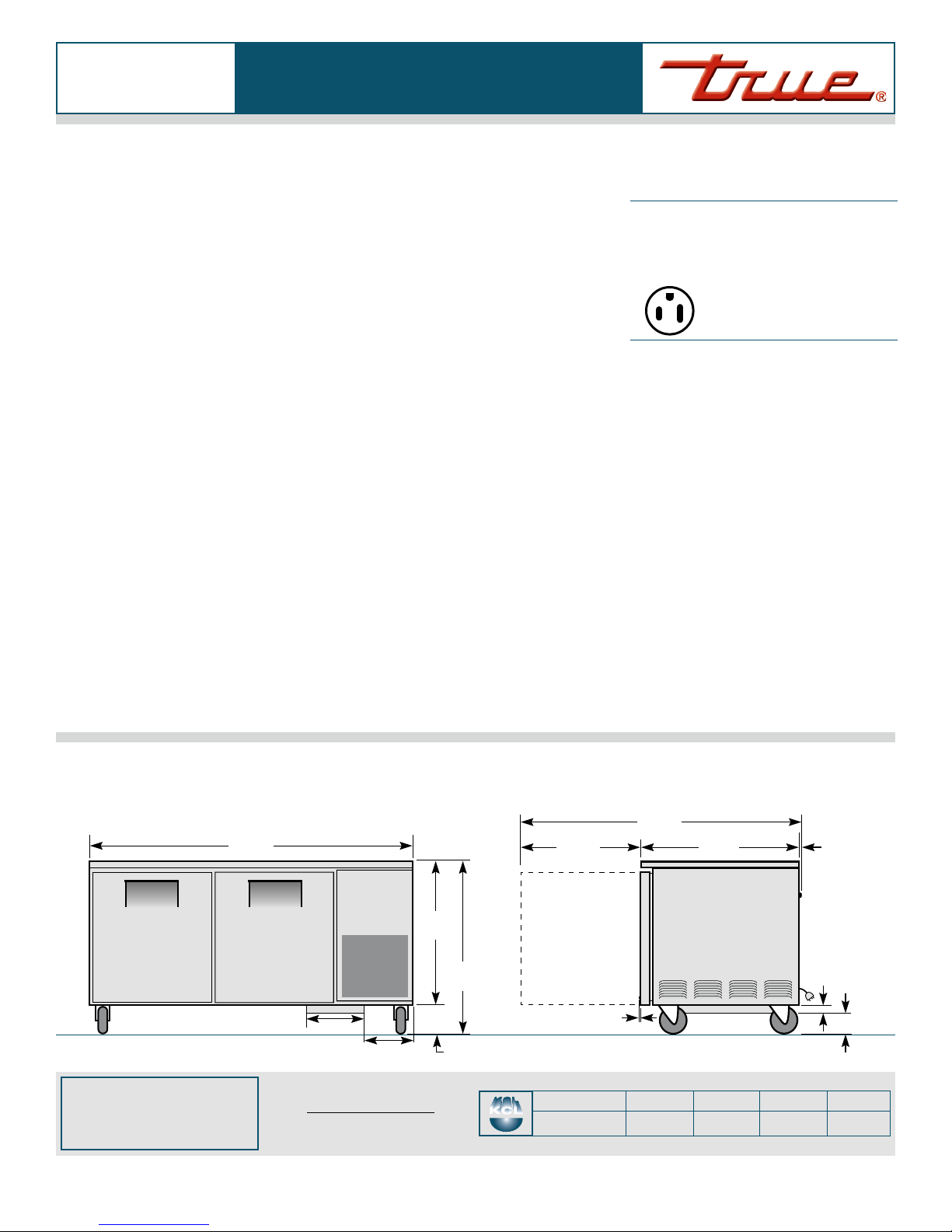

Model Elevation Right Plan 3D
PLAN VIEW
KCL
TUC-67F TFPY11E TFPY42S TFPY11P TFPY113
TUC-67F
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures,
lower utility costs, exceptional food
safety and the best value in today’s
food service marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
R404A refrigerant.
• Oversized, factory balanced
refrigeration system with guided
airflow to provide uniform product
temperatures.
• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains -10°F
(-23.3°C). Ideally suited for both frozen
foods and ice cream.
• Sealed, cast iron, self-lubricating
evaporator fan motors and larger fan
blades give True undercounter units
a more efficient low velocity, high
volume airflow design. This unique
design insures faster temperature
recovery and shorter run times in the
busiest of food service environments.
• Condensing unit is accessed from
behind front grill; slides out for easy
maintenance.
• Automatic defrost system time-
initiated, time-terminated.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and
cabinet ends. Matching aluminum
finished back.
• Interior - attractive, NSF approved,
white aluminum liner. 300 series
stainless floor with coved corners.
• Insulation - entire cabinet structure and
solid doors are foamed-in-place using
high density, CFC free, polyurethane
insulation.
• 5" (127 mm) diameter stem castors -
locks provided on front set. 36"
(915 mm) work surface height.
DOORS
• Stainless steel exterior with white
aluminum liner to match cabinet
interior.
• Each door fitted with 12" (305 mm)
long recessed handle that is foamed-
in-place with a sheet metal interlock to
insure permanent attachment.
• Doors swing within cabinet dimensions.
• Magnetic door gaskets of one piece
construction, removable without tools
for ease of cleaning.
SHELVING
• Four (4) adjustable, heavy duty PVC
coated wire shelves 271/2"L x 16"D
(699 mm x 407 mm). Four (4) chrome
plated shelf clips included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
ELECTRICAL
• Unit completely pre-wired at factory
and ready for final connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒ 21/2" (64 mm) diameter castors.
❒ Single utility shelf.
❒ Double utility shelf.
❒ 321/8" (816 mm) deep, 1/2" (13 mm)
thick, white polyethylene cutting
board. Requires “L” bracket.
❒ 321/8" (816 mm) deep 1/2" (13 mm)
thick, composite cutting board.
Requires “L” brackets.
❒ Half bun tray racks. Holds up to eleven
18"L x 26"D (458 mm x 661 mm) sheet
pans (sold separately).
❒ Heavy duty 16 gauge tops.
❒ Heavy duty package - 16 gauge tops,
20 gauge door, sides and back with
stainless interior.
❒ Remote cabinets (condensing unit
supplied by others), consult factory
technical service department for BTU
information.
115/60/1
NEMA-5-15R
5817/32"
(1487 mm)
2511/32"
(644 mm)
39/16"
(91 mm)
1/4"
(7 mm)
RIGHT VIEW
323/16"
(818 mm)
ELEVATION
123/4"
(324 mm) 81/4"
(210 mm)
671/4"
(1709 mm)
293/4"
(756 mm)
Deep Undercounter:
Solid Door Freezer
1"
(26 mm)
63/16"
(158 mm)
3515/16"
(913 mm)
25/8"
(67 mm)
