True TD-50-18 User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TD-50-18
TD-50-18
Model Lids
Capacity
12oz.
Btls.
12oz.
Cans
Bin
Dividers
Cabinet Dimensions
(inches)
(mm)
LD
†HHP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TD-50-18 2 161/2
cases
24
cases
349
5/8
1261
265/8
677
333/8
848
1/3
1/3
115/60/1
230-240/50/1
8.1
4.2
5-15P
▲
7
2.13
245
112
†Depth does not include 11/2" (39 mm) for cap catcher and 1" (26 mm) for rear bumpers. ▲Plug type varies by country.
Note: 12 oz. bottles refers to 12 oz. longneck bottles.
7/06
True’s horizontal bottle coolers are
designed with enduring quality
and value. Our commitment to
using the highest quality materials
and oversized refrigeration assures
colder product temperatures and
years of trouble free service.
Oversized, factory balanced,
refrigeration system holds
33°F to 38°F (.5°C to 3.3°C).
Forced-air cooling. Positively
guided airflow cools bottles on
top first. Evaporator coil virtually
runs length of cooler for balanced
temperatures throughout the
cabinet.
Exterior - all stainless steel
countertop and lids, heavy duty,
wear resistant laminated black
vinyl exterior front and sides,
matching black aluminum back.
Interior - long lasting, heavy duty
galvanized steel. NSF-7 approved
for pre-packaged and bottled
product.
Evaporator is epoxy coated
to eliminate the potential of
corrosion.
Entire cabinet structure foamed-
in-place using high density, CFC
free, polyurethane insulation.
Heavy duty, 10 mil thick pure
grade PVC coated adjustable bin
dividers.
Removable, bottle cap opener and
cap catcher.
Deep Well Horizontal Bottle Cooler:
Solid Lid
R

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

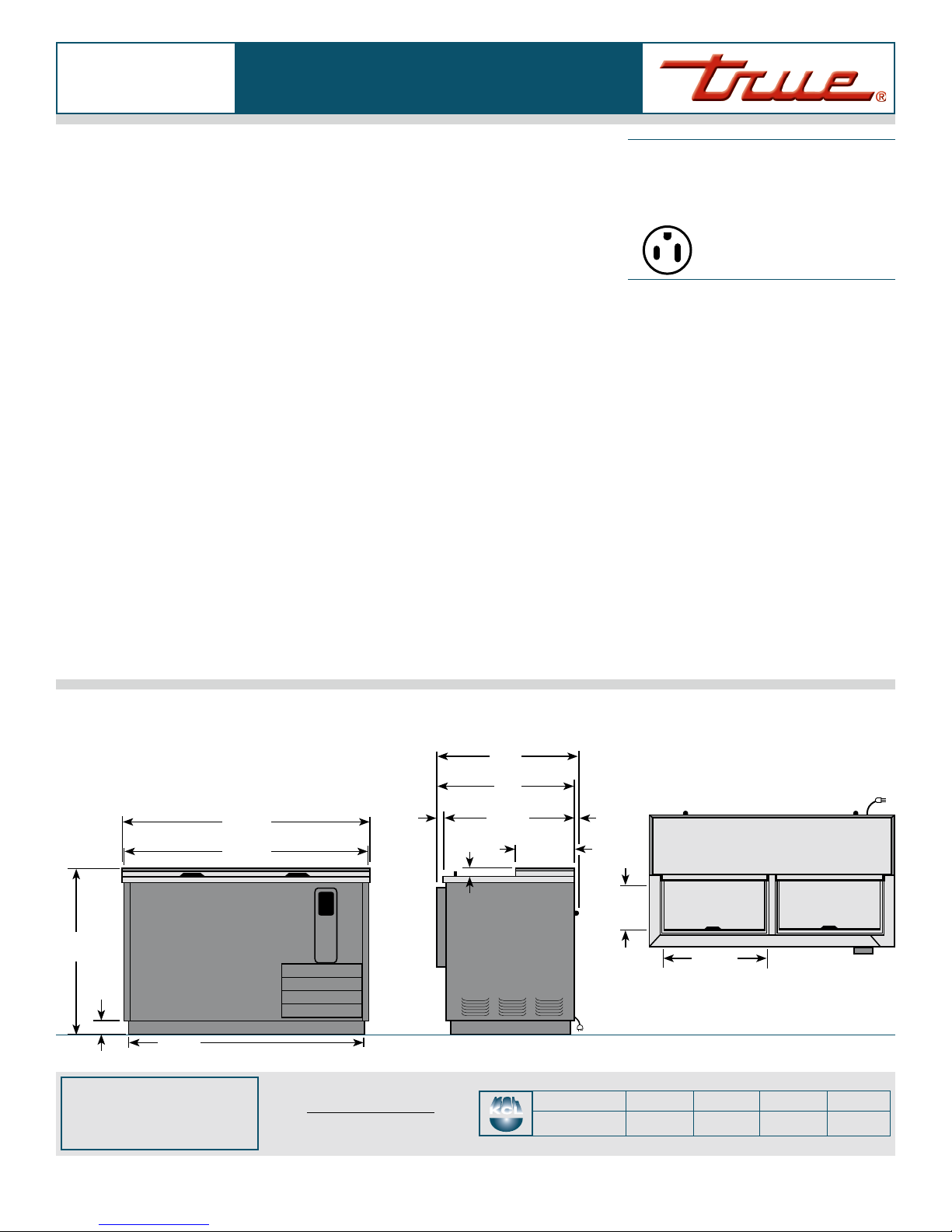

Model Elevation Right Plan 3D
PLAN VIEW
KCL
TD-50-18 TFKY03E TFKY01S TFKY03P TFKY033
TD-50-18
DESIGN
• True’s horizontal bottle coolers are
designed with enduring quality and
value. Our commitment to using
the highest quality materials and
oversized refrigeration assures colder
product temperatures and years of
trouble free service.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.
• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains
cabinet temperatures of 33°F to 38°F
(.5°C to 3.3°C).
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger
fan blades give True merchandisers
a more efficient low velocity, high
volume airflow design. This unique
design ensures colder standard
temperatures and faster recovery in
high use situations.
• Condensing unit accessed from
behind front grill, slides out for easy
maintenance.
• Forced-air cooling. Positively guided
airflow cools bottles on top first.
Evaporator coil virtually runs length
of cooler for balanced temperatures
throughout the cabinet.
CABINET CONSTRUCTION
• Exterior - all stainless steel countertop
and lids, heavy duty, wear resistant
laminated black vinyl front and sides,
matching black aluminum back.
• Interior - long lasting, heavy duty
galvanized steel.
• Insulation - entire cabinet structure is
foamed-in-place using high density,
CFC free, polyurethane insulation.
• Welded, heavy duty galvanized steel
base rail dipped in rust inhibiting
enamel paint for corrosion protection
inside and out.
• Removable, bottle cap opener and cap
catcher.
BIN DIVIDERS
• Three (3) heavy duty, 10 mil thick
pure grade PVC coated adjustable bin
dividers to maximize storage.
MODEL FEATURES
• Evaporator is epoxy coated to
eliminate the potential of corrosion.
• Listed under NSF-7 for the storage
and/or display of packaged or bottled
product.
ELECTRICAL
• Unit completely pre-wired at factory
and ready for final connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒230 - 240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 21/2" (64 mm) diameter castors.
❒ 3" (77 mm) diameter castors.
❒ Ratchet locks and handles. Requires
one per lid.
❒ Low temperature models hold 20°F
(-6.7°C) for applications with high
ambient temperatures. Designed for
full alchol beverages only [some low
alcohol products freeze below 32°F
(0°C)].
❒ Remote cabinets (condensing unit
supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant).
Consult factory technical service
department for BTU information.
115/60/1
NEMA-5-15R
ELEVATION
Deep Well Horizontal Bottle Cooler:
Solid Lid
RIGHT VIEW
495/8"
(1261 mm)
203/4"
(528 mm)
485/8"
(1236 mm)
47"
(1194 mm)
87/8"
(226 mm)
28"
(712 mm)
269/16"
(675 mm)
123/4"
(324 mm)
PLAN VIEW
1"
(27 mm)
29"
(737 mm)
17/16"
(37 mm)
333/8"
(848 mm)
31/16"
(78 mm)
2"
(51 mm)
