True TR2RPT-2G-2G User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
TR2RPT-2G-2G
TR2RPT-2G-2G
†Depth does not include 13/8" (35 mm) each side for door handles.
*Height does not include 5" (127 mm) for castors, 6" (153 mm) for optional legs, and 1" (26 mm) for system mechanical components.
4/07
Designed using the highest
quality materials and
components to provide the
user with colder product
temperatures, lower utility costs
and exceptional food safety.
Oversized, factory balanced,
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C) for the
best in food preservation.
300 series stainless steel exterior
and interior. The very finest
stainless with higher tensile
strength for fewer dents and
scratches.
Equipped with (1) interior kit
option per section, factory
installed. Four (4) different
interior kits available.
Positive seal self-closing doors
with 120° stay open feature.
Lifetime guaranteed door
hinges.
Lifetime guaranteed recessed
door handles.
Entire cabinet structure is
foamed-in-place using high
density, CFC free, polyurethane
insulation.
TR Series:
Pass Thru Glass Door Refrigerator
R
®
Model Doors
Capacity
(Cu. Ft.)
(liters)
Cabinet Dimensions
(inches)
(mm)
LD
†H*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TR2RPT-2G-2G 4 56
1586
513/8
1305
375/8
956
781/4
1988
3/4115/60/1 15.5 5-20P 9
2.74
740
336

STANDARD FEATURES
Model:
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

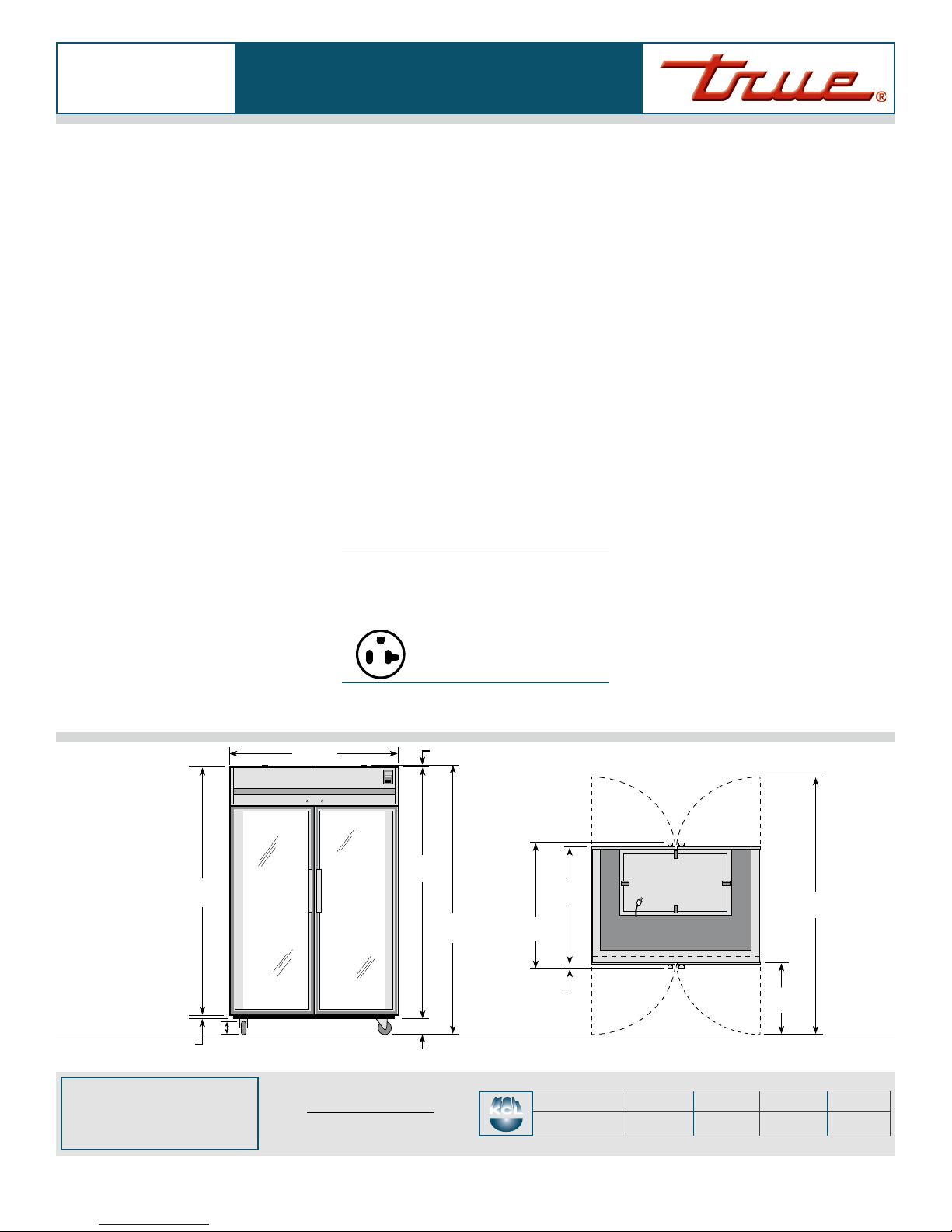

Model Elevation Right Plan 3D
PLAN VIEW
KCL
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
TR2RPT-2G-2G TFT016E TFT016S TFT016P TFT0163
TR2RPT-2G-2G
DESIGN
• True’s glass door pass-thru reach-in’s are
designed with enduring quality that protects
your long term investment.
• Designed using the highest quality materials
and components to provide the user with
colder product temperatures, lower utility costs
and exceptional food safety.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) 134A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser maintains cabinet temperatures of
33°F to 38°F (.5°C to 3.3°C) for the best in food
preservation.
• Sealed, cast iron, self-lubricating evaporator
fan motor(s) and larger fan blades give True
pass-thru reach-in’s a more efficient low
velocity, high volume airflow design. This
unique design ensures faster temperature
recovery and shorter run times in the busiest of
foodservice environments.
• Top mounted refrigeration system with
evaporator positioned out of food zone to
maximize capacity.
• Hot gas condensate for energy efficiency.
• Glass condensate pan to prevent electrolysis.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel front, sides,
rear and bottom.
• Interior - 300 series stainless steel liner and
floor.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC free,
polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with 4" (102 mm) diameter
stem castors - locks provided on front set.
DOORS
• ”Low-E”, double pane thermal glass assemblies
with extruded aluminum frames. Doors open
within cabinet dimension.
• Door locks standard.
• Each door fitted with 15" (381 mm) long
extruded aluminum handle.
• Positive seal self-closing doors with 120° stay
open feature. Lifetime guaranteed door
hinges.
• Magnetic door gaskets of one piece
construction, removable without tools for ease
of cleaning.
SHELVING
• One (1) factory installed, interior kit option
per full section. Four (4) different interior kits
available (see Kit Options). Pilasters and tray
slides are factory installed at no charge.
LIGHTING
• Fluorescent interior lighting. Doors utilize full-
length, patented, integrated door light (IDL)
system. Safety shielded.
MODEL FEATURES
• Exterior digital temperature display, available
with either °F or °C.
• Evaporator epoxy coated to eliminate the
potential of corrosion.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1 phase,
20 amp dedicated outlet. Cord and plug set
included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 6" (153 mm) stainless steel legs.
❒ Stainless steel rail skirt for use with legs (field
installed).
❒ Metal door handles (factory installed).
❒ Electronic temperature control (factory
installed).
❒ Correctional facilities options.
❒ Curb mountable units.
❒ Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical service
department for BTU information.
KIT OPTIONS
❒Kit #1: Nine (9) sets of #1 type tray slides and
pilasters (factory installed), bottom support of
one (1) 18"L x 26"D (458 mm x 661 mm) pan or
two (2) 14"L x 18"D (356 mm x 458 mm) pans.
❒Kit #2: One (1) set half-section #2 steel rod
tray slides and pilasters (factory installed), rim
support of one (1) 18"L x 26"D (458 mm x
661 mm) pan.
❒Kit #3: Six (6) sets of universal type tray slides
and pilasters (factory installed), bottom
support of one (1) 18"L x 26"D (458 mm x
661 mm) pan, two (2) 14"L x 18"D (356 mm x
458 mm) pans or two (2) 12"L x 20"D (305 mm
x 508 mm) pans.
❒Kit #4: Three (3) chrome shelves 2313/16"L x
2813/16"D (555 mm x 732 mm). Four (4) shelf
supports included per shelf (factory installed);
adjustable on 6" (153 mm) increments.
Optional wall mounted shelf support pilasters
(factory installed) with four (4) shelf clips per
shelf available; adjustable on 1/2" (13 mm)
increments.
❒Additional kit option components available
individually. Upcharge applies.
TR Series:
Pass Thru Glass Door Refrigerator
115/60/1
NEMA-5-20R
4"
(102 mm) ELEVATION
783/16"
(1986 mm)
843/16"
(2139 mm)
5"
(127 mm)
1"
(26 mm)
PLAN VIEW
77"
(1956 mm)
13/16"
(31 mm)
239/16"
(599 mm)
843/8"
(2144 mm)
513/8"
(1305 mm)
13/8"
(35 mm)
405/16"
(1024 mm)
379/16"
(955 mm)
