TRUELOOK TRU23019-12D3 User manual

1080p IR PTZ Camera
with Strobes and Sirens
Installation Manual
v with Strobes and Sirens Installation Manual1080p IR PTZ Camera with Strobes and Sirens Installation Manual

01
For Terms & Conditions as well as Warranty
information, visit truelook.com/terms-conditions.
Your purchase of this TrueLook system includes customer and
technical support. If you have any questions regarding the use or
configuration of this equipment and software, please don’t
hesitate to contact us.
Phone [phone]
Email [email protected]
Office 575 4th Street E, Winston Salem, NC 27101
24/7 Support
Use this QR code or visit truelook.com/install to access:
1An admin guide to walk you through creating your
time-lapses and other administrative settings.
2Video demonstrations of installation
procedures.
3A digital PDF of this install guide.
4Download links for the TrueLook mobile app.
5Other helpful resources.
Online Resources
SUPPORT
1080p IR PTZ Camera with Strobes and Sirens Installation Manual

02
Camera
& Siren System
Control Box Rugged Hard Case

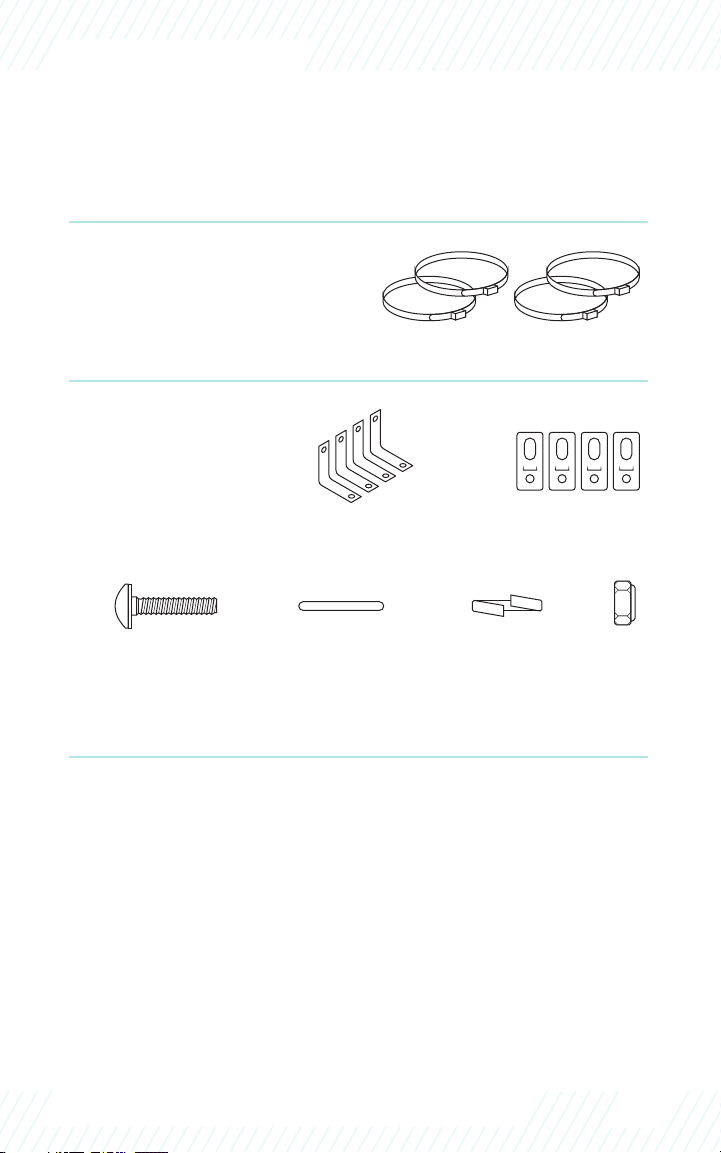

Hardware Packing List
GETTING STARTED
1080p IR PTZ Camera with Strobes and Sirens Installation Manual

03
Wall Mounting
Hardware
Solar units will also include panel, battery, and battery housing.
These are shipped separately.
Hardware Packing List
L Brackets (4 pcs)
GETTING STARTED
Mounting Feet (4 pcs)
Pole Mounting
Hardware
1080p IR PTZ Camera with Strobes and Sirens Installation Manual
Screws Lock WashersFlat Washers Nuts

04
Preparing for Installation
GETTING STARTED
1080p IR PTZ Camera with Strobes and Sirens Installation Manual

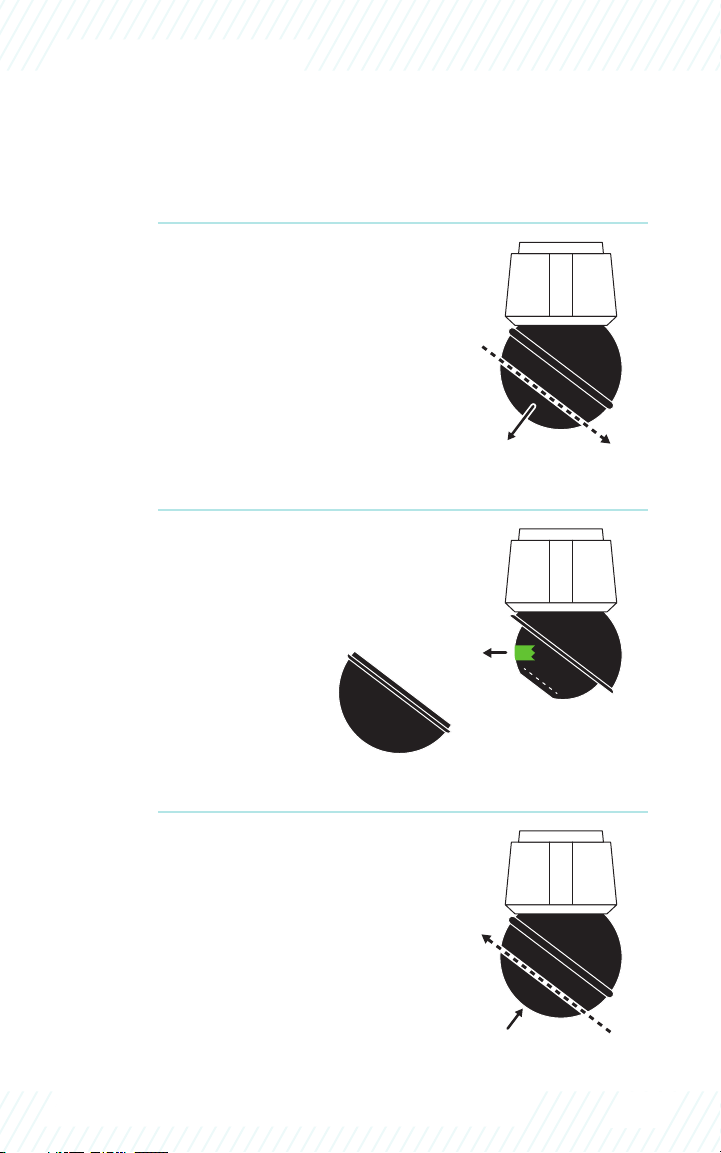

Remove plastic dome that
covers camera by twisting
dome to unalign notches
and pulling off.
STEP 01
Twist
Remove
Remove
Remove tape from camera and
rotate camera to sit in center.
STEP 02
Reattach plastic dome by
pushing dome back on and
twisting to align notches.
STEP 03
Twist
Replace

05
Powering the Camera
System to Verify Operation
GETTING STARTED
Before getting started, power your system to verify
proper operation before installation. It is easier to
troubleshoot an issue before it’s installed in its
final location.
You may log in to your camera at app.truelook.cloud
using your unique username and password located on
the back cover of this guide.
THIS EQUIPMENT CONTAINS FLASHING LIGHTS, WHICH MAY
INDUCE EPILEPTIC SEIZURES IN AT-RISK INDIVIDUALS.
!
1080p IR PTZ Camera with Strobes and Sirens Installation Manual

06
MOUNTING
Pole Mounting
Camera

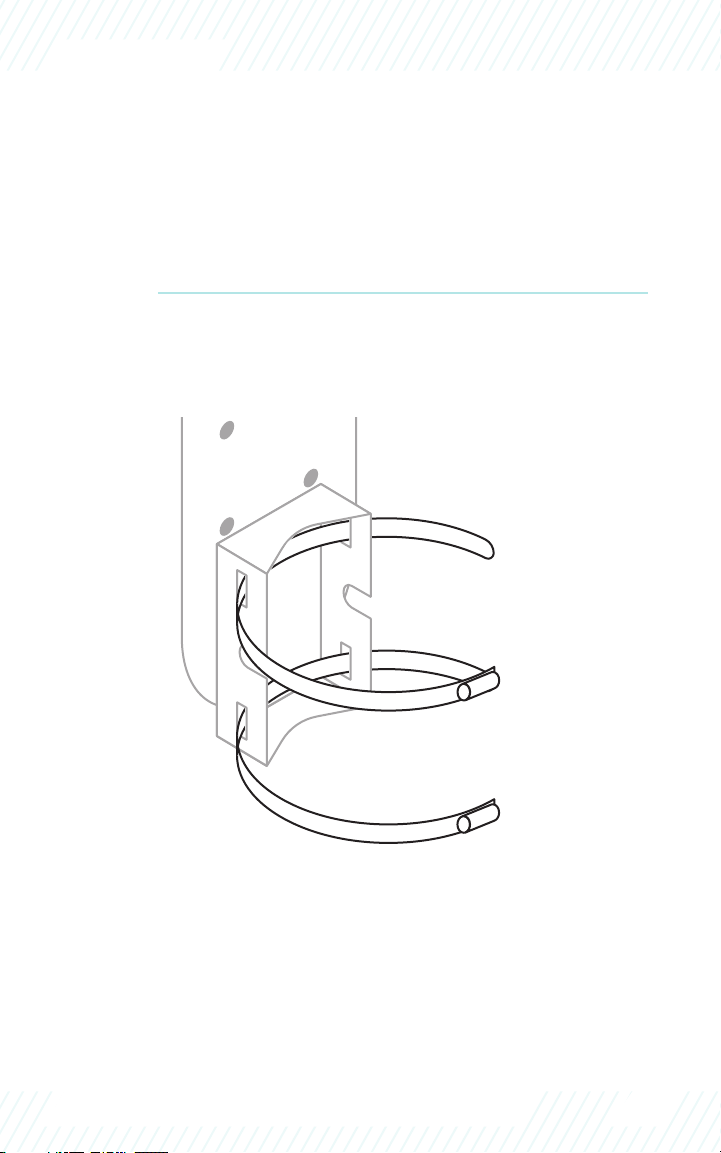

Thread steel straps through top and bottom of pole
mounting base on back of steel plate.
STEP 01
1080p IR PTZ Camera with Strobes and Sirens Installation Manual

07
MOUNTING
Pole Mounting

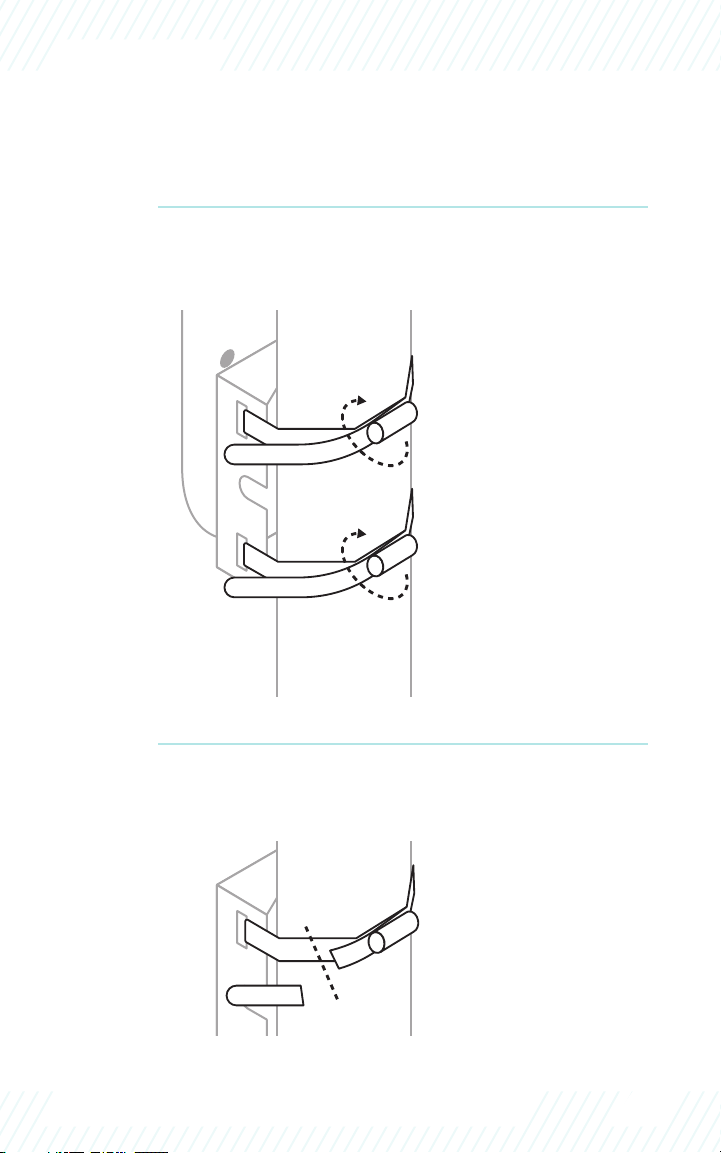

Tighten each strap around pole using drill with 5/16
hex head driver bit (not included).
STEP 02
Trim steel straps to desired length using tin snips
(not included).
STEP 03
1080p IR PTZ Camera with Strobes and Sirens Installation Manual

08
MOUNTING
Pole Mounting
Attach safety tether hanging from camera pendant to
hook on top of camera.
STEP 04
Plug connector hanging from camera pendant into top
of camera. Connector should snap firmly into place.
STEP 05
1080p IR PTZ Camera with Strobes and Sirens Installation Manual

09
MOUNTING
Pole Mounting
Push camera up into pendant housing and rotate a quarter
turn until it snaps into place, aligning with screw holes.
STEP 06
Secure camera to pendant housing using T30 Torx
screwdriver (not included).
STEP 07
Remove protective plastic from camera.
STEP 08
1080p IR PTZ Camera with Strobes and Sirens Installation Manual

10
MOUNTING
Pole Mounting
Control Box
Thread steel straps through top and bottom of pole
mounting hardware on top and bottom of control box.
STEP 01
For large diameter poles
For small diameter poles
1080p IR PTZ Camera with Strobes and Sirens Installation Manual

11
MOUNTING

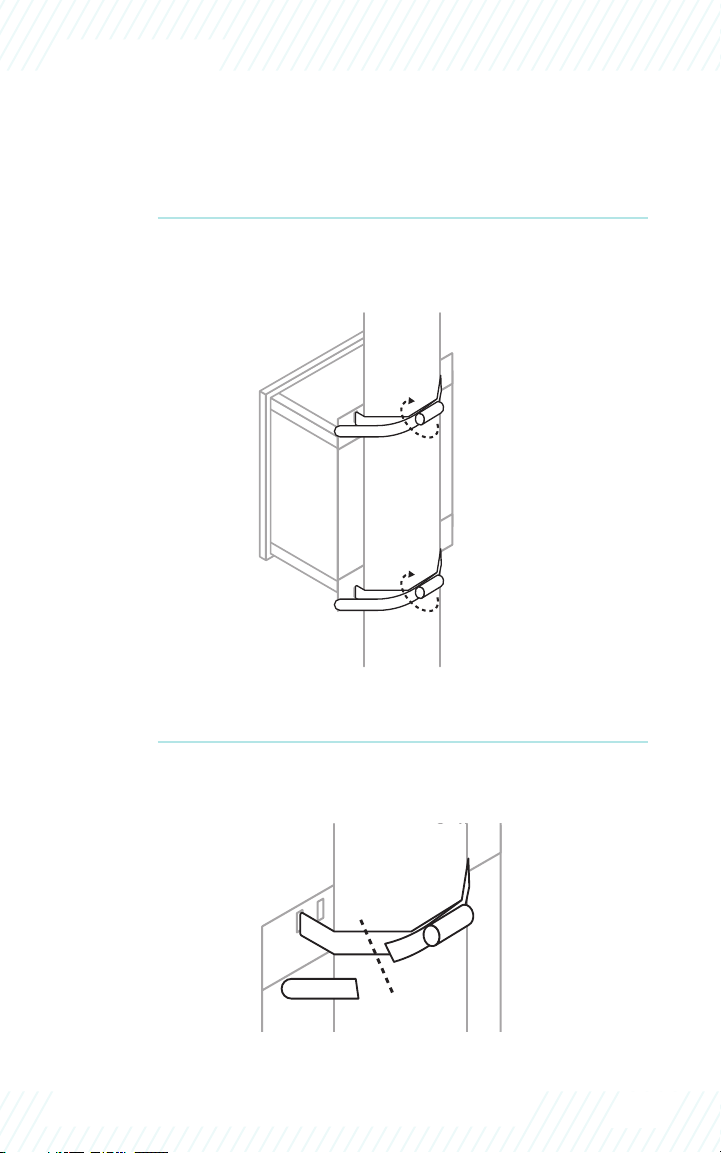

Tighten each strap around pole using drill with 5/16 hex
head driver bit.
STEP 02
Trim steel straps to desired length using tin snips.
STEP 03
Pole Mounting
1080p IR PTZ Camera with Strobes and Sirens Installation Manual

Wall Mounting
Camera

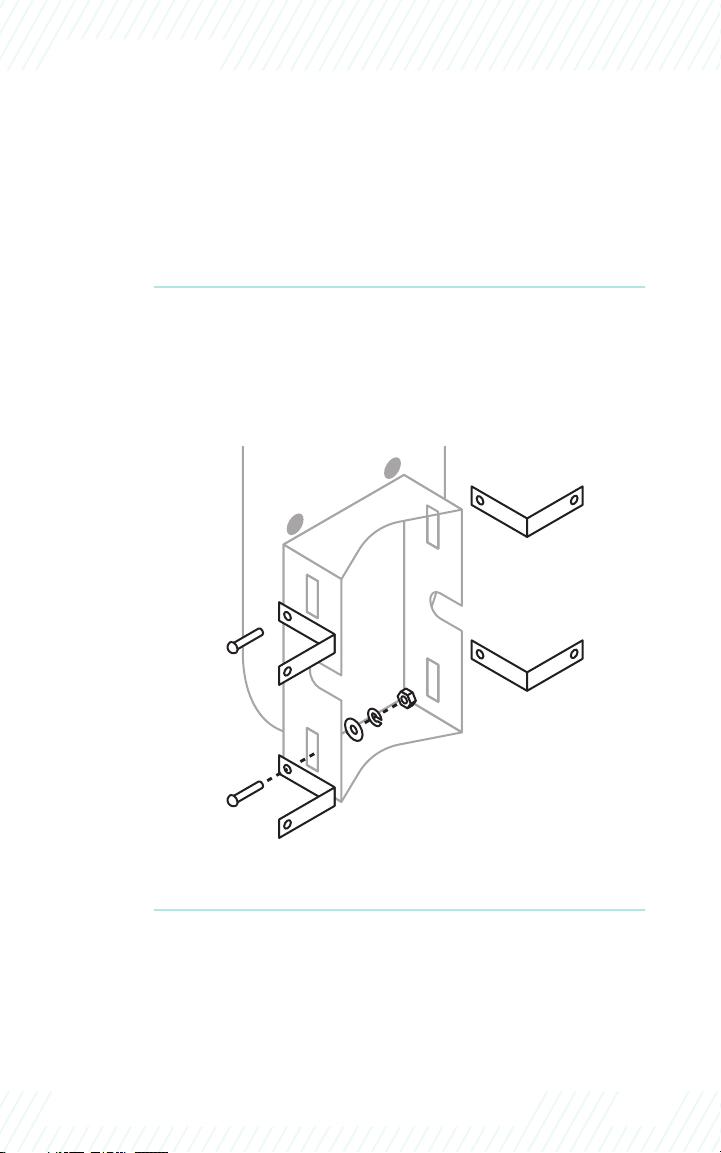

Attach wall mounting hardware to sides of pole mount
with screw, washer, lock washer, and nut, using drill with
Phillips #2 bit (not included) on screws and pliers (not
included) to hold nuts tight.
STEP 01
12
MOUNTING
1080p IR PTZ Camera with Strobes and Sirens Installation Manual
STEP 02
Using hardware appropriate for your mounting surface,
attach mounting base to wall.

13
MOUNTING
Wall Mounting

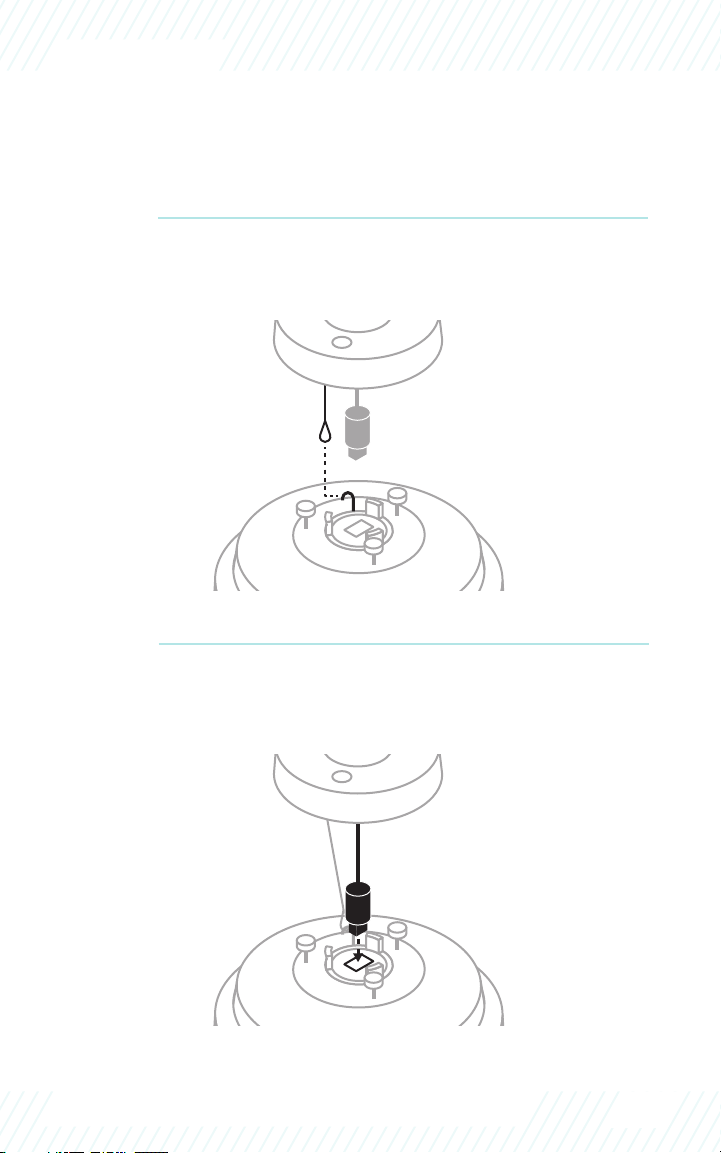

Attach safety tether hanging from camera pendant to
hook on top of camera.
STEP 03
Plug connector hanging from camera pendant into top
of camera. Connector should snap firmly into place.
STEP 04
1080p IR PTZ Camera with Strobes and Sirens Installation Manual

Wall Mounting
14
MOUNTING
1080p IR PTZ Camera with Strobes and Sirens Installation Manual
Push camera up into pendant housing and rotate a quarter
turn until it snaps into place, aligning with screw holes.
STEP 05
Secure camera to pendant housing using T30 Torx
screwdriver (not included).
STEP 06
Remove protective plastic from camera.
STEP 07

Wall Mounting
Control Box
Remove pole mounting hardware from back of control
box using drill with Phillips #2 bit.
STEP 01
15
MOUNTING
1080p IR PTZ Camera with Strobes and Sirens Installation Manual

16
MOUNTING
Wall Mounting
STEP 03
Using hardware appropriate for your mounting surface,
attach control box to wall.

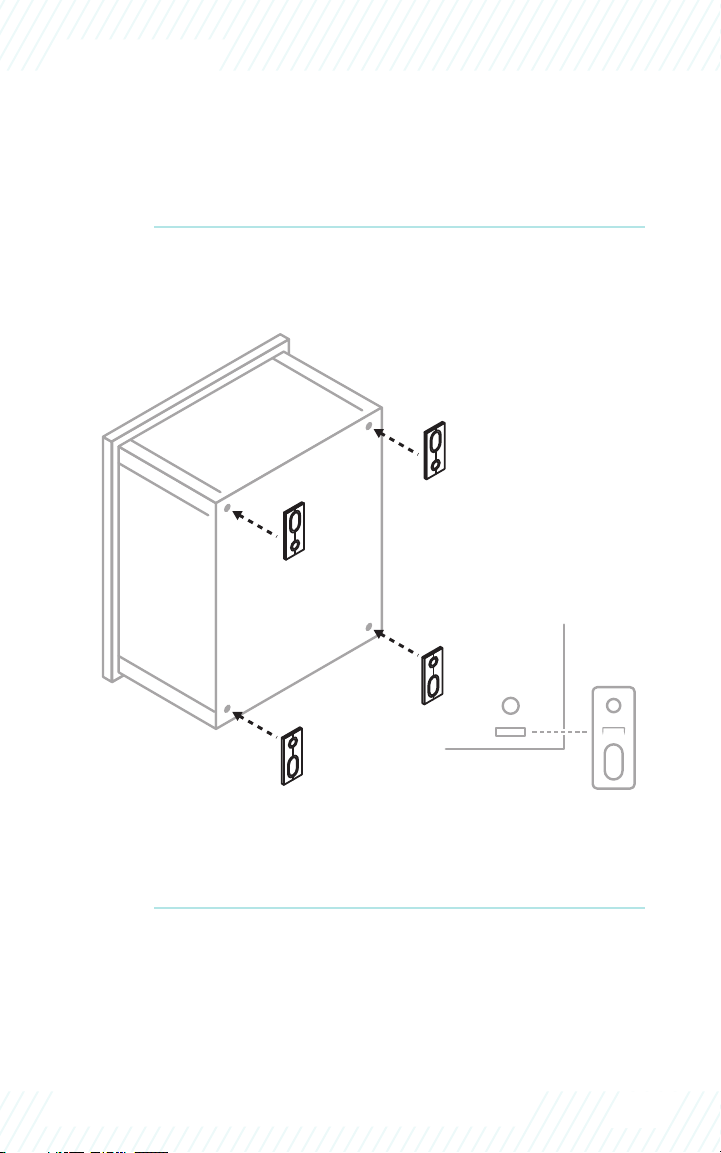

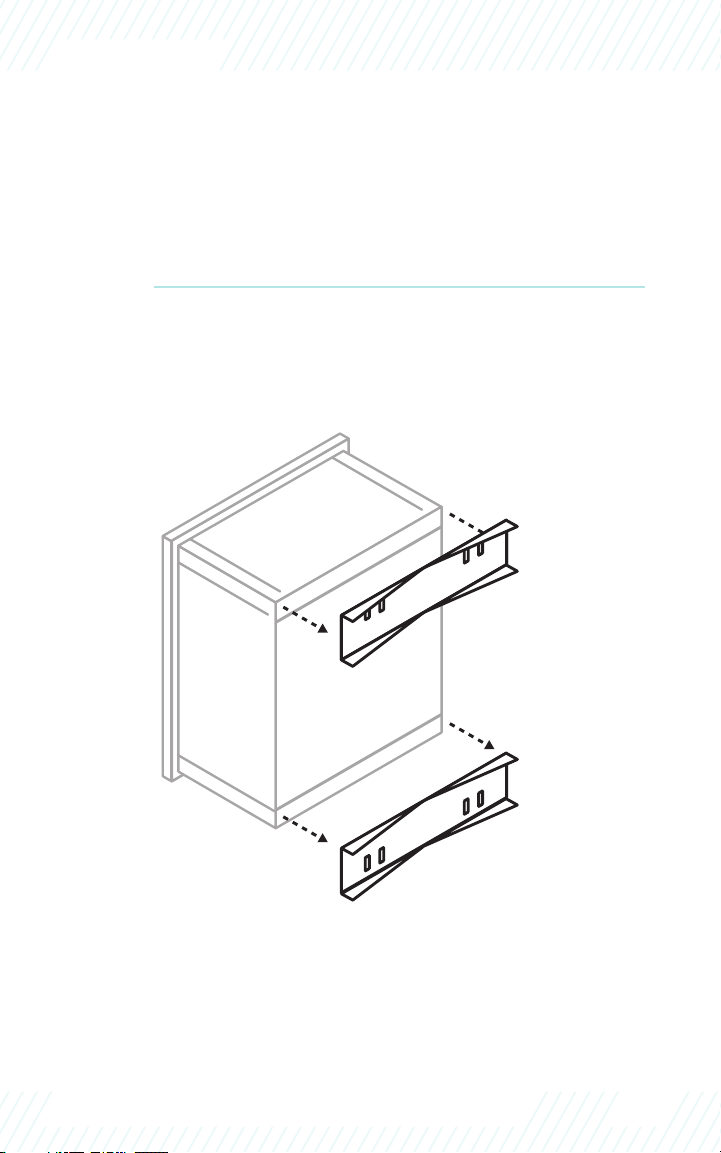

Attach mounting feet to back of control box using same
screws and drill with Phillips #2 bit.
STEP 02
1080p IR PTZ Camera with Strobes and Sirens Installation Manual
Tab on mounting
foot nests within
slot on control box.

17
CONNECT
Connecting & Powering

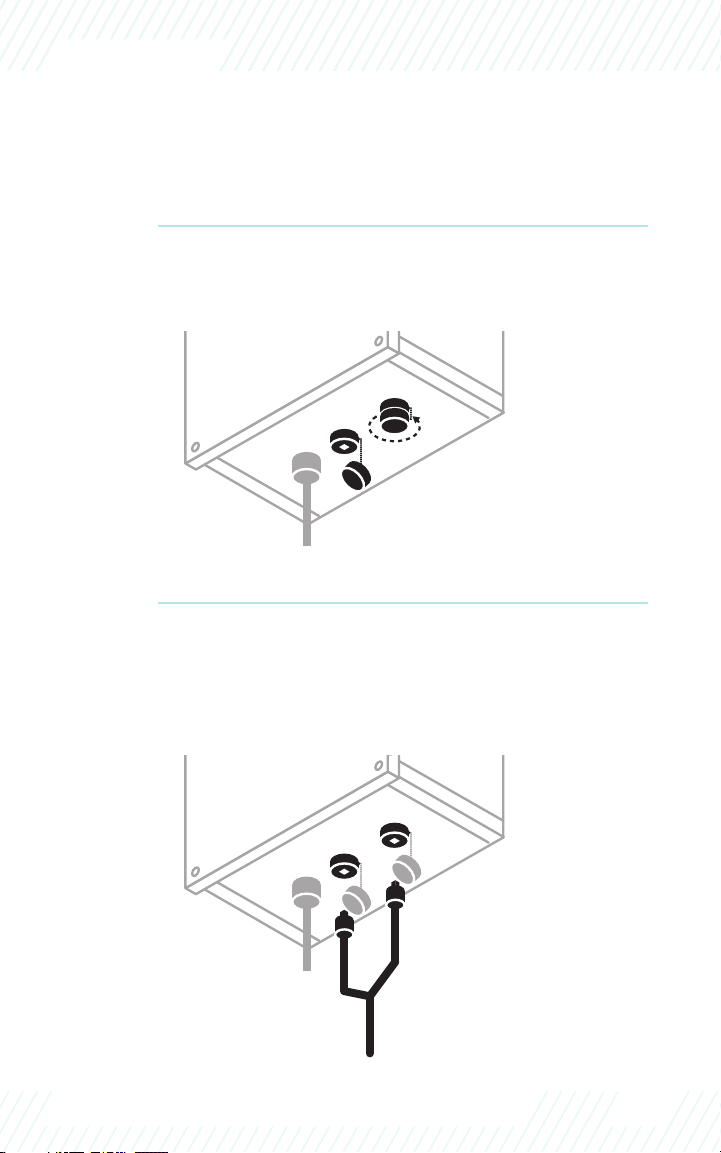

Twist protective plug caps off bottom of control box.
The caps should hang freely.
STEP 01
Connect camera and siren to control box by plugging in
both connectors of braided cable coming from camera.
Connectors go into either socket and should snap firmly in place.
STEP 02
1080p IR PTZ Camera with Strobes and Sirens Installation Manual

18
Connect control box to power.
For 110v: Plug control box into standard 110v power outlet.
Your camera will be online and ready to use within 10 minutes.
For Solar: At this point, please proceed to the Solar Module
Installation Manual and follow the instructions through the
end of the guide.
STEP 04

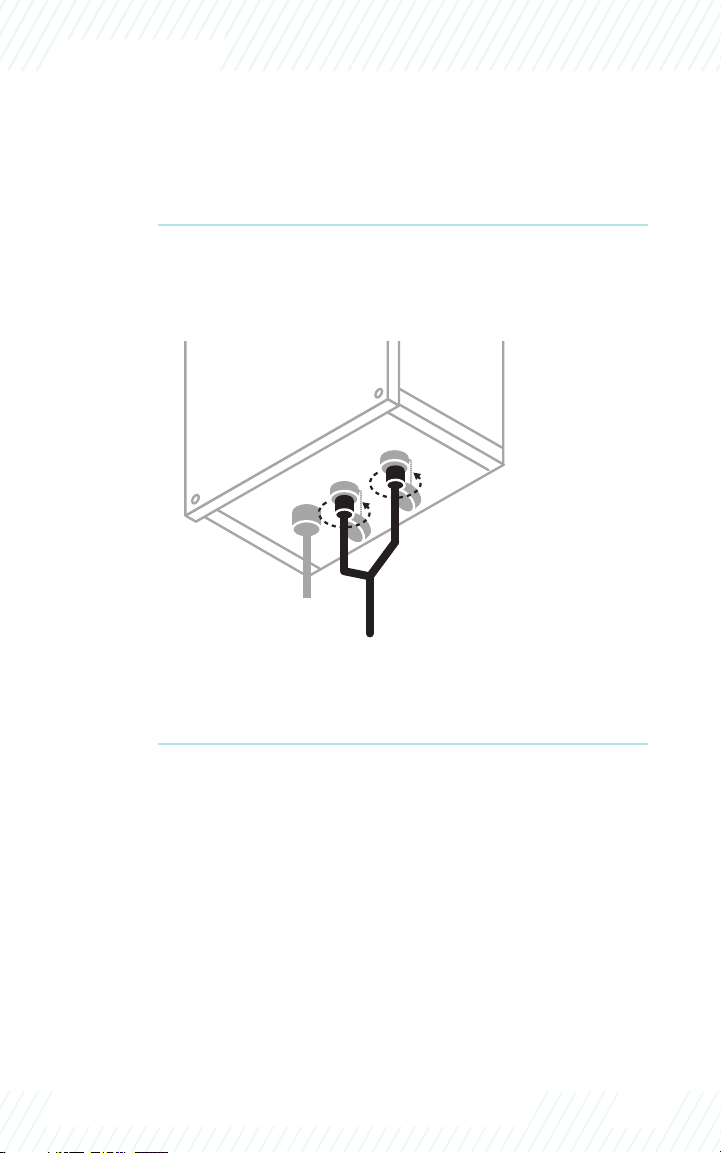

Twist protective plug caps on connectors up into bottom
of control box. This will create a watertight seal.
STEP 03
CONNECT
Connecting & Powering
1080p IR PTZ Camera with Strobes and Sirens Installation Manual

19
One Last Step!
Did you know that our support team offers a free
installation review?
Once you’re done, simply snap a few pictures and email them to
[email protected]. If we notice anything that we can help
with, we’ll reach out. This will also help our support team quickly
view your setup if you run into equipment issues at any point in
the future.
THE EMAIL
For the most efficient response from our team,
include the following in your email:
1Company Name
2Project Name
3Contact person for installation issues
4The following photographs:
a) Your whole TrueLook solution: the camera, what it’s
mounted to, and any accessories (such as solar panels)
b) Close-ups of mounting
c) Close-ups of connections
d) Inside control box, if applicable (this is especially helpful for
solar panels, solar skids, and mobile trailers)
1080p IR PTZ Camera with Strobes and Sirens Installation Manual
